SS3 Add-On Fog Lamp Kit for 2019-2025 Toyota RAV4

Diode Dynamics  |  SKU : DD8819  |  Code-barres: 00195995148520
Prix habituel $ 584.00 CAD
Choose Your Power Level
Choose Your Optic and Color
Fitment & Install Notes
Fits
Fits: 2019-2022 Toyota RAV4
Free shipping Orders $500+
Canadian orders No duties / brokerage
Authorized Diode Dynamics Dealer
Returns 30-day easy

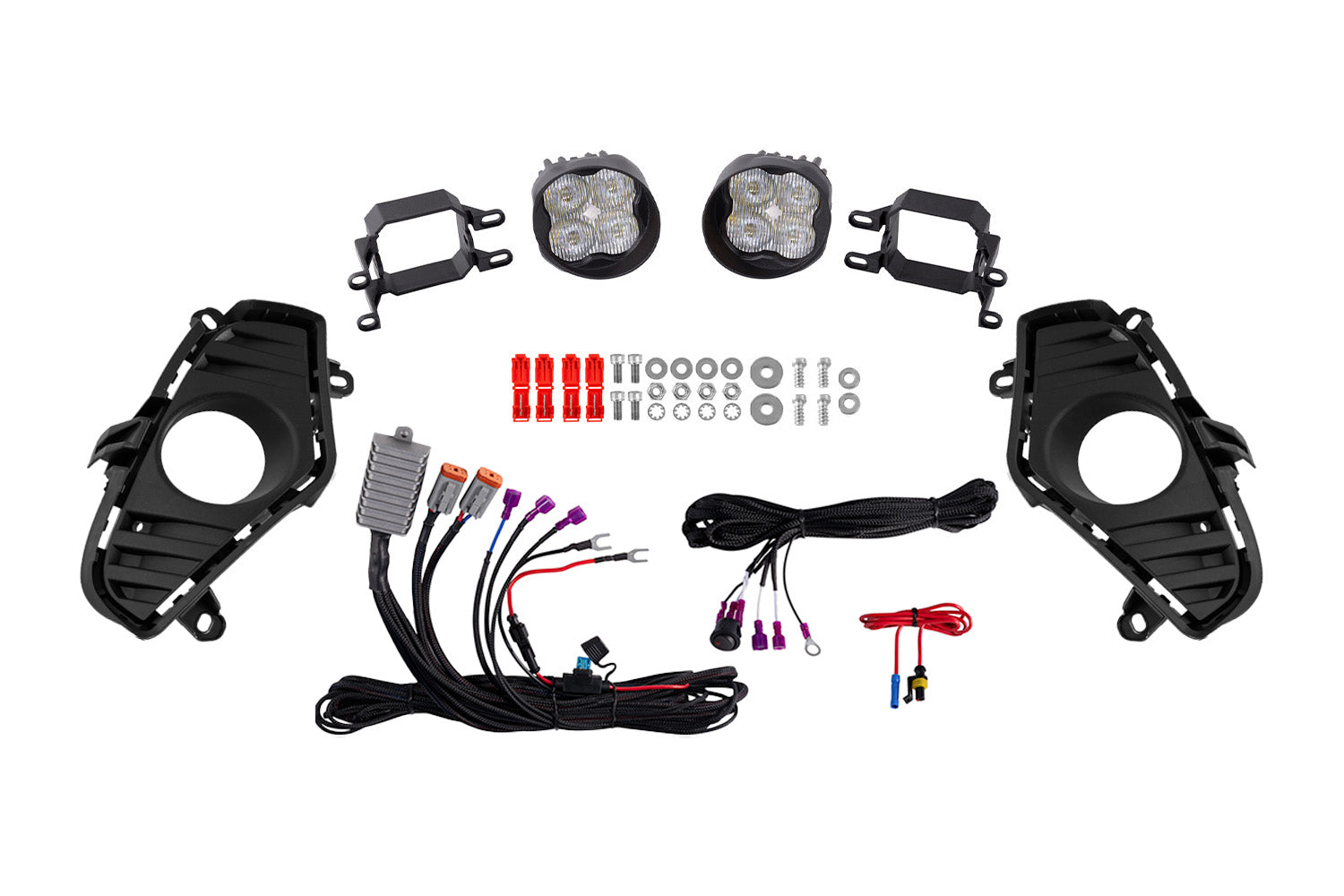

What's in the box 4 ITEMS
Two (2) SS3 LED Pods
Two (2) Fog Bezels
One (1) Add-On Fog Harness
Hardware Kit
Optical
Lumens 1520
Color temperature 6000K
Beam spread Fog 80°x8°
Power 14W
Operating voltage 9-16V
Grade Performance
Intensity 10 600 cd
LED emitter Luxeon Z ES
Driver features Constant Current
Construction
Housing material Aluminum
Lens material Polycarbonate
Connector Deutsch DT Input
Cooling Passive, Pin-Fin heatsink
Polarity Polarity Specific
Terminal type Pin
Base color Black
Bracket color Black
Install
Mounting hardware Included
Compliance
IP rating IP69K Waterproof High Pressure
Operating temp -40C to 85C (-40F to 185F)
SAE/DOT SAE J583 Foglamp Beam Pattern
Country of origin USA
Street legal Yes
SAE/DOT Compliant pattern available
Description

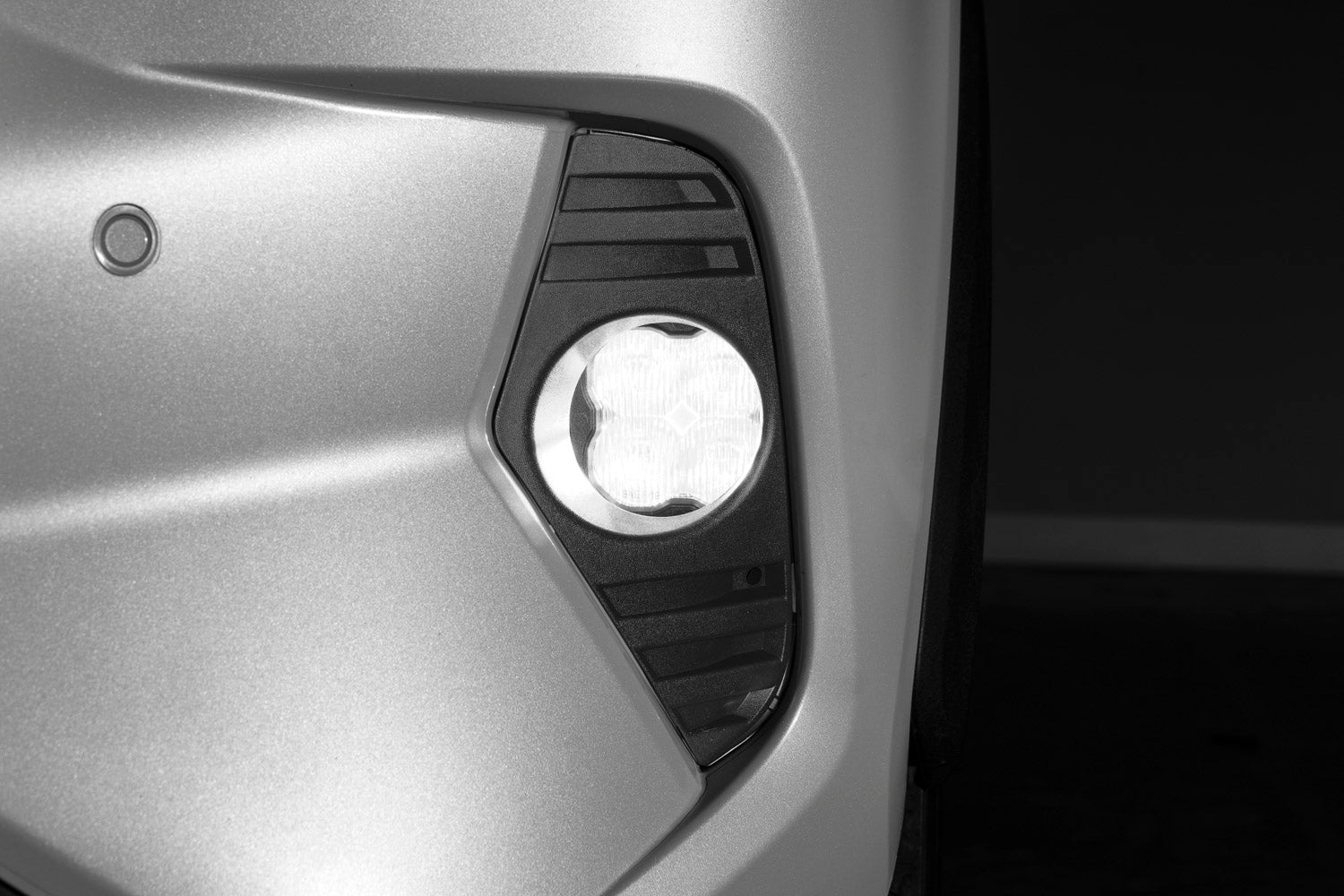

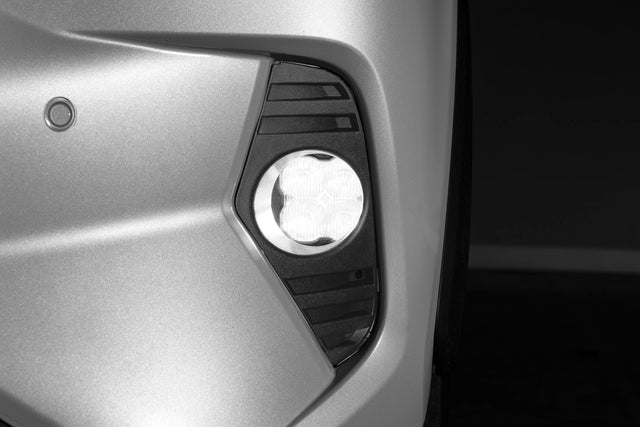

The Diode Dynamics SS3 Add-On Fog Lamp Kit for the Toyota RAV4 is a direct-fit lighting upgrade that fills the factory fog lamp location with serious, purpose-built illumination. Whether you're navigating rain-slicked highways, dusty back roads, or low-visibility conditions after dark, these lights deliver the forward coverage your RAV4 was missing from the factory.

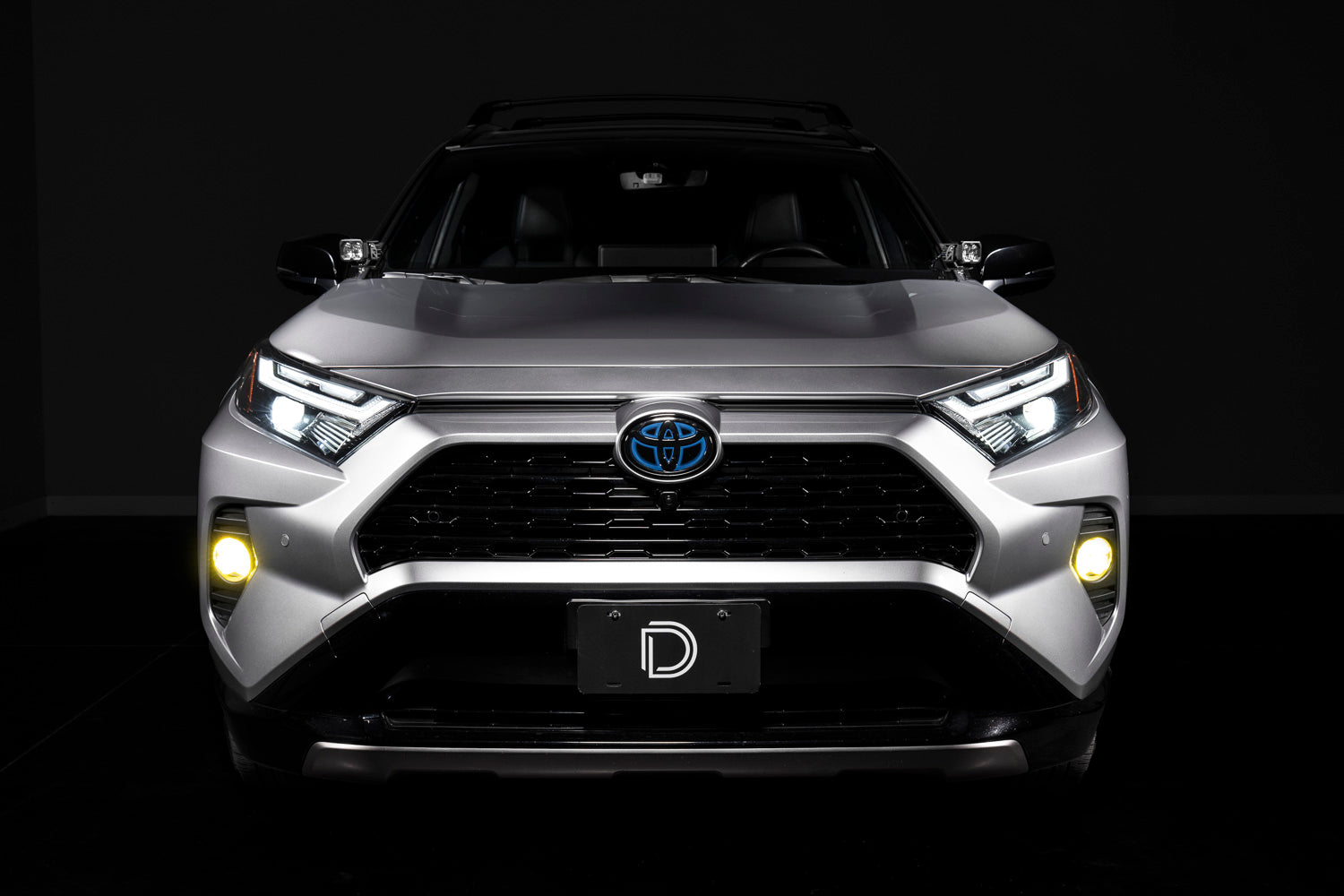

You choose the output level and beam pattern that fits your driving needs — available in Sport, Pro, and Max power levels, plus White SAE Fog and Yellow SAE Fog beam options. The SAE Fog patterns cast a wide, low-cut beam that reduces glare and improves road surface visibility in adverse weather, while the higher-output Sport, Pro, and Max tiers give you progressively more light for general driving and off-road use. Yellow is a popular choice for rain and snow, while white suits everyday all-weather driving.

Installation is straightforward thanks to a vehicle-specific mounting bracket designed to integrate cleanly with the RAV4's existing fog lamp housing. The SS3 series is built to handle the elements, making this kit a reliable long-term upgrade for commuters and weekend adventurers alike.

$ 584.00 CAD● In stock
