SS3 SAE Type SV2 Fog Light Kit

Diode Dynamics  |  SKU: DD7120  |  Barcode: 00691025934649
Regular price $ 556.00 CAD
Choose Your Power Level

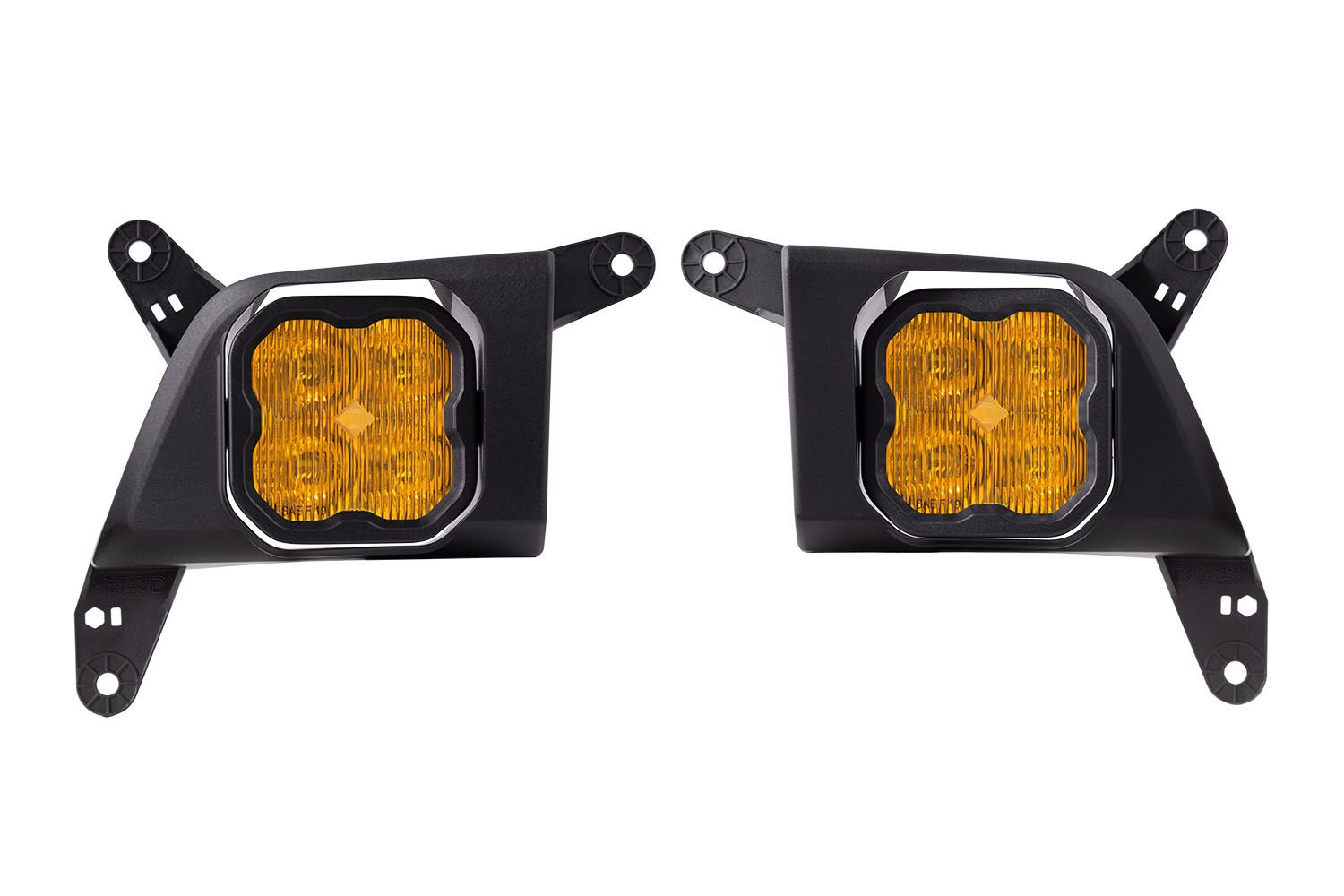

Choose Your Optic and Color
Fitment & Install Notes
Fits

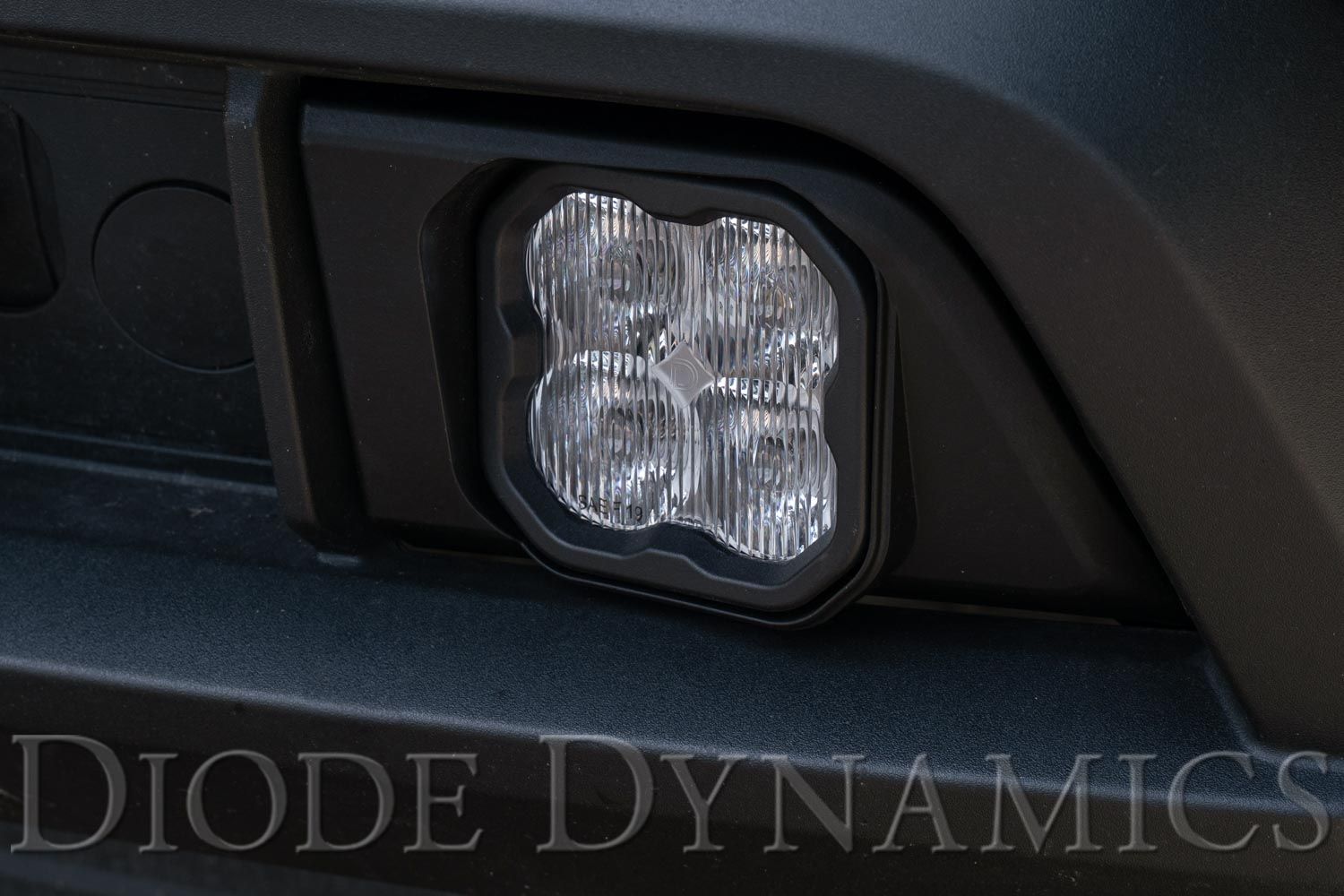

Fits: 2019-2021 Chevrolet Silverado 1500, 2020-2023 Chevrolet Silverado 2500 HD, 2020-2023 Chevrolet Silverado 3500 HD
Free shipping Orders $500+
Canadian orders No duties / brokerage
Authorized Diode Dynamics Dealer
Returns 30-day easy
What's in the box 5 ITEMS

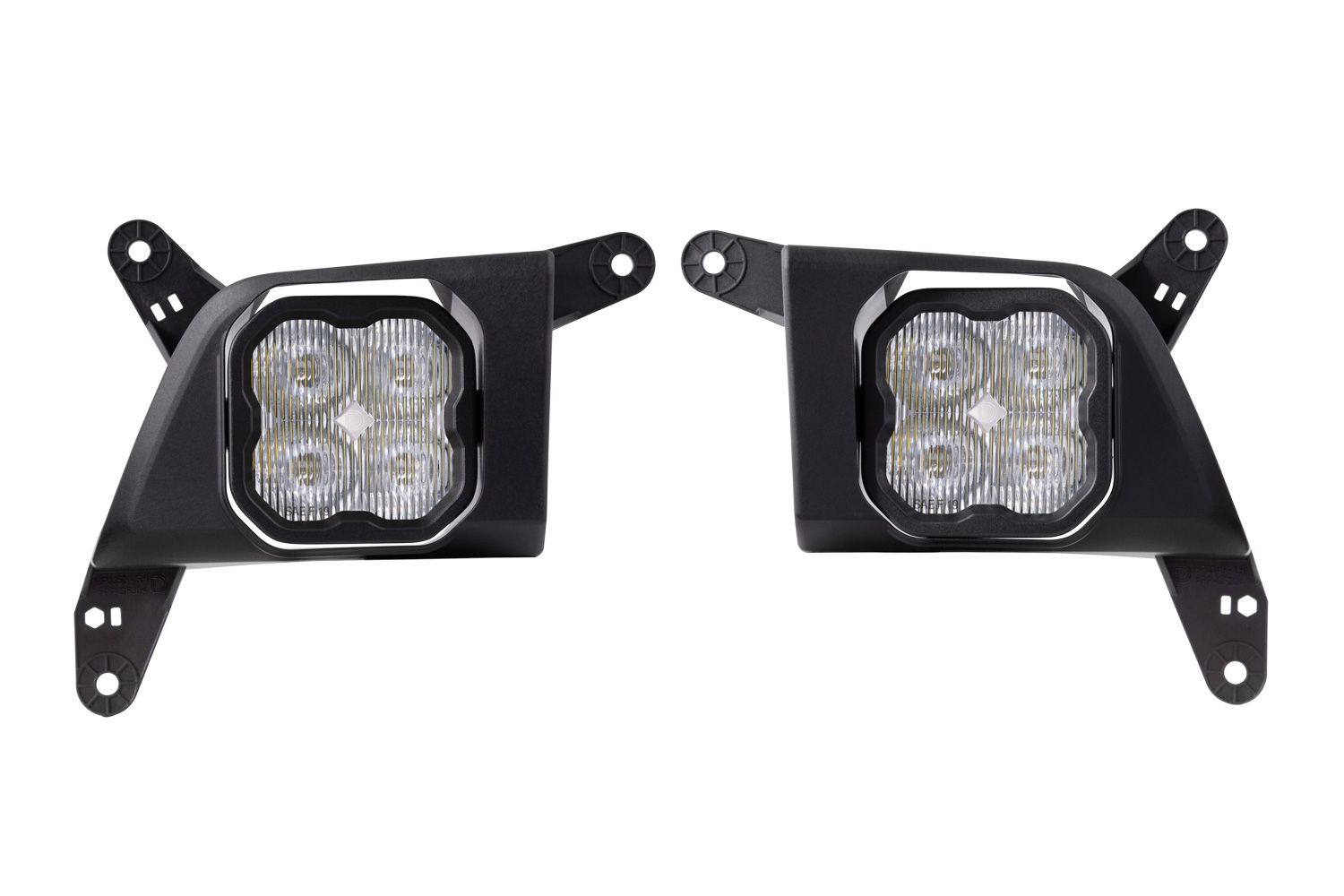

Two (2) SS3 3” Standard LED Pods
Two (2) Type SV2 brackets
Two (2) H11 4-Pin DT backlight tap wire kit
Mounting hardware
Mounting guide
Optical
Lumens 1520
Color temperature 6000K
Beam spread Fog 80°x8°
Power 14W
Operating voltage 9-30V
Grade Performance
Intensity 10 600 cd
LED emitter Luxeon Z ES
Driver features Constant Current
Construction
Housing material Aluminum
Lens material Polycarbonate
Connector Deutsch DT Input
Cooling Passive, Pin-Fin heatsink
Polarity Polarity Specific
Terminal type Pin
Base color Black
Bracket color Black
Install
Mounting hardware Included
Compliance
IP rating IP69K Waterproof High Pressure
Operating temp -40C to 85C (-40F to 185F)
SAE/DOT SAE J583 Foglamp Beam Pattern
Country of origin USA
Street legal Yes
SAE/DOT Compliant pattern available
Features & benefits
Advanced TIR optics provide high efficiency and focus
SAE-compliant road-legal output
Includes one-piece molded bezel, for factory-style appearance
Plug and play, no modification needed
Durable powdercoated aluminum housing
Engineered and Assembled in USA
Description

The Diode Dynamics SS3 SAE Type SV2 Fog Light Kit is a direct-fit LED fog light upgrade for the Chevrolet Silverado, purpose-built to replace your factory fog lights with significantly improved output and a clean, integrated look. Available in Sport, Pro, and Max output levels, plus your choice of White SAE Fog or Yellow SAE Fog beam pattern, you can match the light to how you actually drive — whether that's everyday low-visibility commuting, foul-weather work runs, or loaded hauls down unlit highways.

The SAE-compliant fog beam pattern is engineered to throw a wide, low spread of light that cuts through rain, snow, and fog without blinding oncoming drivers — exactly what a proper fog light should do. Yellow output is a popular choice for harsh weather conditions, while white delivers a crisp, modern appearance that pairs well with upgraded headlights.

A vehicle-specific mounting bracket means no drilling or fabrication — the kit installs directly into your Silverado's existing fog light location for a factory-finished result. If you want fog lights that actually perform, this is a straightforward, no-compromise replacement.

Documentation
