Stage Series SS3 Backlit Ditch Light Kit for 2021-2025 Ford Bronco

Diode Dynamics  |  SKU: DD7184  |  Barcode: 691025930849
Regular price $ 417.00 CAD
Choose Your Power Level
Choose Your Optic and Color
Fitment & Install Notes
Fits
Fits: 2021-2025 Ford Bronco
Free shipping Orders $500+
Canadian orders No duties / brokerage
Authorized Diode Dynamics Dealer
Returns 30-day easy

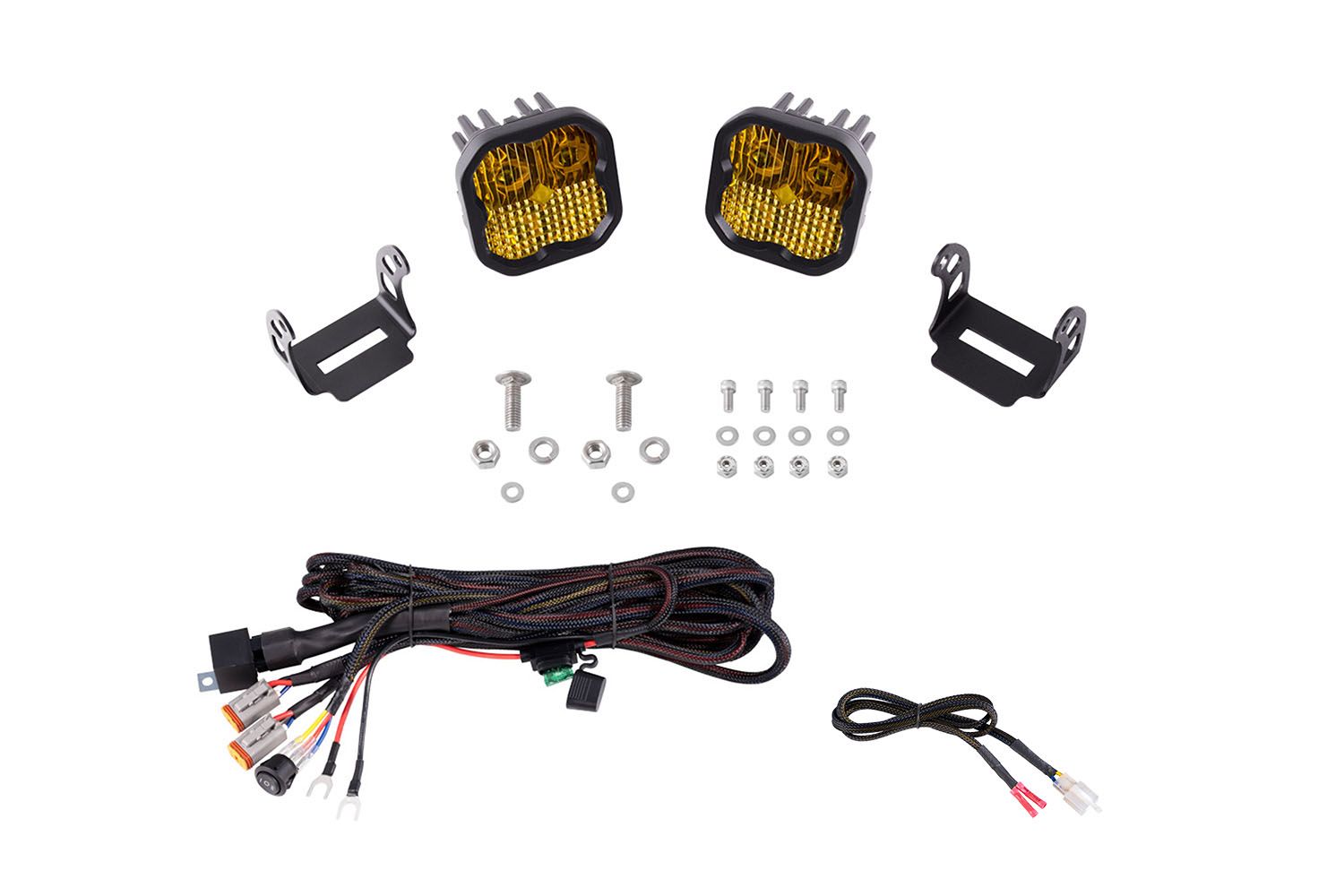

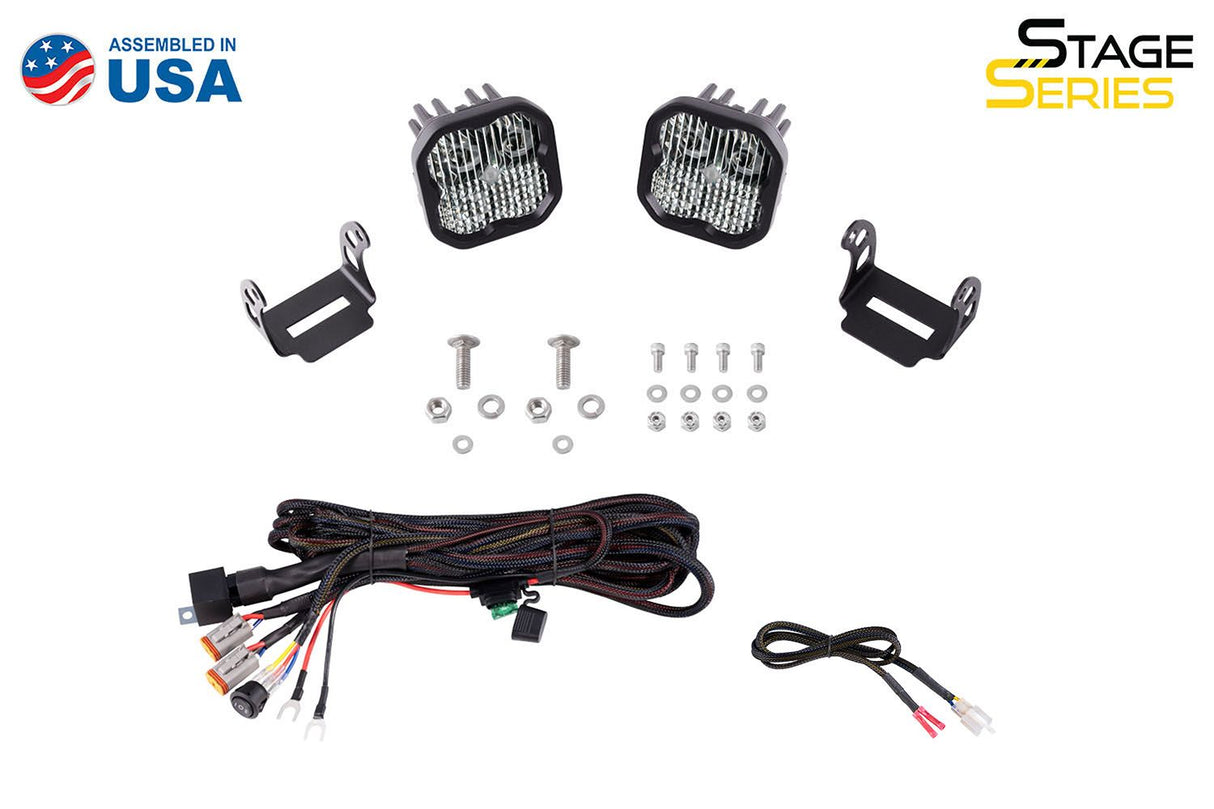

What's in the box 4 ITEMS

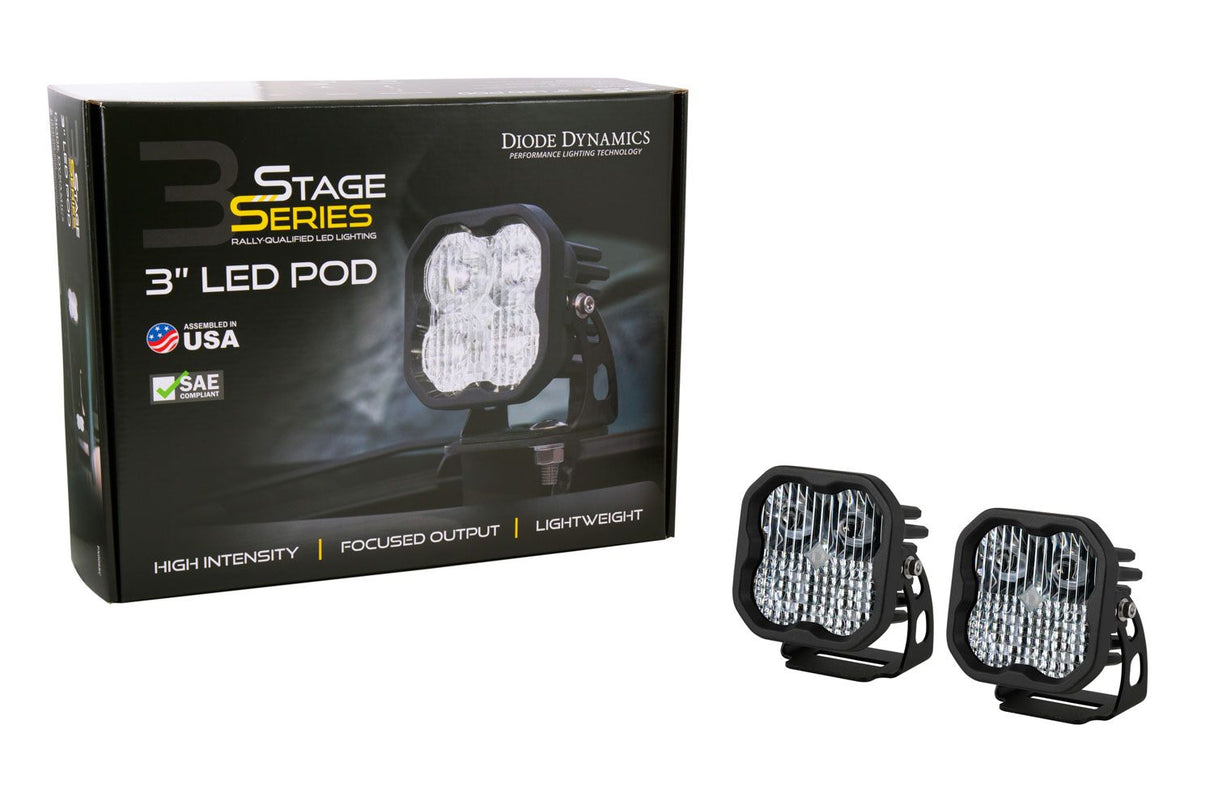

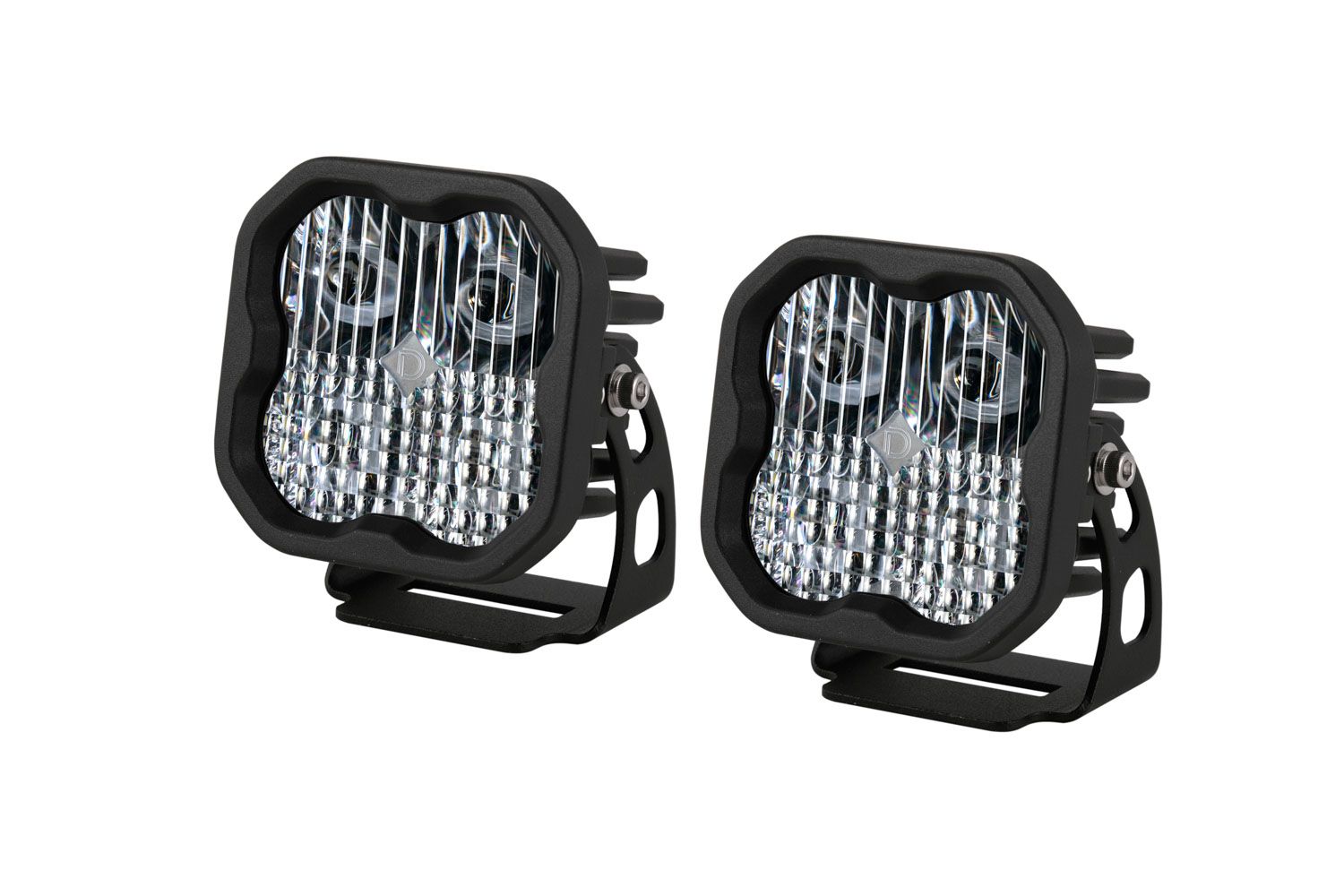

• Two (2) SS3 Standard LED Pods
• One (1) Heavy Duty Dual Output 4-pin Wiring Harness
• Two (2) Mounting brackets
• Mounting hardware
Optical
Lumens 1520
Color temperature 6000K
Beam spread Combo/Driving 80°x30°
Power 14W
Operating voltage 9-16V
Intensity 9 100 cd
Driver features Constant Current
Construction
Connector Deutsch DT Input
Cooling Passive, Pin-Fin heatsink
Polarity Polarity Specific
Base color Black
Wire quantity 2
Compliance
IP rating IP69K Waterproof High Pressure
Operating temp -40C to 85C (-40F to 185F)
Weather resistant Yes
Features & benefits
Bolt-on fitment for 2021+ Ford Bronco.

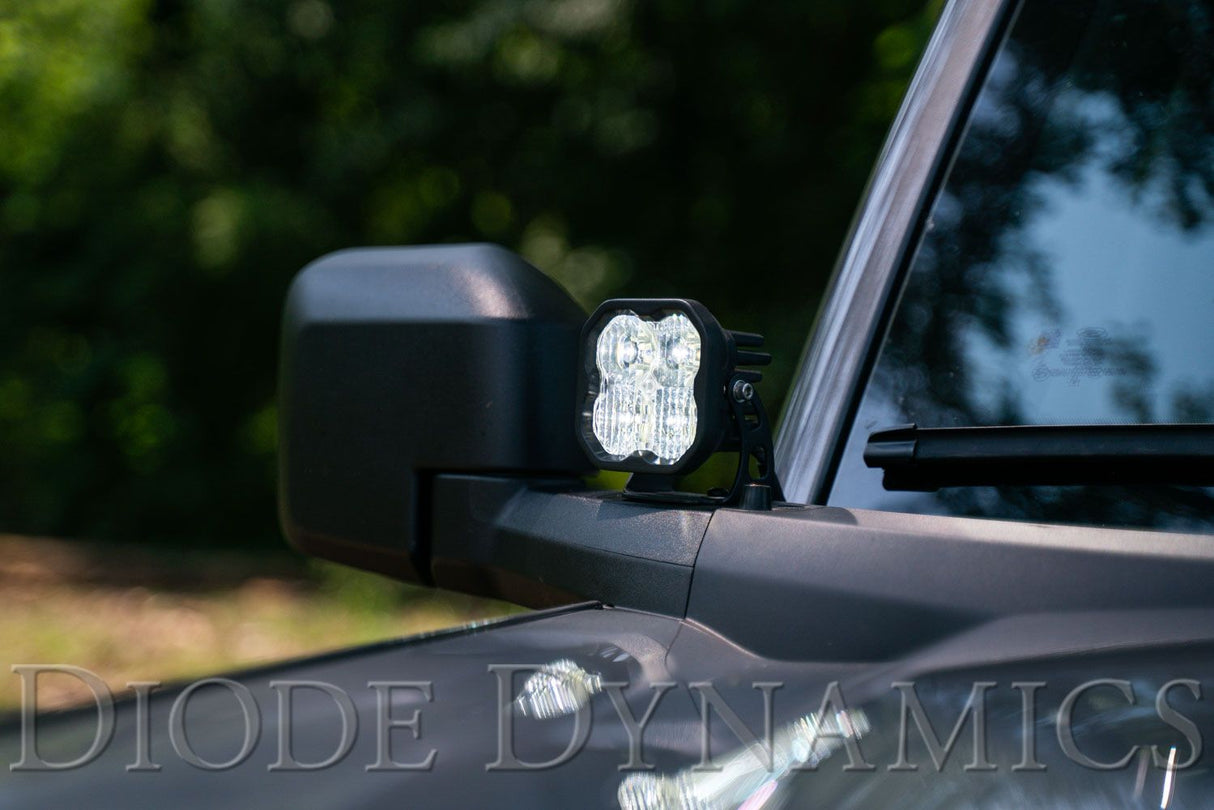

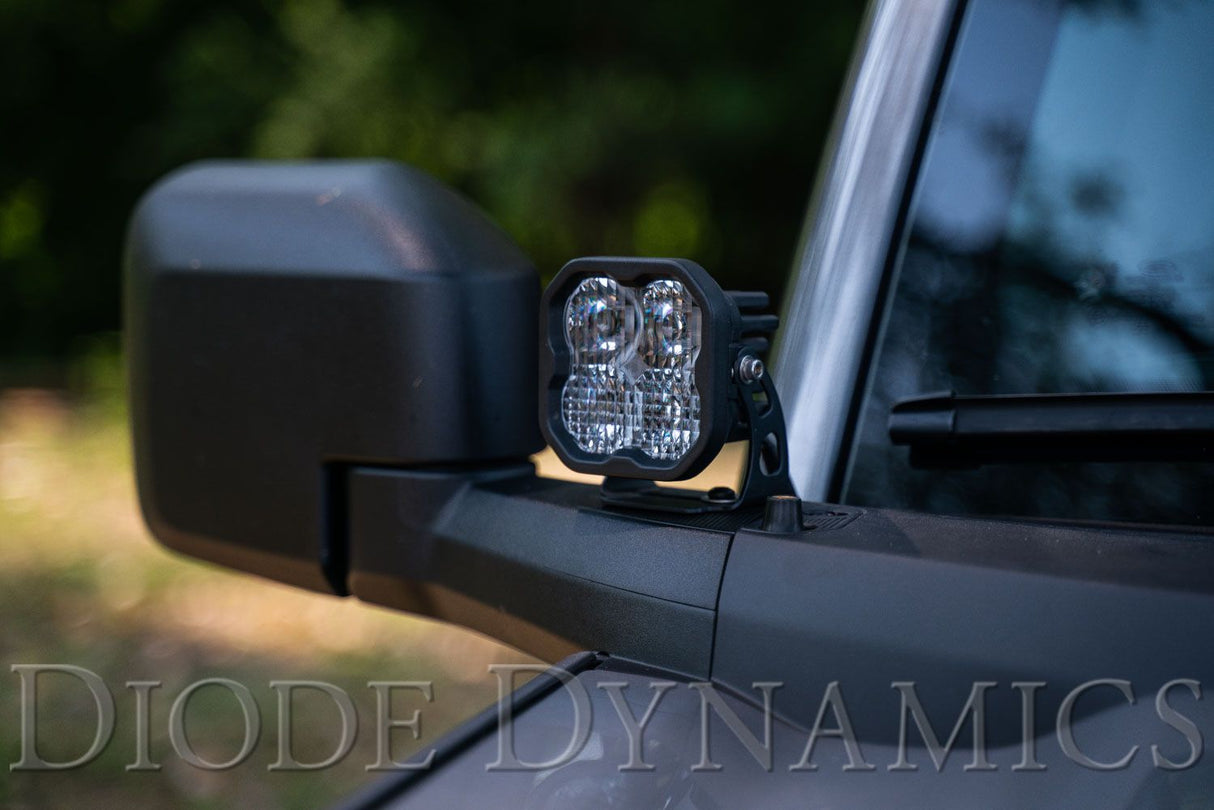

Allows you to mount two Stage Series LED pods in the a-pillar location.
Utilizes factory Accessory Ready mounting points for a simple installation.
Advanced TIR optics provide high efficiency and focus.
Engineered and Assembled in USA.
Description

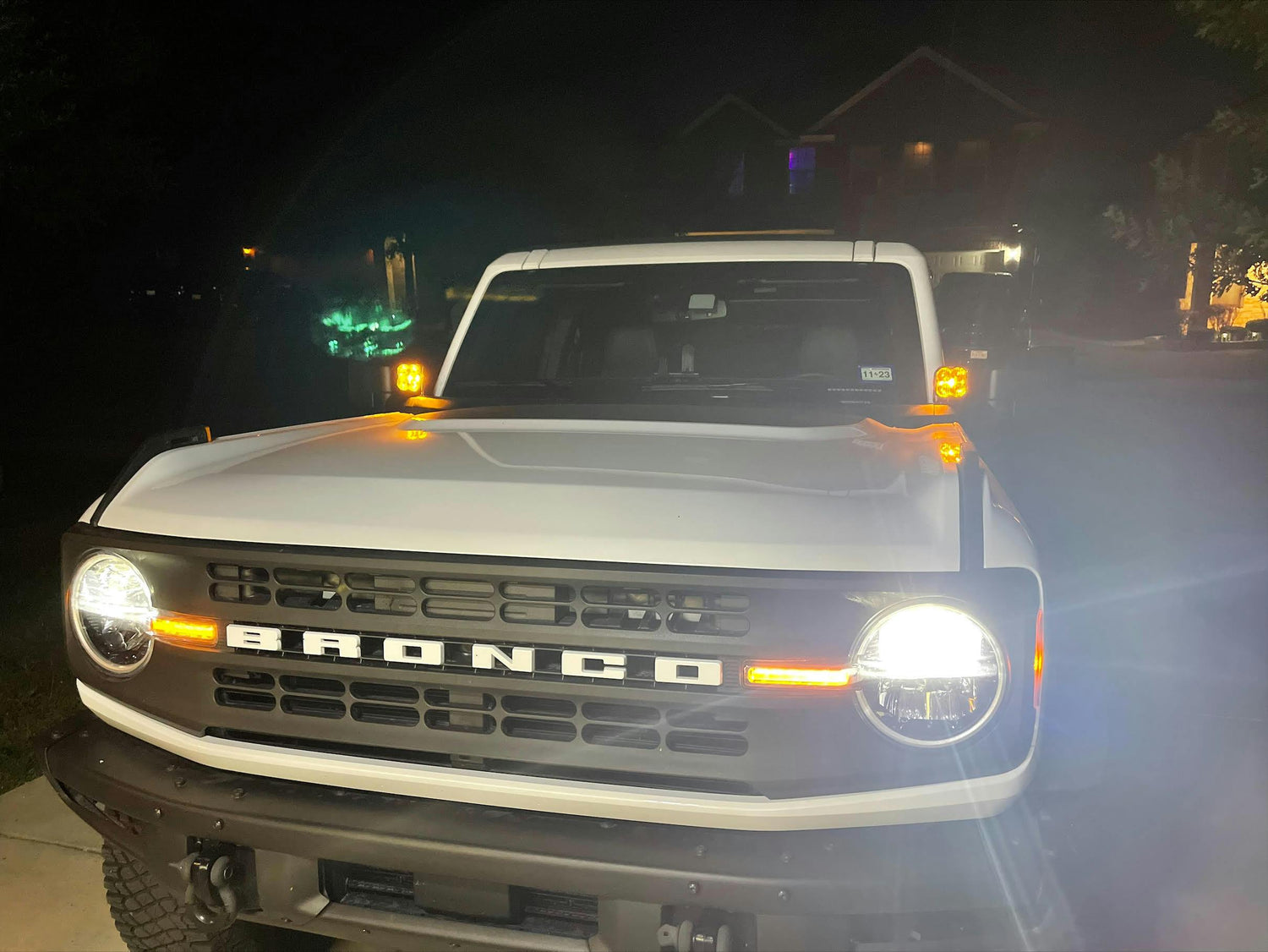

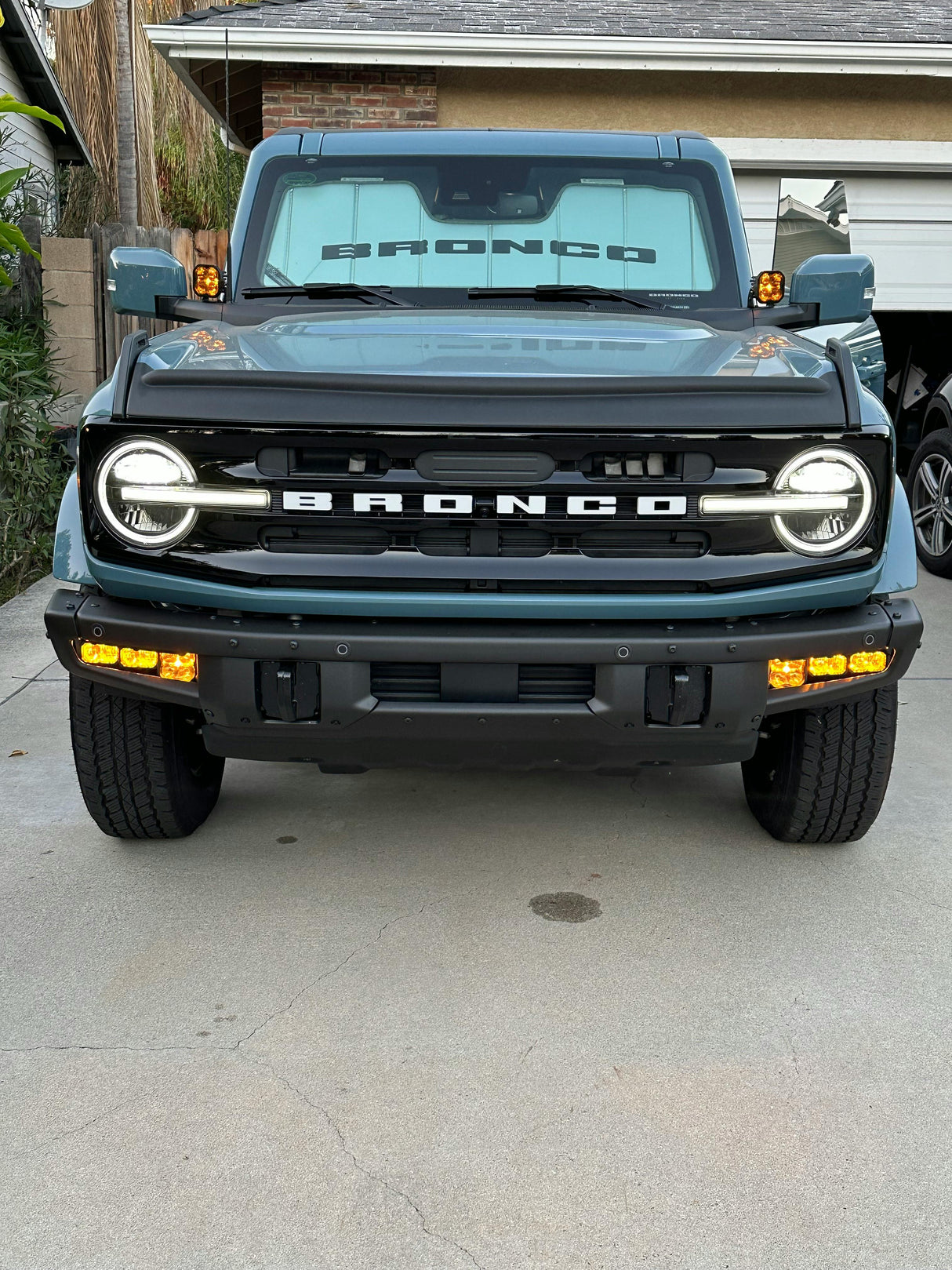

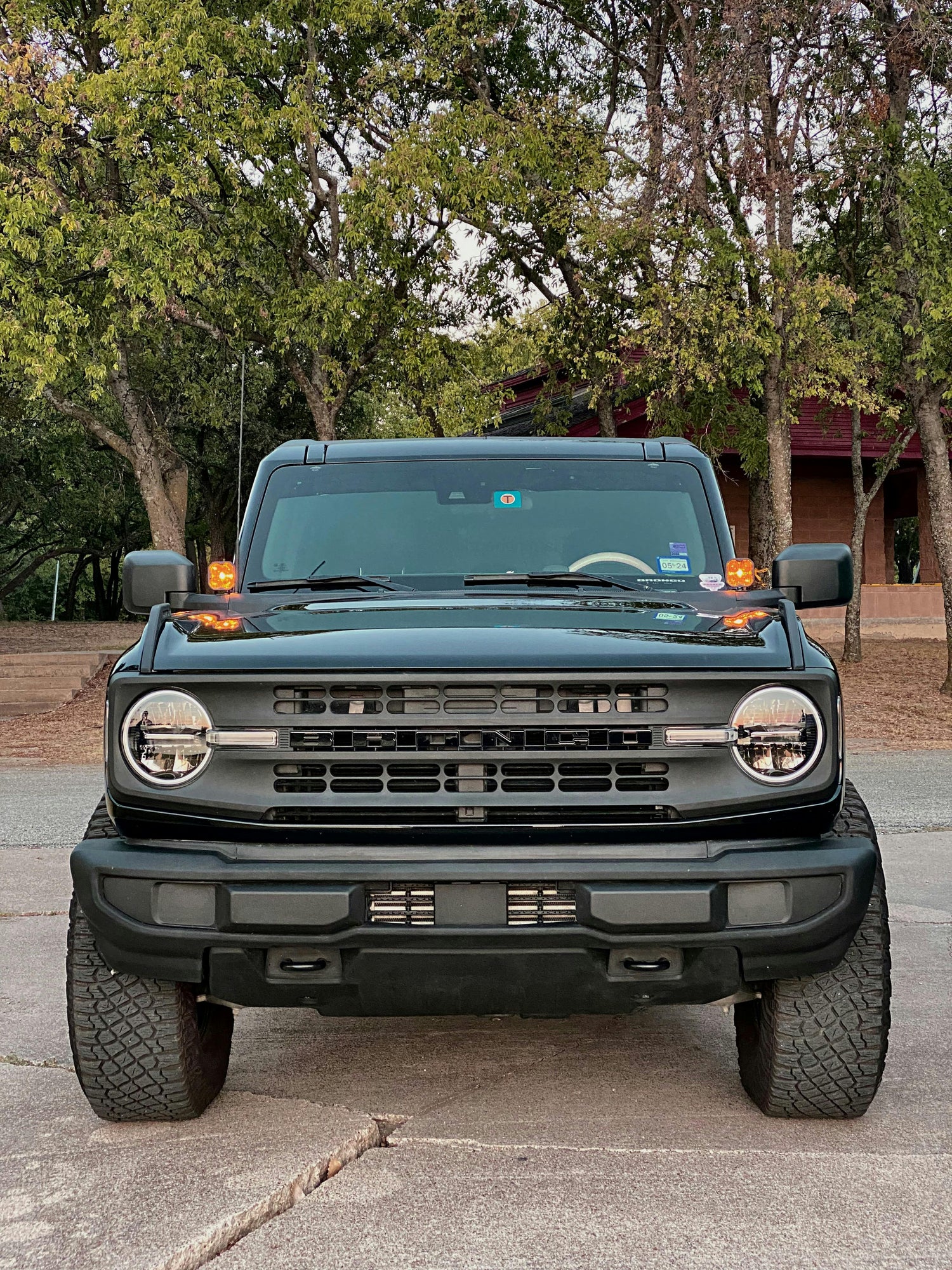

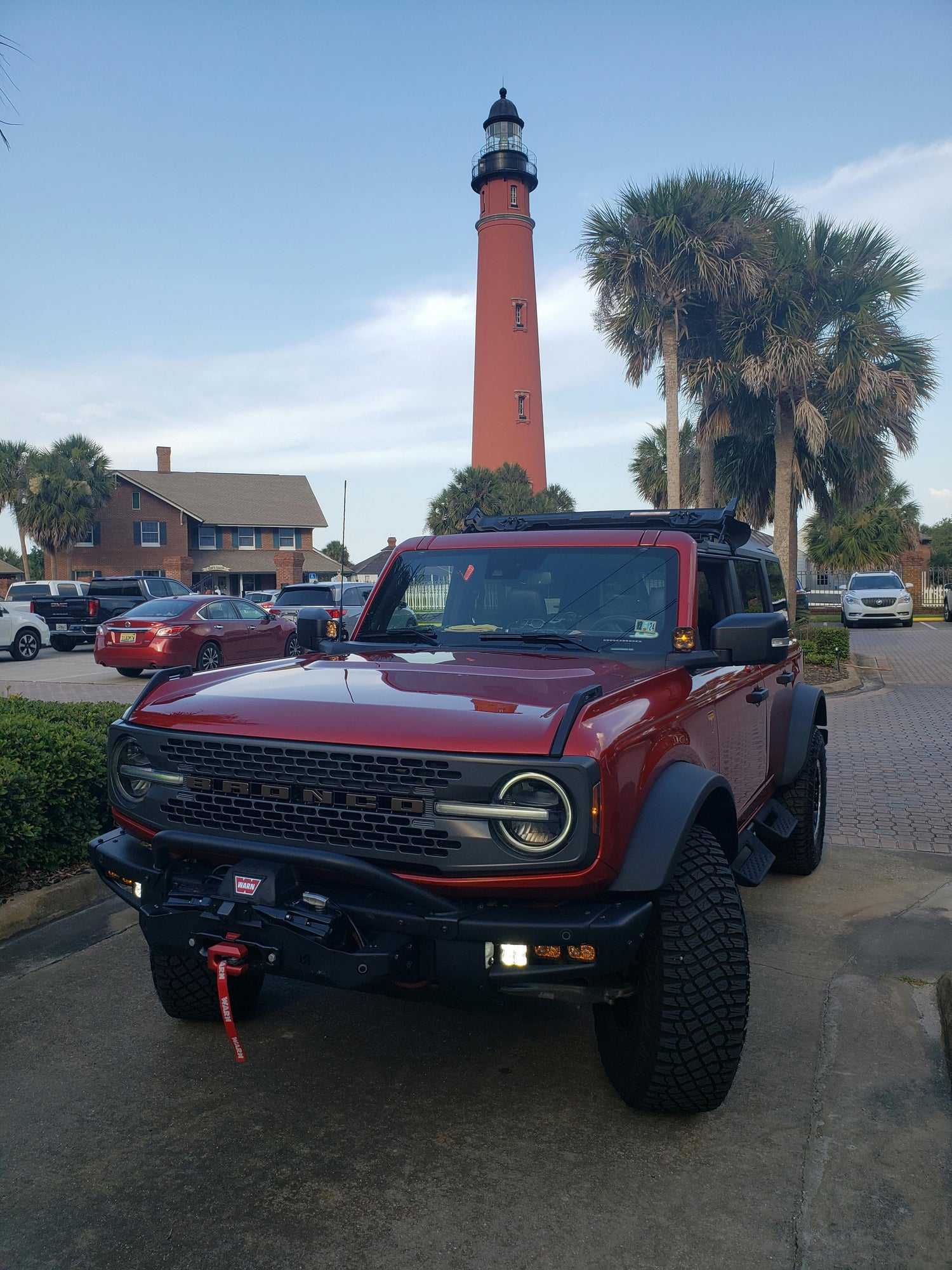

The Stage Series SS3 Backlit Ditch Light Kit is a vehicle-specific LED lighting upgrade for the Ford Bronco, mounting two SS3 pods above the hood in the ditch position to push usable light out to the sides and ahead of the truck where your factory lights fall short. Whether you're navigating trails at night, working in low-light conditions, or simply want better coverage on dark back roads, ditch lights fill the gaps that a single forward beam leaves behind.

This kit is available in Sport, Pro, and Driving output levels, as well as White Combo and Yellow Combo beam configurations, so you can match the light to how you actually use your Bronco — tight technical trails, high-speed dirt roads, or foul-weather driving where yellow cuts through rain and dust more effectively than white.

The bracket is designed specifically for the Bronco, making fitment clean and straightforward without drilling or fabrication. The SS3 pods themselves are built to handle the abuse of off-road use, and the backlit ring adds a distinctive look when the lights are running.

Documentation
