Stage Series Backlit Ditch Light Kit for 2015-2020 Ford F-150

Diode Dynamics  |  SKU: DD6571  |  Barcode: 00691026126906
Regular price $ 445.00 CAD
Choose Your Kit
Choose Your Optic and Color
Fitment & Install Notes
Fits
Fits: 2015-2020 Ford F-150
Free shipping Orders $500+
Canadian orders No duties / brokerage
Authorized Diode Dynamics Dealer
Returns 30-day easy

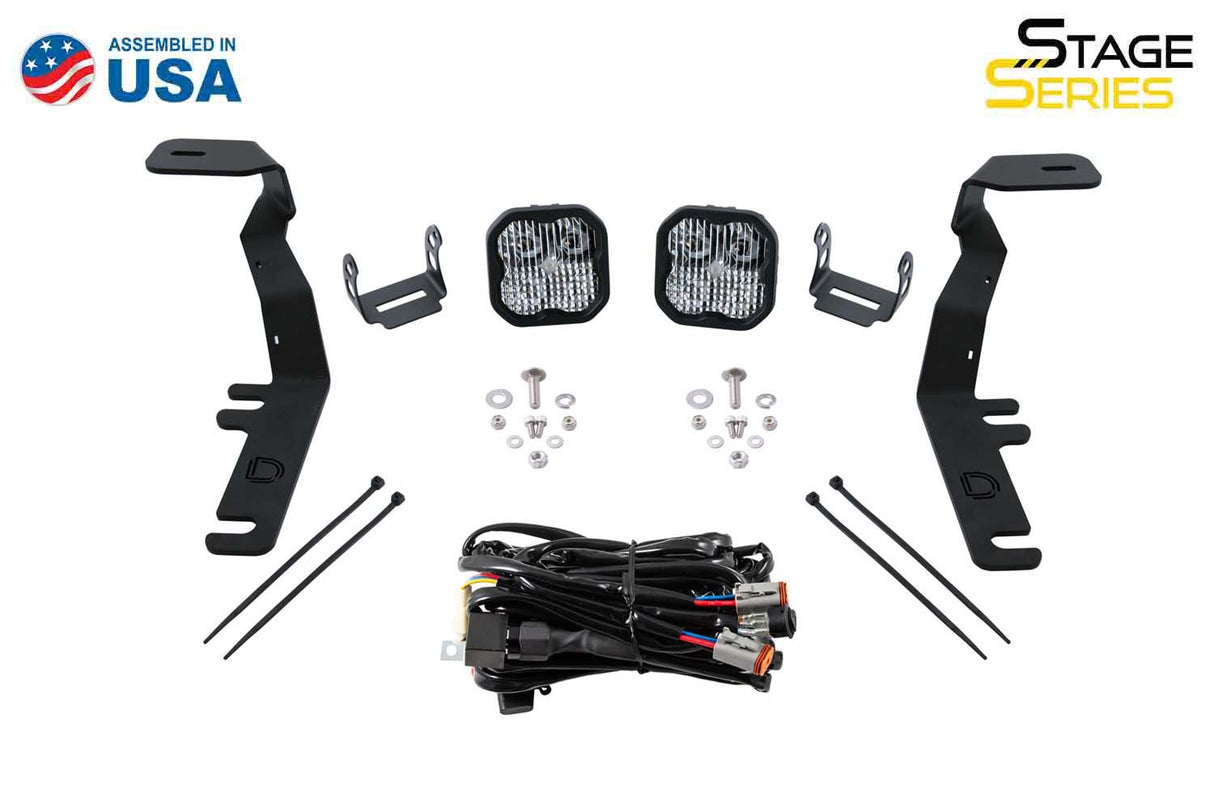

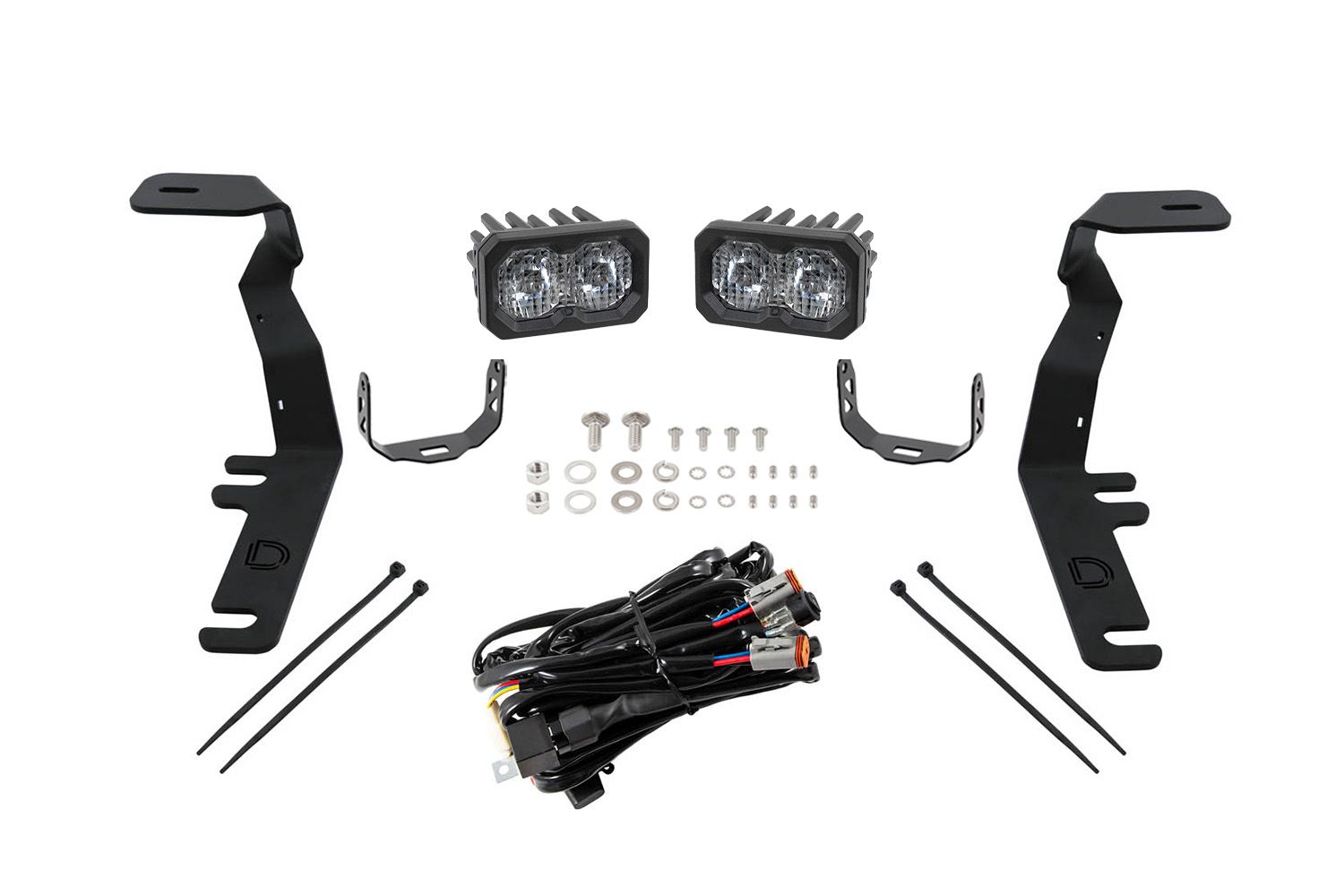

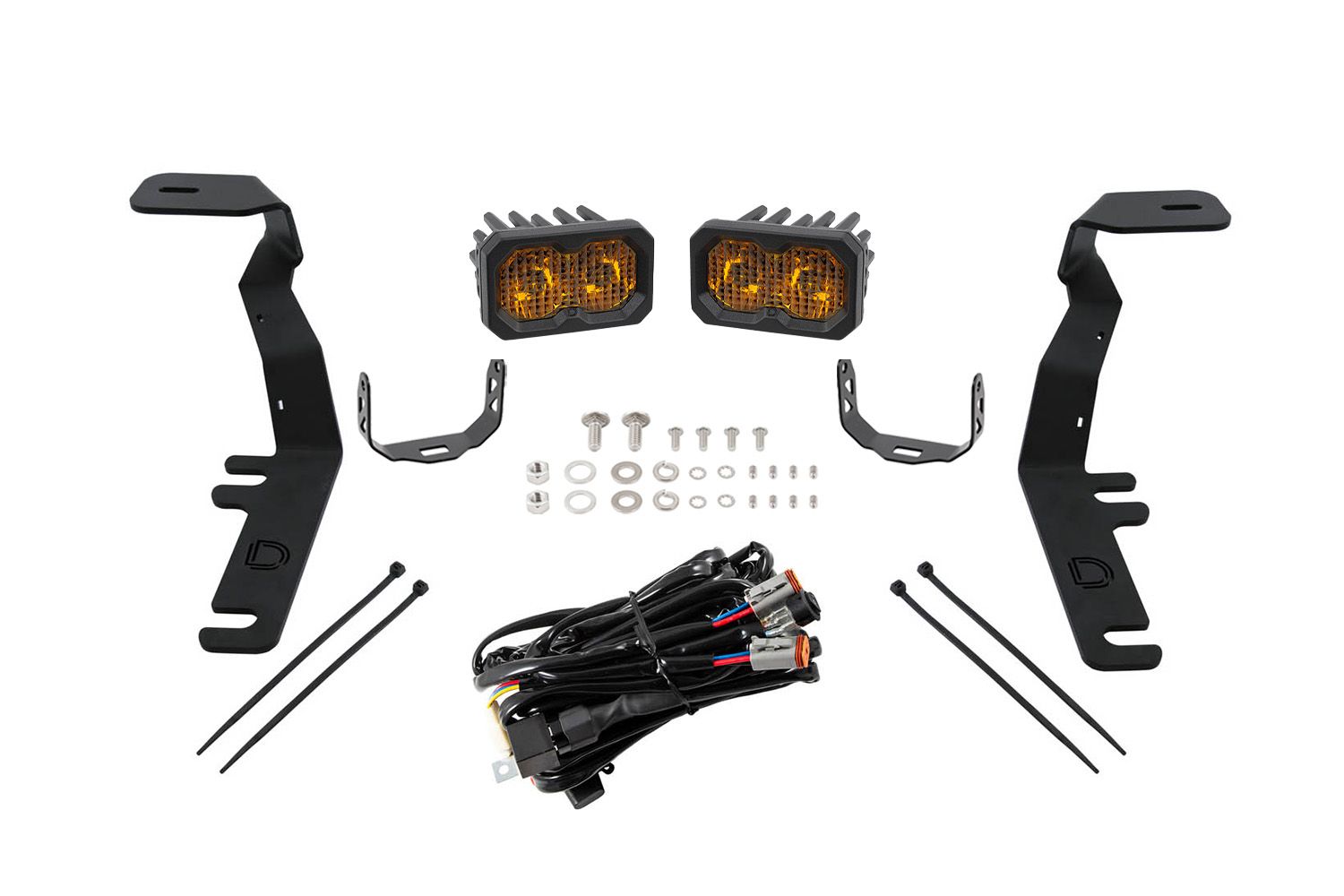

What's in the box 7 ITEMS

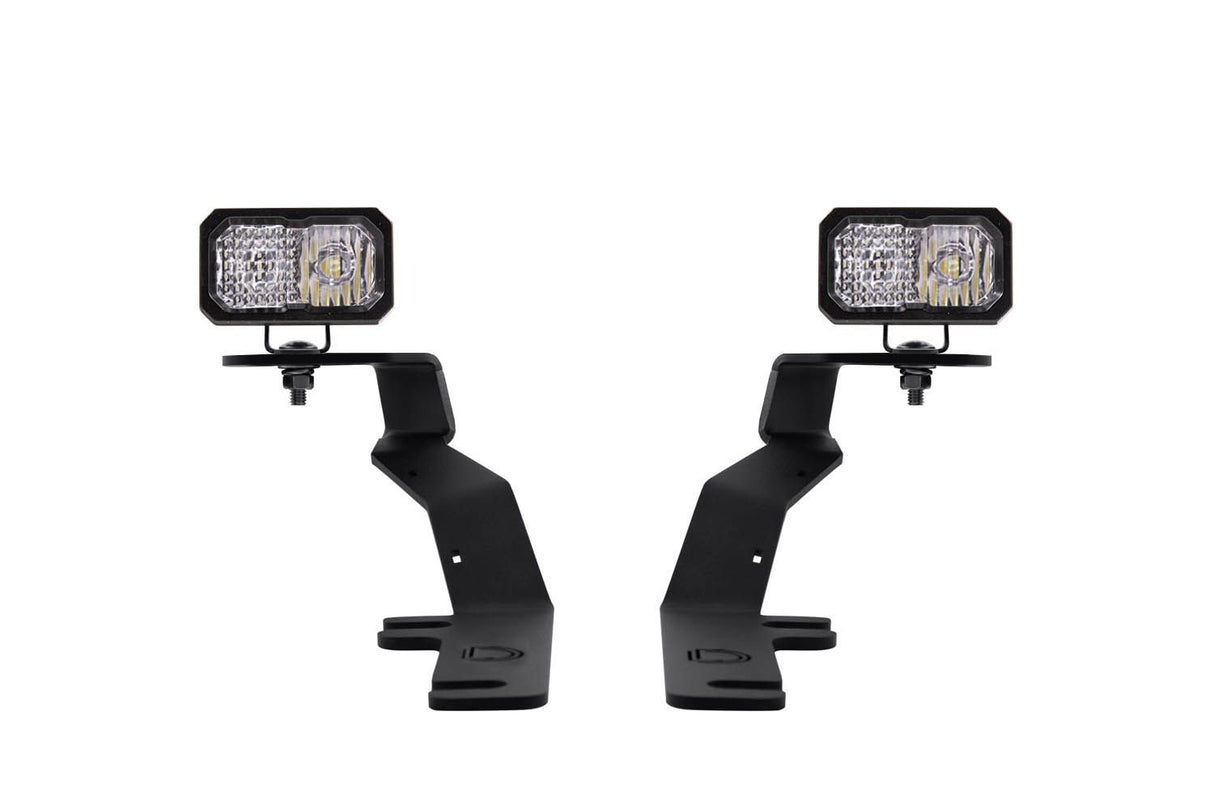

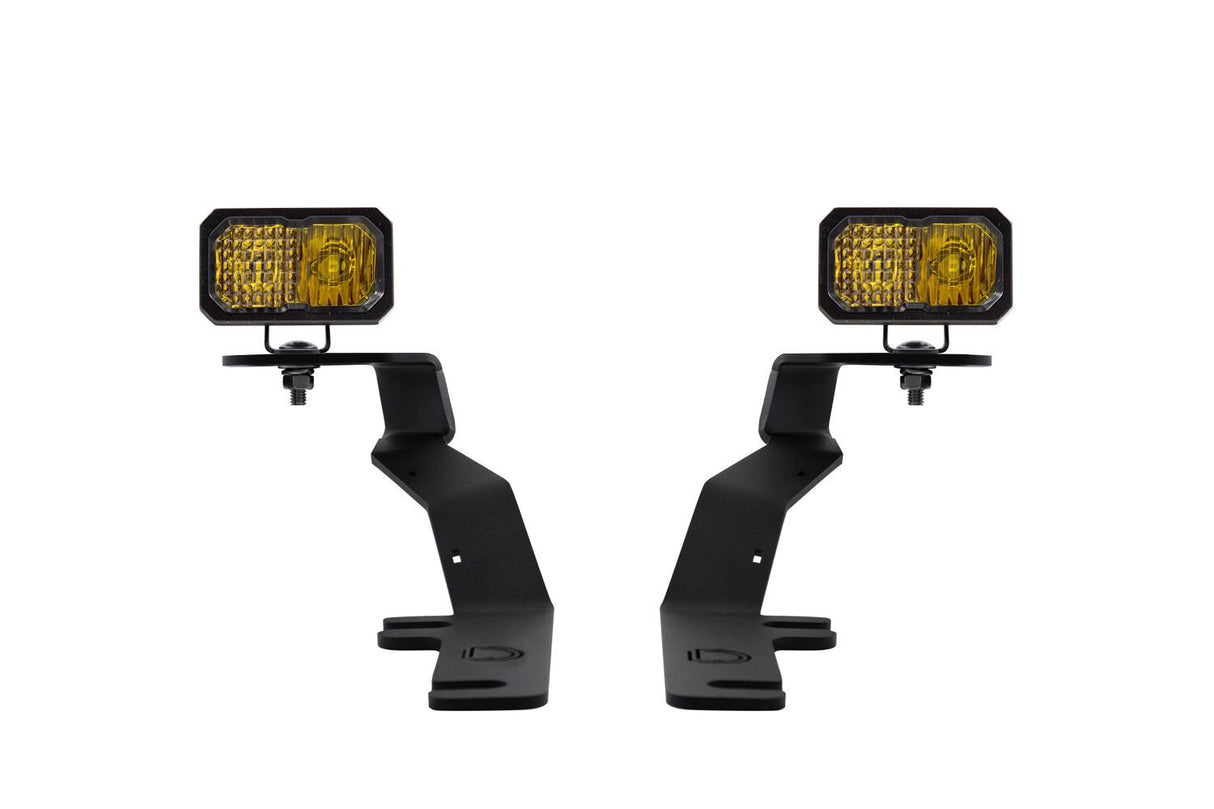

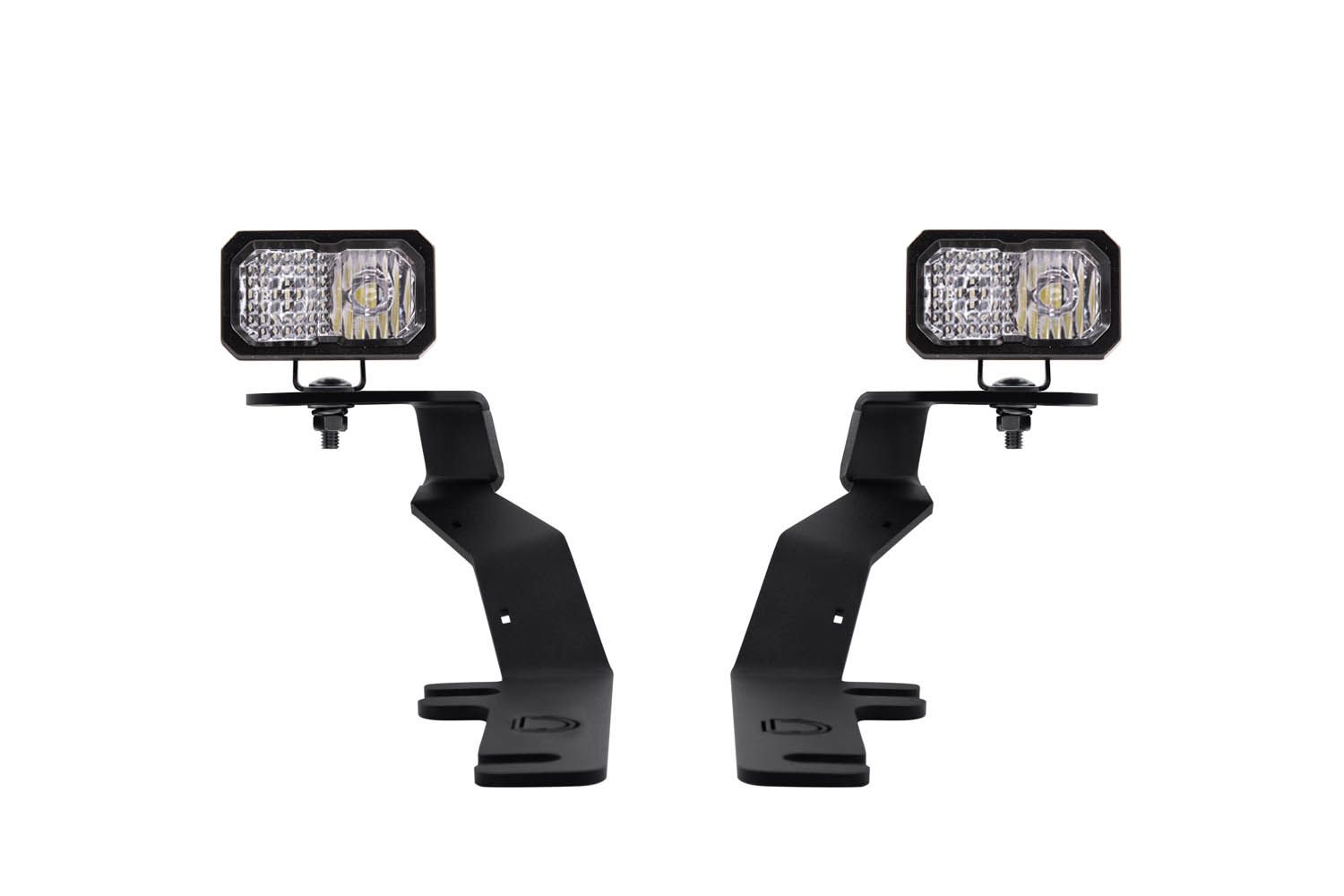

Two (2) Stage Series 2"
Standard LED Pods

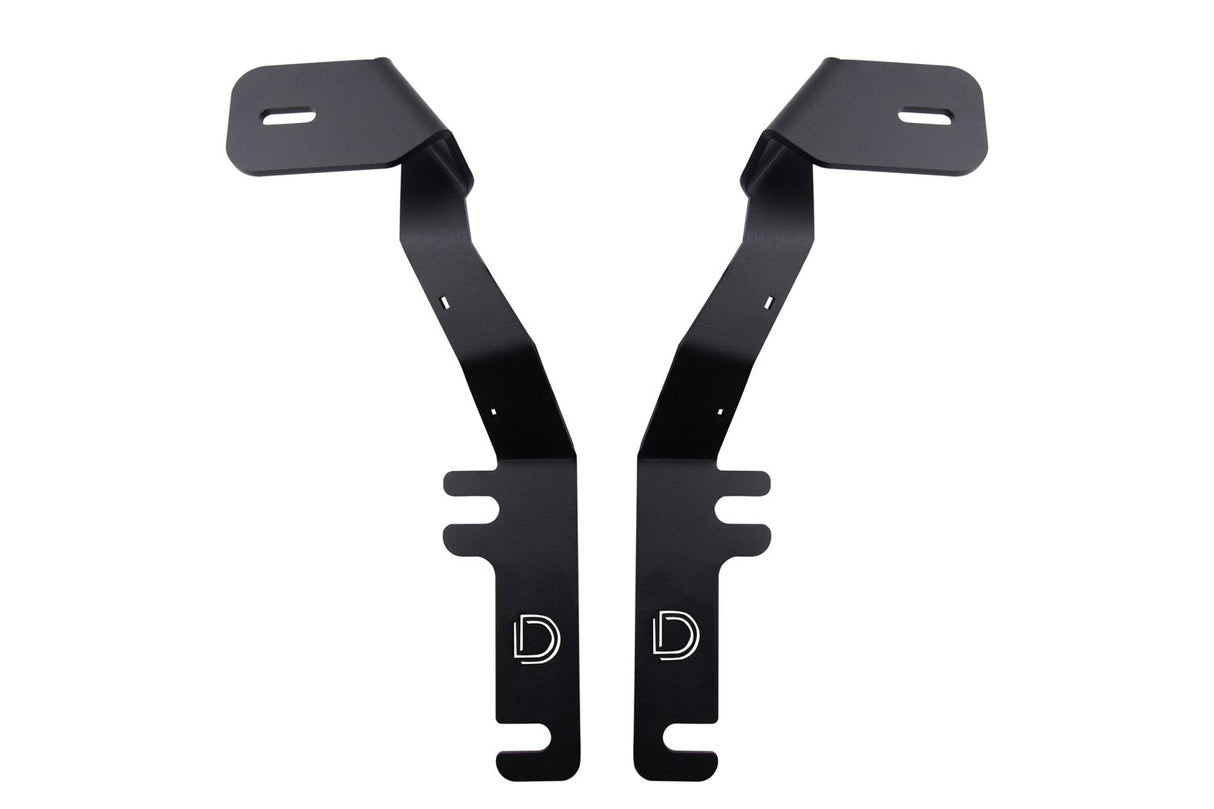

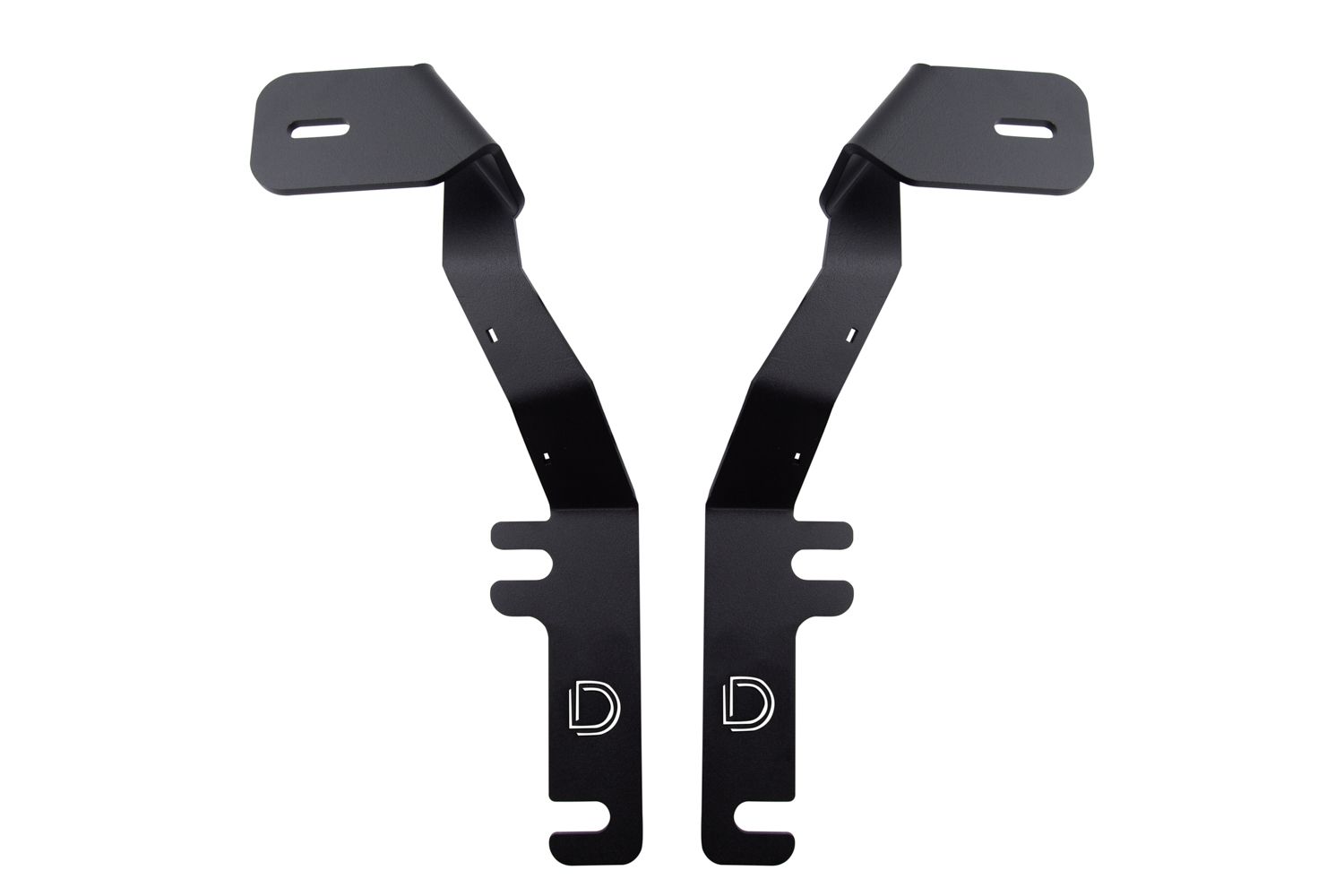

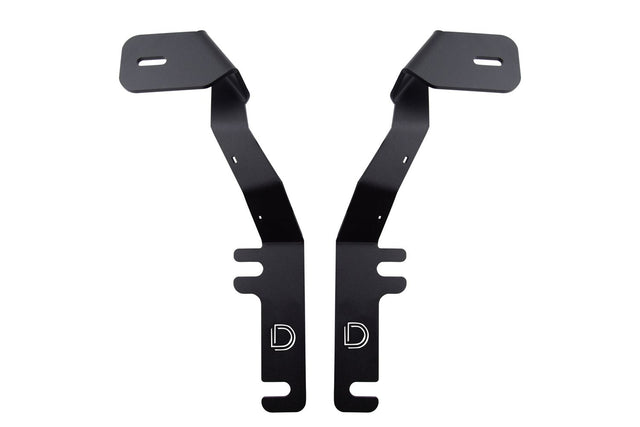

Two (2) Ditch light brackets
Two (2) Stage Series 2" Mounting brackets
One (1) Heavy-duty 4-pin dual output wiring harness
Mounting hardware
Mounting guide
Optical
Lumens 871
Color temperature 6000K
Beam spread Combo (Driving and Flood)
Power 8W
Operating voltage 9-16V
Intensity 16 000 cd
LED emitter Osram Ostar Projection Compact, Lumileds Automotive Grade LED
Driver features Constant Current
Construction
Connector Deutsch DT Input
Cooling Passive, Pin-Fin heatsink
Polarity Polarity Specific
Base color Black
Wire quantity 2
Compliance
IP rating IP69K Waterproof High Pressure
Operating temp -40C to 85C (-40F to 185F)
Country of origin USA
Weather resistant Yes
Features & benefits
Bolt-on fitment for Ford F-150.

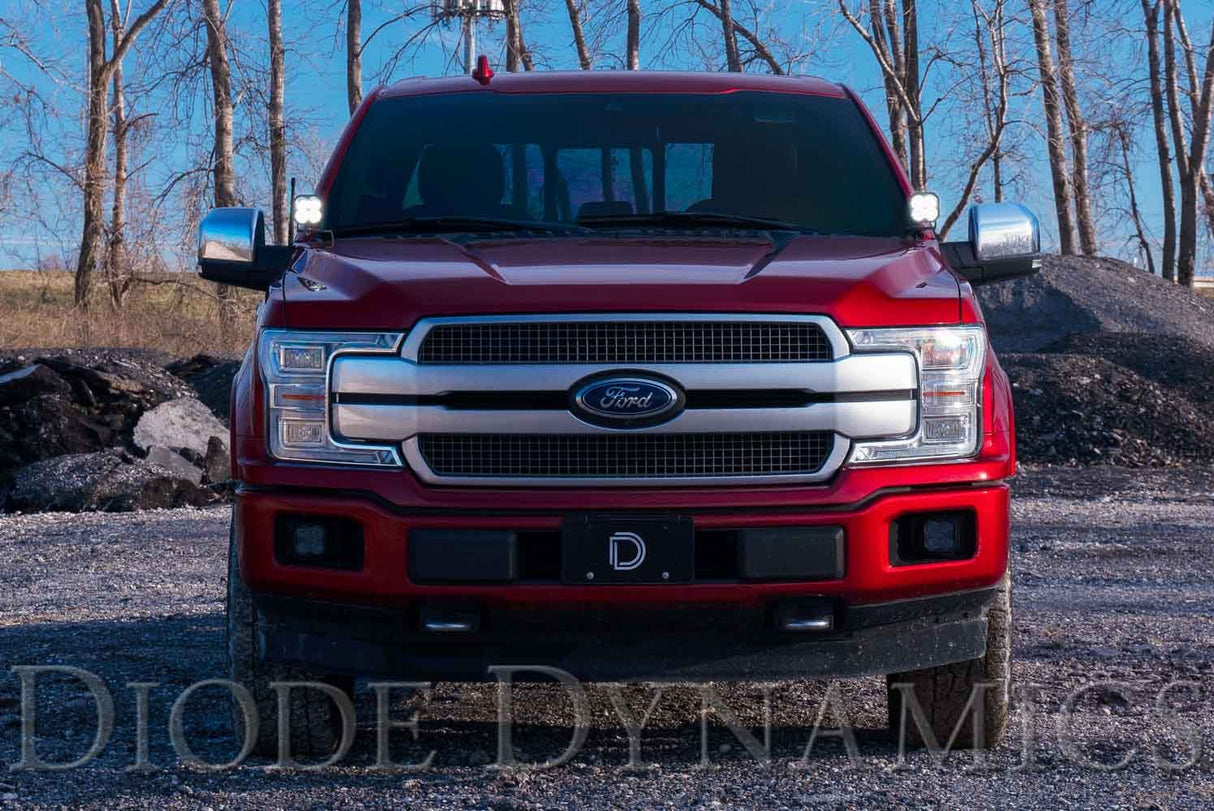

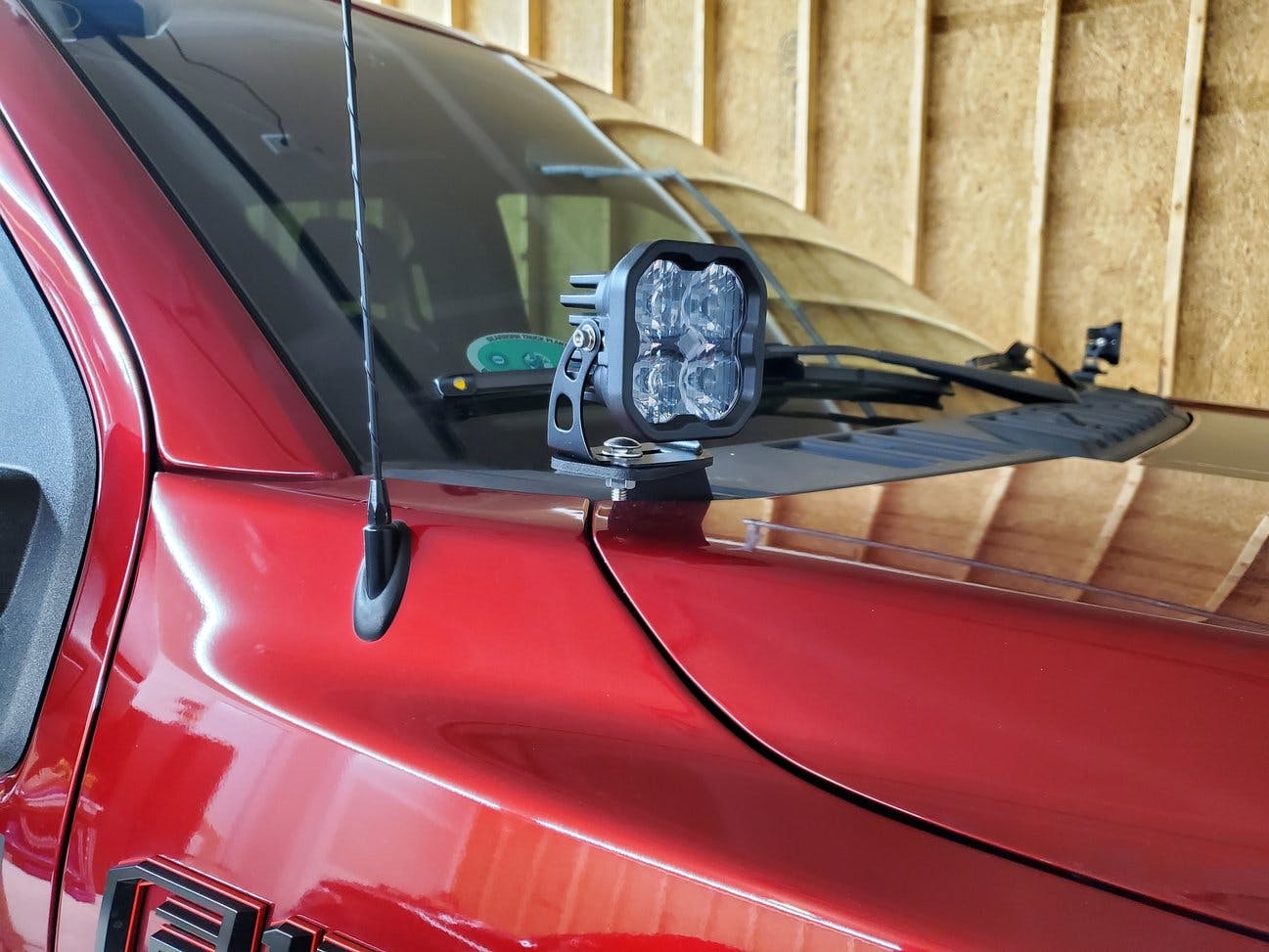

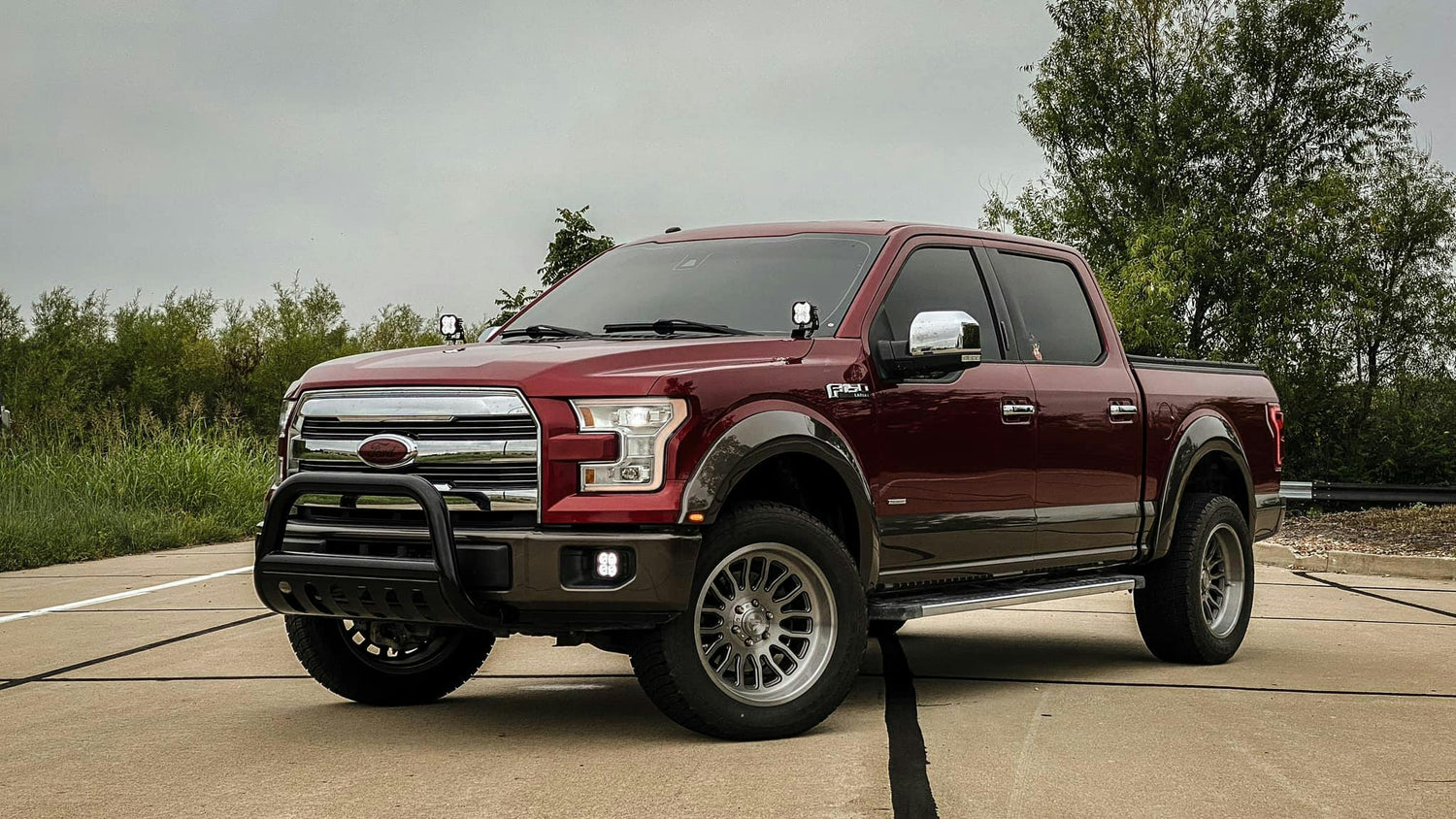

Adds two Stage Series LED Pods above the hood using factory mounting points.
Patented TIR optics provide maximum output and reduced glare.
Thick-gauge stainless steel construction.
Low-profile design.
Made in USA with global materials.
Description

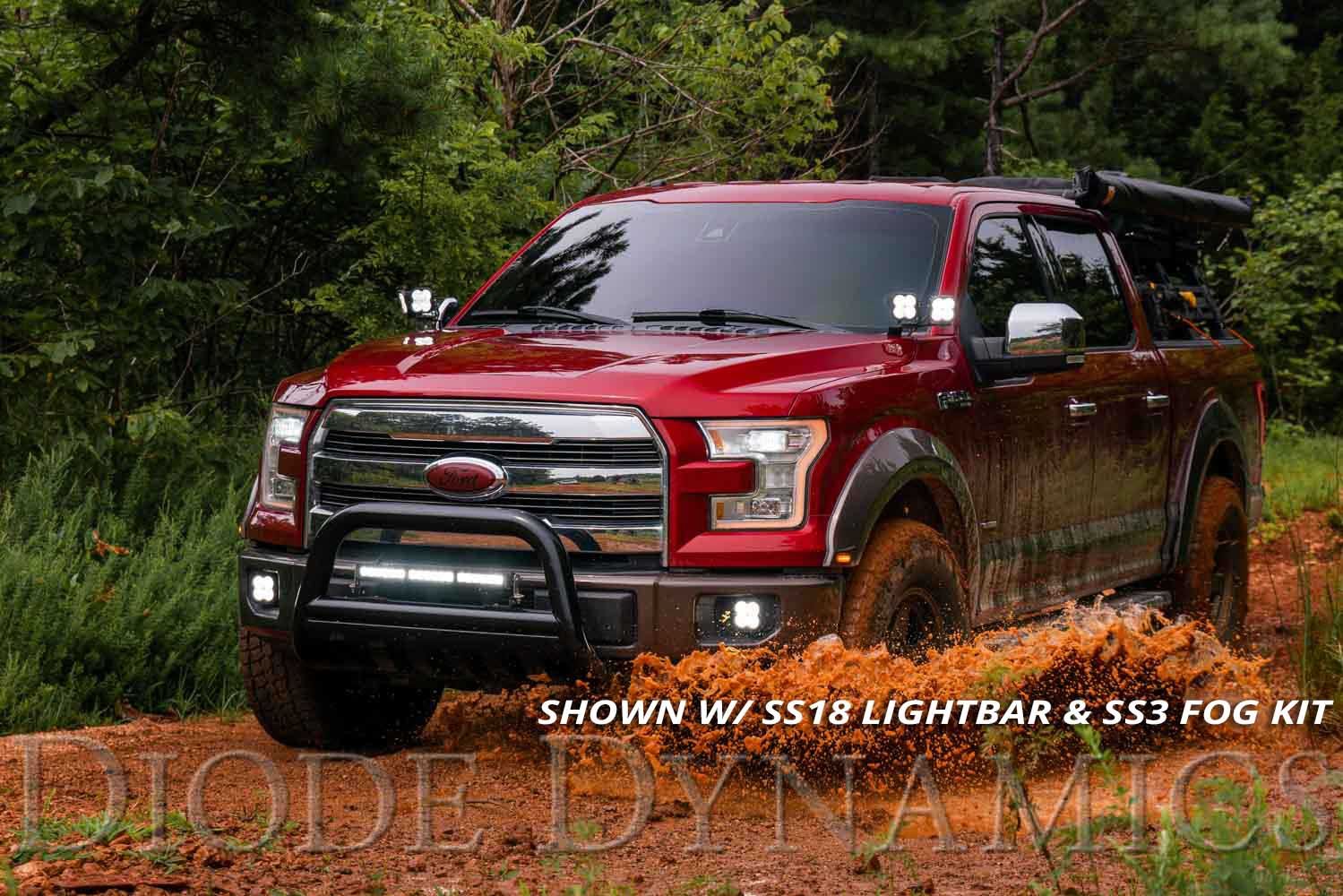

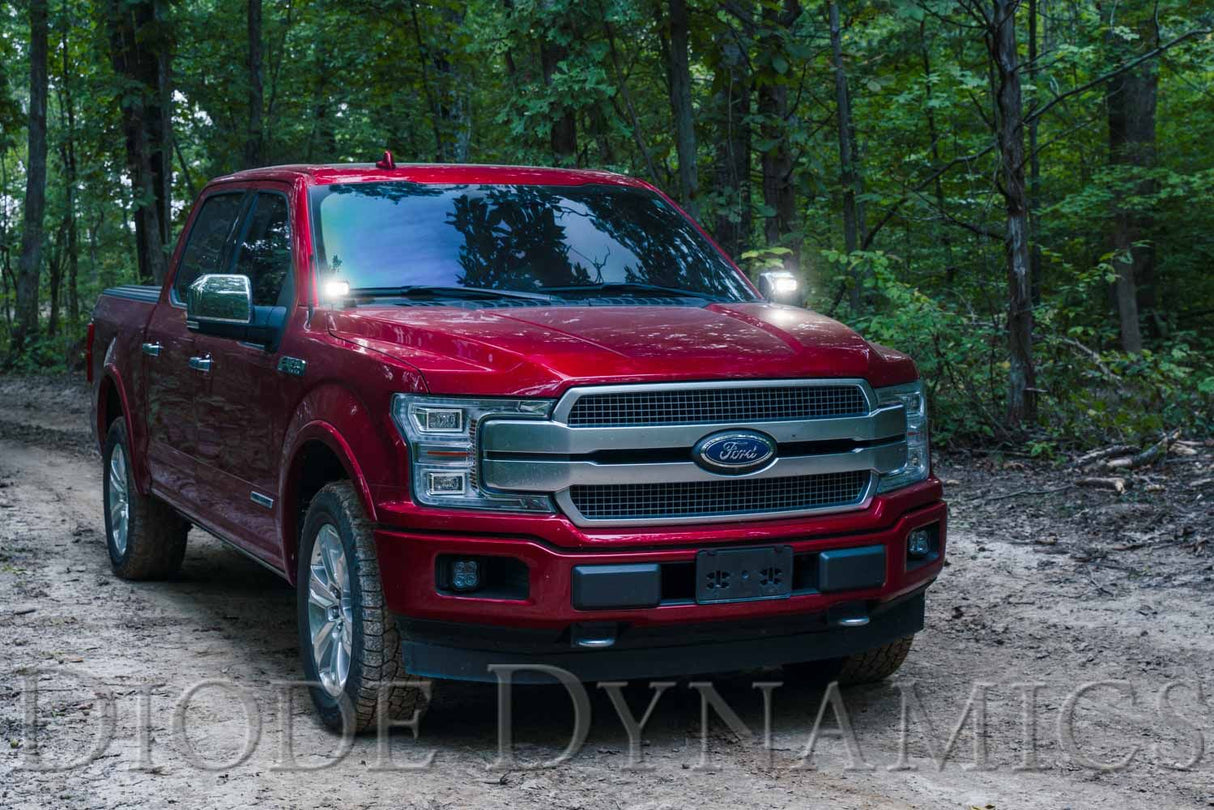

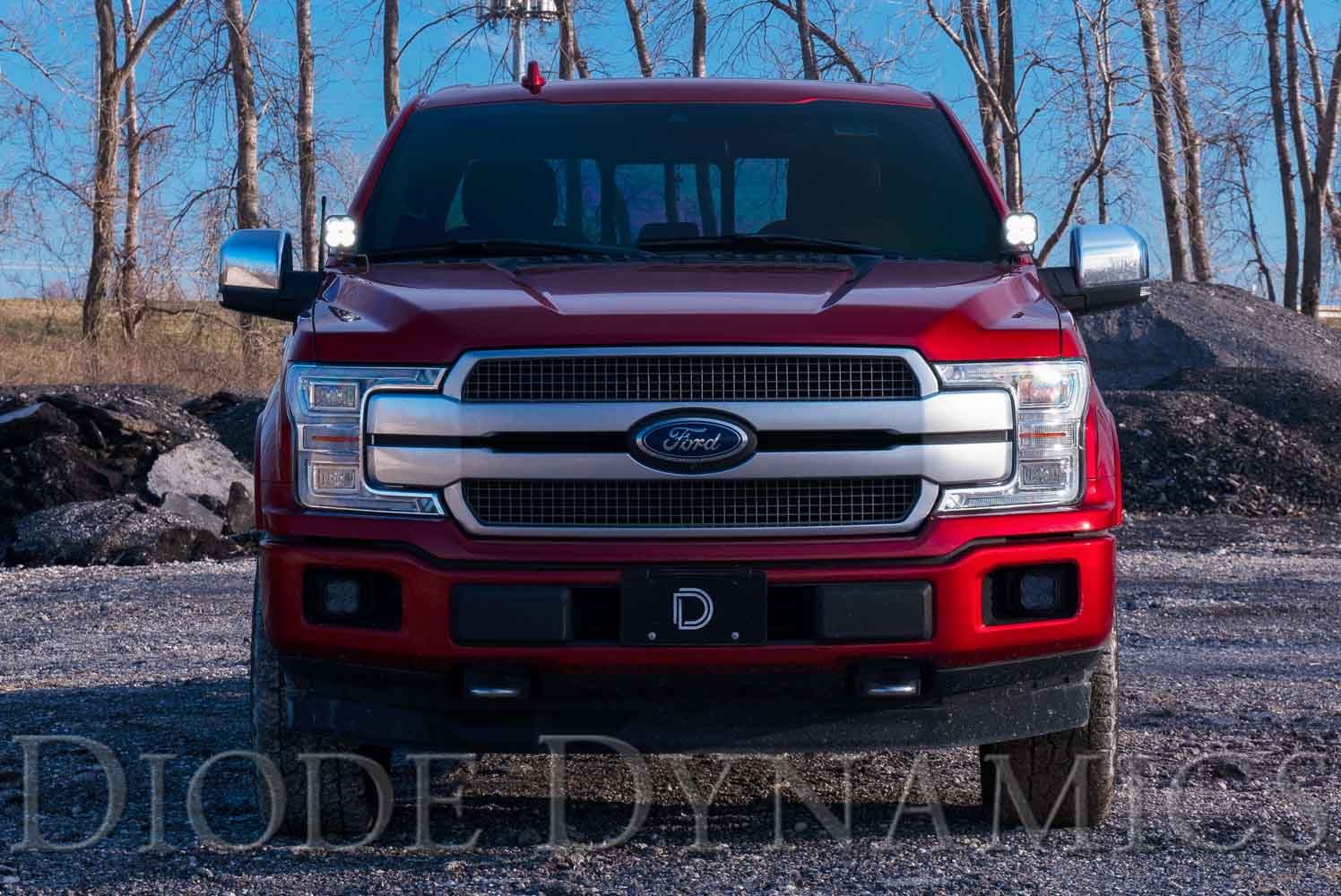

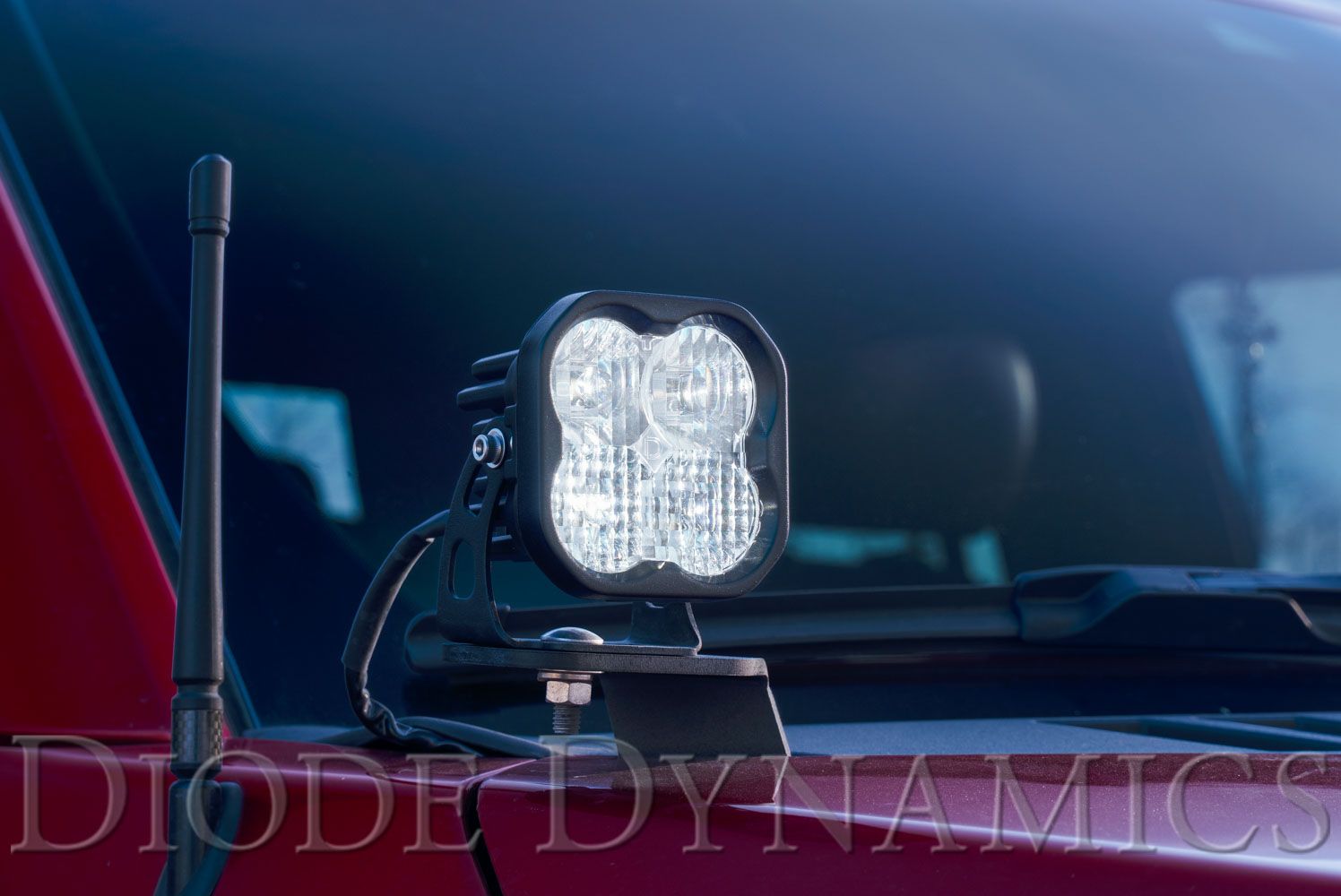

The Stage Series Backlit Ditch Light Kit for the Ford F-150 is a vehicle-specific LED lighting solution designed to mount two Stage Series pods above the hood, delivering wide-angle illumination into the ditches, brush lines, and terrain alongside your truck where your factory lights simply don't reach.

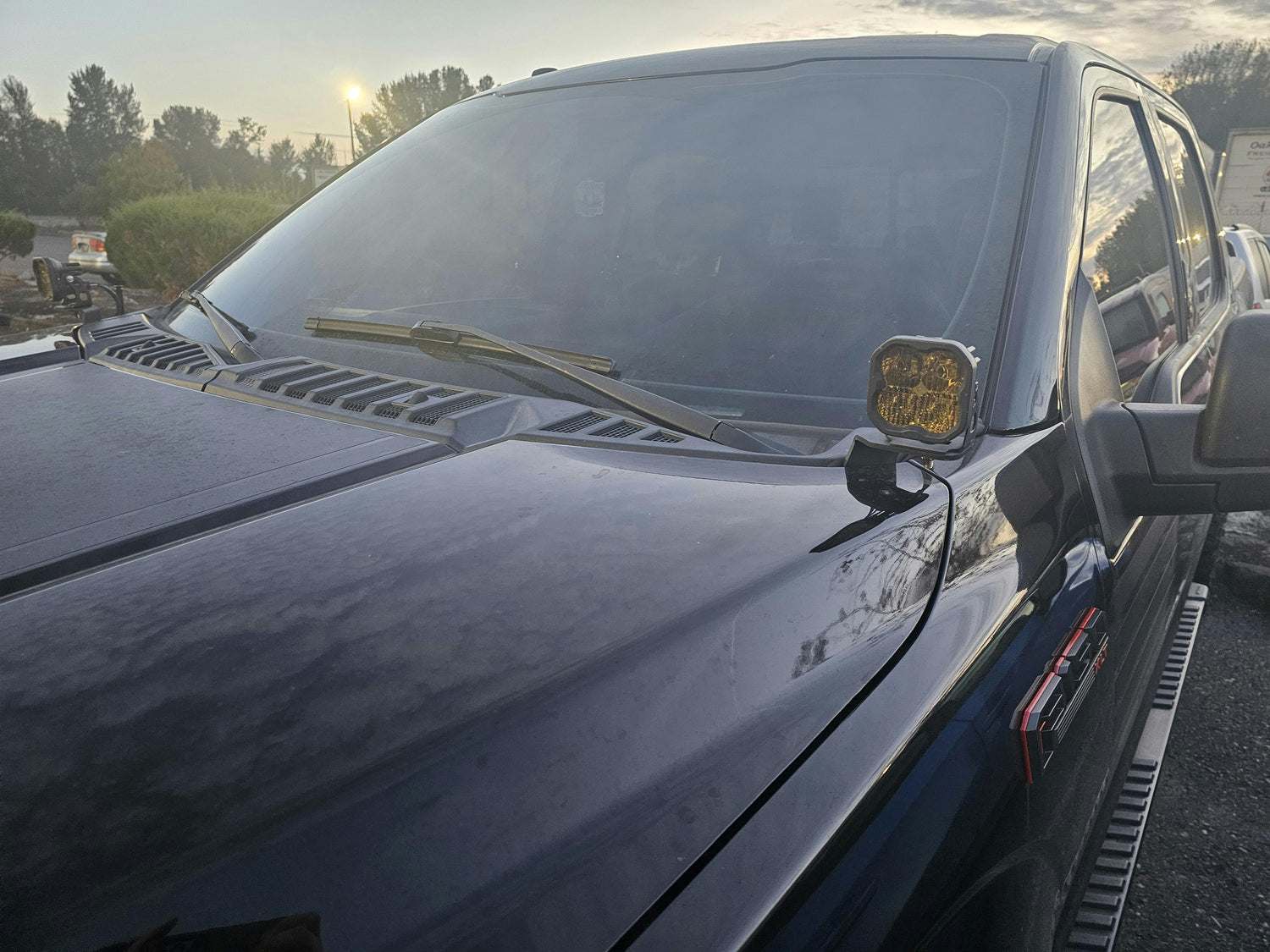

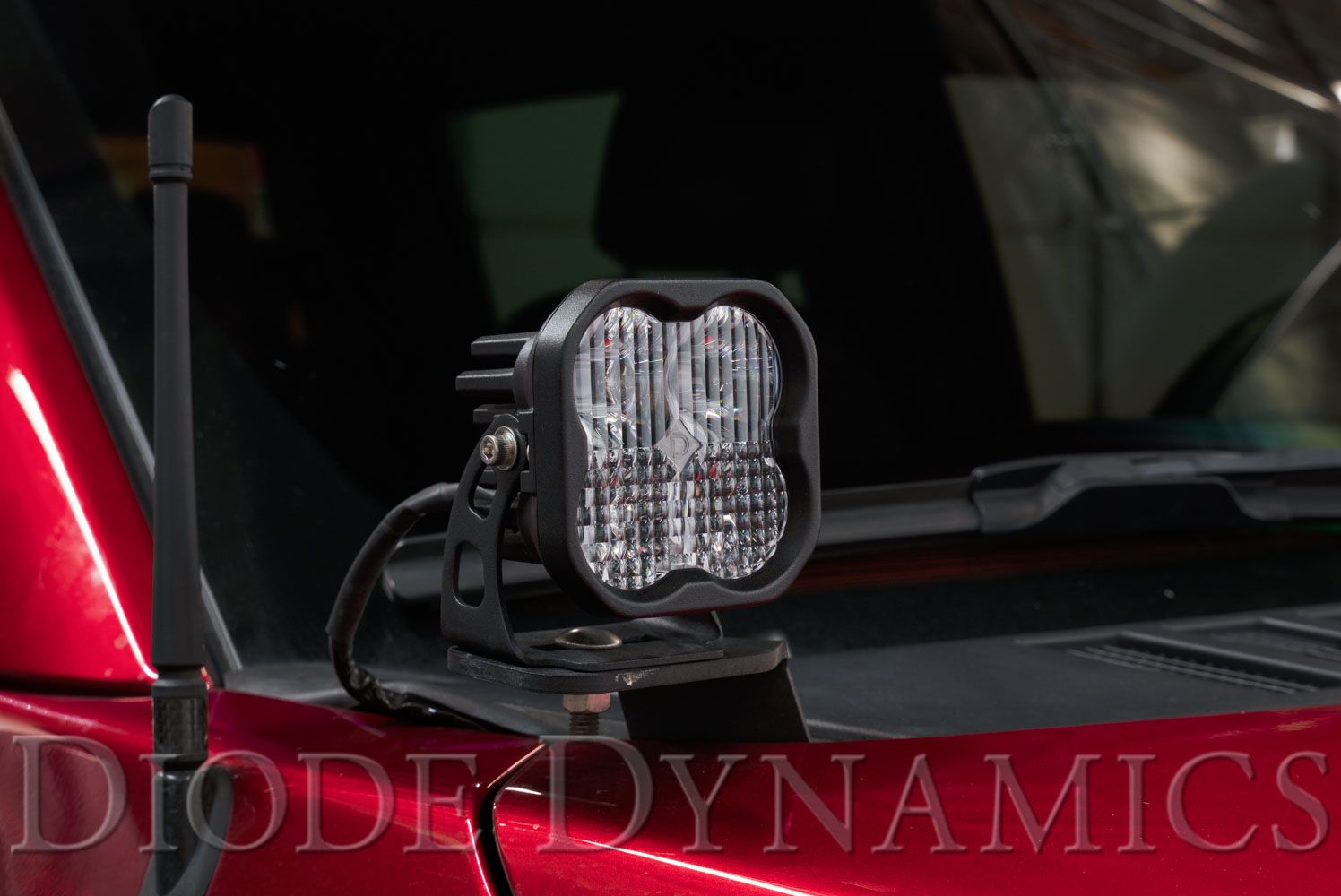

The kit uses existing mounting points on your F-150 for a clean, bolt-on installation with no drilling or fabrication required. A low-profile bracket keeps the pods tucked close to the hood line for a purpose-built look that doesn't compromise clearance or style.

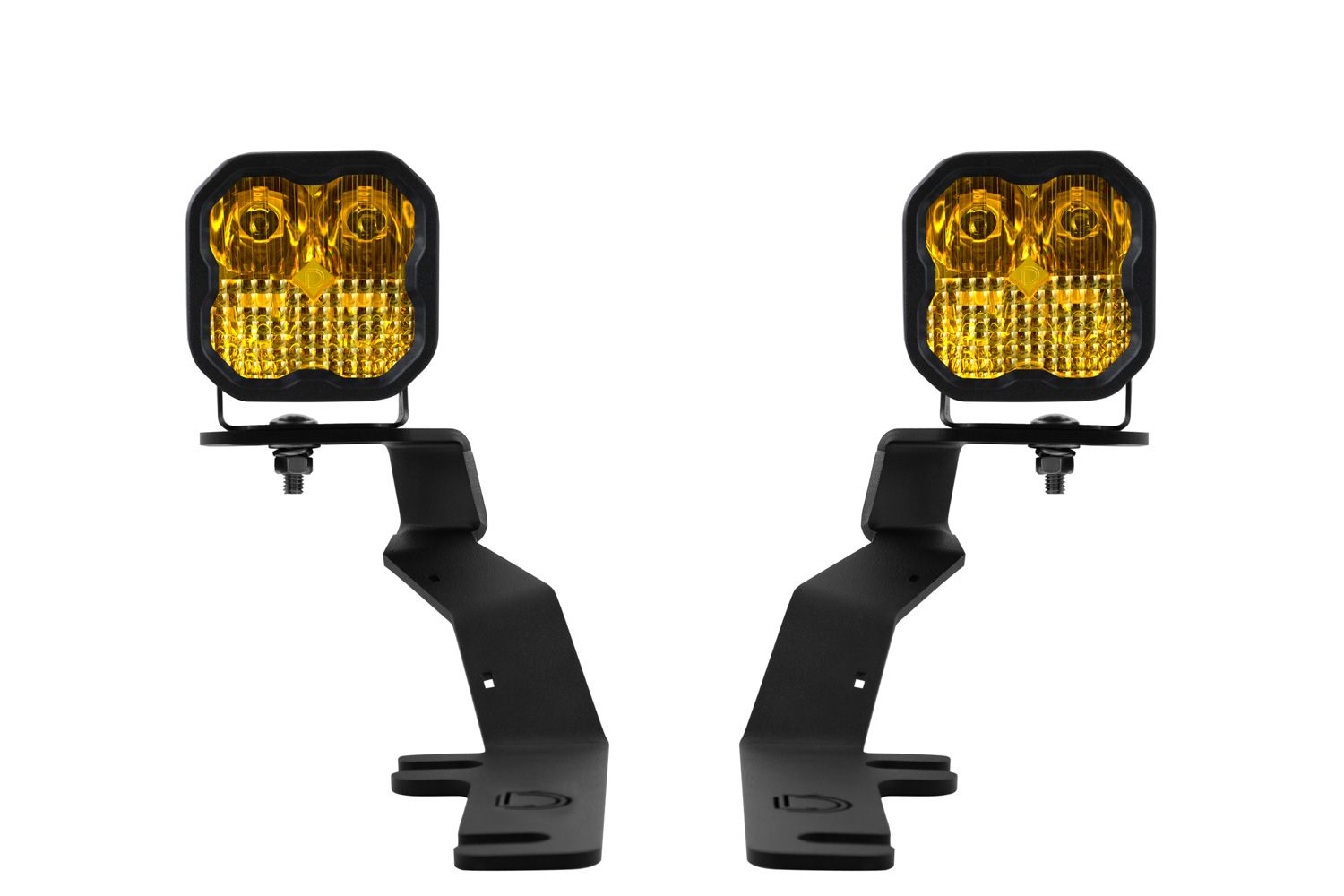

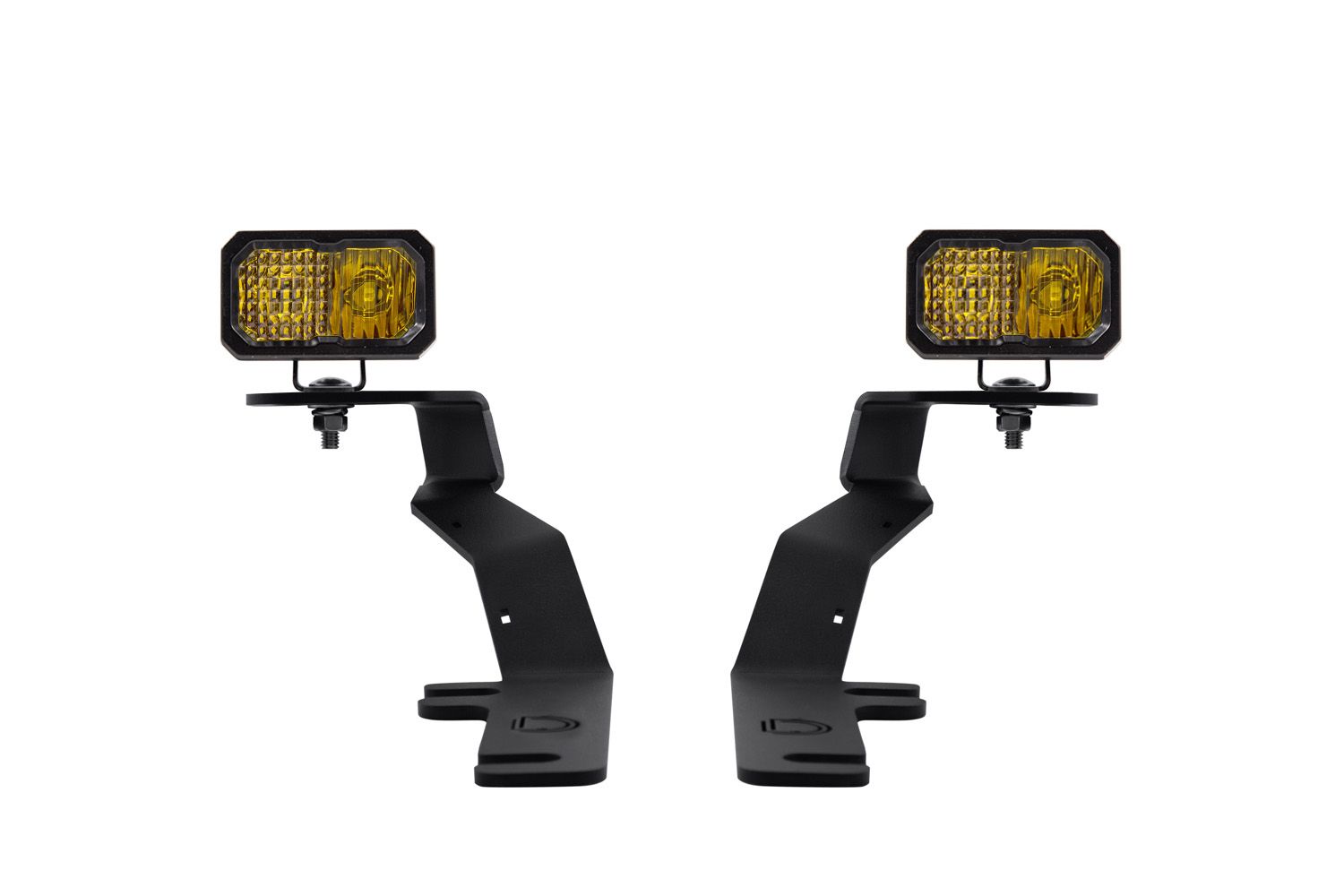

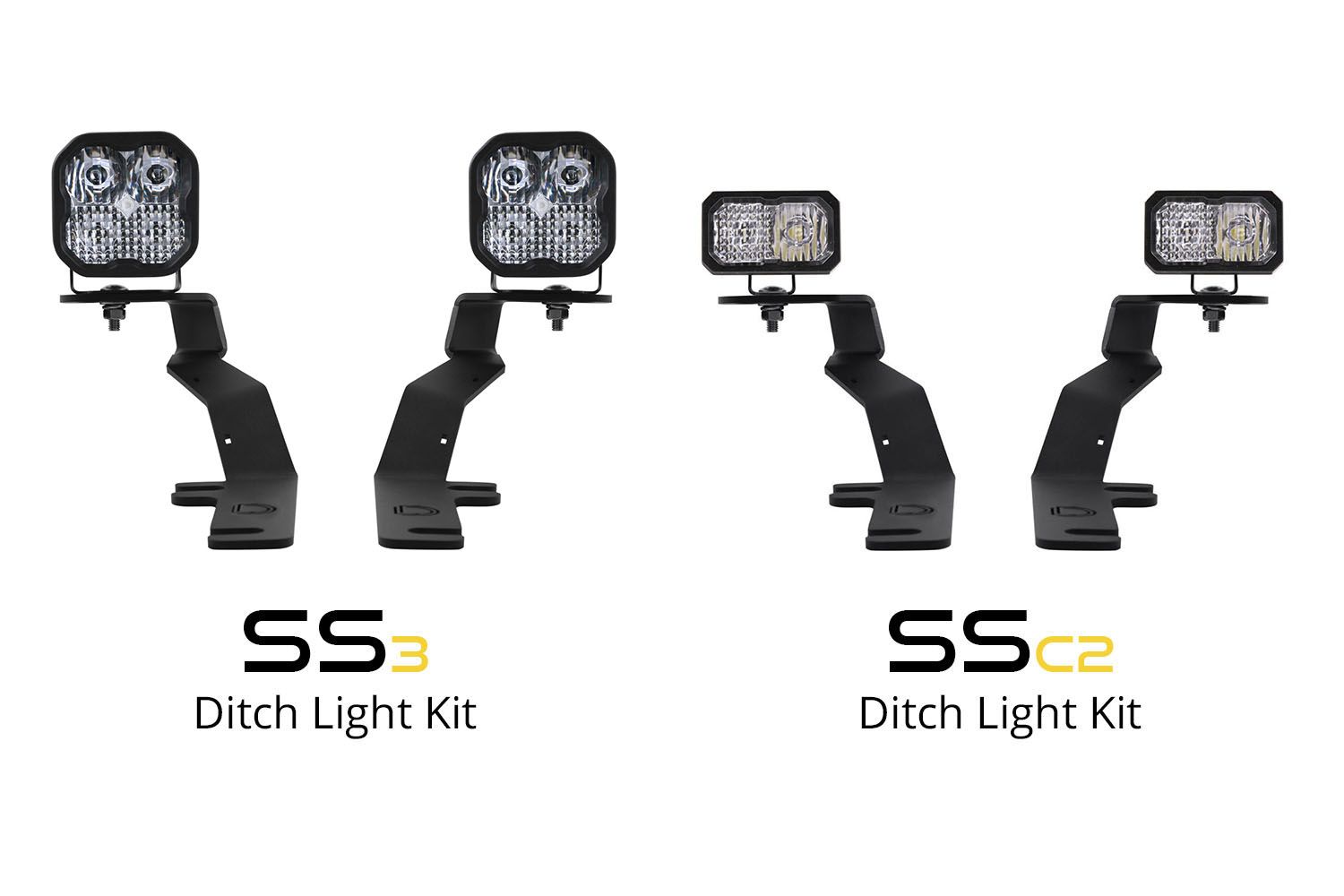

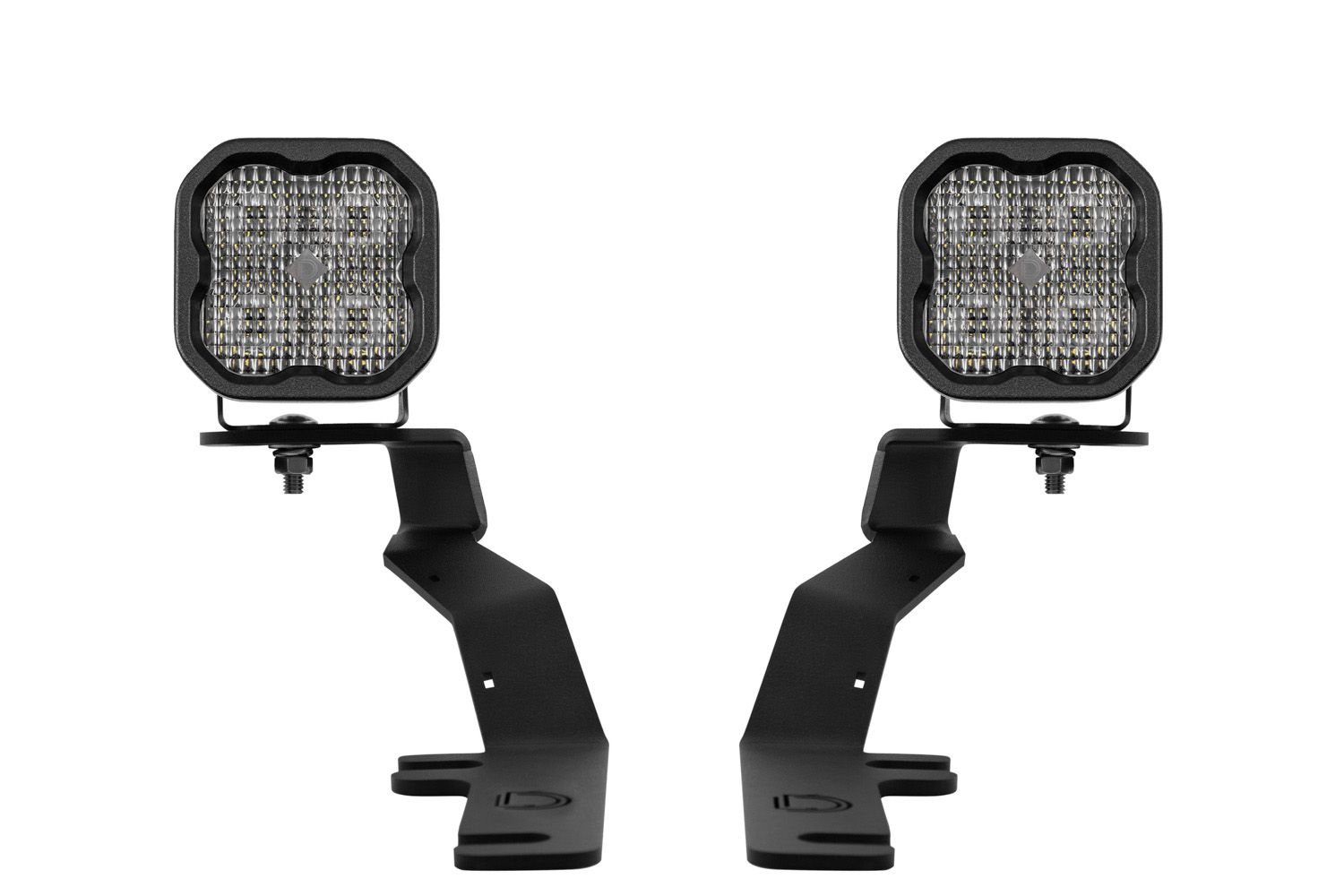

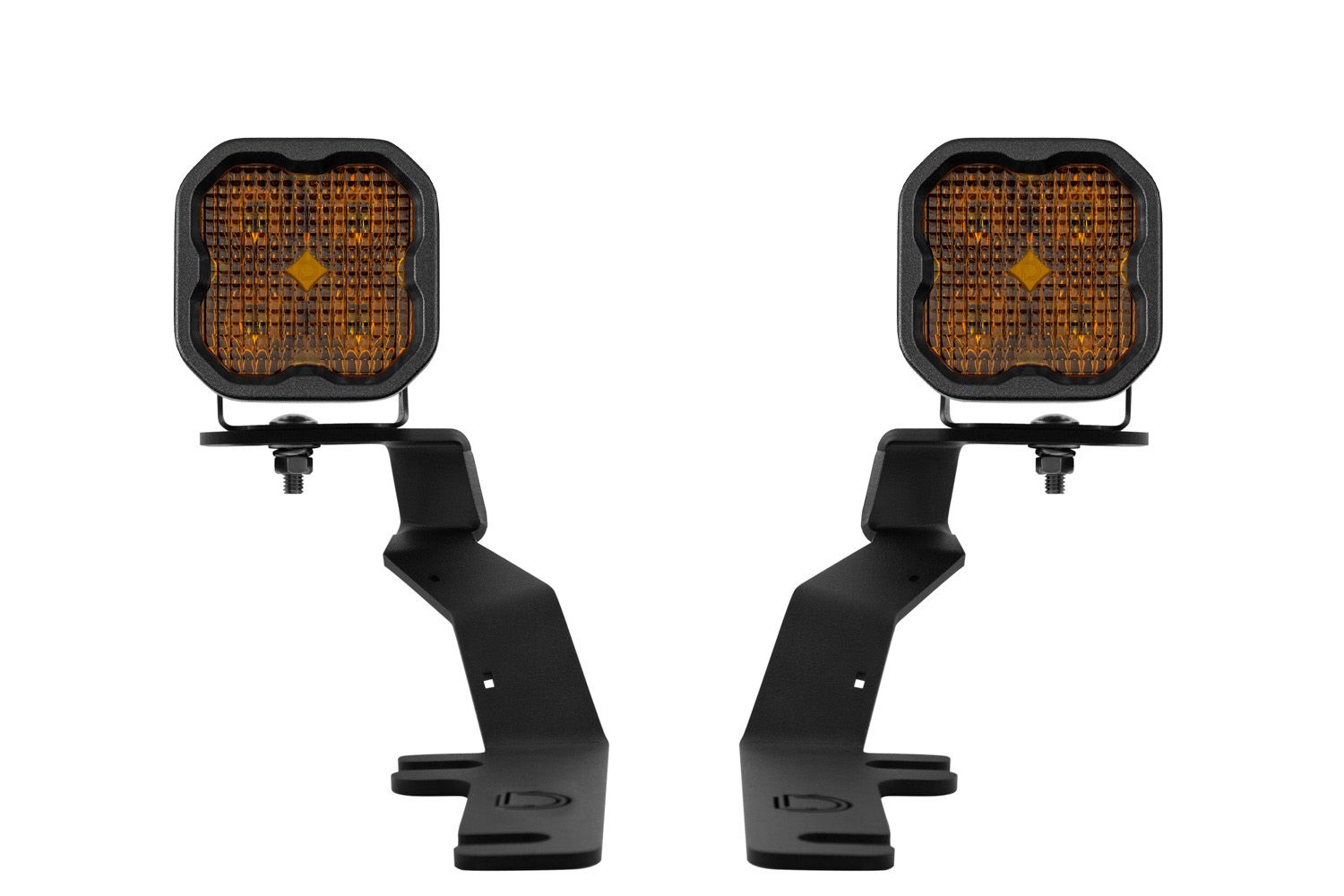

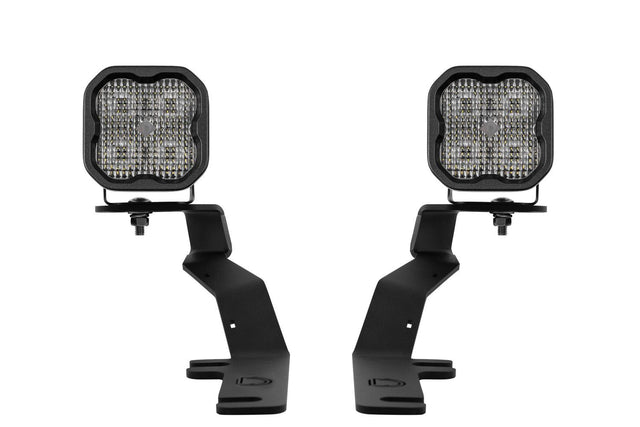

You can build this kit around the 2" C2 2.0 Sport or Pro pods, or step up to the 3" Sport or Pro for more output — and choose your beam pattern from Driving, White Combo, or Yellow Combo to match how you use your truck. Whether you're running dirt roads after dark, working a job site, or navigating tight trails, there's a configuration here that fits your needs.

Documentation
