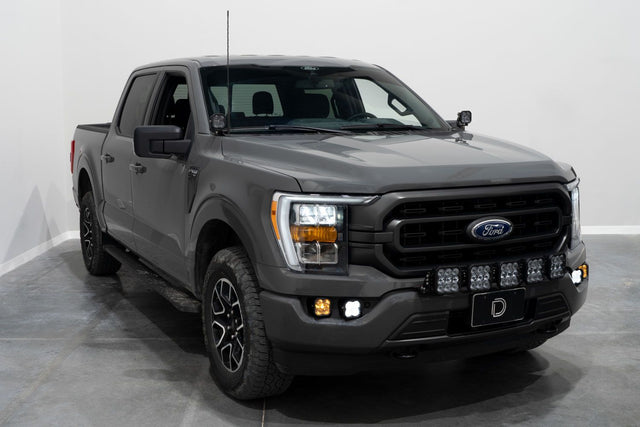

Stage Series Fog Pocket Kit for 2021-2023 Ford F-150

Diode Dynamics  |  SKU: DD7310  |  Barcode: 00195995128546
Regular price $ 890.00 CAD
Choose Your Power Level
Choose Your Color
Fitment & Install Notes
Fits
Fits: 2021-2023 Ford F-150
Free shipping Orders $500+
Canadian orders No duties / brokerage
Authorized Diode Dynamics Dealer
Returns 30-day easy

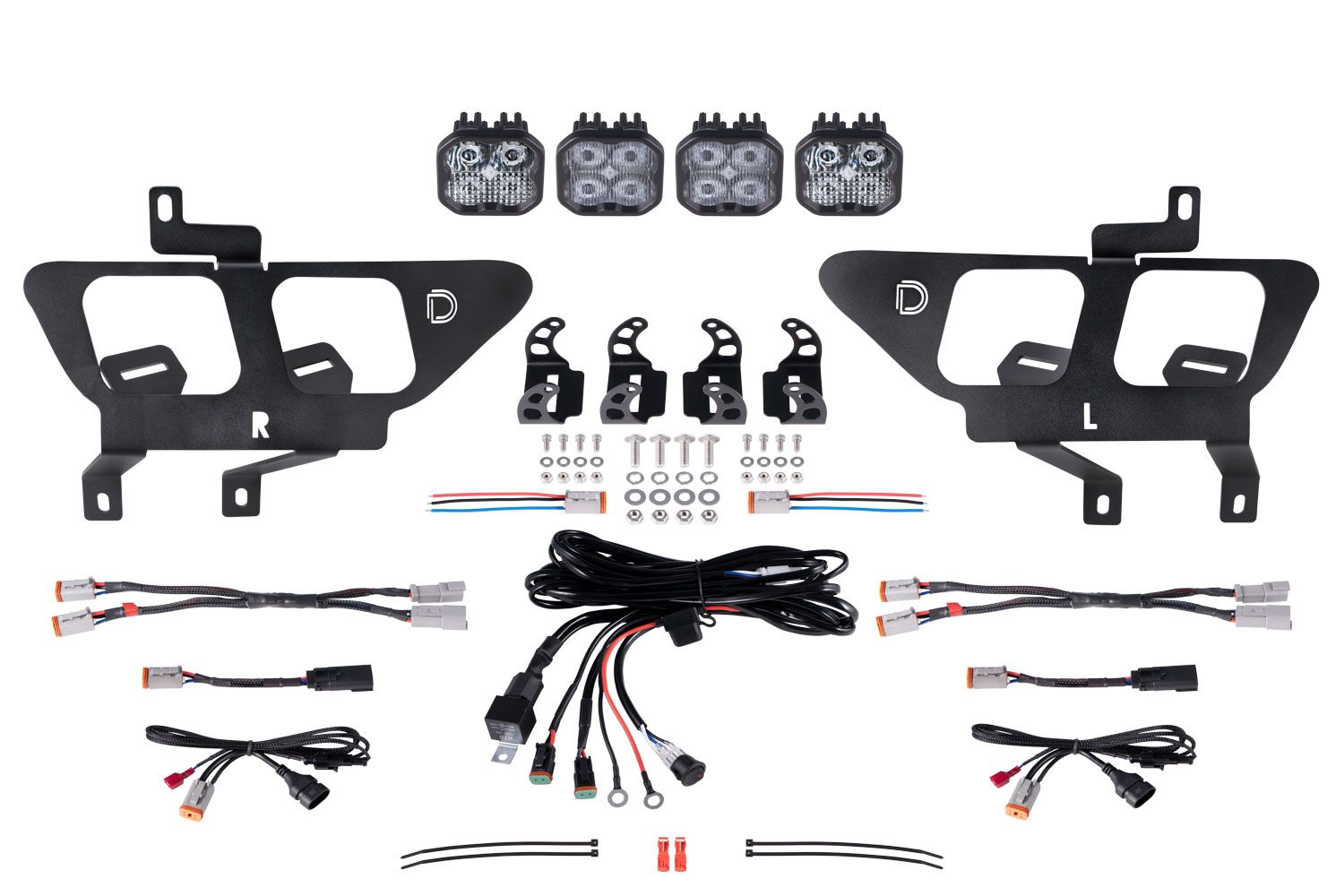

What's in the box 9 ITEMS
Two (2) Ford F-150 fog pocket brackets
Two (2) White SS3 SAE Fog LED pods
Two (2) White SS3 Combo/Driving LED pods
One (1) dual-output fog harness
One (1) Heavy Duty Dual Output 4-pin harness
One (1) Molex DT Adapter wire
One (1) 9006 backlight tap wire kit
Four (4) zip ties
Mounting hardware and guide
Optical
Lumens 1520
Color temperature 6000K
Beam spread Combo/Driving 80°x30° Flood 80°x50°
Power 14W
Operating voltage 9-16V
Grade Performance
Intensity 9 100 cd
LED emitter Luxeon Z ES, Cree XP-L HI, Osram Boost HX
Driver features Constant Current
Construction
Housing material Aluminum
Lens material Polycarbonate
Connector Deutsch DT Input
Cooling Passive, Pin-Fin heatsink
Polarity Polarity Specific
Terminal type Pin
Base color Black
Bracket color Black
Install
Mounting hardware Included
Compliance
IP rating IP69K Waterproof High Pressure
Operating temp -40C to 85C (-40F to 185F)
SAE/DOT SAE J583 Foglamp Beam Pattern
Country of origin USA
Street legal Yes
SAE/DOT Compliant pattern available
Features & benefits
Bolt-on fitment for 2021+ Ford F-150.

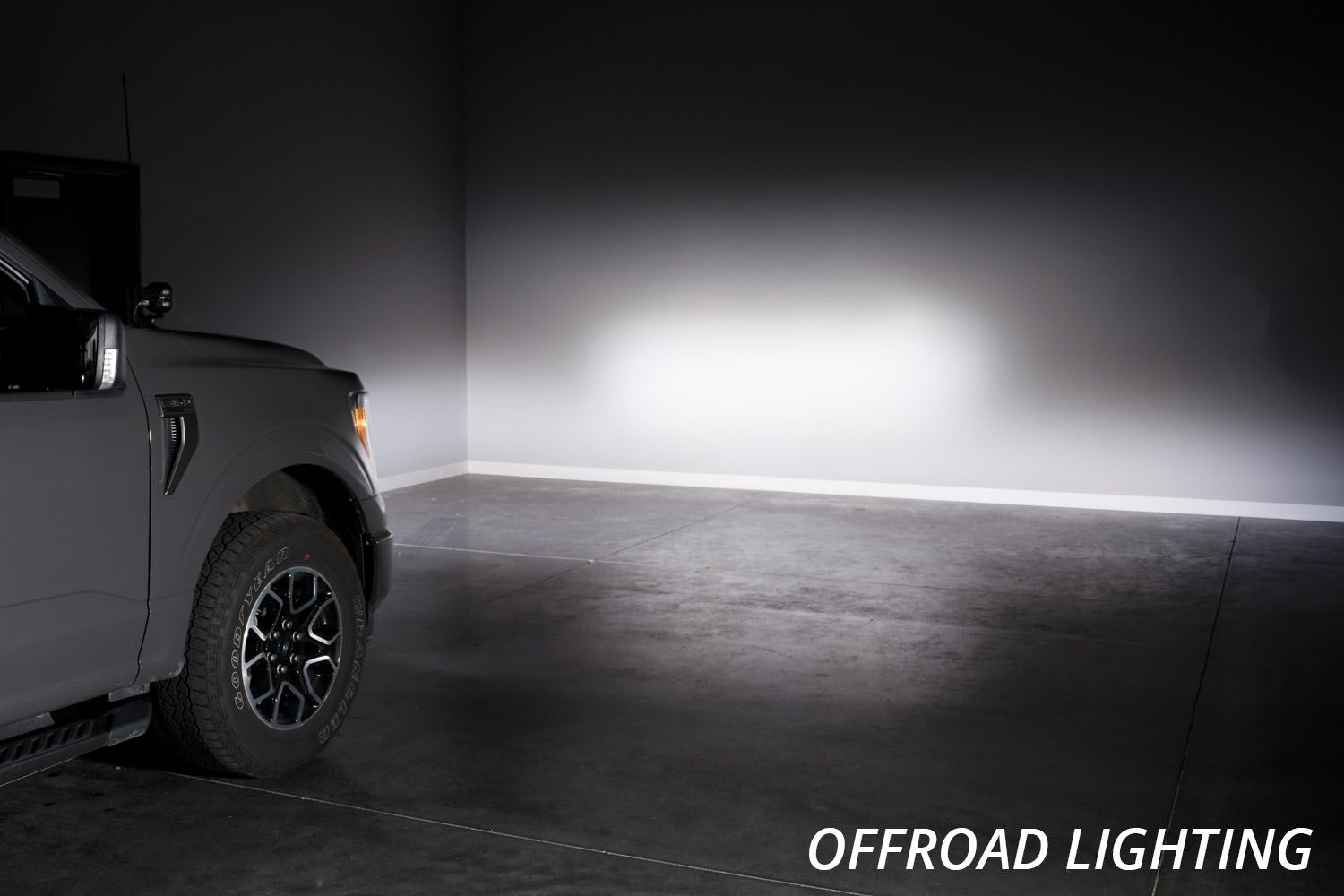

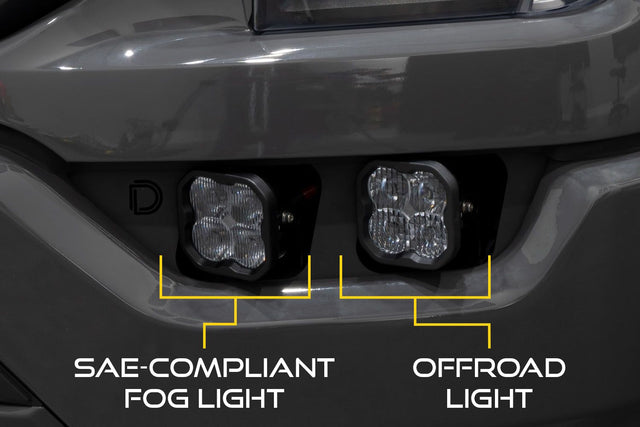

Adds SAE-compliant fog lights, and powerful offroad lighting.
Harnesses included for independent control of road-legal and offroad lighting.

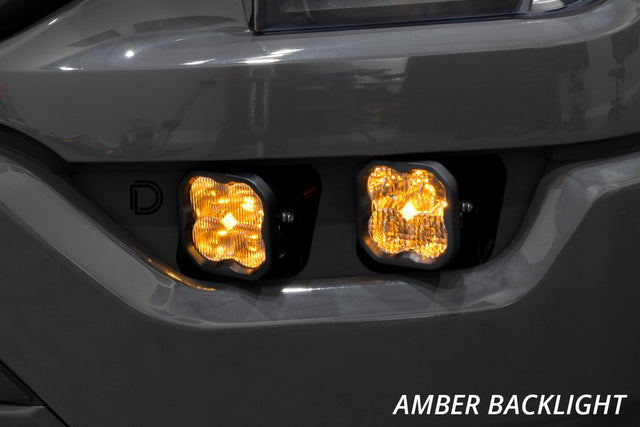

Backlight feature provides amber accent light.
Highly durable powdercoated stainless steel bracket.
Engineered and assembled in USA.
Description

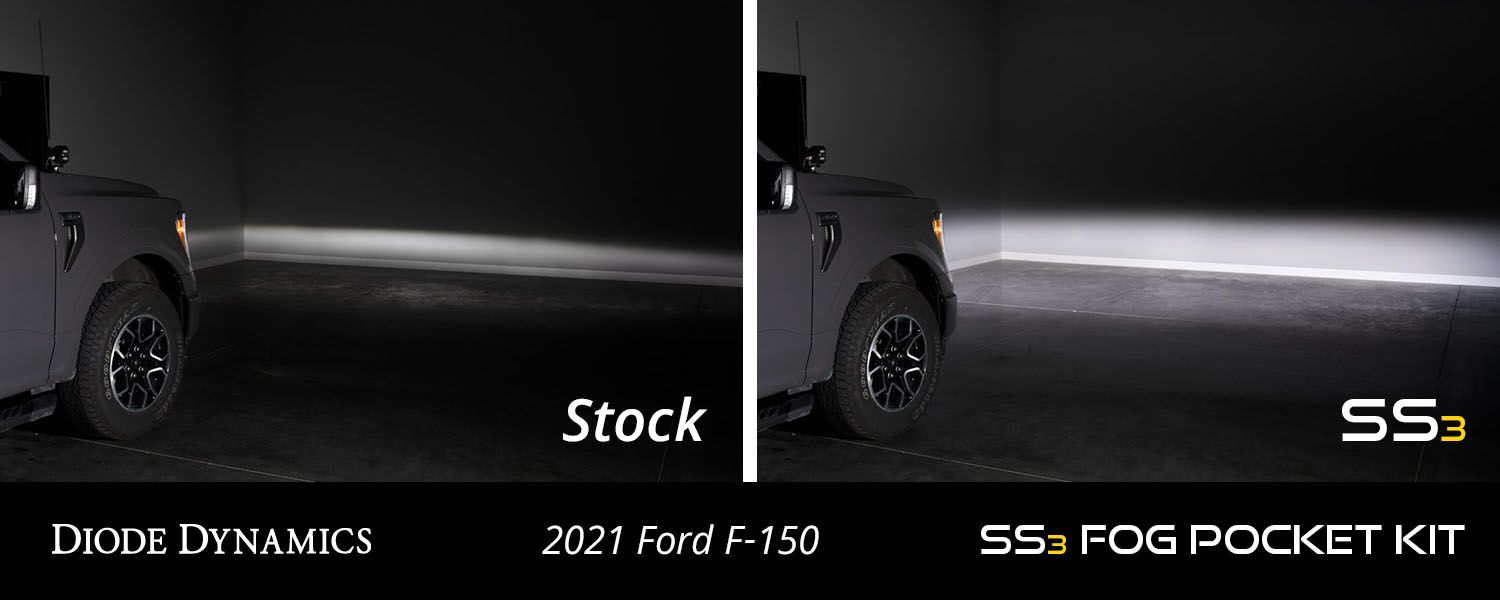

The Stage Series Fog Pocket Kit is a direct-fit LED fog light upgrade for the Ford F-150, designed to fill the factory bumper fog pockets with serious, functional lighting. Using SS3 LED pods and a vehicle-specific mounting bracket, this kit installs cleanly without cutting or fabricating — the result looks like it came from the factory, but performs far beyond it.

You can tailor this kit to your exact needs by choosing from Sport, Pro, or Max output levels, giving you flexibility whether you want a capable daily driver setup or maximum output for work sites and dark back roads. Color temperature is also your call — Cool White delivers crisp, modern visibility while Yellow cuts through rain, fog, and dust with less glare and scatter.

The SS3 pods are built to handle the punishment that comes with truck ownership — road debris, moisture, and temperature swings included. If you use your F-150 for work, overlanding, or simply want better visibility on dark rural roads, this kit is a straightforward, no-compromise upgrade.

Documentation
