Stage Series Fog Pocket Kit for 2020-2022 Ford Super Duty

Diode Dynamics  |  SKU: DD7576  |  Barcode: 00195995131508
Regular price $ 890.00 CAD
Choose Your Power Level
Choose Your Color
Fitment & Install Notes
Fits
Fits: 2020-2022 Ford F-250 Super Duty, 2020-2022 Ford F-350 Super Duty, 2020-2022 Ford F-450 Super Duty, 2020-2022 Ford F-550 Super Duty
Free shipping Orders $500+
Canadian orders No duties / brokerage
Authorized Diode Dynamics Dealer
Returns 30-day easy

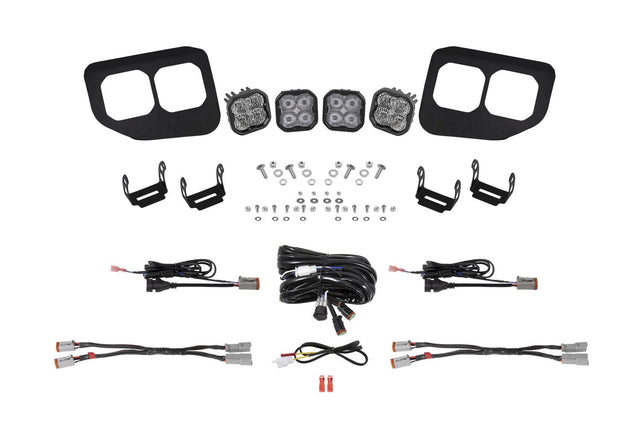

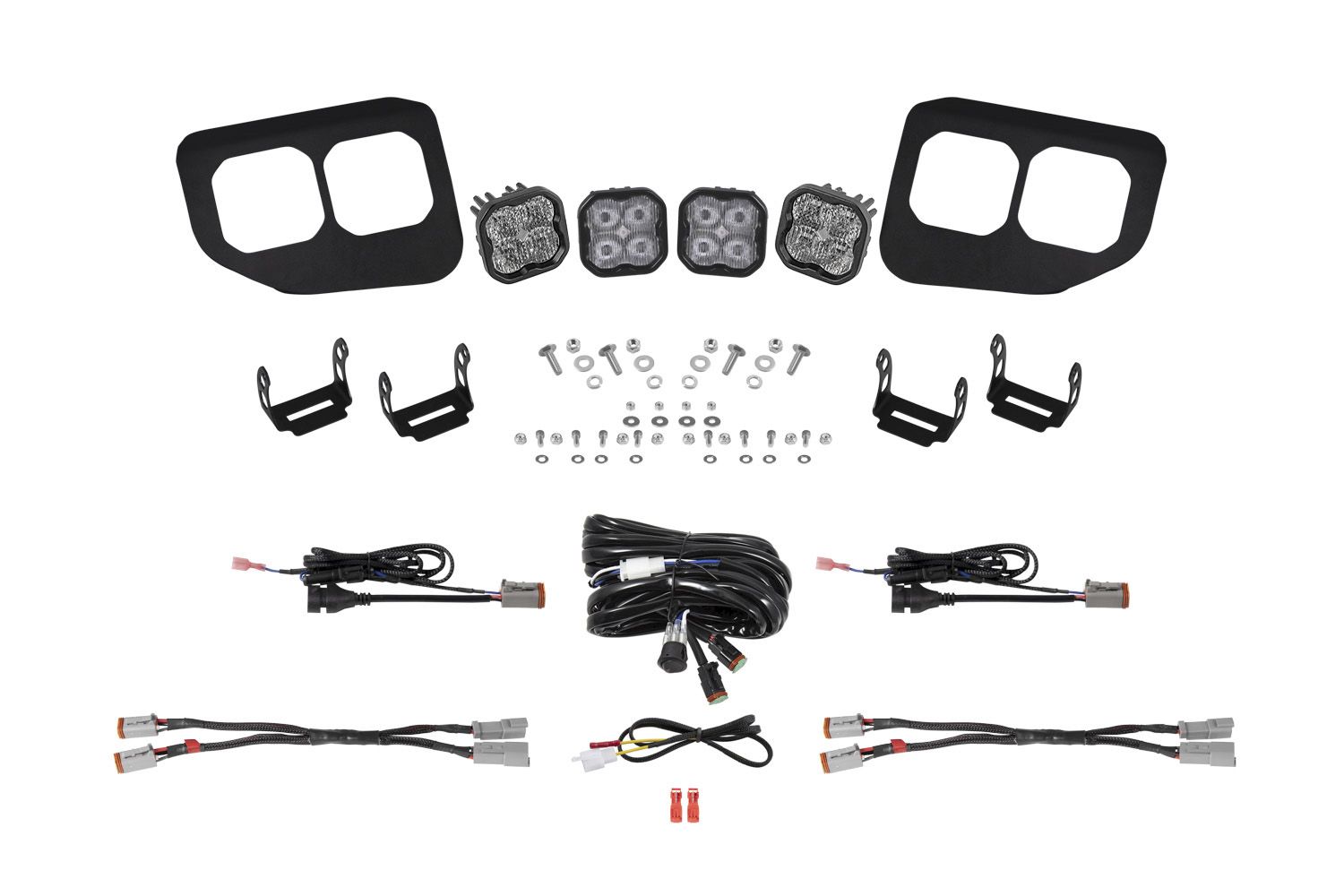

What's in the box 7 ITEMS

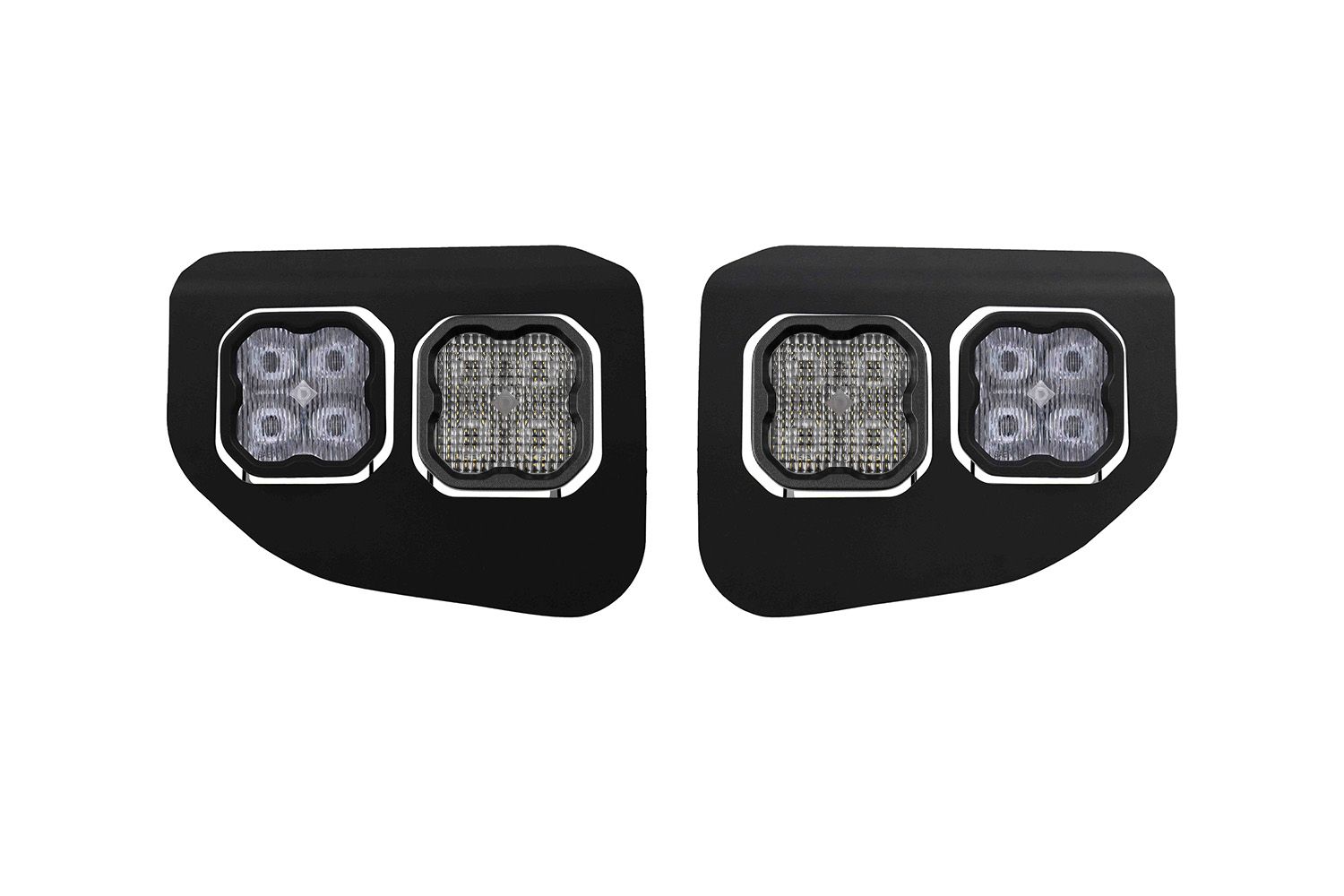

Two (2) Ford Super Duty fog pocket brackets
Two (2) White SS3 SAE Fog LED pods
Two (2) White SS3 Combo/Driving LED pods
One (1) Dual Fog Pocket Backlight Splitter
One (1) Heavy Duty Dual Output Wiring Harness
One (1) 9006 Backlight Tap Wire Kit
Mounting Hardware and Guide
Optical
Lumens 1520
Color temperature 6000K

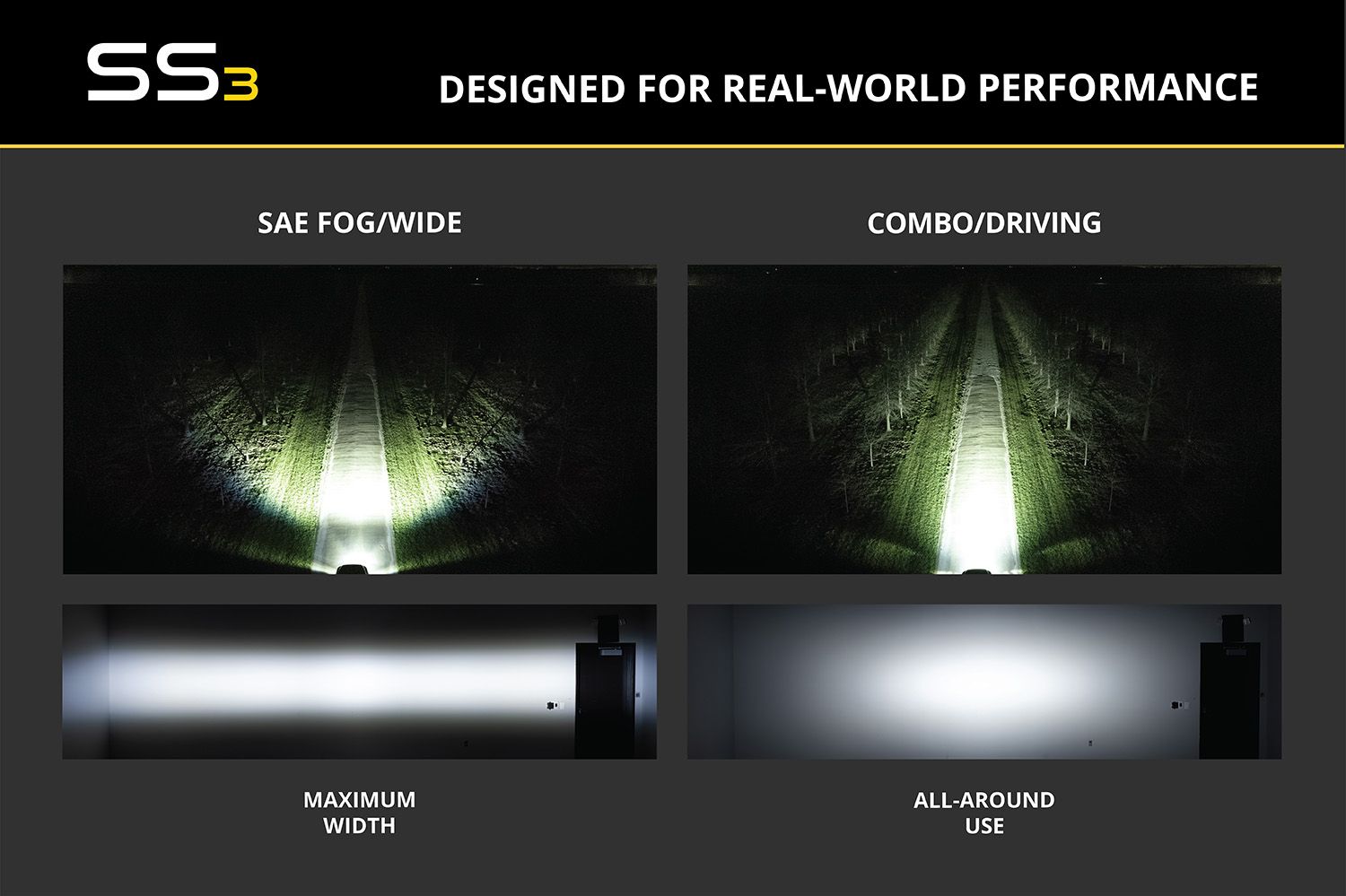

Beam spread Combo/Driving 80°x30° Flood 80°x50°
Power 14W
Operating voltage 9-16V
Grade Performance
Intensity 9 100 cd
LED emitter Luxeon Z ES, Cree XP-L HI, Osram Boost HX
Driver features Constant Current
Construction
Housing material Aluminum
Lens material Polycarbonate
Connector Deutsch DT Input, 9006
Cooling Passive, Pin-Fin heatsink
Polarity Polarity Specific
Terminal type Pin
Base color Black
Bracket color Black
Install
Mounting hardware Included
Compliance
IP rating IP69K Waterproof High Pressure
Operating temp -40C to 85C (-40F to 185F)
SAE/DOT SAE J583 Foglamp Beam Pattern
Country of origin USA
Street legal Yes
SAE/DOT Compliant pattern available
Features & benefits
Bolt-on fitment for 2020-2022 Ford Super Duty.

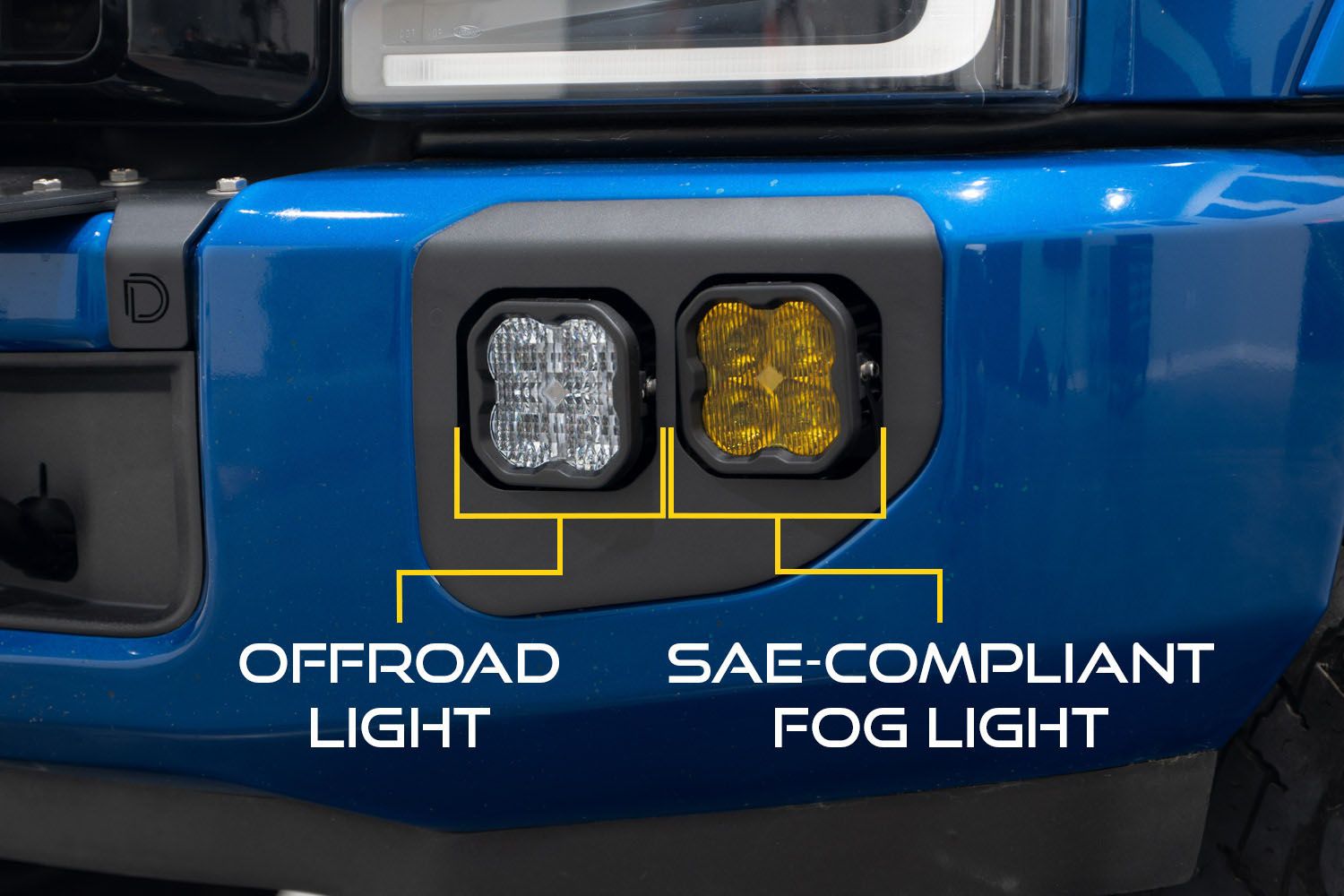

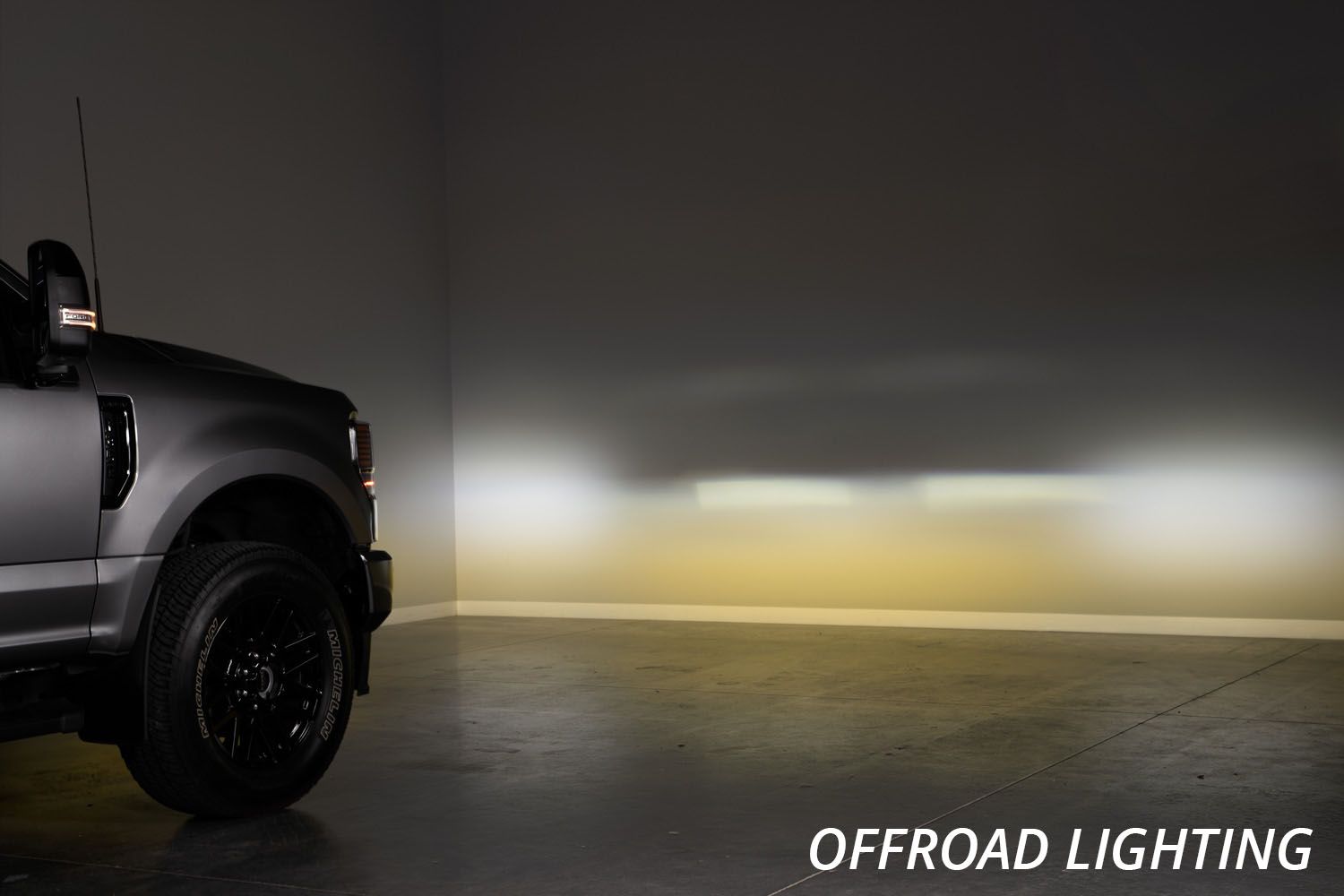

Adds brighter SAE-compliant fog lights, and powerful offroad lighting.
Plug-and-play harness, for independent control of offroad lights.

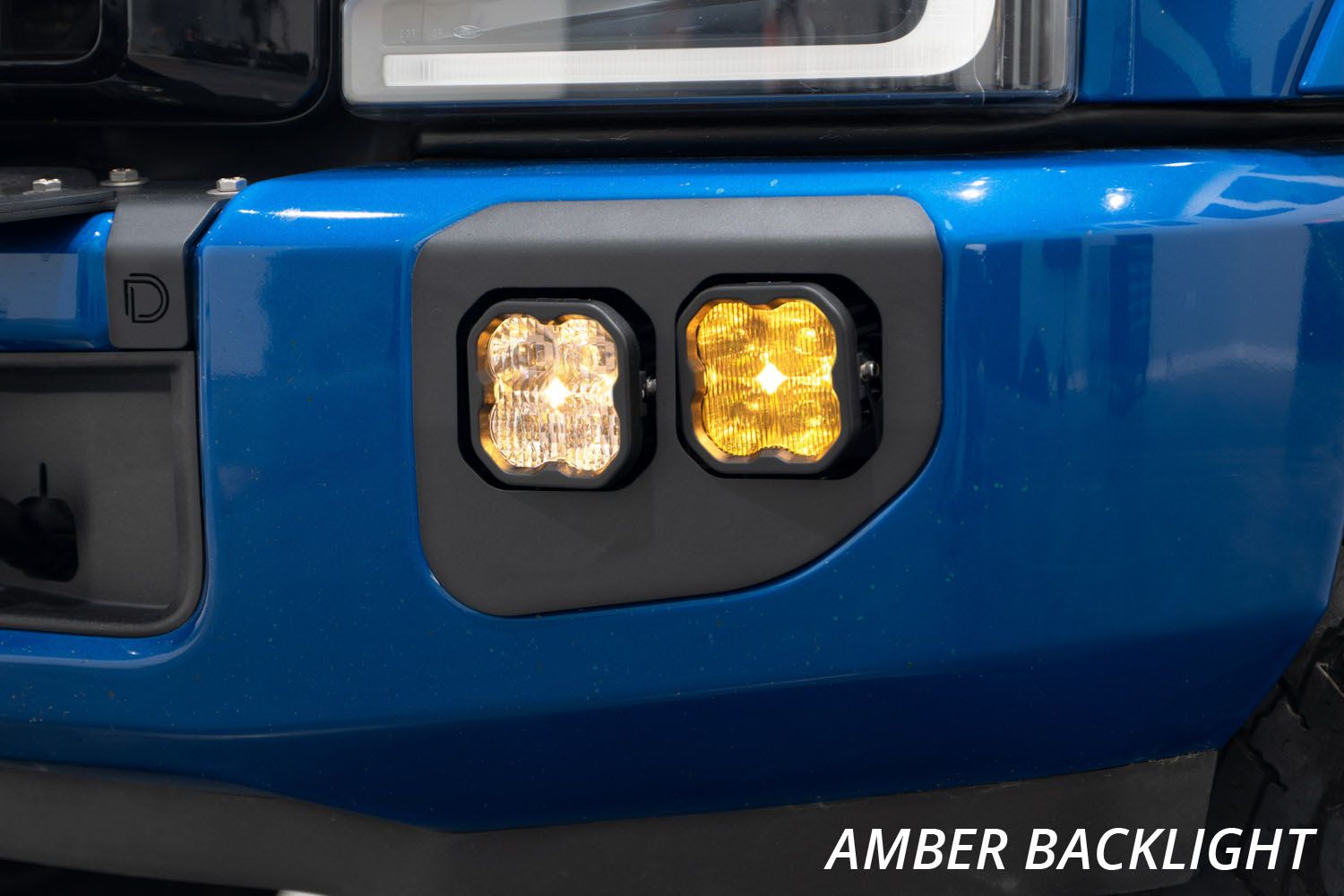

Backlight feature provides amber accent light.
Highly durable powdercoated stainless steel bracket.
Engineered and assembled in USA.
Description

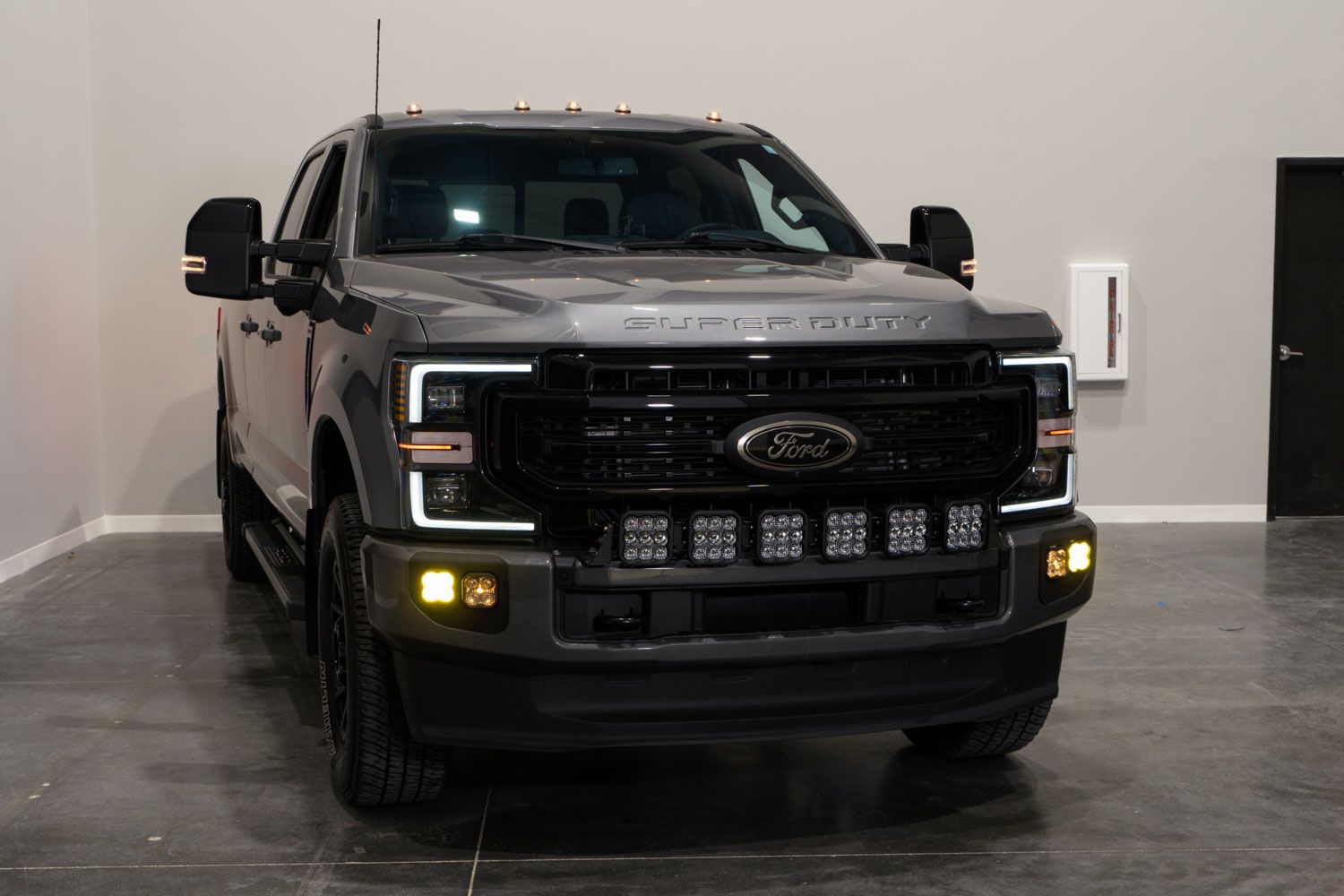

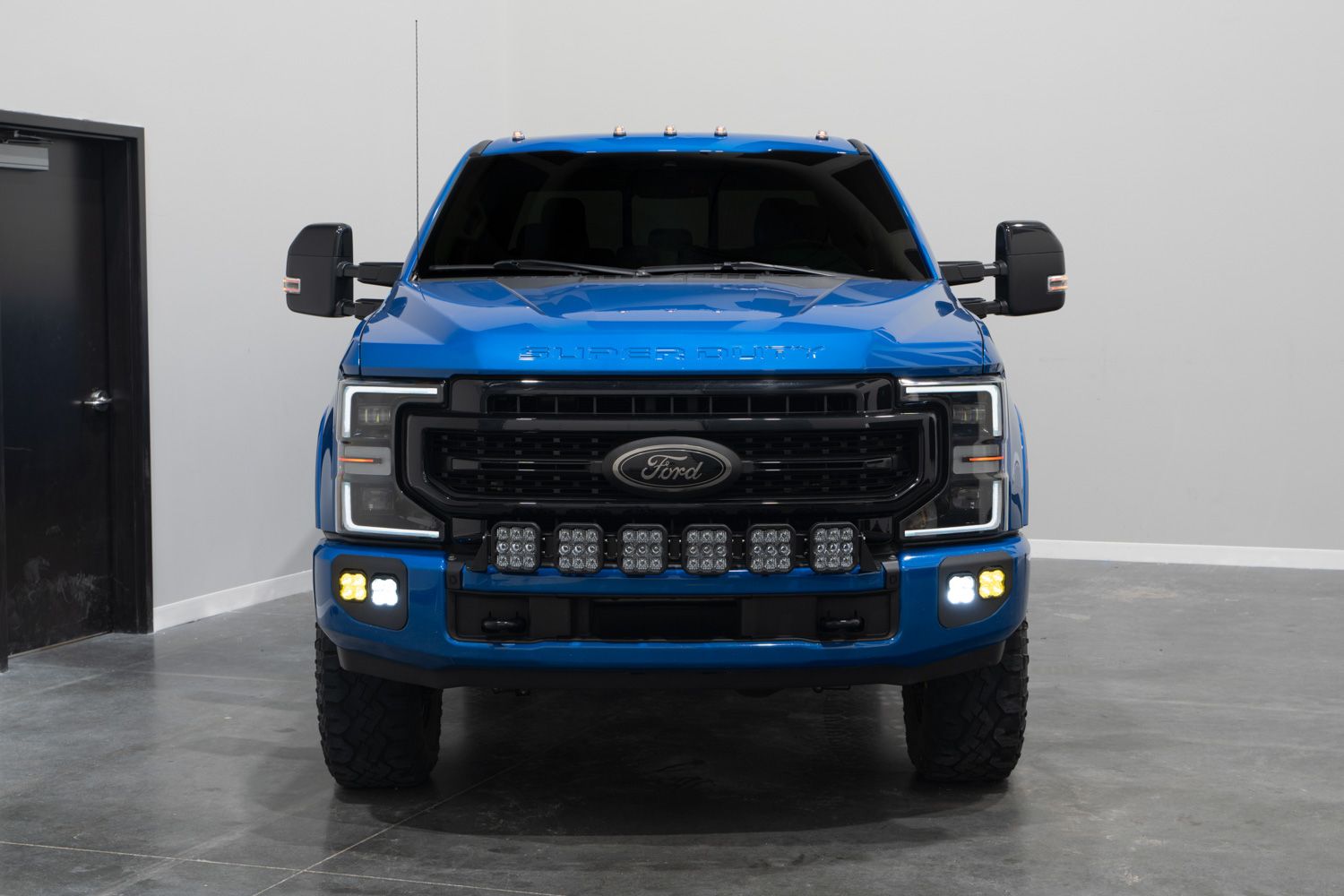

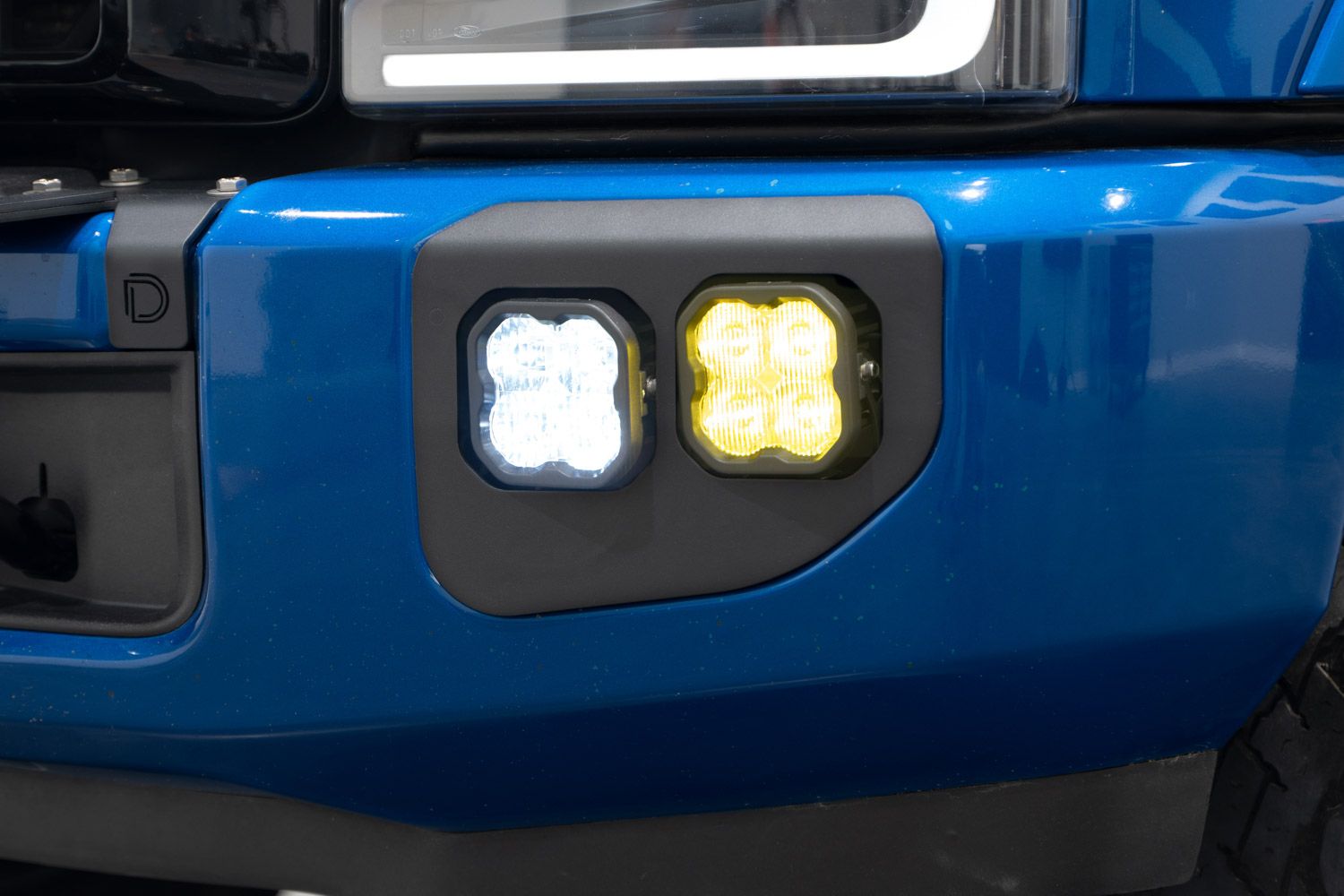

The Diode Dynamics Stage Series Fog Pocket Kit is a direct-fit LED lighting upgrade for the Ford Super Duty, designed to mount four SS3 LED pods cleanly into the factory bumper openings without cutting or fabricating. Whether you're hauling through worksites before dawn, navigating back roads in poor weather, or simply want stronger low-level illumination around your rig, these pods fill your fog pocket positions with serious, focused output.

You choose the configuration that fits your needs: output level comes in Sport, Pro, or Max, letting you dial in the right balance of brightness and draw for your setup. Color is also your call — Cool White delivers crisp, modern daylight-style illumination, while Yellow cuts through rain, snow, and fog with reduced glare and better contrast on the road surface ahead.

The SS3 pods are built for the punishment that Super Duty owners put their trucks through, with a pin-fin heatsink design and integrated connectors that keep the install clean and long-lasting. This kit is purpose-built for F-250, F-350, F-450, and F-550 owners who want a professional result without custom fabrication.

Documentation
