Stage Series Backlit Ditch Light Kit for 2022-2025 Subaru WRX

Diode Dynamics  |  SKU: DD6562  |  Barcode: 691026126944
Regular price $ 445.00 CAD
Choose Your Kit
Choose Your Optic and Color
Fitment & Install Notes
Fits
Fits: 2022-2026 Subaru WRX, 2018-2023 Subaru Crosstrek
Free shipping Orders $500+
Canadian orders No duties / brokerage
Authorized Diode Dynamics Dealer
Returns 30-day easy

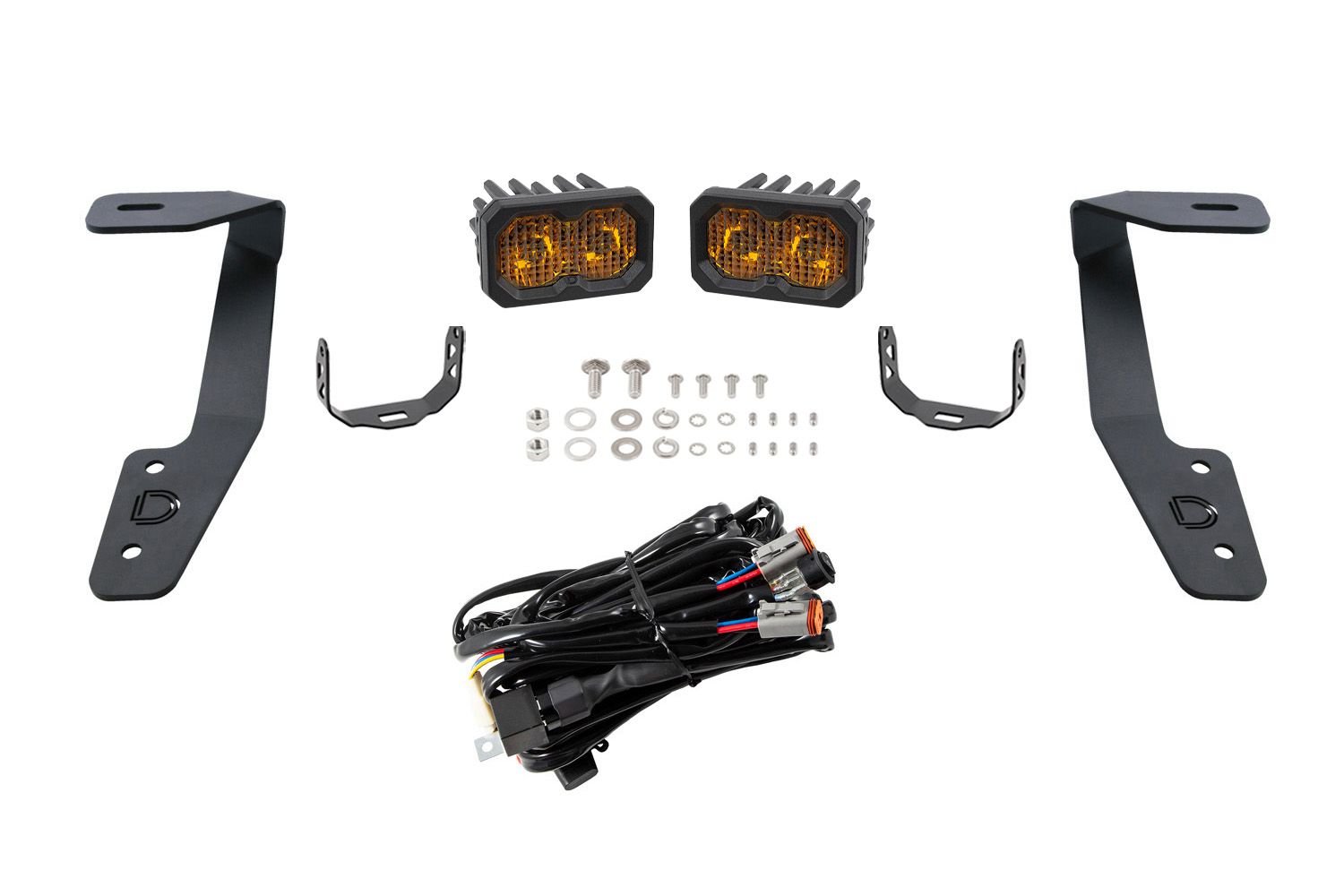

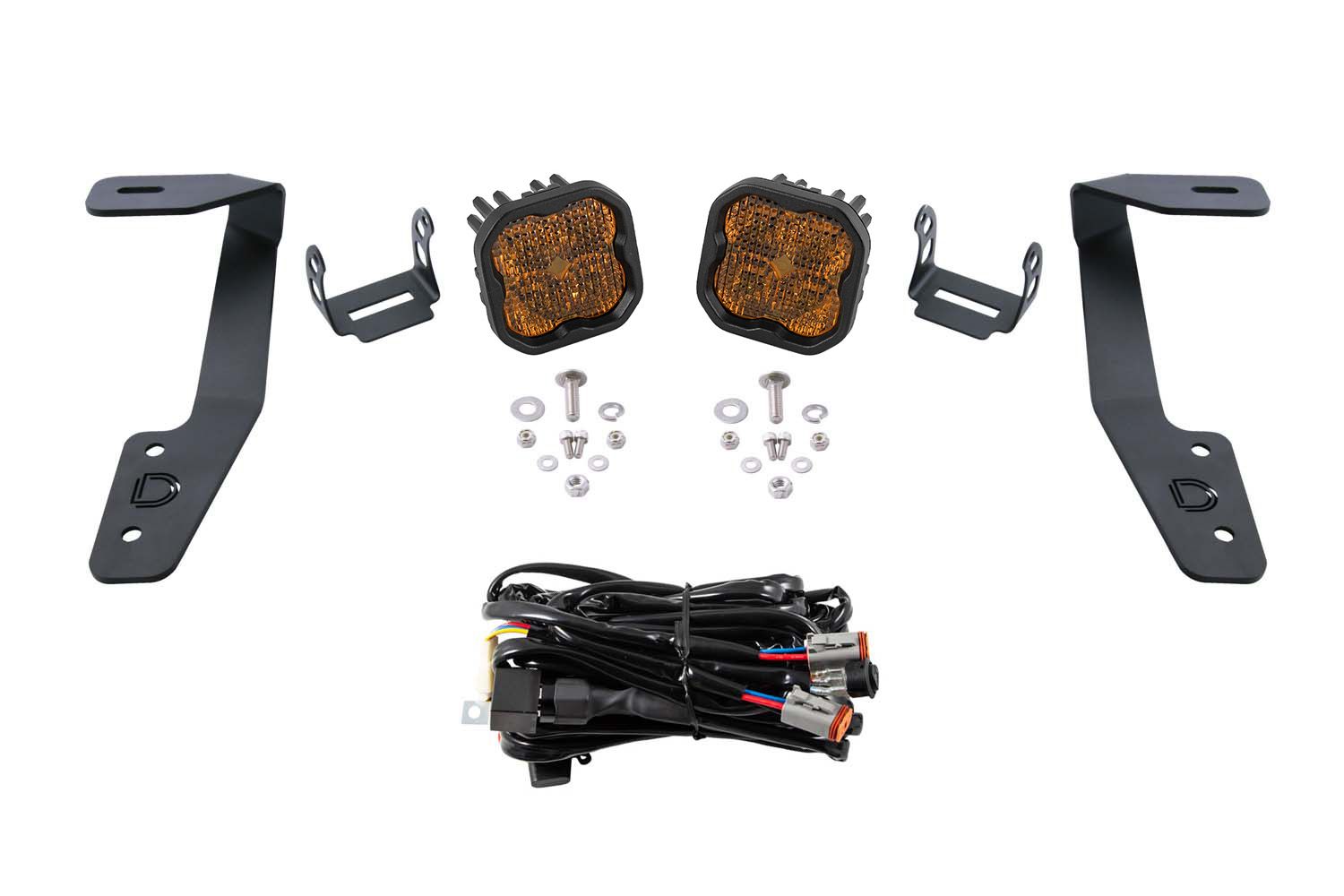

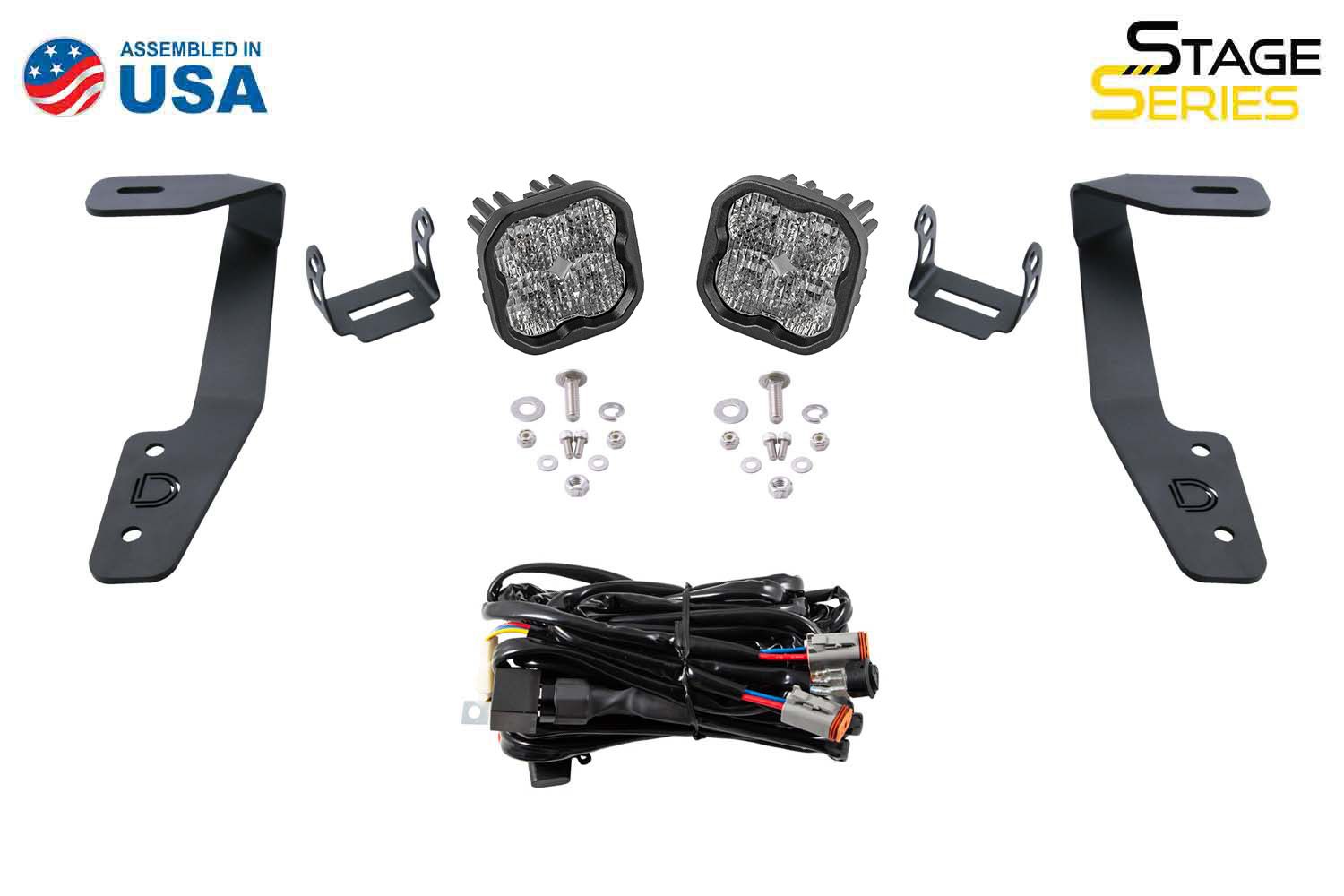

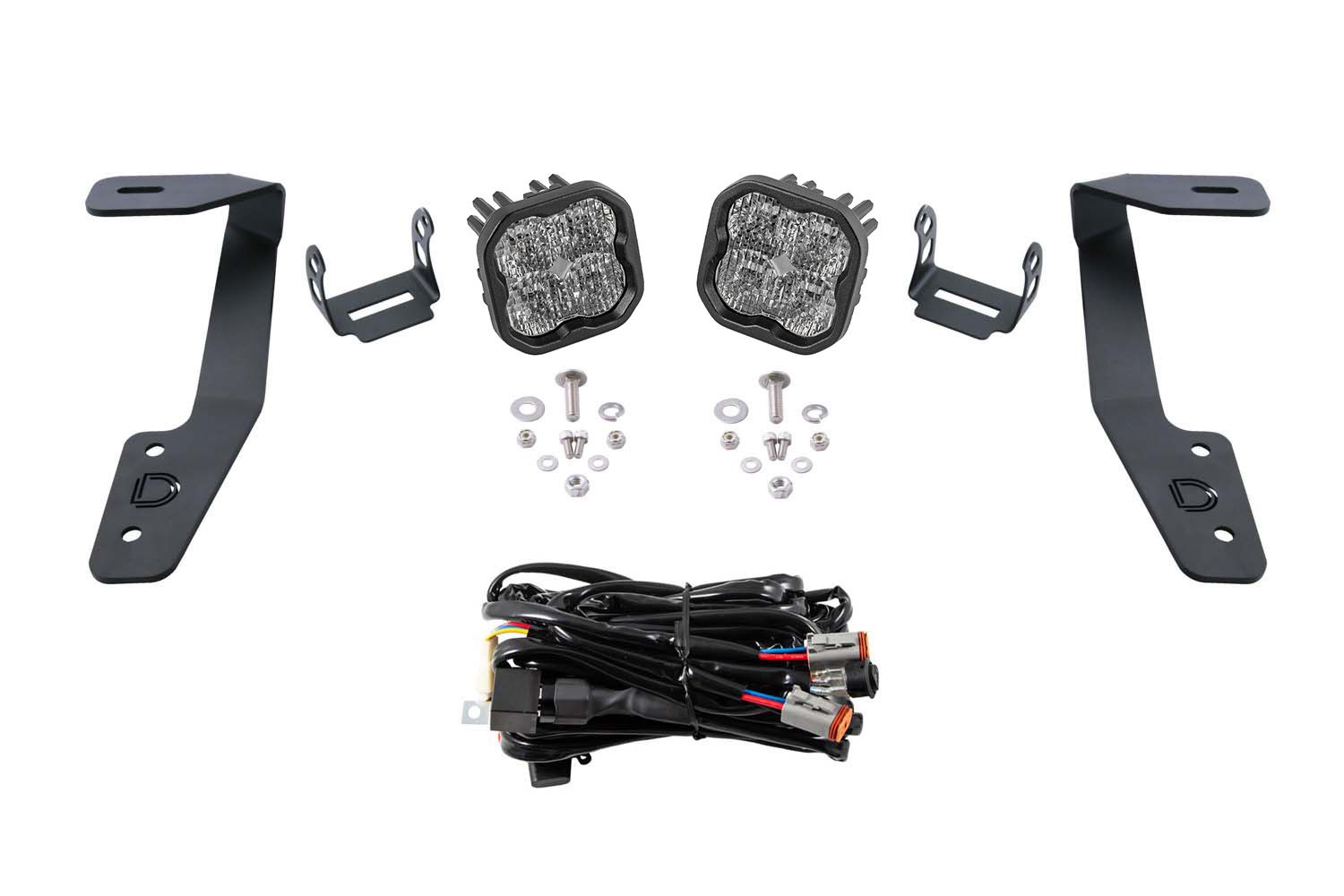

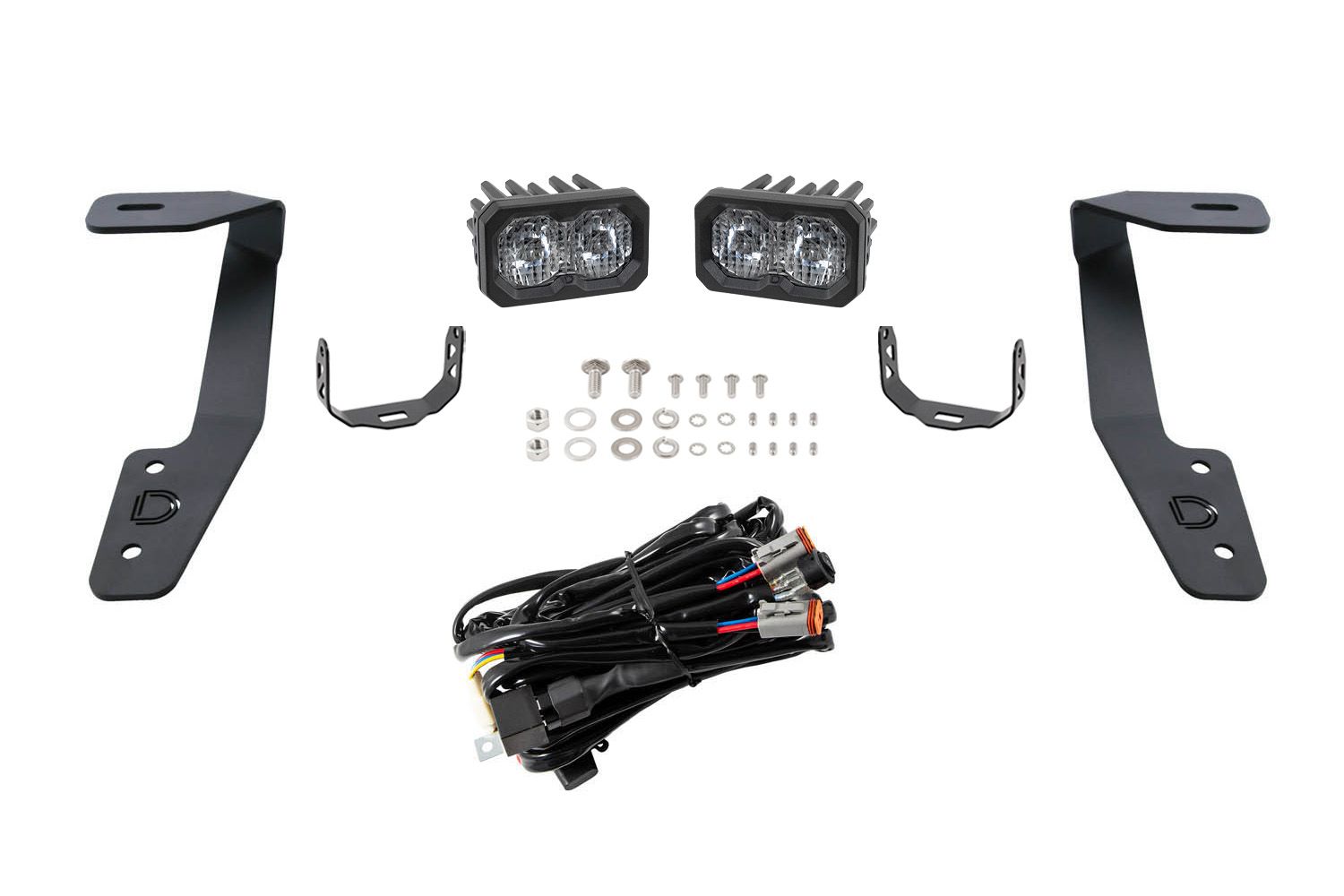

What's in the box 7 ITEMS
• Two (2) Stage Series 2" Standard LED Pods
• Two (2) Ditch light brackets
• Two (2) Stage Series 2" Mounting brackets
• One (1) Heavy-duty 4-pin
• dual output wiring harness
• Mounting hardware
• Mounting guide
Optical
Lumens 871
Color temperature 6000K
Beam spread Combo (Driving and Flood)
Power 8W
Operating voltage 9-16V
Intensity 16 000 cd
LED emitter Osram Ostar Projection Compact, Lumileds Automotive Grade LED
Driver features Constant Current
Construction
Connector Deutsch DT Input
Cooling Passive, Pin-Fin heatsink
Polarity Polarity Specific
Base color Black
Wire quantity 2
Compliance
IP rating IP69K Waterproof High Pressure
Operating temp -40C to 85C (-40F to 185F)
Weather resistant Yes
Features & benefits
Bolt-on fitment for Subaru Crosstrek.

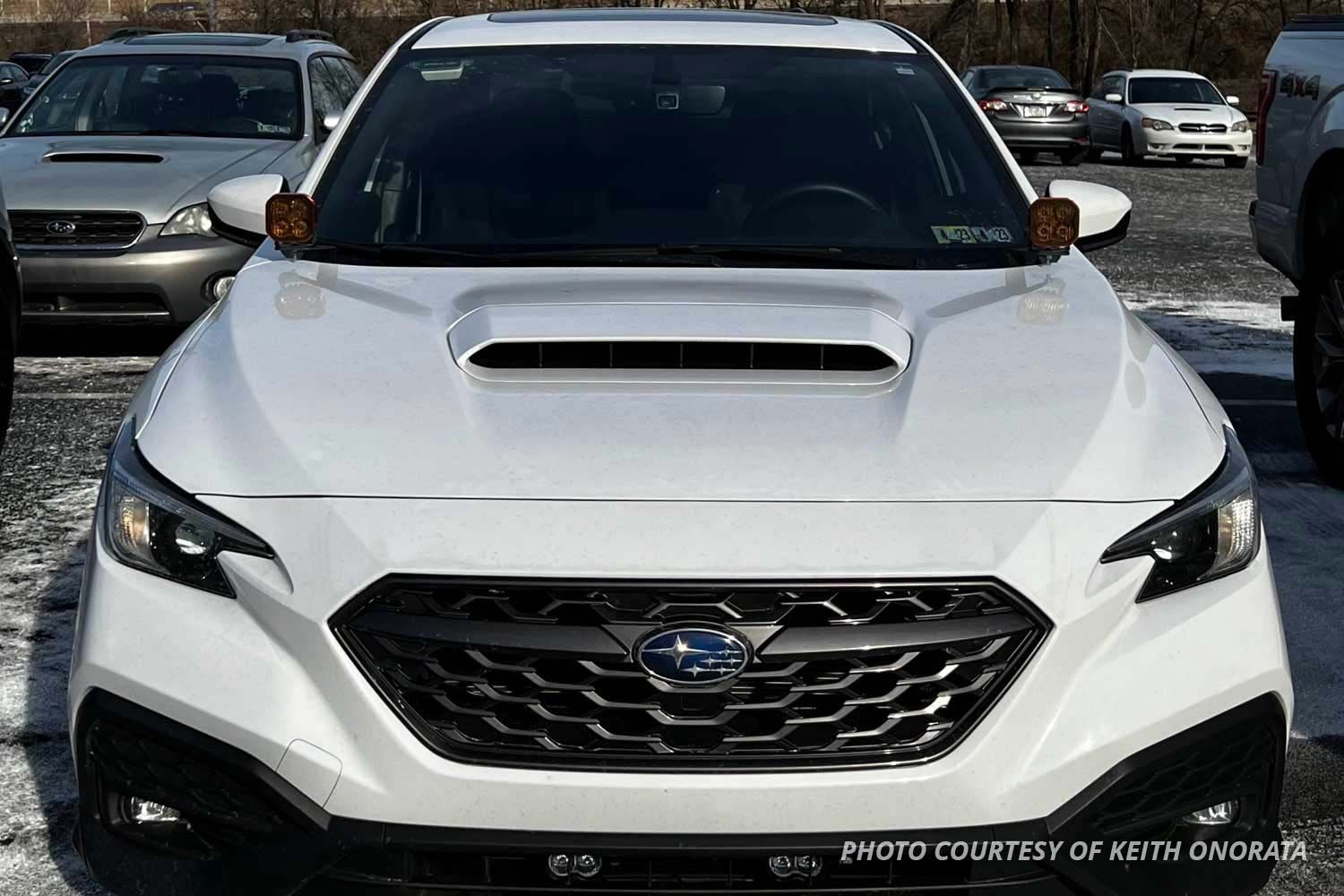

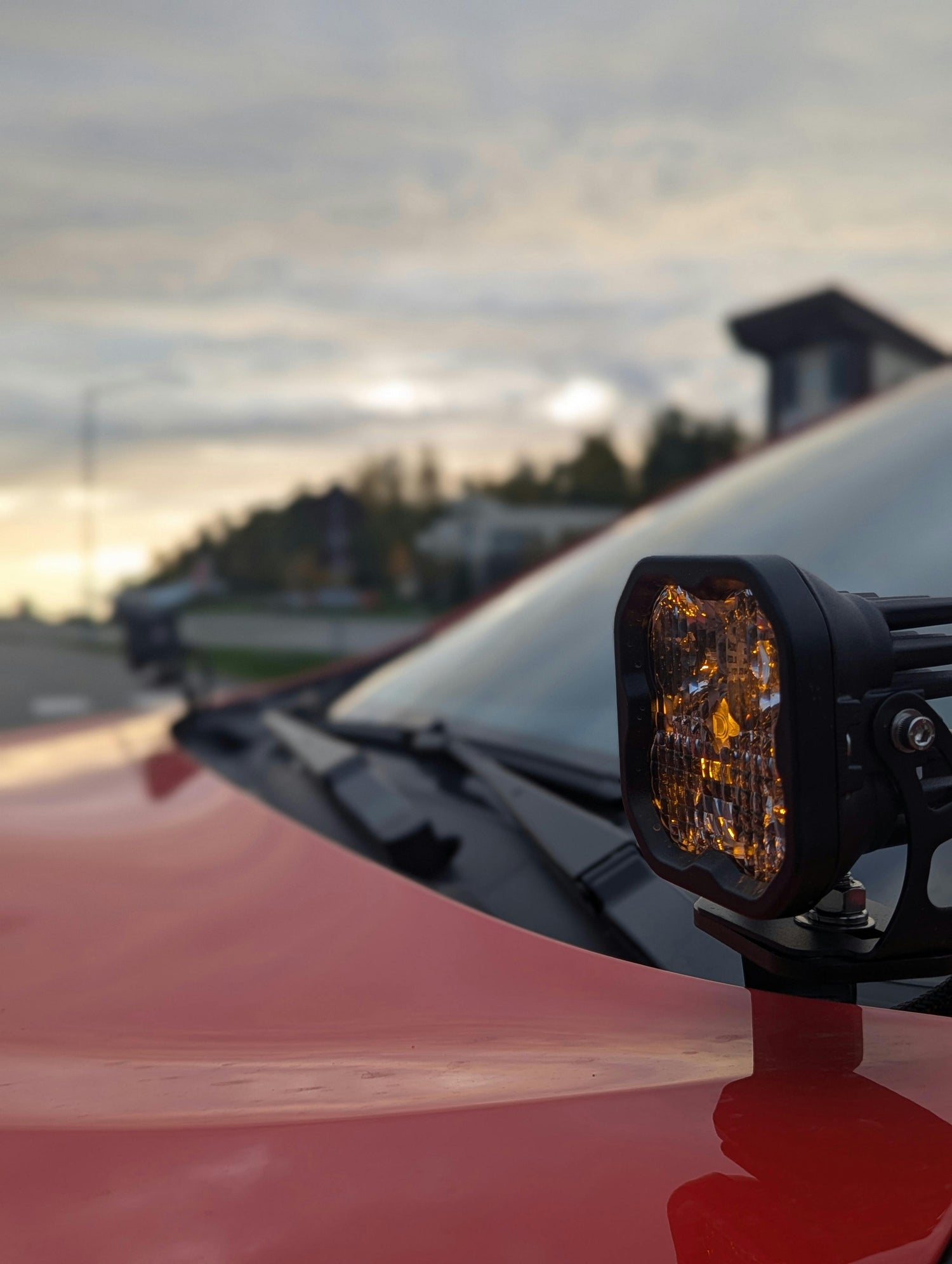

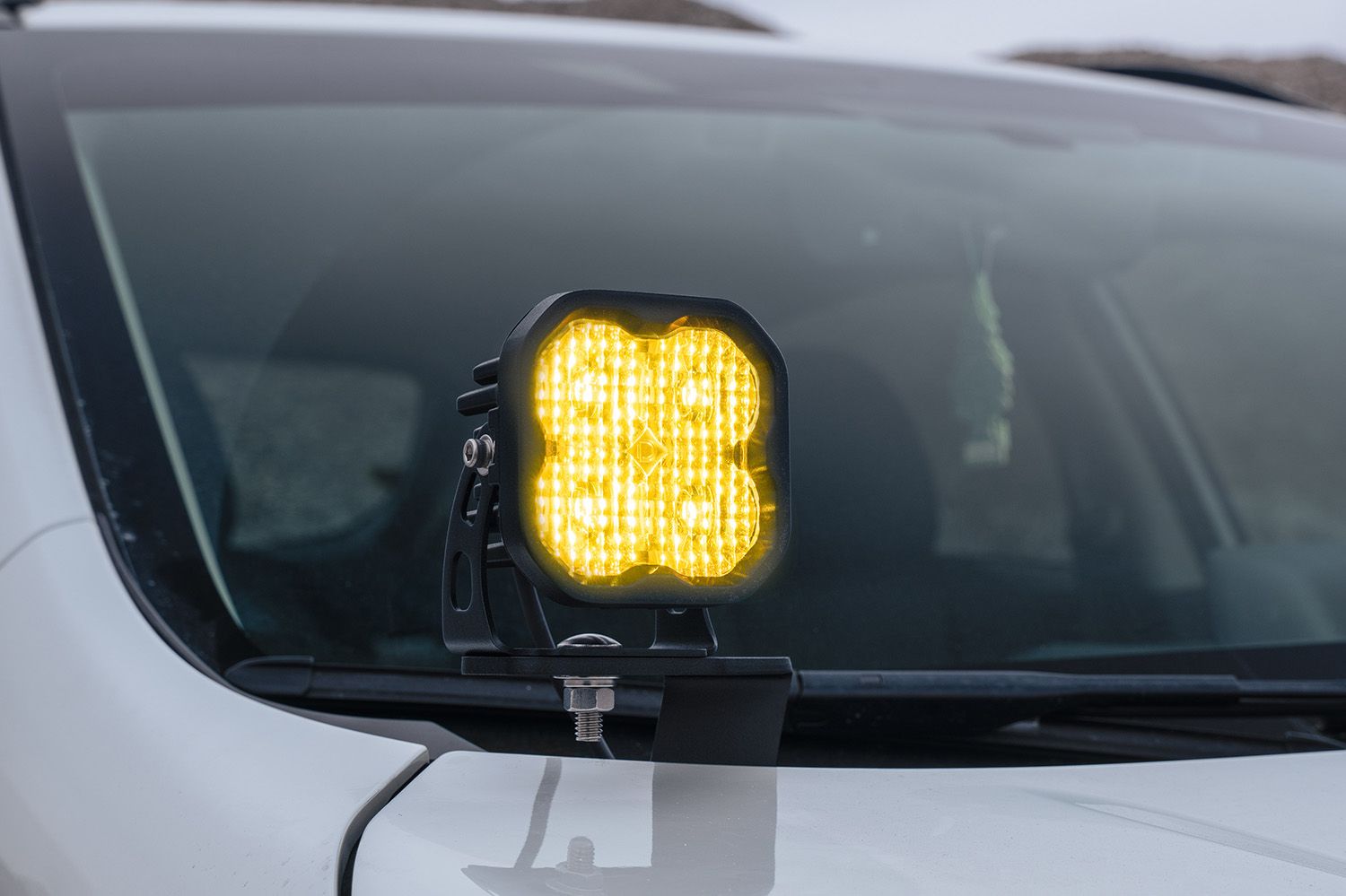

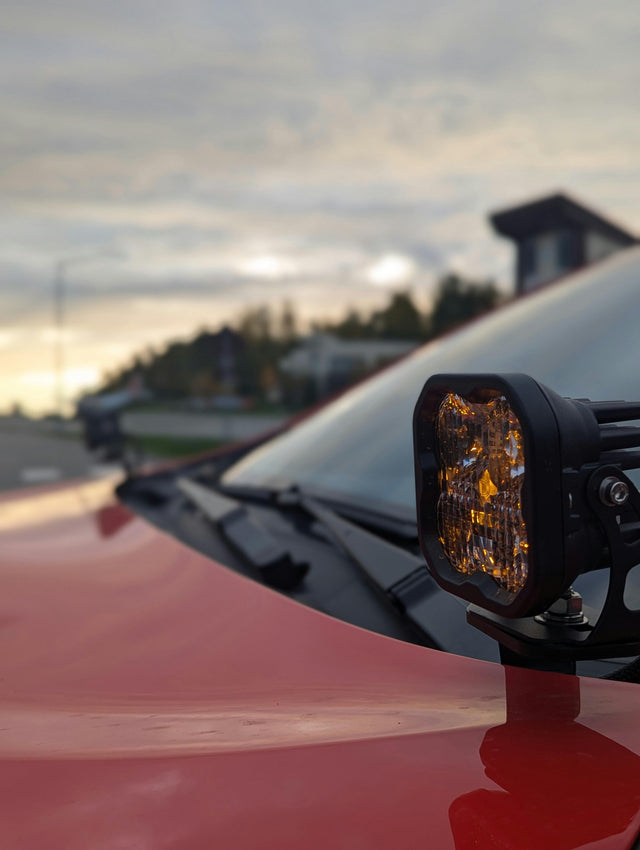

Adds two Stage Series LED Pods above the hood using factory mounting points.
Patented TIR optics provide maximum output and reduced glare.
Thick-gauge stainless steel construction.
Low-profile design.
Made in USA with global materials.
Description

The Stage Series Backlit Ditch Light Kit for the Subaru WRX is a bolt-on LED lighting solution that mounts two Stage Series pods above the hood, aimed at drivers who need expanded visibility for off-road runs, rural roads, or low-light commutes. The bracket uses existing mounting points on your WRX for a clean, vehicle-specific fit that looks factory-built rather than cobbled together.

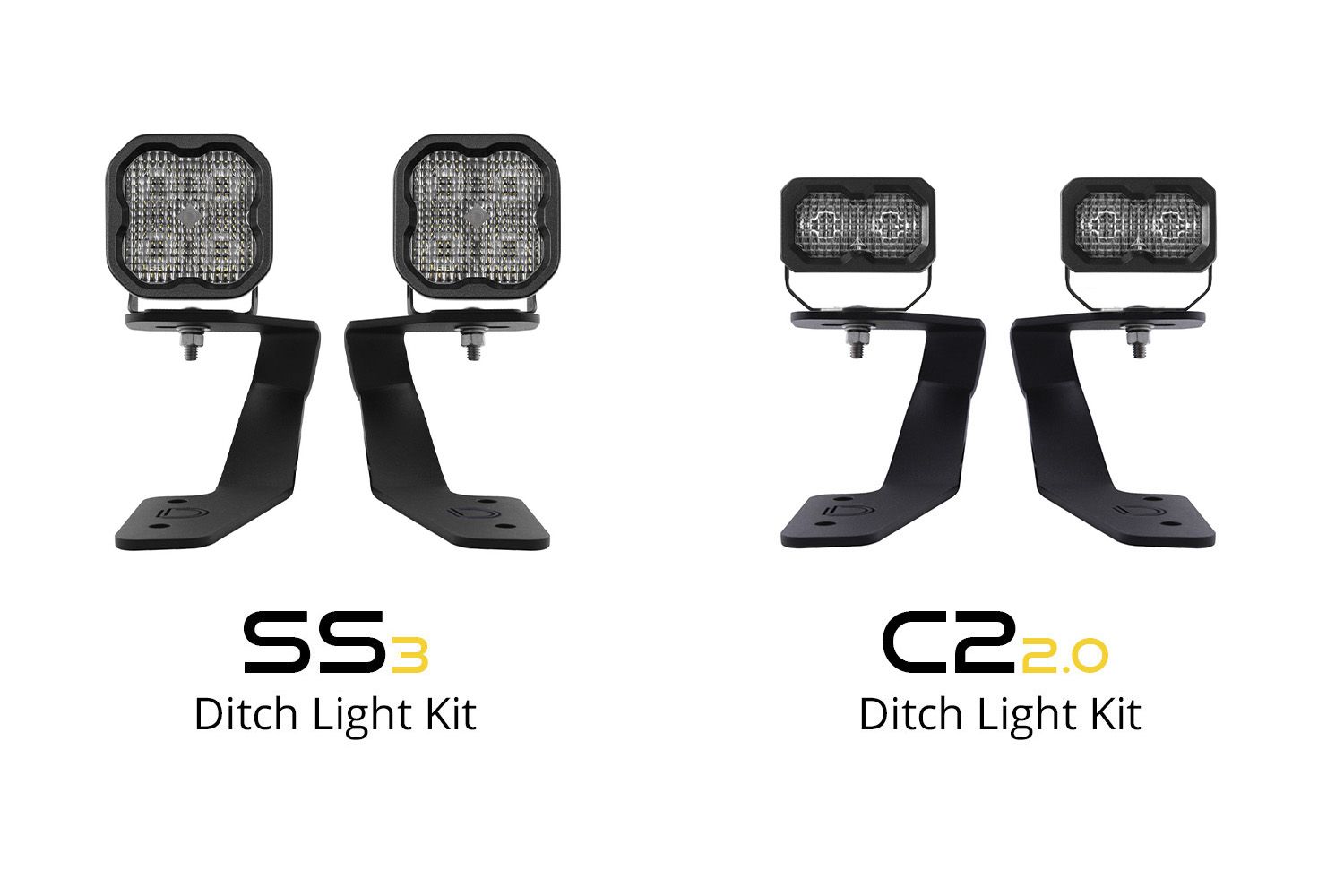

You have real flexibility in how you build this kit out. Choose between 2" SSC2 pods in Sport or Pro output, or step up to 3" pods in Sport or Pro — then pair your choice with a Driving, White Combo, or Yellow Combo beam pattern to match how you actually use the lights. Driving beams push light far down the road, Combo patterns balance forward throw with side spread, and Yellow cuts through fog and precipitation where white light falls short.

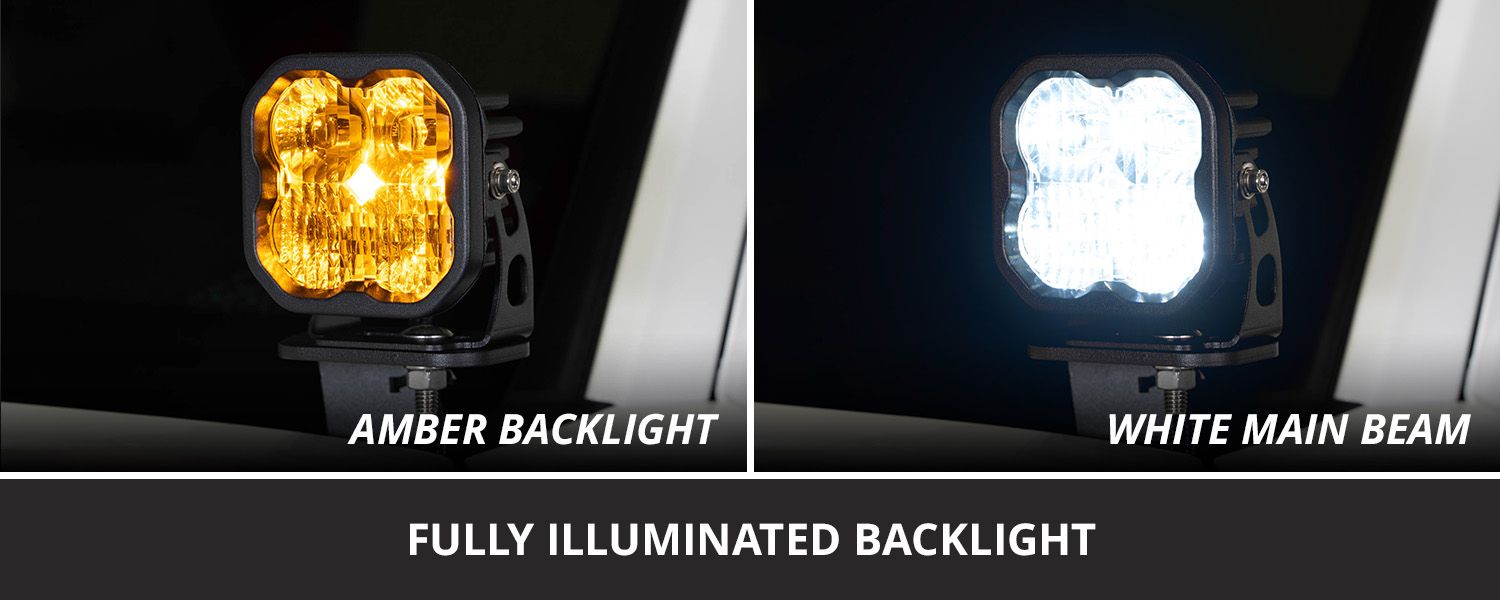

The backlit accent ring adds a polished, modern look day or night, making this kit as much about the appearance of your WRX build as it is about raw output. If you want ditch lights that fit right and perform across a range of conditions, this kit covers the ground.

Documentation
$ 445.00 CAD● In stock
