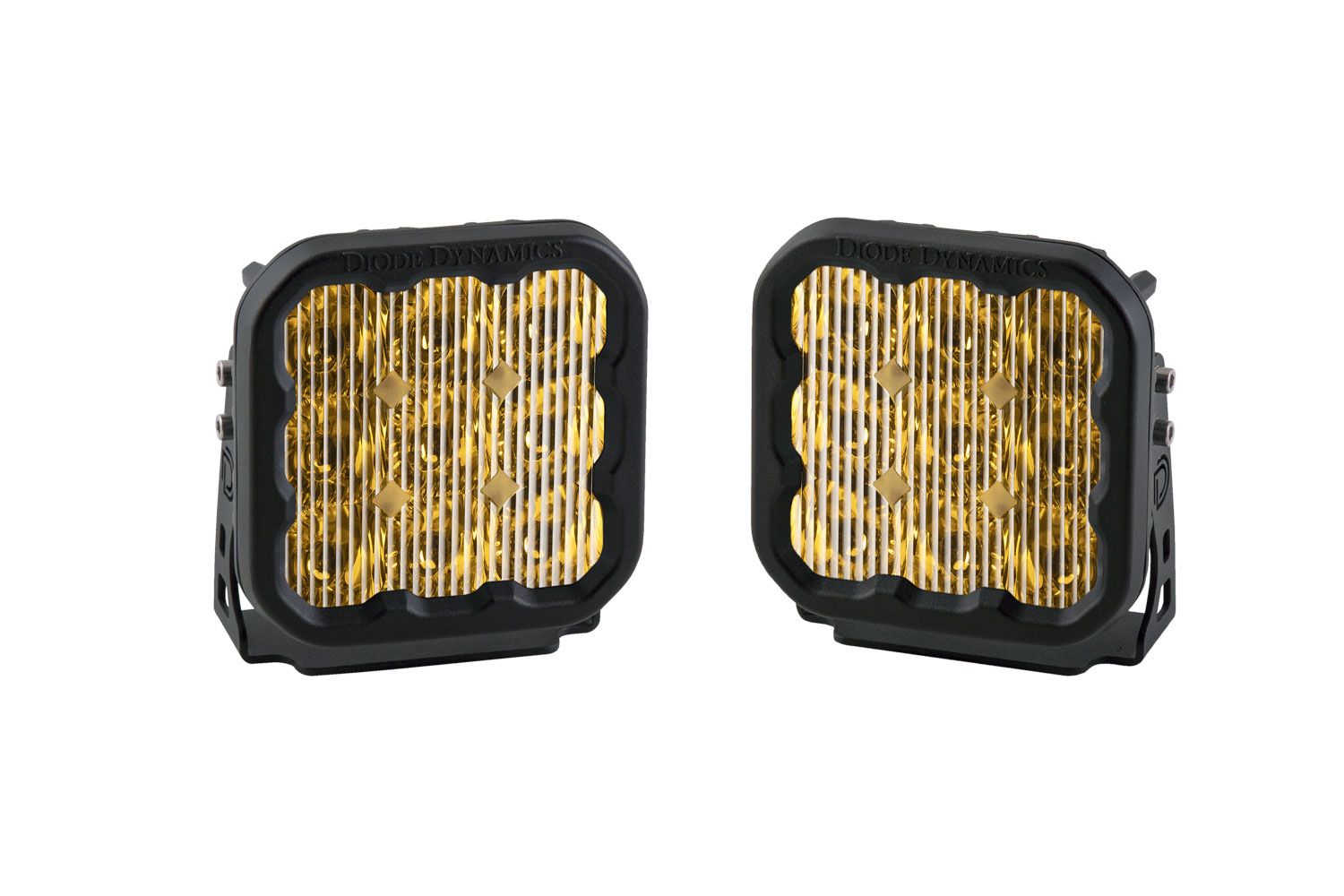

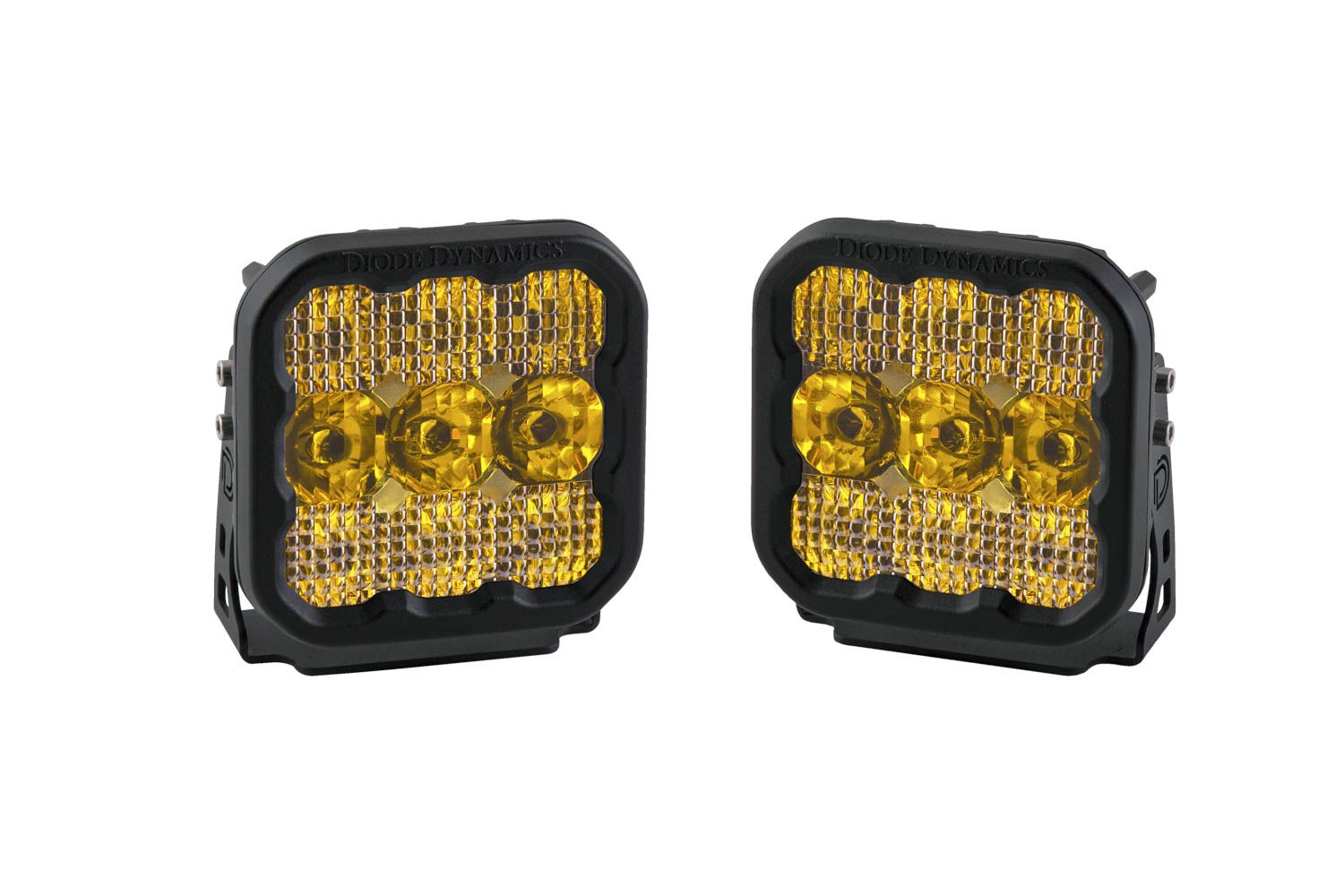

SS5 Yellow Pro LED Pod (pair)

Diode Dynamics  |  SKU: DD6783P  |  Barcode: 00691025935103
Regular price $ 1,112.00 CAD
Choose Your Beam Pattern
Free shipping Orders $500+
Canadian orders No duties / brokerage
Authorized Diode Dynamics Dealer
Returns 30-day easy

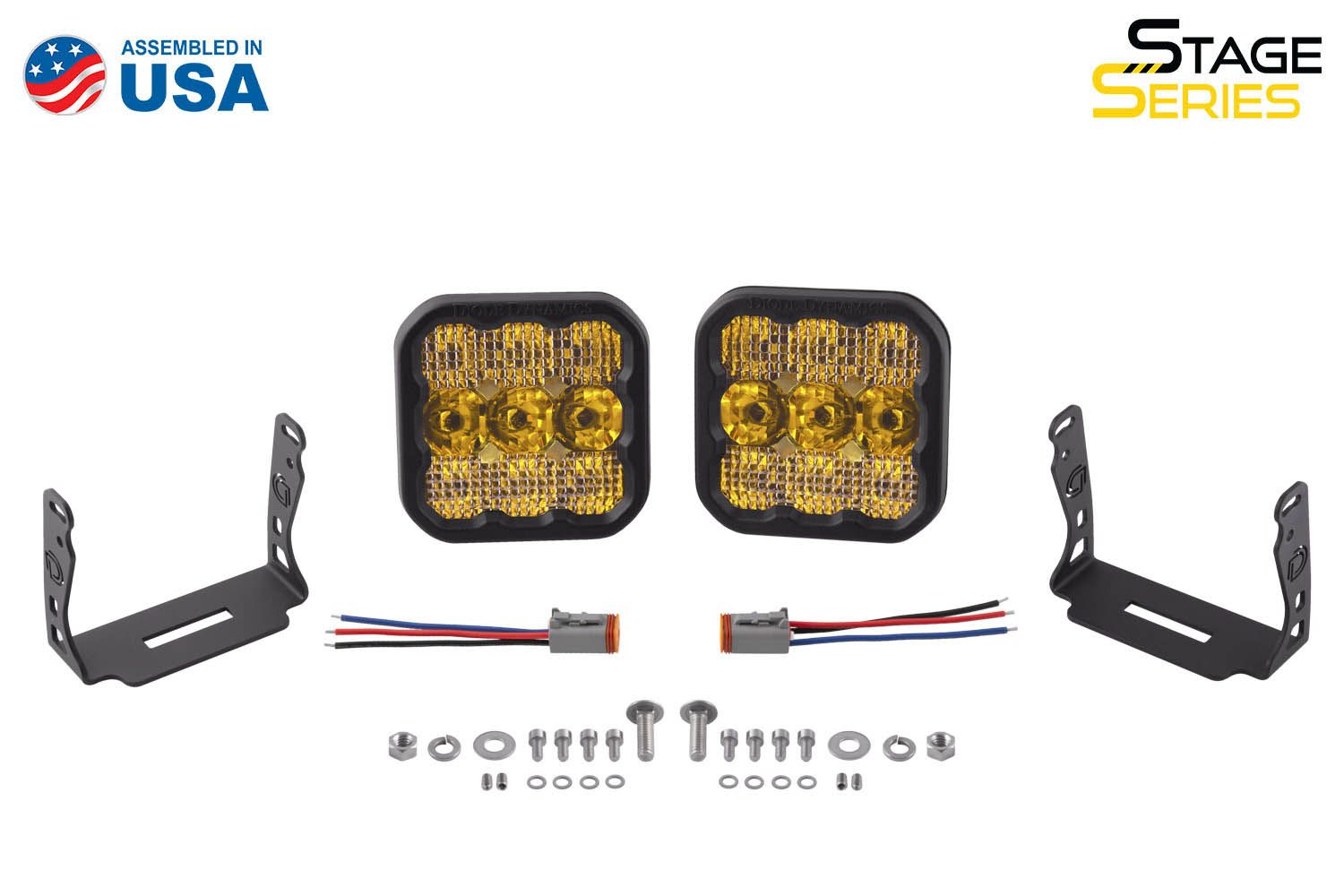

What's in the box 3 ITEMS
Two (2) Stage Series 5inch LED Pods
Two (2) Deutsch-style wire pigtails
Two (2) Mounting brackets and hardware
Optical
Lumens 7900
Color temperature 3000K
Beam spread Driving 20°x8°
Power 90W
Operating voltage 9-16V
Grade Performance
Intensity 131 600 cd
LED emitter Cree XP-L HI
Driver features Constant Current
Construction
Connector Deutsch DT Input
Cooling Passive, Pin-Fin heatsink
Polarity Polarity Specific
Base material Steel
Base color Black
Finish sheen Matte
Bolt thread Medium
Bolt grade High
Install
Drilling No drilling required
Mounting hardware Included
Compliance
IP rating IP69K Waterproof High Pressure
Operating temp -40C to 85C (-40F to 185F)
Country of origin USA
Features & benefits
Engineered TIR (total internal reflection) optics

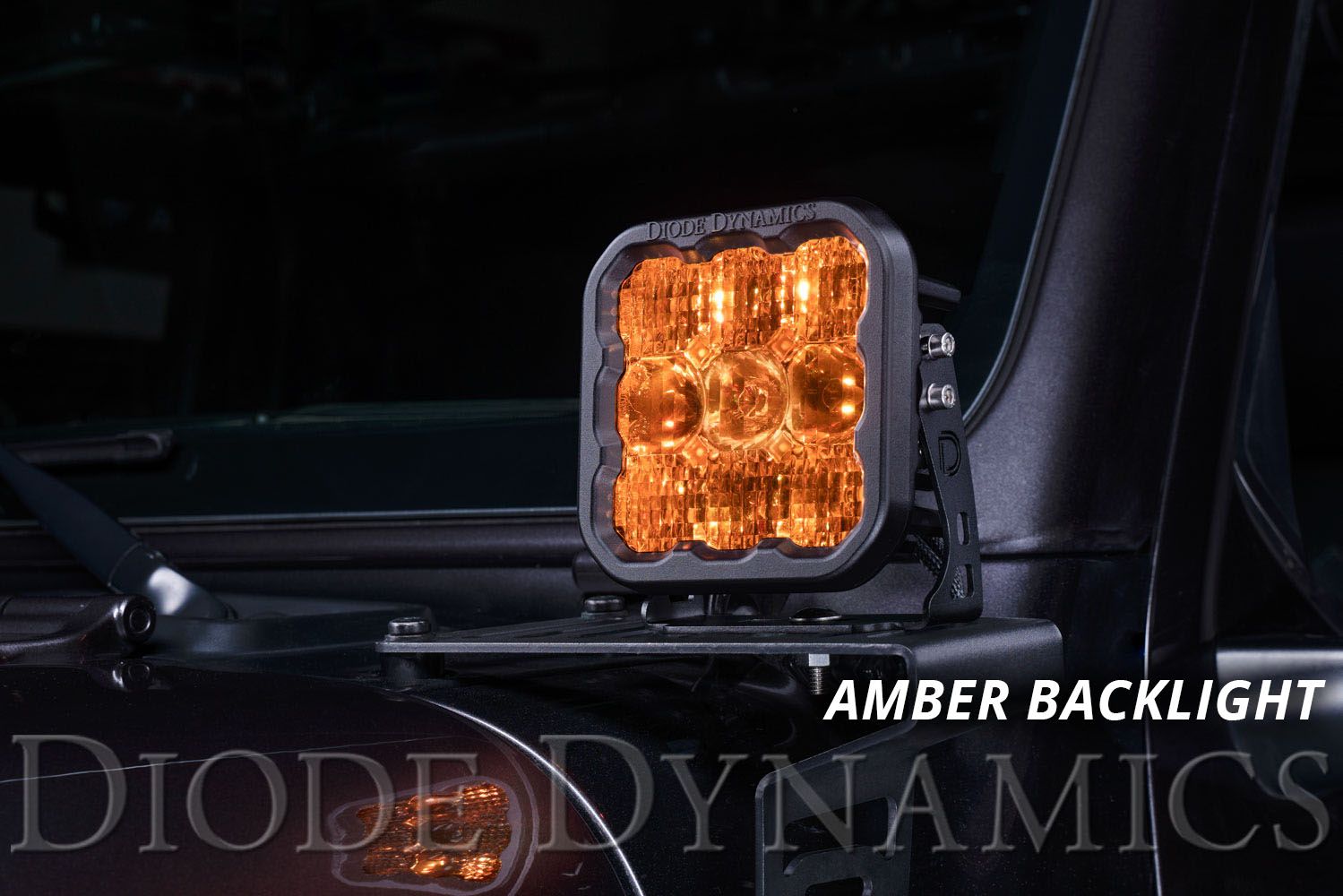

Brilliant amber backlight color, for additional accent
Built-in linking feature, build up to 50" bar
Torture-tested, heavy-duty construction
Ultra-high intensity
shines almost mile away
Assembled in USA
Description

The Diode Dynamics SS5 Pro Yellow LED Pod pair delivers high-output auxiliary lighting purpose-built for off-road and overland use, giving you a warm yellow beam that cuts through dust, fog, and precipitation far better than white light alone. Whether you're running trails at night, plowing in low-visibility conditions, or simply need better forward illumination on unlit roads, yellow output reduces eye fatigue and improves contrast where it counts.

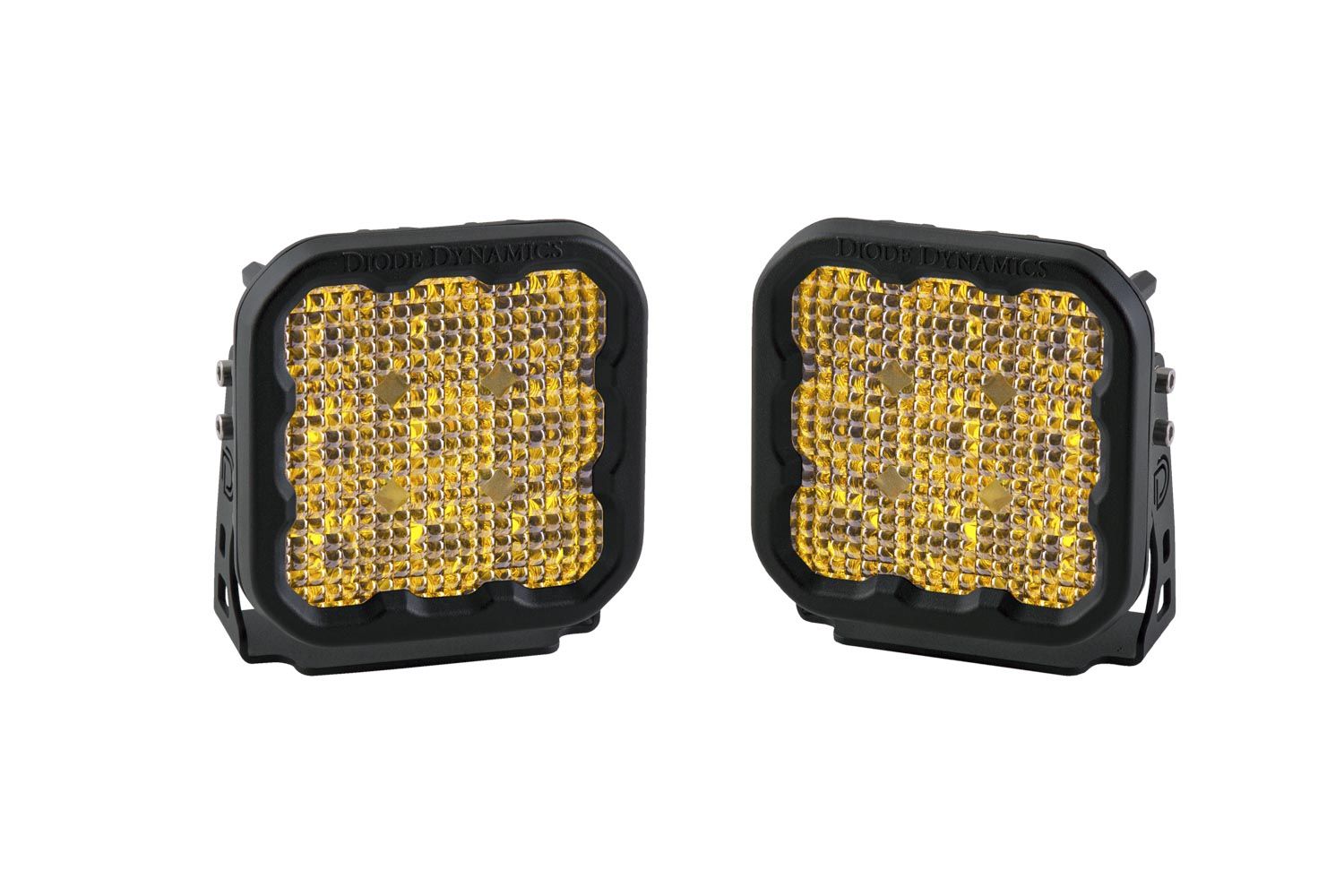

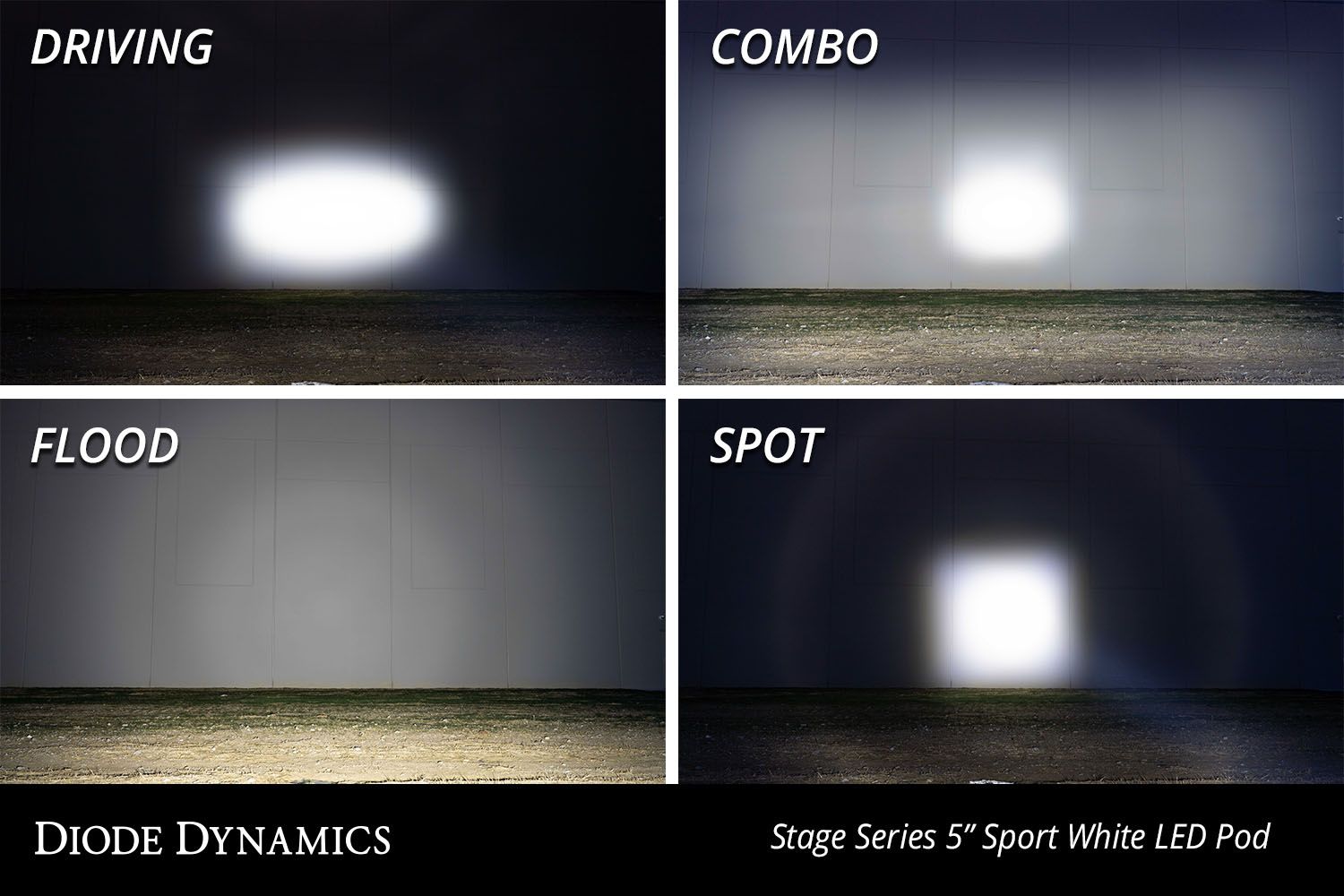

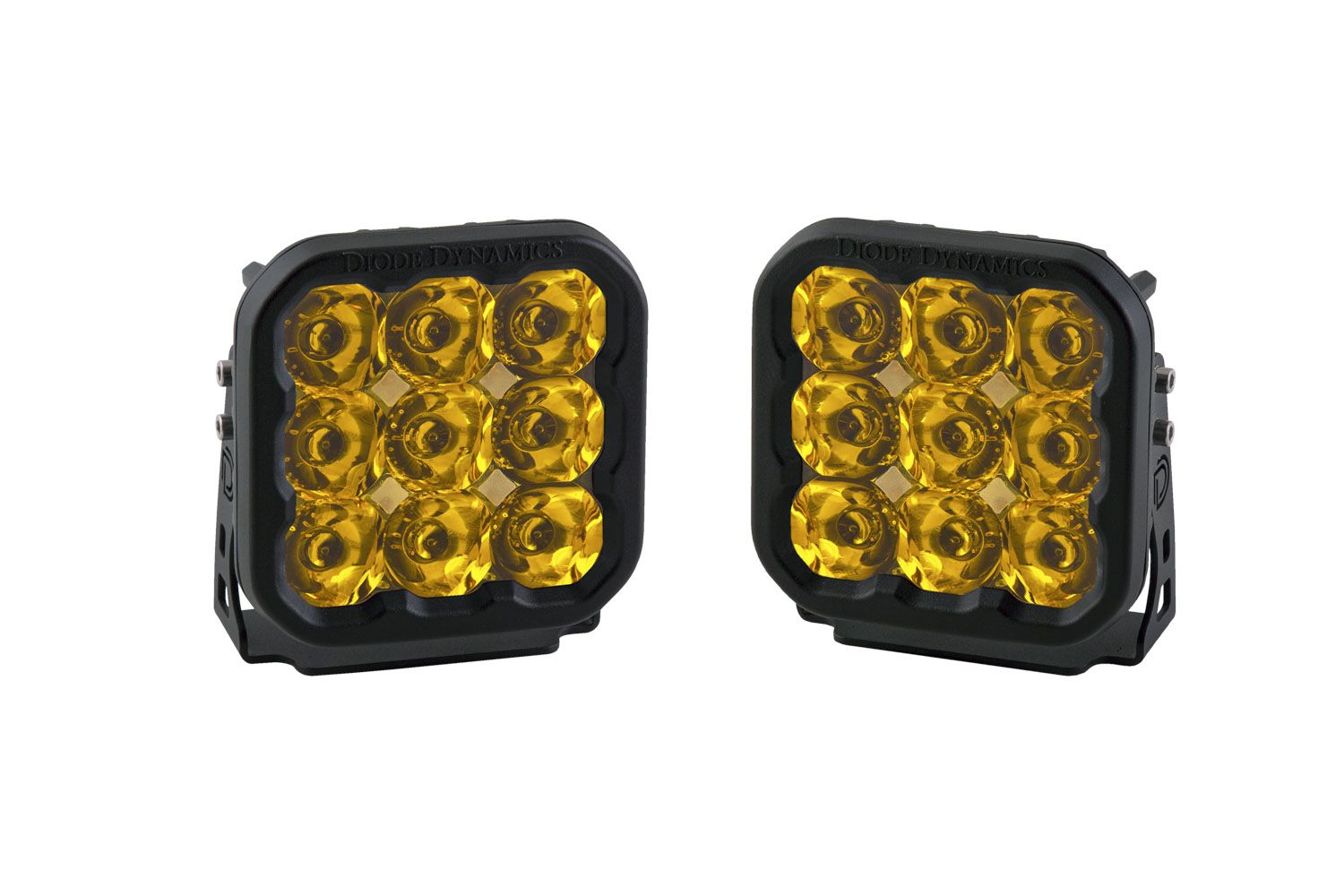

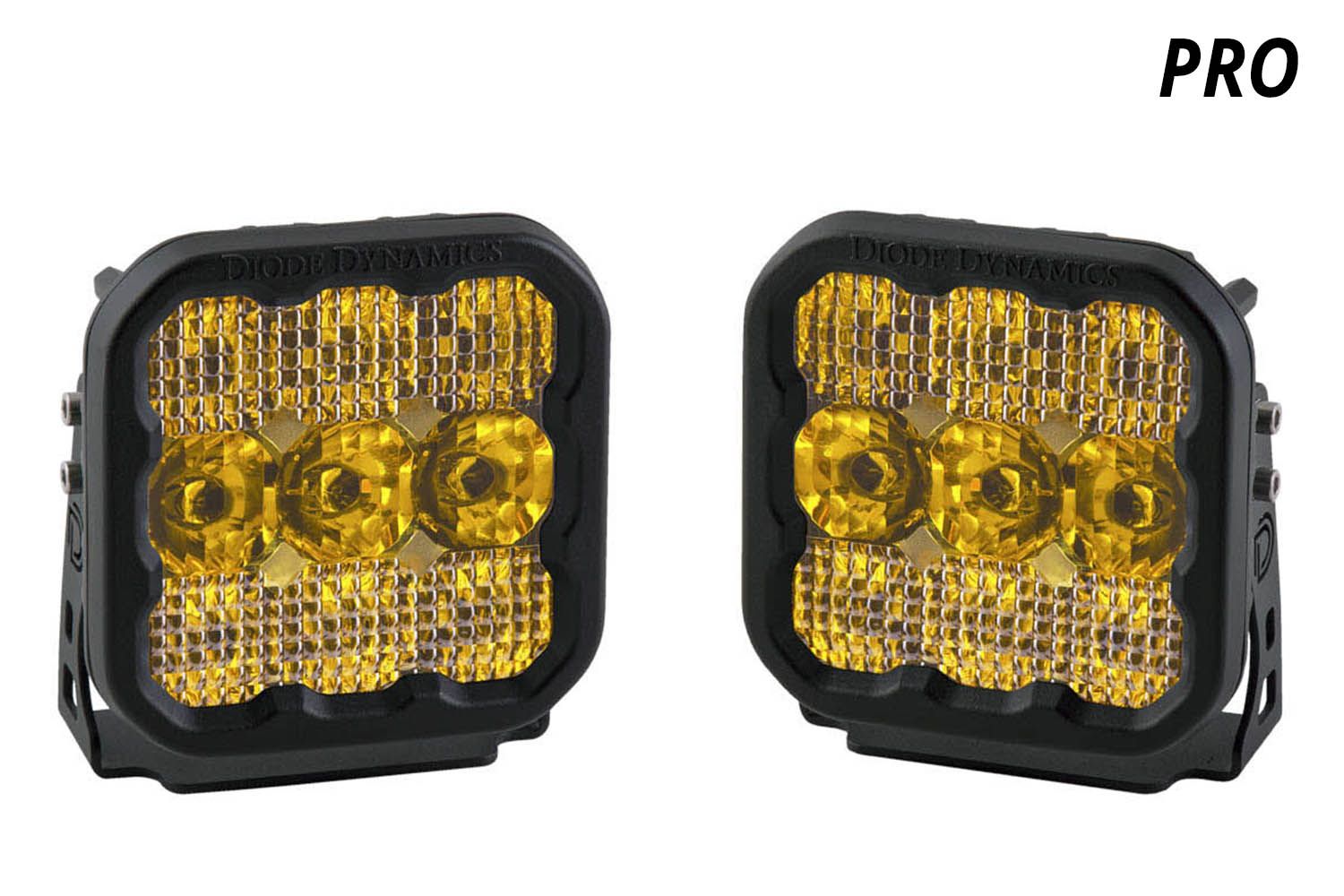

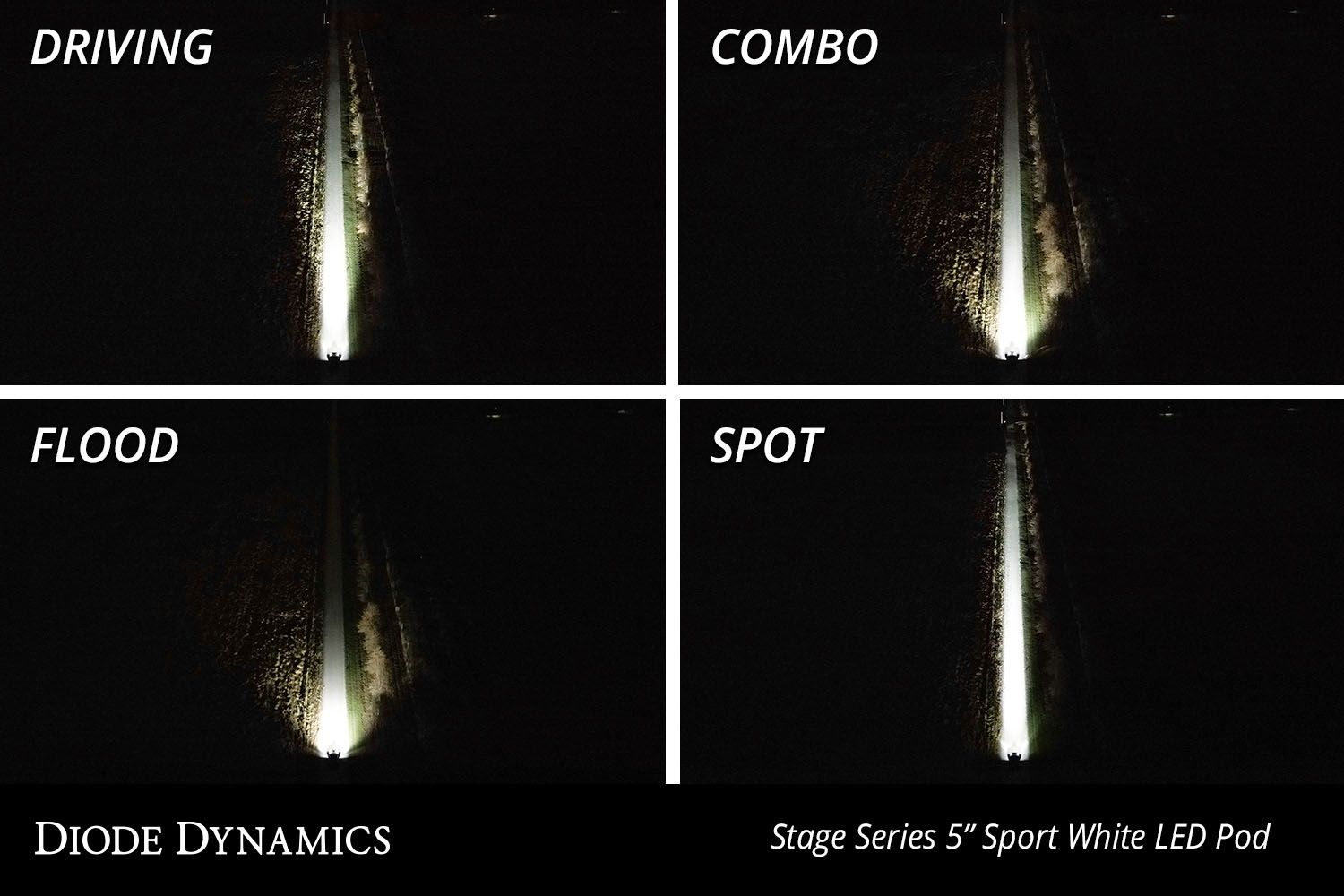

These pods are available in Spot, Driving, Combo, and Flood beam patterns, so you can match the light exactly to how you use it — tight long-range throw with Spot, a wide forward wash with Flood, broad trail coverage with Combo, or a focused mid-range driving beam for fast travel. Choosing the right pattern makes the difference between lighting up the road and lighting up the ditch.

The SS5 Pro is built around custom TIR optics and a thermal management design that keeps output consistent mile after mile. These are a straightforward, durable upgrade for anyone who spends serious time off pavement or in harsh weather.

Documentation
