SS5 CrossLink 7-Pod LED Light Bar (one)

Diode Dynamics  |  SKU: DD6800  |  Barcode: 00195995125705
Regular price $ 2,488.00 CAD
Choose Your Optic and Color
Choose Your Power Level
Free shipping Orders $500+
Canadian orders No duties / brokerage
Authorized Diode Dynamics Dealer
Returns 30-day easy

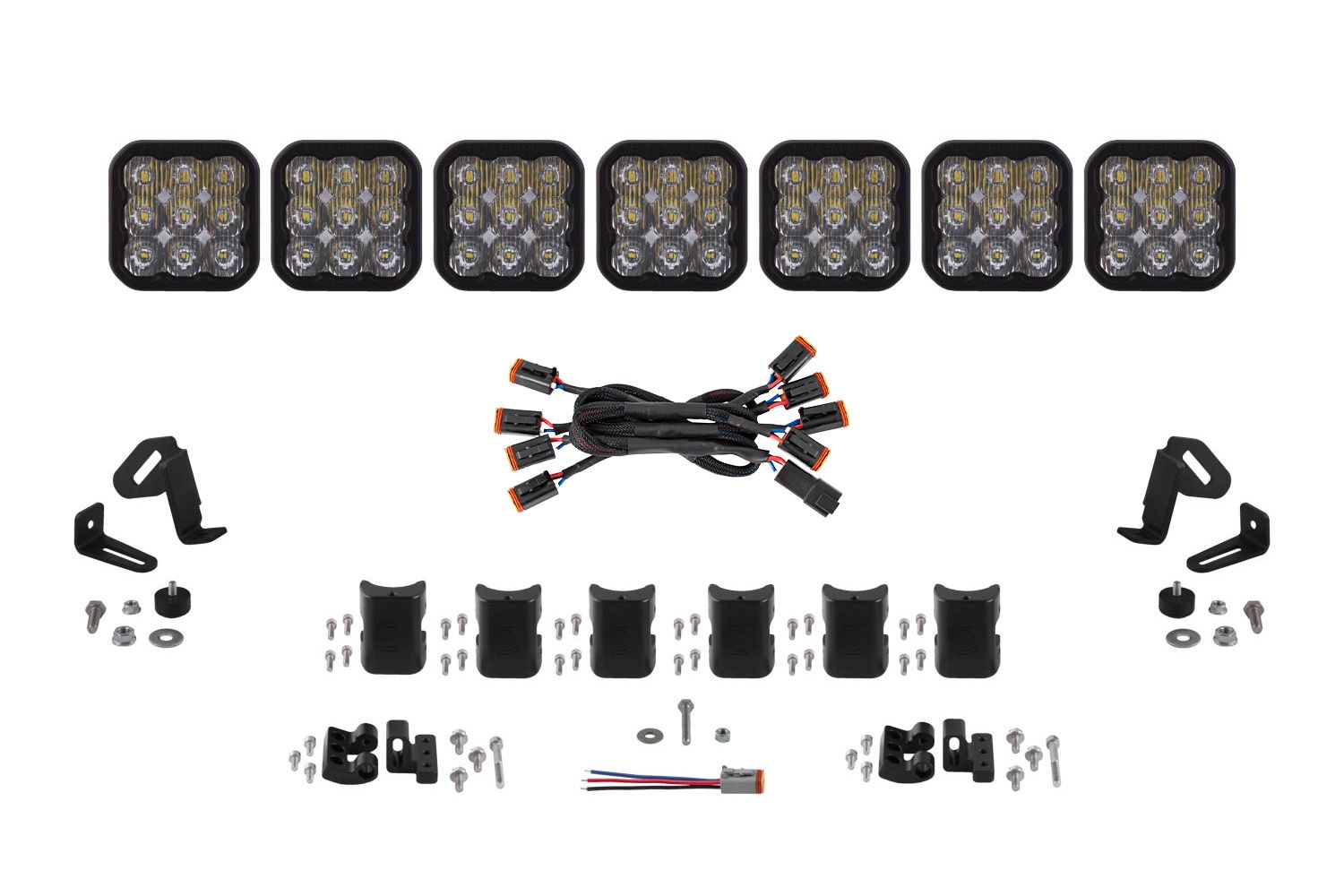

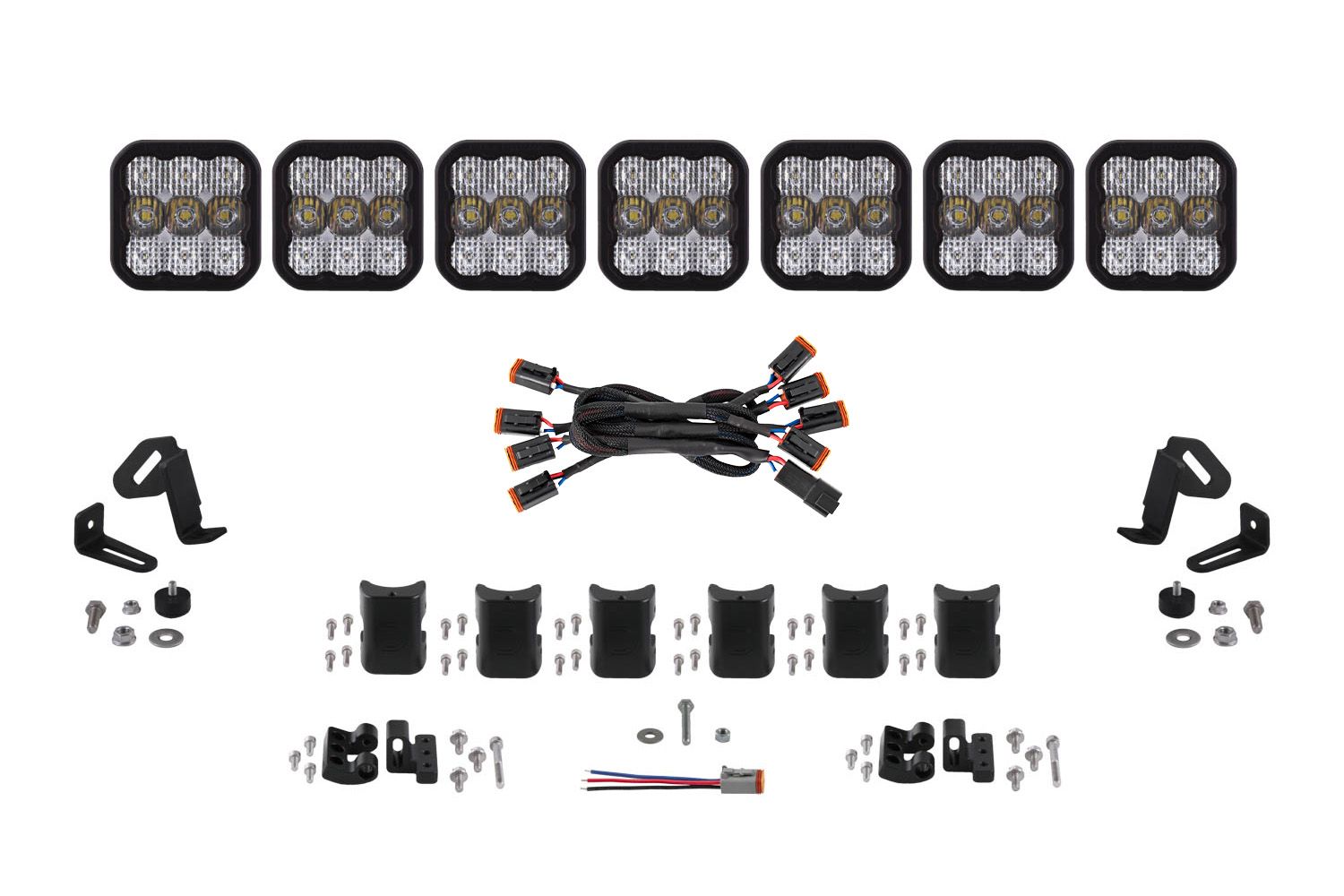

What's in the box 6 ITEMS
Seven (7) Stage Series 5inch LED Pods
Six (6) CrossLinks with hardware
Two (2) CrossLink supports with hardware
One (1) CrossLink endmount kit
One (1) DT 7-Pod connecting harness
One (1) Deutsch-style wire pigtail
Optical
Lumens 3700
Color temperature 6000K

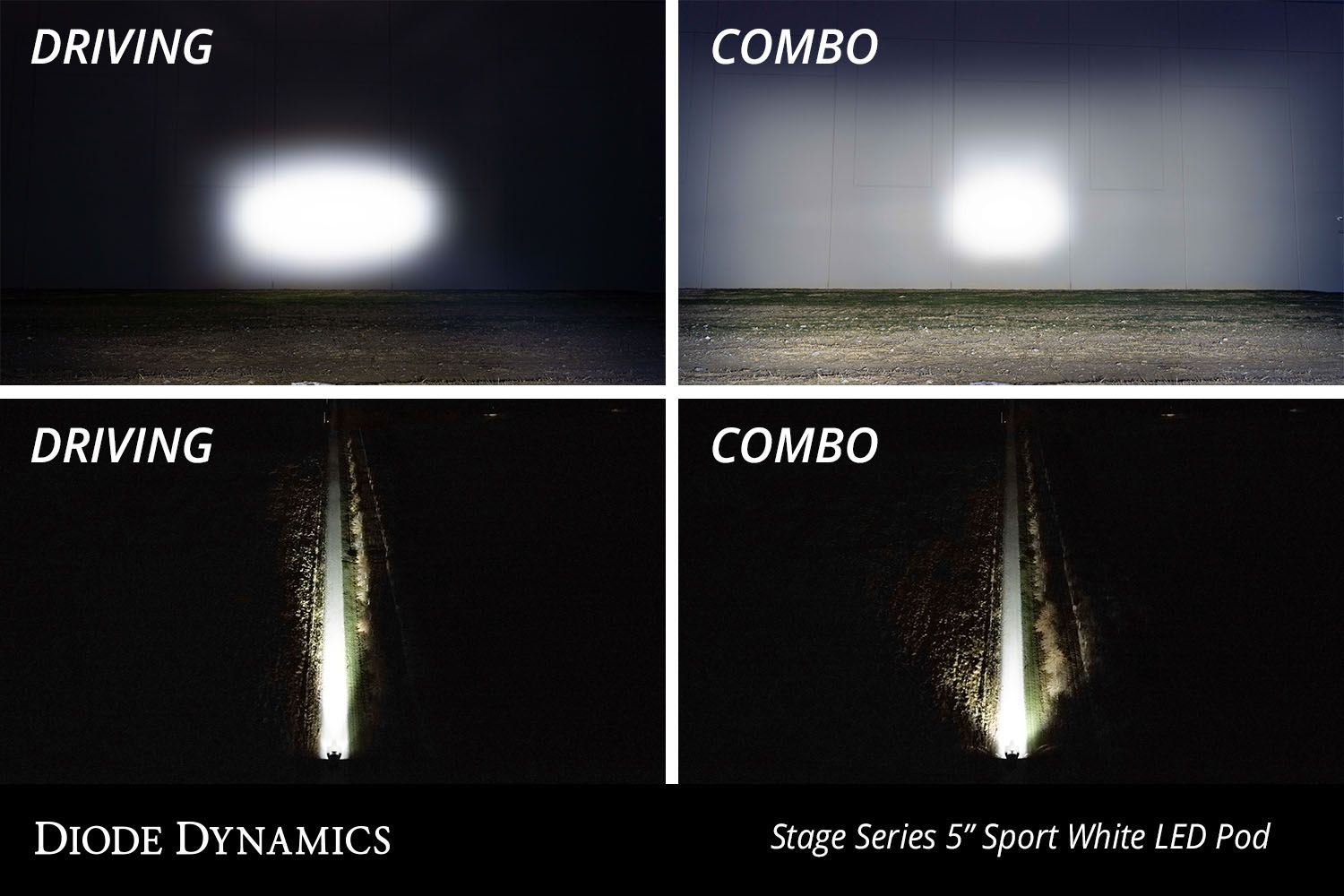

Beam spread Combo (Driving and Flood)
Power 40W
Operating voltage 9-16V
Intensity 81 600 cd
LED emitter Luxeon Z ES, Cree XP-L HI
Driver features Constant Current
Construction
Connector Deutsch DT Input
Cooling Passive, Pin-Fin heatsink
Polarity Polarity Specific
Base material Steel
Base color Black
Bolt thread Medium
Install
Drilling No drilling required
Mounting hardware Included
Compliance
IP rating IP69K Waterproof High Pressure
Operating temp -40C to 85C (-40F to 185F)
SAE/DOT SAE J581 Driving/Auxiliary High Beam Pattern
Country of origin USA
Features & benefits

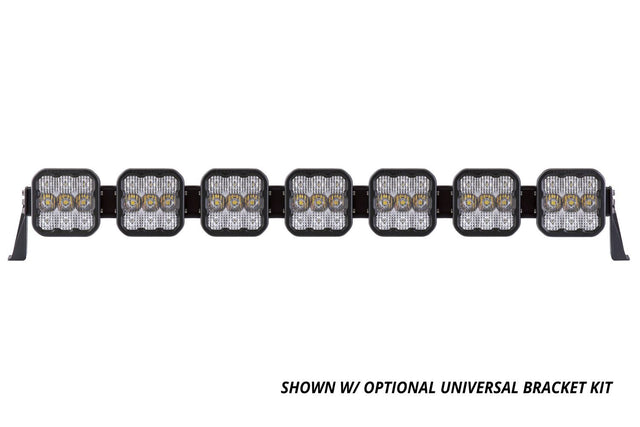

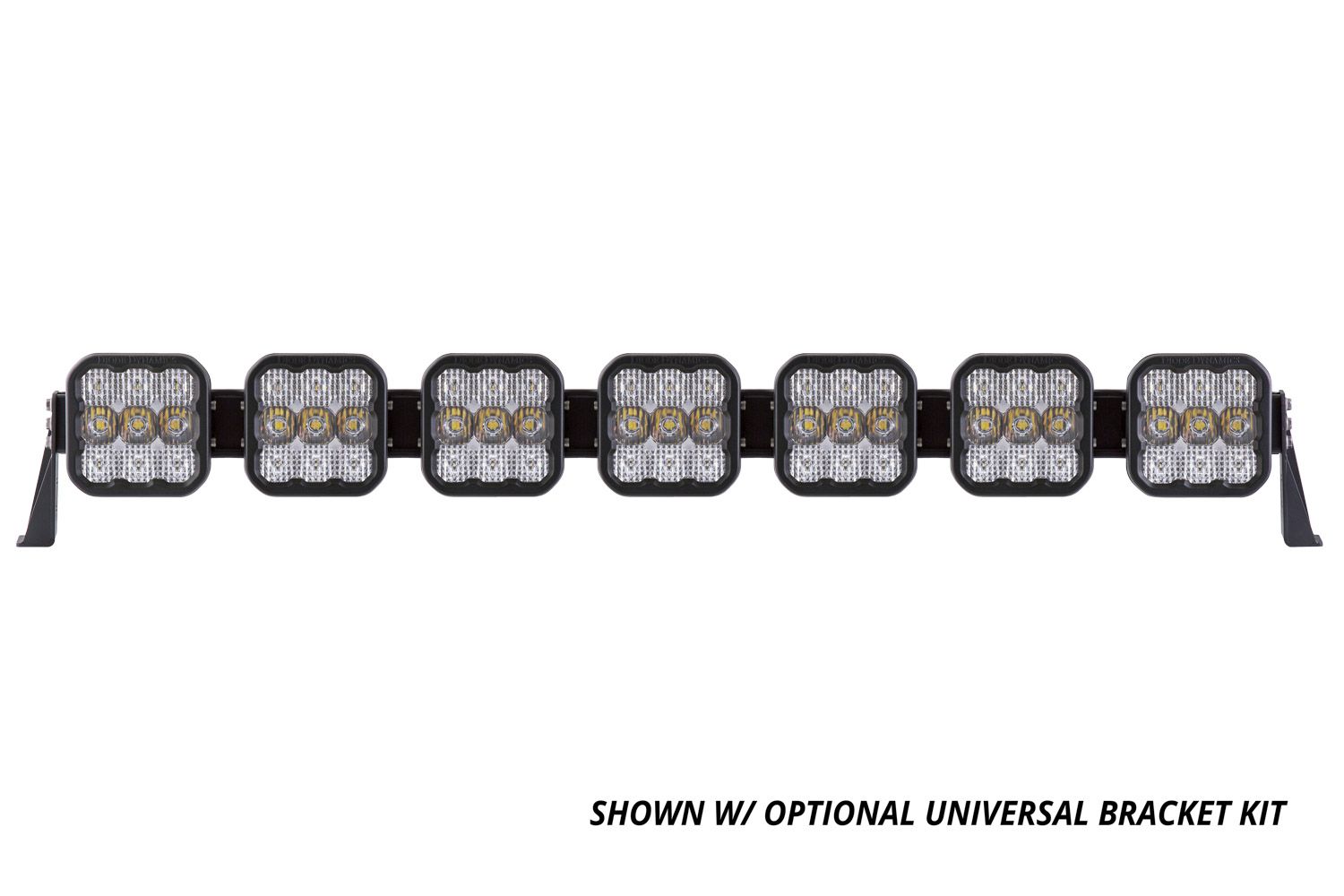

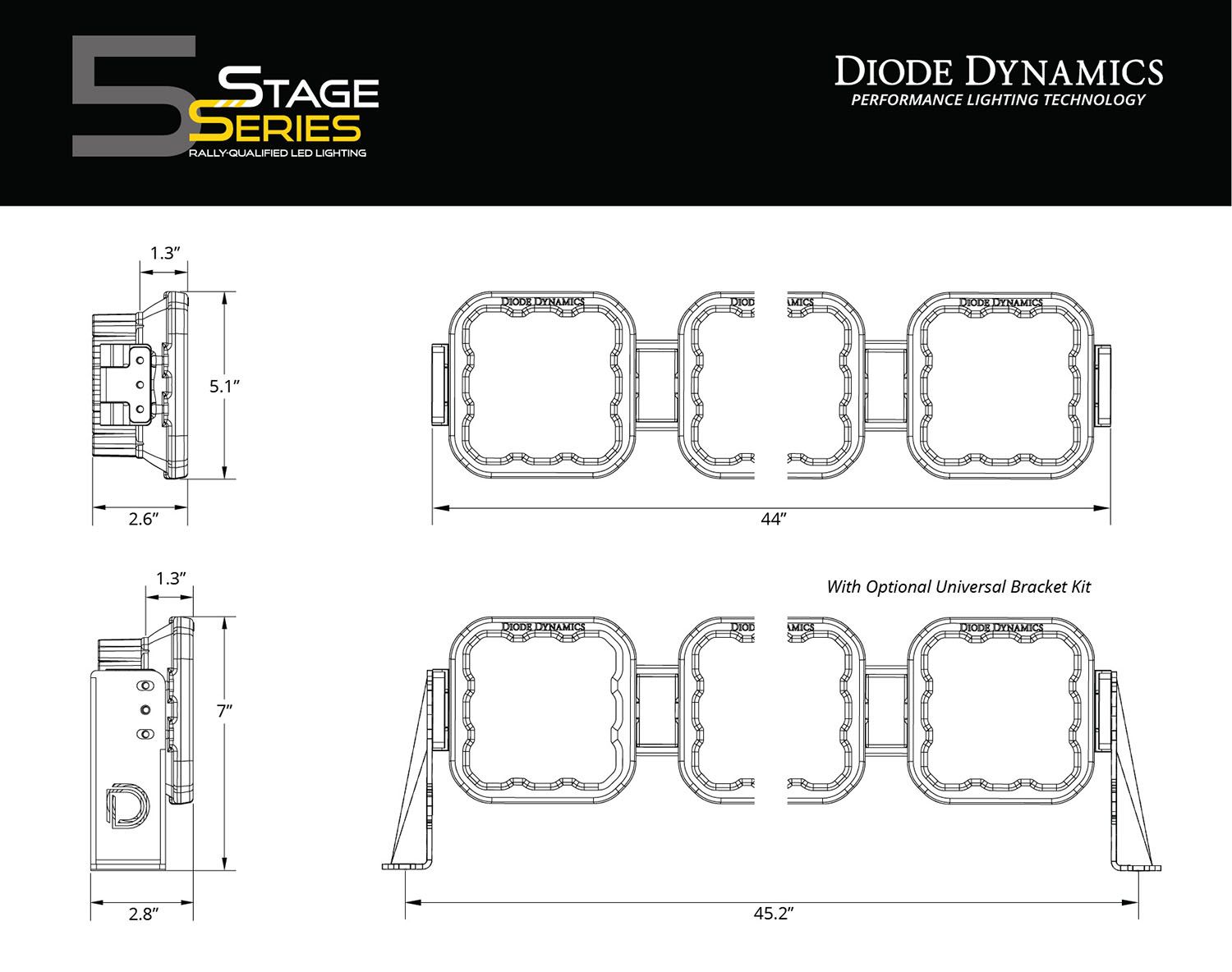

Seven -pod 44-inch linked lightbar
Engineered TIR (total internal reflection) optics

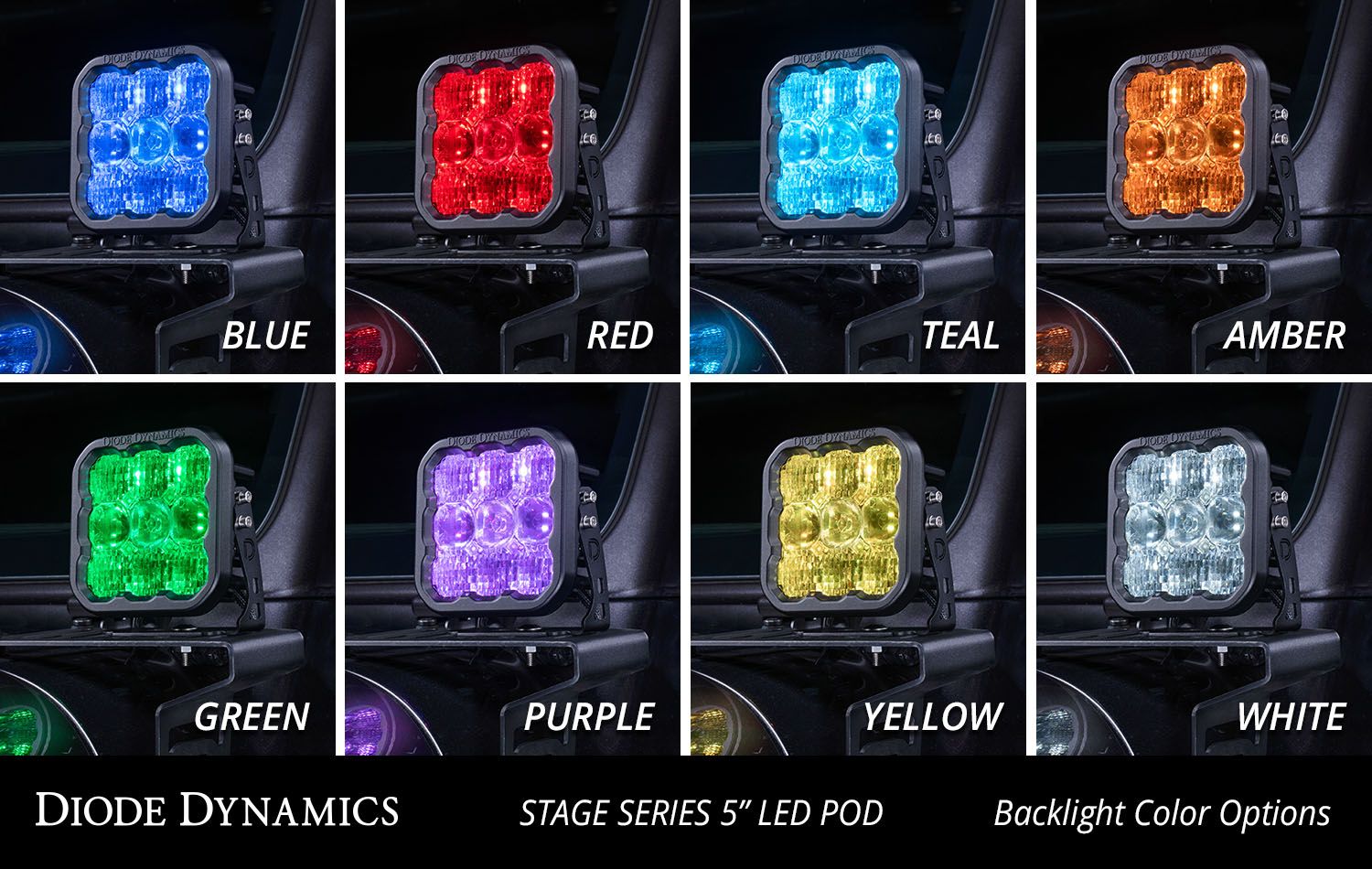

Selectable backlight color, with eight color options
Torture-tested, heavy-duty construction
Ultra-high intensity
shines almost mile away
Assembled in USA
Description

The SS5 CrossLink 7-Pod LED Light Bar is a modular, high-output lighting bar built for truck, Jeep, and UTV owners who need serious forward illumination across a range of conditions. Using Diode Dynamics' CrossLink technology, seven SS5 pods are joined into a single cohesive bar, delivering the kind of focused or wide-area light that makes a real difference at night on trails, job sites, or open roads.

You can choose between Sport and Pro output levels depending on how much intensity your application demands, and select White or Yellow light to suit your preference — whether that's maximum brightness or better contrast through dust, rain, and fog. Beam pattern options include Driving and Combo, so you can dial in tight long-range reach or pair distance with spread for broader coverage around the vehicle.

The pin-fin heatsink design keeps the pods running cool under sustained use, and the integrated connectors make wiring clean and straightforward. If you're building out a lighting setup that performs as good as it looks, this bar is a natural fit.

Documentation
