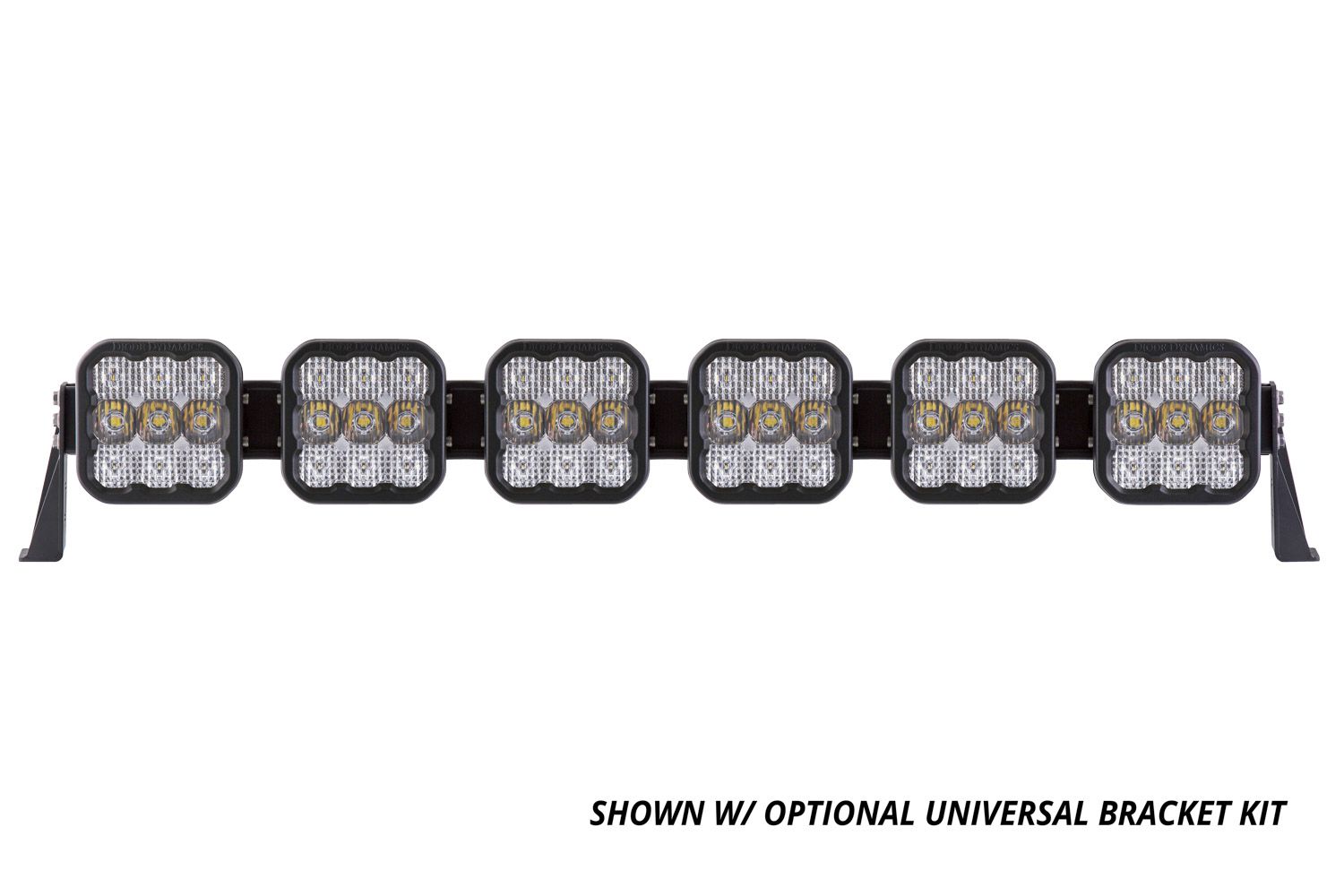

SS5 CrossLink 6-Pod LED Light Bar (one)

Diode Dynamics  |  SKU: DD6798  |  Barcode: 00195995125668
Regular price $ 2,113.00 CAD
Choose Your Optic and Color
Choose Your Power Level
Free shipping Orders $500+
Canadian orders No duties / brokerage
Authorized Diode Dynamics Dealer
Returns 30-day easy

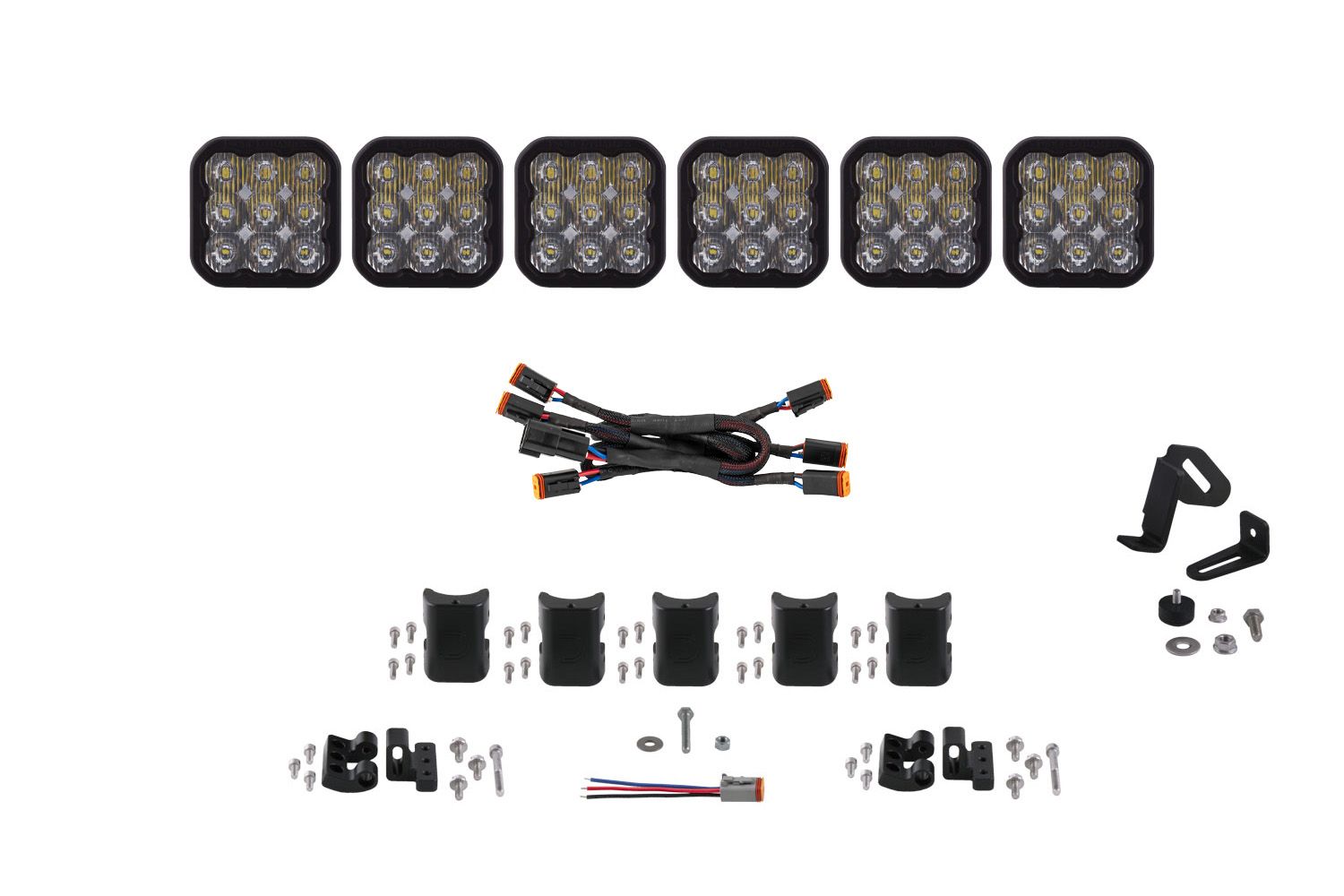

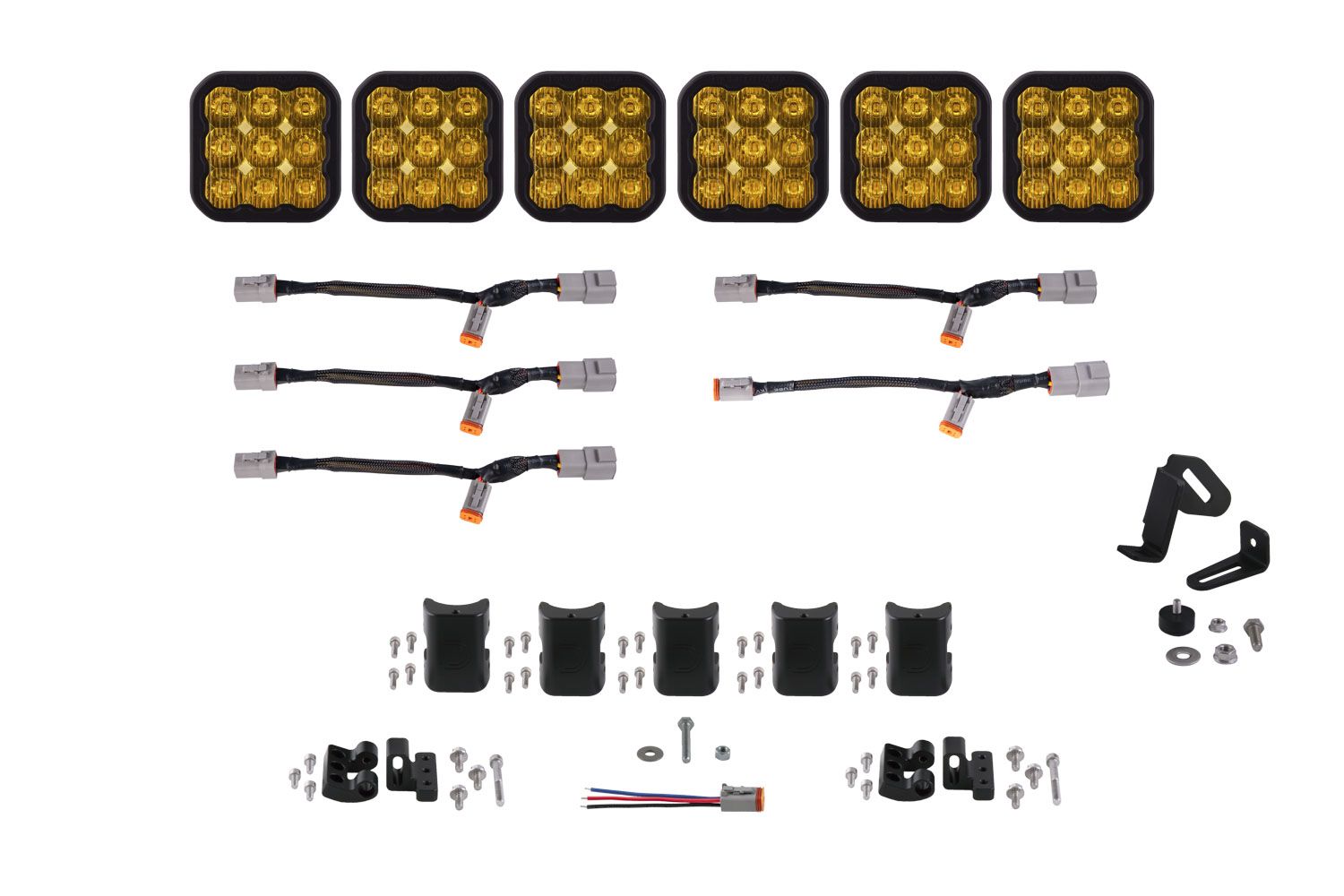

What's in the box 6 ITEMS
Six (6) Stage Series 5in LED Pods
Five (5) CrossLinks with hardware
One (1) CrossLink support with hardware
One (1) CrossLink endmount kit
One (1) DT 6-Pod connecting harness
One (1) Deutsch-style wire pigtail
Optical
Lumens 3700
Color temperature 6000K

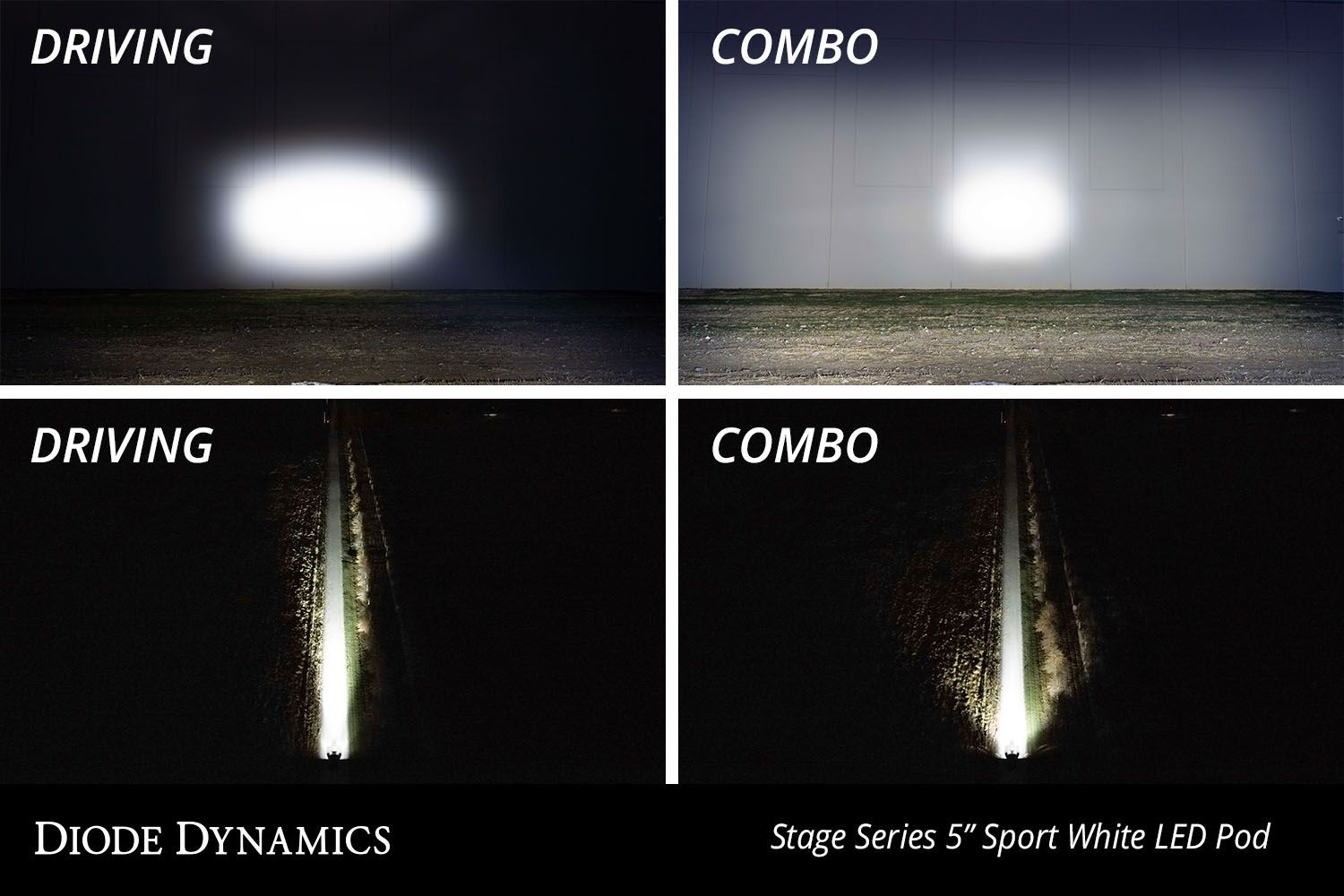

Beam spread Combo (Driving and Flood)
Power 40W
Operating voltage 9-16V
Intensity 81 600 cd
LED emitter Luxeon Z ES
Driver features Constant Current
Construction
Connector Deutsch DT Input
Cooling Passive, Pin-Fin heatsink
Polarity Polarity Specific
Base material Steel
Base color Black
Bolt thread Medium
Install
Drilling No drilling required
Mounting hardware Included
Compliance
IP rating IP69K Waterproof High Pressure
Operating temp -40C to 85C (-40F to 185F)
SAE/DOT SAE J581 Driving/Auxiliary High Beam Pattern
Country of origin USA
Features & benefits

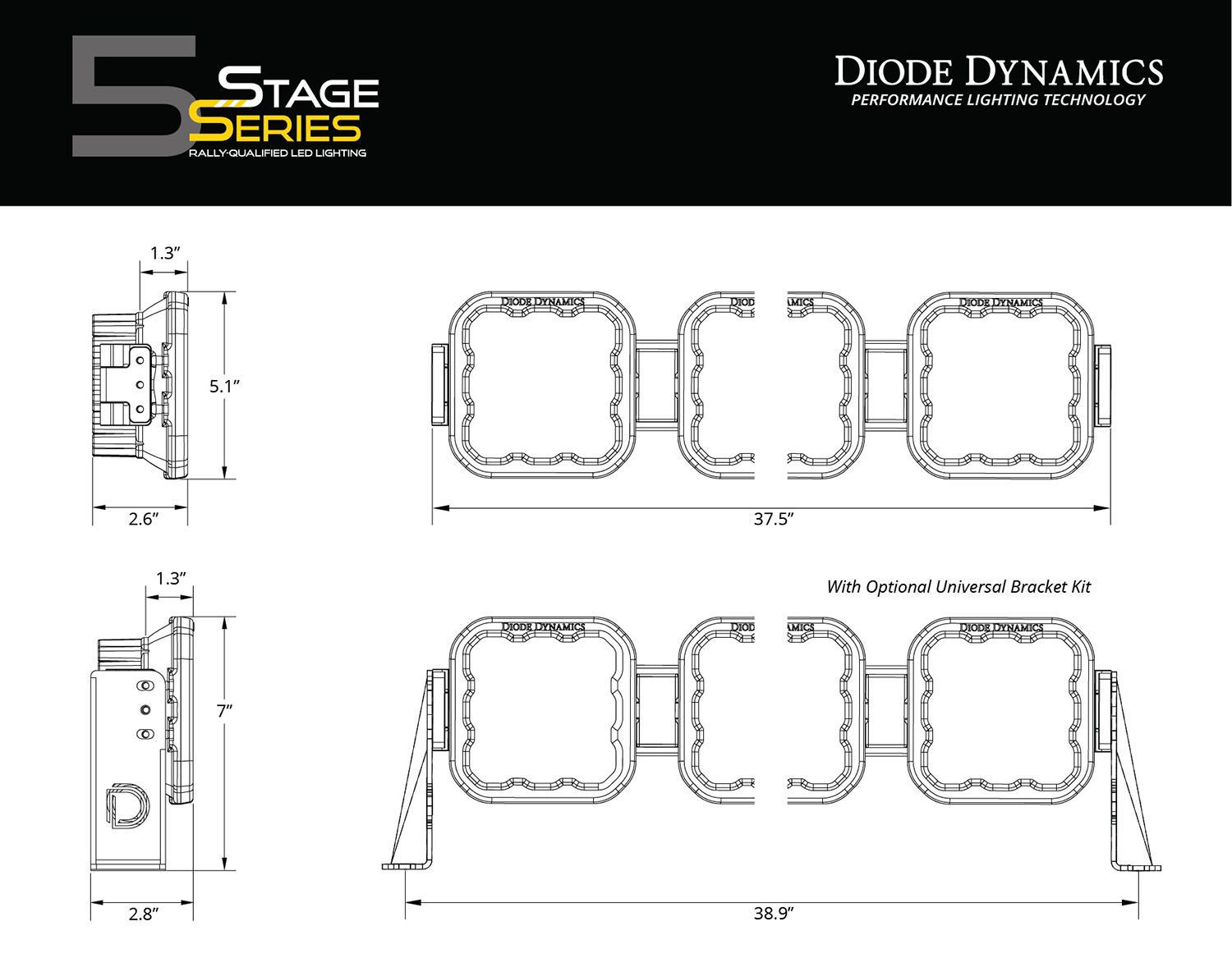

Six -pod 37.5-inch linked lightbar
Engineered TIR (total internal reflection) optics

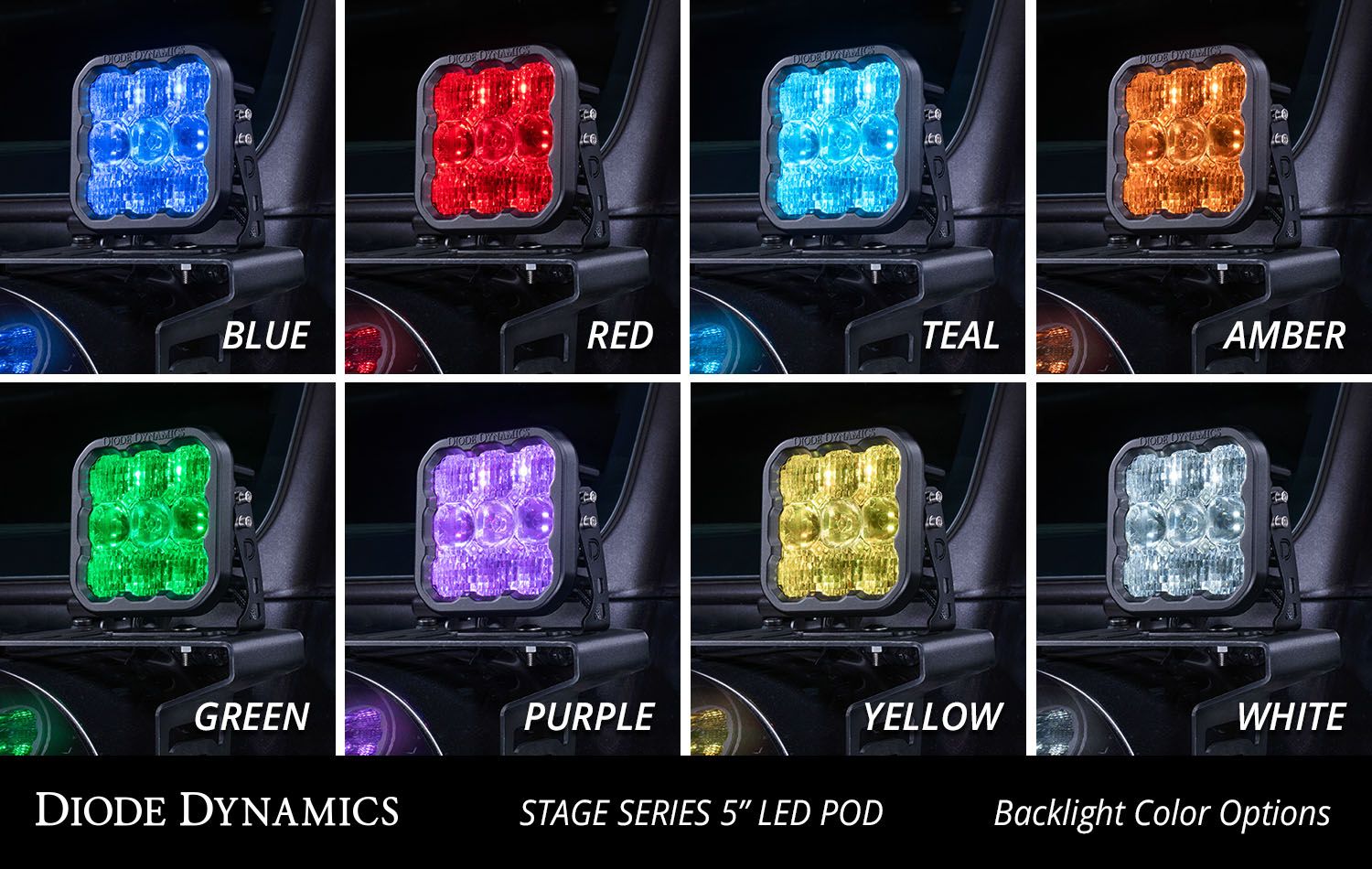

Selectable backlight color, with eight color options
Torture-tested, heavy-duty construction
Ultra-high intensity
shines almost mile away
Assembled in USA
Description

The SS5 CrossLink 6-Pod LED Light Bar is a modular, high-output light bar built from six linked SS5 pods for serious off-road, overland, and work-site lighting. Using Diode Dynamics' CrossLink technology, the pods lock together into a single cohesive bar that mounts and wires like a traditional light bar while delivering the focused output quality the SS5 series is known for.

You can choose between Sport and Pro output levels depending on how much intensity your build demands, and select White or Yellow light to suit your conditions — white for maximum raw visibility, yellow for cutting through rain, dust, and fog with less glare and eye fatigue. Beam pattern options include Combo and Driving, so you can dial in whether you need a broad spread across the trail or a tight, far-reaching beam down the road ahead.

The pin-fin heatsink design keeps the pods running cool during extended use, and the integrated connector system makes wiring clean and straightforward. Whether you're mounting across a roof rack, bumper, or crossbar, this light bar is a practical upgrade for any truck, Jeep, or UTV owner who needs reliable, high-quality illumination where it counts.

Documentation
