SS5 Grille CrossLink Lightbar Kit for 2019-2024 Ram 1500

Diode Dynamics  |  SKU: DD7608  |  Barcode: 00195995132130
Regular price $ 1,529.00 CAD
Choose Your Power Level
Choose Your Color
Fitment & Install Notes
Fits
Fits: 2019-2024 Ram 1500
Free shipping Orders $500+
Canadian orders No duties / brokerage
Authorized Diode Dynamics Dealer
Returns 30-day easy
Optional add-ons 1 AVAILABLE

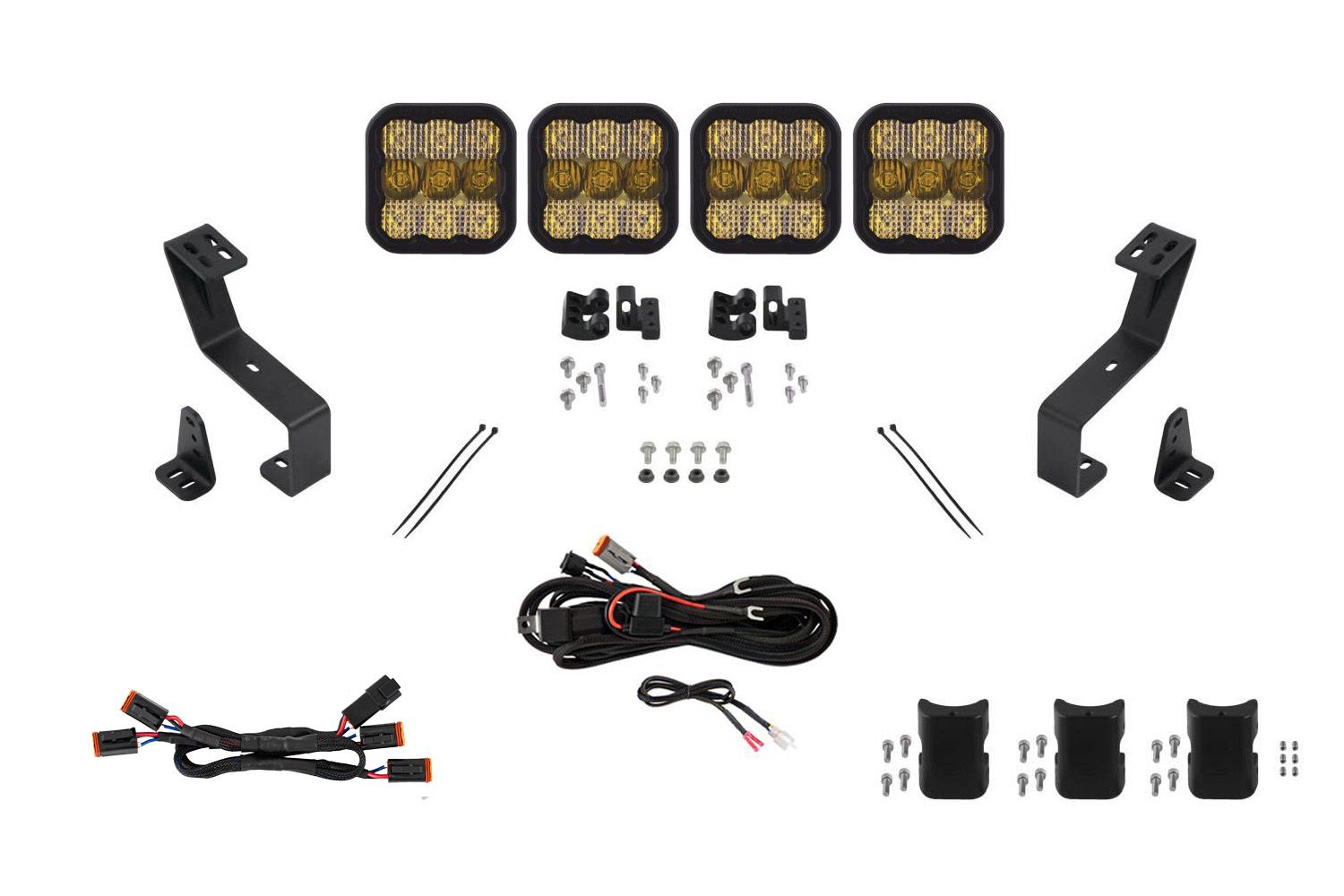

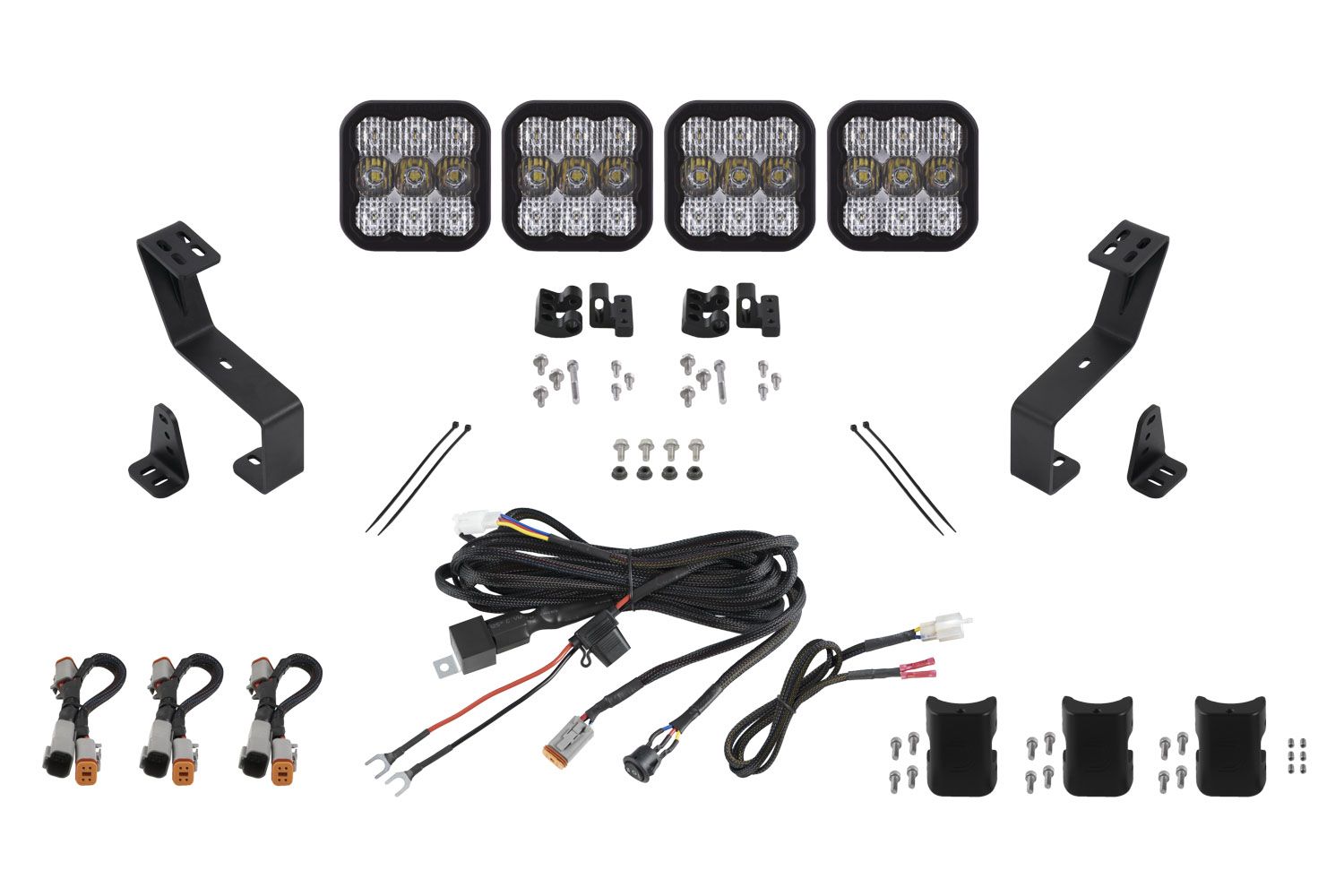

What's in the box 6 ITEMS
Four (4) Application-specific heavy-duty steel brackets for installation on 2019-2024 Ram
Four (4) Stage Series 5inch LED Pods
Three (3) CrossLinks with hardware
One (1) CrossLink endmount kit
One (1) DT 4-Pod connecting harness
Installation Guide
Optical
Lumens 3700
Color temperature 6000K
Beam spread Combo (Driving and Flood)
Power 40W
Operating voltage 9-16V
Intensity 81 600 cd
LED emitter Luxeon Z ES, Cree XP-L HI
Driver features Constant Current
Construction
Connector Deutsch DT Input
Cooling Passive, Pin-Fin heatsink
Polarity Polarity Specific
Base material Steel
Base color Black
Bolt thread Medium
Install
Drilling No drilling required
Mounting hardware Included
Compliance
IP rating IP69K Waterproof High Pressure
Operating temp -40C to 85C (-40F to 185F)
Country of origin USA
Features & benefits
Bolt-on fitment on 2019-2024 Ram 1500.
Allows you to mount a four-pod CrossLink lightbar across the grille.
Ultra-high intensity, with custom-engineered TIR optics.
Selectable backlight color, with eight color options.
Torture-tested, heavy-duty construction.
Utilizes existing mounting points for easy installation.
Assembled in USA.
Description

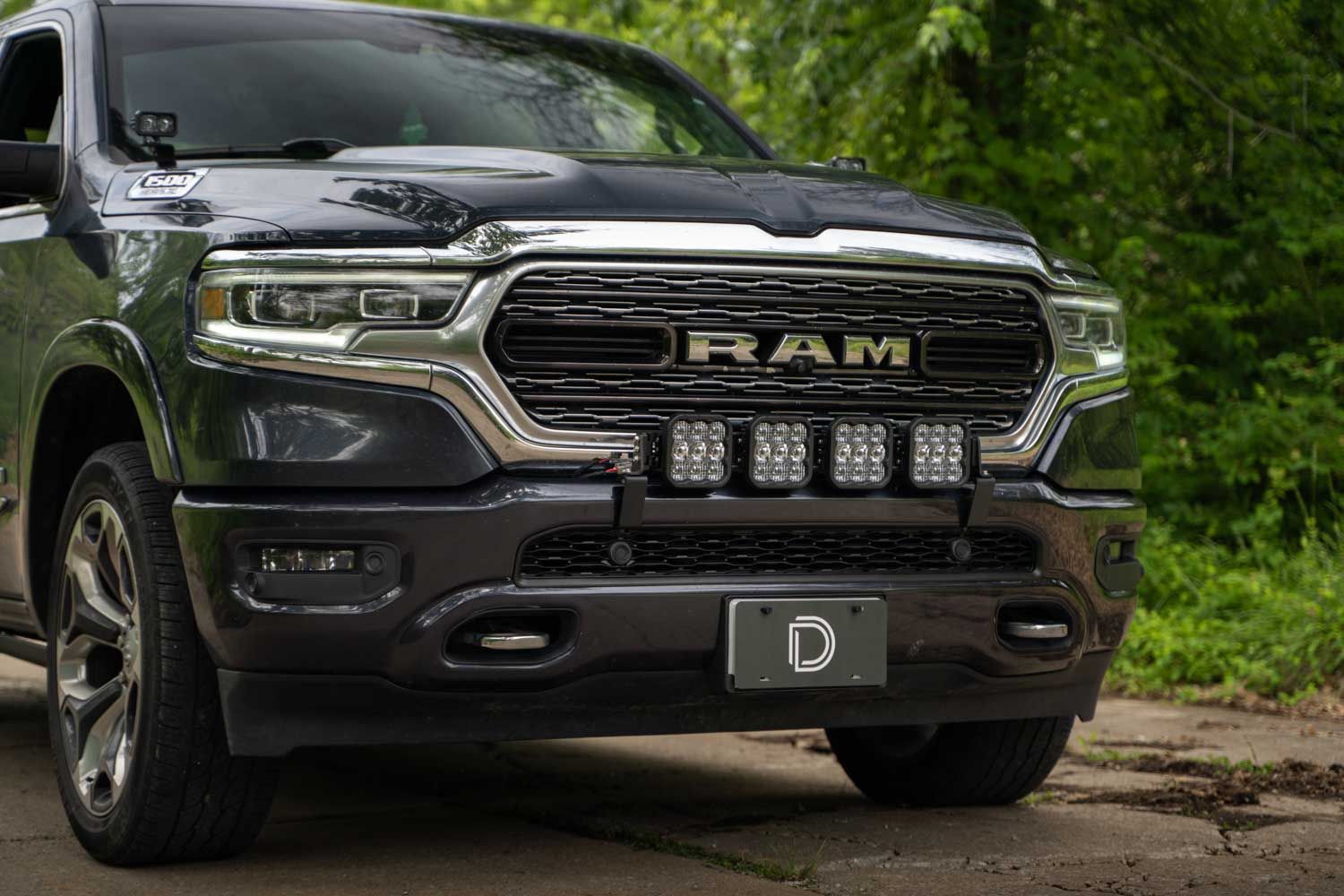

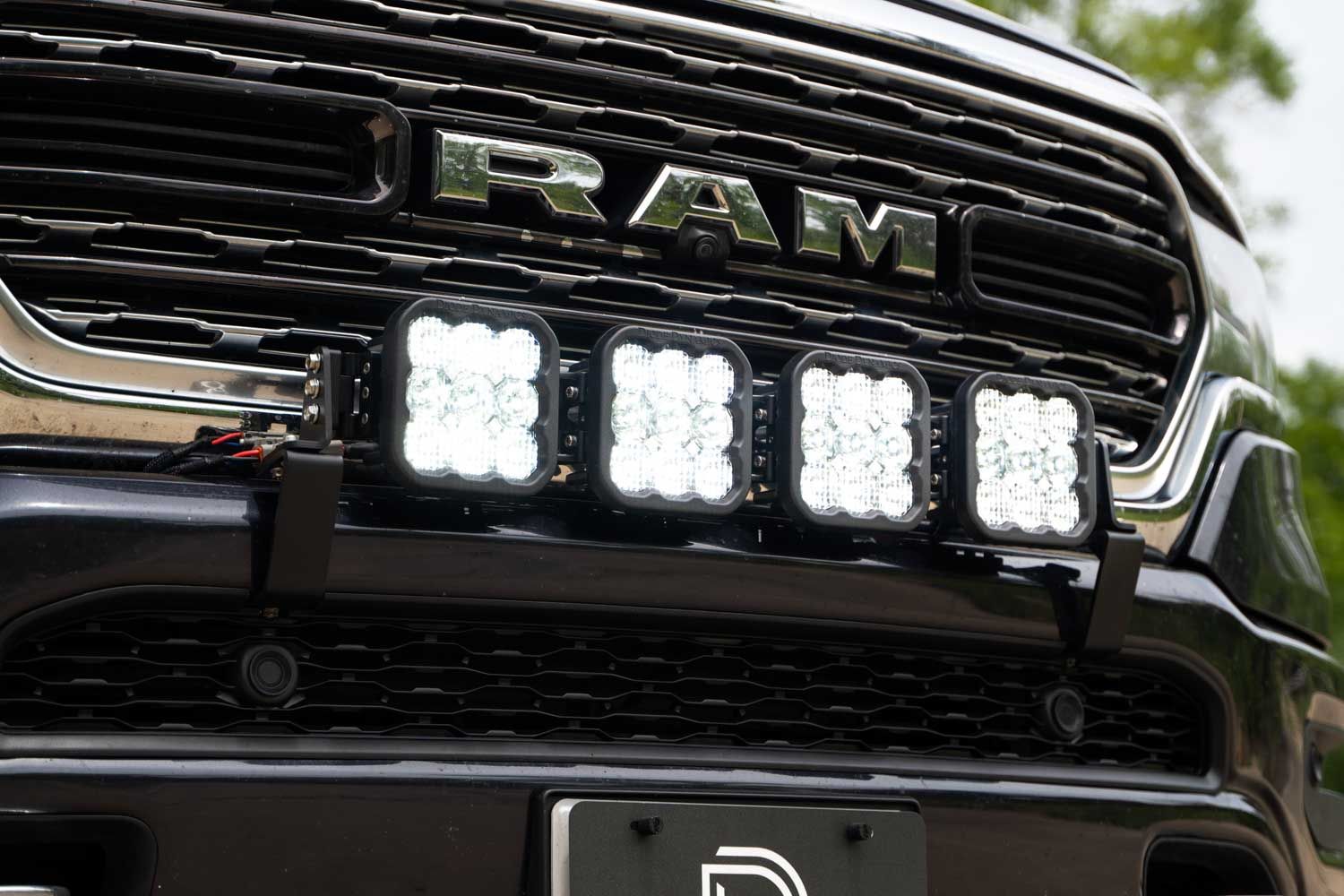

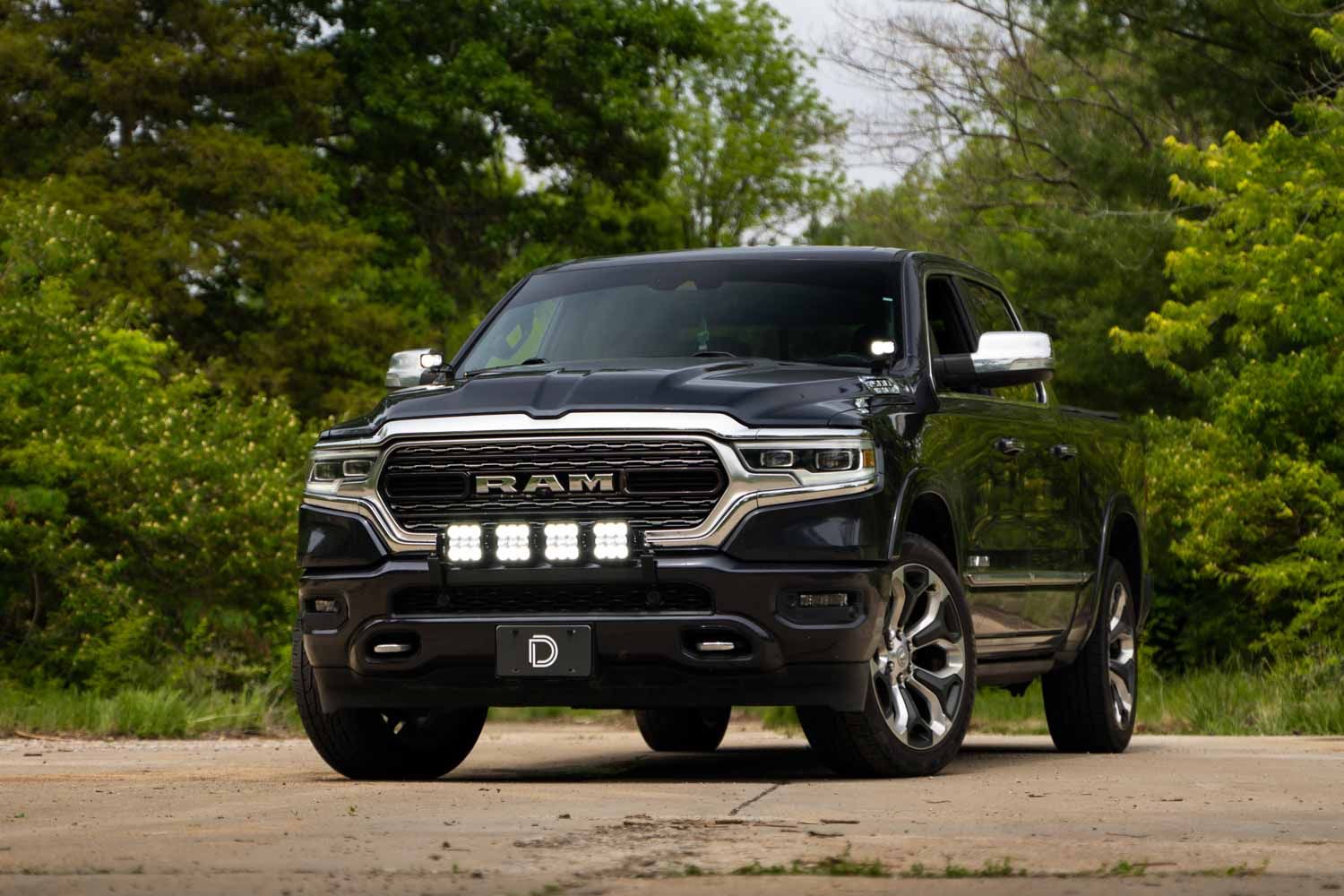

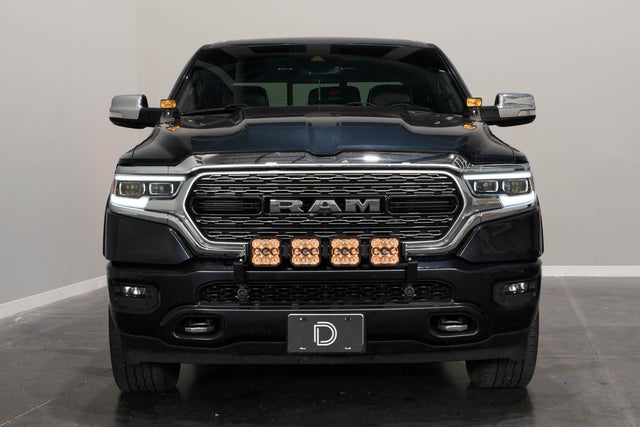

The Diode Dynamics SS5 Grille CrossLink Lightbar Kit for the Ram 1500 is a four-pod LED light bar system that mounts cleanly across your factory grille, giving you a serious forward lighting upgrade without cutting or fabricating anything custom. A vehicle-specific bracket ensures a precise, secure fit that looks like it belongs there.

The SS5 pods use custom TIR optics to deliver focused, high-intensity output — whether you're running trails after dark, navigating job sites, or adding usable light on unlit roads. Choose between Sport and Pro output levels to match how hard you push your truck, and select Cool White (6000K) for maximum brightness and contrast or Yellow (3000K) for better penetration through dust, rain, and fog. That combination of output and color choices means you can dial in exactly the light your driving conditions demand.

The pods also feature selectable backlight color with multiple options, so the bar doubles as a sharp accent when you're parked or on display. Heavy-duty construction and American assembly back up the performance with long-term durability you can count on.

Documentation
