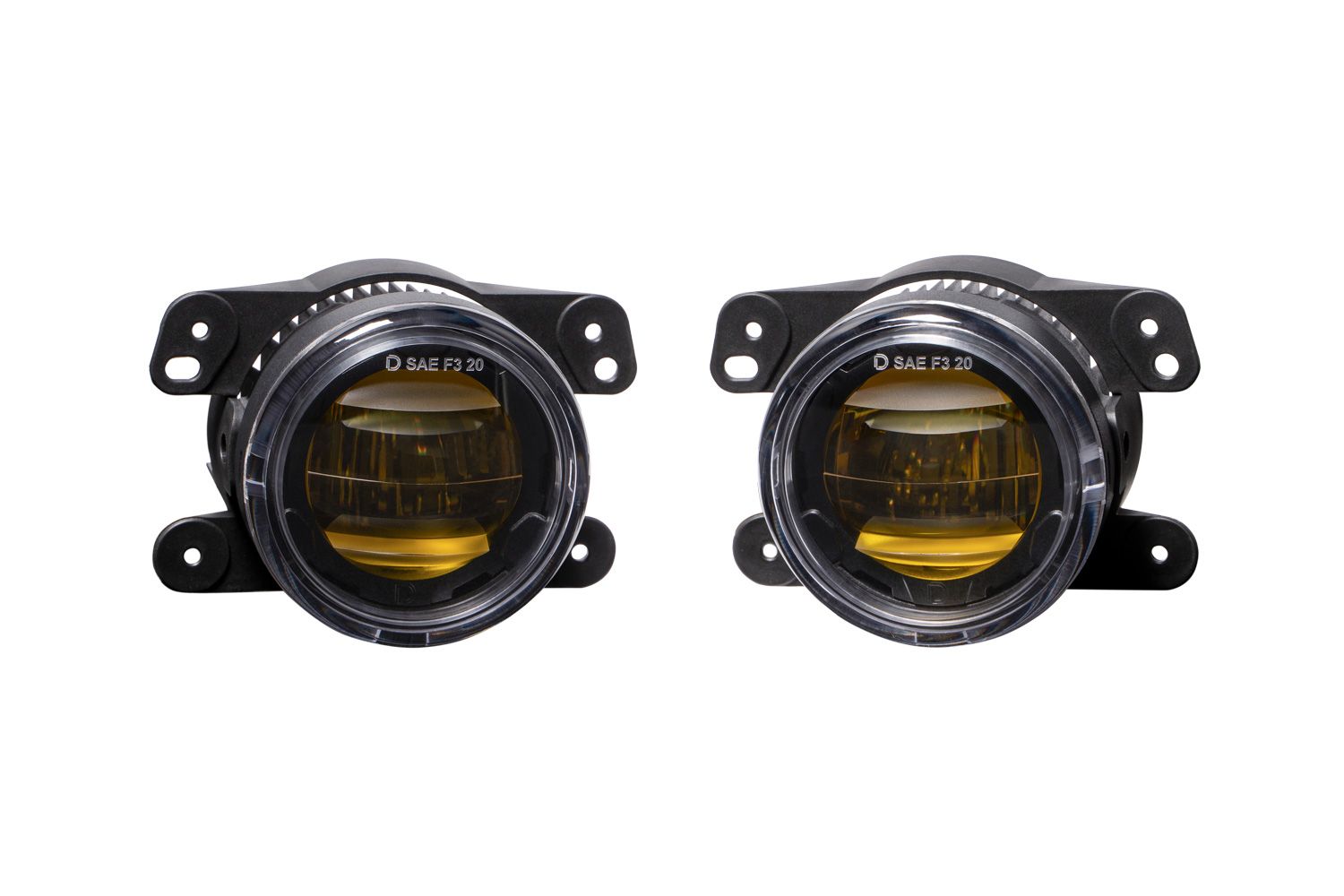

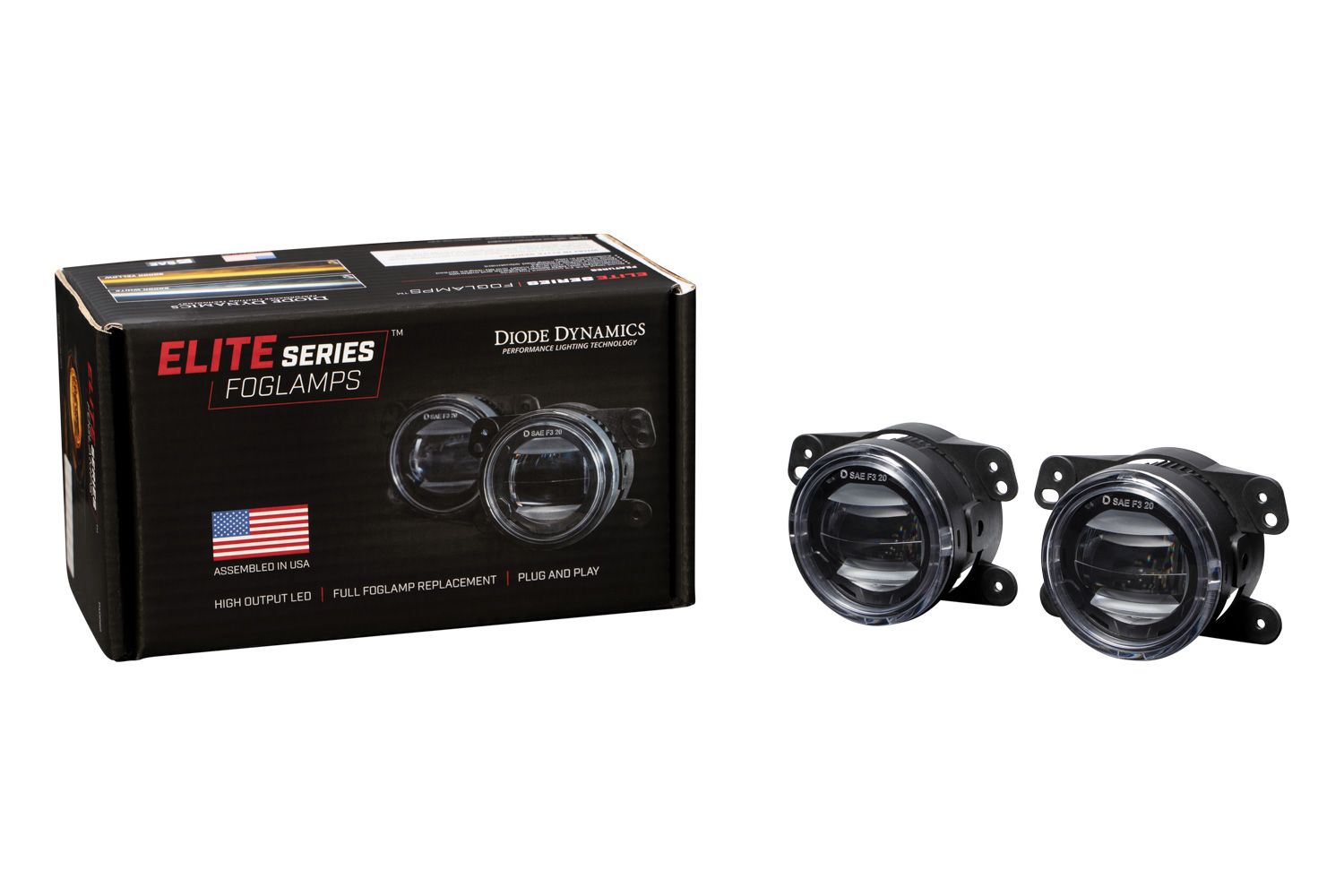

Elite Series Type M Fog Lamps (pair)

Diode Dynamics  |  SKU: DD5130P  |  Barcode: 00195995127259
Regular price $ 361.00 CAD
Choose Your Color
Fitment & Install Notes
Fits
Fits: 2005-2010 Chrysler 300, 2006-2009 Chrysler PT Cruiser, 2011-2014 Dodge Charger, 2005-2007 Dodge Magnum, 2009-2019 Dodge Journey, 2020-2025 Jeep Gladiator, 2018-2018 Jeep Wrangler JK, 2014-2017 Jeep Cherokee, 2011-2013 Jeep Grand Cherokee, 2018-2026 Jeep Wrangler
Free shipping Orders $500+
Canadian orders No duties / brokerage
Authorized Diode Dynamics Dealer
Returns 30-day easy
What's in the box 6 ITEMS

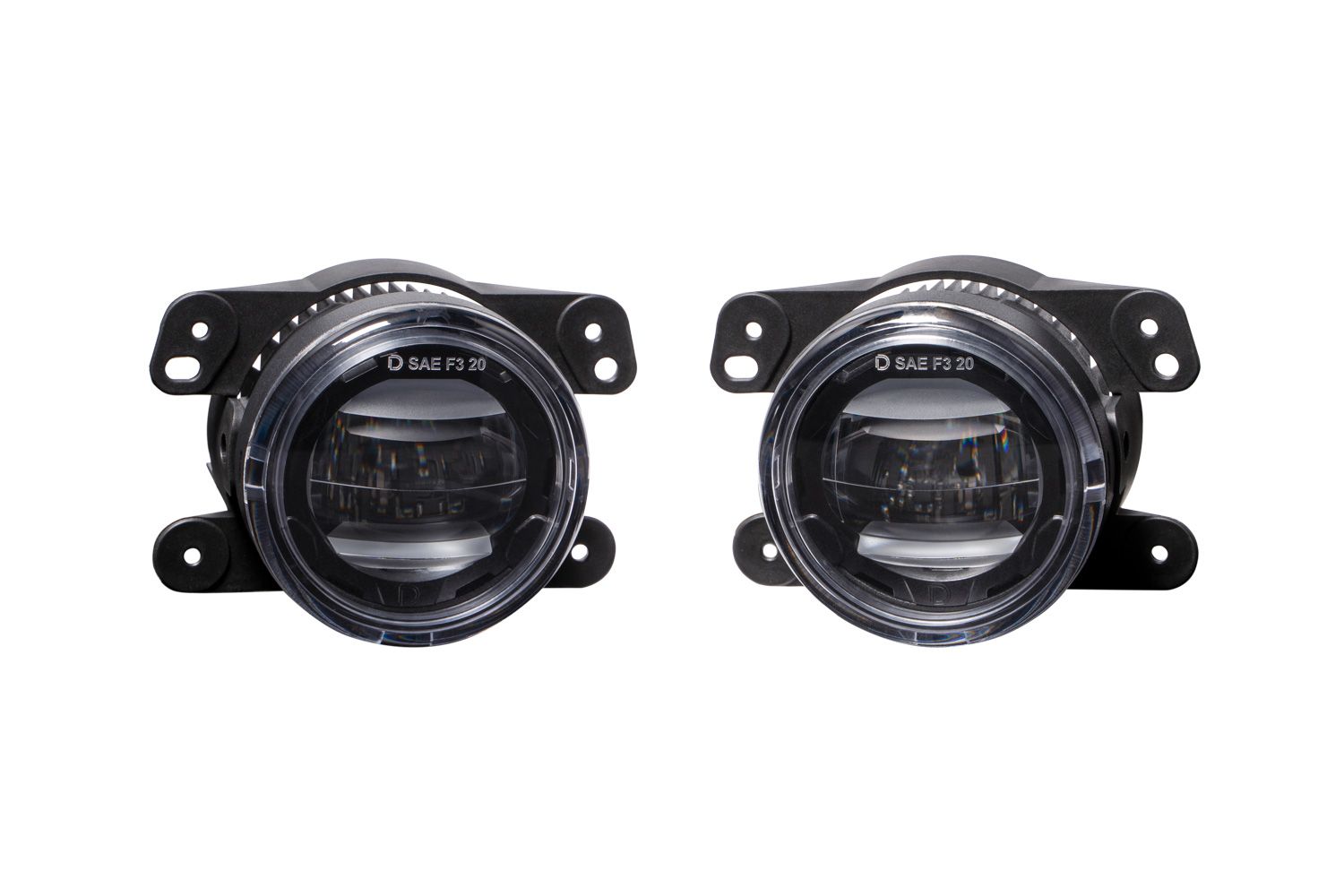

Two (2) Elite Series Type M fog lamps
Two (2) Elite Series Type M brackets
Two (2) 9006 4-pin DT backlight tap wires
Two (2) 5202 4-pin DT backlight tap wires
Two (2) T-taps
Mounting guide
Optical
Lumens 680
Color temperature 1800K 6000K
Beam spread Fog 80°x8°
Power 18W
Operating voltage 9-16V
Intensity 13 000 cd
LED emitter Multi-Die Automotive Emitters
Driver features Constant Current
Construction
Connector Deutsch DT Input

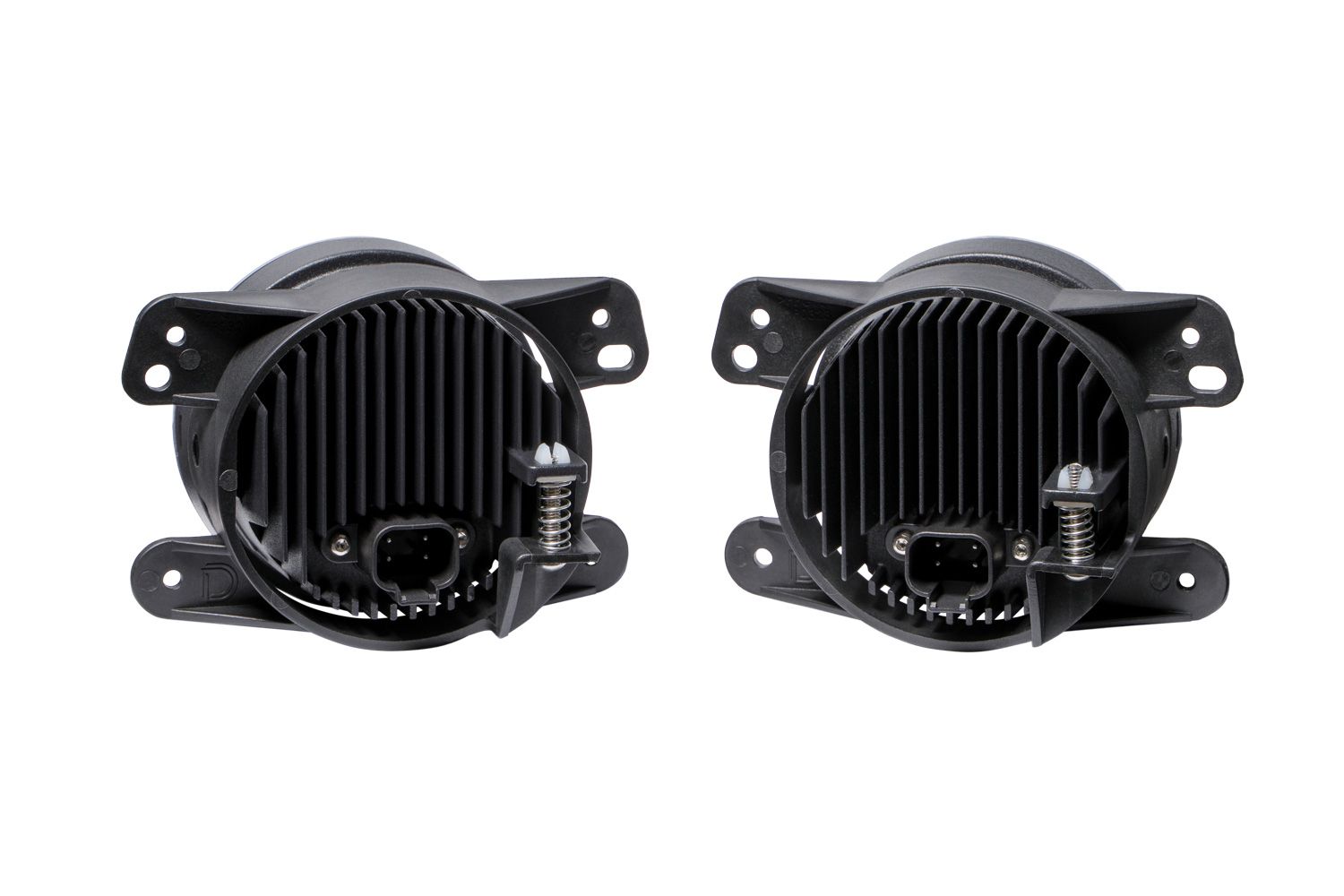

Cooling Passive, Pin-Fin heatsink
Polarity Polarity Specific
Terminal type Pin
Housing shape Round
Base color Black
Install
Harness included Yes
Mounting hardware Included
Compliance
IP rating IP68 Waterproof
Operating temp -40C to 85C (-40F to 185F)
SAE/DOT SAE J583 Foglamp Beam Pattern
Country of origin USA
Street legal Yes
SAE/DOT Compliant pattern available
Features & benefits
High-performance OEM-grade replacement
Custom-engineered optic provides extremely wide, intense light output

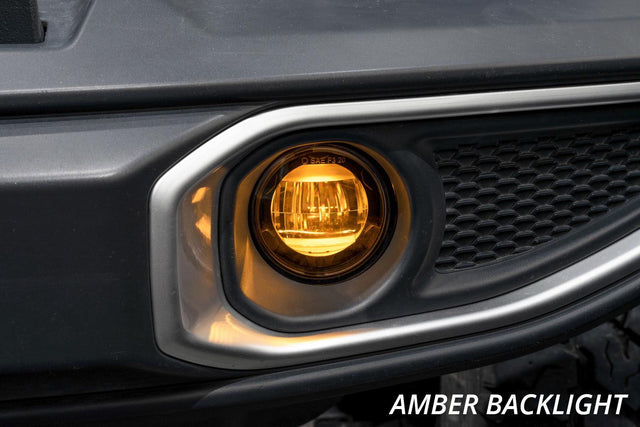

Distinctive integrated amber backlight
Road-legal fog light (SAE F3 compliant)
Plug and play main beam, no modification needed
Engineered and assembled in USA
Description

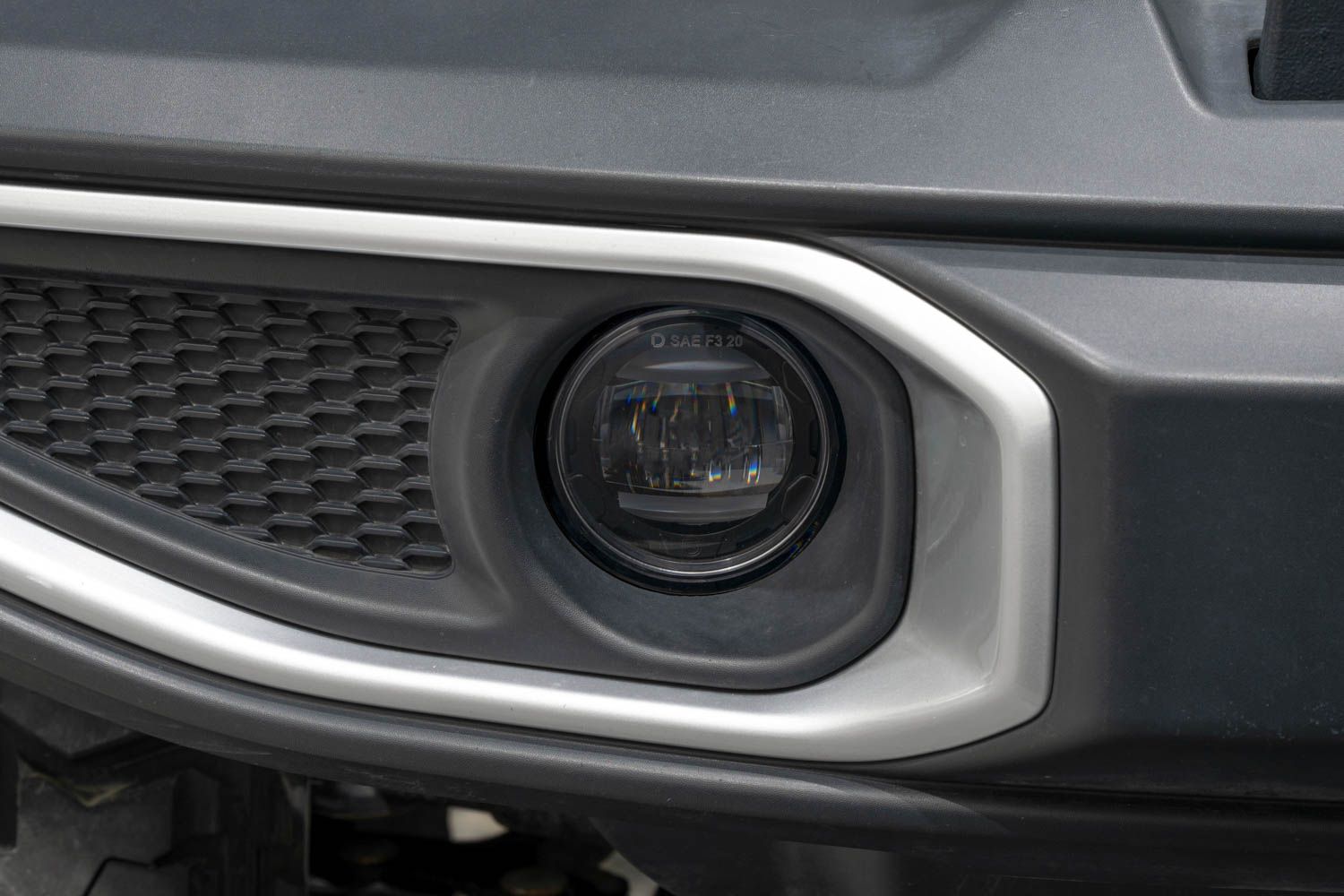

The Diode Dynamics Elite Series Type M Fog Lamps are a direct-fit LED fog light upgrade engineered to deliver genuinely improved forward and side-scatter illumination over tired factory halogens. Designed as a true OEM-style replacement, they install without modification — simply plug in and go, with no wiring changes or bracket fabrication required thanks to vehicle-specific mounting hardware built into the assembly.

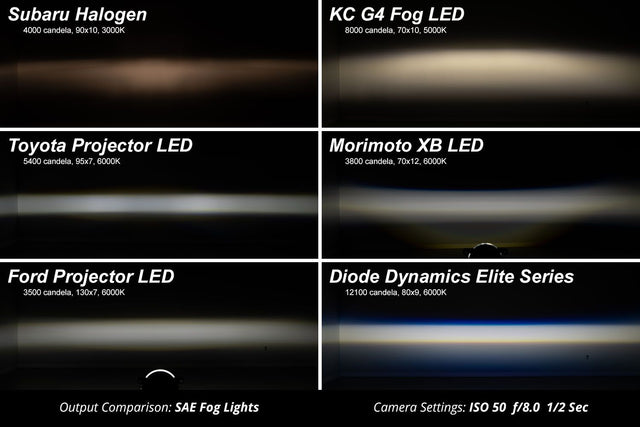

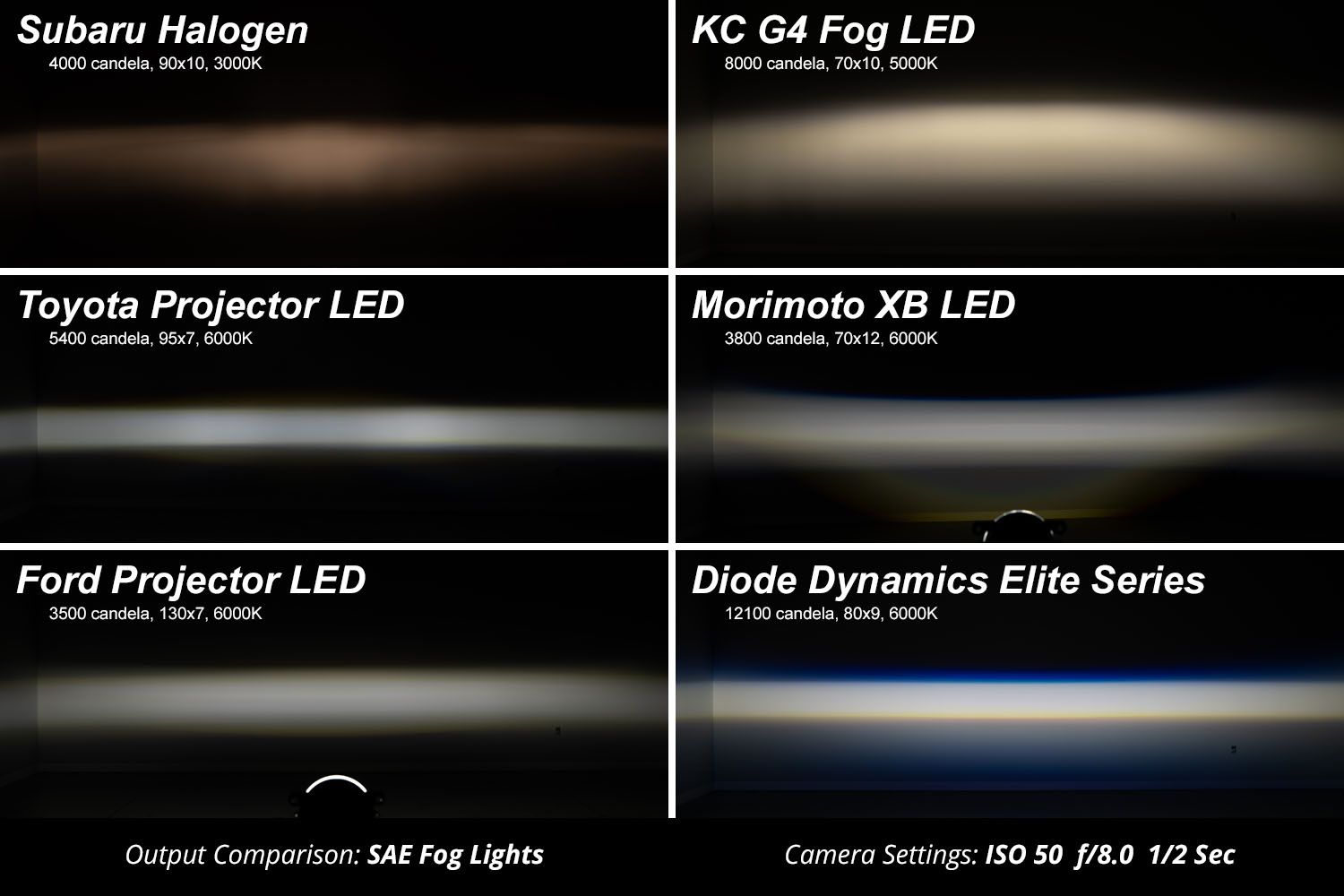

The custom-engineered optic produces an exceptionally wide, intense beam that pushes light out to the sides of the road, exactly where fog lights are meant to work — cutting through low-visibility conditions and lighting up road edges on winding terrain. A distinctive amber backlight adds a clean, purposeful look that sets these apart from generic replacements.

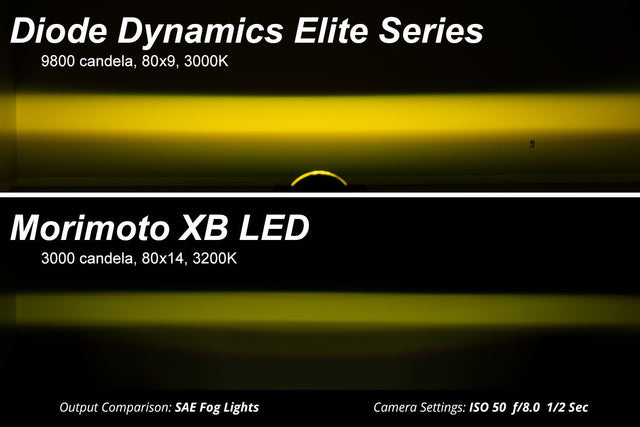

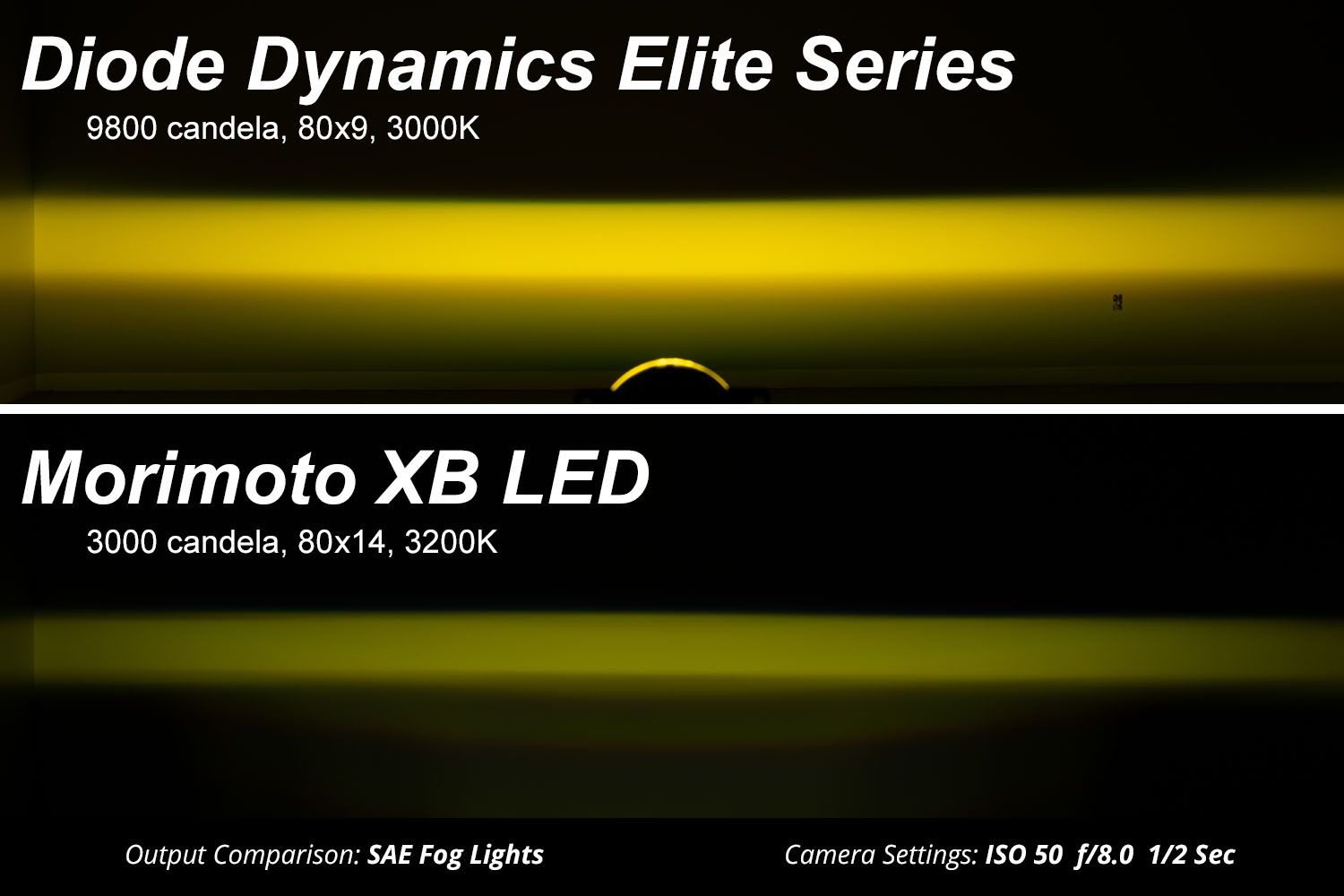

Choose between Cool White or Yellow to match your preference and conditions — Cool White for crisp, high-contrast output, or Yellow for its traditional fog-cutting character in rain, dust, and haze. Whether you drive a Jeep Wrangler, Gladiator, or a Dodge or Chrysler daily driver, these are a straightforward, confidence-building upgrade from Diode Dynamics.

Documentation
