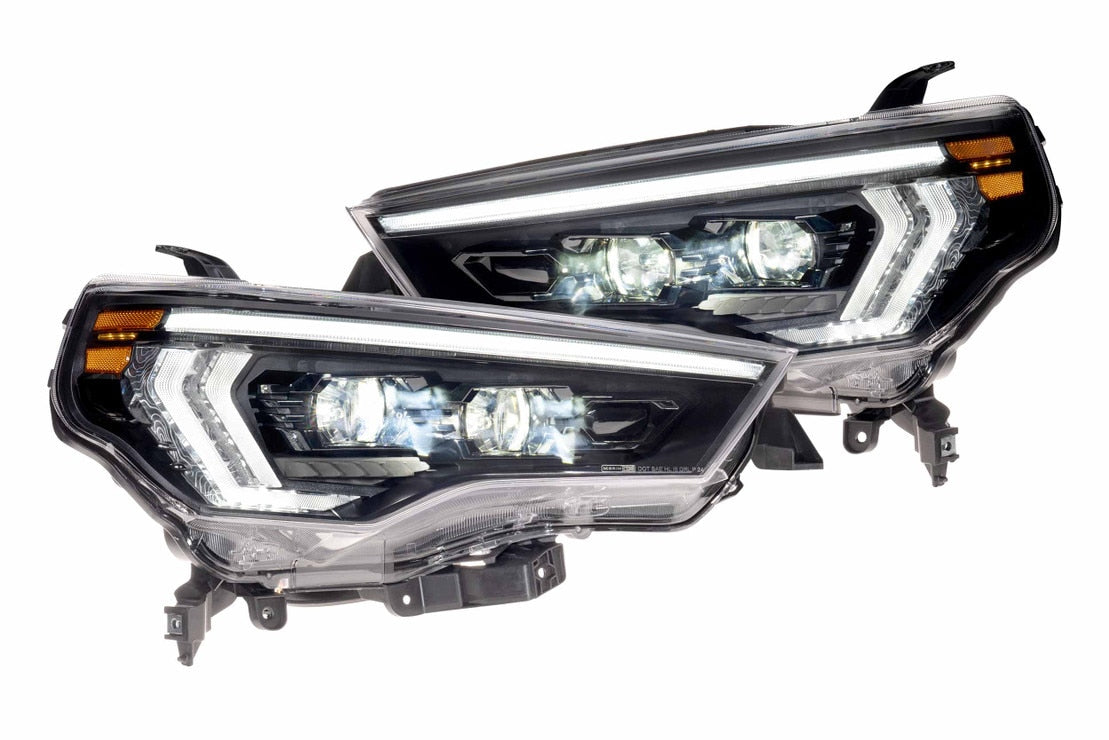

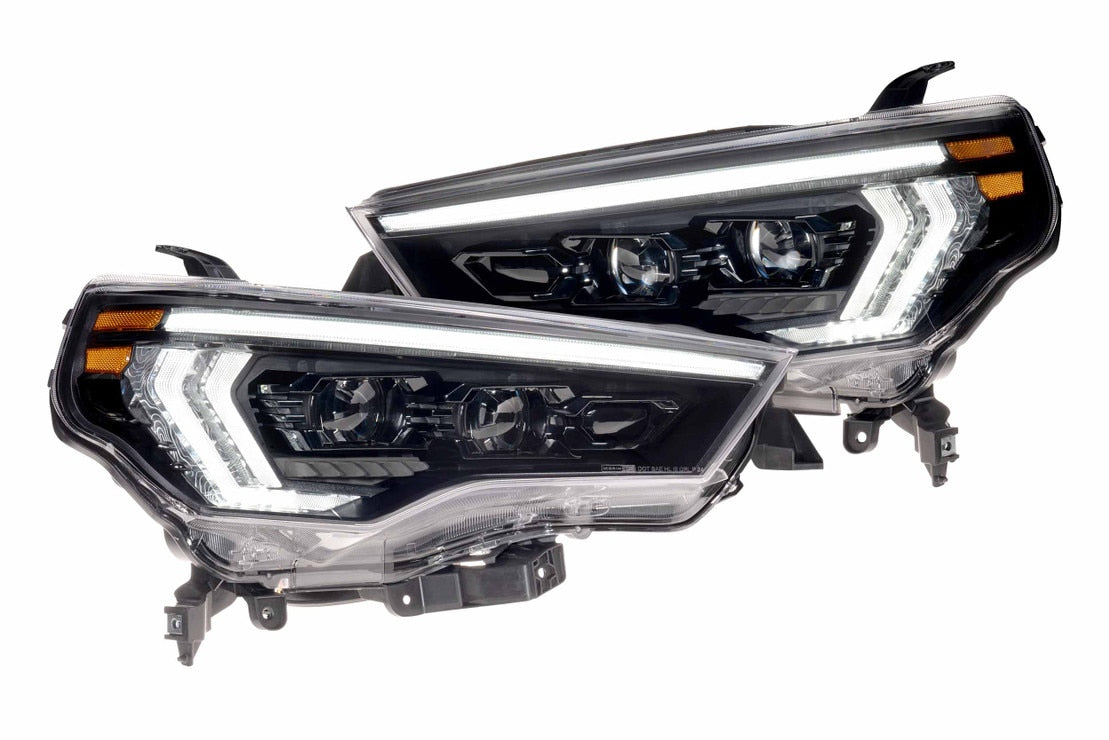

Toyota 4Runner (14-24) XB Evo Hybrid Led Headlights

Morimoto  |  SKU: LF2-531Y  |  Barcode: 840203374948
$1,341.00 USD
Fitment & Install NotesSKU · LF2-531Y
Fits
TOYOTA 4RUNNER: 2014-2023
*Note: 2021-2023 Models require optional adapters (be sure to select either Limited/TRD or Non above so that the correct wiring is sent with your lights.
Canadian buyers

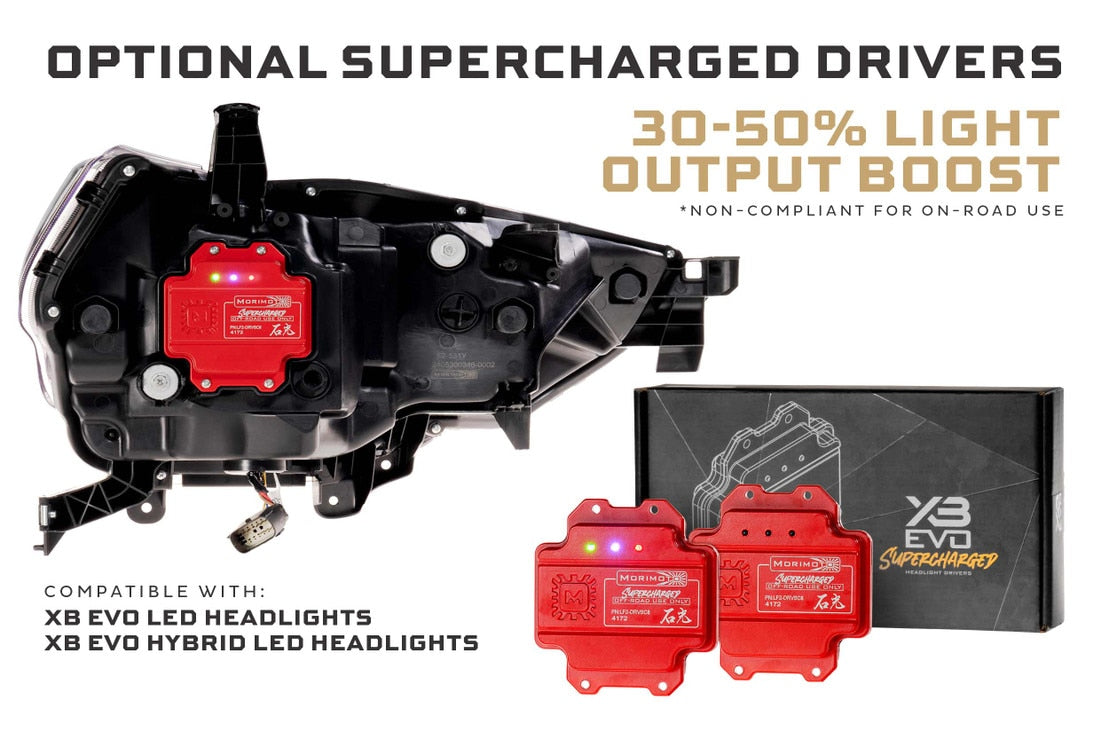

NOTE: Installation of Optional Supercharged Drivers results in non-compliant intensity. Not for on-road use in USA or Canada.
Free shipping Orders $500+
Canadian orders No duties / brokerage
Authorized Morimoto Dealer
Returns 30-day easy
Optional add-ons 1 AVAILABLE
What's in the box 2 ITEMS

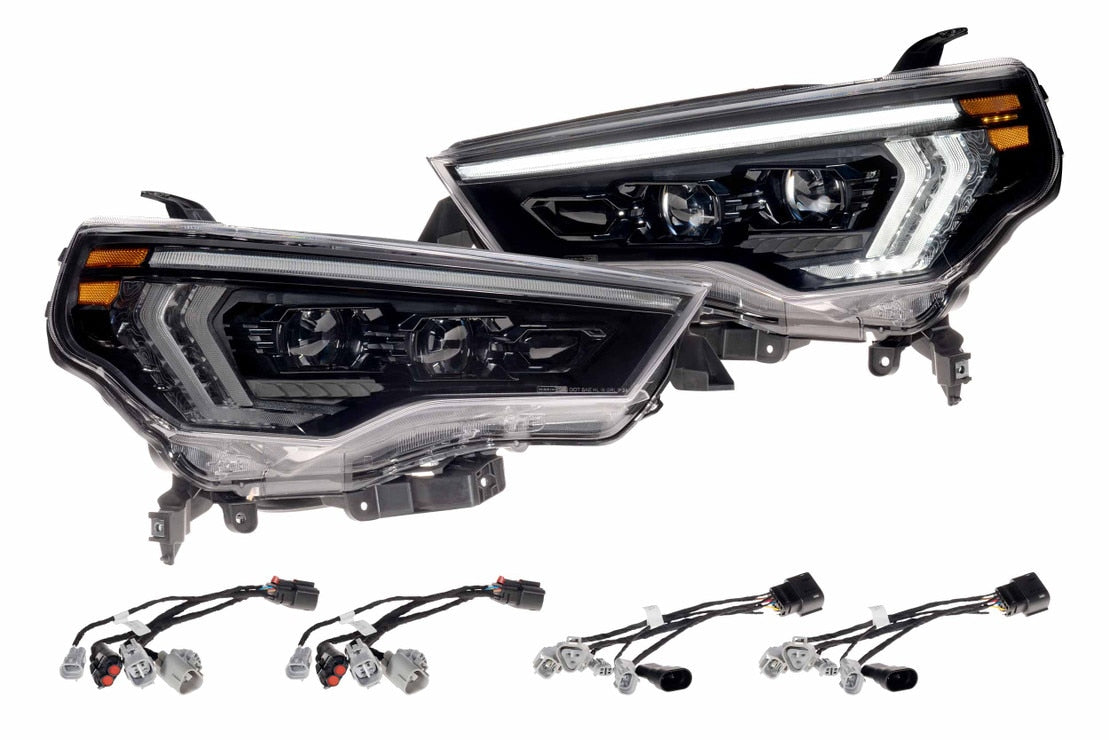

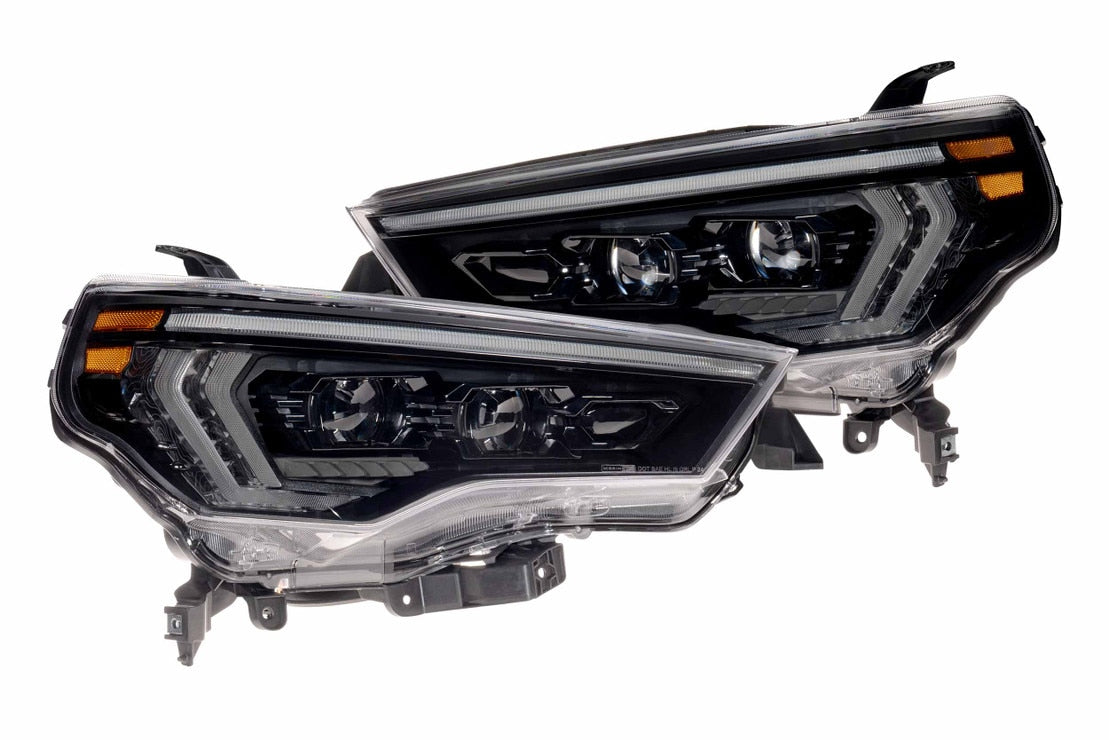

• Headlights: 2x (One Pair) 14-24 Toyota 4Runner XB Evo Hybrid

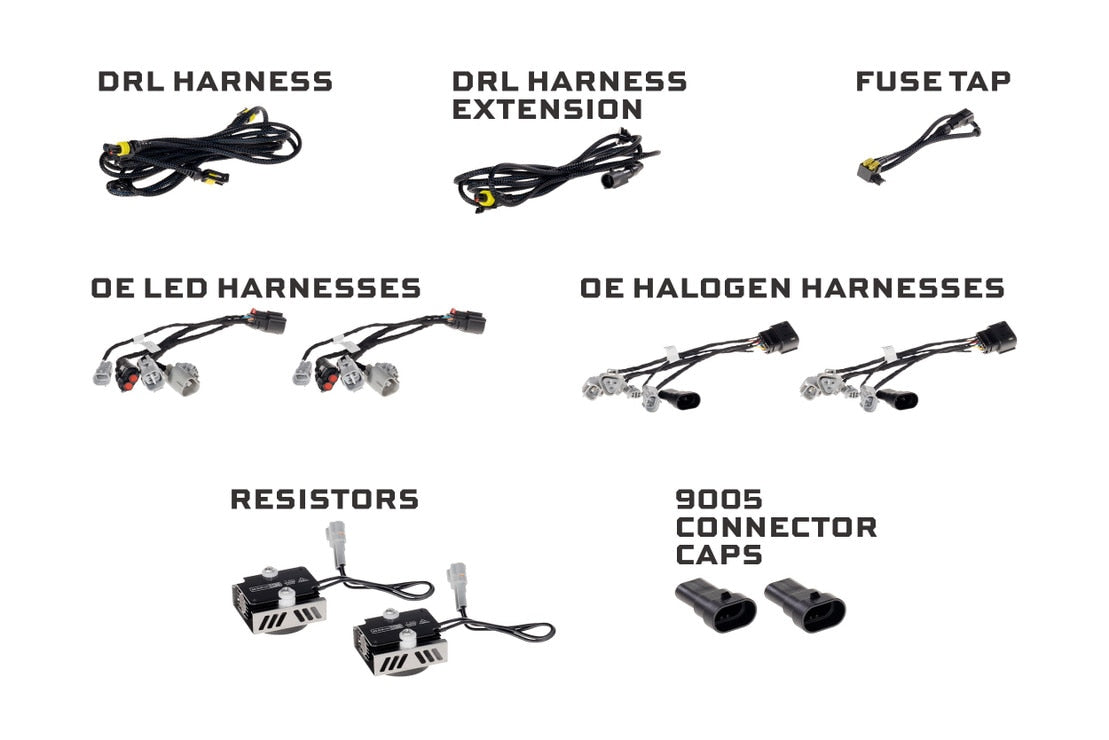

• Wiring: 2x Halogen Adapters, 2x LED Adapters, 2x Magnet Mount Resistors, 1x DRL Harness, 1x DRL Harness Extension, 1x Fuse Tap
SPEC-RAN: wattage=[] lumens=[]
Functions & Features
Functions
  • Low
  • High
  • Park
  • Turn
  • DRL
DRL colors White
Turn signal Fade Off

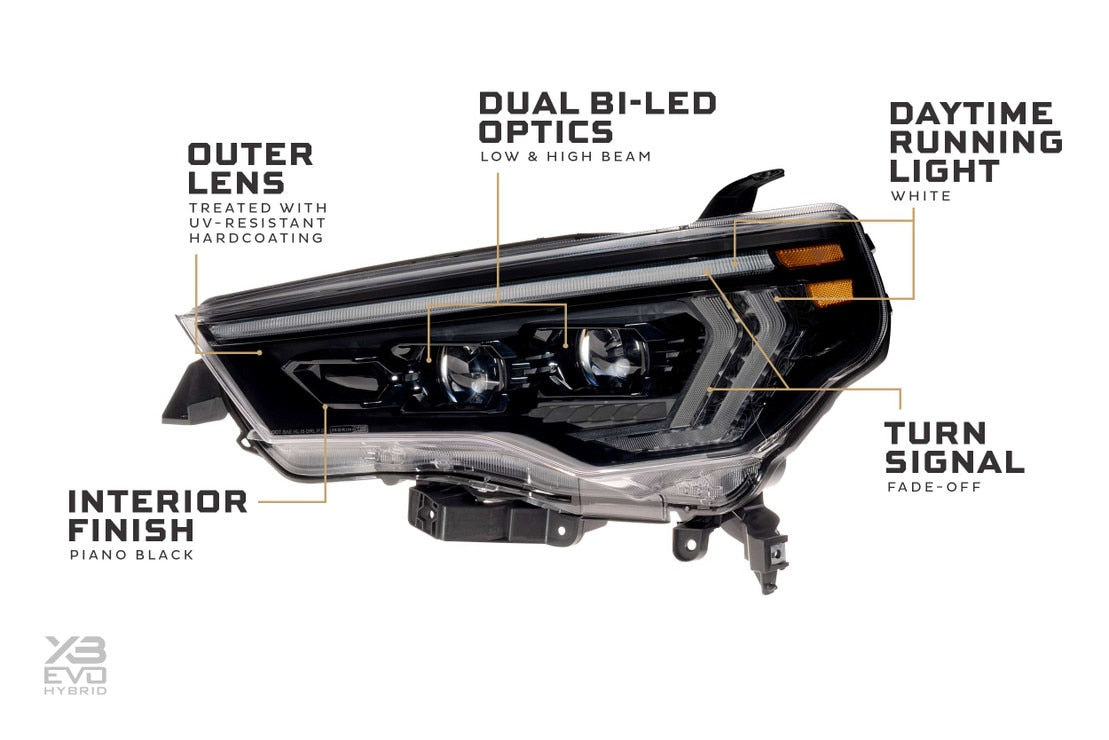

Optical
Optic system 2x Type 1 Ishida Optic Bi-LED (1x Nichia NC4W193F @ 750mA)
Construction
Lens material Polycarbonate
Lens coating Polycarbonate with UV-Shield Hard coating (Exceeds OE Toyota benchmark)
Internal finish Piano Black w/ contrasting textures
Compliance
Compliance DOT (FVMSS108) Compliant (LB2V and UB2)
Off-road note
With optional Supercharged Drivers installed: results in non-compliant intensity. Not for on-road use in USA or Canada.
Warranty
Warranty 5 year limited warranty.
OEM Cross-Reference
Replaces OEM Replaces OEM part numbers: 81170-35571, 81170-35570, 81070-35600, 81070-35610, 81130-35541, 81140-35610, 81140-35620
Features & benefits

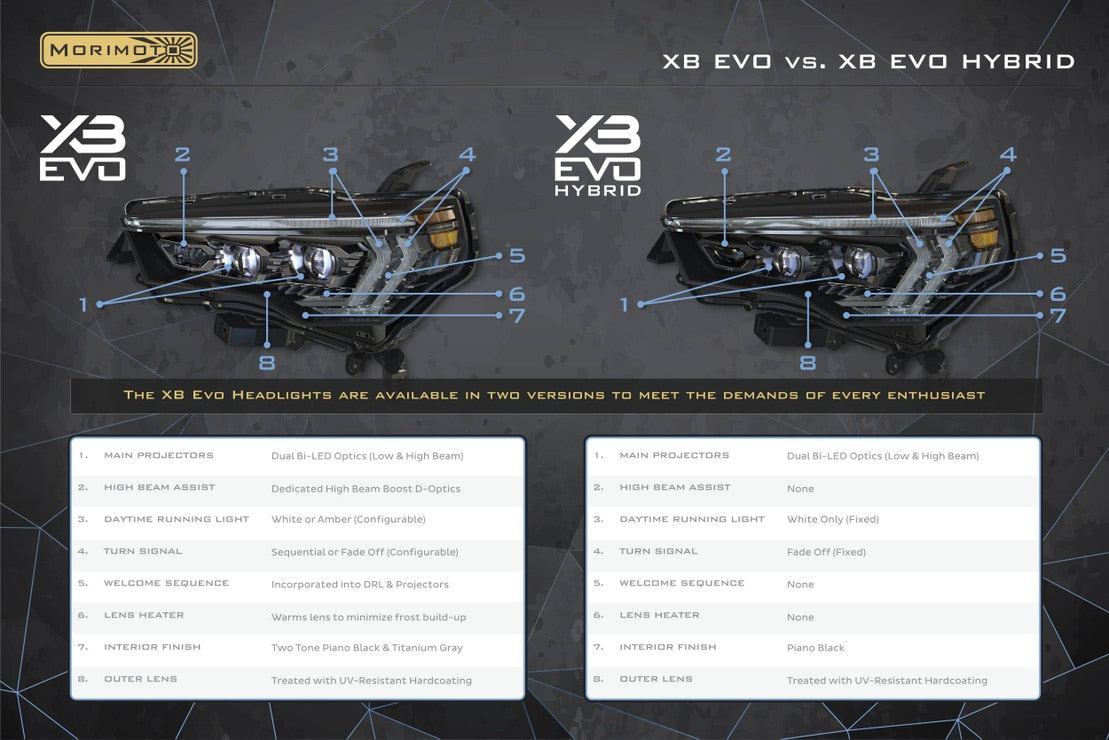

XB Evo Hybrid
Much more than a design refresh, these headlights showcase Morimoto's commitment to delivering technology, style, and performance at an unbeatable price point.
All New Optics

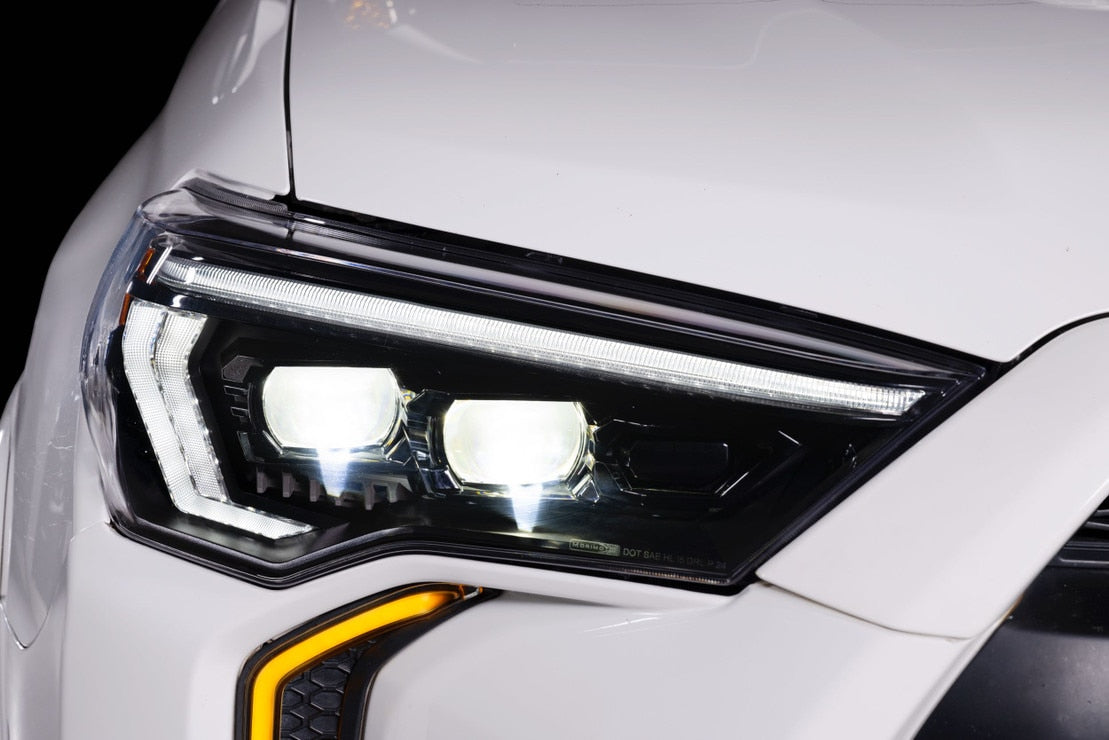

Enables light output that exceeds the rigorous standards of the IIHS, with exceptional intensity and distribution. Utilizes the same dual Bi-LED projectors found in the high-end XB Evo headlights.
On and Off Road

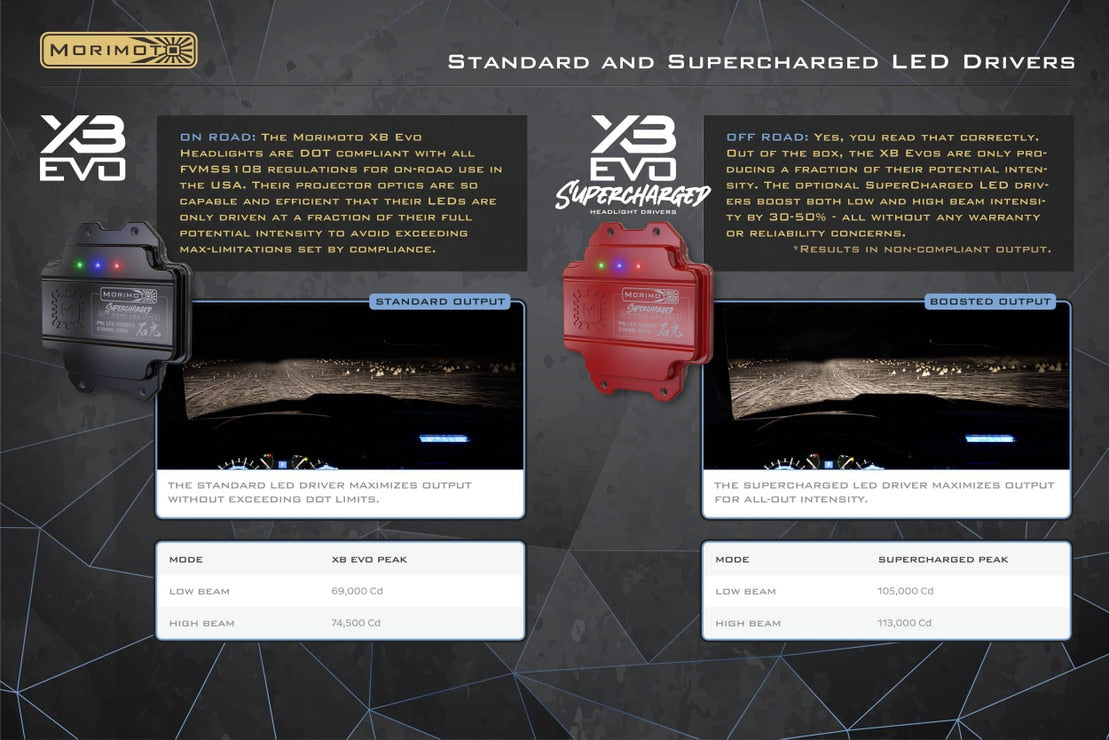

DOT Compliant for public roads in the USA in standard form, with an optional Supercharged LED driver to boost intensity by 30%, making them the brightest option for 4Runner owners who want to maximize output for off-road use.

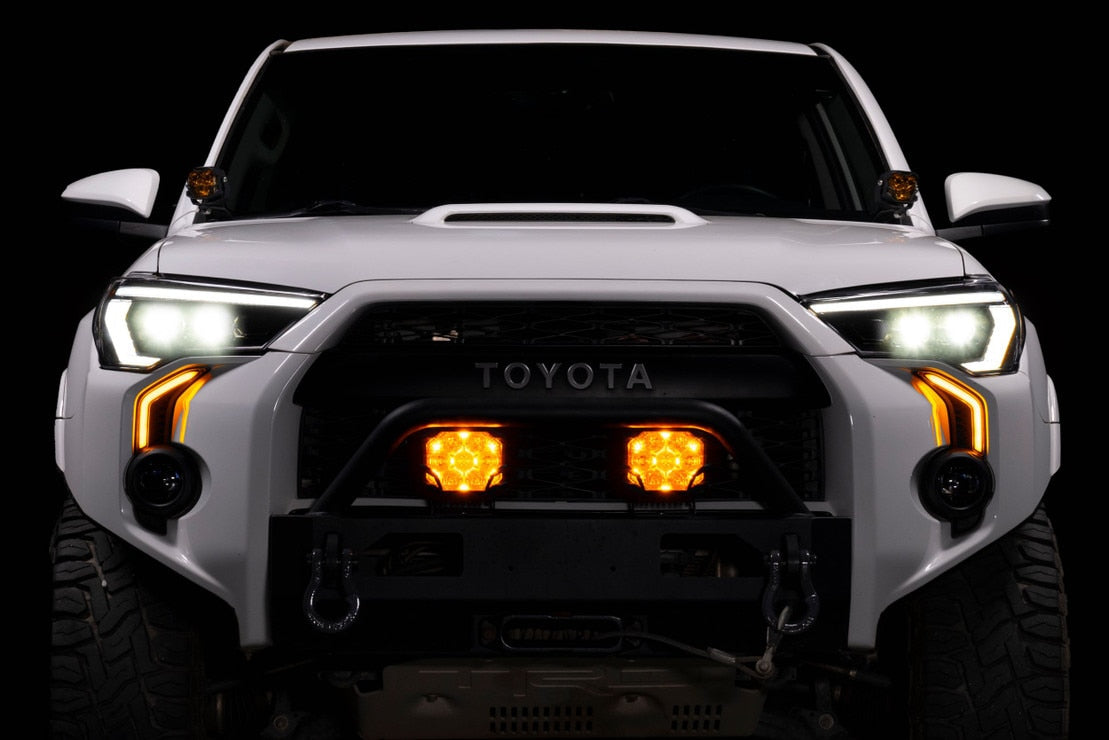

DRL and Signals

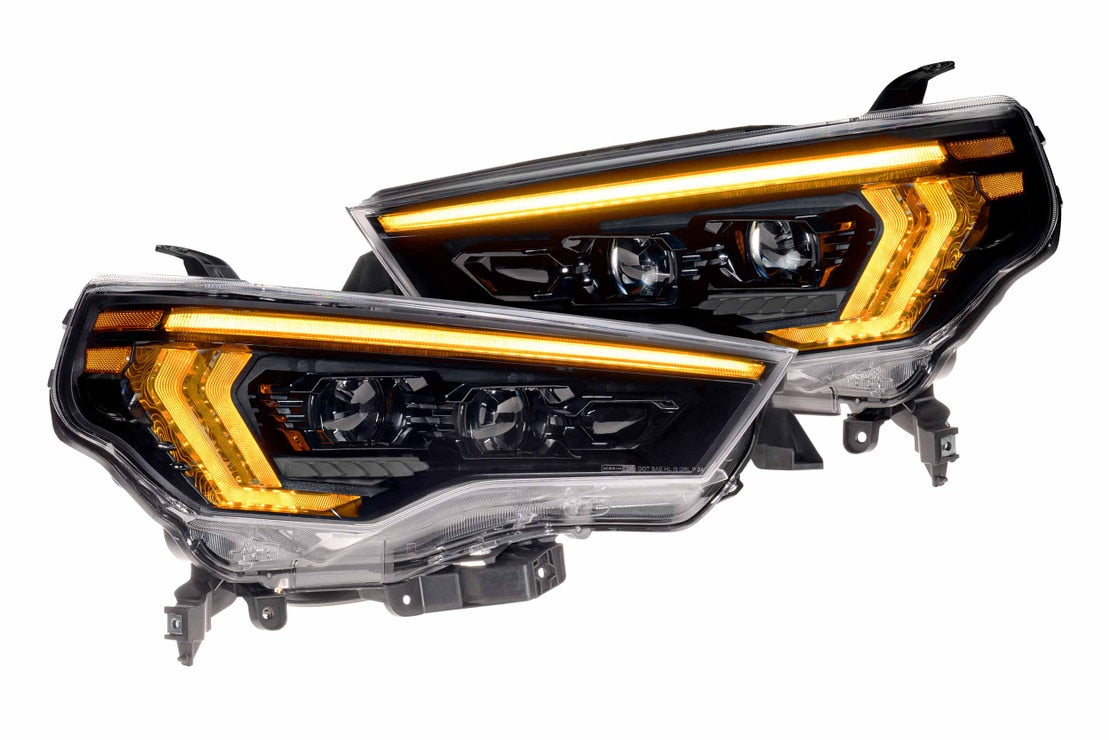

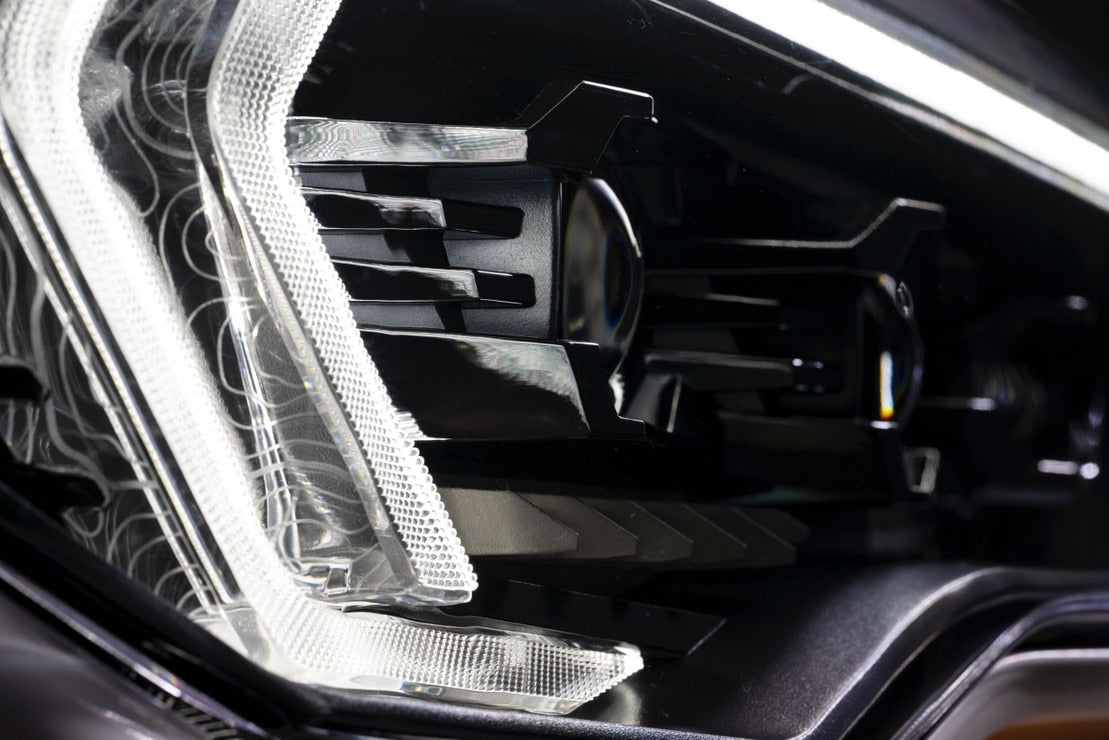

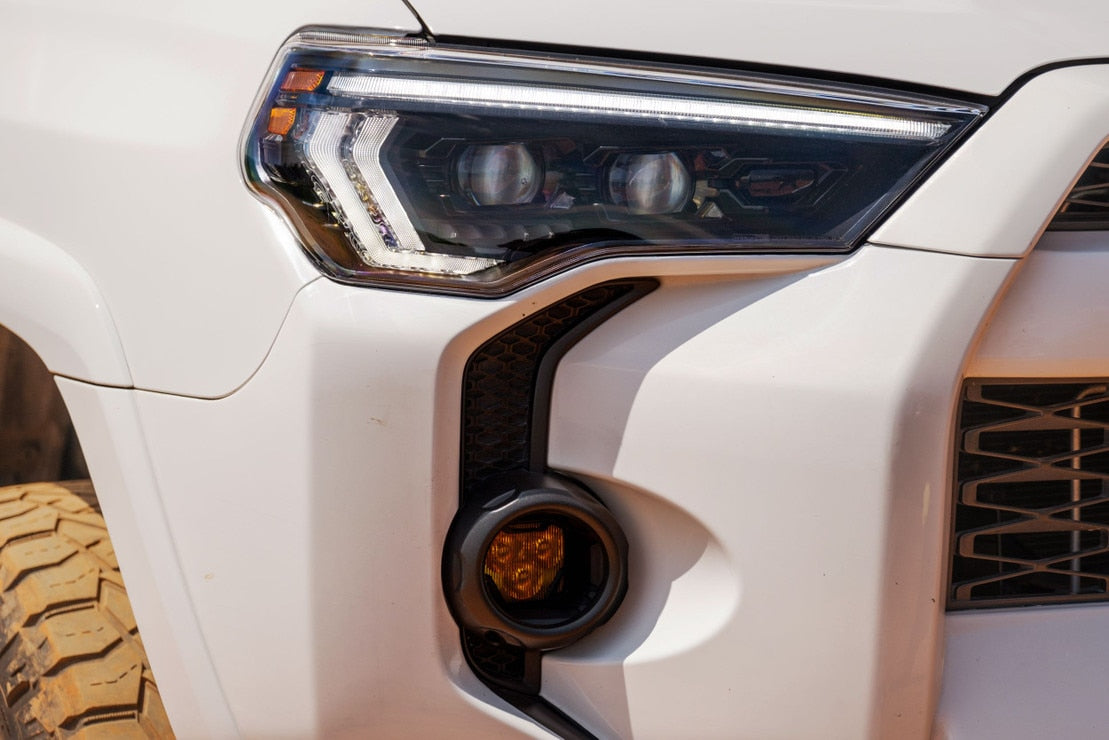

Incredibly bright white LED Daytime Running light and equally impressive amber LED turn signals with fade-off effect operate through the same set of TIR-based optics.
Designed, engineered, and tested
In the USA by Morimoto, the XB Evo Hybrid headlights are built with the highest standards, using the latest in technology and raw materials available today, and are backed with an industry-leading five-year warranty.
Description

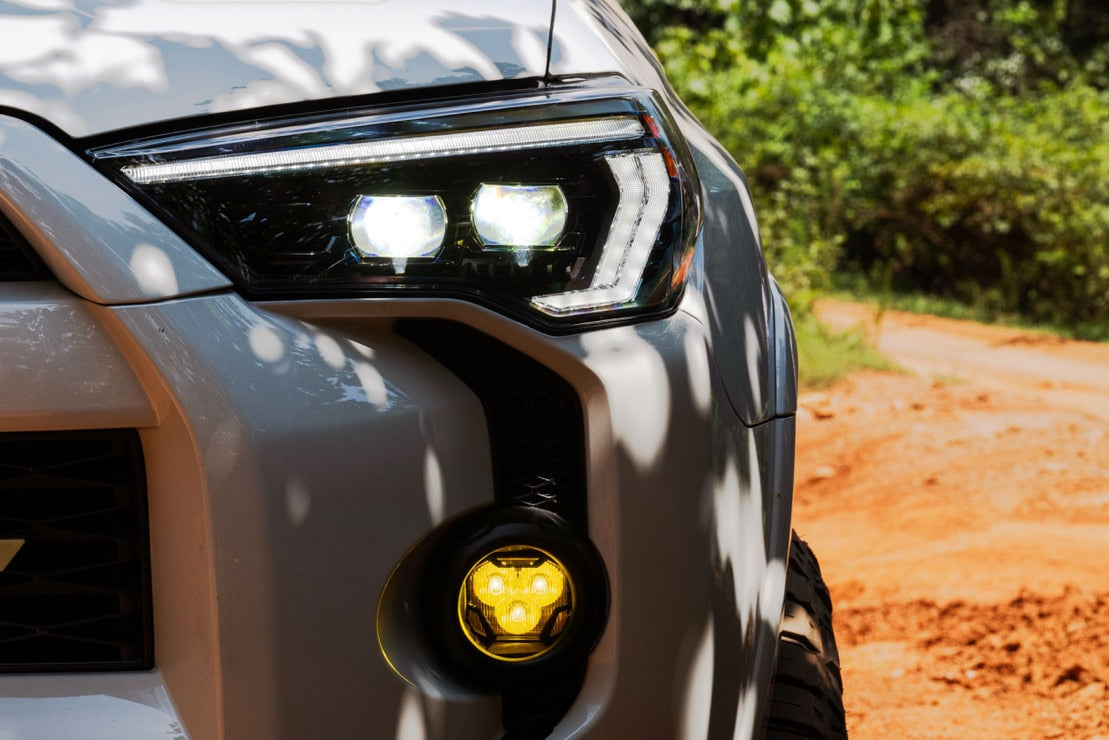

The all-new XB Evo Hybrid headlights are a showcase of everything Morimoto is made of at a price that everybody can afford. From concept to completion. Packed with features that demonstrate a true attention to detail including the latest in technology, compliance, quality, and styling, these headlights are designed for enthusiasts who are serious about all the above, even if it comes at a premium. Here, the 4Runner XB Evo Hybrid headlight utilizes the same Bi-LED projectors found in the higher end XB Evo model to deliver unmatched light output, with an incredibly bright and wide low beam, and a high beam that destroys darkness. All optics are powered by the latest OE-grade automotive LEDs from Nichia in Japan. XB Evo Hybrid headlights aren't cheap, but they are built to a high standard and should easily last the life of your 4Runner! We're proud to stand behind the product with an industry-leading five-year warranty.

Note: If your truck has factory Bi-LED headlights, you must not use the factory high beam connectors. Blank caps are included and must be installed.

Documentation
PDF Install guide VID Install walkthrough
