Stage Series LED Rock Light Kit (8-pack)

Diode Dynamics  |  SKU: DD8747  |  Barcode: 195995149008
Regular price $698.00 USD
Include Magnet Mounts?
Choose Your Type
Free shipping Orders $500+
Canadian orders No duties / brokerage
Authorized Diode Dynamics Dealer
Returns 30-day easy

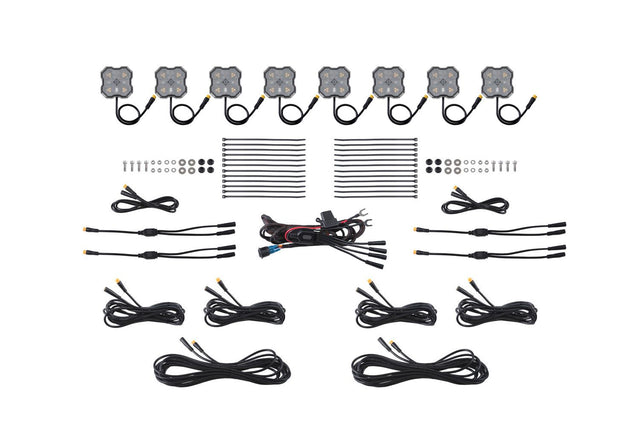

What's in the box 13 ITEMS

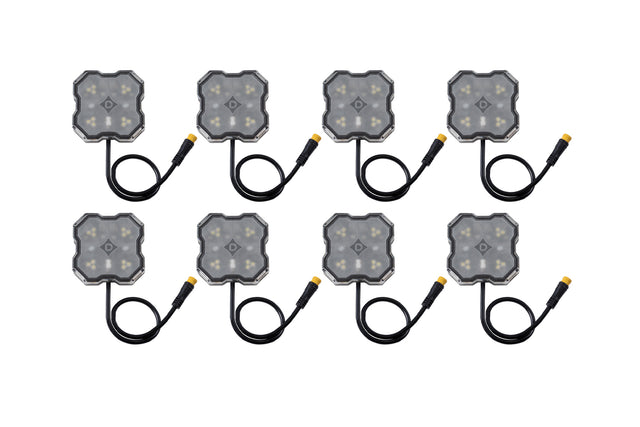

• Eight (8) Stage Series Rock Lights
• Eight (8) Amber Rock Light Lenses (Single-Color Kits)
• Eight (8) Red Rock Light Lenses (Single-Color Kits)
• Eight (8) Rock Light Hardware Kits

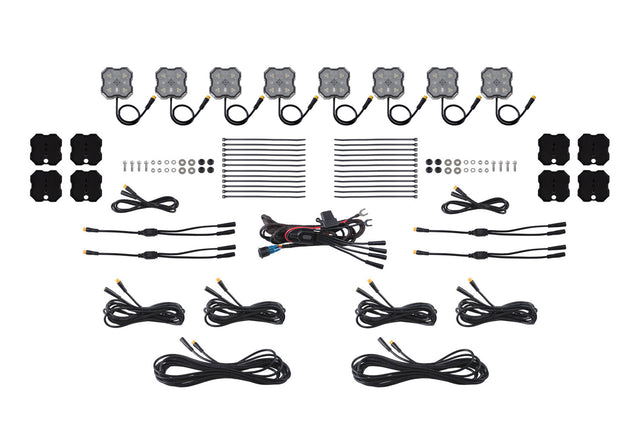

• Eight (8) Magnet Mounts (optional)
• One (1) Rock Light wiring harness
• One (1) Bluetooth RGBW M8 Controller (RGBW Kit)
• One (1) 1M Extensions
• Four (4) 3M Extensions
• Three (3) 5M Extensions
• Four (4) M8 Splitters
• Zip Ties
• Installation guide
Optical
Lumens 12
Beam spread Round 60°
Power 12W
Operating voltage 9-16V
Intensity Red: 30 White: 150
LED emitter Lumileds Z ES
Driver features Linear Regulated
Construction
Housing material Aluminum
Connector M8 Input
Cooling Passive, Pin-Fin heatsink
Polarity Polarity Specific
Base color Black
Wire quantity 2
Compliance
IP rating IP68 Waterproof
Operating temp -40C to 85C (-40F to 185F)
Weather resistant Yes
Description

The Diode Dynamics Stage Series LED Rock Light Kit is an 8-pack of compact underbody lights built to illuminate the terrain directly beneath your rig during night-time trail runs, recovery situations, and worksites. Mounted low on your frame, axles, or rocker panels, these lights cast a wide area glow that shows you exactly what your tires are about to roll over — rocks, ruts, drops, and debris that headlights simply can't reach.

The kit is available in White, Amber, Red, or Dual-Color White configurations, so you can tailor the output to your specific needs — whether that's maximum ground visibility, trail-legal amber, low-profile red for preserving night vision, or the flexibility of dual-color switching between two outputs from a single light. You also have the option to add a wiring harness, making installation straightforward without hunting down separate components.

Stage Series build quality means these lights are engineered to survive the abuse that comes with serious off-road use — mud, water, vibration, and trail debris. If you wheel your truck, Jeep, or UTV after dark, this kit is a practical, high-impact upgrade.

Documentation
