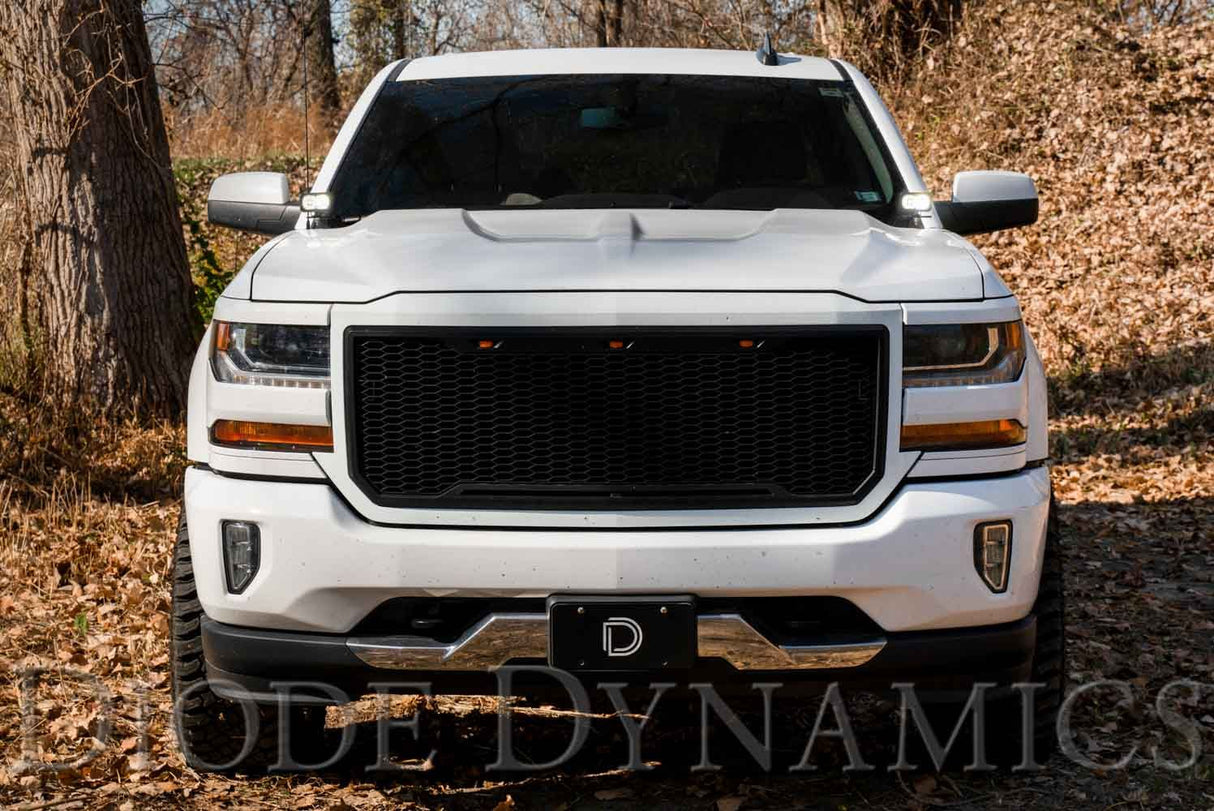

Stage Series Backlit Ditch Light Kit for 2014-2019 Chevrolet Silverado 1500

Diode Dynamics  |  SKU: DD6659  |  Barcode: 691026128054
Regular price $328.00 USD
Choose Your Kit
Choose Your Optic and Color
Fitment & Install Notes
Fits
Fits: 2014-2019 Chevrolet Silverado 1500, 2014-2019 GMC Sierra 1500
Free shipping Orders $500+
Canadian orders No duties / brokerage
Authorized Diode Dynamics Dealer
Returns 30-day easy

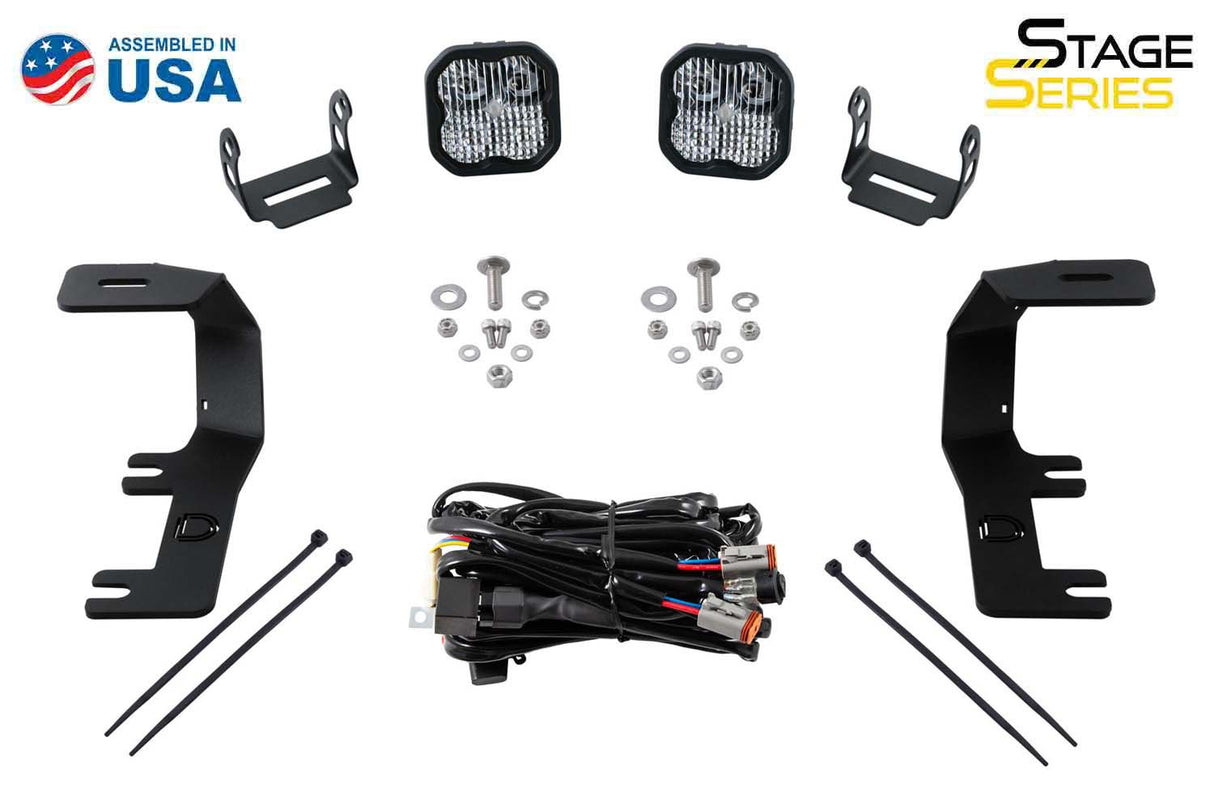

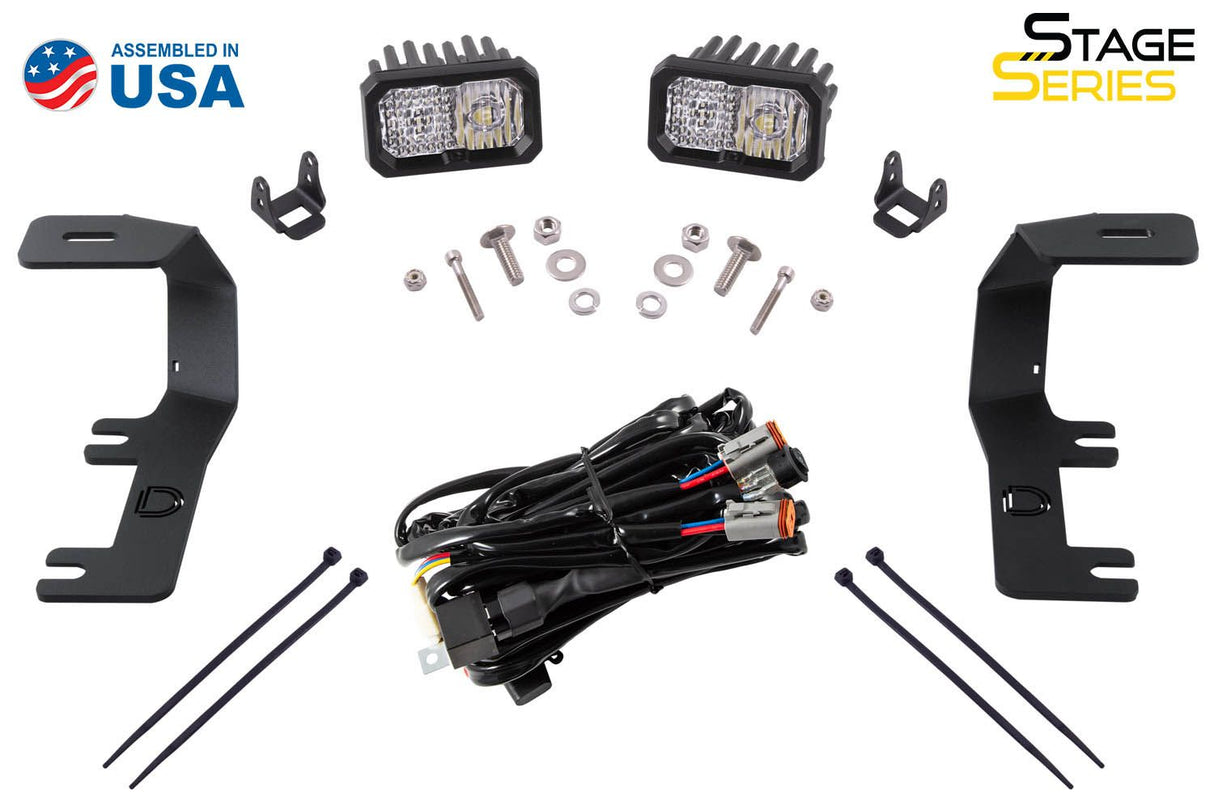

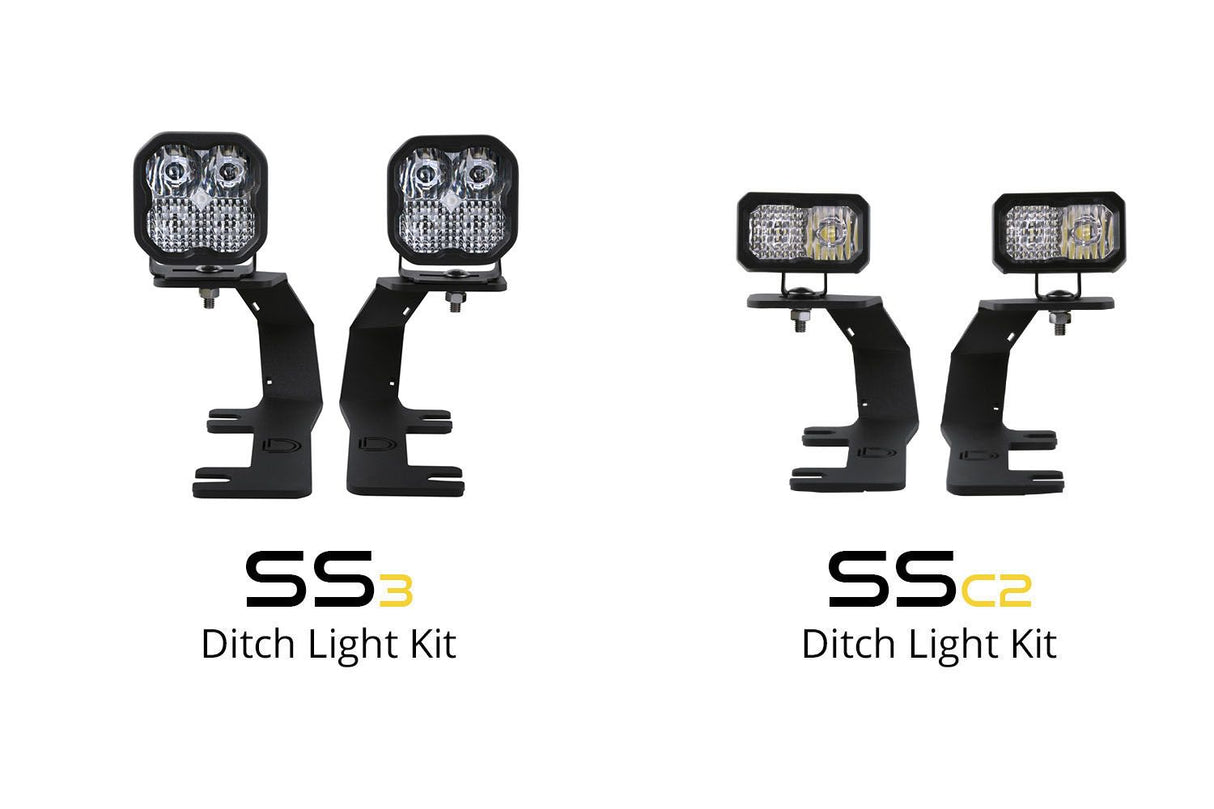

What's in the box 8 ITEMS

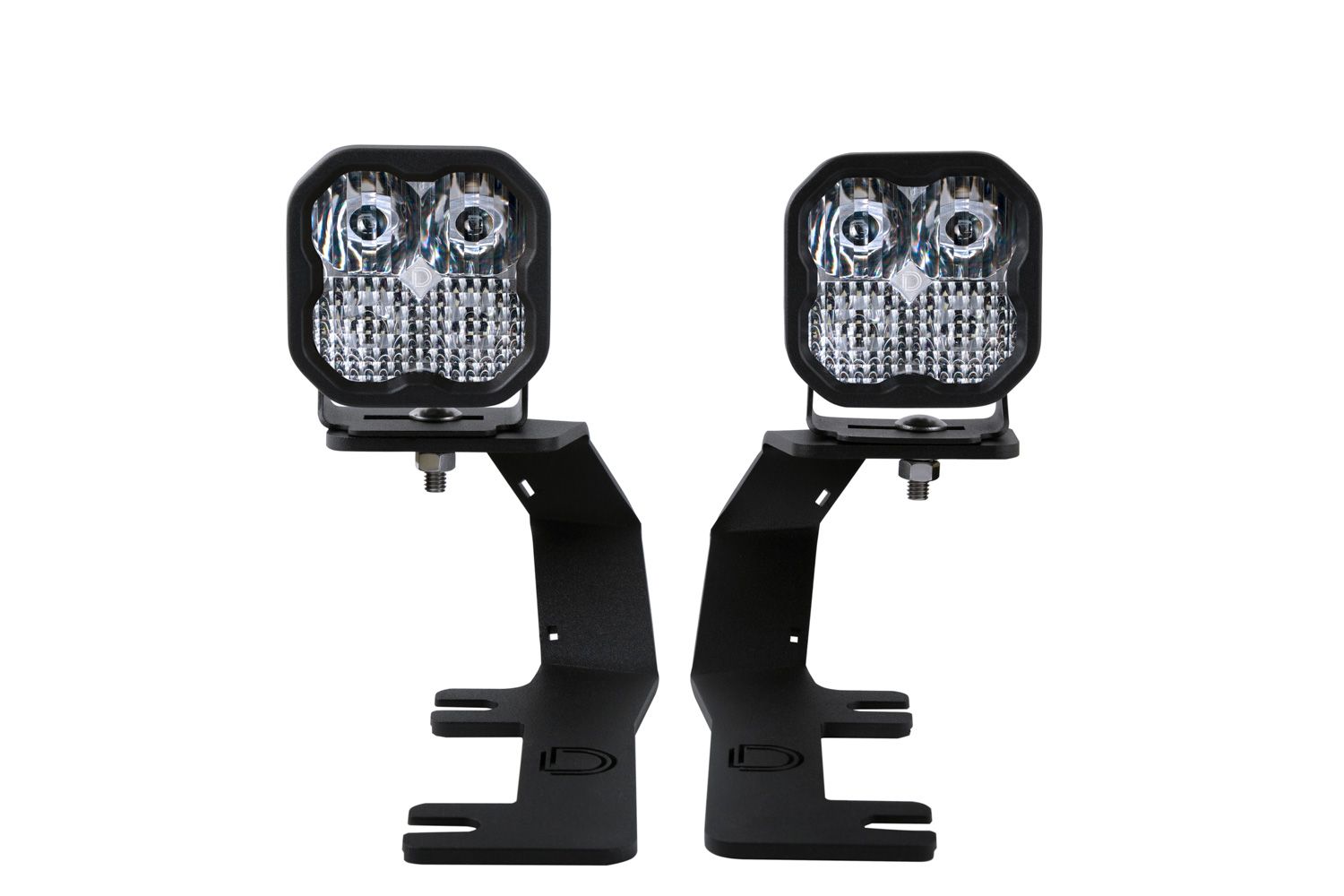

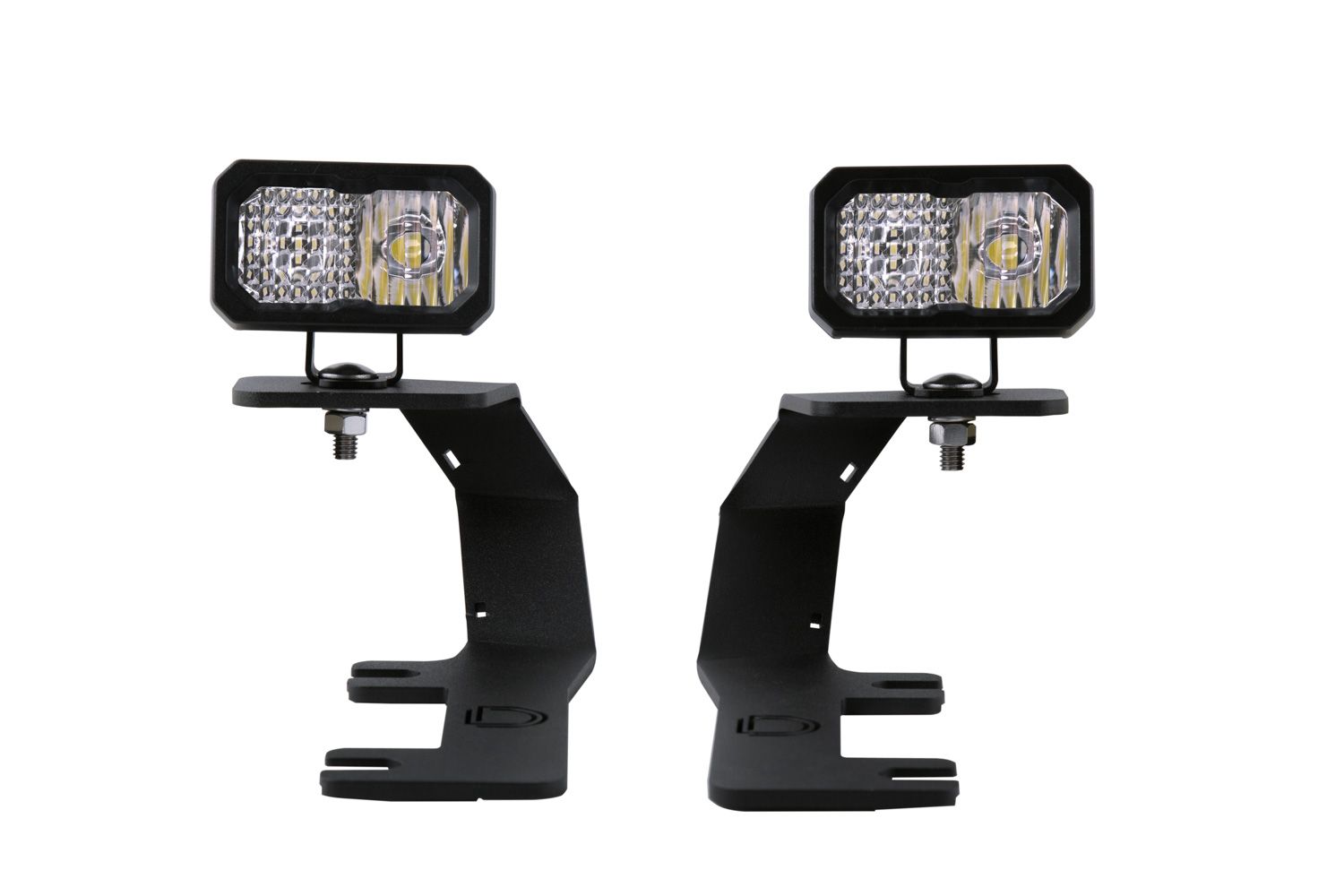

Two (2) Stage Series 2"
Standard LED Pods
Two (2) Ditch Light brackets
Two (2) Stage Series 2" Mounting brackets
One (1) Heavy-duty 4-pin
dual output wiring harness
Mounting hardware
Mounting guide
Optical
Lumens 871
Color temperature 6000K
Beam spread Combo (Driving and Flood)
Power 8W
Operating voltage 9-16V
Intensity 16 000 cd
LED emitter Osram Ostar Projection Compact, Lumileds Automotive Grade LED
Driver features Constant Current
Construction
Connector Deutsch DT Input
Cooling Passive, Pin-Fin heatsink
Polarity Polarity Specific
Base color Black
Wire quantity 2
Compliance
IP rating IP69K Waterproof High Pressure
Operating temp -40C to 85C (-40F to 185F)
Weather resistant Yes
Features & benefits
Bolt-on fitment for Chevrolet Silverado 1500.
Adds two Stage Series LED Pods above the hood using factory mounting points.
Patented TIR optics provide maximum output and reduced glare.
Thick-gauge stainless steel construction.
Low-profile design.
Made in USA with global materials.
Description

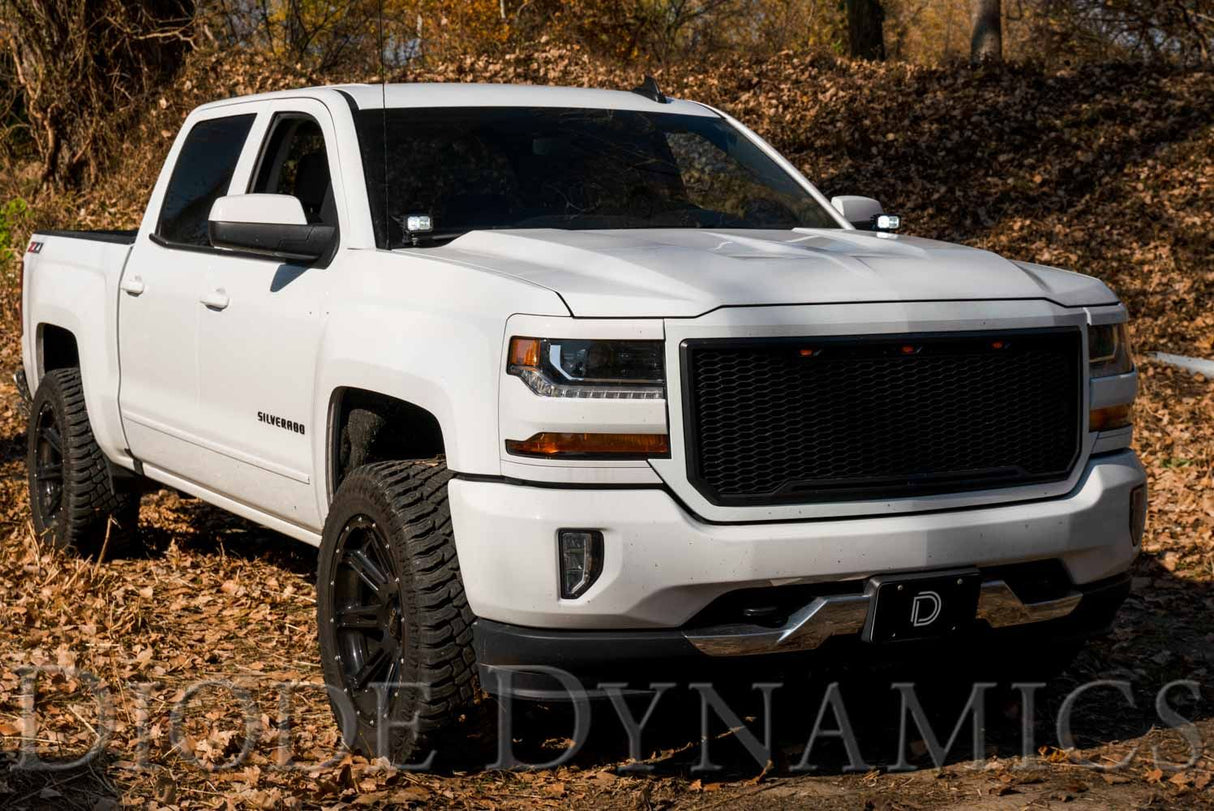

The Stage Series Backlit Ditch Light Kit for the Chevrolet Silverado 1500 mounts a pair of LED pods above the hood in the ditch light position, pushing light out to the sides of the road where your factory headlights fall short — ideal for rural driving, trail runs, or any situation where edge-of-road visibility matters.

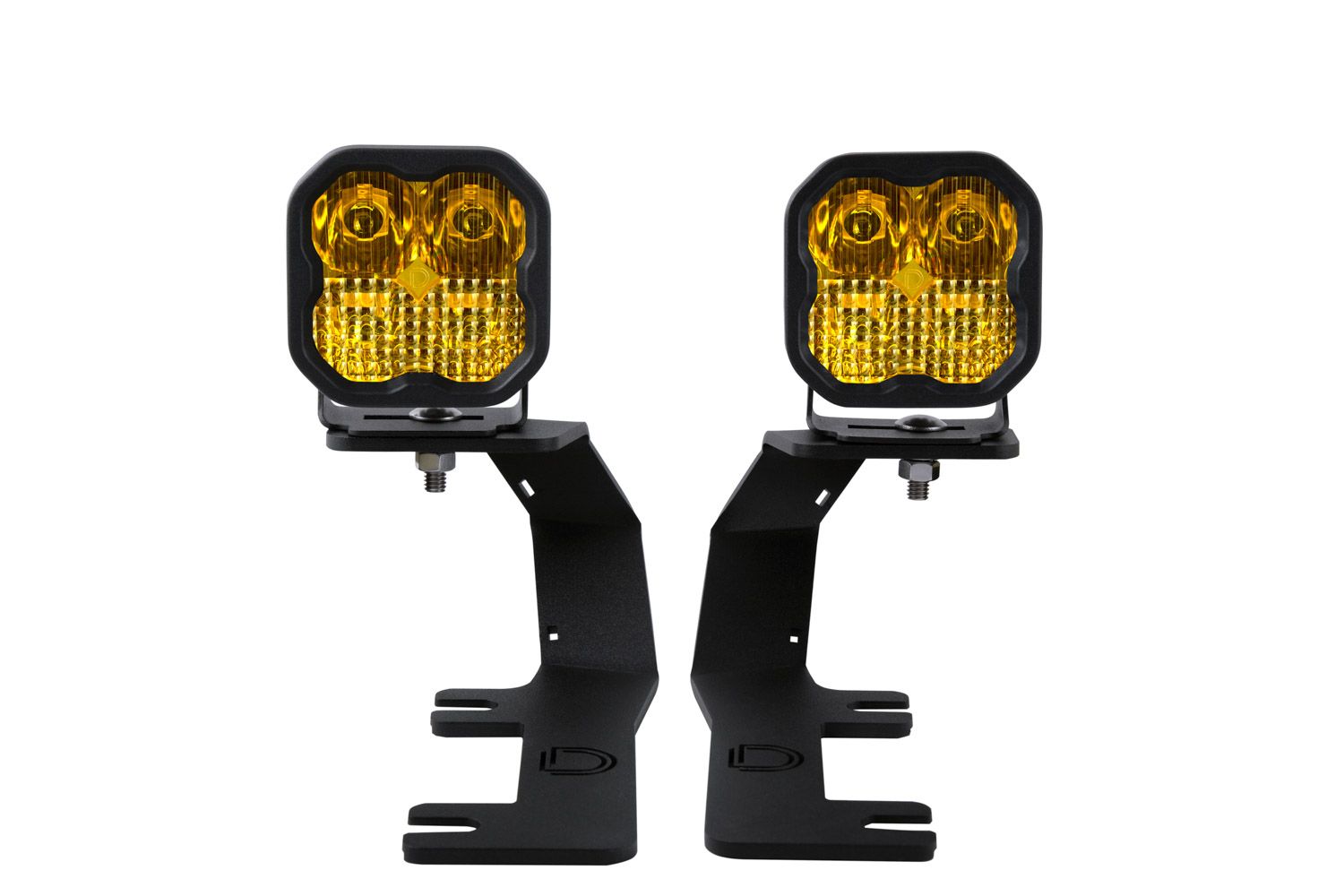

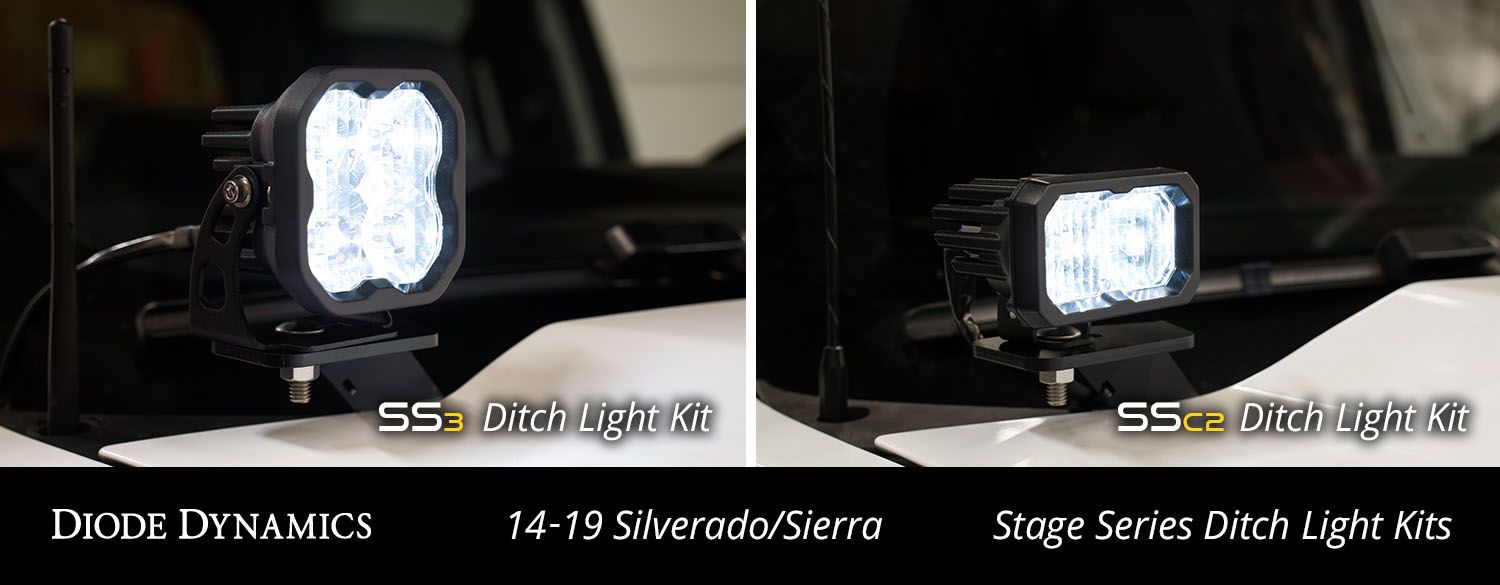

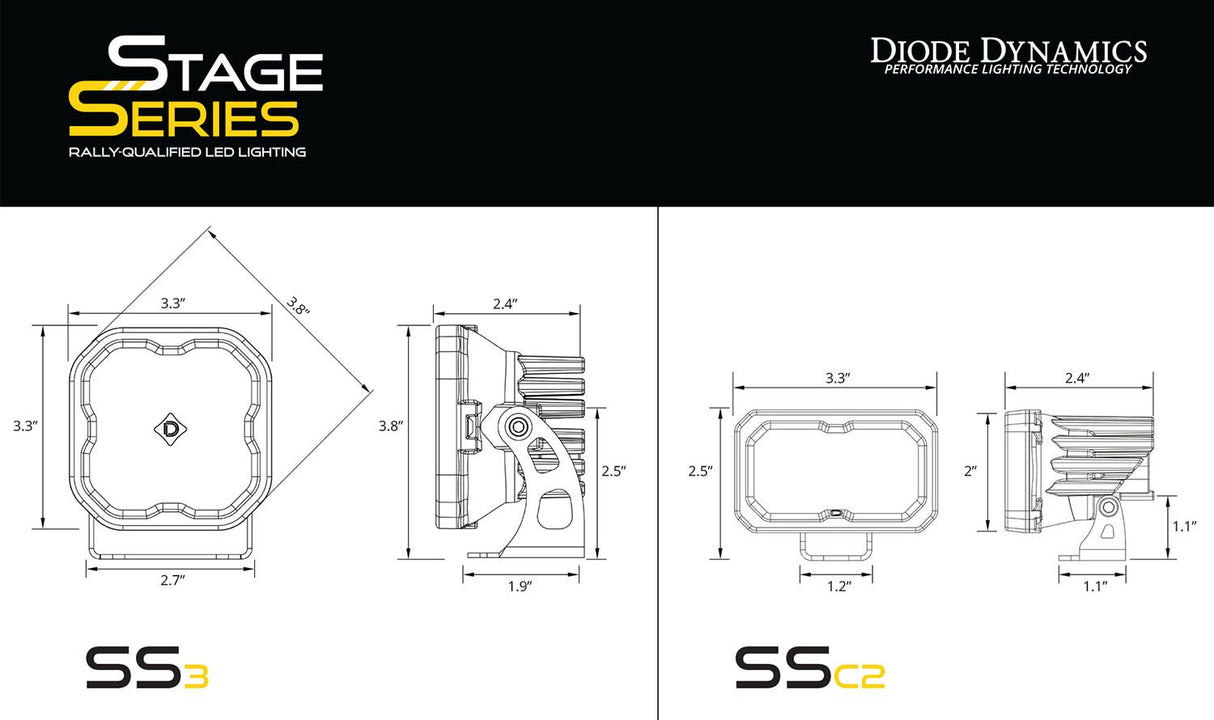

This kit is available in 2" C2 2.0 Sport or Pro and 3" Sport or Pro output levels, so you can match the brightness to your needs and budget. Beam pattern options span Driving, White Combo, and Yellow Combo, letting you dial in forward reach, wide coverage, or all-weather fog-cutting performance depending on how and where you drive your Silverado.

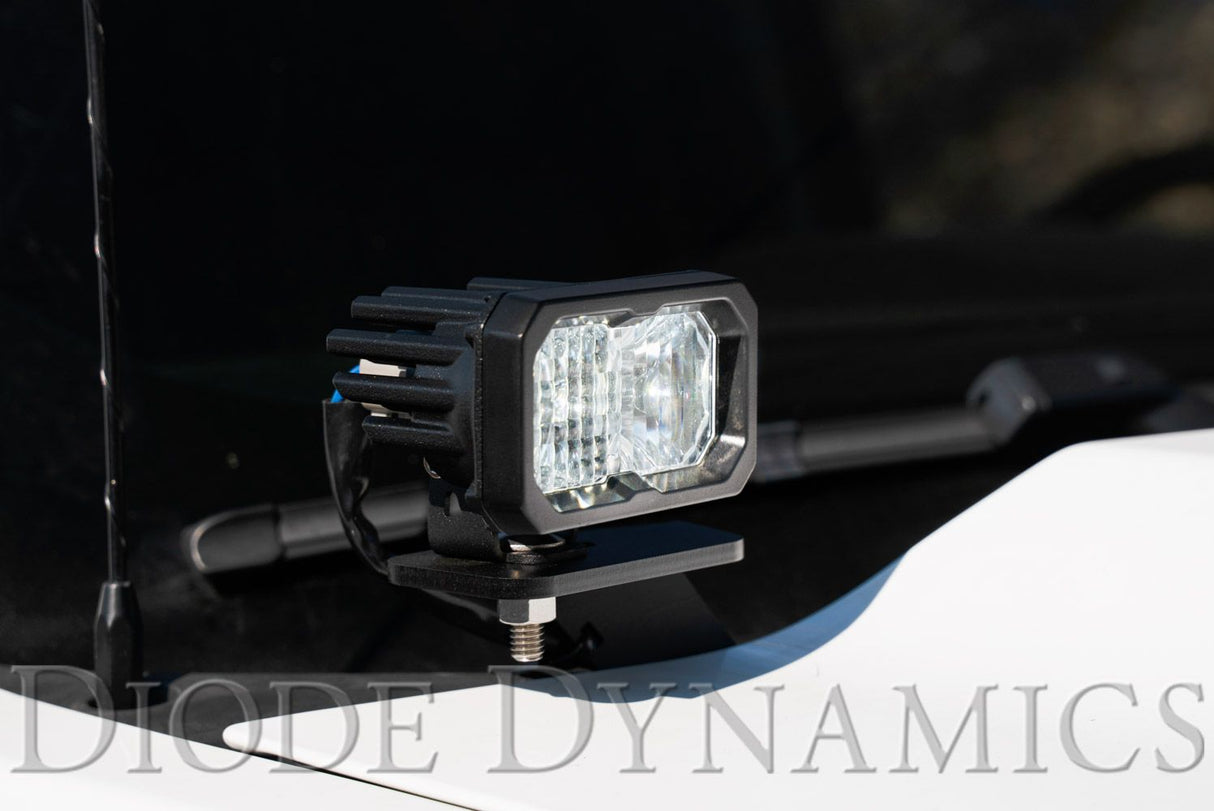

Installation uses a vehicle-specific bracket that bolts to existing mounting points on the Silverado, keeping the fitment clean and low-profile without drilling. The backlit ring around each pod adds a finished, intentional look that stands out day or night.

Documentation
