Elite Series Type CGX Fog Lamps (pair)

Diode Dynamics  |  SKU: DD5140P  |  Barcode: 00195995127150
Regular price $265.00 USD
Choose Your Color
Fitment & Install Notes
Fits
Fits: 2010-2013 Lexus GX460, 2011-2013 Lexus CT200h, 2011-2013 Lexus IS250, 2011-2013 Lexus IS350, 2010-2013 Toyota 4Runner, 2013-2015 Toyota Avalon, 2012-2014 Toyota Prius, 2010-2016 Toyota Sienna, 2018-2020 Toyota Sienna
Free shipping Orders $500+
Canadian orders No duties / brokerage
Authorized Diode Dynamics Dealer
Returns 30-day easy

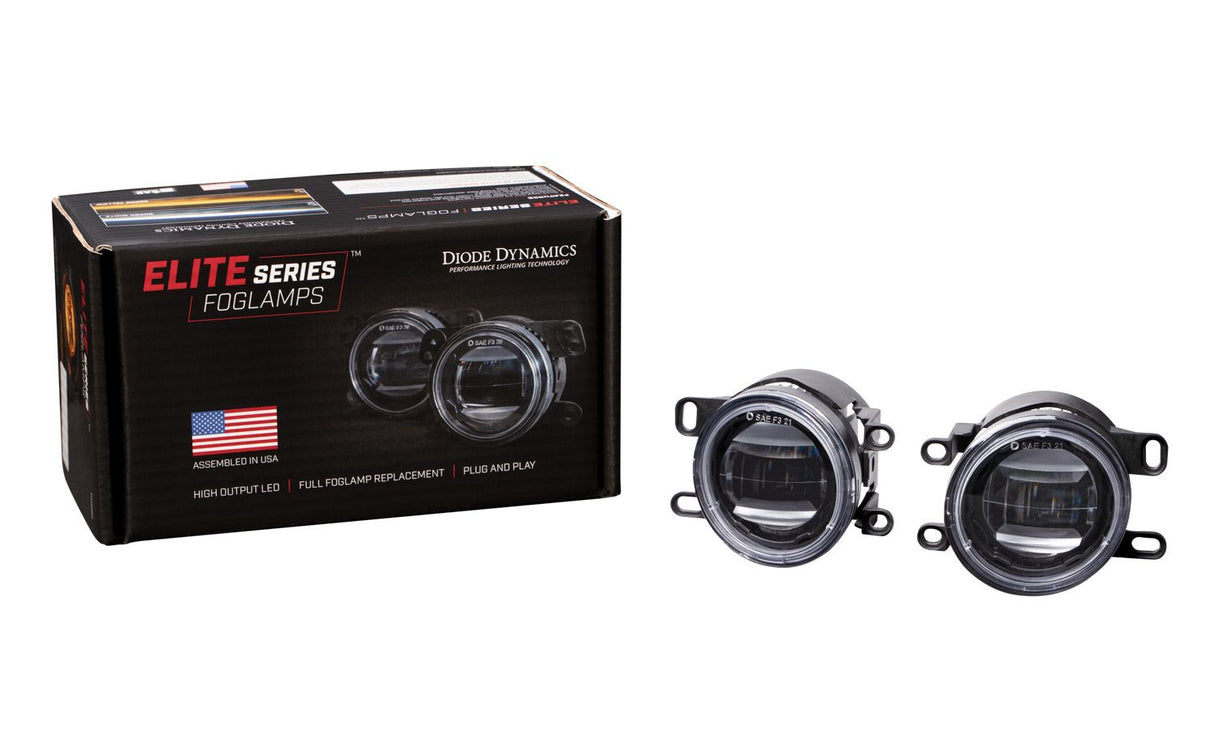

What's in the box 4 ITEMS
Two (2) Elite Series Type CGX fog lamps
Two (2) H11 4-pin DT backlight tap wires
Two (2) T-taps
Mounting guide
Optical
Lumens 1850
Color temperature 6000K
Beam spread Fog 80°x6°
Power 17W
Operating voltage 9-16V
Intensity 10 200 cd
LED emitter Multi-Die Automotive Emitters
Driver features Constant Current
Construction
Connector Deutsch DT Input

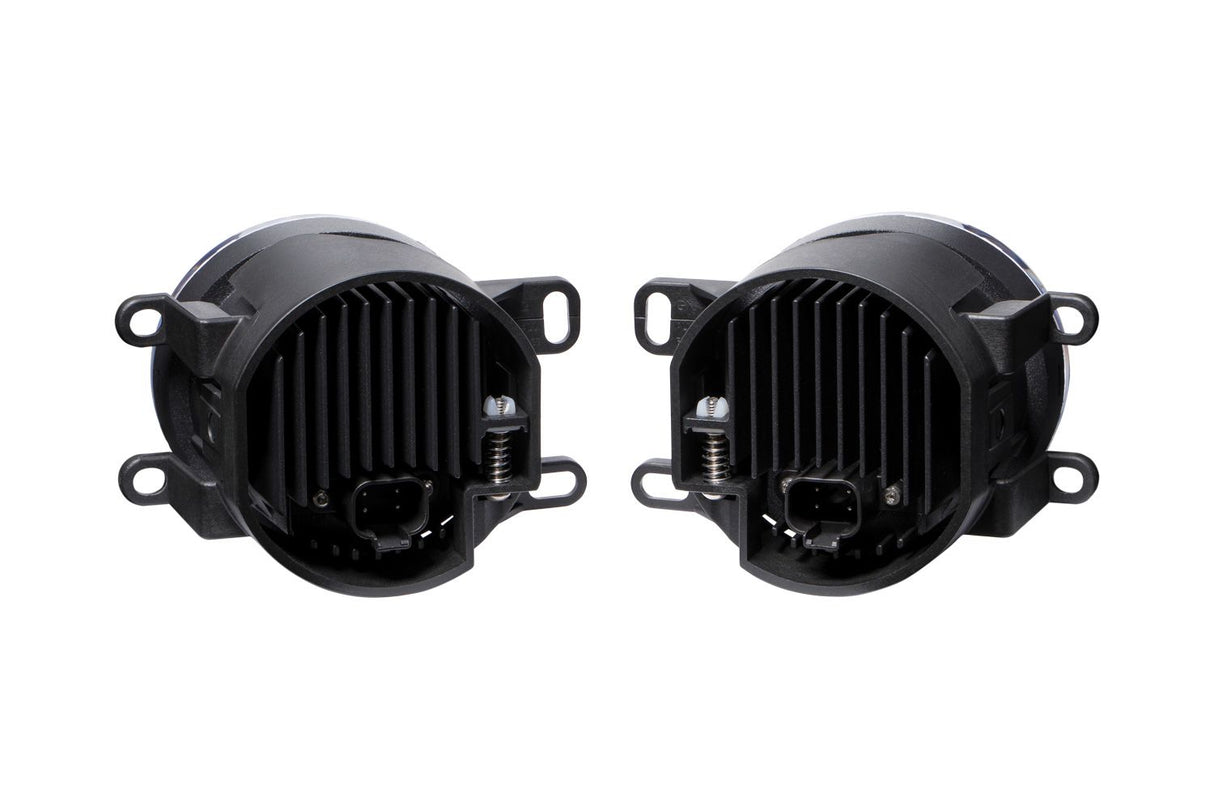

Cooling Passive, Pin-Fin heatsink
Polarity Polarity Specific
Terminal type Pin
Housing shape Angled
Base color Black
Install
Harness included Yes
Mounting hardware Included
Compliance
IP rating IP68 Waterproof
Operating temp -40C to 85C (-40F to 185F)
SAE/DOT SAE J583 Foglamp Beam Pattern
Country of origin USA
Street legal Yes
SAE/DOT Compliant pattern available
Features & benefits
High-performance OEM-grade replacement
Custom-engineered optic provides extremely wide, intense light output

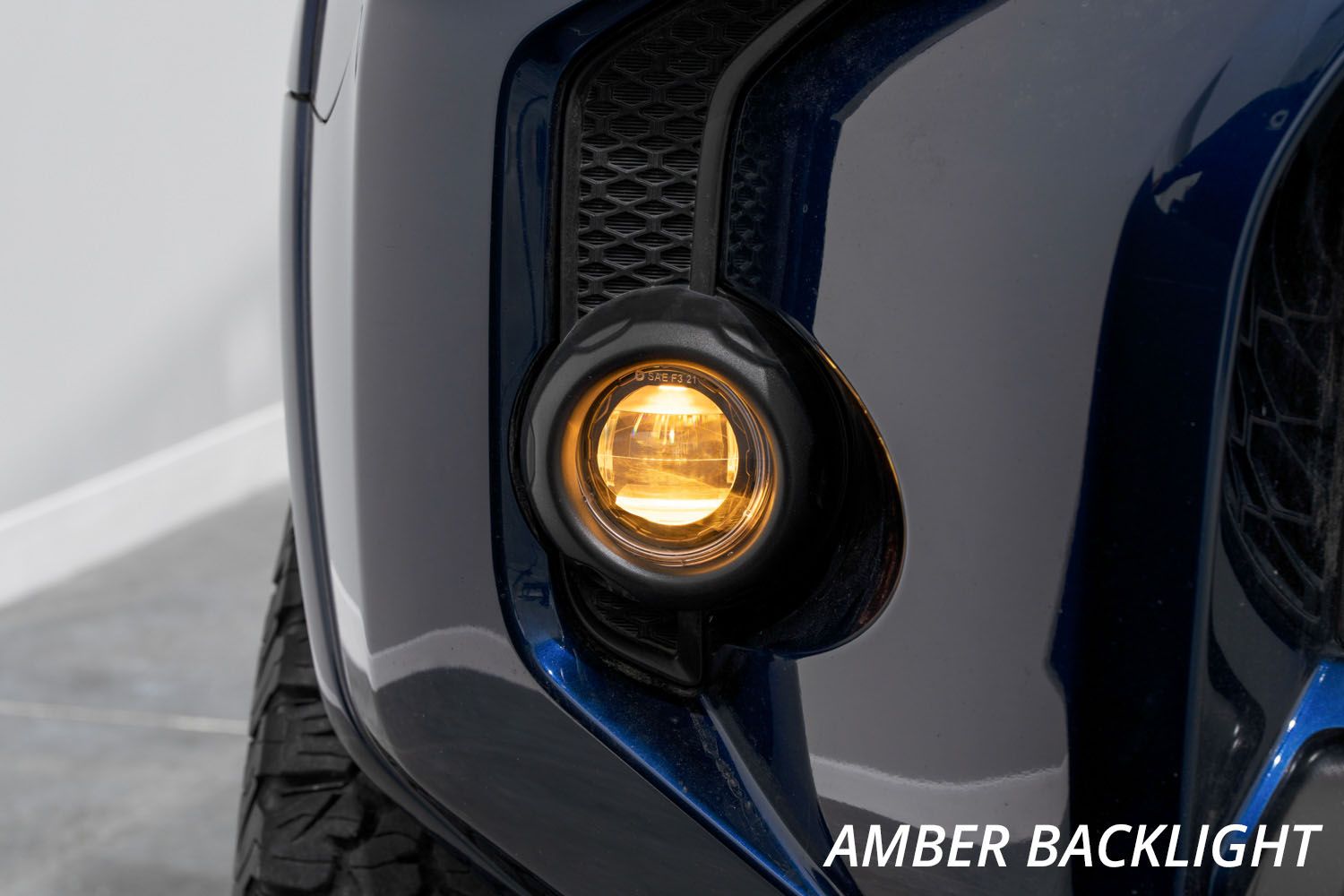

Distinctive integrated amber backlight
Road-legal fog light (SAE F3 compliant)
Plug and play main beam, no modification needed
Engineered and assembled in USA
Description

The Diode Dynamics Elite Series Type CGX Fog Lamps are a direct-fit LED fog light upgrade designed to deliver genuinely improved forward visibility in low-visibility conditions — without cutting corners on fit or finish. Built to OEM-style dimensions and featuring a patent-pending custom optic, these lamps produce an exceptionally wide, intense beam pattern purpose-built for fog, rain, and poor-weather driving where a broad spread of light close to the road surface matters most.

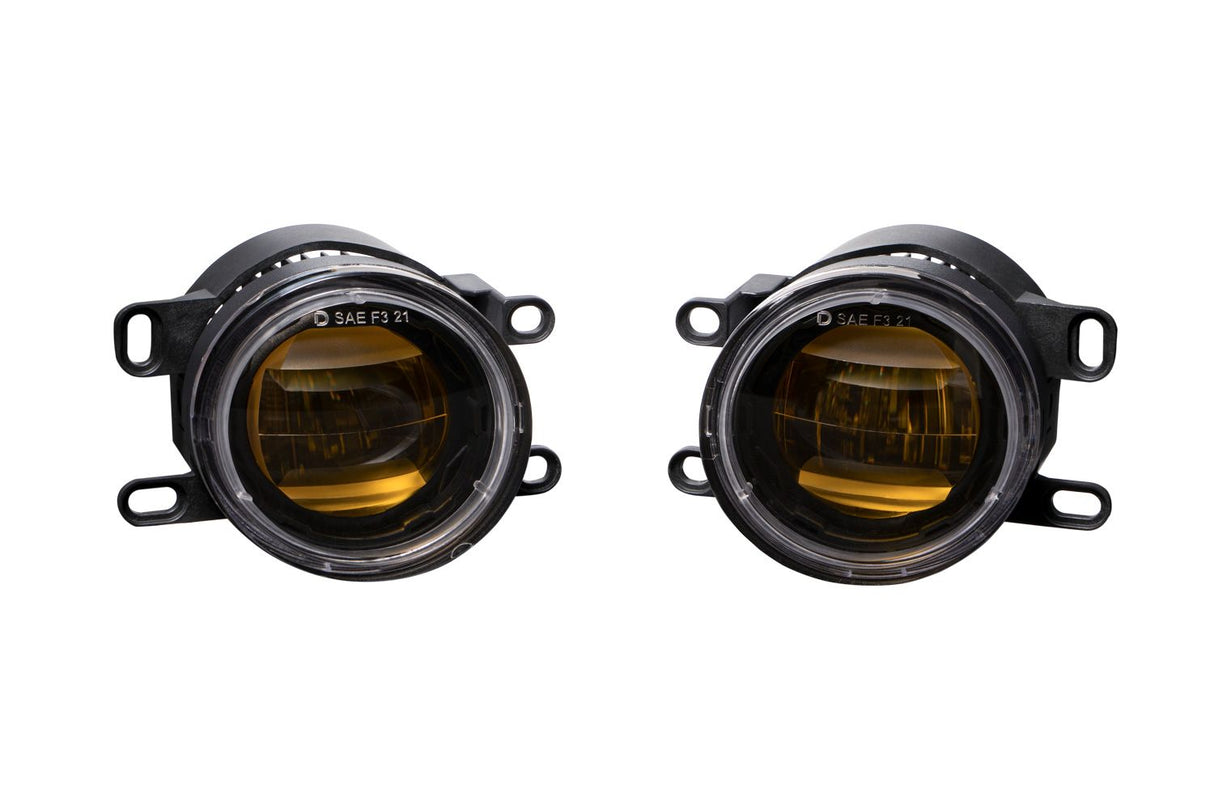

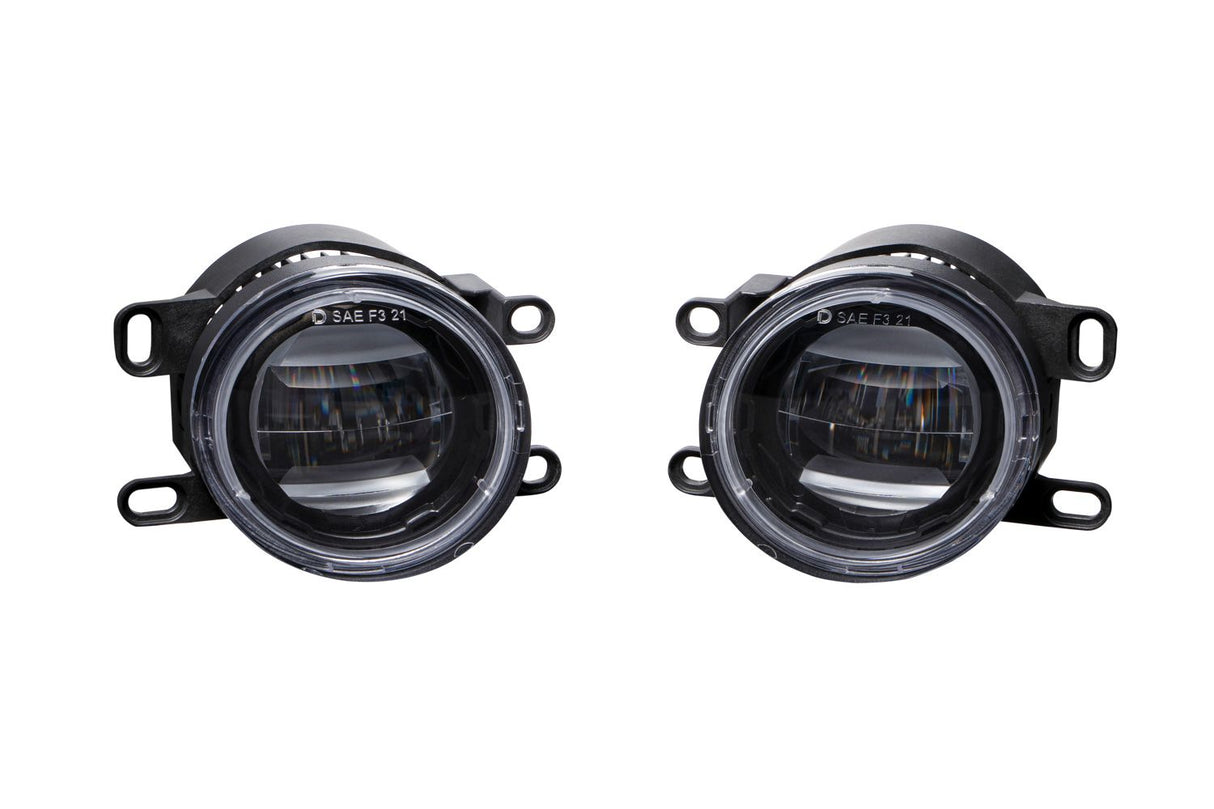

Available in Cool White or Yellow, you can match your preference or your conditions — Cool White integrates cleanly with a modern lighting setup, while Yellow cuts through fog, rain, and dust with reduced glare and fatigue. Both options are SAE F3 road-legal, so you're covered for on-highway use as well as trail and backroad driving.

Installation is plug-and-play on compatible Toyota and Lexus platforms, using the factory wiring harness with no modification required. A distinctive amber backlight adds a premium detail that sets these apart from a standard OEM replacement.

Documentation
