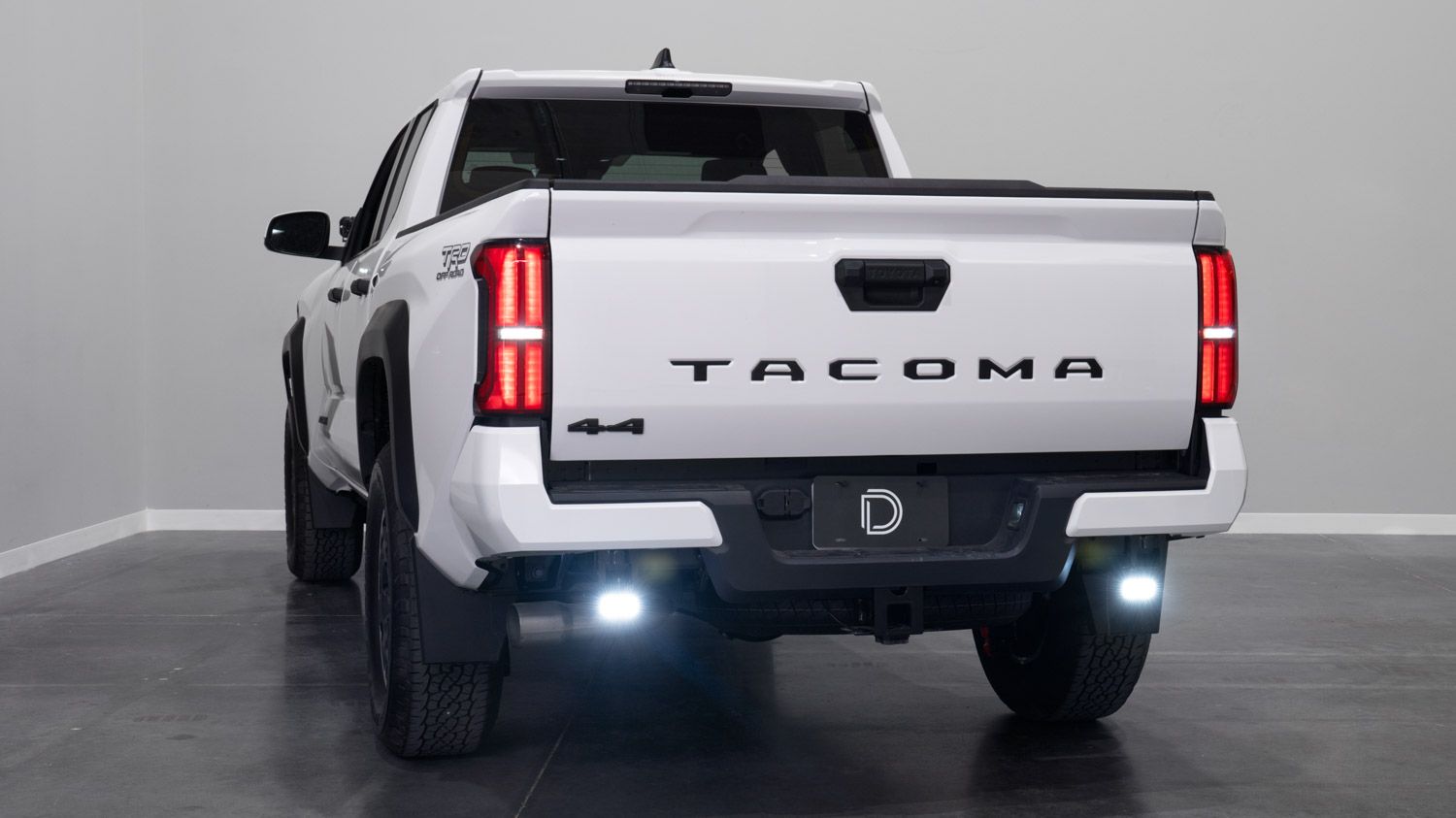

The Stage Series Reverse Light Kit for the 2024+ Toyota Tacoma adds LED pods as high-power reverse lights with eye-catching red accent lights. This bolt-on kit connects through your existing trailer harness for a clean, plug-and-play installation. Here's the full walkthrough.
Table of Contents
- Installation Video
- Tools Required
- Installation Instructions
- Questions About the Install?
- Shop Tacoma Lighting at Ess K Customs
Installation Video
Tools Required
- Ratchet
- 3/8" wrench
- 5/32" Allen wrench
- 5/16" wrench
Installation Instructions
Step 1 — Assemble the Reverse Light Brackets
Align the included spacers with the universal bracket to sit flush. Drop in the carriage bolt and washer from the top of the bracket. Repeat for both brackets.
Step 2 — Mount the Pods
Starting on the driver's side, locate two holes underneath the frame rail just under the rear bumper. Feed the carriage bolt up through the inboard hole and secure with the supplied locknut and a 5/16" wrench. Line up the pod with the bracket and secure with a 5/32" Allen and 3/8" wrench. Leave the bolts loose enough for aiming adjustments. Repeat on the passenger side.
Step 3 — Install the Harness
Locate the seven-pin trailer harness underneath the vehicle on the backside of the rear bumper and disconnect it. Install the included seven-pin harness in-line. Route the other ends of the harness to the back of each pod and connect the DT connectors. Secure any loose wire away from hot or moving parts. Test your pods for functionality.
Step 4 — Final Adjustments
Rotate the pod left to right as desired and secure with a 5/16" wrench. Tilt the pod up and down to your preferred angle and tighten with a 5/32" Allen and 3/8" wrench. The install is complete.
Questions About the Install?
If you run into any issues during the installation, contact Ess K Customs — as an authorized Diode Dynamics dealer, we're here to help.
Shop Tacoma Lighting at Ess K Customs
Looking for lighting upgrades for your 2024+ Toyota Tacoma? As an authorized Diode Dynamics dealer, Ess K Customs carries genuine products with full manufacturer warranty.
Browse 2024+ Tacoma Lighting at Ess K Customs →
This install guide applies to Diode Dynamics SKUs: DD7942P, DD7943, DD7944, DD7945, DD7946, DD7947
