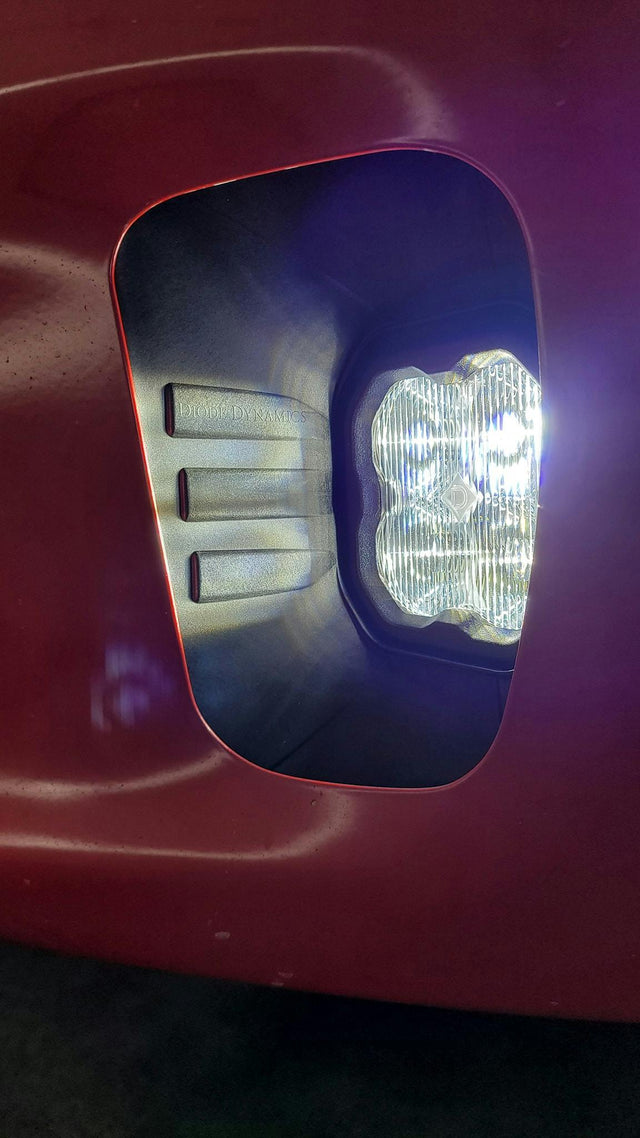

SS3 SAE/DOT Ram Vertical Fog Light Kit

Diode Dynamics  |  SKU: DD7084  |  Barcode: 00691025934335
Regular price $ 556.00 CAD
Choose Your Power Level
Choose Your Optic and Color
Fitment & Install Notes
Fits
Fits: 2013-2018 Ram 1500, 2019-2024 Ram 1500 Classic
Free shipping Orders $500+
Canadian orders No duties / brokerage
Authorized Diode Dynamics Dealer
Returns 30-day easy
What's in the box 5 ITEMS

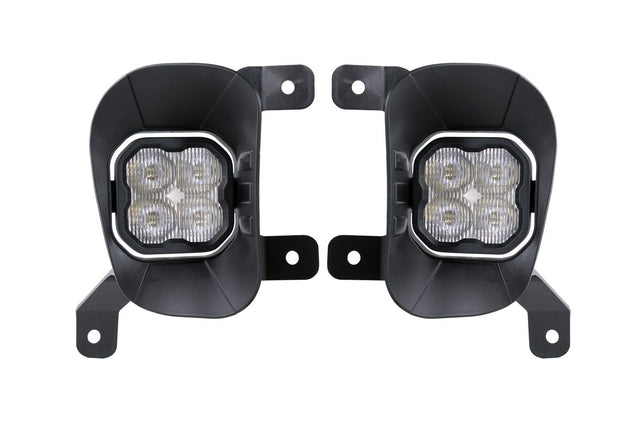

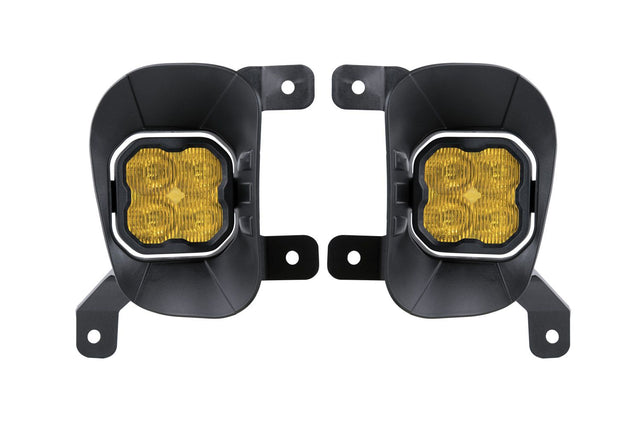

Two (2) SS3 3” Standard LED Pods
Two (2) Ram Vertical brackets

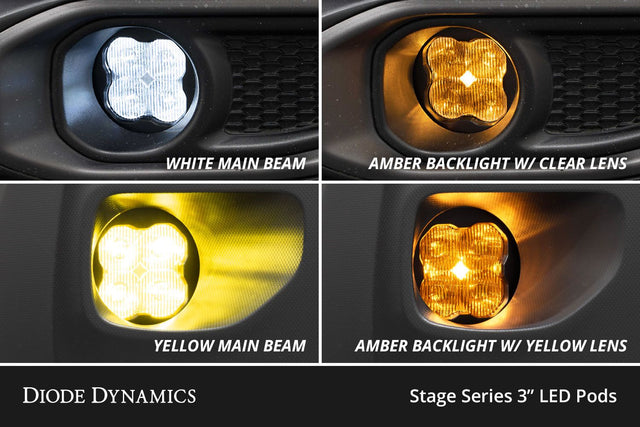

Two (2) 9006 DT 4-Pin backlight tap wires
Mounting hardware
Mounting guide
Optical
Lumens 1520
Color temperature 6000K
Beam spread Fog 80°x8°
Power 14W
Operating voltage 9-30V
Grade Performance
Intensity 10 600 cd
LED emitter Luxeon Z ES
Driver features Constant Current
Construction
Housing material Aluminum
Lens material Polycarbonate
Connector Deutsch DT Input
Cooling Passive, Pin-Fin heatsink
Polarity Polarity Specific
Terminal type Pin
Base color Black
Bracket color Black
Install
Mounting hardware Included
Compliance
IP rating IP69K Waterproof High Pressure
Operating temp -40C to 85C (-40F to 185F)
SAE/DOT SAE J583 Foglamp Beam Pattern
Country of origin USA
Street legal Yes
SAE/DOT Compliant pattern available
Features & benefits
Advanced TIR optics provide high efficiency and focus
SAE-compliant road-legal output

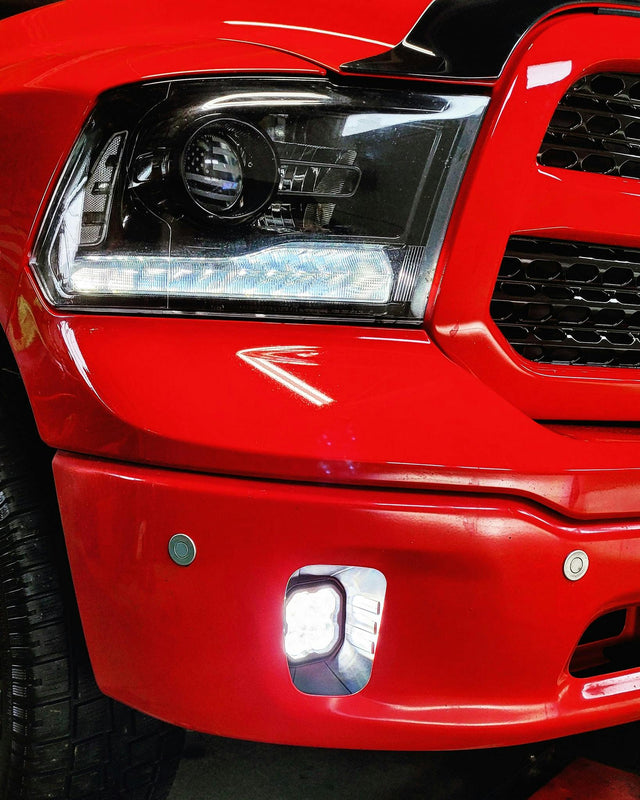

Includes custom bracket, for factory-style appearance
Plug and play, no modification needed
Durable powdercoated aluminum housing
Engineered and Assembled in USA
Description

The Diode Dynamics SS3 SAE/DOT Ram Vertical Fog Light Kit replaces your Ram 1500's factory fog lights with purpose-built LED assemblies designed for genuine road use and low-visibility driving conditions. These SS3 pods use advanced TIR optics to deliver a focused, controlled beam pattern that cuts through rain, snow, and dust without blinding oncoming traffic — exactly what a proper fog light should do.

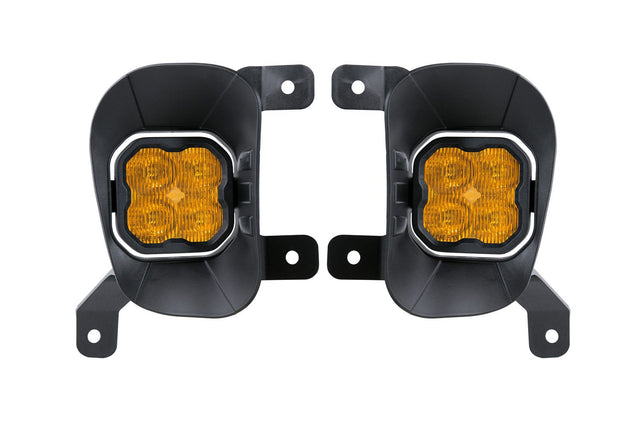

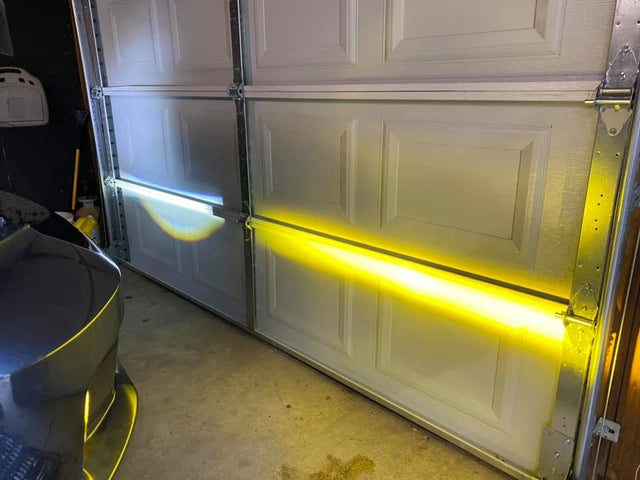

The kit is available in Sport, Pro, or Max output levels to match your brightness needs, and you can choose between White SAE Fog and Yellow SAE Fog beam patterns — yellow being a popular choice for harsh weather where reduced glare matters most. Each output tier steps up intensity while maintaining full SAE/DOT compliance, so you stay street-legal regardless of which you choose.

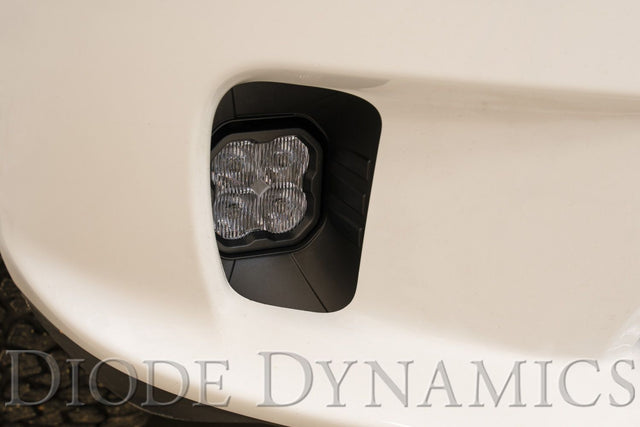

A vehicle-specific mounting bracket ensures a clean, factory-style fit without cutting or fabricating. The pin-fin heatsink design manages heat effectively for consistent long-term output, and the powdercoated aluminum construction holds up to the conditions your truck sees every day.

Documentation
