2015-2017 Subaru WRX/STi SAE/DOT LED Lightbar Kit

Diode Dynamics  |  SKU: DD8849  |  Barcode: 00195995147165
Regular price $ 486.00 CAD
Choose Your Optic and Color
Choose Your Power Level
Fitment & Install Notes
Fits
Fits: 2015-2017 Subaru WRX
Free shipping Orders $500+
Canadian orders No duties / brokerage
Authorized Diode Dynamics Dealer
Returns 30-day easy
Optional add-ons 1 AVAILABLE

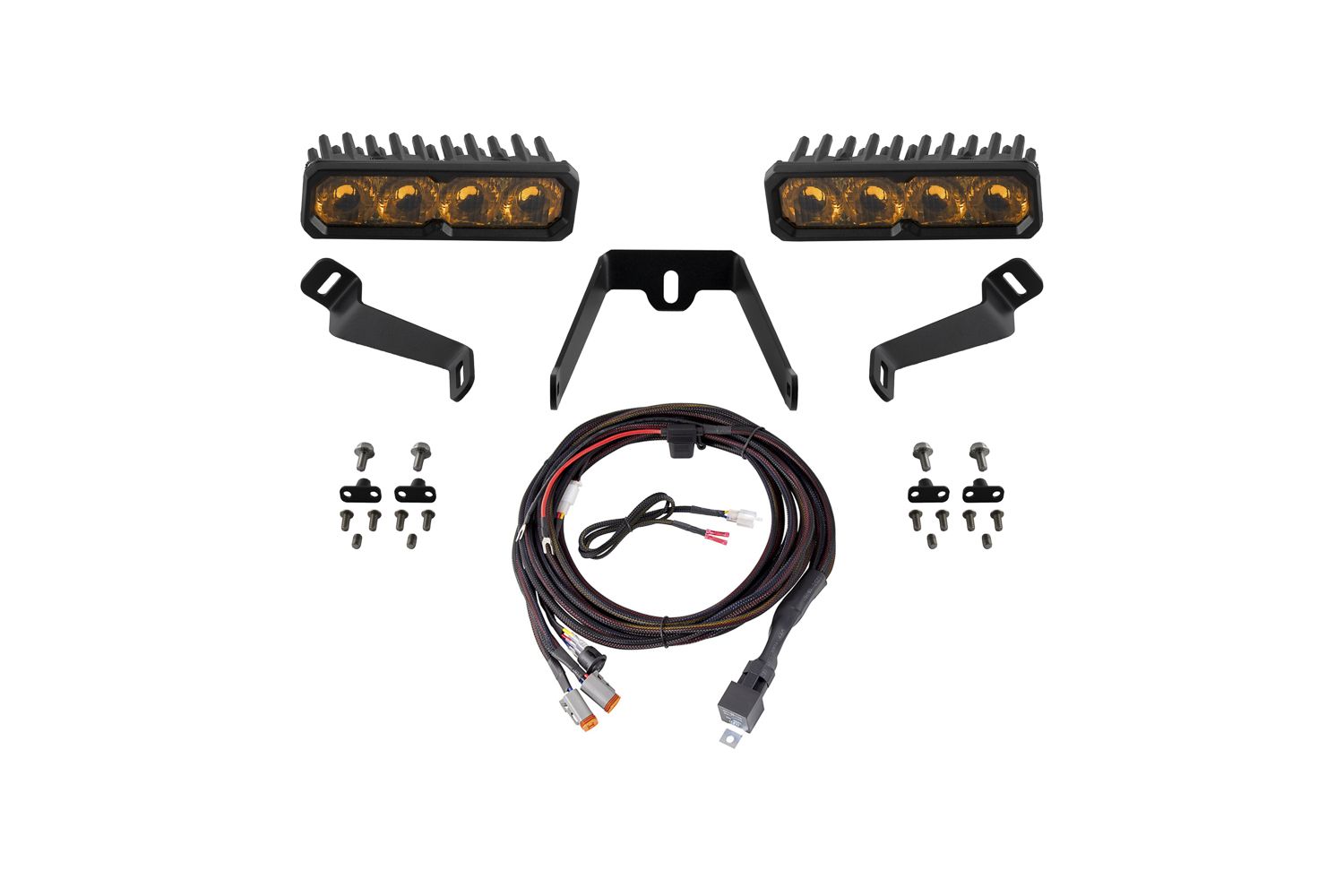

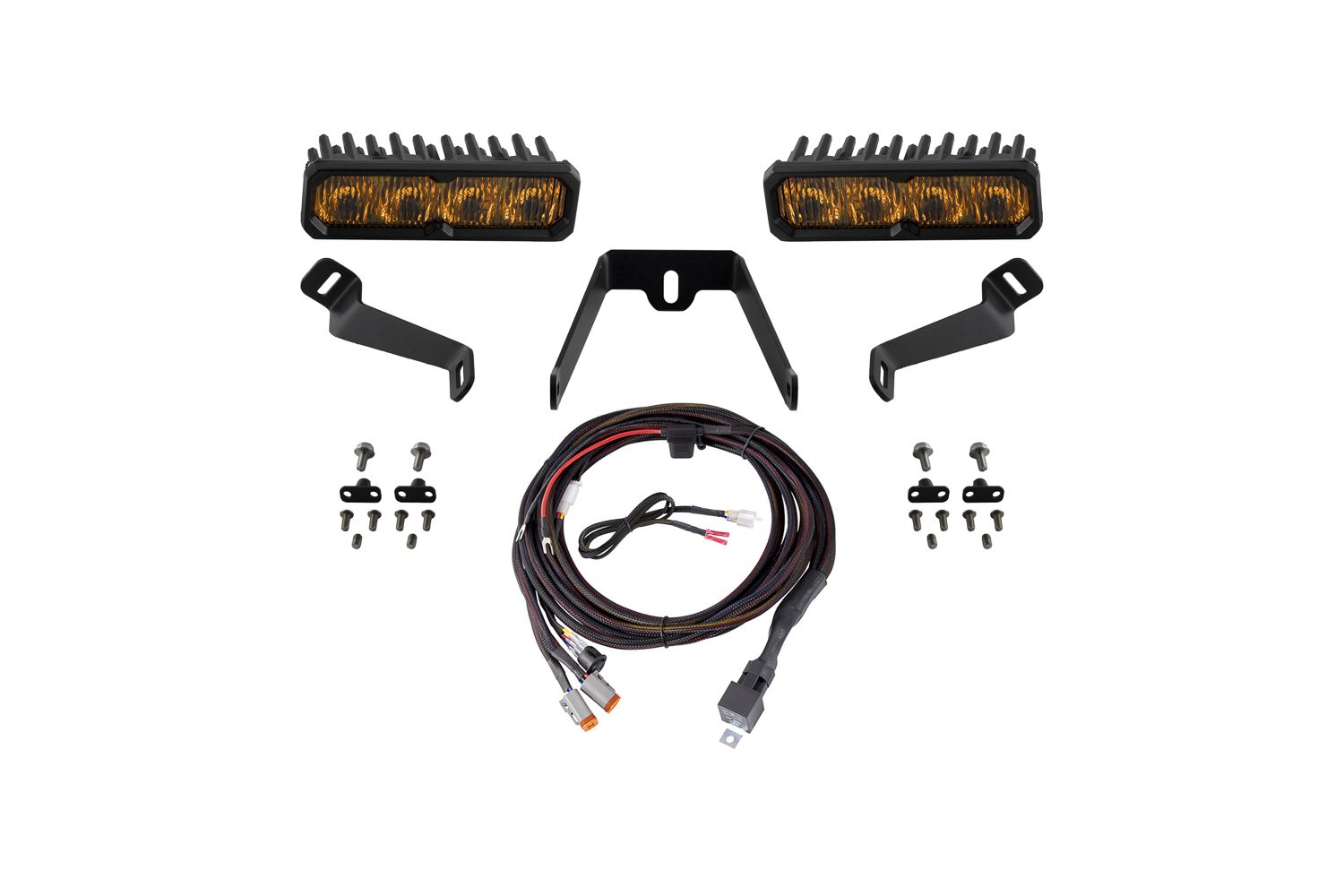

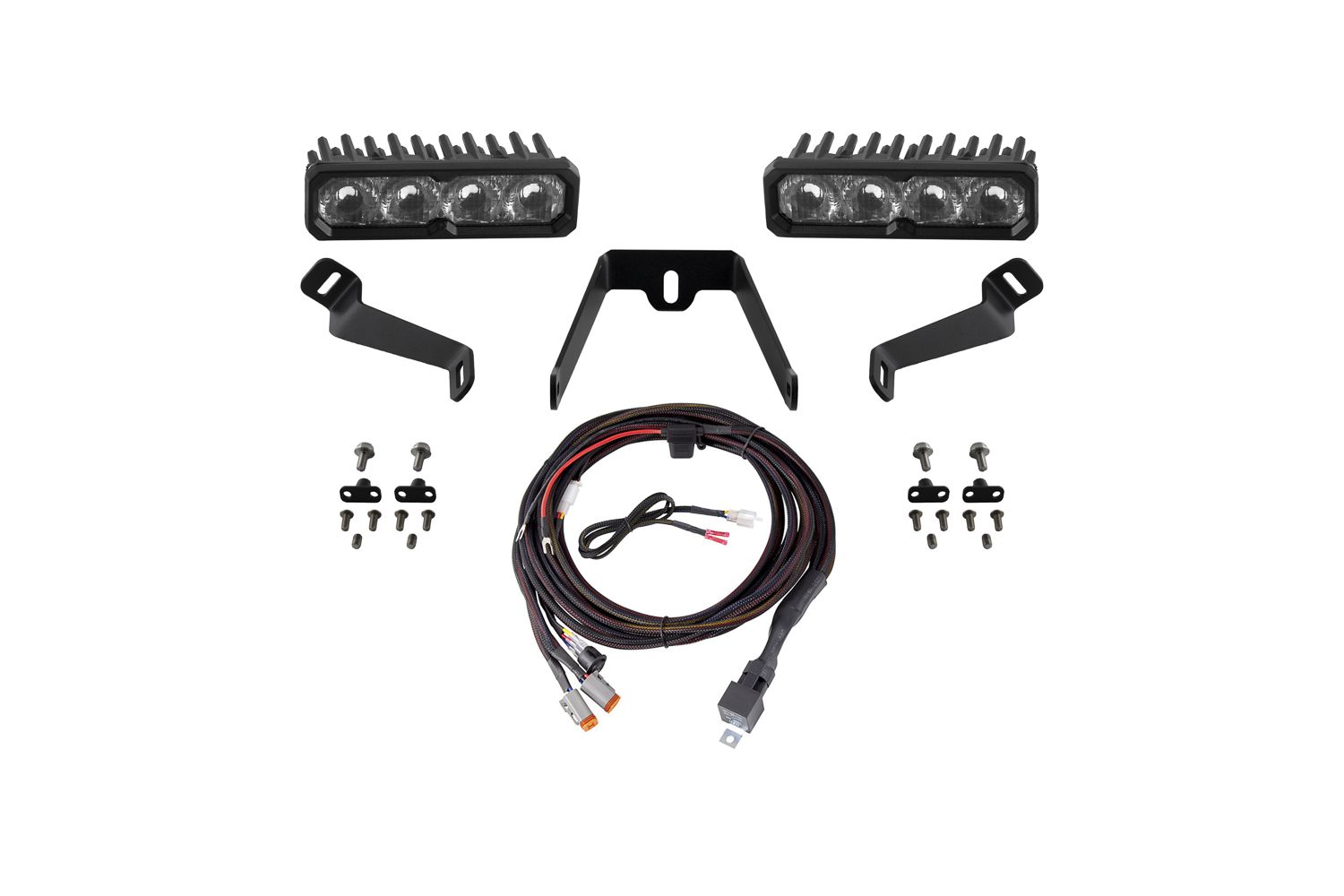

What's in the box 5 ITEMS
Three (3) Application-specific heavy-duty steel brackets for installation on 2015-2017 Subaru WRX/STi
Two (2)  6" Classic or SS6 LED light bars
One (1) Wiring Harness to connect to toggle switch
All Necessary Hardware
Installation Guide
Optical
Color temperature 6000K
Beam spread SAE Driving 20°x12°
Power 32W
Operating voltage 9-30V
Intensity 60 400 cd
LED emitter Luxeon Z ES
Construction
Connector Deutsch DT Input
Cooling Passive, heatsink
Compliance
IP rating IP69K Waterproof High Pressure
Operating temp -40C to 85C (-40F to 185F)
Country of origin USA
Features & benefits
Direct fitment on 2015-2017 Subaru WRX/STi.
Patented TIR Optics for maximum efficiency and output.

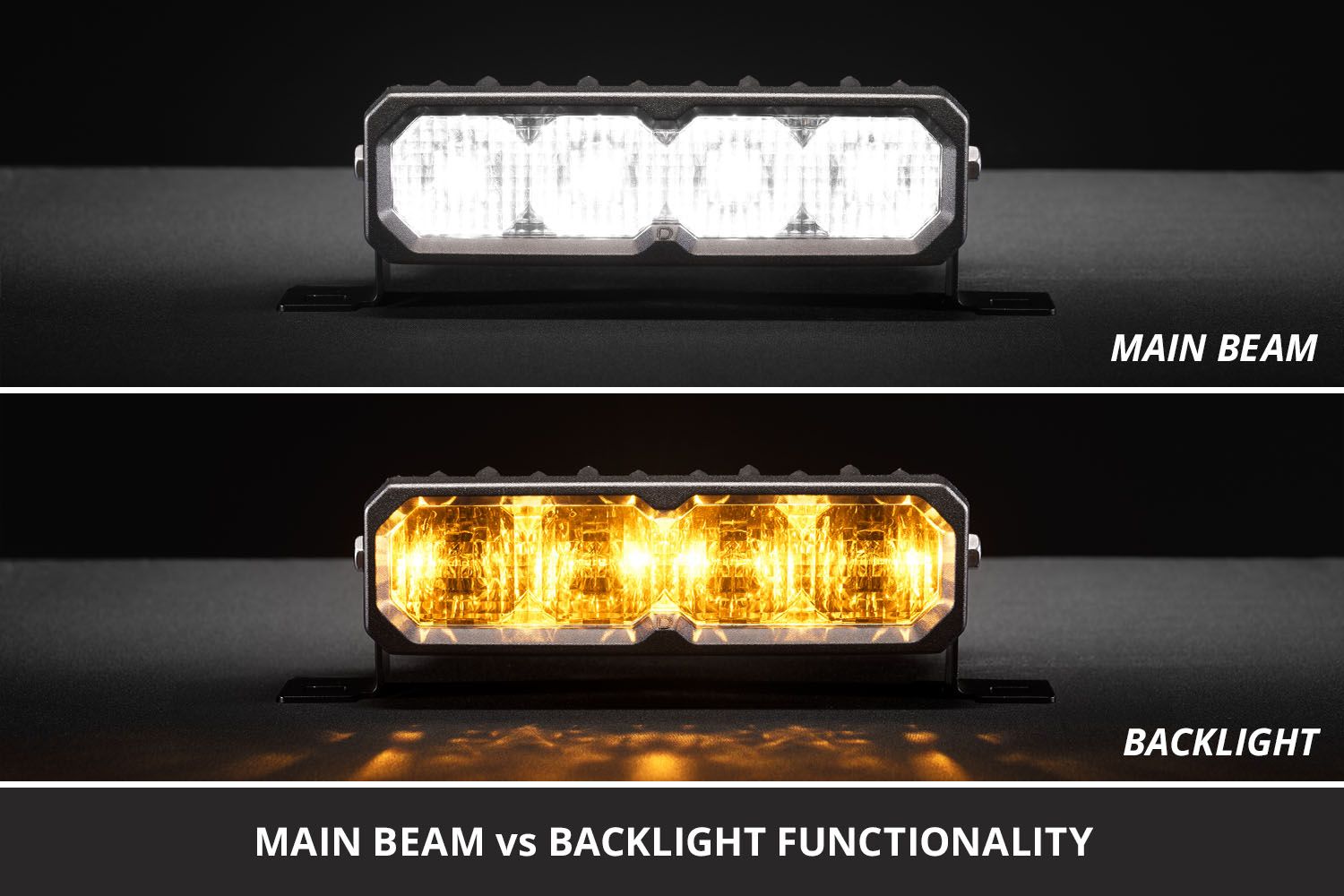

True amber backlight provides unique accent lighting.

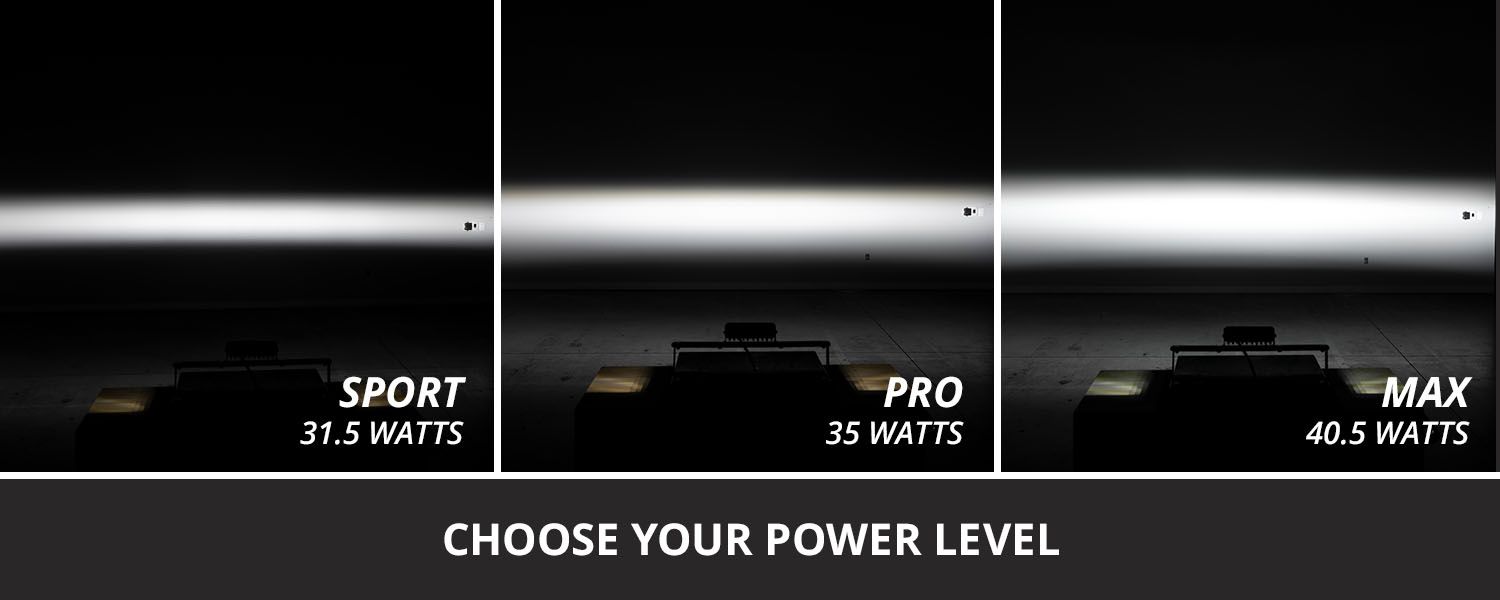

Available in Sport, Pro, and Max power levels.
Utilizes existing mounting points for simple installation.
Limited Lifetime Warranty.
Made in USA with Global Materials.
Description

The Diode Dynamics Stage Series SAE/DOT LED Lightbar Kit for the Subaru WRX and STi is a vehicle-specific lighting upgrade that mounts a pair of light bars directly behind the factory grille using custom-designed brackets — no cutting or drilling required. Whether you need sharper long-range visibility on dark highways or better spread across wet, foggy roads, this kit is built to deliver real-world performance in everyday and spirited driving conditions.

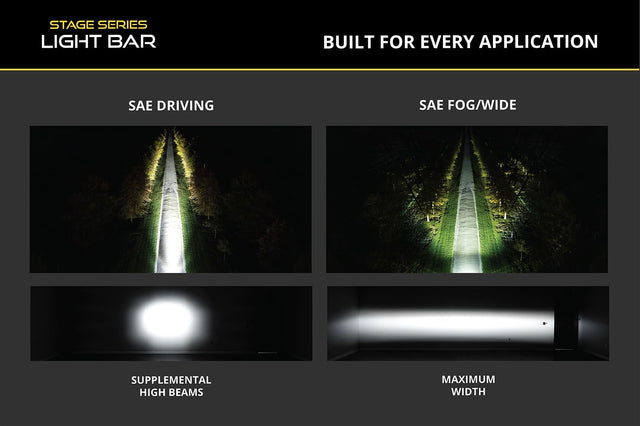

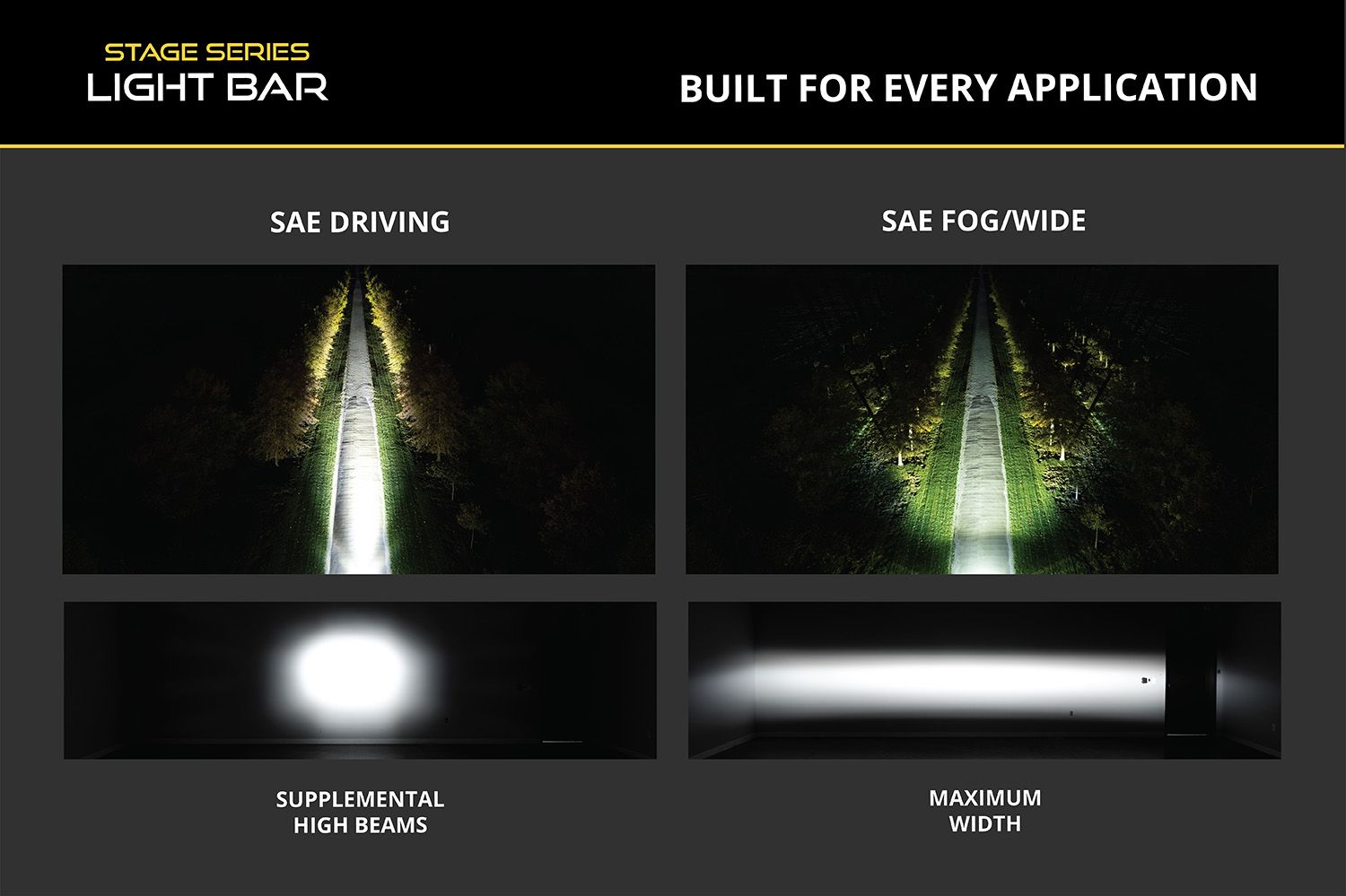

You choose the configuration that fits your driving style: output levels include Sport, Pro, and Max, while beam options span White SAE Driving, White SAE Fog, Yellow SAE Driving, Yellow SAE Fog, and Wide patterns. SAE/DOT compliance means the lights are road-legal, so you can run them on public roads without worry. Yellow fog options are particularly effective in rain, snow, and low-visibility conditions common to Pacific Northwest driving.

The application-specific brackets use factory mounting points for a clean, integrated look that suits the WRX and STi's aggressive front end. This kit is ideal for drivers who want serious, legal auxiliary lighting without modifying their car.

Documentation
