SS5 Windshield CrossLink Lightbar Kit for 2018-2025 Jeep JL Wrangler

Diode Dynamics  |  SKU: DD6821  |  Barcode: 00195995125965
Regular price $2,473.00 USD
Choose Your Power Level
Choose Your Color
Fitment & Install Notes
Fits
Fits: 2020-2025 Jeep Gladiator, 2018-2026 Jeep Wrangler
Free shipping Orders $500+
Canadian orders No duties / brokerage
Authorized Diode Dynamics Dealer
Returns 30-day easy
Optional add-ons 1 AVAILABLE

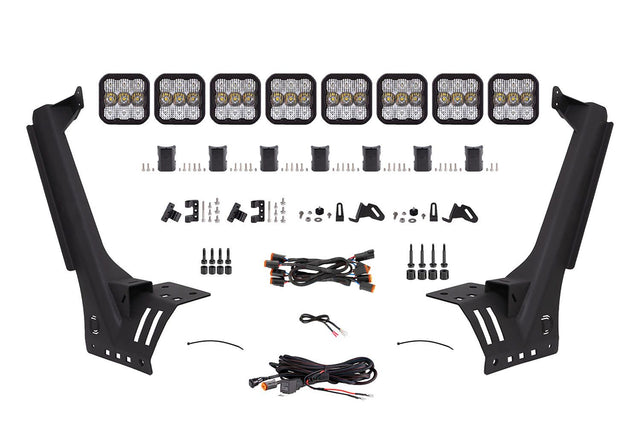

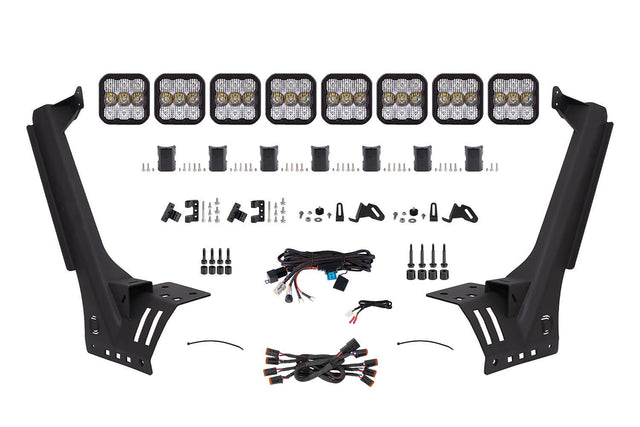

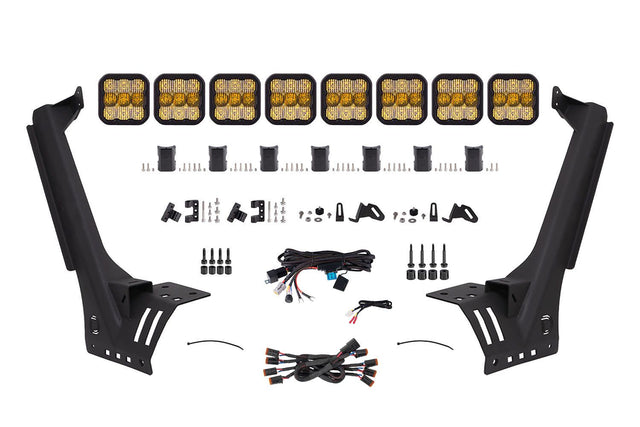

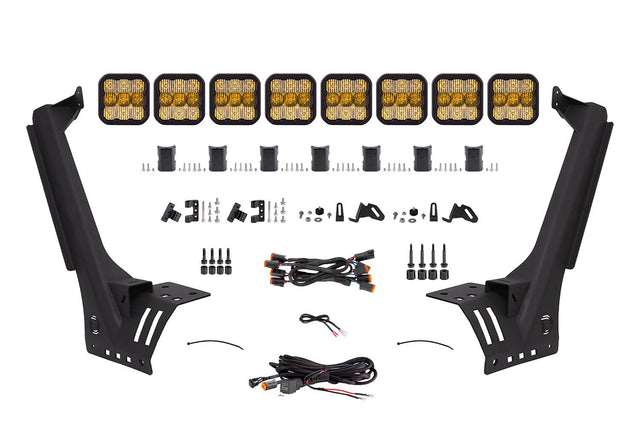

What's in the box 8 ITEMS
Two (2) Application-specific heavy-duty steel brackets for installation on 2018-2021 Jeep Wrangler
Eight (8) Stage Series 5inch LED Pods
Seven (7) CrossLinks with hardware
Two (2) CrossLink supports
One (1) CrossLink endmount kit
One (1) DT 8-Pod connecting harness
One (1) heavy-duty single-output harness
Installation Guide
Optical
Lumens 3700
Color temperature 6000K
Beam spread Combo (Driving and Flood)
Power 40W
Operating voltage 9-16V
Intensity 81 600 cd
LED emitter Luxeon Z ES
Driver features Constant Current
Construction
Connector Deutsch DT Input
Cooling Passive, Pin-Fin heatsink
Polarity Polarity Specific
Base material Steel
Base color Black
Bolt thread Medium
Install
Drilling No drilling required
Mounting hardware Included
Compliance
IP rating IP69K Waterproof High Pressure
Operating temp -40C to 85C (-40F to 185F)
SAE/DOT SAE J581 Driving/Auxiliary High Beam Pattern
Country of origin USA
Features & benefits
Bolt-on fitment on 2018-2026 Jeep JL Wrangler
Ultra-high intensity, with custom-engineered TIR optics
Selectable backlight color, with eight color options
Torture-tested, heavy-duty construction
Control through factory aux switch bank using the included harness
Assembled in USA
Description

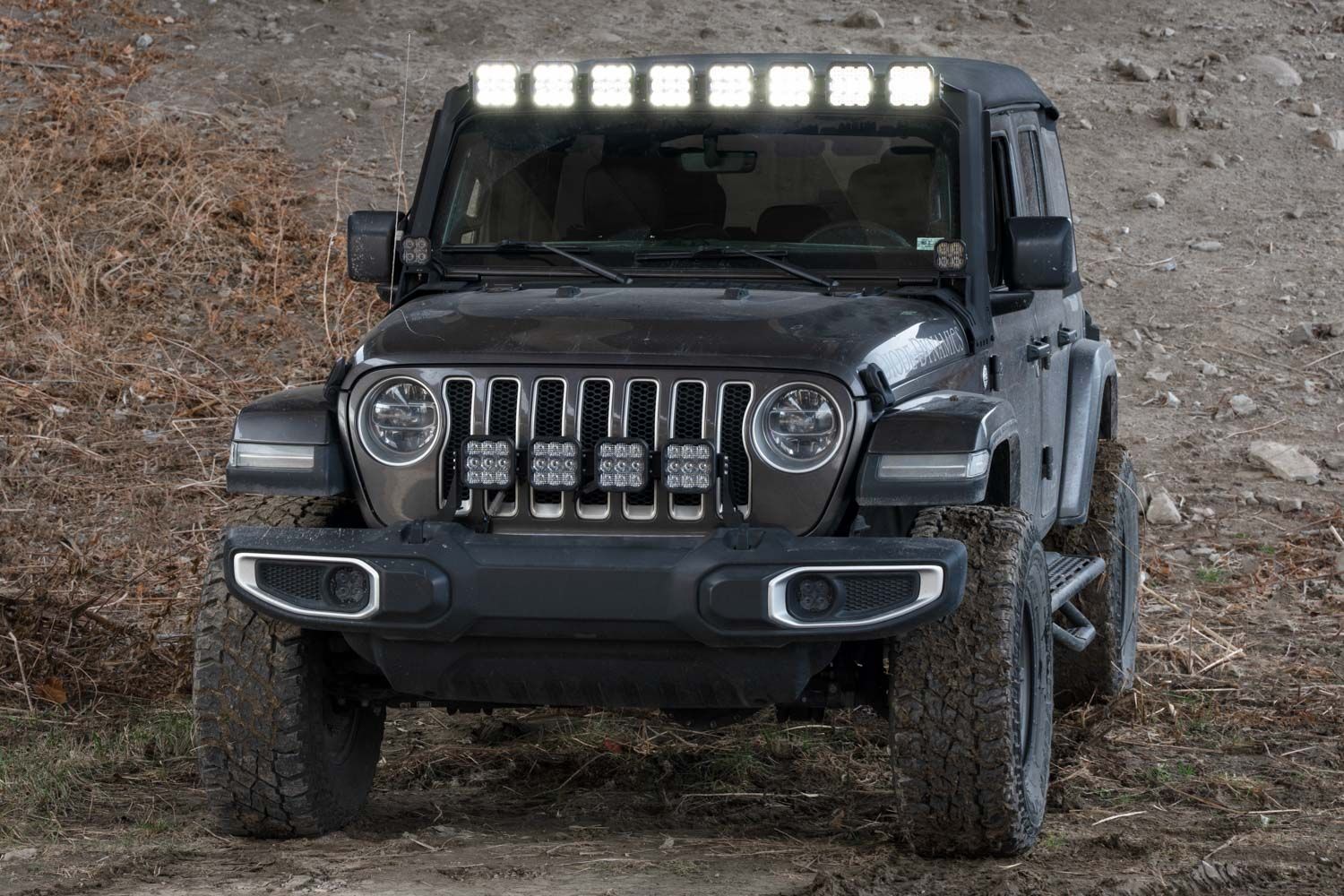

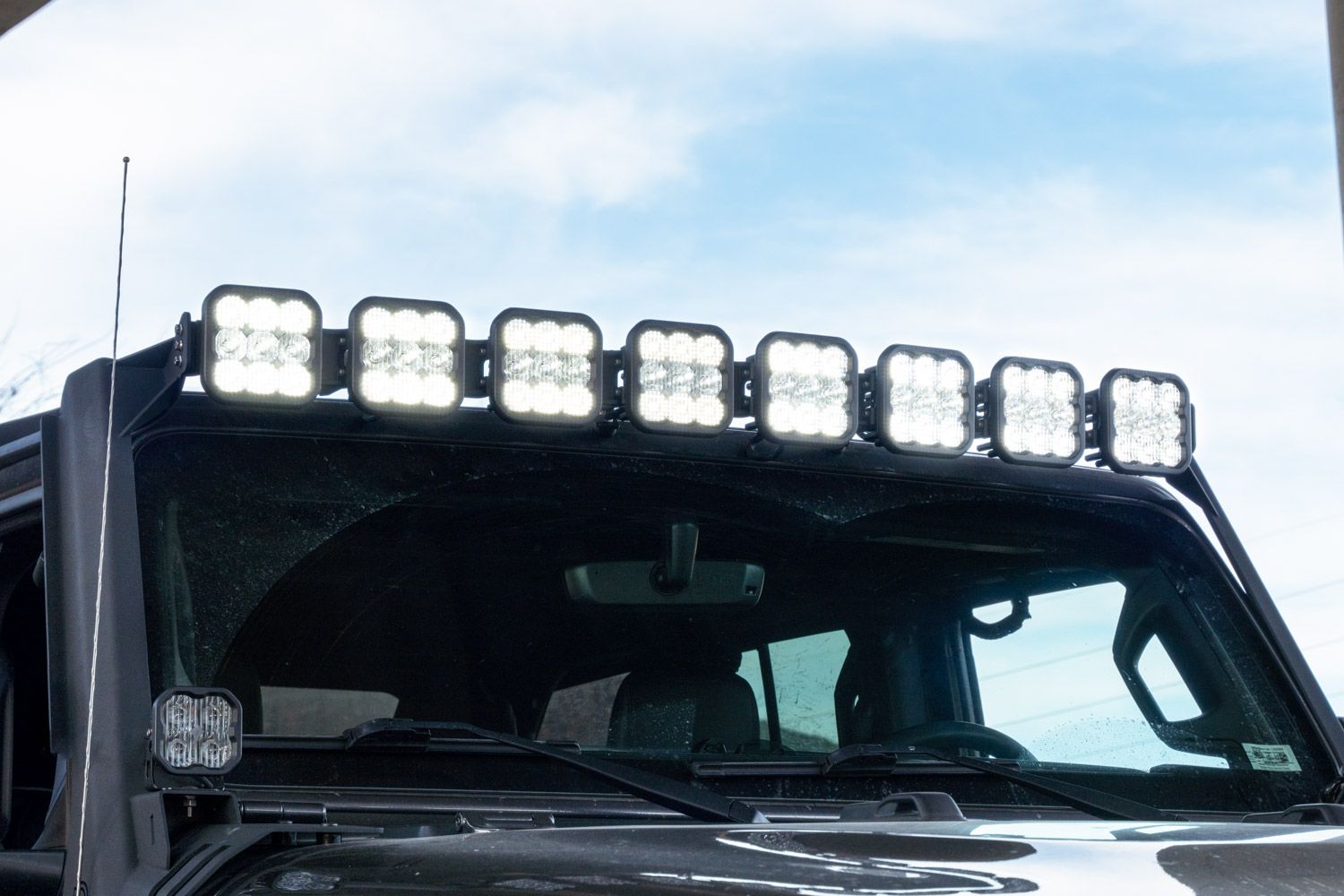

The SS5 Windshield CrossLink Lightbar Kit is a vehicle-specific LED lighting system for the Jeep JL Wrangler and Gladiator, mounting eight linked SS5 pods directly above the factory windshield for a clean, integrated look. The included bracket is designed to fit your Jeep without drilling or fabrication, keeping the installation straightforward and the finished result purpose-built rather than cobbled together.

Output and beam pattern come down to what you need on the trail or worksite — choose between Sport and Pro power levels depending on how much punch you want from your lighting, and select Cool White or Yellow depending on your conditions. Cool White delivers crisp, high-contrast visibility for general driving and trail use, while Yellow cuts through dust, rain, and fog more effectively for those who push into rougher environments.

The SS5 pods themselves use TIR optics and a pin-fin heatsink design to keep output focused and thermals managed over long runs. If you want serious windshield-mounted lighting that looks factory and performs well beyond it, this kit is built for your Jeep.

Documentation
