SS5 Windshield CrossLink Lightbar Kit for 2007-2018 Jeep JK Wrangler

Diode Dynamics  |  SKU: DD7224  |  Barcode: 00195995126009
Regular price $2,372.00 USD
Choose Your Power Level
Choose Your Color
Fitment & Install Notes
Fits
Fits: 2018-2018 Jeep Wrangler JK
Free shipping Orders $500+
Canadian orders No duties / brokerage
Authorized Diode Dynamics Dealer
Returns 30-day easy
Optional add-ons 1 AVAILABLE

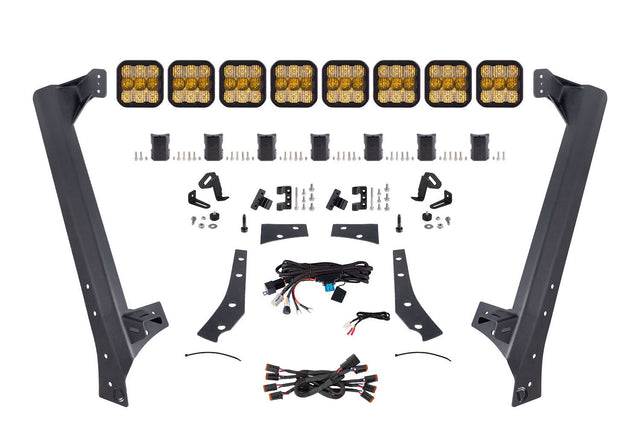

What's in the box 9 ITEMS
Two (2) Application-specific heavy-duty steel brackets for installation on 2007-2018 Jeep Wrangler
Eight (8) Stage Series 5inch LED Pods
Seven (7) CrossLinks with hardware
Two (2) CrossLink supports
One (1) CrossLink endmount kit
One (1) DT 8-Pod connecting harness
One (1) OEM auxiliary switch single-output harness
One (1) heavy-duty single-output harness
Installation Guide
Optical
Lumens 3700
Color temperature 6000K
Beam spread Combo (Driving and Flood)
Power 40W
Operating voltage 9-16V
Intensity 81 600 cd
LED emitter Luxeon Z ES
Driver features Constant Current
Construction
Connector Deutsch DT Input
Cooling Passive, Pin-Fin heatsink
Polarity Polarity Specific
Base material Steel
Base color Black
Bolt thread Medium
Install
Drilling No drilling required
Mounting hardware Included
Compliance
IP rating IP69K Waterproof High Pressure
Operating temp -40C to 85C (-40F to 185F)
SAE/DOT SAE J581 Driving/Auxiliary High Beam Pattern
Country of origin USA
Features & benefits
Bolt-on fitment on 2007-2018 Jeep JK Wrangler
Ultra-high intensity, with custom-engineered TIR optics
Selectable backlight color, with eight color options
Torture-tested, heavy-duty construction
Assembled in USA
Description

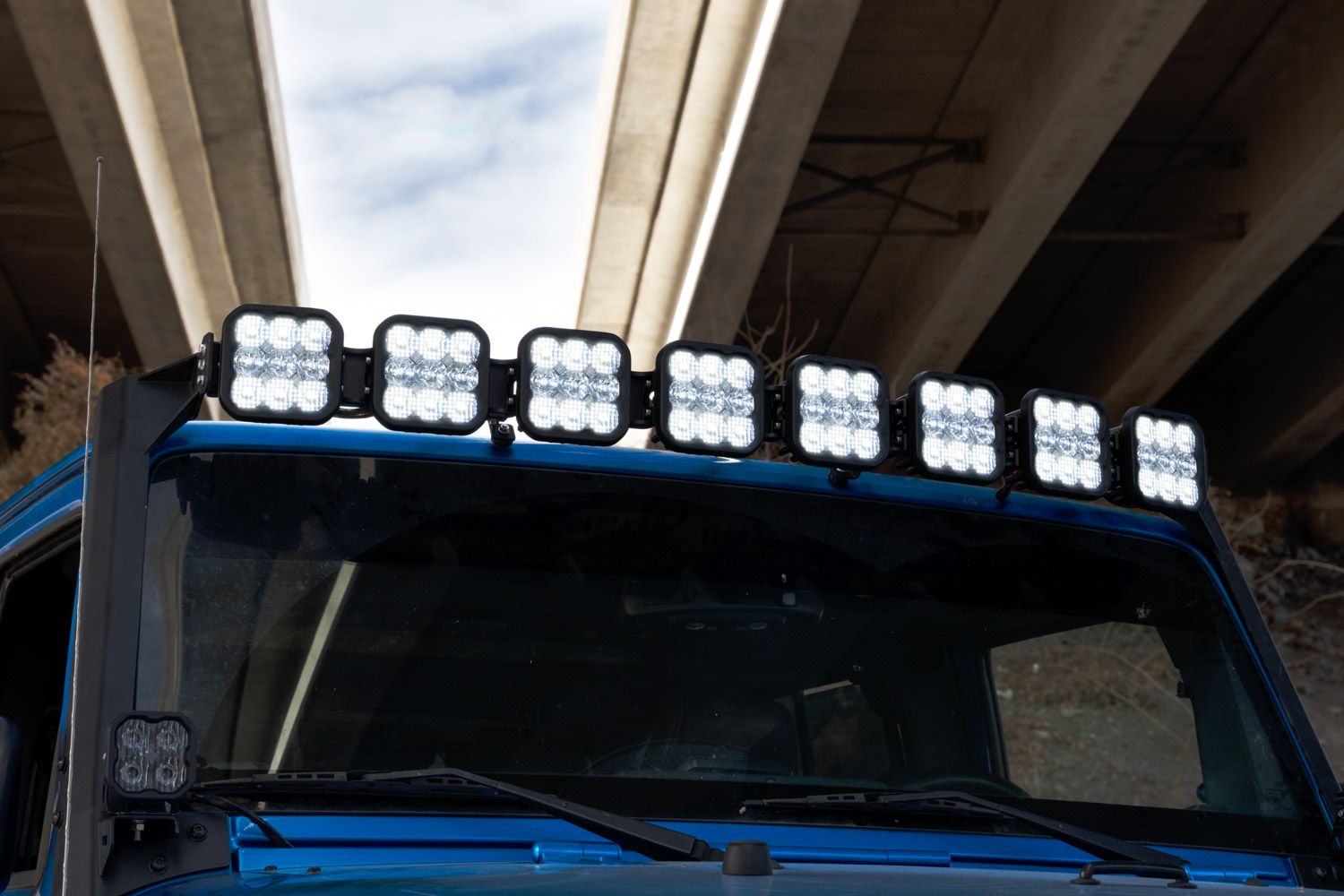

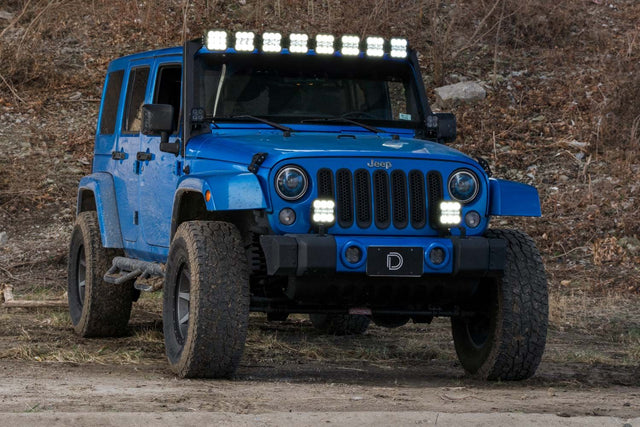

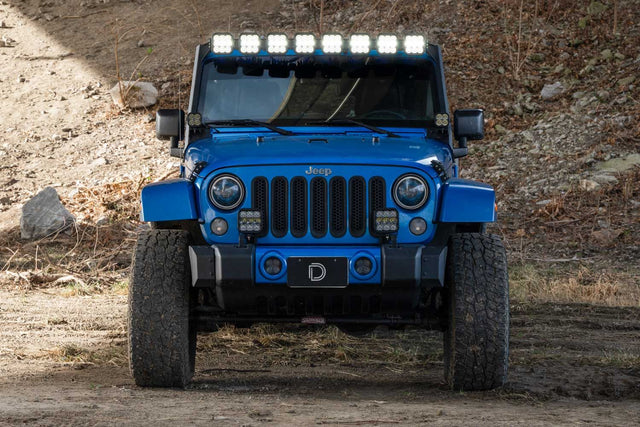

The Diode Dynamics SS5 CrossLink Windshield Lightbar Kit for the Jeep JK Wrangler is a purpose-built overhead lighting system that mounts eight linked SS5 LED pods directly above the factory windshield using a vehicle-specific bracket — no drilling, no guesswork. Whether you're covering dark trails, lighting up a work site, or cutting through dust and weather, this kit delivers serious forward illumination in a clean, integrated package.

Output and color options let you build the setup that fits your driving style. Choose between Sport and Pro power levels depending on how much punch you need, and select Cool White for maximum visibility or Yellow for improved contrast in fog, rain, and dusty conditions. Beam pattern choices further tailor the light to your use — whether that's focused reach down the trail or wide flood coverage across a scene.

The SS5 pods are built around efficient TIR optics and a thermal management design that keeps them running reliably through hard use. If you wheel your JK seriously or work it hard after dark, this kit is worth your attention.

Documentation
$2,372.00● In stock
