SS5 Grille CrossLink Lightbar Kit for 2024-2026 Toyota Tacoma

Diode Dynamics  |  SKU: DD8027  |  Barcode: 00195995139061
Regular price $1,115.00 USD
Choose Your Power Level
Choose Your Color
Fitment & Install Notes
Fits
Fits: 2024-2026 Toyota Tacoma
Free shipping Orders $500+
Canadian orders No duties / brokerage
Authorized Diode Dynamics Dealer
Returns 30-day easy
Optional add-ons 1 AVAILABLE

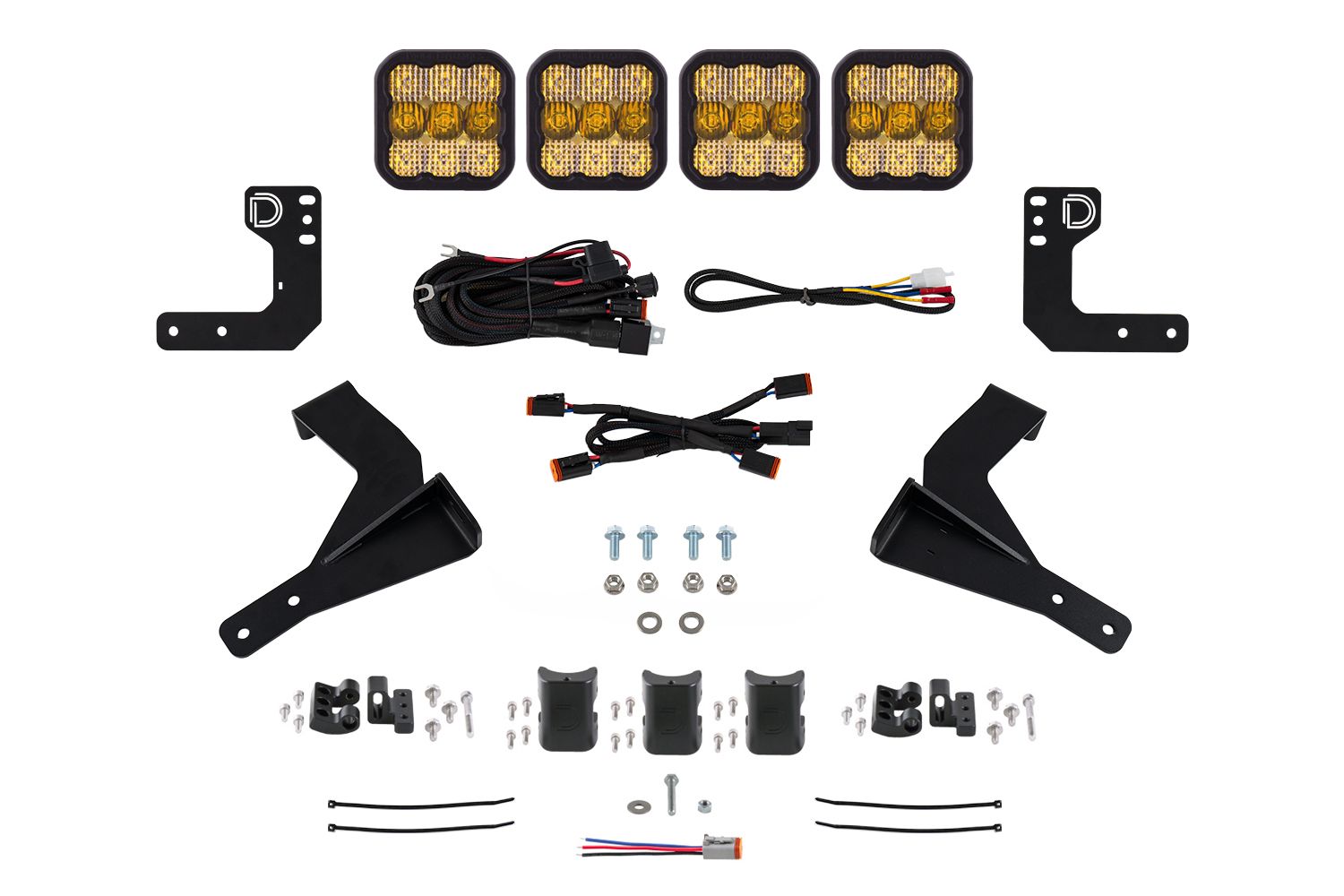

What's in the box 6 ITEMS
Four (4) Application-specific heavy-duty steel brackets for installation on 2024+ Toyota Tacoma
Four (4) Stage Series 5inch LED Pods
Three (3) CrossLinks with hardware
One (1) CrossLink endmount kit
One (1) DT 4-Pod connecting harness
Installation Guide
Optical
Lumens 3700
Color temperature 6000K
Beam spread Combo (Driving and Flood)
Power 40W
Operating voltage 9-16V
Intensity 81 600 cd
LED emitter Luxeon Z ES, Cree XP-L HI
Driver features Constant Current
Construction
Connector Deutsch DT Input
Cooling Passive, Pin-Fin heatsink
Polarity Polarity Specific
Base material Steel
Base color Black
Bolt thread Medium
Install
Drilling No drilling required
Mounting hardware Included
Compliance
IP rating IP69K Waterproof High Pressure
Operating temp -40C to 85C (-40F to 185F)
Country of origin USA
Features & benefits
Bolt-on fitment on 2024+ Toyota Tacoma.
Allows you to mount a four-pod CrossLink lightbar across the grille.
Ultra-high intensity, with custom-engineered TIR optics.

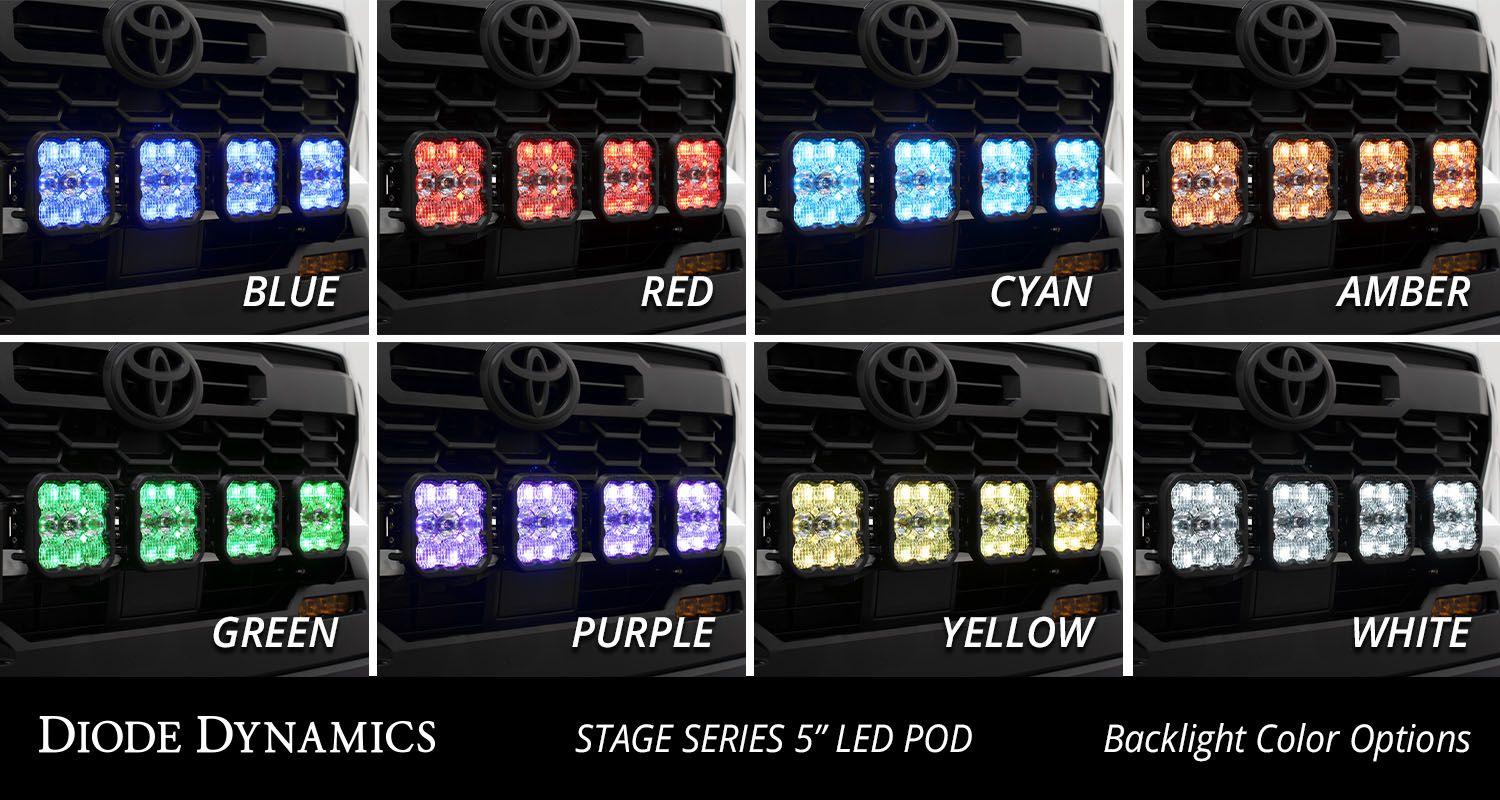

Selectable backlight color, with eight color options.
Control through factory aux switch bank using the included harness.
Utilizes existing mounting points for easy installation.
Assembled in USA.
Description

The Diode Dynamics SS5 Grille CrossLink Lightbar Kit for the Toyota Tacoma mounts four linked SS5 LED pods directly to the factory grille, giving you a clean, integrated lighting upgrade built specifically for this truck. The kit uses a vehicle-specific bracket for a precise fit with no drilling or fabrication required.

Output and color are your choice: pick Sport or Pro power levels depending on how much light you need on the trail or job site, and select Cool White or Yellow to suit your conditions — Cool White for maximum visibility in clear weather, Yellow for improved contrast in rain, dust, or fog. Beam pattern options let you direct that output exactly where it matters most, whether that's a tight driving beam for distance or a wider spread for close-in area lighting.

The SS5 pods are built to handle real off-road abuse, and the selectable backlight adds a custom look that stands out at night. If you run your Tacoma hard and want auxiliary lighting that actually belongs on the truck, this kit delivers it without compromise.

Documentation
