SS5 Grille CrossLink Lightbar Kit for 2018-2025 Jeep JL Wrangler

Diode Dynamics  |  SKU: DD6826  |  Barcode: 00195995125989
Regular price $1,237.00 USD
Choose Your Power Level
Choose Your Color
Fitment & Install Notes
Fits
Fits: 2020-2025 Jeep Gladiator, 2018-2026 Jeep Wrangler
Free shipping Orders $500+
Canadian orders No duties / brokerage
Authorized Diode Dynamics Dealer
Returns 30-day easy
Optional add-ons 1 AVAILABLE

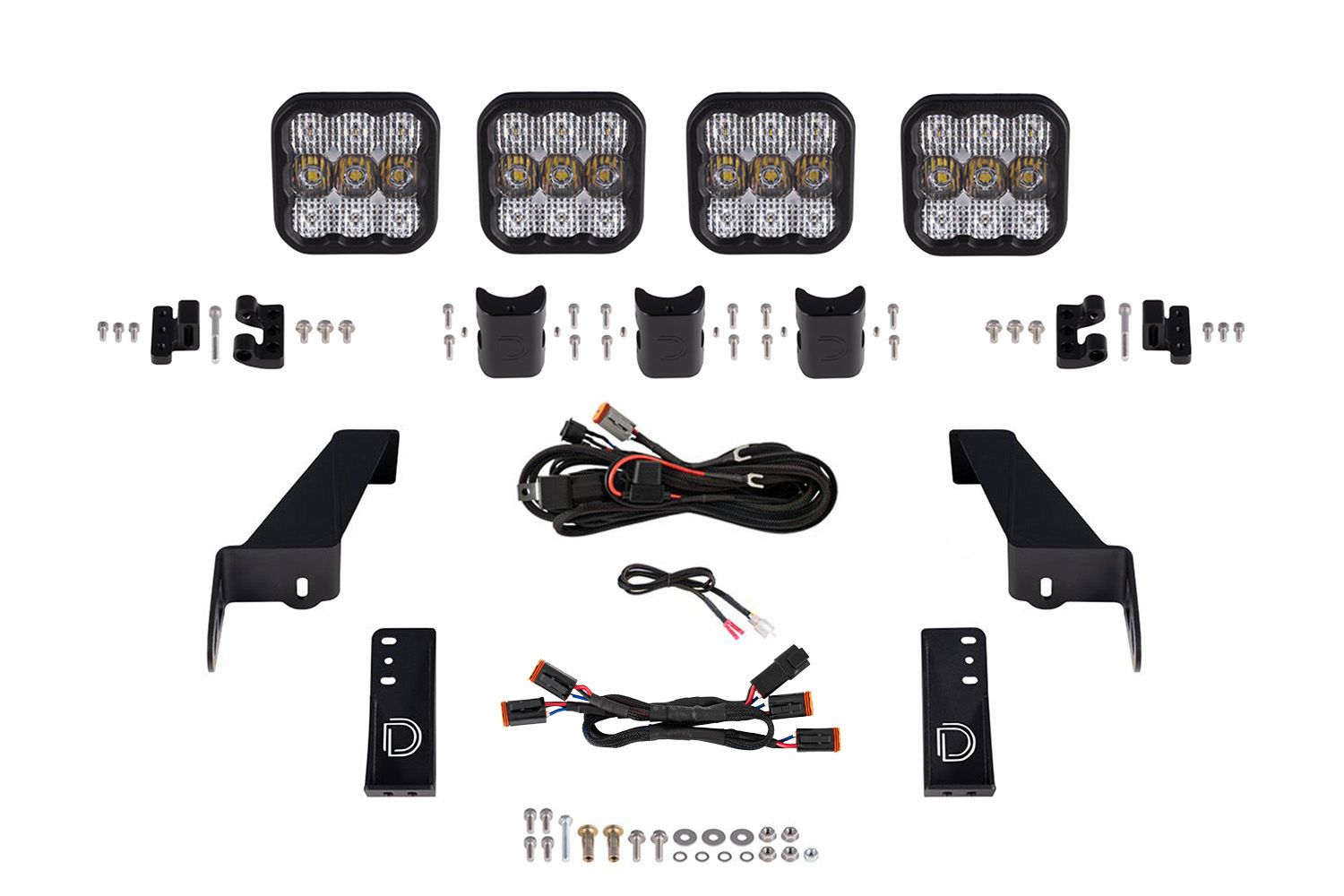

What's in the box 7 ITEMS
Two (2) Application-specific heavy-duty steel brackets for installation on 2007-2018 Jeep Wrangler
Four (4) Stage Series 5inch LED Pods
Three (3) CrossLinks with hardware
One (1) CrossLink endmount kit
One (1) DT 4-Pod connecting harness
One (1) heavy-duty single-output harness
Installation Guide
Optical
Lumens 3700
Color temperature 6000K
Beam spread Combo (Driving and Flood)
Power 40W
Operating voltage 9-16V
Intensity 81 600 cd
LED emitter Luxeon Z ES, Cree XP-L HI
Driver features Constant Current
Construction
Connector Deutsch DT Input
Cooling Passive, Pin-Fin heatsink
Polarity Polarity Specific
Base material Steel
Base color Black
Bolt thread Medium
Install
Drilling No drilling required
Mounting hardware Included
Compliance
IP rating IP69K Waterproof High Pressure
Operating temp -40C to 85C (-40F to 185F)
SAE/DOT SAE J581 Driving/Auxiliary High Beam Pattern
Country of origin USA
Features & benefits
Bolt-on fitment on 2018-2023 Jeep JL Wrangler
Ultra-high intensity, with custom-engineered TIR optics
Selectable backlight color, with eight color options
Torture-tested, heavy-duty construction
Control through factory aux switch bank using the included harness
Assembled in USA
Description

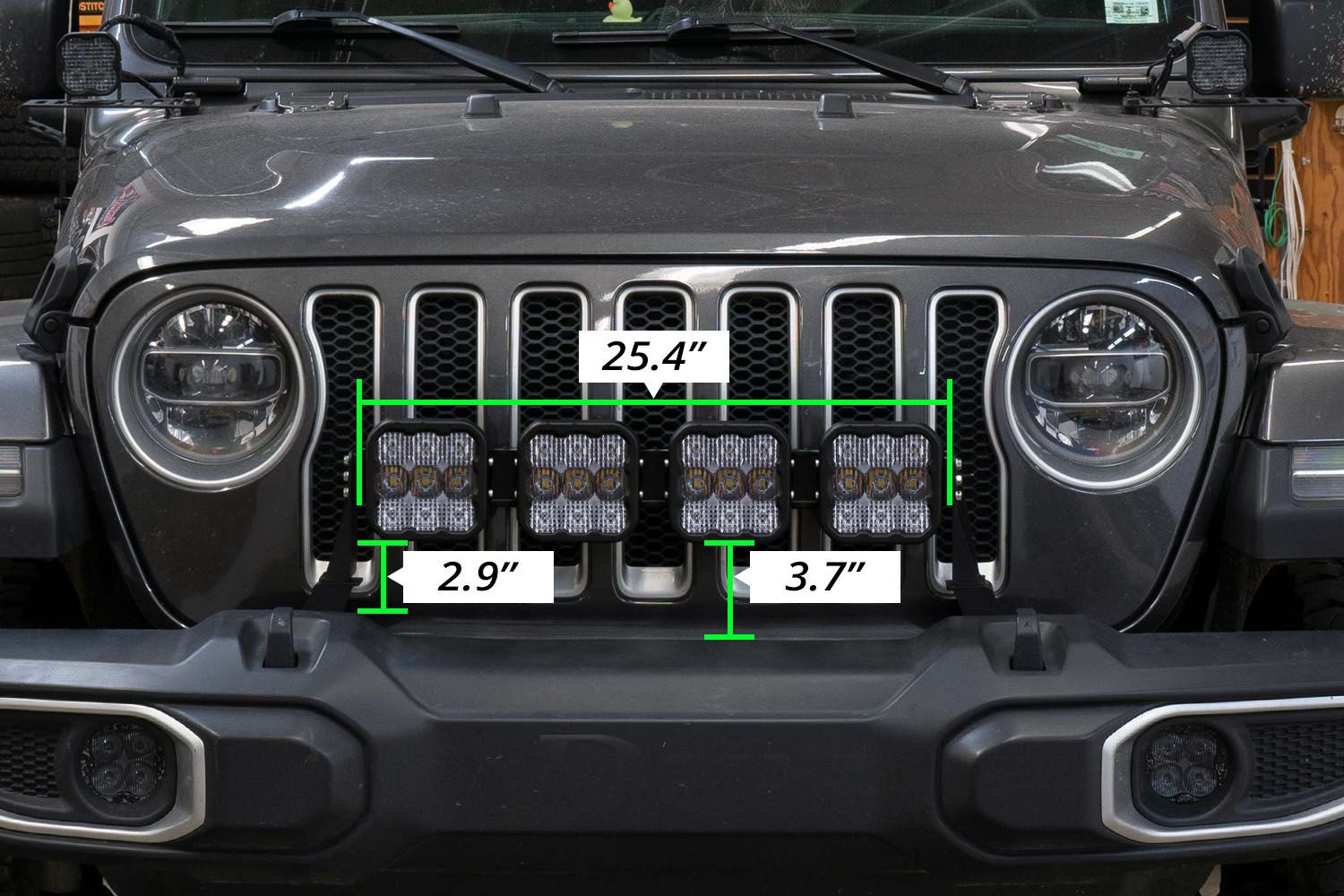

The SS5 Grille CrossLink Lightbar Kit is a vehicle-specific LED lighting upgrade for the Jeep JL Wrangler and Gladiator, mounting four linked SS5 pods directly to the factory grille without drilling or fabrication. The included grille-specific bracket positions the pods cleanly across the grille opening, keeping the install tight and the look intentional.

Choose between Sport and Pro output levels depending on how much light you need on the trail or work site, and select your beam pattern and color to dial in your setup. Cool White delivers crisp, high-contrast visibility for fast driving and scanning terrain, while Yellow cuts through dust, rain, and fog with less glare and scatter — a serious advantage in off-road conditions where airborne particulates kill white light performance.

The SS5 pods use TIR optics and a pin-fin heatsink design built to handle extended run times without throttling output. If you're running your JL hard in low-visibility situations, this kit gives you a dependable, grille-forward light source that integrates cleanly with the platform.

Documentation
$1,237.00● In stock
