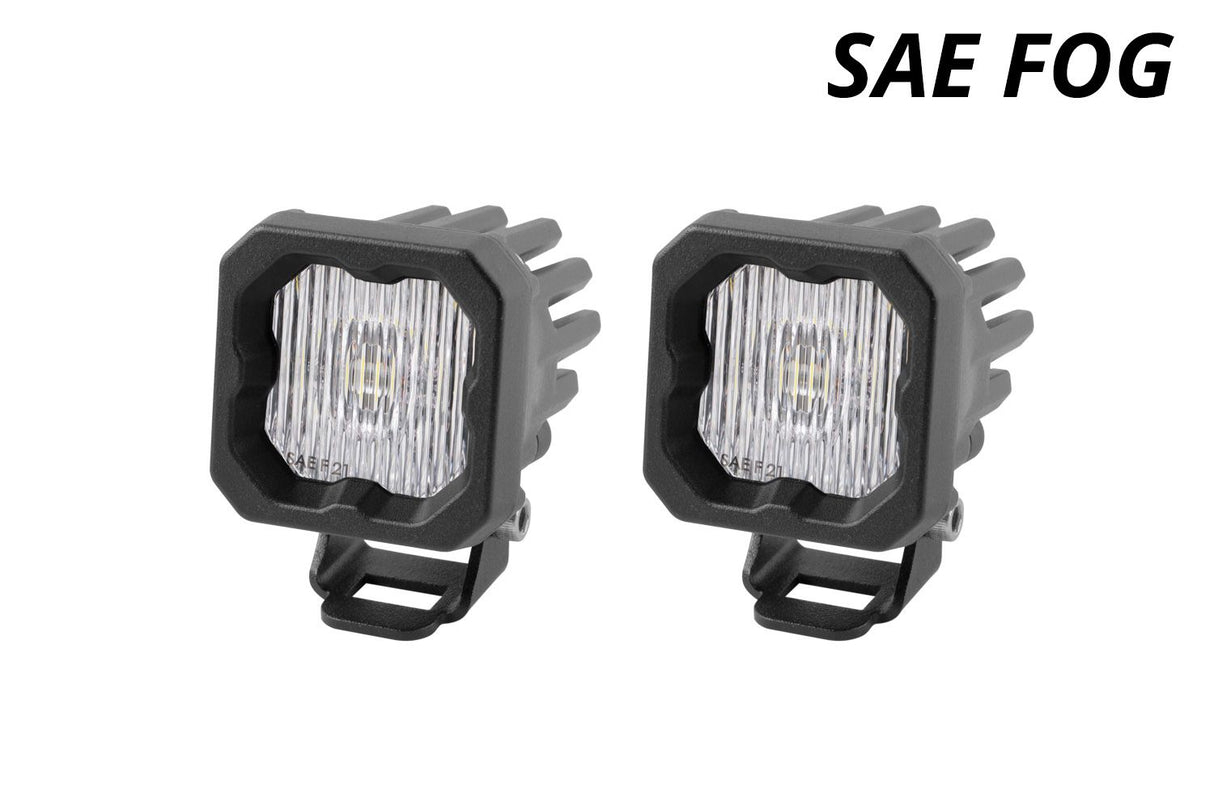

SSC1 White SAE Fog Standard LED Pod (pair)

Diode Dynamics  |  SKU: DD6847P  |  Barcode: 00691026130224
Regular price $264.00 USD
Free shipping Orders $500+
Canadian orders No duties / brokerage
Authorized Diode Dynamics Dealer
Returns 30-day easy

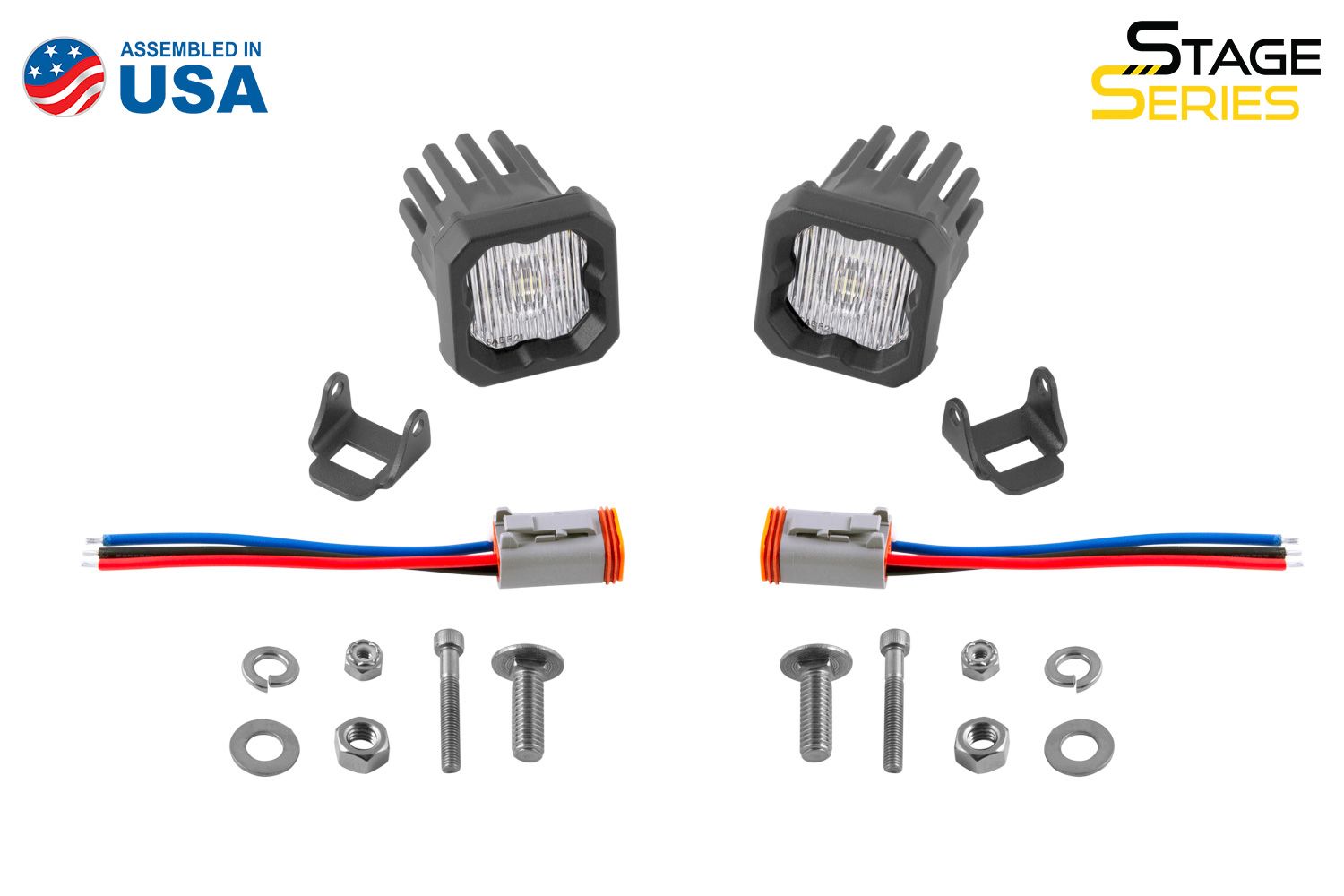

What's in the box 3 ITEMS
Two (2) Stage Series C1 LED Pods
Two (2) Deutsch-style wire pigtails
Two (2) Mounting brackets and hardware
Optical
Color temperature 6000K

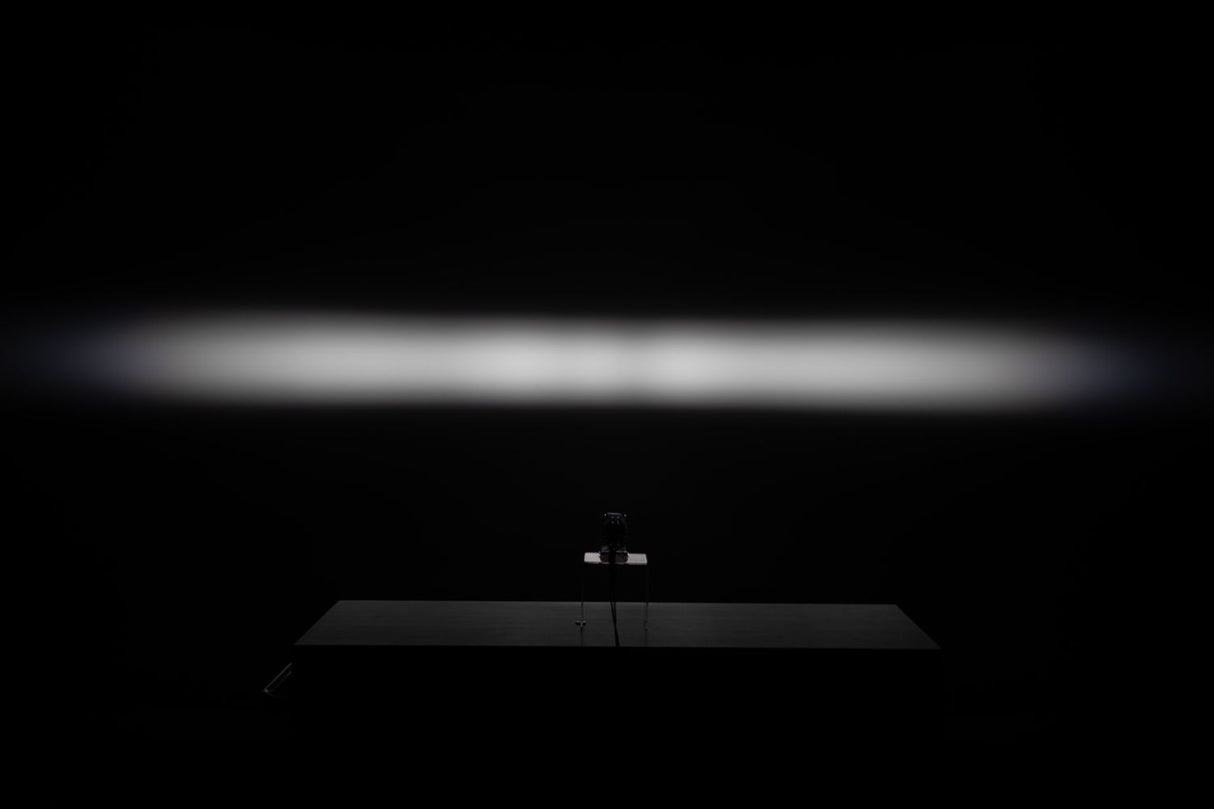

Beam spread Fog 98°x9°
Power 19W
Operating voltage 9-16V
Grade Performance
Intensity 6 000 cd
LED emitter Osram Boost HX
Driver features Constant Current
Construction
Connector Deutsch DT Input
Cooling Passive, Pin-Fin heatsink
Polarity Polarity Specific
Base material Steel
Base color Black
Finish sheen Matte
Bolt thread Medium
Bolt grade High
Install
Drilling No drilling required
Mounting hardware Included
Compliance
IP rating IP69K Waterproof High Pressure
Operating temp -40C to 85C (-40F to 185F)
SAE/DOT SAE J583 Foglamp Beam Pattern
Country of origin USA
Features & benefits
Ultra-compact, single-LED form factor
SAE-compliant, road-legal output
Single automotive-grade Osram HX Boost 20-watt LED
Backlighting available in white and amber
Integrated Deutsch-style connector
Designed, torture-tested and assembled in USA
Description

The Diode Dynamics SSC1 White SAE Fog Standard LED Pod pair is a compact, road-legal fog light solution built for drivers who want cleaner low-lying illumination without sacrificing build quality. The SAE-compliant fog beam pattern spreads light wide and low across the road surface, cutting through rain, snow, and dust without blinding oncoming traffic — exactly what a proper fog light should do.

Each pod in the pair is engineered around a single high-power LED chip paired with precision TIR optics, delivering a tight, efficient beam with minimal wasted light. A pin-fin heatsink keeps temperatures in check during extended use, and the powder-coated aluminum housing stands up to the kind of weather and road debris that comes with daily driving or off-road work.

These pods mount cleanly to trucks, Jeeps, and UTVs as auxiliary fog lights, lower bumper fills, or anywhere you need broad, controlled forward illumination. If you run in low-visibility conditions regularly, the SSC1 pair gives you a reliable, professional-looking upgrade that just works.

Documentation
