SSC1 White Pro Standard LED Pod (one)

Diode Dynamics  |  SKU: DD6455S  |  Barcode: 00691026129563
Regular price $132.00 USD
Choose Your Beam Pattern
Choose Your Backlight Color
Free shipping Orders $500+
Canadian orders No duties / brokerage
Authorized Diode Dynamics Dealer
Returns 30-day easy

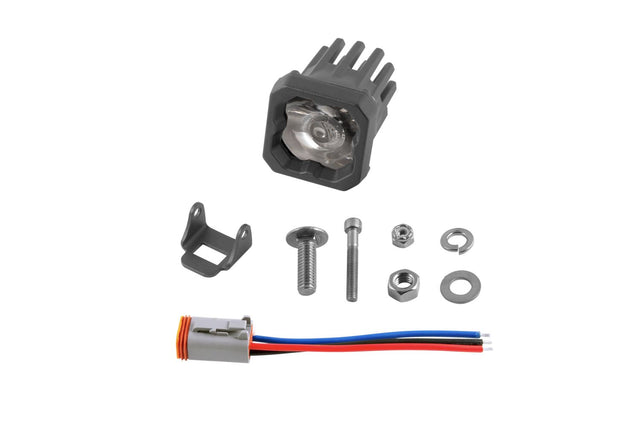

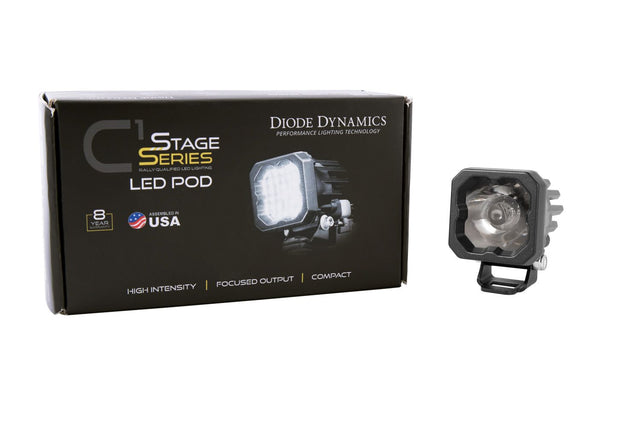

What's in the box 3 ITEMS

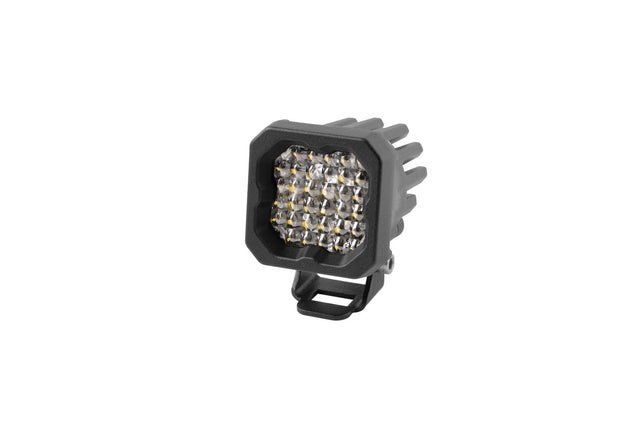

One (1) Stage Series C1 LED Pod
One (1) Deutsch-style wire pigtail
One (1) Mounting bracket and hardware
Optical
Lumens 2300
Color temperature 6000K
Beam spread Wide 100°x8°
Power 19W
Operating voltage 9-16V
Grade Performance

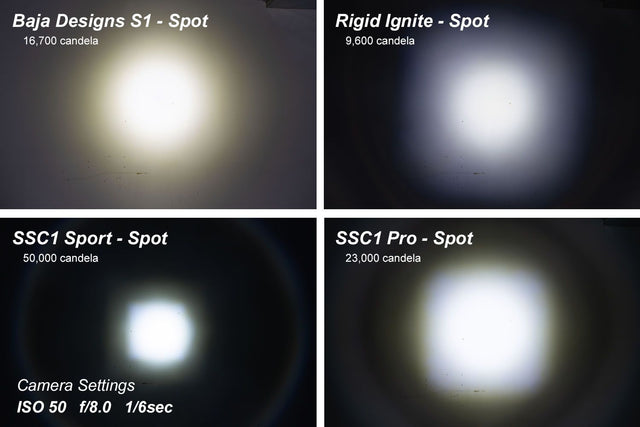

Intensity 5 400 cd
LED emitter Cree XHP50
Driver features Constant Current
Construction
Connector Deutsch DT Input
Cooling Passive, Pin-Fin heatsink
Polarity Polarity Specific
Base material Steel
Base color Black
Finish sheen Matte
Bolt thread Medium
Bolt grade High
Install
Drilling No drilling required
Mounting hardware Included
Compliance
IP rating IP69K Waterproof High Pressure
Operating temp -40C to 85C (-40F to 185F)
Country of origin USA
Features & benefits
Ultra-compact, single-LED form factor
High-intensity 20-watt LED chip

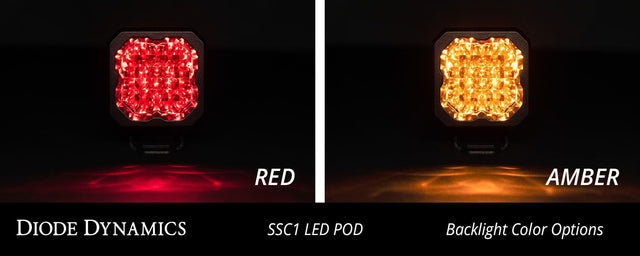

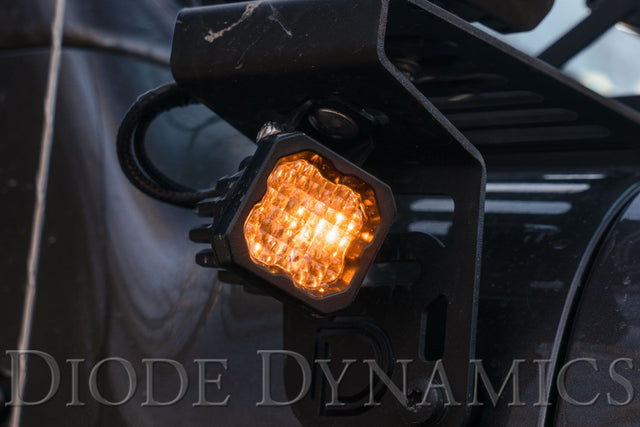

Backlighting available in amber or red
Pin-fin heatsink design, for superior thermal dissipation
Integrated Deutsch-style connector
Designed, torture-tested and assembled in USA
Description

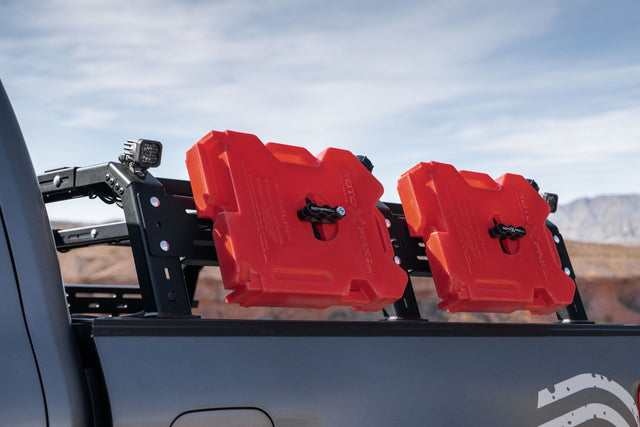

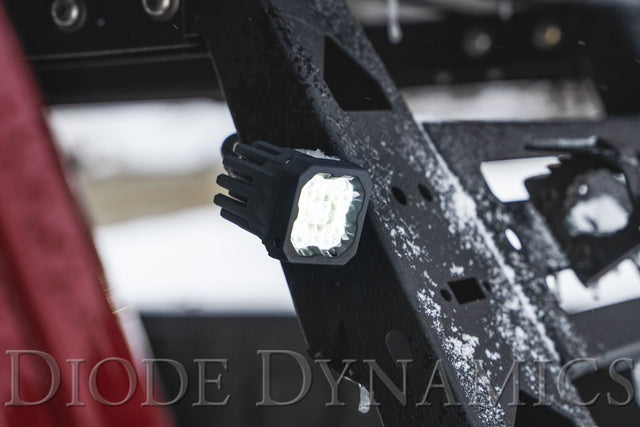

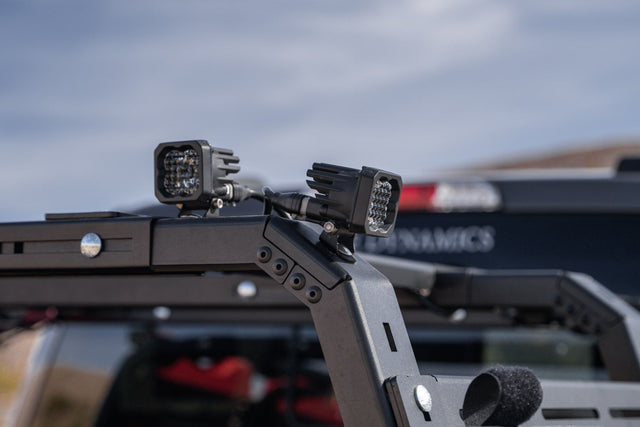

The Diode Dynamics SSC1 Pro LED Pod is a compact, high-output auxiliary light built for truck, Jeep, and UTV owners who need serious illumination in a small package. Whether you're mounting a pair in the bumper, on the roof, or tucked into a grille, the SSC1 Pro delivers focused light exactly where you point it.

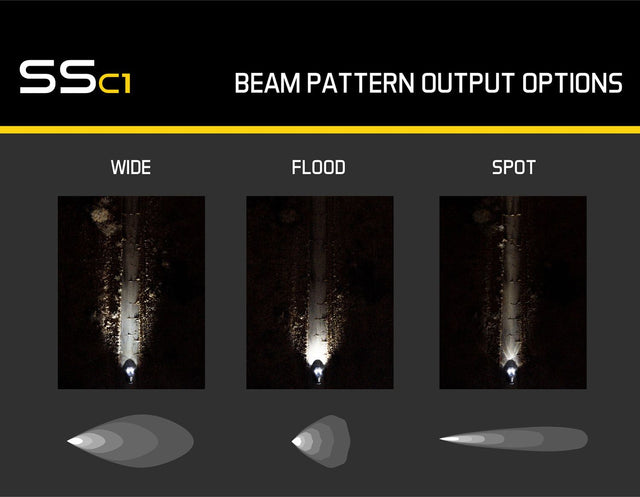

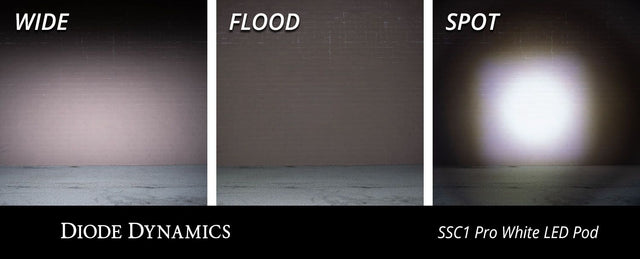

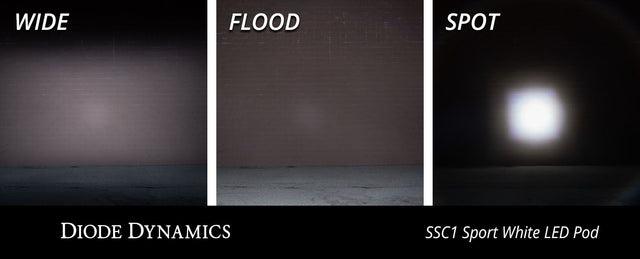

This pod is available in Spot, Flood, and Wide beam patterns, plus Amber and Red color options — so you can choose the right tool for your specific application. Spot cuts deep down the trail for high-speed driving, Flood and Wide spread light broadly for camp setup or work-site use, Amber softens output for fog and dust conditions, and Red preserves night vision when you need low-profile illumination.

TIR optics and a pin-fin heatsink design keep output efficient and temperatures controlled over long runs. If you're building out a lighting system or filling a specific gap in your setup, the SSC1 Pro is a straightforward, dependable choice.
