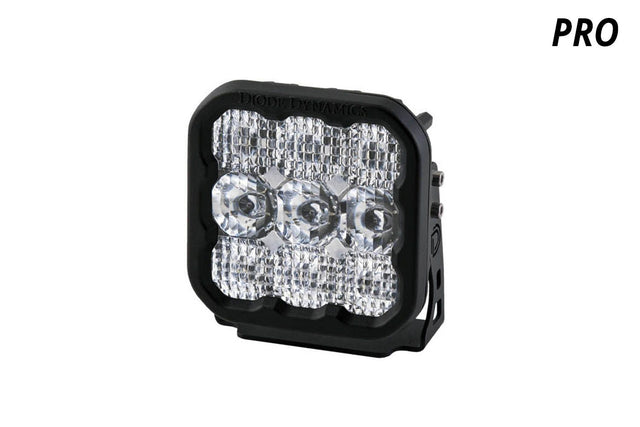

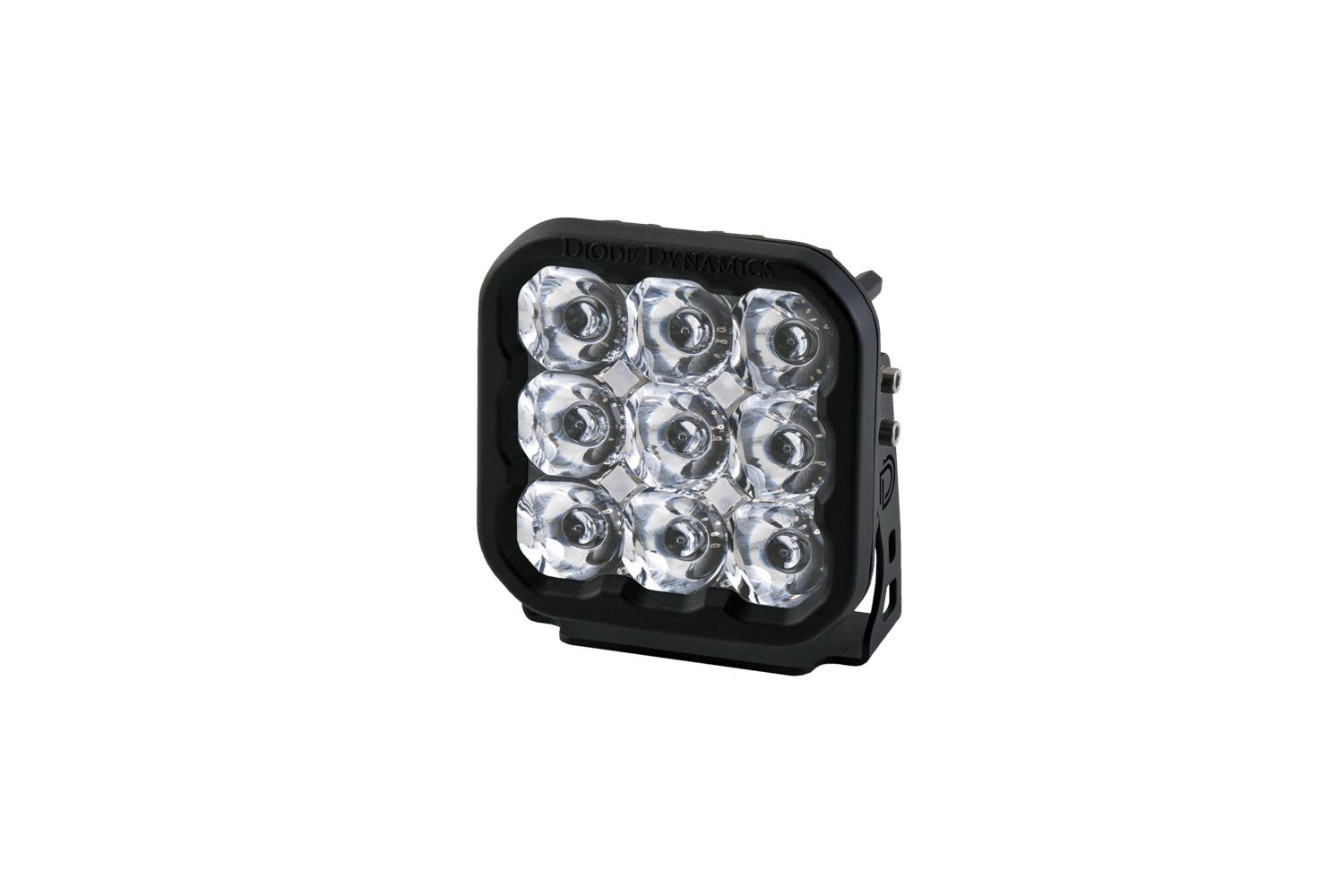

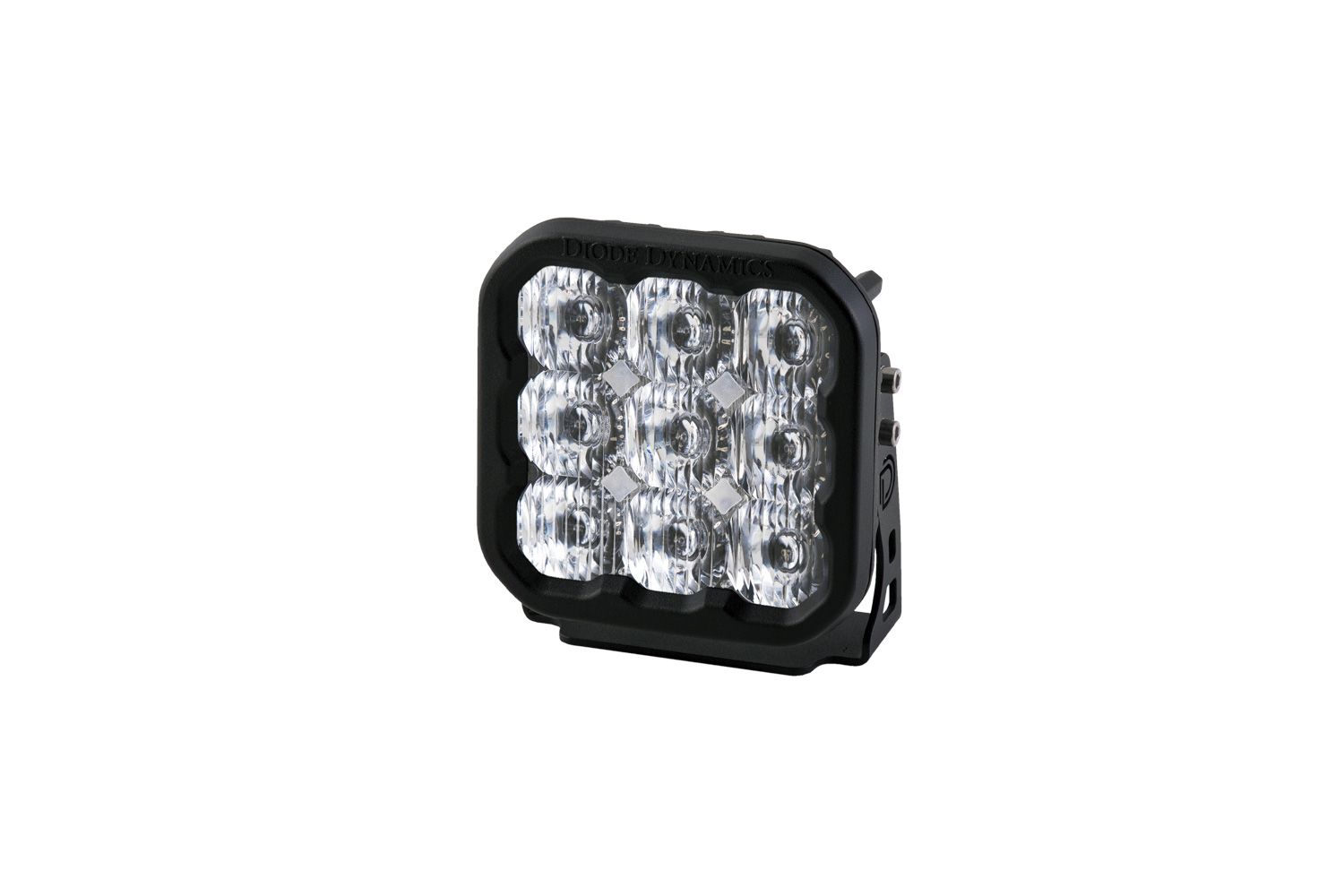

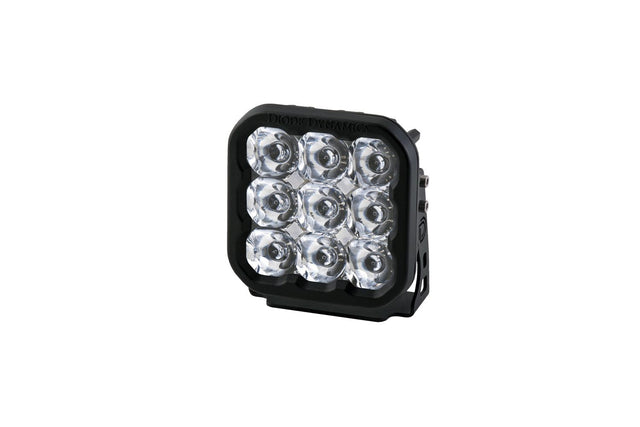

SS5 White Pro LED Pod (one)

Diode Dynamics  |  SKU: DD6782S  |  Barcode: 00691025934984
Regular price $406.00 USD
Choose Your Beam Pattern
Free shipping Orders $500+
Canadian orders No duties / brokerage
Authorized Diode Dynamics Dealer
Returns 30-day easy

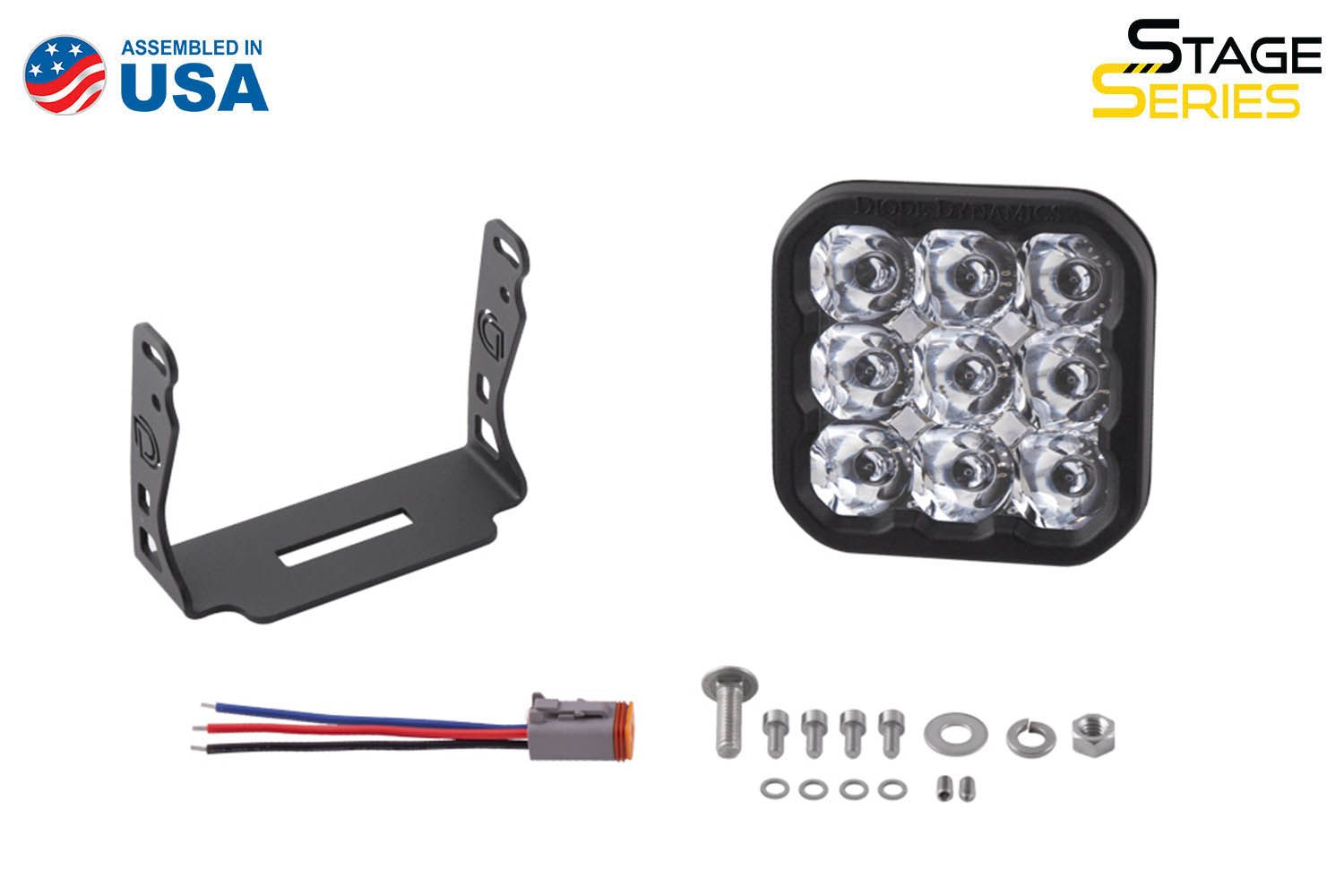

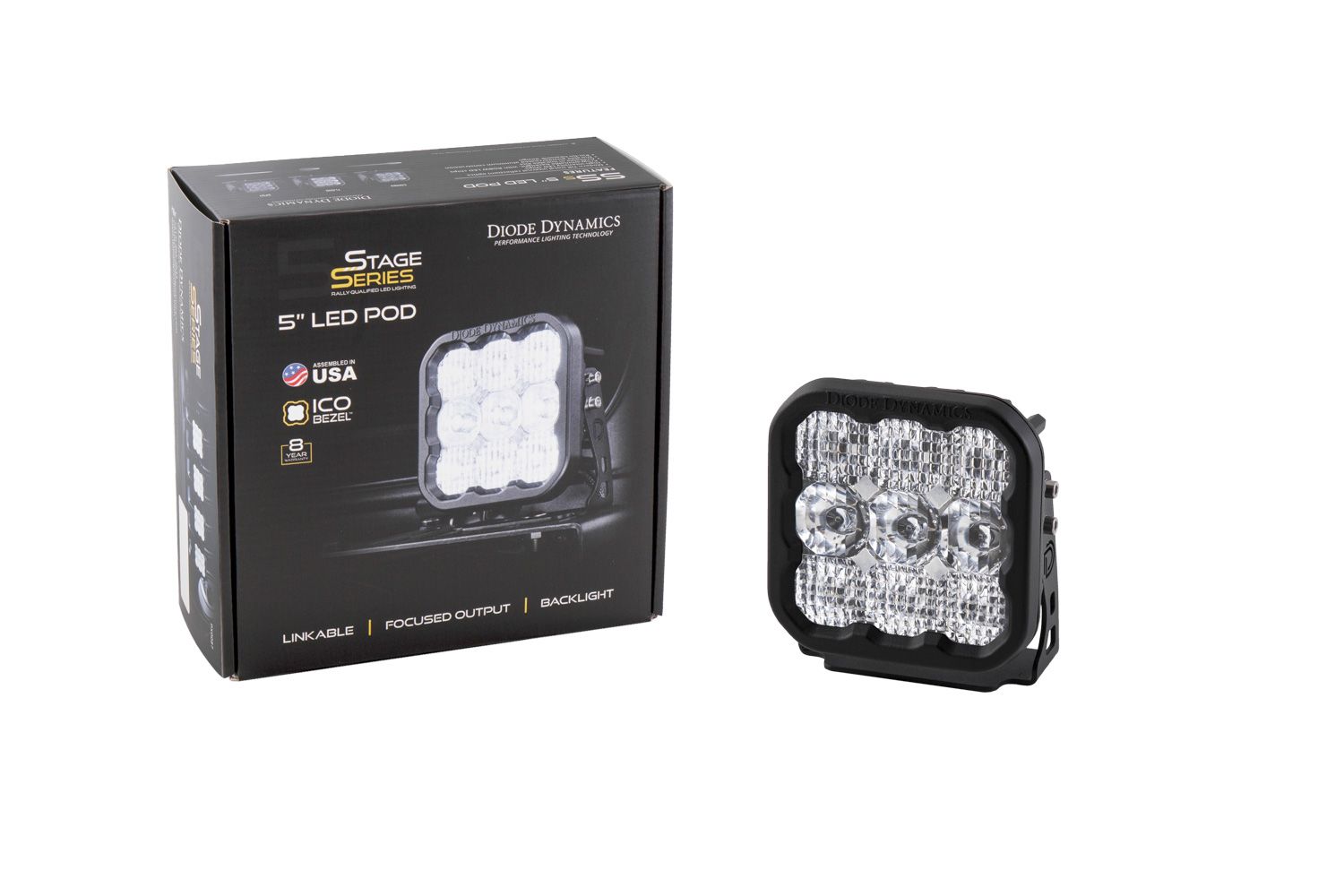

What's in the box 3 ITEMS
One (1) Stage Series 5inch LED Pod
One (1) Deutsch-style wire pigtail
One (1) Mounting bracket and hardware
Optical
Lumens 9700
Color temperature 6000K
Beam spread Driving 20°x8°
Power 90W
Operating voltage 9-16V
Grade Performance
Intensity 170 000 cd
LED emitter Cree XP-L HI
Driver features Constant Current
Construction
Connector Deutsch DT Input
Cooling Passive, Pin-Fin heatsink
Polarity Polarity Specific
Base material Steel
Base color Black
Finish sheen Matte
Bolt thread Medium
Bolt grade High
Install
Drilling No drilling required
Mounting hardware Included
Compliance
IP rating IP69K Waterproof High Pressure
Operating temp -40C to 85C (-40F to 185F)
Country of origin USA
Features & benefits
Engineered TIR (total internal reflection) optics
Selectable backlight color, with eight color options
Built-in linking feature, build up to 50" bar
Torture-tested, heavy-duty construction
Ultra-high intensity
shines almost mile away
Assembled in USA
Description

The Diode Dynamics SS5 Pro LED Pod is a single high-output auxiliary light built for serious off-road and overland use, delivering powerful illumination wherever you need it most. Whether you're pushing deep into the backcountry or working a job site after dark, this pod is engineered to perform in demanding conditions night after night.

Available in Spot, Driving, Combo, and Flood beam patterns, the SS5 Pro gives you the flexibility to configure your lighting setup for your specific needs. Spot throws a tight, long-range beam for high-speed trail riding or open terrain, Driving broadens that reach for general forward visibility, Combo blends both for versatile coverage, and Flood spreads wide area light ideal for camp setups or slow technical terrain.

Custom TIR optics and a pin-fin heatsink design keep output efficient and thermals managed over long runs. If you're building a capable auxiliary lighting rig, the SS5 Pro is a proven foundation to build from.

Documentation
$406.00● In stock
