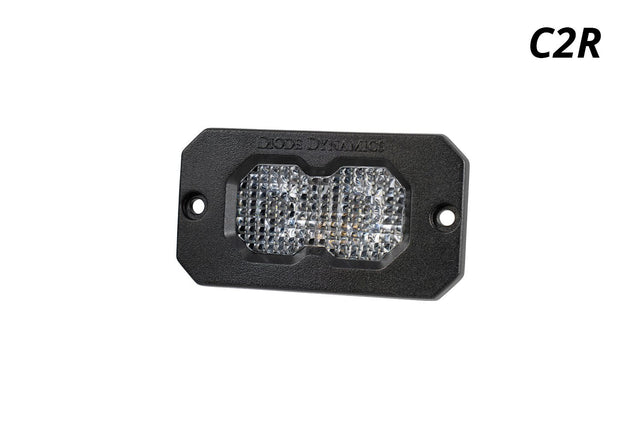

C2R White Flood Flush Mount LED Pod (one)

Diode Dynamics  |  SKU: DD8573S  |  Barcode: 00195995144195
Regular price $193.00 USD
Free shipping Orders $500+
Canadian orders No duties / brokerage
Authorized Diode Dynamics Dealer
Returns 30-day easy

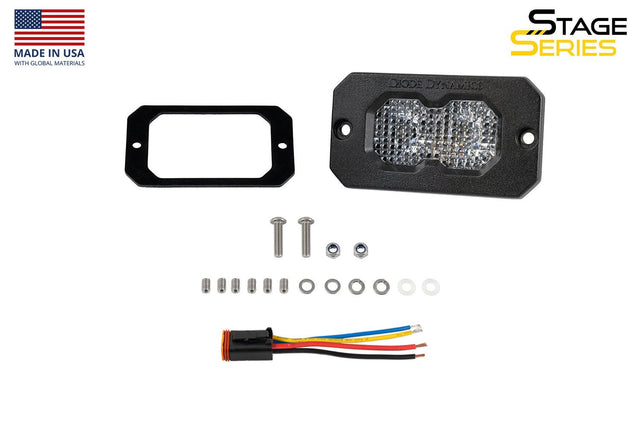

What's in the box 3 ITEMS
One (1) Stage Series C2R LED Pods
One (1) Deutsch-style wire pigtails
One (1) Mounting bracket and hardware
Optical
Color temperature 6000K
Beam spread Flood 80°x50°
Power 18W
Operating voltage 9-30V
Grade Performance
Intensity Reverse: 1800 cd Brake: 250 cd Parking: 12 cd
LED emitter Cree XP-L HI, Osram 1414 Pure
Driver features Constant Current
Construction
Connector Deutsch DT Input
Cooling Passive, Pin-Fin heatsink
Polarity Polarity Specific
Base material Steel
Base color Black
Finish sheen Matte
Bolt thread Medium
Bolt grade High
Install
Drilling No drilling required
Mounting hardware Included
Compliance
IP rating IP69K Waterproof High Pressure
Operating temp -40C to 85C (-40F to 185F)
Country of origin USA
Features & benefits

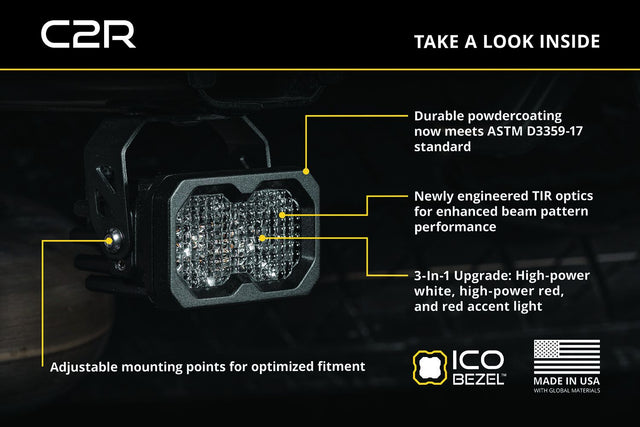

Ultra-compact, flush design for installation on bumpers and truck beds

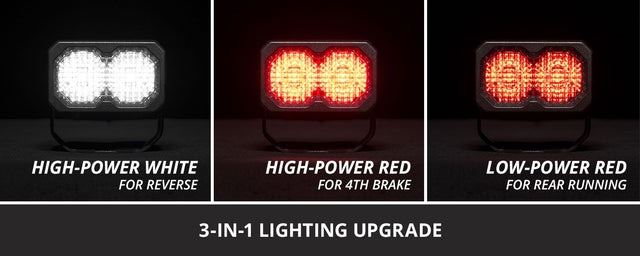

Triple function
high-power white main beam, high-power red main beam, and low-power red accent light
Patented TIR optics for maximum output
Pin-fin heatsink design, for superior thermal dissipation
Limited Lifetime Warranty
Made in USA with Global Materials
Description

The Diode Dynamics C2R White Flood Flush Mount LED Pod is a compact, single-unit off-road light built to throw wide, even illumination across worksites, campsites, trails, or any situation where broad area coverage matters more than reach. Its flood beam pattern fills in the close and mid-range field around your vehicle, making it especially useful as a supplemental light for reversing, recovery, or side-mounted area lighting.

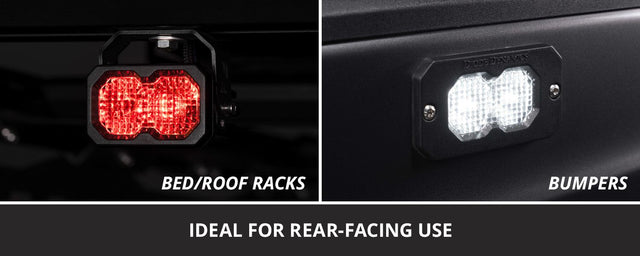

The C2R's flush mount profile keeps it low-profile and clean against any surface, whether you're mounting to a roof rack, bumper, bed rail, or roll cage. Custom-engineered TIR optics paired with high-power LED chips extract strong, usable output from a surprisingly small footprint, and the pin-fin heatsink design keeps thermals in check during extended use.

This listing is for a single pod, giving you the flexibility to add exactly as many lights as your build requires. If you need broad, reliable white flood coverage without bulk, the C2R delivers it in a package that installs cleanly and performs consistently.

Documentation
