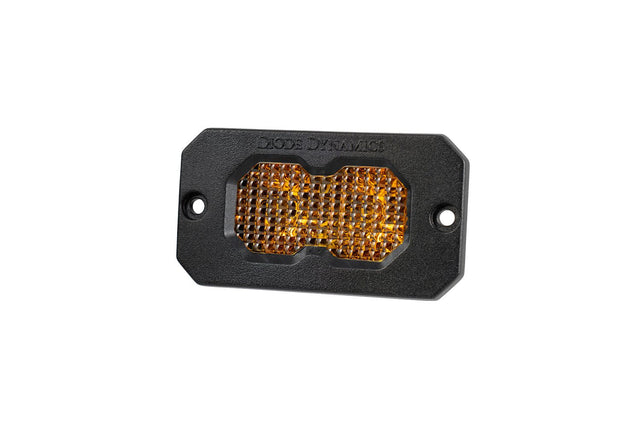

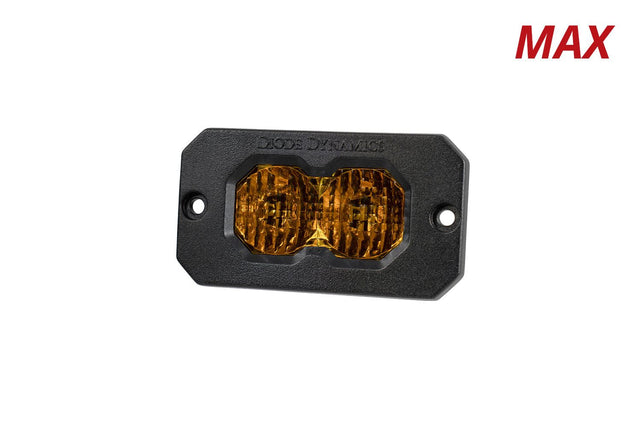

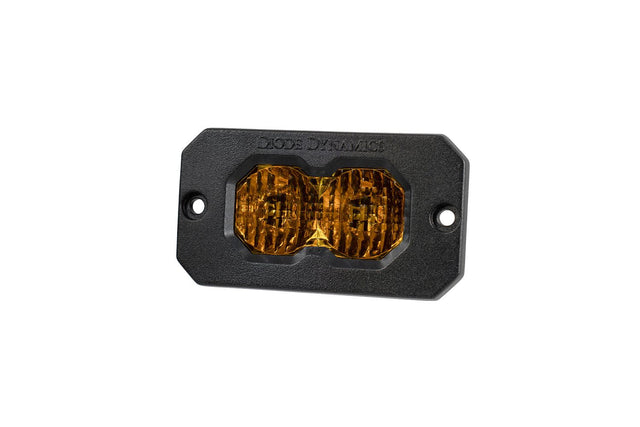

C2 2.0 Yellow Max Flush Mount LED Pod (one)

Diode Dynamics  |  SKU: DD8131S  |  Barcode: 00195995143693
Regular price $244.00 USD
Choose Your Beam Pattern
Free shipping Orders $500+
Canadian orders No duties / brokerage
Authorized Diode Dynamics Dealer
Returns 30-day easy

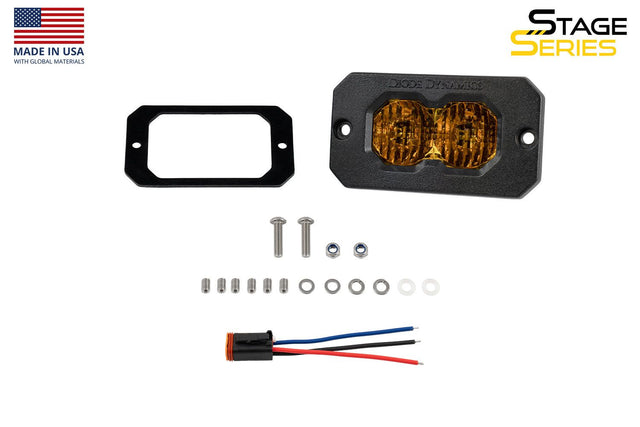

What's in the box 3 ITEMS
One (1) Stage Series C2 2.0 LED Pod
One (1) Deutsch-style wire pigtail
One (1) Mounting bracket and hardware
Optical
Color temperature 3000K

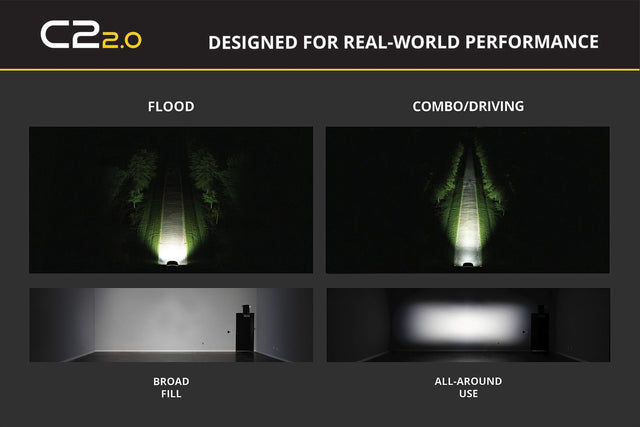

Beam spread Combo/Driving 55°x20°
Power 30W
Operating voltage 9-30V
Grade Performance
Intensity 16 500 cd
LED emitter Osram Boost HX
Driver features Constant Current
Construction
Connector Deutsch DT Input
Cooling Passive, Pin-Fin heatsink
Polarity Polarity Specific
Base material Steel
Base color Black
Finish sheen Matte
Bolt thread Medium
Bolt grade High
Install
Drilling No drilling required
Mounting hardware Included
Compliance
IP rating IP69K Waterproof High Pressure
Operating temp -40C to 85C (-40F to 185F)
Country of origin USA
Features & benefits
Ultra-compact design for tight mounting spots
Patented TIR optics for maximum output
Up to 95% more power than C2 1.0

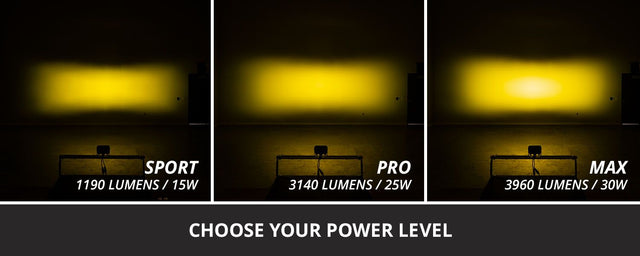

Available in Sport, Pro, and new 3900-lumen Max power levels
Limited Lifetime Warranty
Made in USA with Global Materials
Description

The Diode Dynamics C2 2.0 Yellow Max Flush Mount LED Pod is a compact, high-output auxiliary light built for drivers who need serious illumination in a tight package. Offered in Combo, Driving, and Flood beam patterns, it gives you the flexibility to dial in exactly the right coverage — whether you're pushing light far down a trail, spreading it wide across a work site, or filling in the flanks with area lighting.

The yellow output is purpose-built for low-visibility conditions like fog, dust, and rain, where a warmer wavelength cuts through scatter more effectively than white light. Updated TIR optics and the Max power level represent a significant step up from the previous generation, delivering noticeably more output from the same compact footprint.

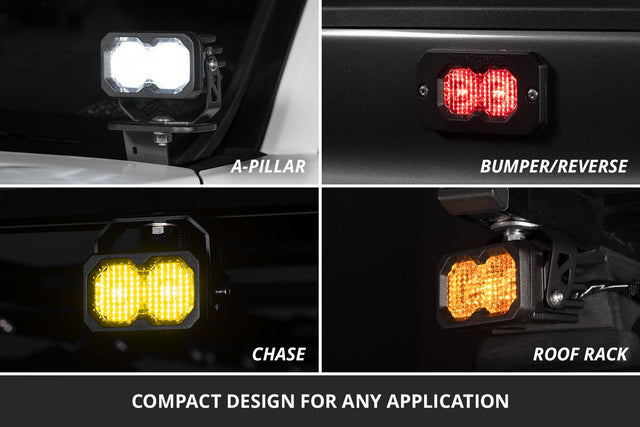

The flush mount housing keeps the profile clean and low-profile, and the interlinking design lets you run multiple pods together for a cohesive, scalable setup. This pod suits truck, Jeep, and UTV builds where mounting space is tight but output demands are high.

Documentation
$244.00● In stock
