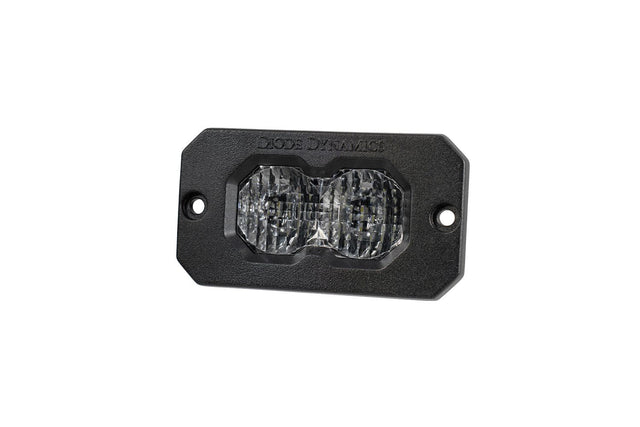

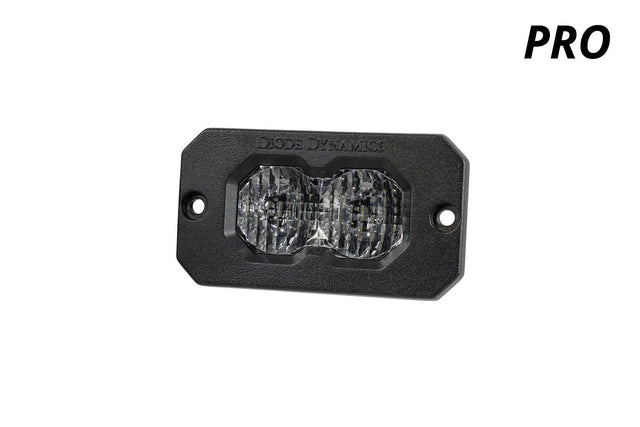

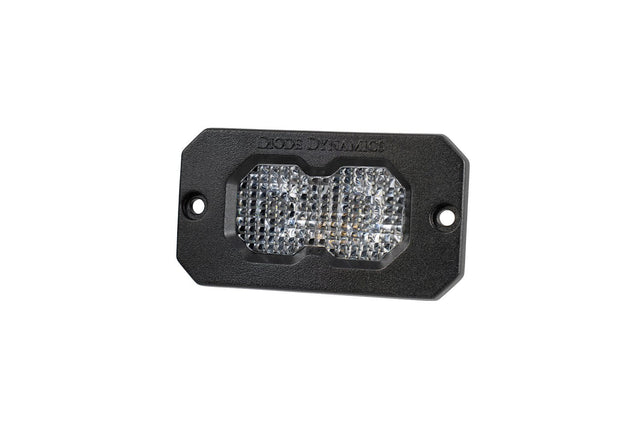

C2 2.0 White Pro Flush Mount LED Pod (one)

Diode Dynamics  |  SKU: DD8126S  |  Barcode: 00195995143501
Regular price $173.00 USD
Choose Your Beam Pattern
Free shipping Orders $500+
Canadian orders No duties / brokerage
Authorized Diode Dynamics Dealer
Returns 30-day easy

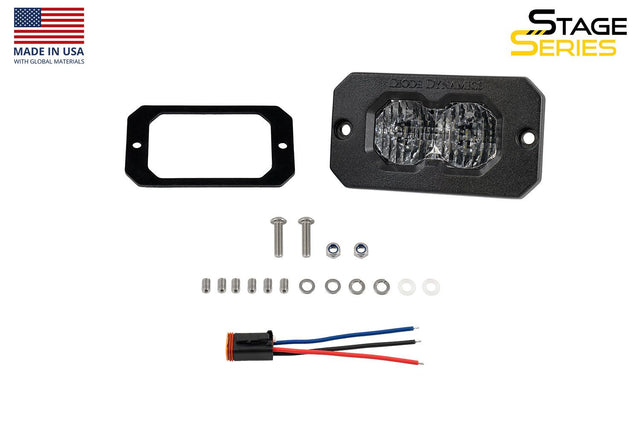

What's in the box 3 ITEMS
One (1) Stage Series C2 2.0 LED Pod
One (1) Deutsch-style wire pigtail
One (1) Mounting bracket and hardware
Optical
Color temperature 6000K
Beam spread Combo/Driving 55°x20°
Power 23W
Operating voltage 9-30V
Grade Performance
Intensity 20 000 cd
LED emitter Osram Ostar Projection Compact
Driver features Constant Current
Construction
Connector Deutsch DT Input
Cooling Passive, Pin-Fin heatsink
Polarity Polarity Specific
Base material Steel
Base color Black
Finish sheen Matte
Bolt thread Medium
Bolt grade High
Install
Drilling No drilling required
Mounting hardware Included
Compliance
IP rating IP69K Waterproof High Pressure
Operating temp -40C to 85C (-40F to 185F)
Country of origin USA
Features & benefits
Ultra-compact design for tight mounting spots
Patented TIR optics for maximum output
Up to 95% more power than C2 1.0

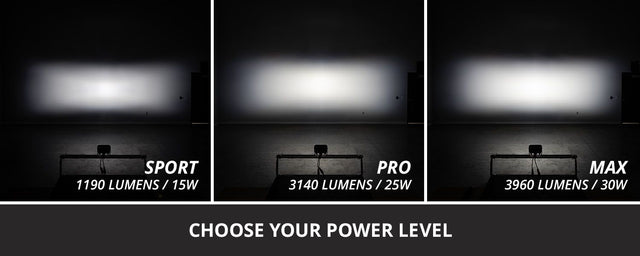

Available in Sport, Pro, and new 3900-lumen Max power levels
Limited Lifetime Warranty
Made in USA with Global Materials
Description

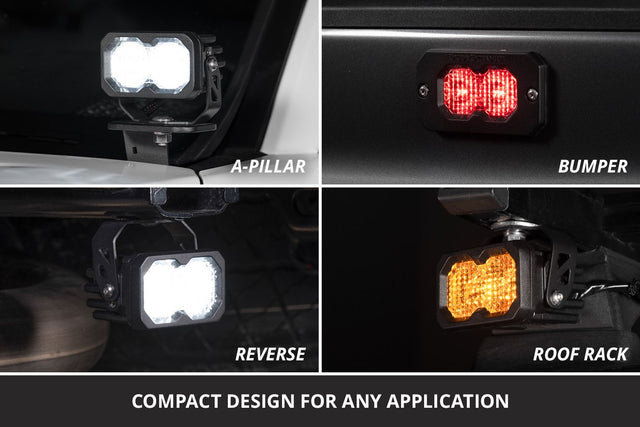

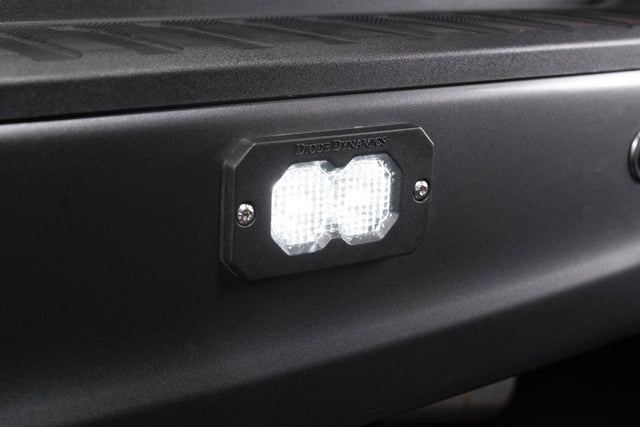

The Diode Dynamics C2 2.0 Pro Flush Mount LED Pod is a compact, high-output single light built for drivers who need serious illumination in a tight package. Whether you're mounting it behind a grille, on a bumper, or tucked into a custom bracket, its flush profile keeps your build clean without sacrificing performance.

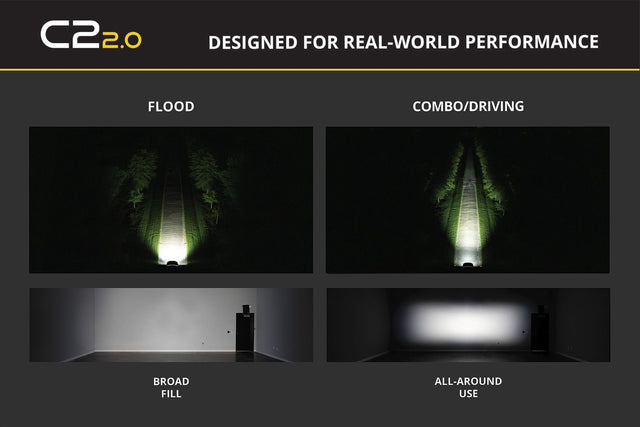

Available in Combo, Driving, and Flood beam patterns, you can tailor this pod to exactly what your rig demands. Driving pushes light far down the trail or road ahead, Flood spreads wide coverage for work sites and camp setups, and Combo gives you a balanced mix of throw and spread — a solid all-purpose choice.

Built on updated TIR optics and a refreshed housing that lets you link multiple pods together, the C2 2.0 is a significant step forward from its predecessor. It suits off-road enthusiasts, work truck operators, and anyone who wants dependable auxiliary lighting that fits where other pods won't.

Documentation
$173.00● In stock
