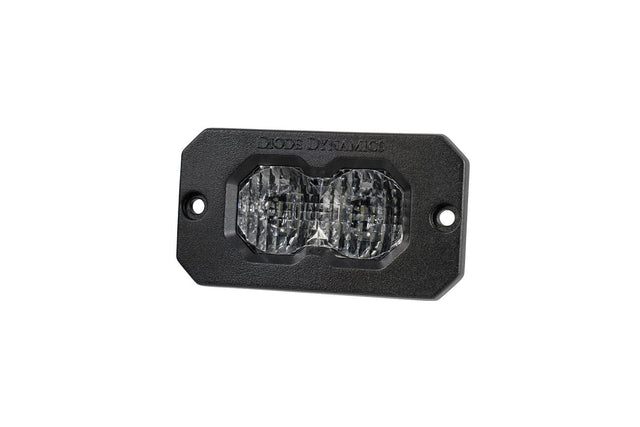

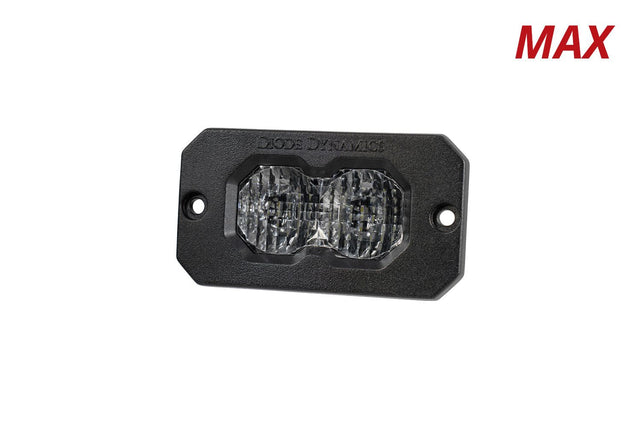

C2 2.0 White Max Flush Mount LED Pod (one)

Diode Dynamics  |  SKU: DD8130S  |  Barcode: 00195995143648
Regular price $244.00 USD
Choose Your Beam Pattern
Free shipping Orders $500+
Canadian orders No duties / brokerage
Authorized Diode Dynamics Dealer
Returns 30-day easy

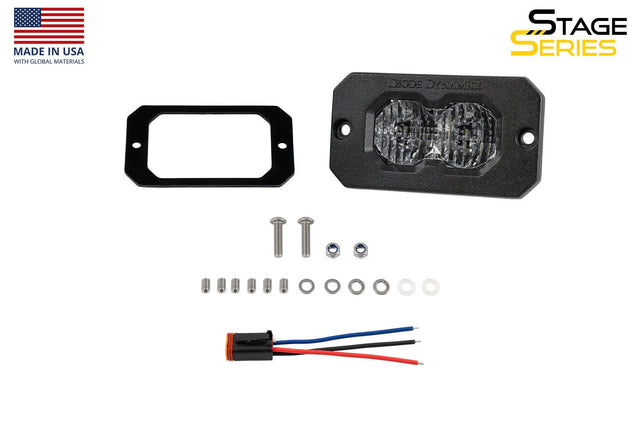

What's in the box 3 ITEMS
One (1) Stage Series C2 2.0 LED Pod
One (1) Deutsch-style wire pigtail
One (1) Mounting bracket and hardware
Optical
Color temperature 6000K
Beam spread Combo/Driving 55°x20°
Power 30W
Operating voltage 9-30V
Grade Performance
Intensity 23 000 cd
LED emitter Osram Boost HX
Driver features Constant Current
Construction
Connector Deutsch DT Input
Cooling Passive, Pin-Fin heatsink
Polarity Polarity Specific
Base material Steel
Base color Black
Finish sheen Matte
Bolt thread Medium
Bolt grade High
Install
Drilling No drilling required
Mounting hardware Included
Compliance
IP rating IP69K Waterproof High Pressure
Operating temp -40C to 85C (-40F to 185F)
Country of origin USA
Features & benefits

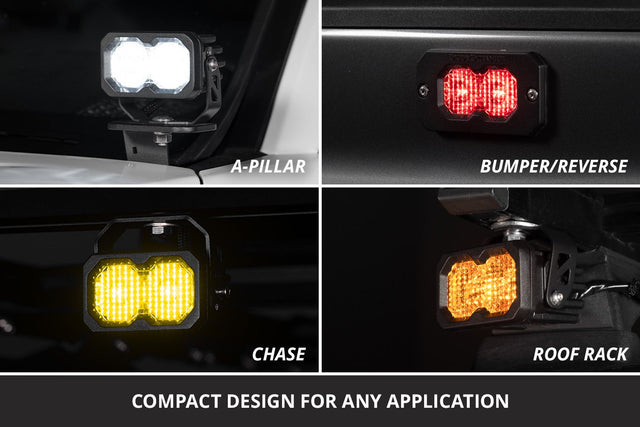

Ultra-compact design for tight mounting spots
Patented TIR optics for maximum output
Up to 95% more power than C2 1.0
Available in Sport, Pro, and new 3900-lumen Max power levels
Limited Lifetime Warranty
Made in USA with Global Materials
Description

The Diode Dynamics C2 2.0 Max is a flush-mount LED pod built for drivers who need serious output in a compact, low-profile package — ideal for off-road, work, or auxiliary lighting setups where space is tight and performance matters.

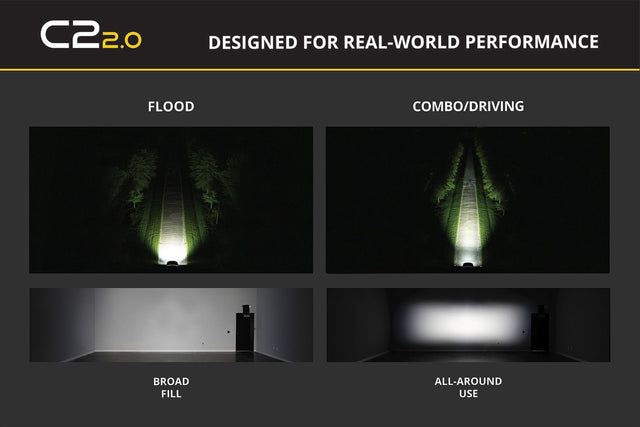

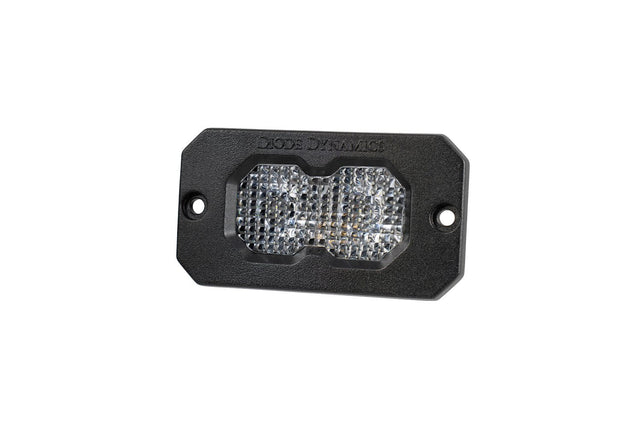

This generation of the C2 brings a significant jump in output over its predecessor, thanks to updated TIR optics that concentrate light efficiently for your chosen application. Whether you need tight, far-reaching illumination for high-speed trail runs, a broad spread for camp or worksite coverage, or a balanced mix for everyday trail use, the C2 2.0 Max is available in Driving, Flood, and Combo beam patterns — choose the one that fits how and where you ride.

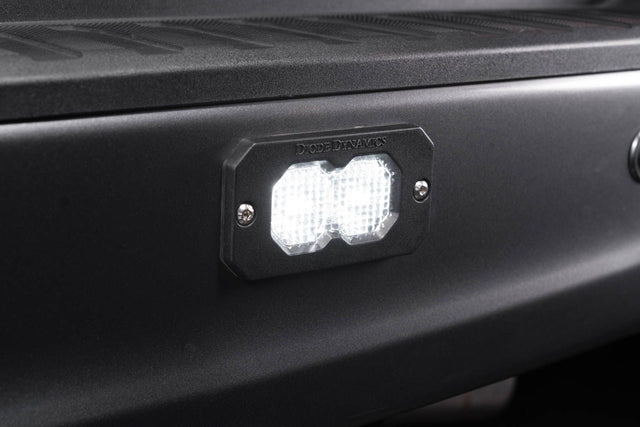

The refreshed housing is designed to link multiple pods together, making it easy to build out a clean, modular lighting array. If you're building a bumper, roll cage, or roof setup and need a light that punches hard without taking up real estate, the C2 2.0 Max delivers.

Documentation
$244.00● In stock
