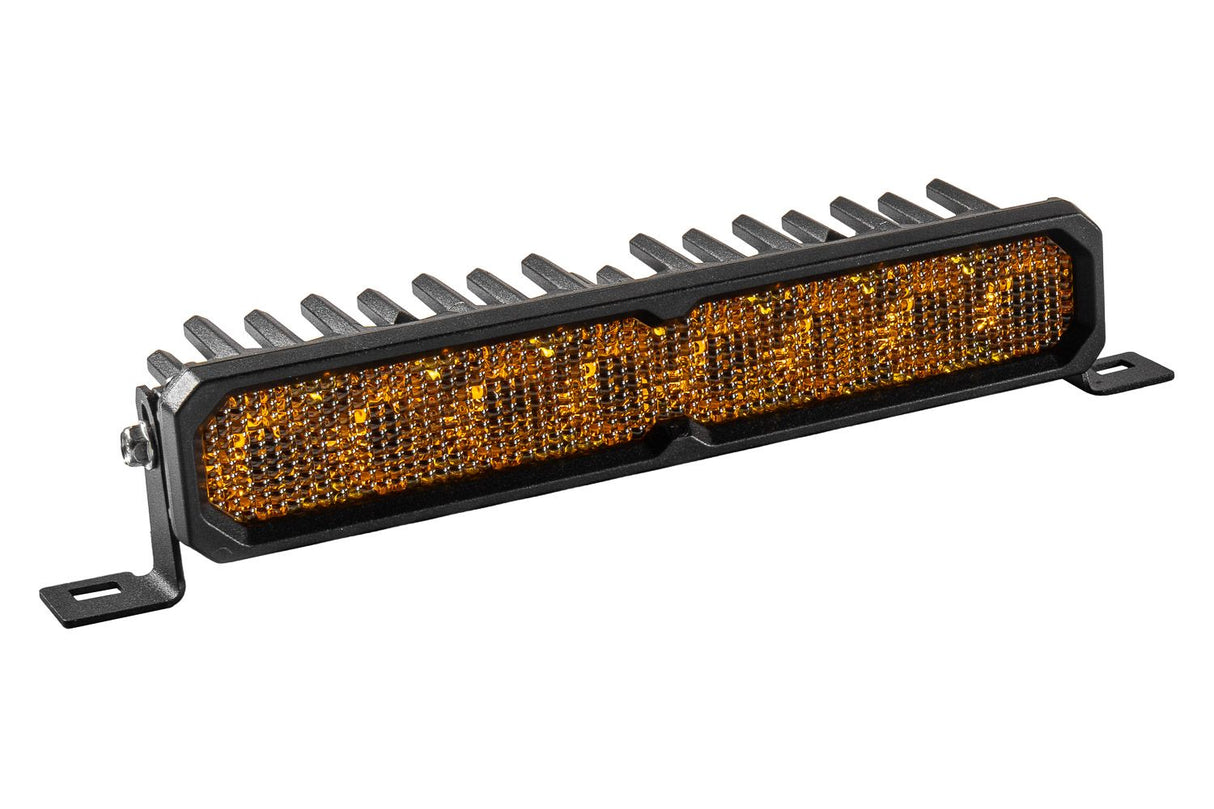

SS10 SAE/DOT Yellow LED Light Bar (one)

Diode Dynamics  |  SKU: DD8185  |  Barcode: 00195995140357
Regular price $253.00 USD
Choose Your Beam Pattern
Choose Your Power Level
Free shipping Orders $500+
Canadian orders No duties / brokerage
Authorized Diode Dynamics Dealer
Returns 30-day easy
Optional add-ons 2 AVAILABLE
What's in the box 3 ITEMS
One (1) LED light bar
One (1) wire pigtail
Universal bracket set
Optical
Color temperature 3000K
Beam spread Combo/Driving 60°x30°
Power 40W
Operating voltage 9-30V
Intensity 16 500 cd
LED emitter Osram Boost HX
Construction
Connector Deutsch DT Input
Cooling Passive, heatsink
Polarity Polarity Specific
Compliance
IP rating IP69K Waterproof High Pressure
Operating temp -40C to 85C (-40F to 185F)
Country of origin USA

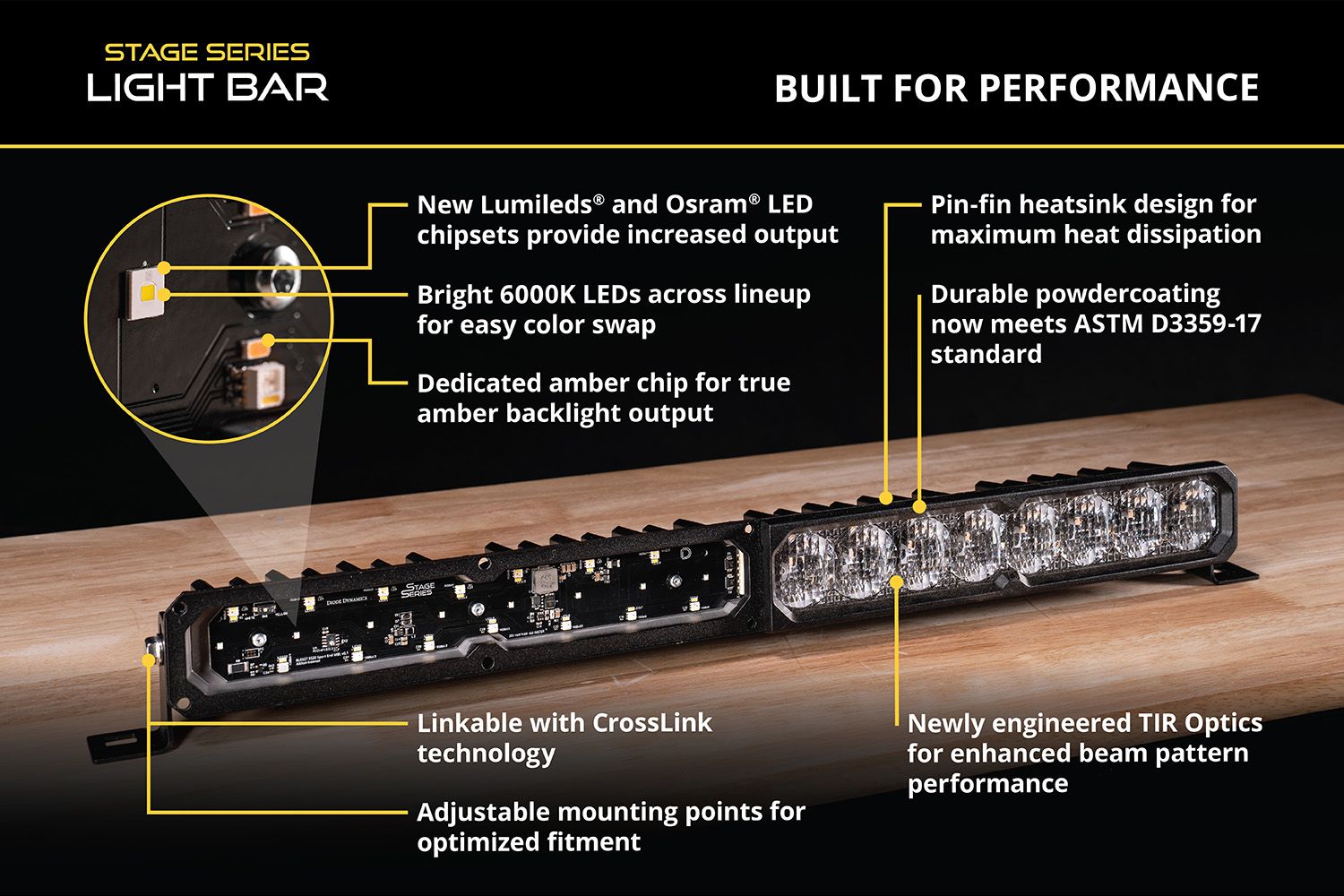

Features & benefits
Patented TIR Optics for maximum efficiency and output.
Upgraded beam patterns engineered for real-world performance.

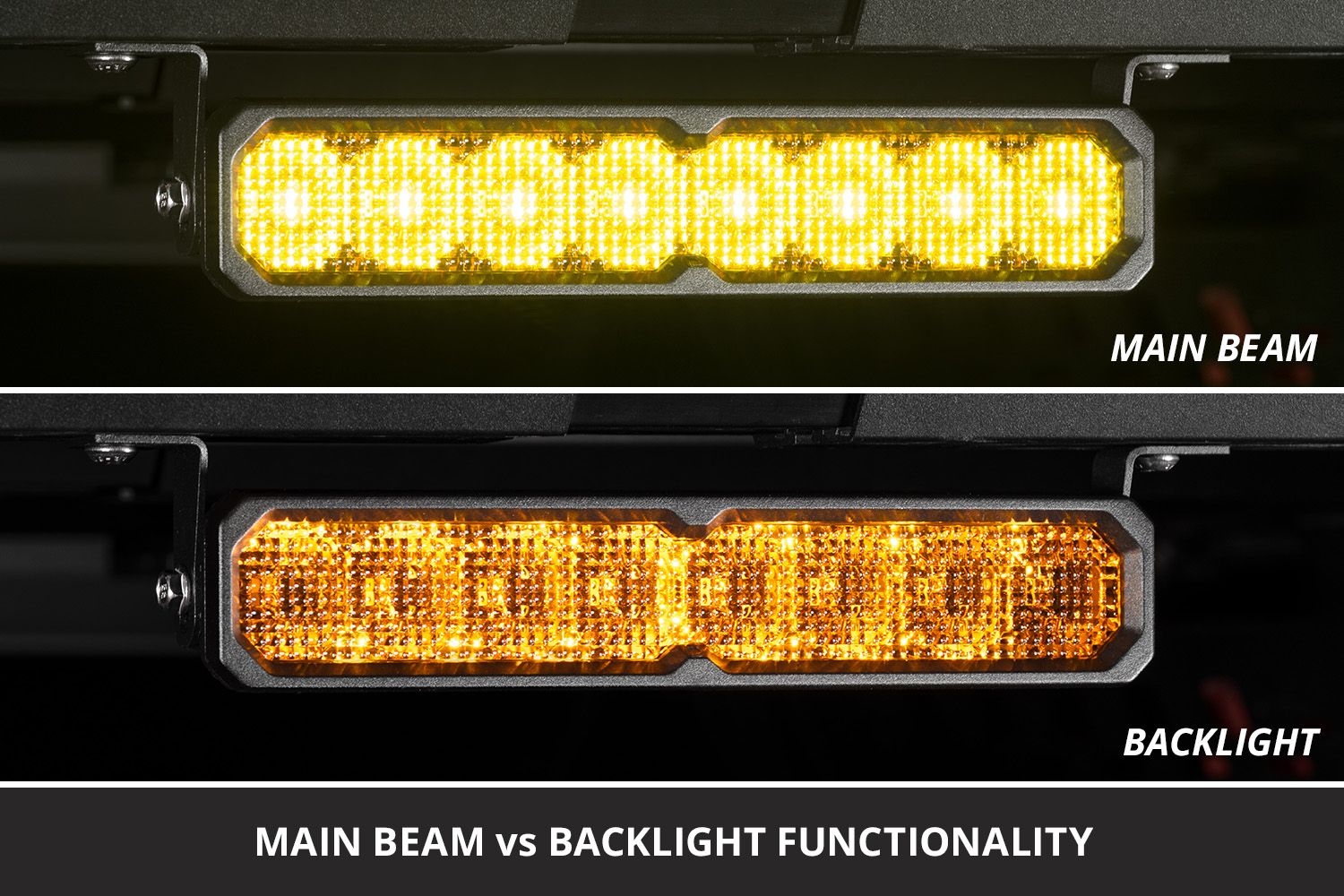

True amber backlight provides unique accent lighting.
Now available in Sport, Pro, and Max power levels.
Durable aluminum housing with ASTM-standard powdercoat finish.
Built for the extreme with IP69K waterproof rating.
Limited Lifetime Warranty.
Made in USA with Global Materials.
Description

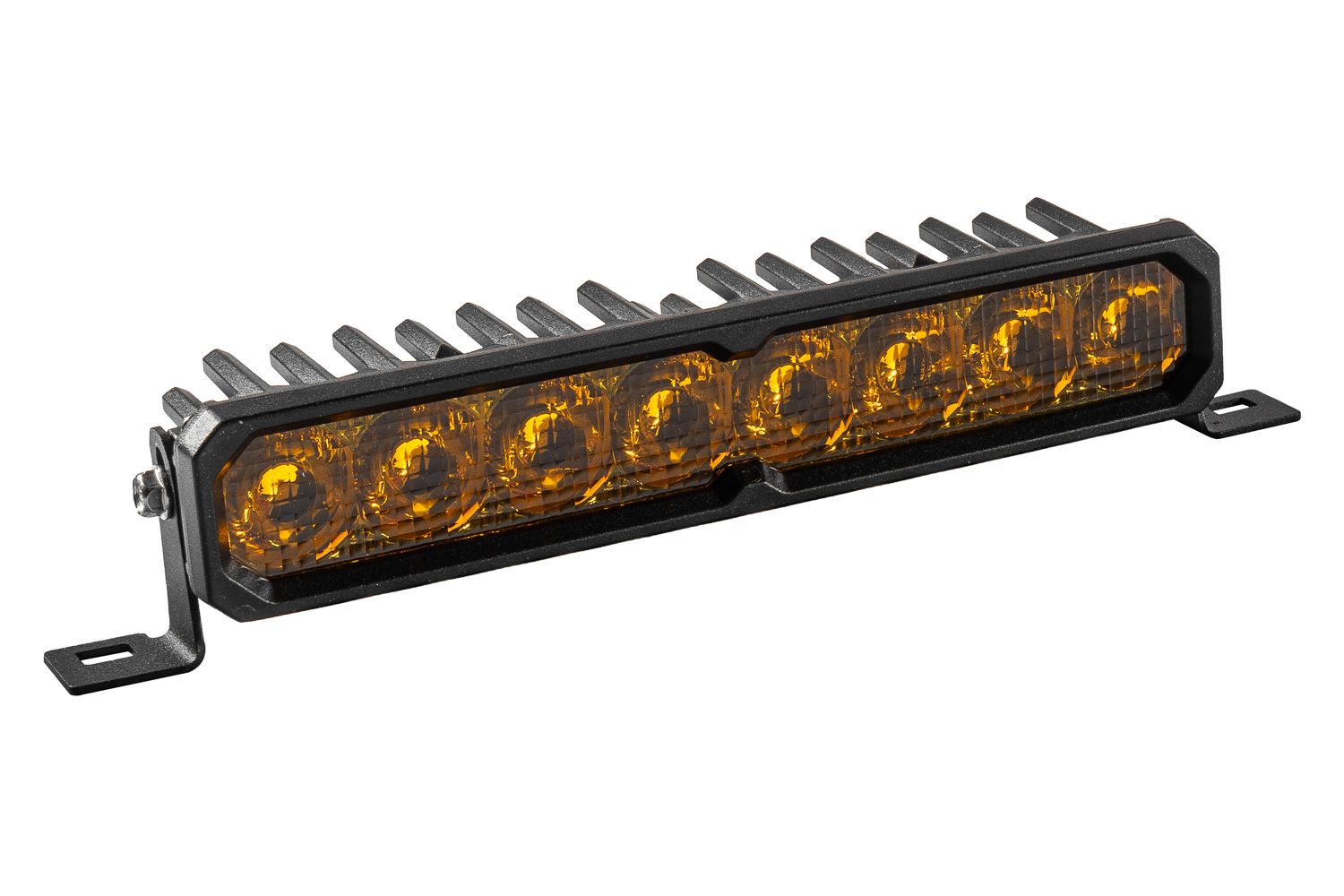

The Diode Dynamics SS10 SAE/DOT Yellow LED Light Bar is a single, compact amber light bar built for drivers who need compliant, high-visibility forward lighting in adverse conditions — fog, rain, dust, and snow. The yellow output cuts through precipitation scatter far more effectively than white light, making it a strong choice for any truck, Jeep, or UTV operator who regularly works or wheels in low-visibility environments.

You choose the beam pattern and power level to match your specific need: Spot, Driving, SAE Driving, Combo, and Flood beam options cover everything from tight long-range throw to wide area coverage, while Sport, Pro, and Max output levels let you match the bar's intensity to your build and use case. SAE/DOT-compliant variants make road-legal mounting straightforward where regulations matter.

Patented TIR optics keep output efficient and focused regardless of which configuration you select, and the housing is built to handle genuine off-road abuse. Whether you're mounting it behind a grille, on a bumper, or overhead, the SS10 yellow delivers purposeful light exactly where you need it.

Documentation
$253.00● In stock
