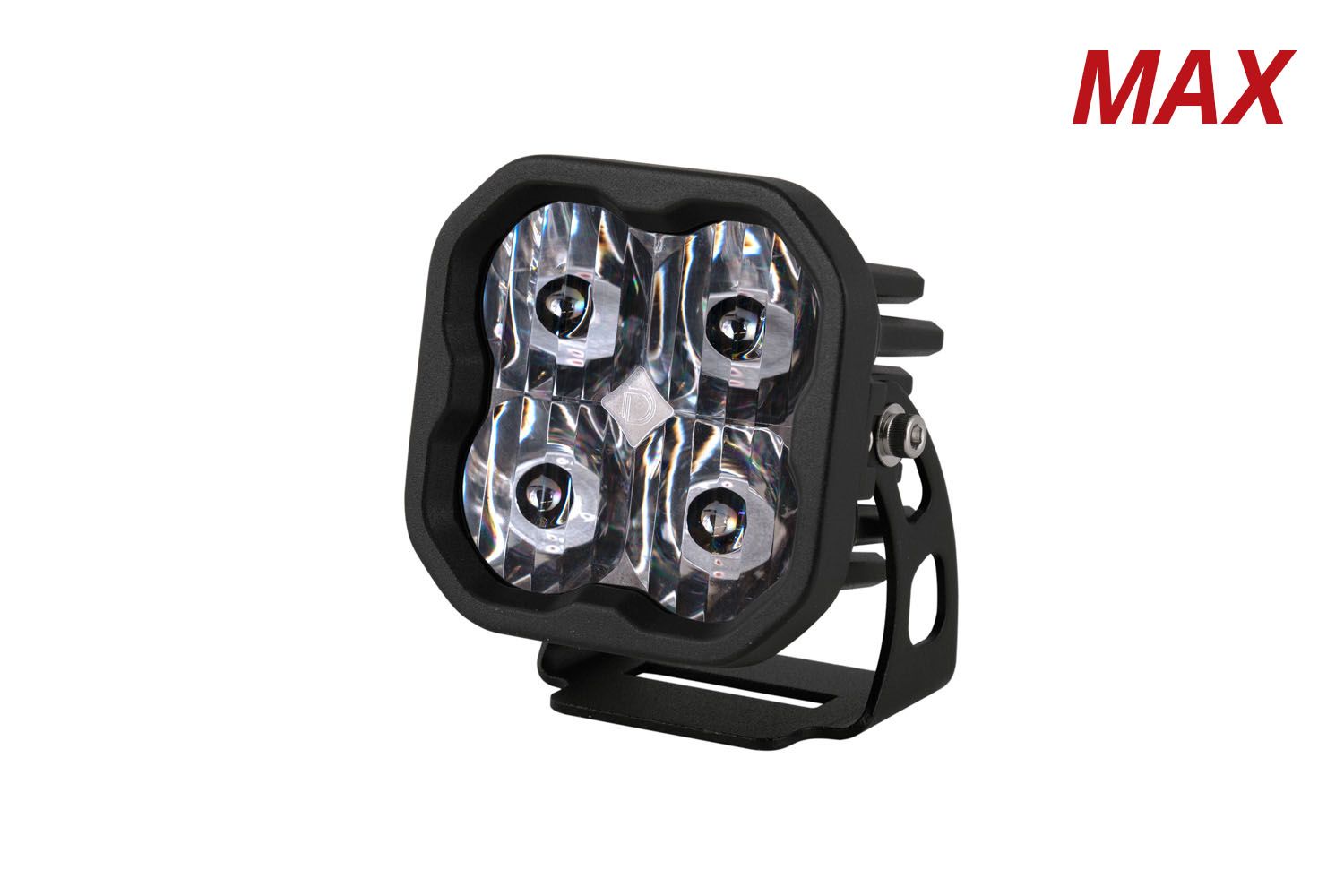

SS3 SAE White Max LED Pod (one)

Diode Dynamics  |  SKU: DD6895S  |  Barcode: 00691025931969
Regular price $316.00 USD
Choose Your Beam Pattern
Backlight ColourBacklight Colour
Free shipping Orders $500+
Canadian orders No duties / brokerage
Authorized Diode Dynamics Dealer
Returns 30-day easy

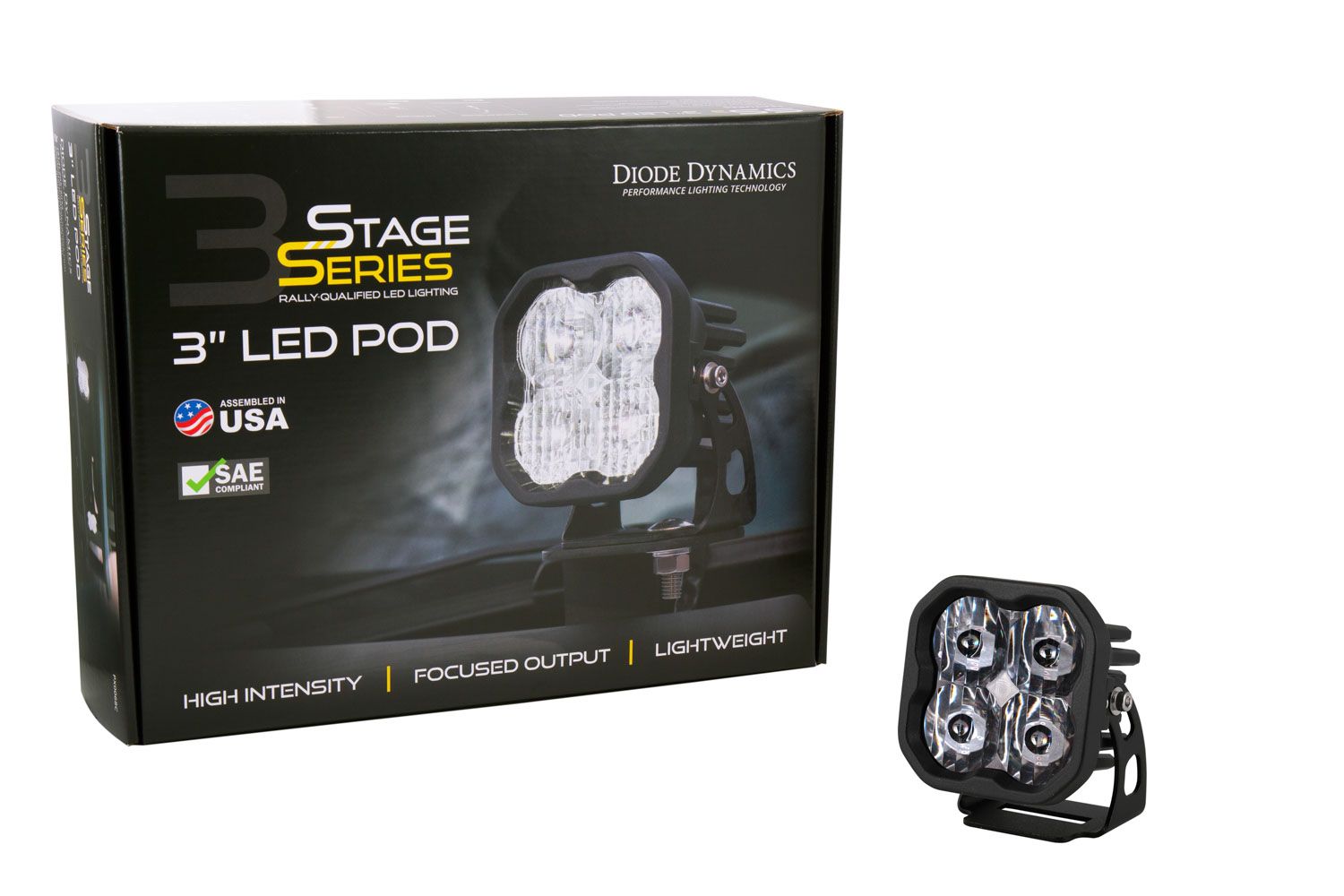

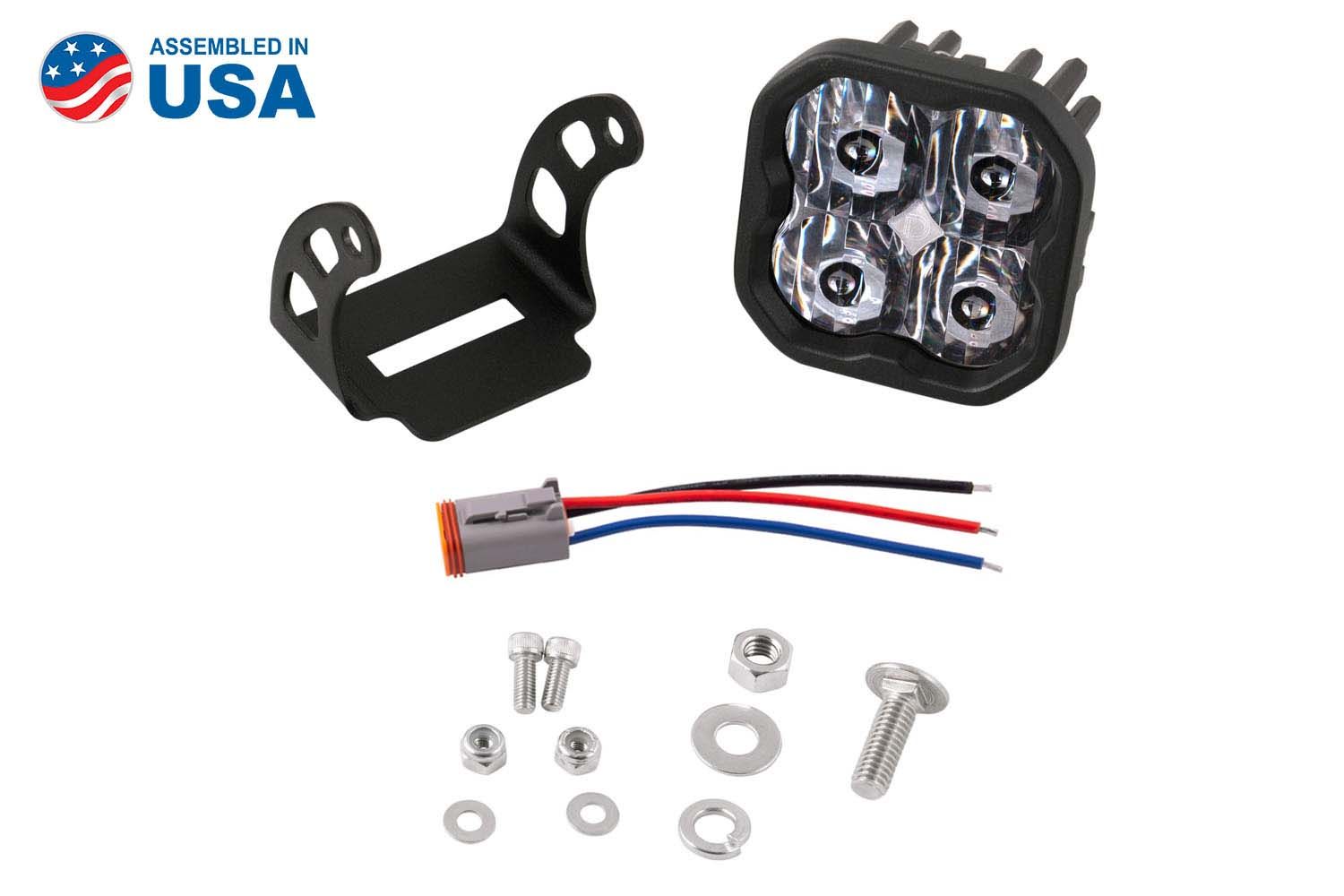

What's in the box 3 ITEMS
One (1) SS3 3” LED Pod
One (1) Deutsch-style wire pigtail
One (1) Mounting bracket and hardware
Optical
Lumens 3500
Color temperature 6000K
Beam spread Driving 20°x8°
Power 38W
Operating voltage 9-30V
Grade Performance
Intensity 98 000 cd
LED emitter Osram Boost HX
Construction
Connector Deutsch DT Input
Cooling Passive, Pin-Fin heatsink
Polarity Polarity Specific
Base material Steel
Base color Black
Finish sheen Matte
Bolt thread Medium
Bolt grade High
Install
Drilling No drilling required
Mounting hardware Included
Compliance
IP rating IP69K Waterproof High Pressure
Operating temp -40C to 85C (-40F to 185F)
Country of origin USA
Features & benefits
Modern TIR optics provide highest intensity on the market

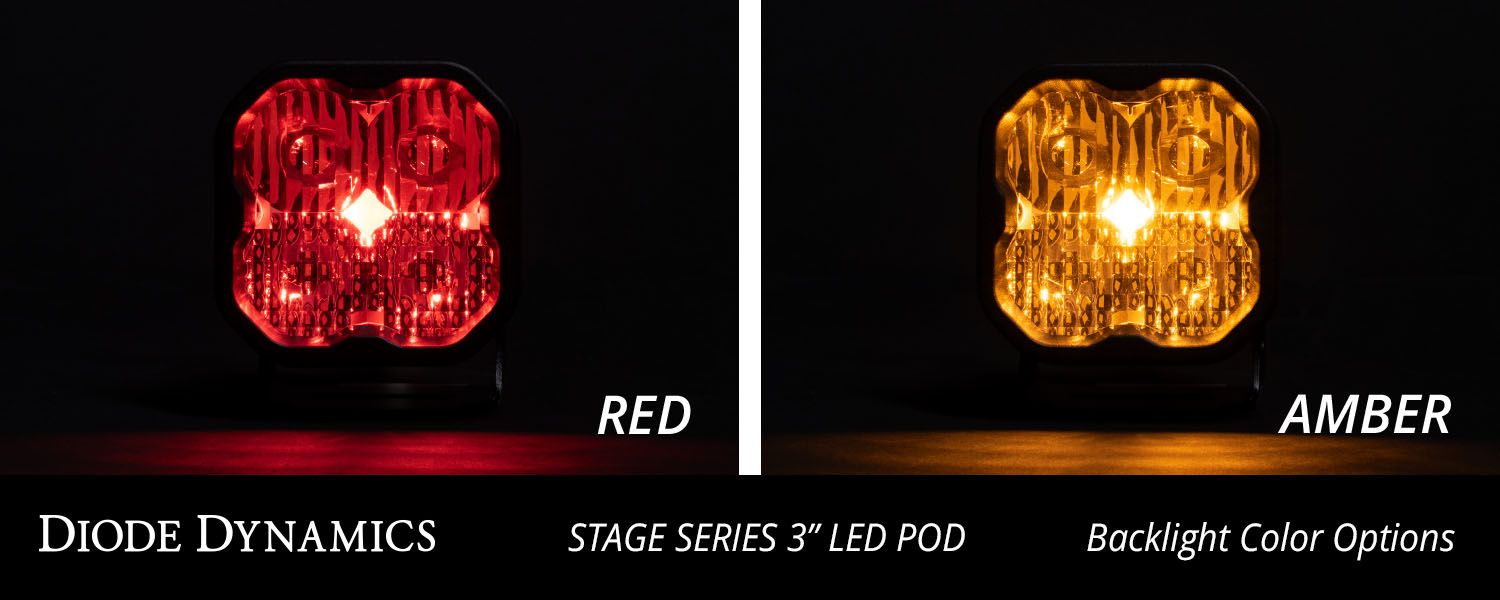

Backlight accent feature, available in amber or red

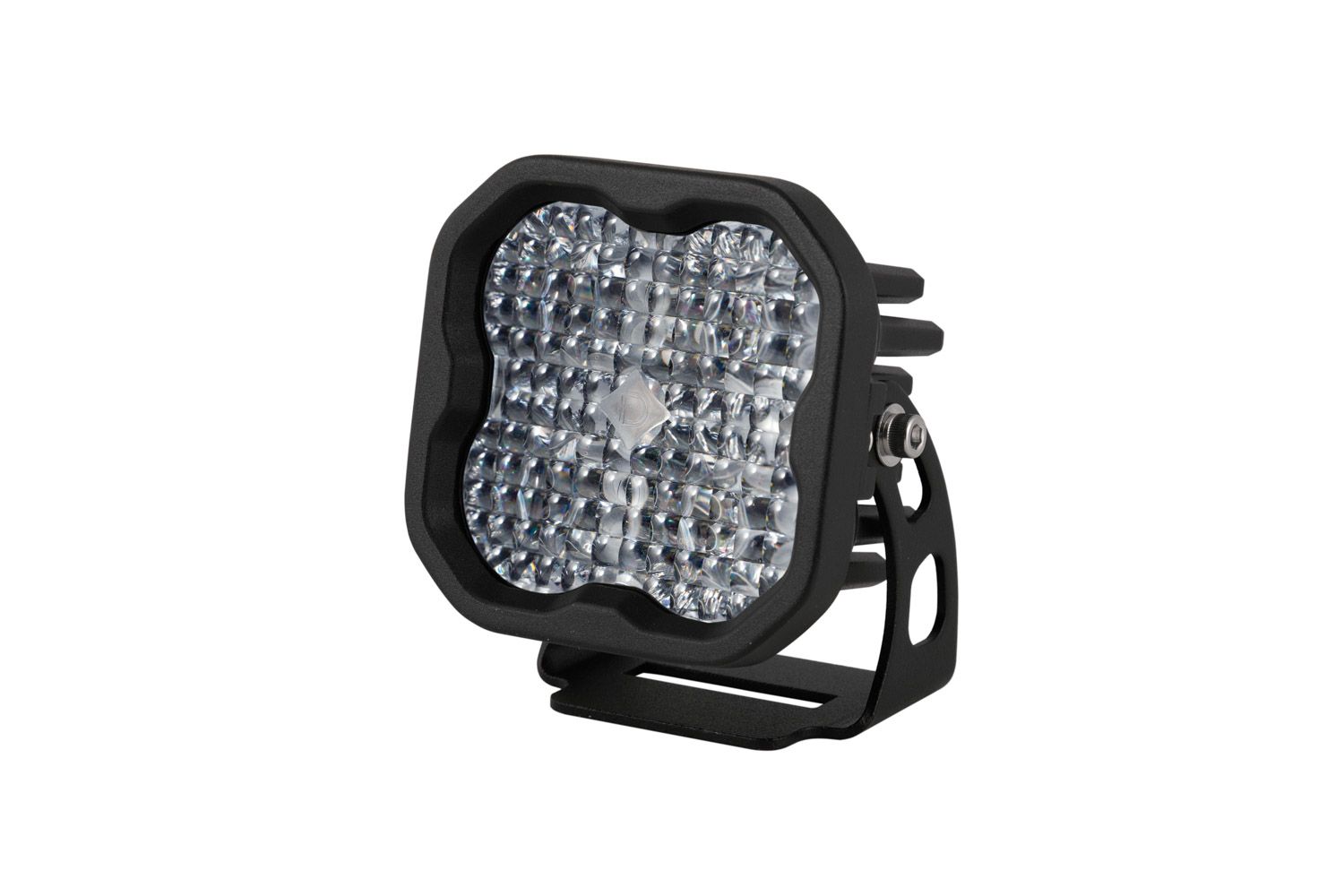

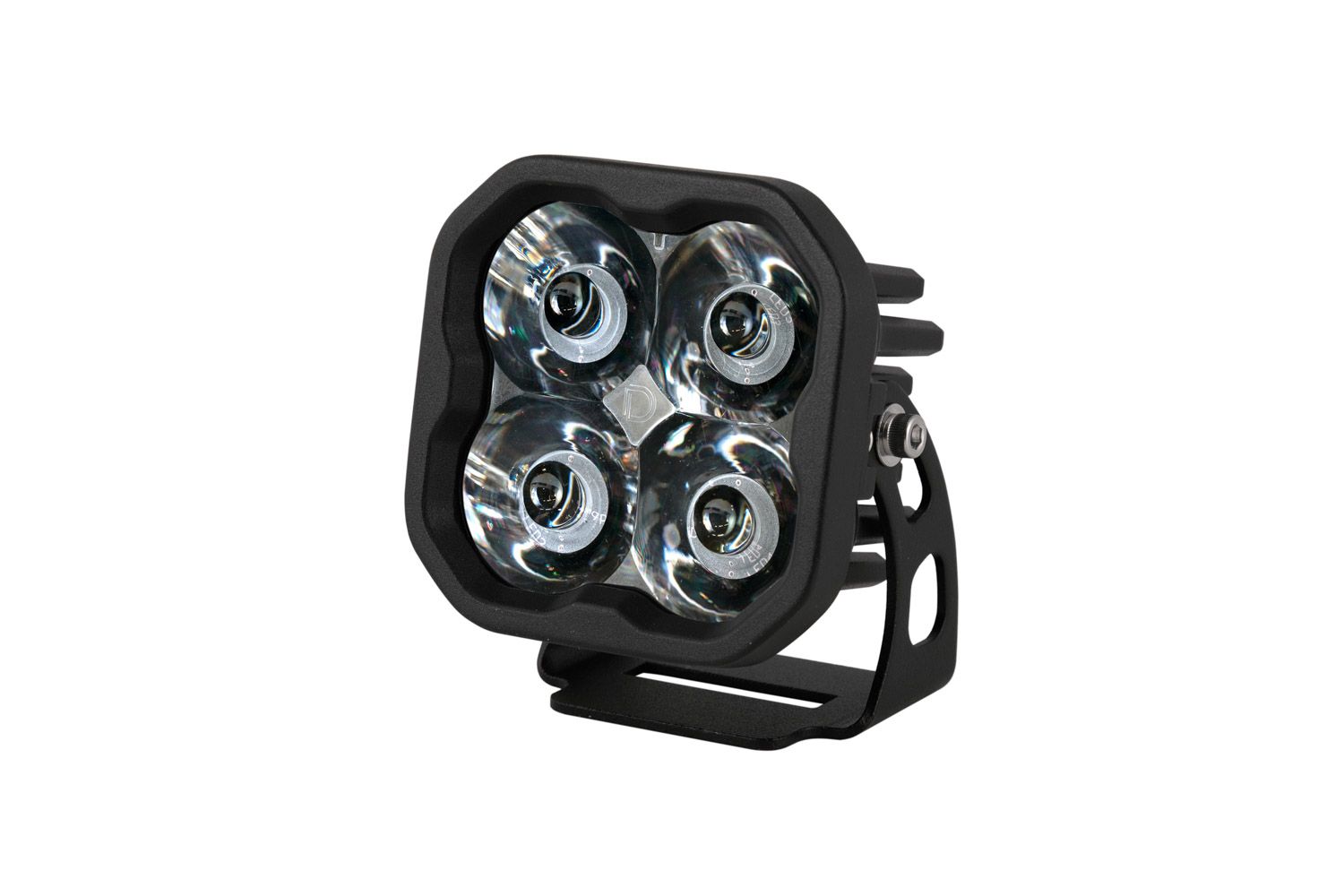

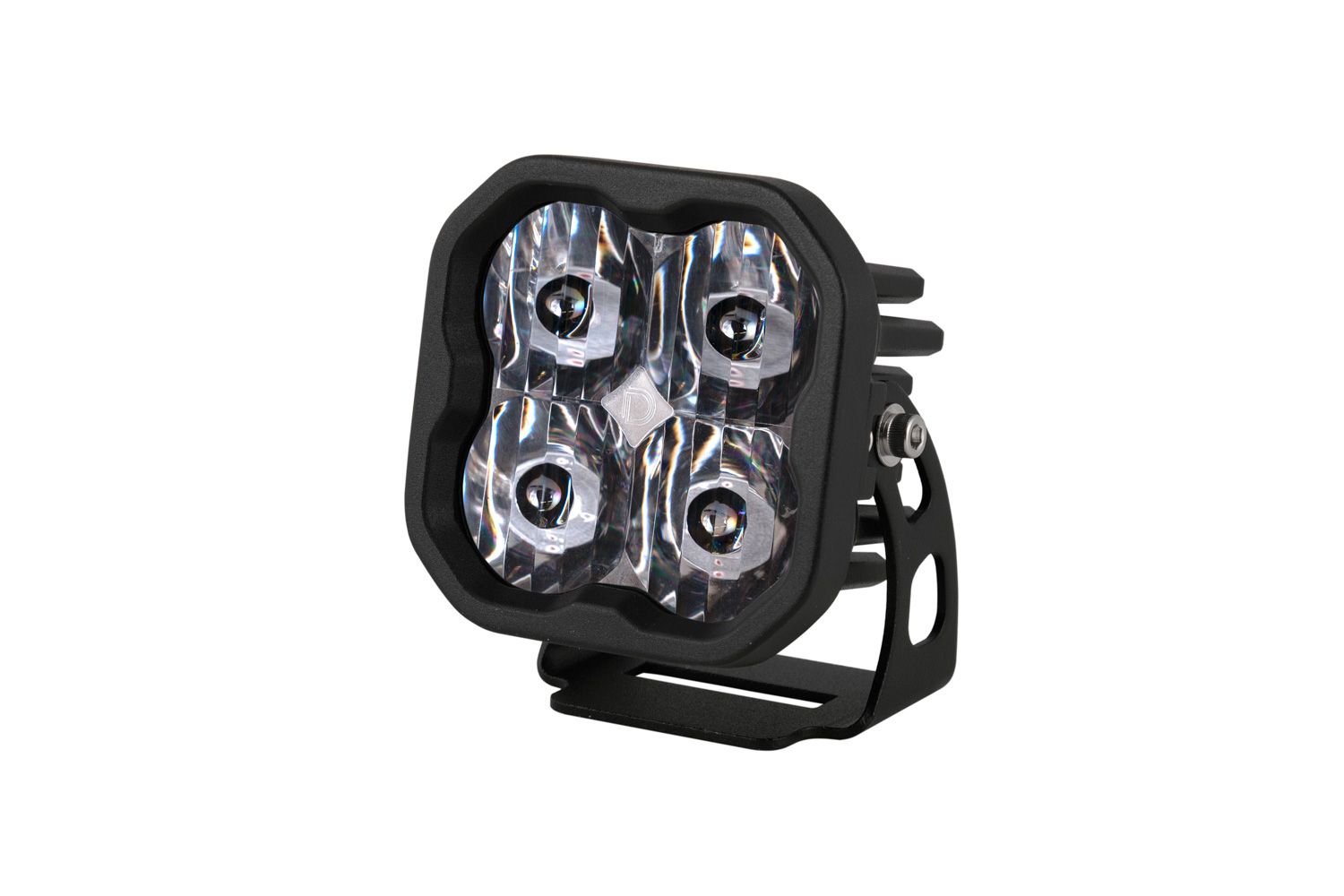

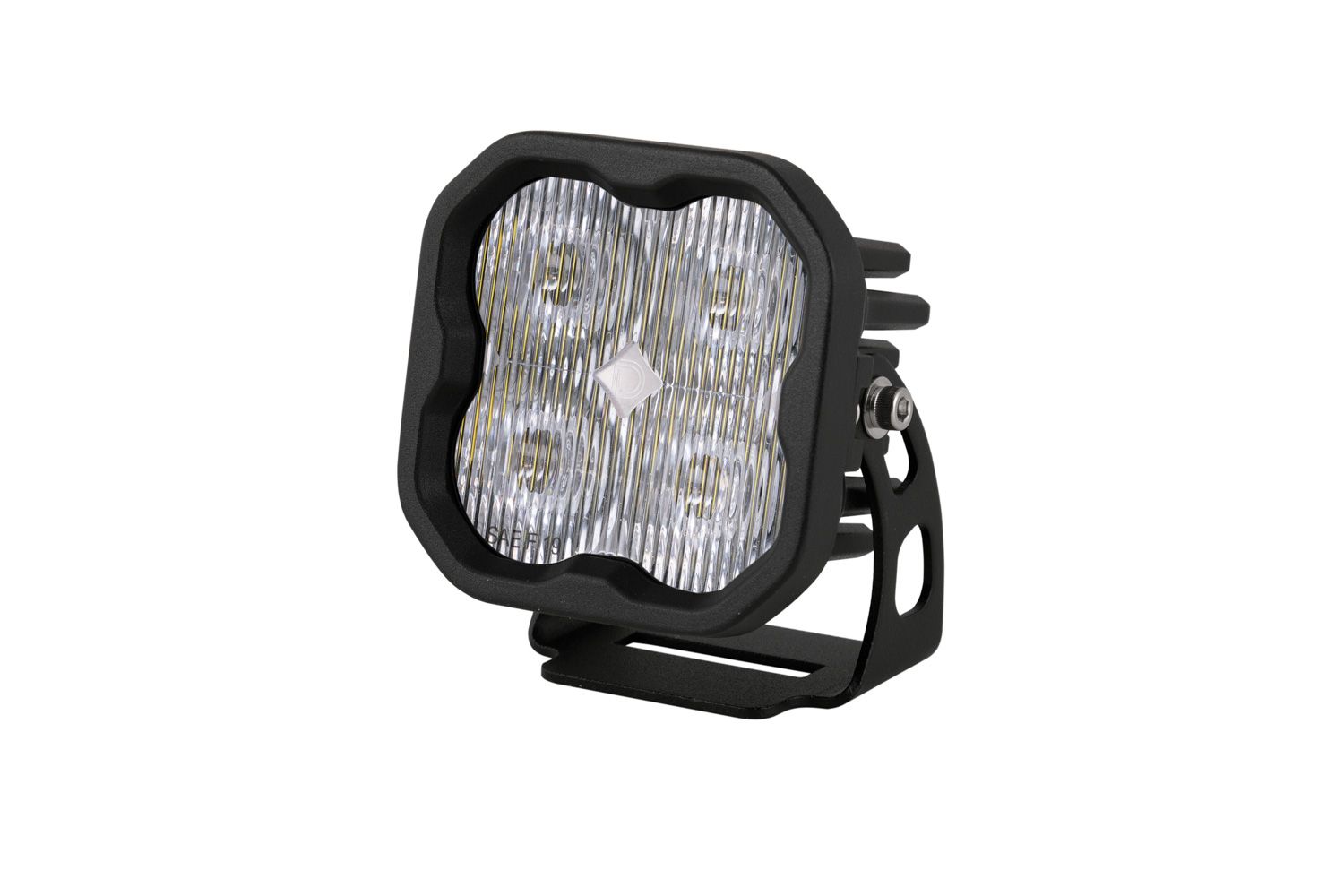

Available in SAE Driving, SAE Fog, Flood, Combo/Driving, or Spot beam patterns
Durable powdercoated aluminum construction
Integrated Deutsch-style connector
Made in USA with global materials.
Description

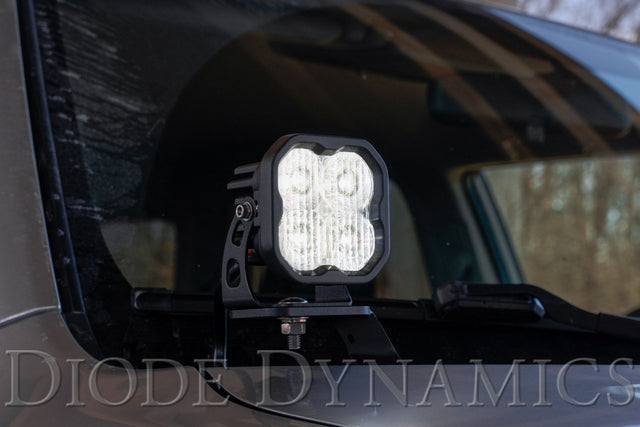

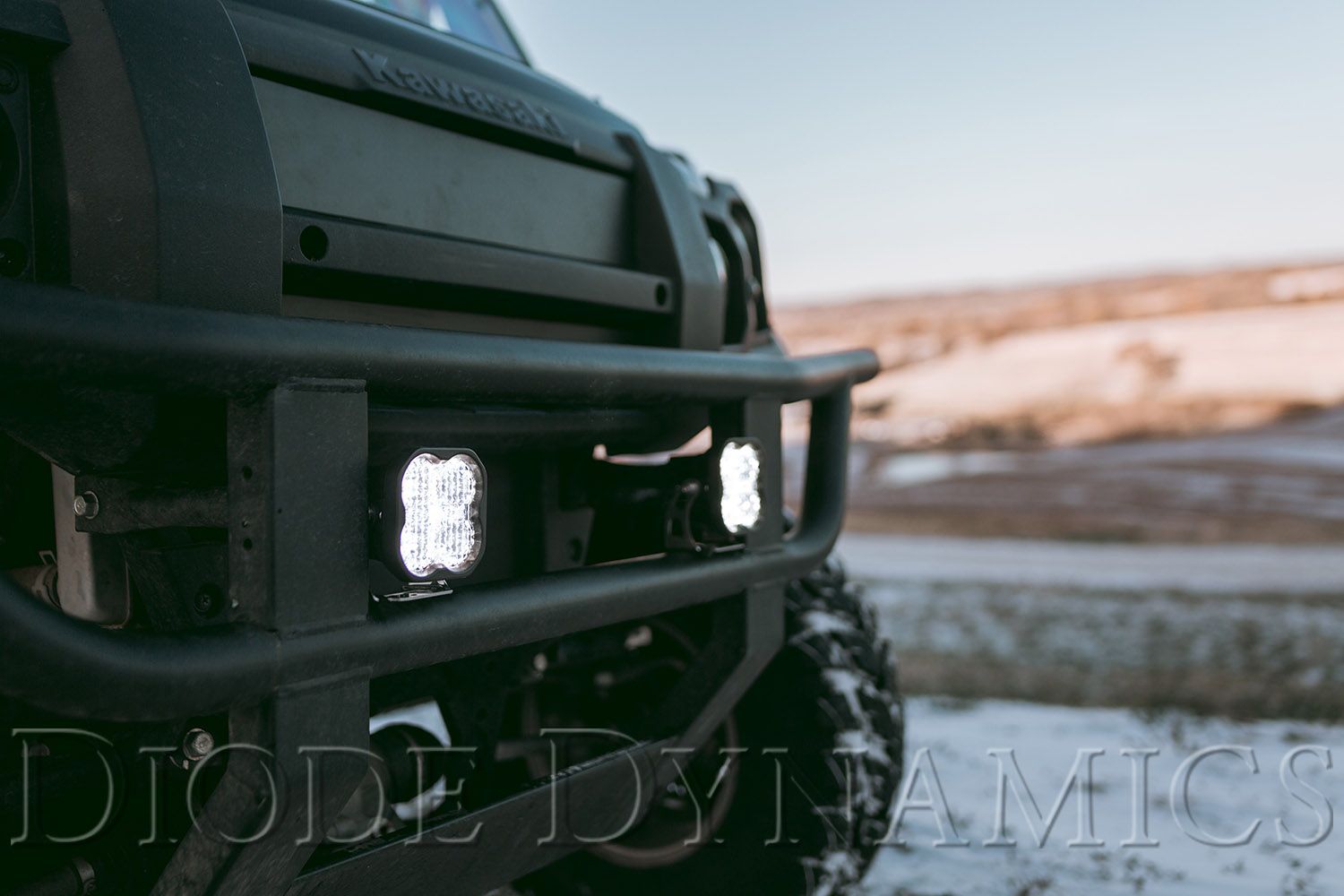

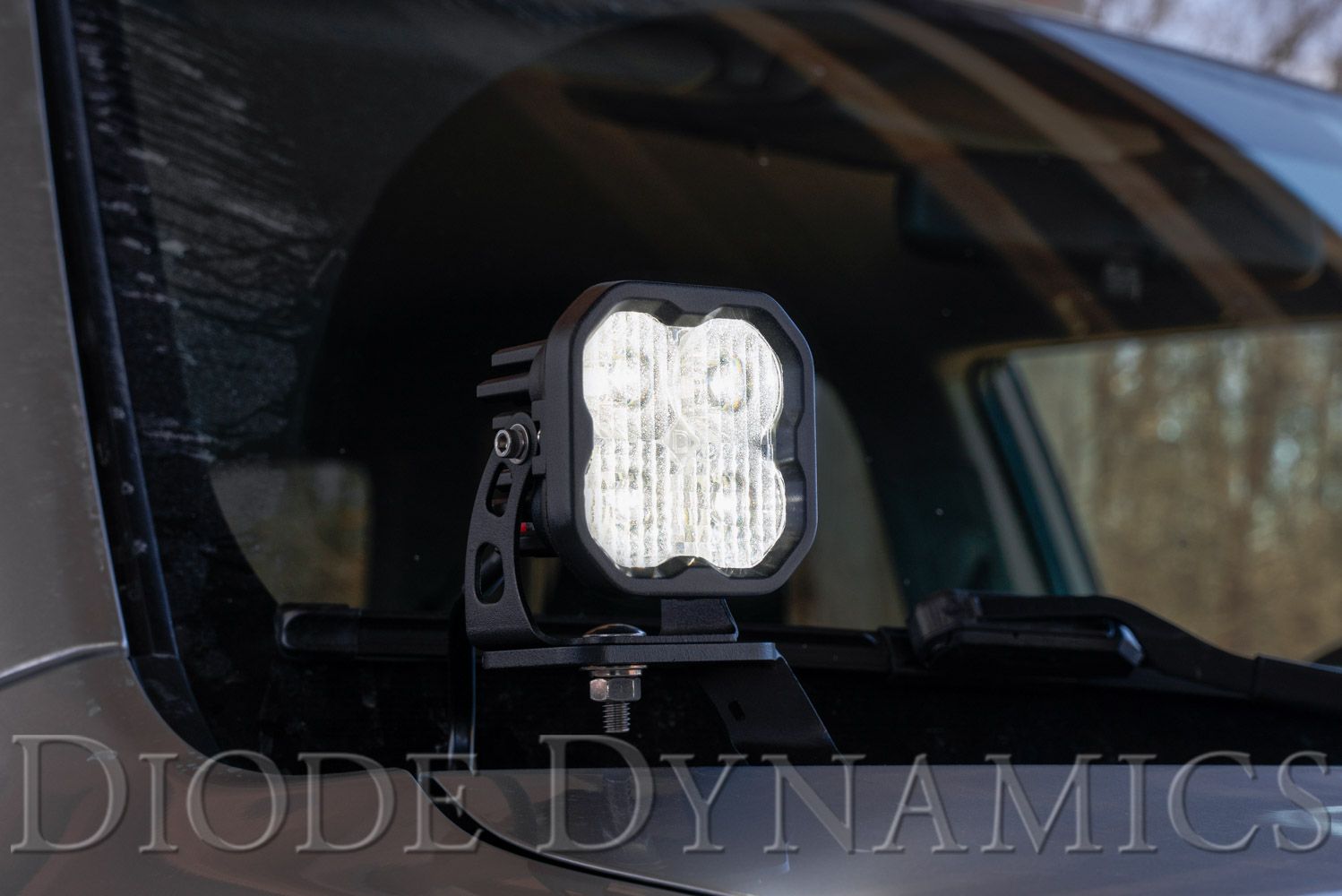

The Diode Dynamics SS3 Max LED Pod is a single, high-output 3-inch off-road light built for drivers who need serious illumination in a compact, mountable package. Whether you're running ditch lights, push-bar spots, roof-rack floods, or auxiliary fog lights, the SS3 Max delivers at the top of its class in the SS3 lineup — above Sport and Pro — making it the right choice when output is the priority.

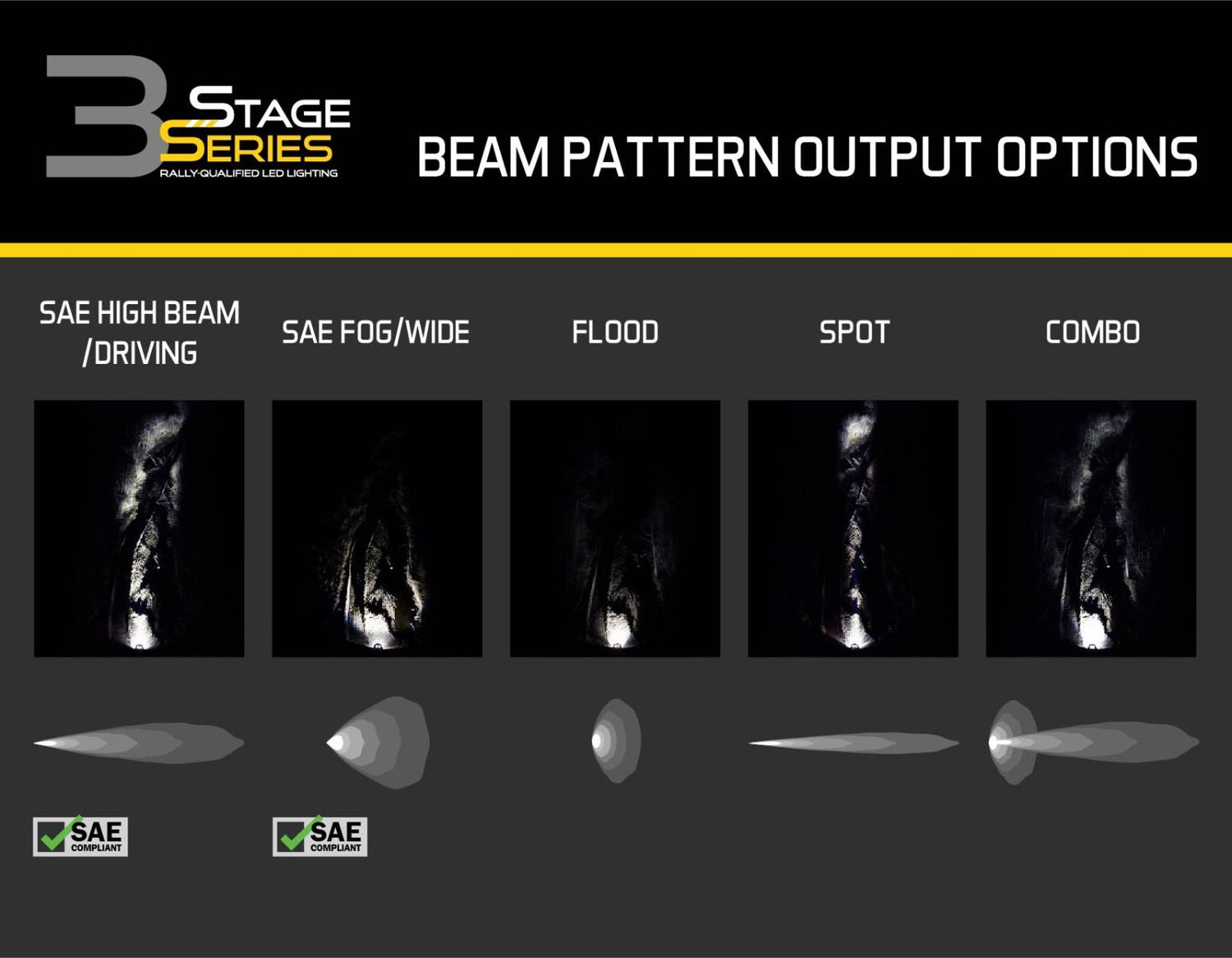

Beam pattern options cover the full range of off-road and work-lighting needs: choose Spot for long-range piercing distance, Driving for a broad high-speed throw, Combo for versatility across both, or Flood for wide area coverage close to the truck or Jeep. SAE Fog keeps you road-legal in adverse weather, while Amber and Red round out the selection for specialized visibility or signal applications.

Custom TIR optics focus each LED precisely to its intended pattern, and the pin-fin heatsink keeps thermals in check during extended use. Sold as a single pod, you can run one or pair them to suit your exact mounting setup.

Documentation
