SS5 Roof CrossLink Lightbar Kit for 2017-2025 Can-Am Maverick X3

Diode Dynamics  |  SKU: DD7890  |  Barcode: 00195995138972
Regular price $2,068.00 USD
Choose Your Power Level
Choose Your Color
Fitment & Install Notes
Fits
Fits: 2018-2020 Can-Am Maverick X3 Max Turbo, 2017-2019 Can-Am Maverick X3 Max Turbo R, 2017-2019 Can-Am Maverick X3 Max X ds Turbo R, 2017-2019 Can-Am Maverick X3 Max X rs Turbo R, 2017-2019 Can-Am Maverick X3 Turbo R, 2017-2019 Can-Am Maverick X3 X ds Turbo R, 2017-2019 Can-Am Maverick X3 X rs Turbo R, 2018-2018 Can-Am Maverick X3 900 HO, 2018-2021 Can-Am Maverick X3 X mr Turbo, 2018-2019 Can-Am Maverick X3 X mr Turbo R, 2018-2021 Can-Am Maverick X3 X rc Turbo, 2018-2019 Can-Am Maverick X3 X rc Turbo R, 2020-2021 Can-Am Maverick X3 DS Turbo R, 2020-2021 Can-Am Maverick X3 Max DS Turbo R, 2020-2021 Can-Am Maverick X3 Max RS Turbo R, 2020-2025 Can-Am Maverick X3 Max X ds Turbo RR, 2020-2025 Can-Am Maverick X3 Max X mr Turbo RR, 2020-2025 Can-Am Maverick X3 Max X rs Turbo RR, 2020-2021 Can-Am Maverick X3 RS Turbo R, 2020-2025 Can-Am Maverick X3 X ds Turbo RR, 2020-2022 Can-Am Maverick X3 X mr Turbo RR, 2020-2022 Can-Am Maverick X3 X rc Turbo RR, 2020-2024 Can-Am Maverick X3 X rs Turbo RR, 2021-2025 Can-Am Maverick X3 Max DS Turbo, 2021-2025 Can-Am Maverick X3 Max X rs Turbo RR Smart-Shox, 2021-2025 Can-Am Maverick X3 X rs Turbo RR Smart-Shox, 2022-2025 Can-Am Maverick X3 DS Turbo RR, 2022-2025 Can-Am Maverick X3 X rc Turbo RR 64, 2022-2025 Can-Am Maverick X3 X mr Turbo RR 72, 2022-2025 Can-Am Maverick X3 X rc Turbo RR 72, 2022-2025 Can-Am Maverick X3 RS Turbo RR, 2022-2025 Can-Am Maverick X3 X mr Turbo RR 64, 2022-2025 Can-Am Maverick X3 Max DS Turbo RR, 2022-2025 Can-Am Maverick X3 Max RS Turbo RR, 2024-2025 Can-Am Maverick X3 Max RS Turbo, 2024-2025 Can-Am Maverick X3 Max X rc Turbo RR, 2024-2025 Can-Am Maverick X3 RS Turbo
Free shipping Orders $500+
Canadian orders No duties / brokerage
Authorized Diode Dynamics Dealer
Returns 30-day easy

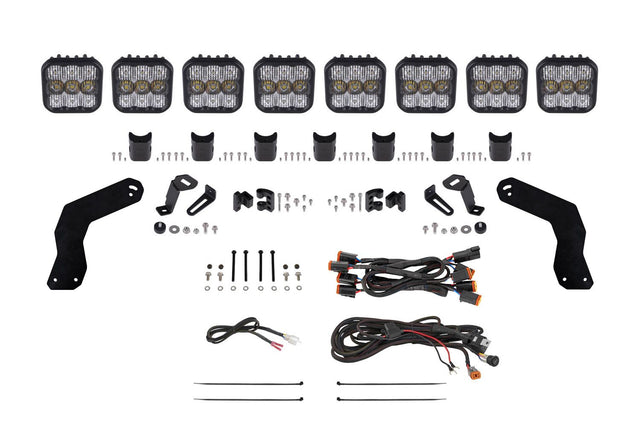

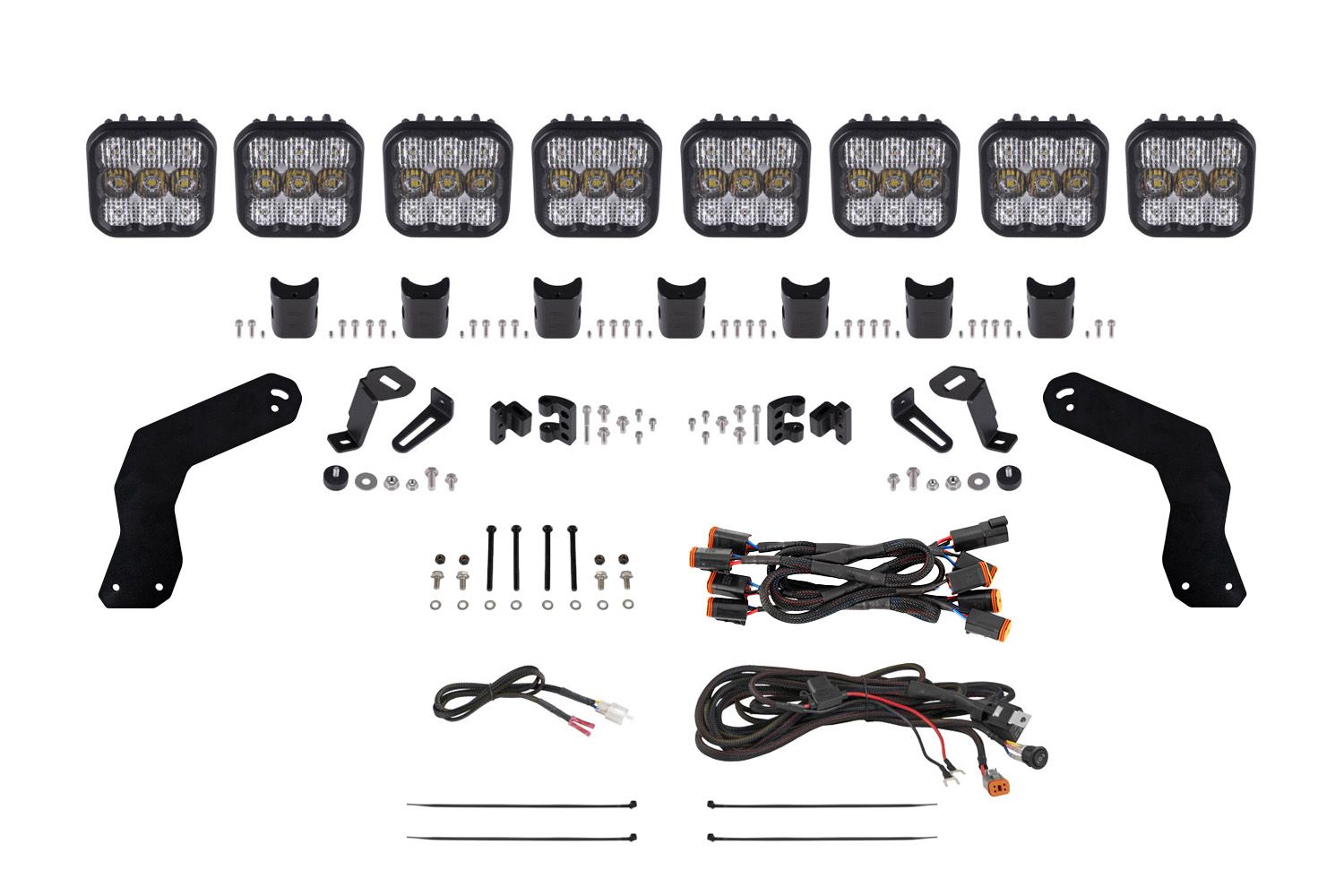

What's in the box 7 ITEMS
Six (8) Stage Series 5in LED Pods
Two (2) Can Am Maverick Roof Brackets
Five (7) CrossLink Hardware
One (1) CrossLink Support
One (1) CrossLink Endmount Kit
One (1) DT 8-Pod Connecting Harness
One (1) Heavy Duty Single Output 3Way 4P Harness
Optical
Lumens 3700
Color temperature 6000K
Beam spread Combo (Driving and Flood)
Power 40W
Operating voltage 9-16V
Intensity 81 600 cd
LED emitter Luxeon Z ES
Driver features Constant Current
Construction
Connector Deutsch DT Input
Cooling Passive, Pin-Fin heatsink
Polarity Polarity Specific
Base color Black
Wire quantity 2
Compliance
IP rating IP69K Waterproof High Pressure
Operating temp -40C to 85C (-40F to 185F)
SAE/DOT SAE J581 Driving/Auxiliary High Beam Pattern
Country of origin USA
Weather resistant Yes
Features & benefits
Allows you to mount eight pod linked lightbar above the roof
Bolt-on fitment on 2017-2025 Can-Am Maverick X3
Ultra-high intensity, with custom-engineered TIR optics

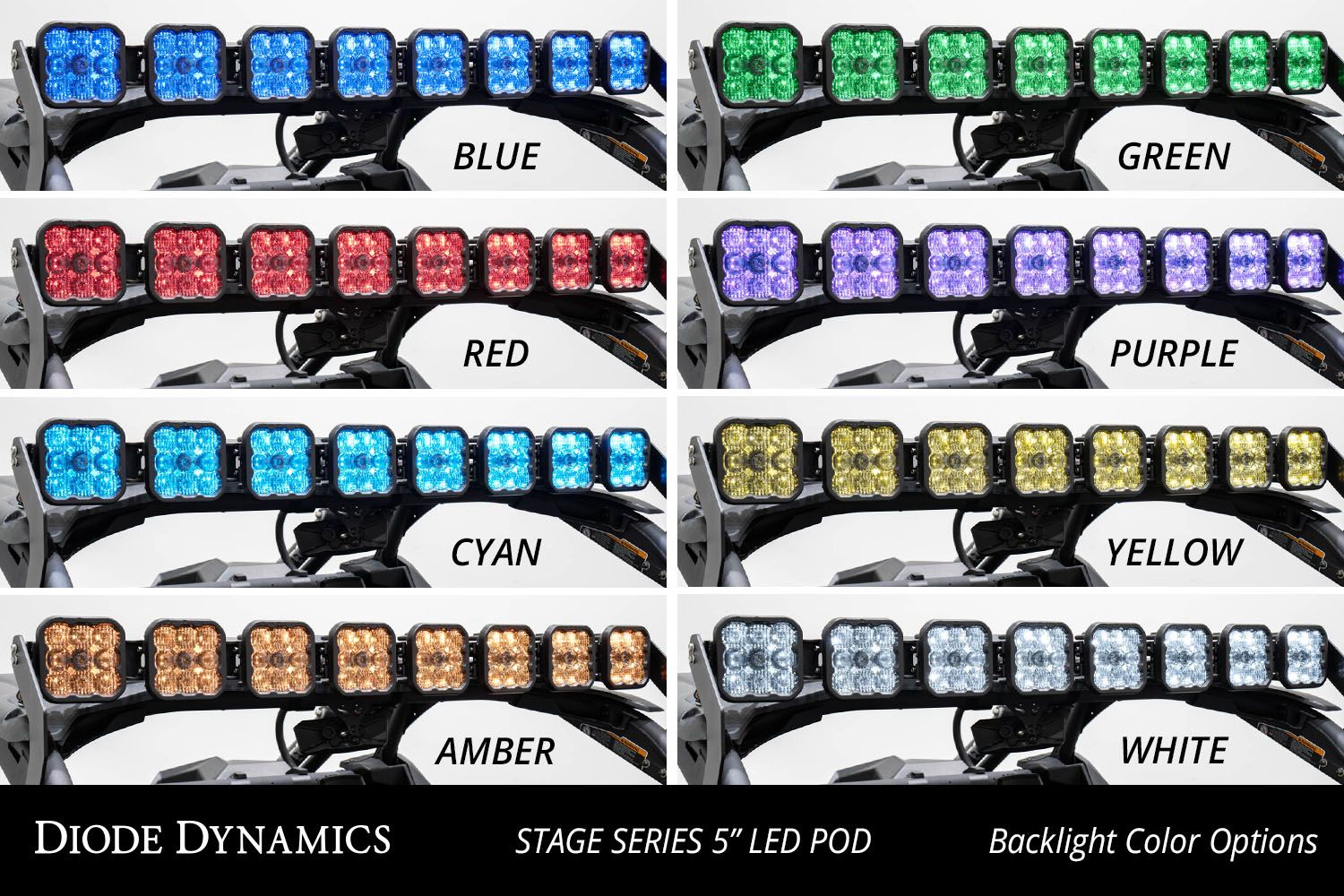

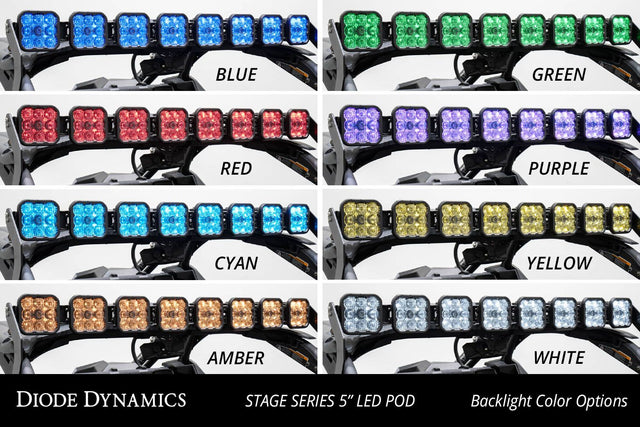

Selectable backlight color, with eight color options
Torture-tested, heavy-duty construction
Assembled in USA
Description

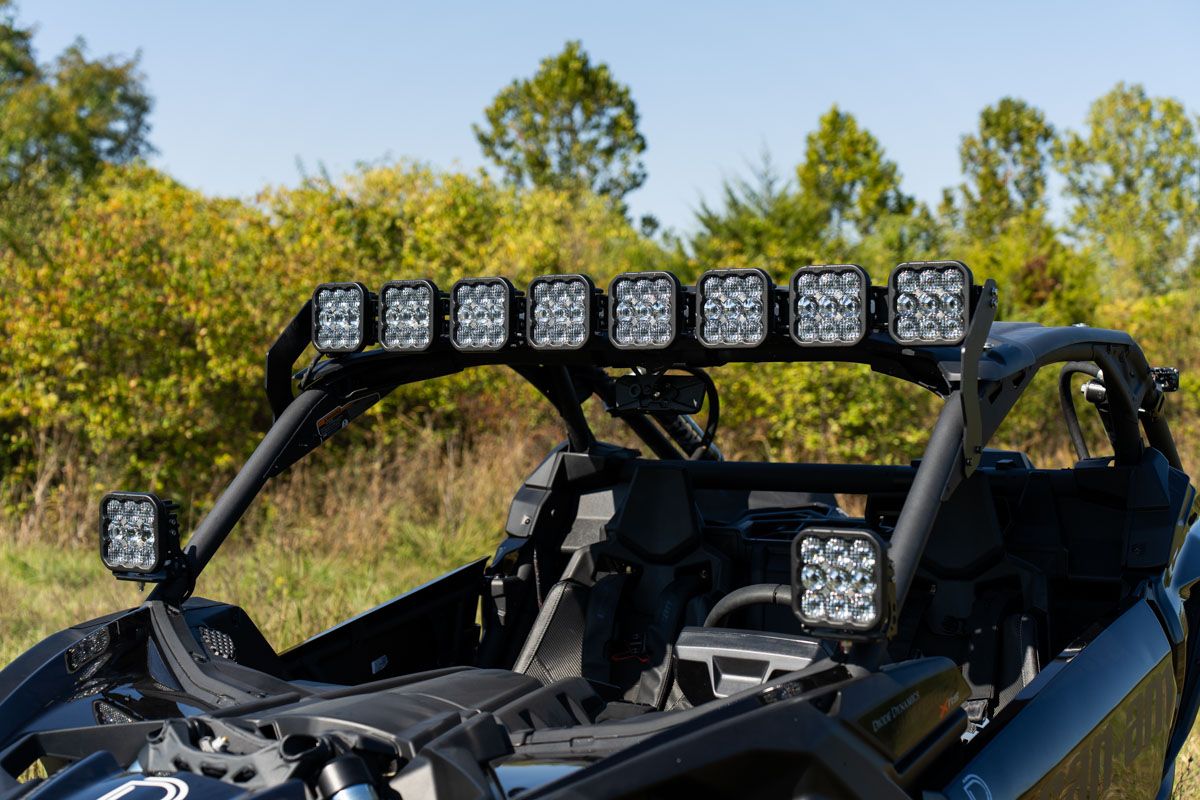

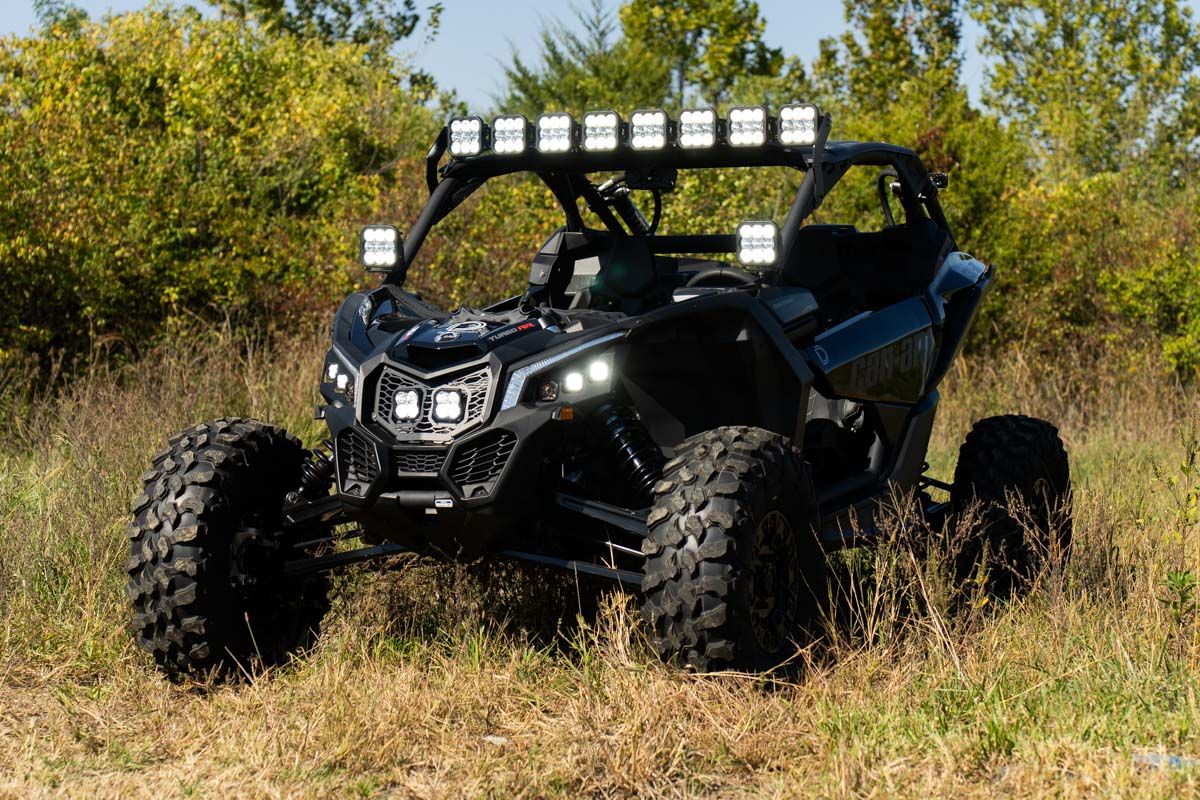

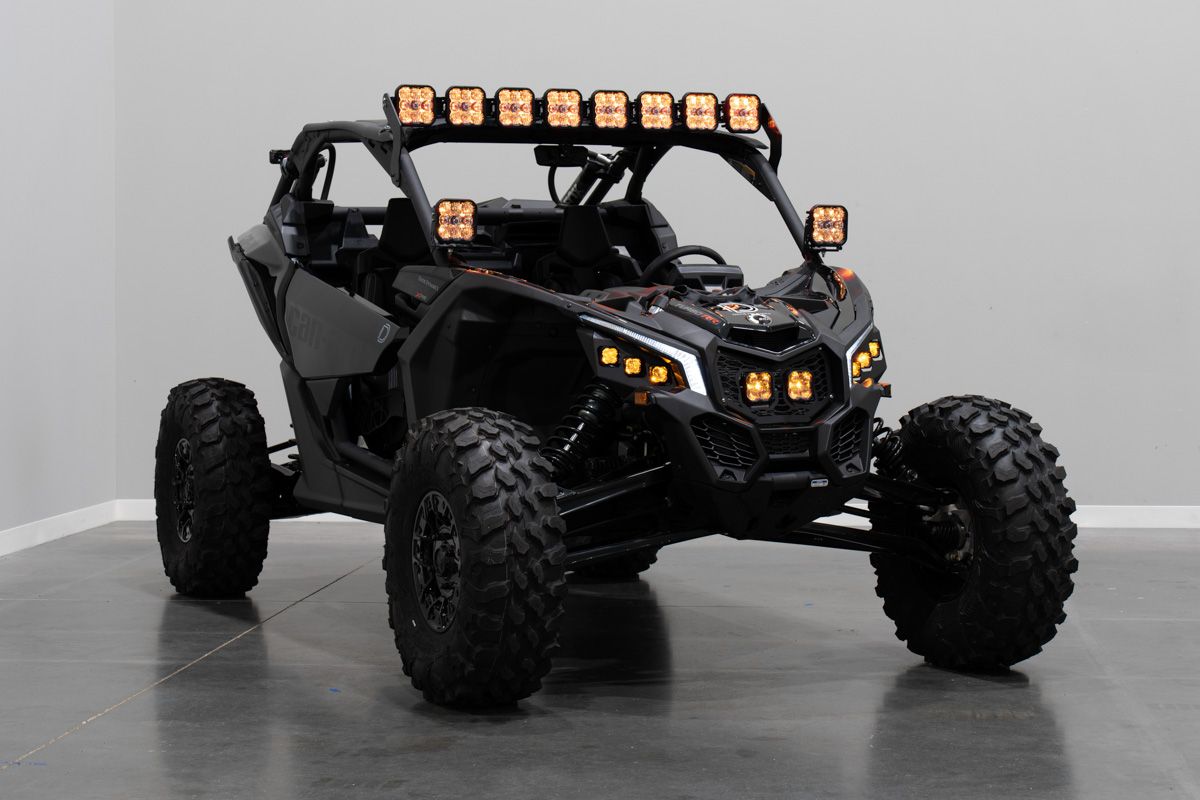

The SS5 Roof CrossLink Lightbar Kit is a vehicle-specific LED lighting system for the Can-Am Maverick X3, mounting eight linked SS5 pods directly to the roof panel for a clean, integrated look that delivers serious forward and area illumination on the trail. Whether you're running desert washes at night, navigating tight wooded terrain, or simply need better visibility during early-morning work runs, this kit puts a wall of light exactly where it counts.

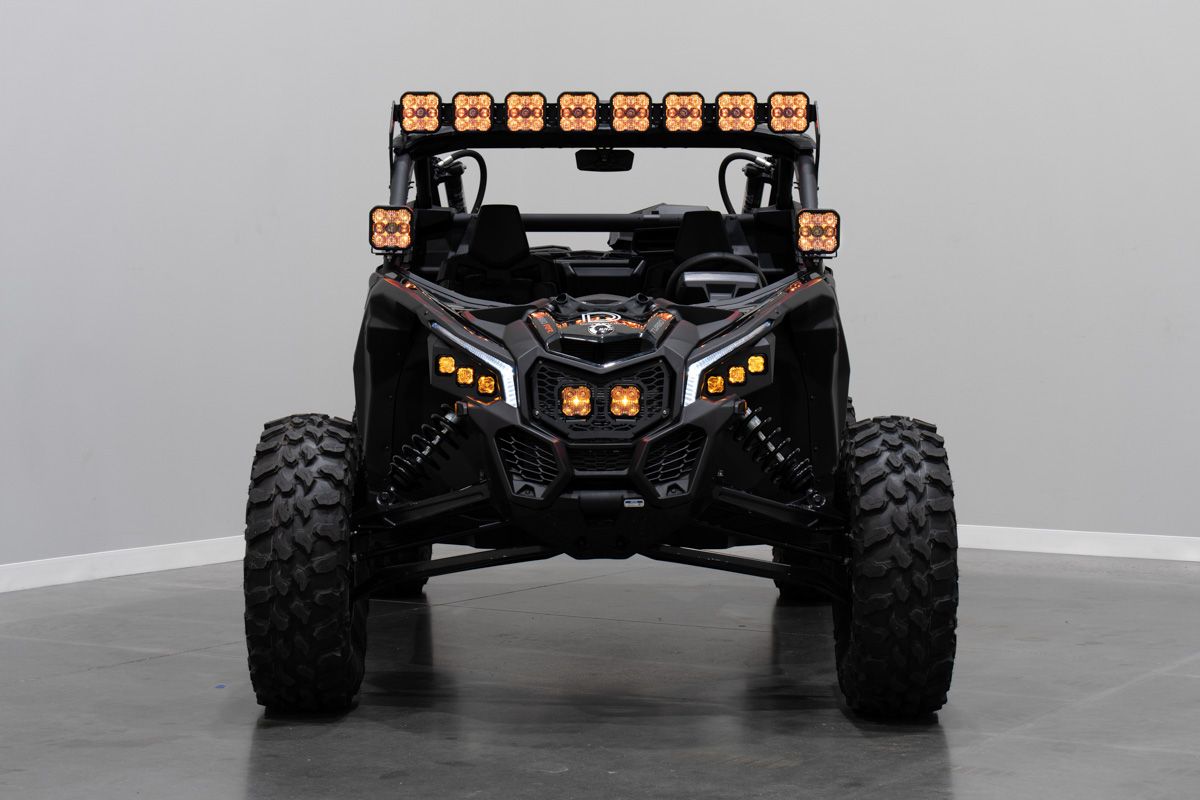

Choose between Sport and Pro output levels to match your power budget and brightness needs, and select Cool White (6000K) for crisp, daylight-quality output or Yellow (3000K) for improved contrast in dust, fog, and precipitation — conditions that Maverick X3 drivers know well. Each SS5 pod uses TIR optics for focused, efficient light delivery, and the linked crossbar design keeps wiring tidy with an integrated connector system.

The vehicle-specific mounting bracket means no fabrication and no guesswork — everything aligns with your X3's existing roof structure for a factory-fitted appearance. This is a purpose-built upgrade for riders who want dependable, high-output lighting from Diode Dynamics without compromise.

Documentation
