SS3 Universal Roll Bar Bumper Light Kit

Diode Dynamics  |  SKU: DD7674  |  Barcode: 00195995132956
Regular price $345.00 USD
Choose Your Bracket Diameter
Choose Your Power Level
Choose Your Optic and Color
Free shipping Orders $500+
Canadian orders No duties / brokerage
Authorized Diode Dynamics Dealer
Returns 30-day easy

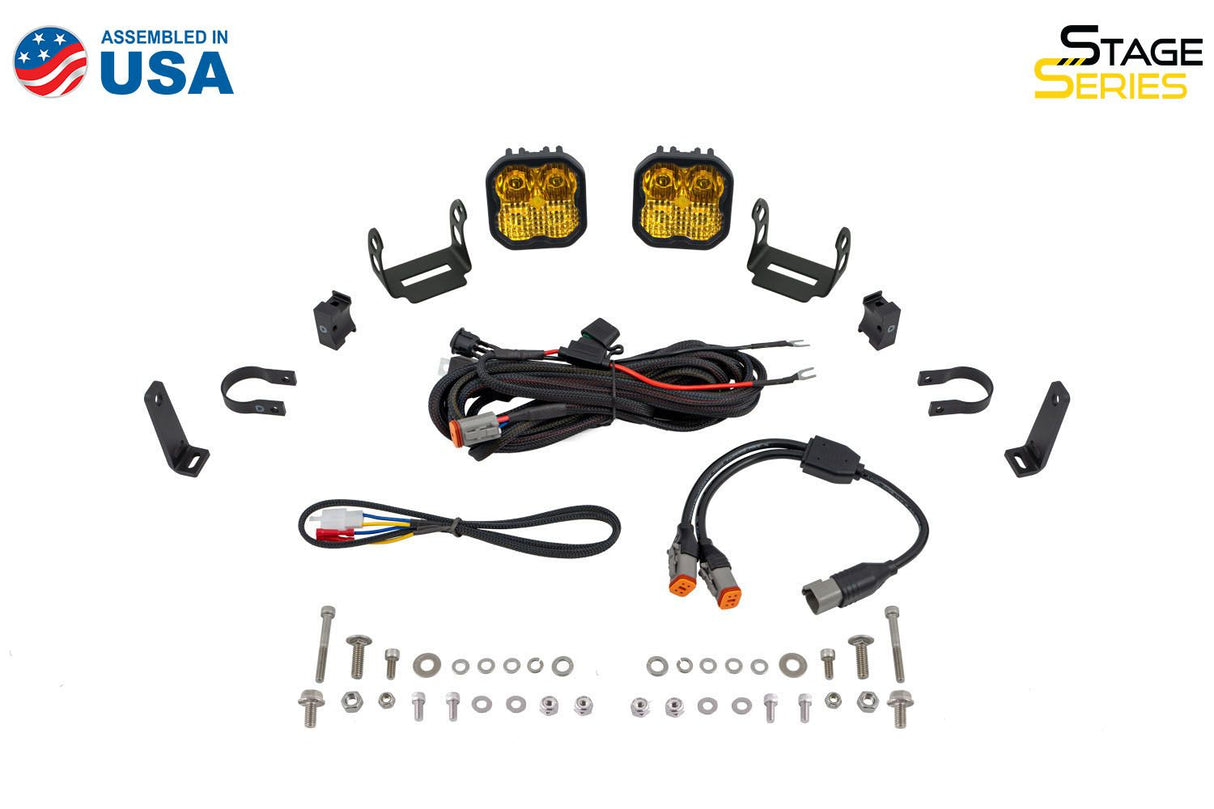

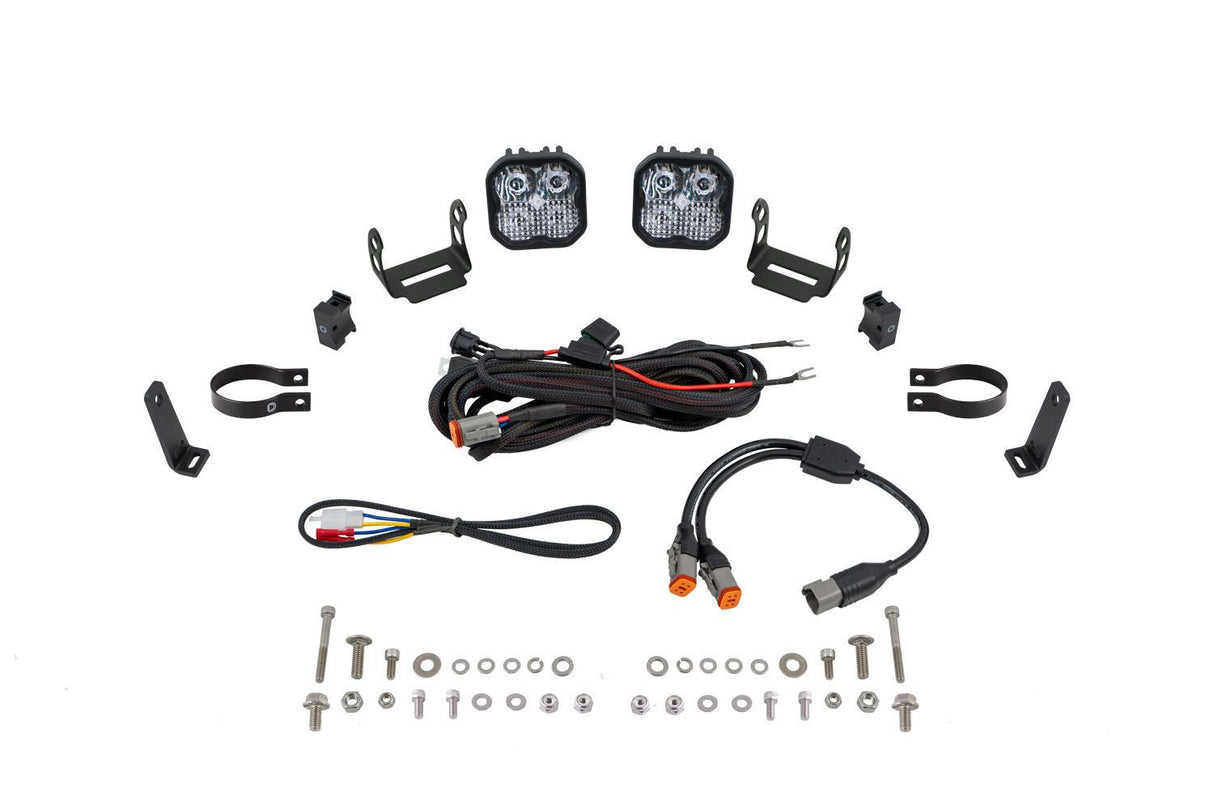

What's in the box 6 ITEMS
Two (2) SS3 3” LED Pods
Two (2) 1" Roll Bar Mount Kits
One (1) Heavy-Duty Single Output 3Way 4P Harness
One (1) DT 4P Splitter 2Way Harness
Included Hardware
Installation Guide
Optical
Lumens 1520
Color temperature 6000K
Beam spread Combo/Driving 80°x30°
Power 14W
Operating voltage 9-30V
Intensity 9 100 cd
LED emitter Luxeon Z ES
Driver features Constant Current
Construction
Connector Deutsch DT Input
Cooling Passive, Pin-Fin heatsink
Polarity Polarity Specific
Base color Black
Wire quantity 2
Compliance
IP rating IP69K Waterproof High Pressure
Operating temp -40C to 85C (-40F to 185F)
Country of origin USA
Weather resistant Yes
Features & benefits
Allows you to mount two LED pods in lower bumper area.
Bolt-on fitment for UTVs.
Ultra-high intensity, with custom-engineered TIR optics.
Torture-tested, heavy-duty construction.
Assembled in USA.
Description

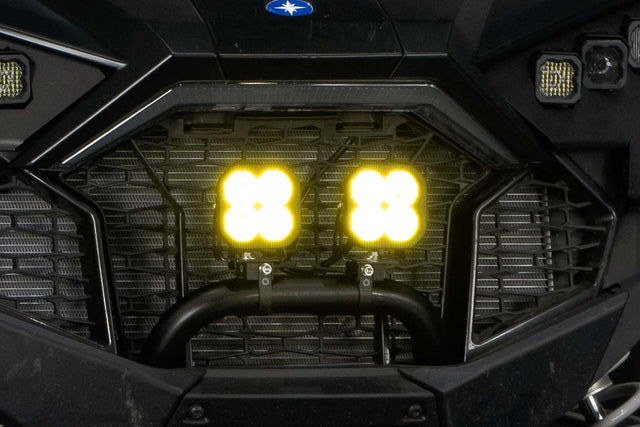

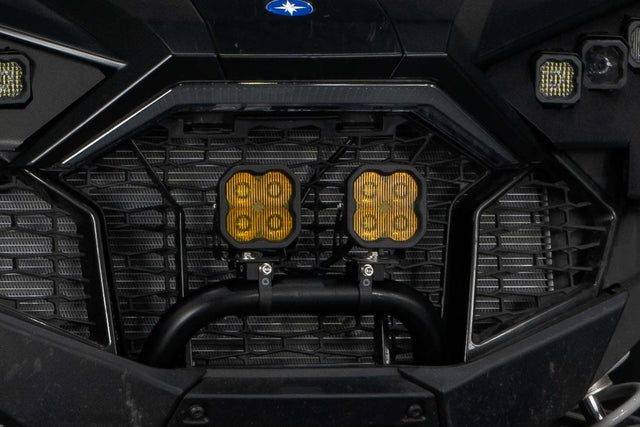

The Diode Dynamics SS3 Universal Roll Bar Bumper Light Kit is a plug-and-play LED pod mounting solution designed to bring serious forward lighting to your ATV or UTV without cutting or drilling into your bumper area. Two SS3 pods mount cleanly onto your lower bumper roll bar, connecting directly into your existing wiring for straightforward everyday operation. Whether you're pushing through dusty trails after dark or working a property at night, this kit puts focused, high-output light exactly where you need it.

The SS3 pods are available in Sport, Pro, and Max output levels, so you can match the light's intensity to your riding style and budget. Beam pattern choices include Combo and SAE Fog in both White and Yellow — Combo suits driving and obstacle detection, while SAE Fog cuts through dust, rain, and low-visibility conditions with a wide, controlled spread. Yellow is a popular choice for off-road riders who frequently encounter heavy dust or precipitation.

The kit accommodates roll bar diameters ranging from 1 inch up to 2 inches, making it a genuinely universal fit across a wide range of machines. Robust construction and a clean, low-profile install make this an easy upgrade that performs well past the trailhead.
