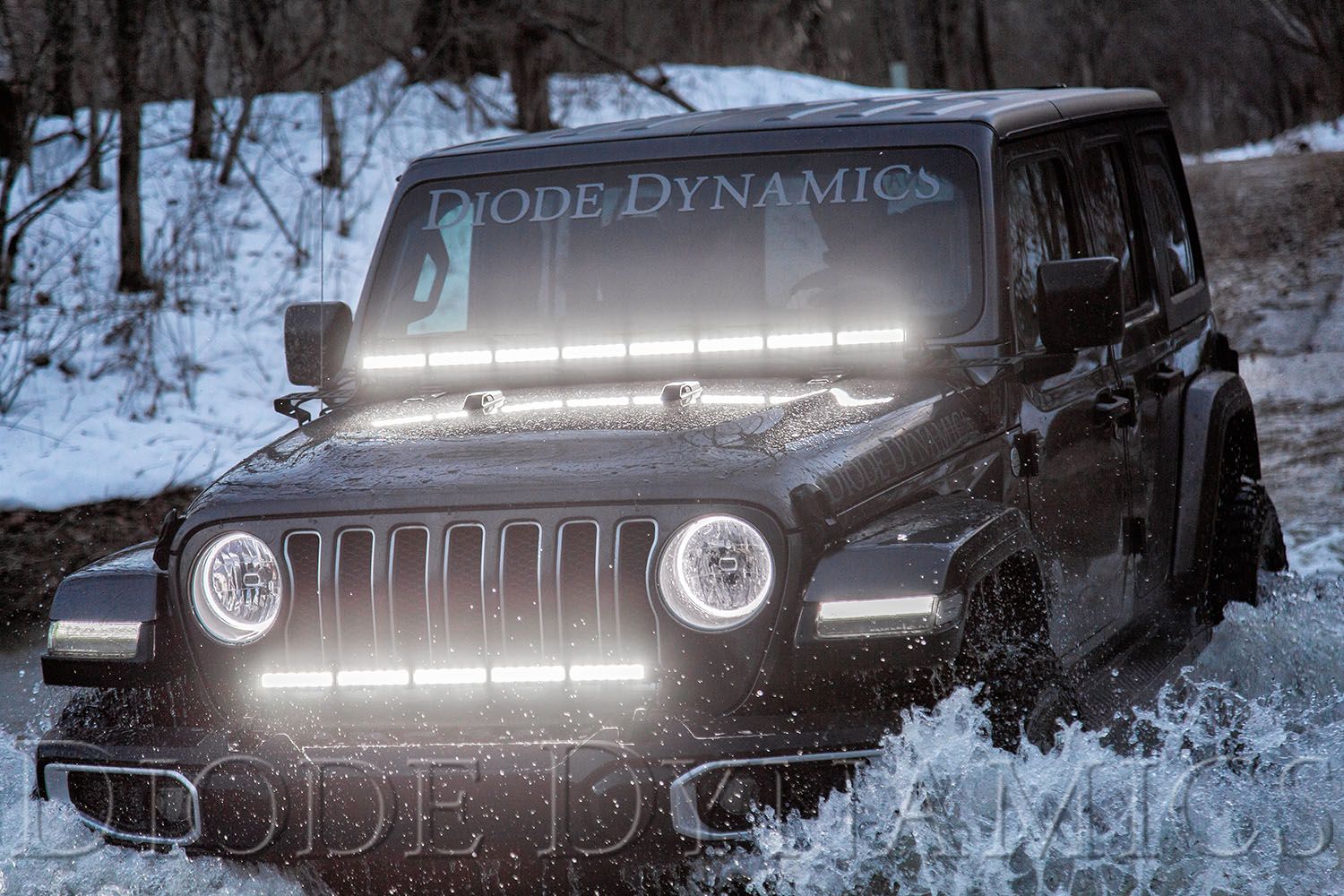

With so many LED light bars on the market, choosing the right one can be tough. The Stage Series LED Light Bar from Diode Dynamics stands out from generic options with focused optics, modular design, on-road capability, and proven durability. Here's what makes it the best LED light bar available.
Table of Contents
- Video Overview
- Compact Design
- Focused Output
- Beam Patterns
- On-Road Capability
- Color Selection
- Interchangeable Lenses
- Durability and Lifespan
- Shop Stage Series Light Bars at Ess K Customs
Video Overview
Â
Compact Design
The Stage Series LED Light Bar uses a narrow-profile housing under 42mm tall — fitting in tight spaces where traditional dual-row bars won't. Available in sizes from 6 inches to 50 inches, there's an option whether you're adding a short bar behind a grille or covering the full width of your front end.
Focused Output
High-intensity Luxeon Z ES 5700K LED emitters paired with TIR (Total Internal Reflection) optics deliver far more useful output than generic light bars. Standard bars use inefficient reflectors that scatter light and create glare. TIR optics capture all the light from the LED and direct it only where you need it — drastically reducing glare and improving efficiency.
Beam Patterns
All Stage Series beam patterns are designed using optical simulation modeling:
- Driving — A rectangular 20x8-degree pattern designed to supplement high beams. More useful than a simple spot pattern for seeing obstacles at distance.
- Flood — An 80x50-degree spread of even, uniform light. A true optically designed beam pattern — the widest spread in the industry. Ideal for illuminating off-road trails.
- Combo — Available on bars 18 inches and longer. Combines both Driving and Flood optics for the best of both worlds.
On-Road Capability
The 6-inch and 12-inch Stage Series sizes offer road-legal beam patterns:
- SAE Driving — Meets SAE J581 as a Driving/Auxiliary High Beam when installed as a pair and properly aimed.
- SAE Fog — Available in white or amber, meets SAE J583 as a fog lamp for legal on-road use.
Color Selection
Available in 6000K cool white (true white with no blue tint) or deep amber yellow (high contrast for poor weather conditions). Both options serve distinct purposes — white for maximum illumination, amber for cutting through fog, dust, and snow.
Interchangeable Lenses
The 6-inch segmented design lets you swap outer lenses to change beam patterns or colors with just a few screws. Customize how you use your light bar without buying separate units.
Durability and Lifespan
Each 6-inch segment features a custom-molded gasket for a double-wall weatherproof seal. Metal-core polycarbonate circuit boards with direct-solder thermal slugs pull heat away from the LEDs. Extruded aluminum heatsinks provide effective cooling. Pressure-equalizing breather vents prevent condensation and fogging. Tested to SAE/DOT standards for extreme temperatures (-40°F to 185°F), vibration, moisture, and corrosion. Used by dozens of rally and endurance racing teams. Backed by a lifetime warranty.
Shop Stage Series Light Bars at Ess K Customs
Ready to upgrade your off-road lighting? As an authorized Diode Dynamics dealer, Ess K Customs carries the full Stage Series LED Light Bar lineup — from 6-inch to 50-inch — with full manufacturer warranty.
