SS5 Windshield CrossLink Lightbar Kit for 2020-2025 Jeep Gladiator

Diode Dynamics  |  SKU: DD6821  |  Barcode: 00195995125965
Regular price $ 3,392.00 CAD
Choose Your Power Level
Choose Your Color
Fitment & Install Notes
Fits
Fits: 2020-2025 Jeep Gladiator, 2018-2026 Jeep Wrangler
Free shipping Orders $500+
Canadian orders No duties / brokerage
Authorized Diode Dynamics Dealer
Returns 30-day easy
Optional add-ons 1 AVAILABLE

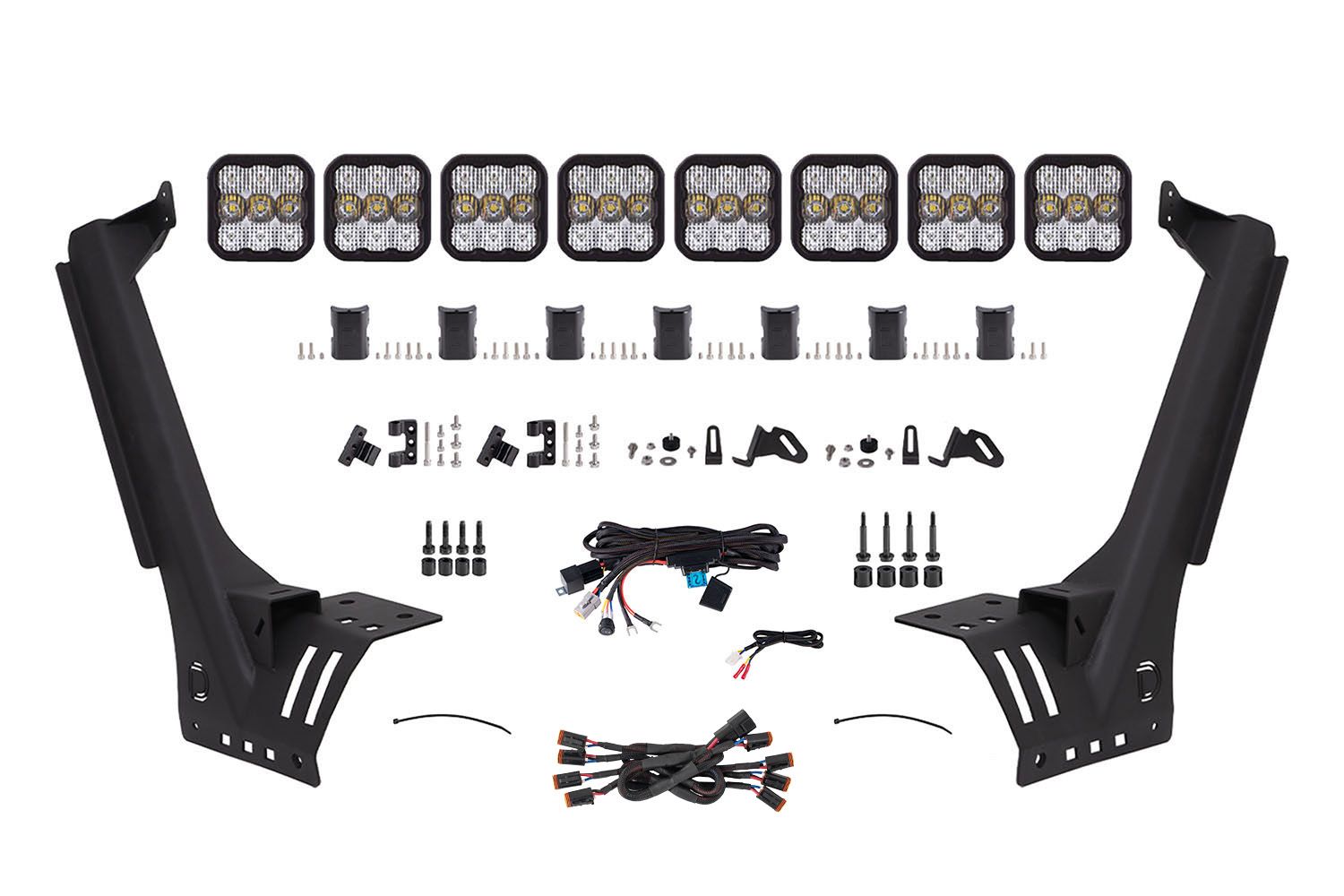

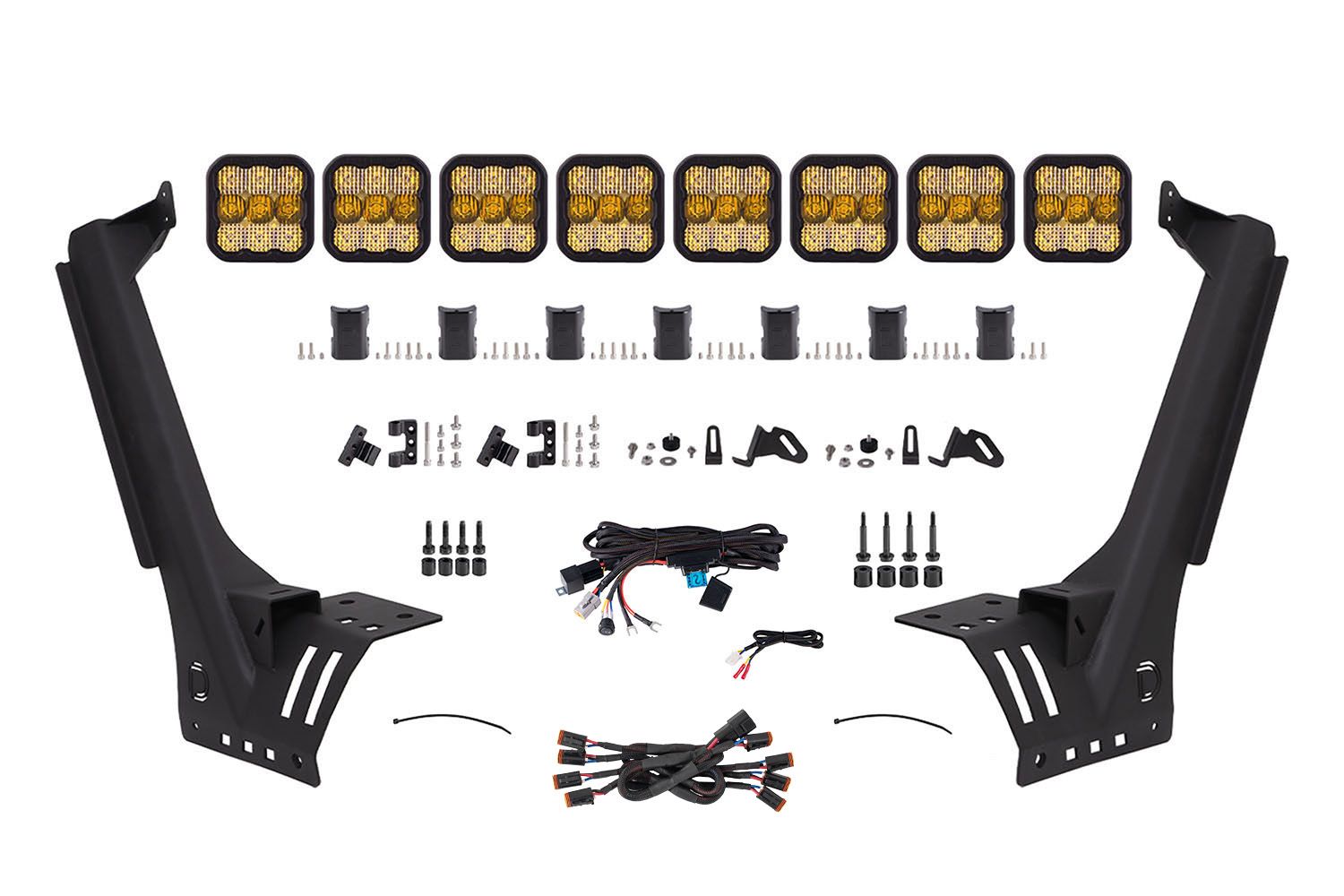

What's in the box 8 ITEMS
Two (2) Application-specific heavy-duty steel brackets for installation on 2018-2021 Jeep Wrangler
Eight (8) Stage Series 5inch LED Pods
Seven (7) CrossLinks with hardware
Two (2) CrossLink supports
One (1) CrossLink endmount kit
One (1) DT 8-Pod connecting harness
One (1) heavy-duty single-output harness
Installation Guide
Optical
Lumens 3700
Color temperature 6000K
Beam spread Combo (Driving and Flood)
Power 40W
Operating voltage 9-16V
Intensity 81 600 cd
LED emitter Luxeon Z ES
Driver features Constant Current
Construction
Connector Deutsch DT Input
Cooling Passive, Pin-Fin heatsink
Polarity Polarity Specific
Base material Steel
Base color Black
Bolt thread Medium
Install
Drilling No drilling required
Mounting hardware Included
Compliance
IP rating IP69K Waterproof High Pressure
Operating temp -40C to 85C (-40F to 185F)
SAE/DOT SAE J581 Driving/Auxiliary High Beam Pattern
Country of origin USA
Features & benefits
Bolt-on fitment on 2018-2026 Jeep JL Wrangler
Ultra-high intensity, with custom-engineered TIR optics
Selectable backlight color, with eight color options
Torture-tested, heavy-duty construction
Control through factory aux switch bank using the included harness
Assembled in USA
Description

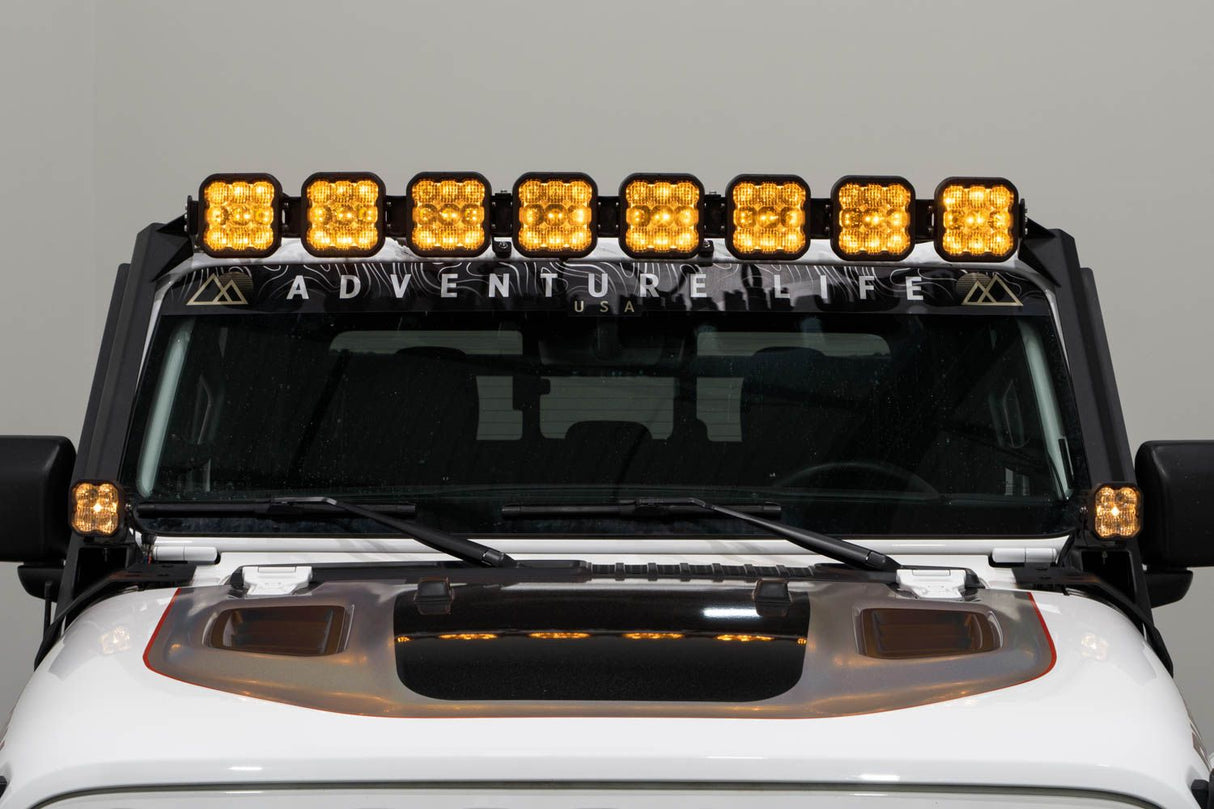

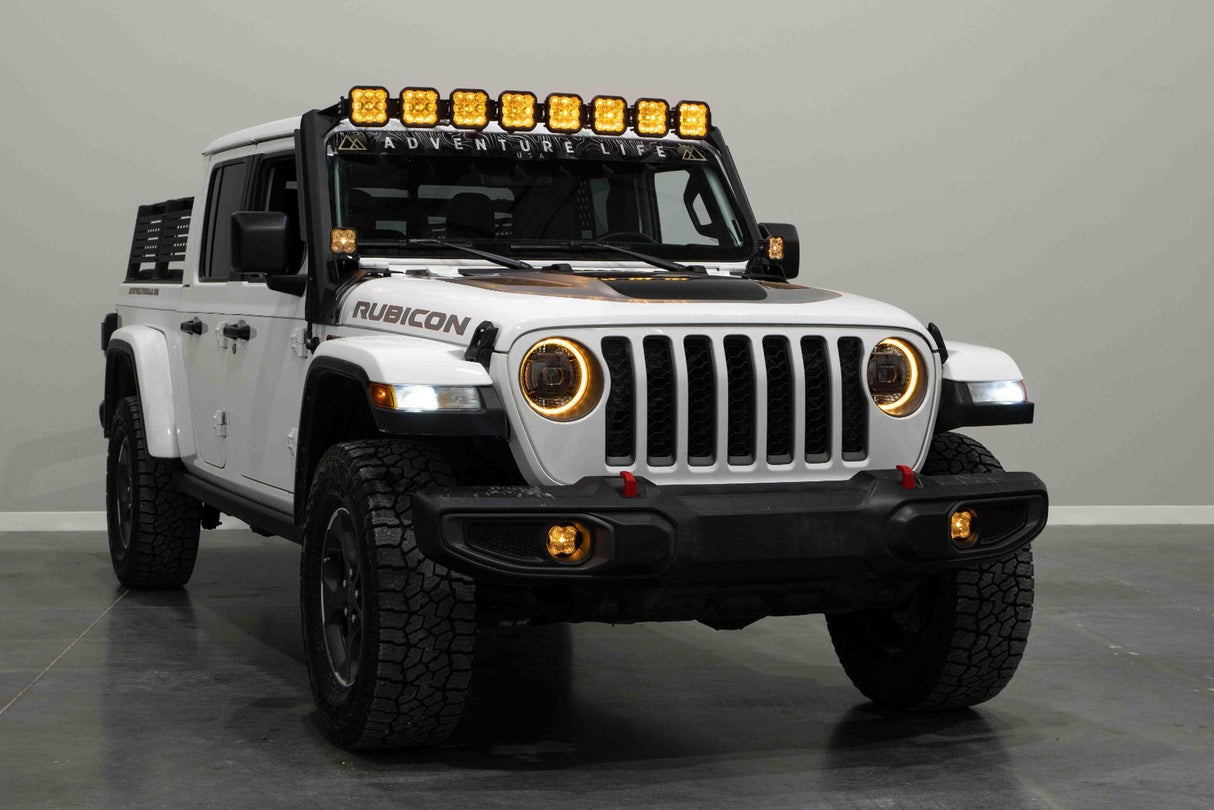

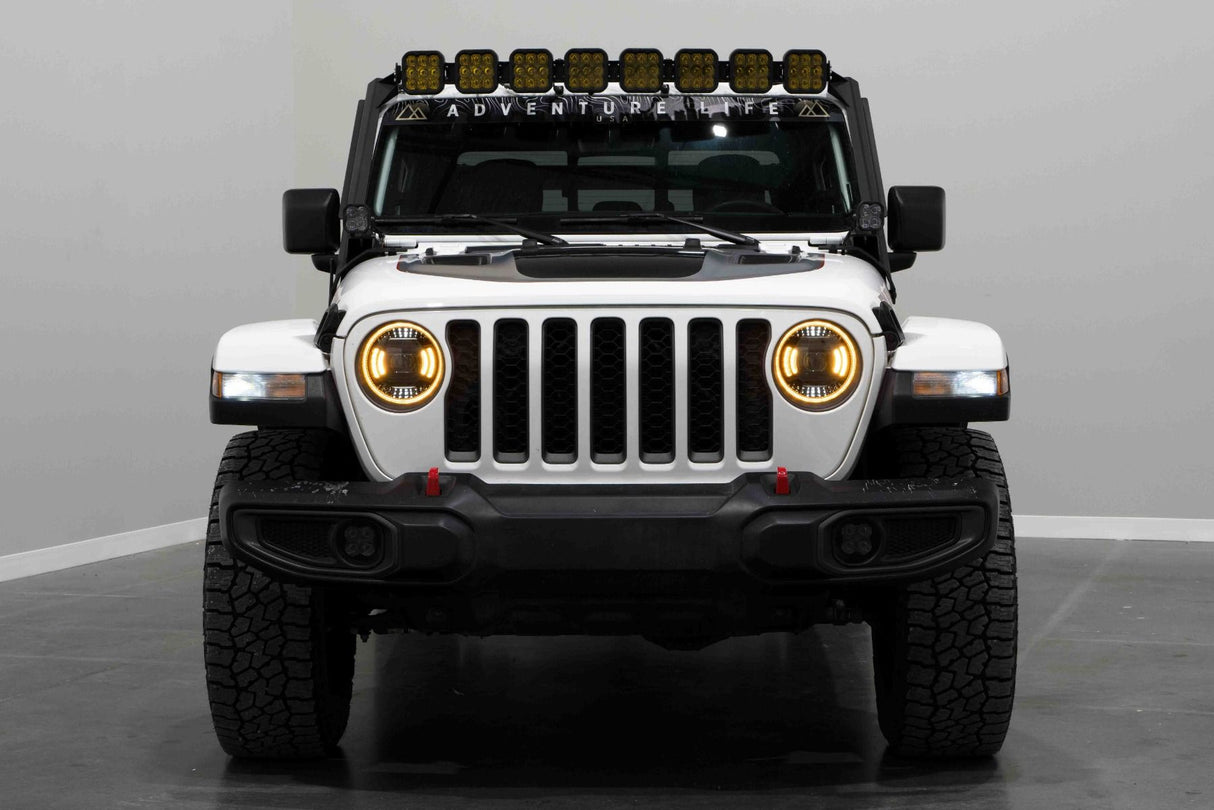

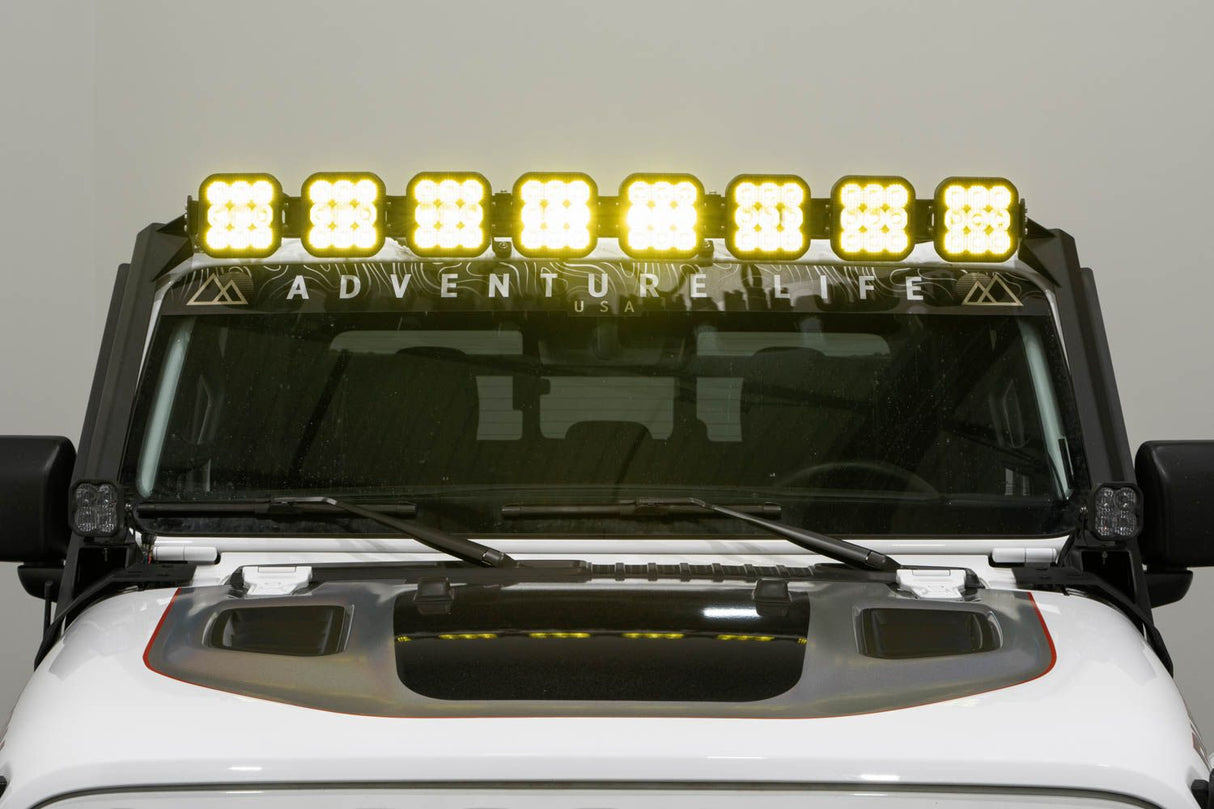

The SS5 Windshield CrossLink Lightbar Kit is a vehicle-specific LED lighting system designed to mount a row of SS5 pods directly above the windshield of your Jeep Gladiator, delivering serious forward lighting without improvised brackets or custom fabrication. The kit uses a dedicated mounting solution engineered for a clean, factory-integrated look that holds up on the trail and on the job site.

Choose between Sport and Pro output levels depending on how much light you need pushing ahead of you, and select Cool White or Yellow to match your driving conditions — Cool White for maximum visibility in clear conditions, Yellow for cutting through rain, dust, and fog with less glare and scatter. Each combination gives you a meaningfully different tool for off-road nights, worksites, or highway driving.

SS5 pods are built around TIR optics and a pin-fin heatsink design that keeps output consistent mile after mile. If you already run SS5 pods elsewhere on your Gladiator, the CrossLink system connects them into a single, tidy lighting setup worth building on.
