Stage Series C1R White Flood Standard LED Pod (pair)

Diode Dynamics  |  SKU: DD7423P  |  Barcode: 00195995129468
Regular price $ 445.00 CAD
Free shipping Orders $500+
Canadian orders No duties / brokerage
Authorized Diode Dynamics Dealer
Returns 30-day easy

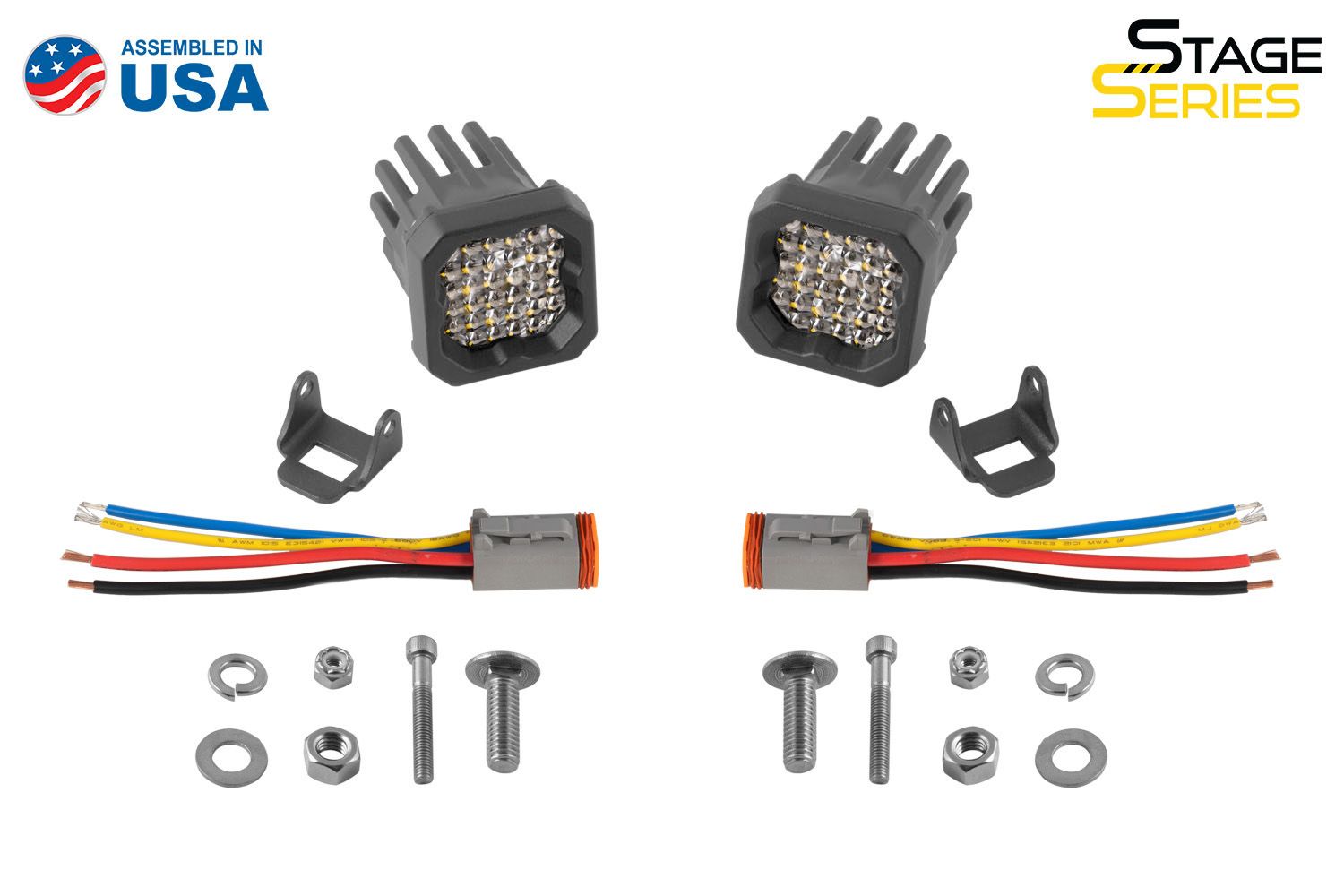

What's in the box 3 ITEMS
Two (2) Stage Series C1R LED Pods
Two (2) Deutsch-style wire pigtails
Two (2) Mounting brackets and hardware
Optical
Color temperature 6000K
Beam spread Flood 80°x50°
Power 15W
Operating voltage 9-16V
Grade Performance
Driver features Constant Current
Construction
Connector Deutsch DT Input
Cooling Passive, Pin-Fin heatsink
Polarity Polarity Specific
Base material Steel
Base color Black
Finish sheen Matte
Bolt thread Medium
Bolt grade High
Install
Drilling No drilling required
Mounting hardware Included
Compliance
IP rating IP69K Waterproof High Pressure
Operating temp -40C to 85C (-40F to 185F)
Country of origin USA
Features & benefits
Ultra-compact, single-LED form factor
Triple function
high-power white main beam, high-power red main beam, and low-power red accent light
Pin-fin heatsink design, for superior thermal dissipation
Integrated Deutsch-style connector
Designed, torture-tested and assembled in USA
Description

The Stage Series C1R White Flood LED Pod pair is a compact, multi-function off-road lighting solution built for drivers who need more versatility from a single mount point. These pods deliver a wide flood beam for area and close-range illumination, making them well suited for worksites, camp setups, recovery situations, or anywhere broad light coverage matters more than long-distance throw.

What sets the C1R apart is its triple-function capability — each pod runs a white main beam, a red main beam, and a red accent mode, giving you flexible lighting for different conditions without swapping hardware. The white flood output handles practical task lighting, while the red modes serve as low-profile running lights or preserve your night vision in the field.

Diode Dynamics designs, tests, and assembles these pods in the USA, and the pin-fin heatsink keeps thermals in check during extended use. If you're outfitting a truck, Jeep, or UTV and want a capable small-format pod that pulls triple duty, the C1R is a smart addition to any build.

Documentation
$ 445.00 CAD● In stock
