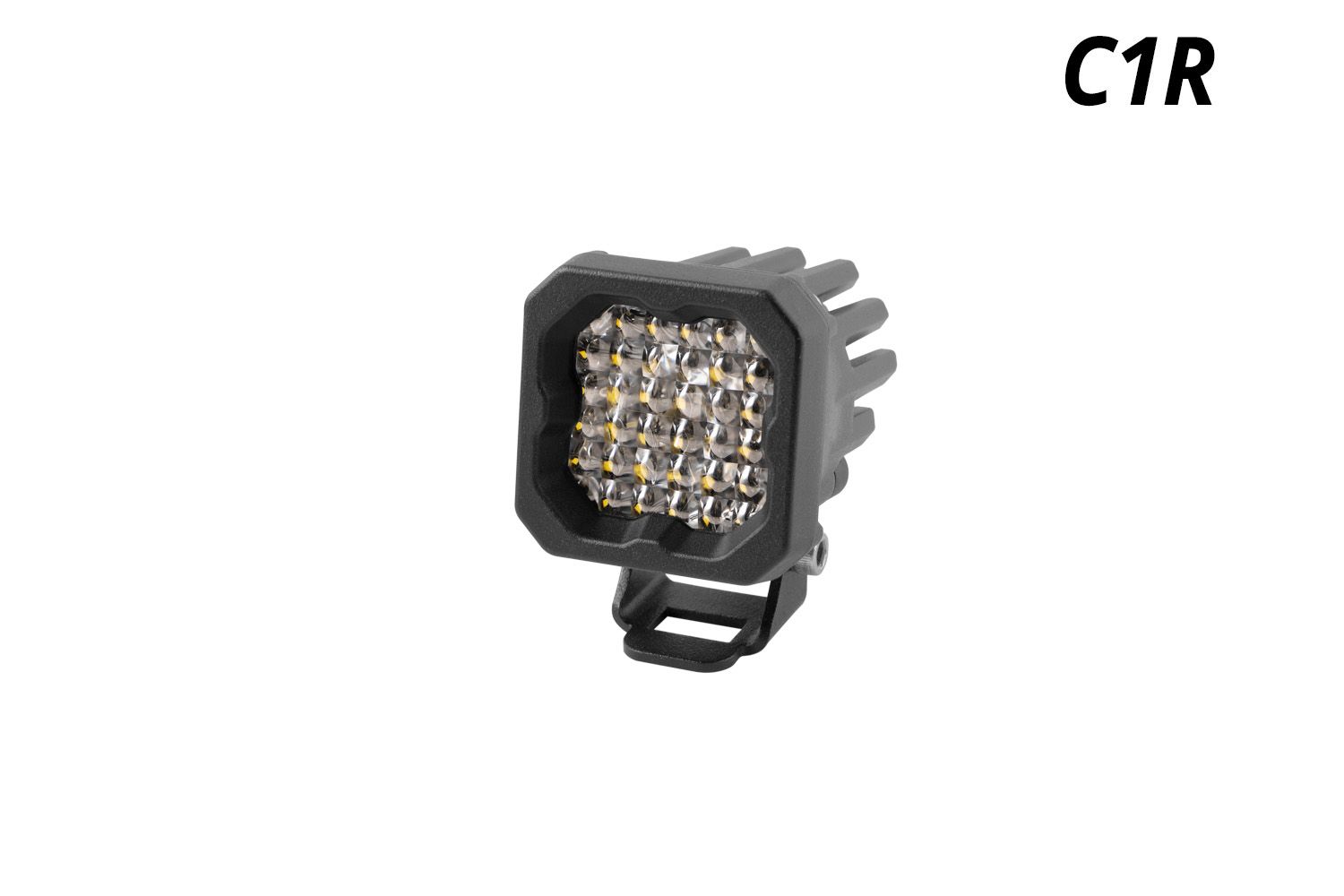

Stage Series C1R White Flood Standard LED Pod (one)

Diode Dynamics  |  SKU: DD7423S  |  Barcode: 00195995129475
Regular price $ 222.00 CAD
Free shipping Orders $500+
Canadian orders No duties / brokerage
Authorized Diode Dynamics Dealer
Returns 30-day easy

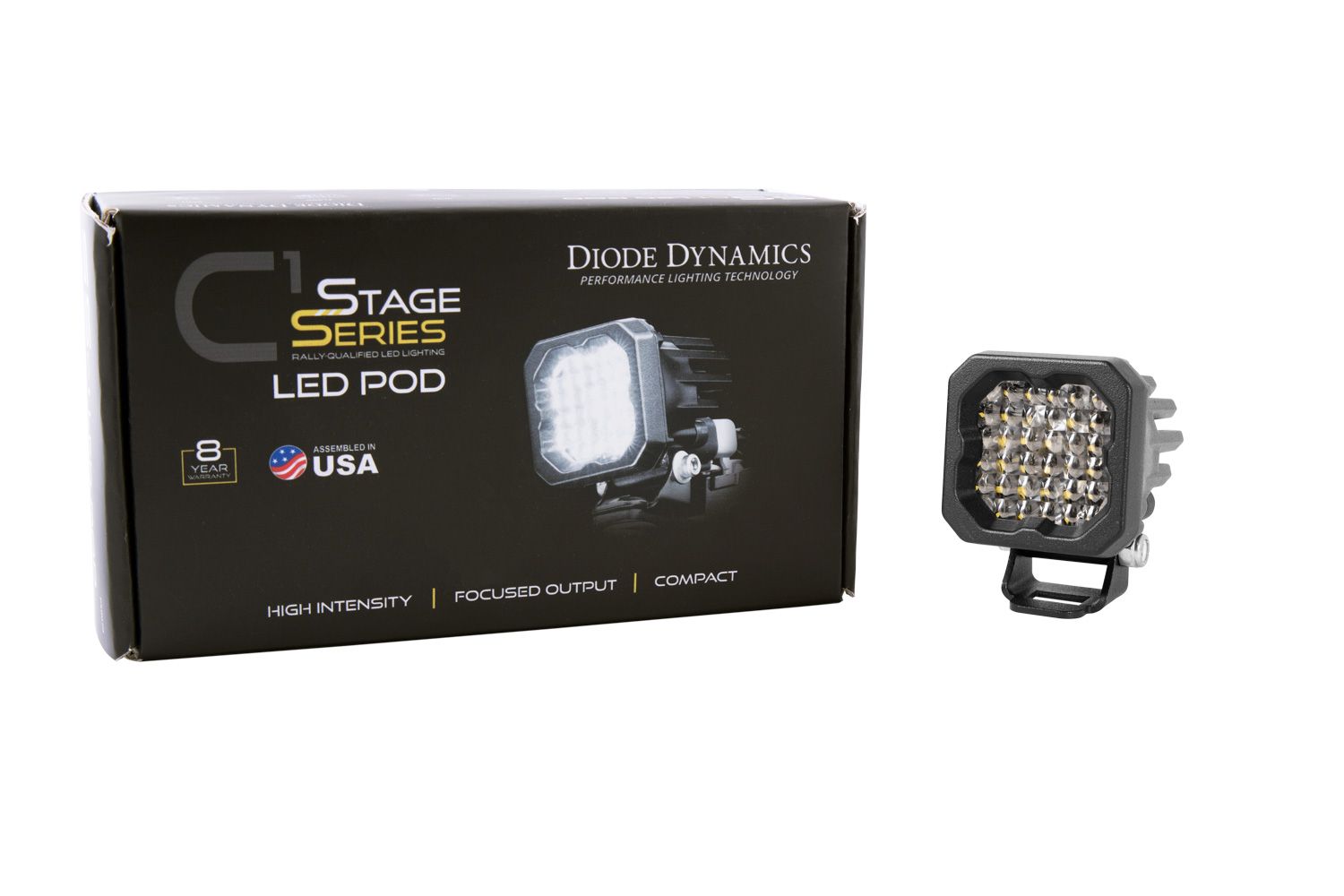

What's in the box 3 ITEMS
One (1) Stage Series C1R LED Pods
One (1) Deutsch-style wire pigtails
One (1) Mounting bracket and hardware
Optical
Color temperature 6000K
Beam spread Flood 80°x50°
Power 15W
Operating voltage 9-16V
Grade Performance
Driver features Constant Current
Construction
Connector Deutsch DT Input
Cooling Passive, Pin-Fin heatsink
Polarity Polarity Specific
Base material Steel
Base color Black
Finish sheen Matte
Bolt thread Medium
Bolt grade High
Install
Drilling No drilling required
Mounting hardware Included
Compliance
IP rating IP69K Waterproof High Pressure
Operating temp -40C to 85C (-40F to 185F)
Country of origin USA
Features & benefits
Ultra-compact, single-LED form factor
Triple function
high-power white main beam, high-power red main beam, and low-power red accent light
Pin-fin heatsink design, for superior thermal dissipation
Integrated Deutsch-style connector
Designed, torture-tested and assembled in USA
Description

The Stage Series C1R White Flood Standard LED Pod is a compact, single-unit off-road light built to deliver broad area coverage wherever you need it most — whether that's a worksite, campsite, or trail. Its flood beam pushes light wide across the scene in front of you, making it a strong choice for close-range illumination, side fill, or supplemental lighting on a bumper or roof mount.

What sets the C1R apart is its triple-function capability: a white main beam for general illumination, a red main beam for low-impact visibility, and a red accent mode that doubles as a signal or atmosphere light. That range of function in one small housing makes it a flexible addition to any build.

Diode Dynamics designed this pod with a pin-fin heatsink and an integrated Deutsch-style connector, keeping installation clean and heat management effective over long use. If you're building out a lighting setup on a truck, Jeep, or UTV and need a dependable, multi-function flood pod, the C1R delivers without taking up much real estate.

Documentation
$ 222.00 CAD● In stock
