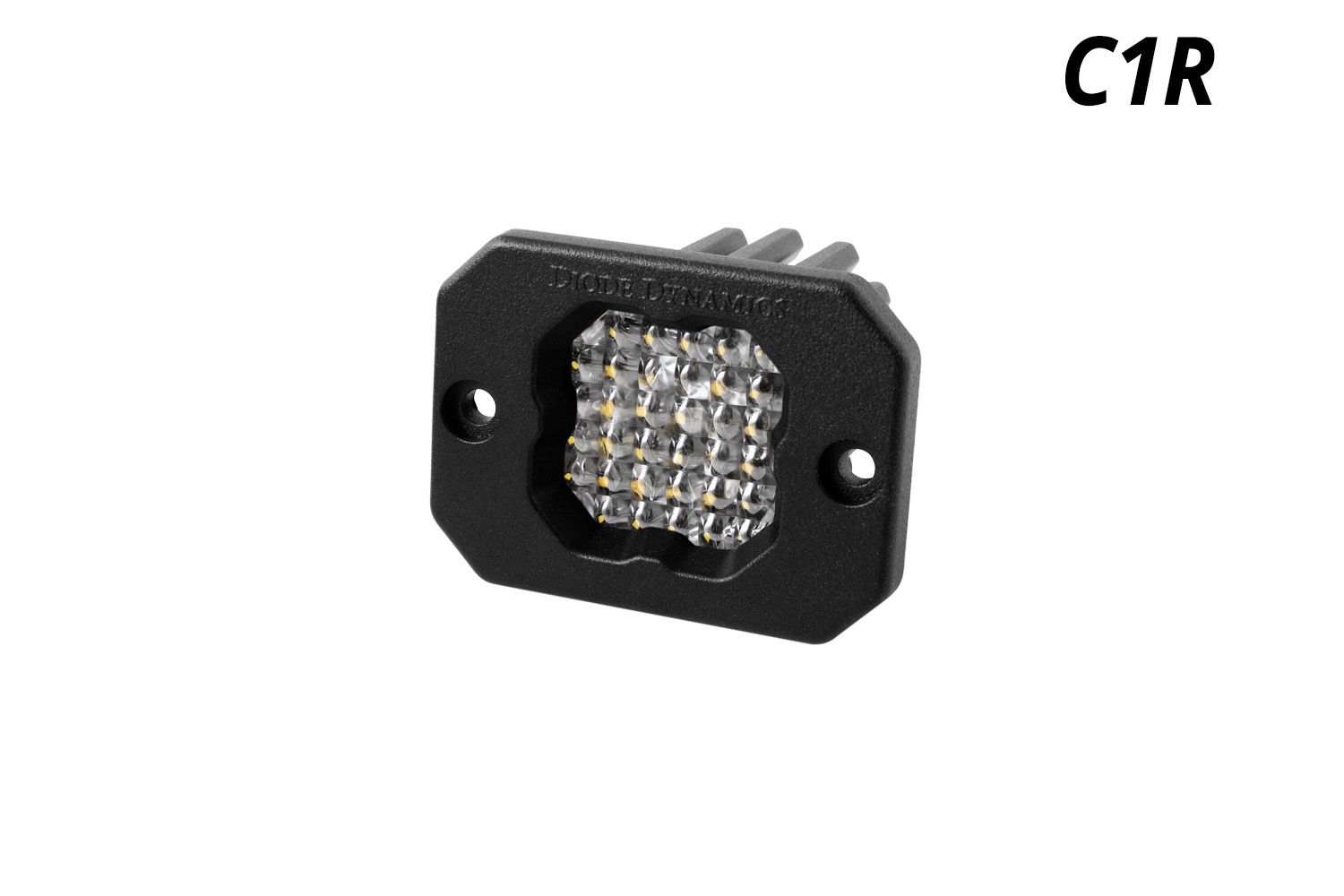

Stage Series C1R White Flood Flush Mount LED Pod (one)

Diode Dynamics  |  SKU: DD7427S  |  Barcode: 00195995129499
Regular price $ 222.00 CAD
Free shipping Orders $500+
Canadian orders No duties / brokerage
Authorized Diode Dynamics Dealer
Returns 30-day easy

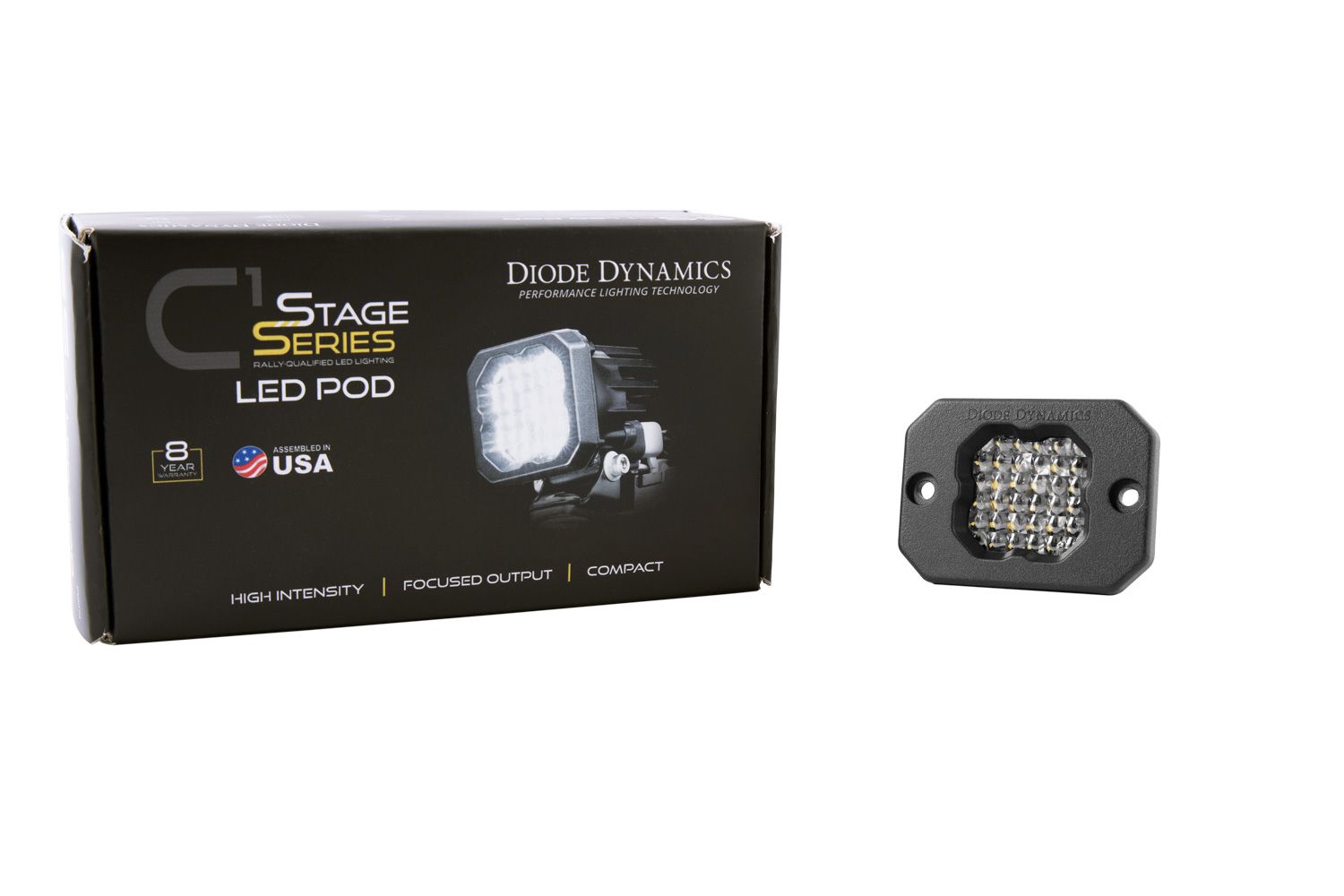

What's in the box 3 ITEMS
One (1) Stage Series C1R LED Pods
One (1) Deutsch-style wire pigtails
One (1) Mounting bracket and hardware
Optical
Color temperature 6000K
Beam spread Flood 80°x50°
Power 15W
Operating voltage 9-16V
Grade Performance
Driver features Constant Current
Construction
Connector Deutsch DT Input
Cooling Passive, Pin-Fin heatsink
Polarity Polarity Specific
Base material Steel
Base color Black
Finish sheen Matte
Bolt thread Medium
Bolt grade High
Install
Drilling No drilling required
Mounting hardware Included
Compliance
IP rating IP69K Waterproof High Pressure
Operating temp -40C to 85C (-40F to 185F)
Country of origin USA
Features & benefits
Allows for flush installation on bumper and truck beds
Ultra-compact, single-LED form factor
Triple function
high-power white main beam, high-power red main beam, and low-power red accent light
Pin-fin heatsink design, for superior thermal dissipation
Integrated Deutsch-style connector
Designed, torture-tested and assembled in USA
Description

The Stage Series C1R White Flood Flush Mount LED Pod is a compact, flush-mounted light designed to deliver broad area illumination for off-road, work site, and utility applications. Its flood beam pattern pushes light wide and close, making it ideal for lighting up a campsite, the bed of your truck, or the ground around your rig when you need to see what's right in front of you.

What sets the C1R apart is its triple-function capability — a single pod delivers a white main beam, a red main beam, and a red accent light mode, giving you versatile output from one clean, low-profile package. The TIR optic design keeps the light focused and efficient, while the pin-fin heatsink manages heat for consistent long-term performance.

Built, designed, and assembled in the USA, this Diode Dynamics pod integrates cleanly into custom builds thanks to its flush mount profile and integrated Deutsch-style connector. If you need a discreet, multi-function light that punches above its size, the C1R delivers.

Documentation
$ 222.00 CAD● In stock
