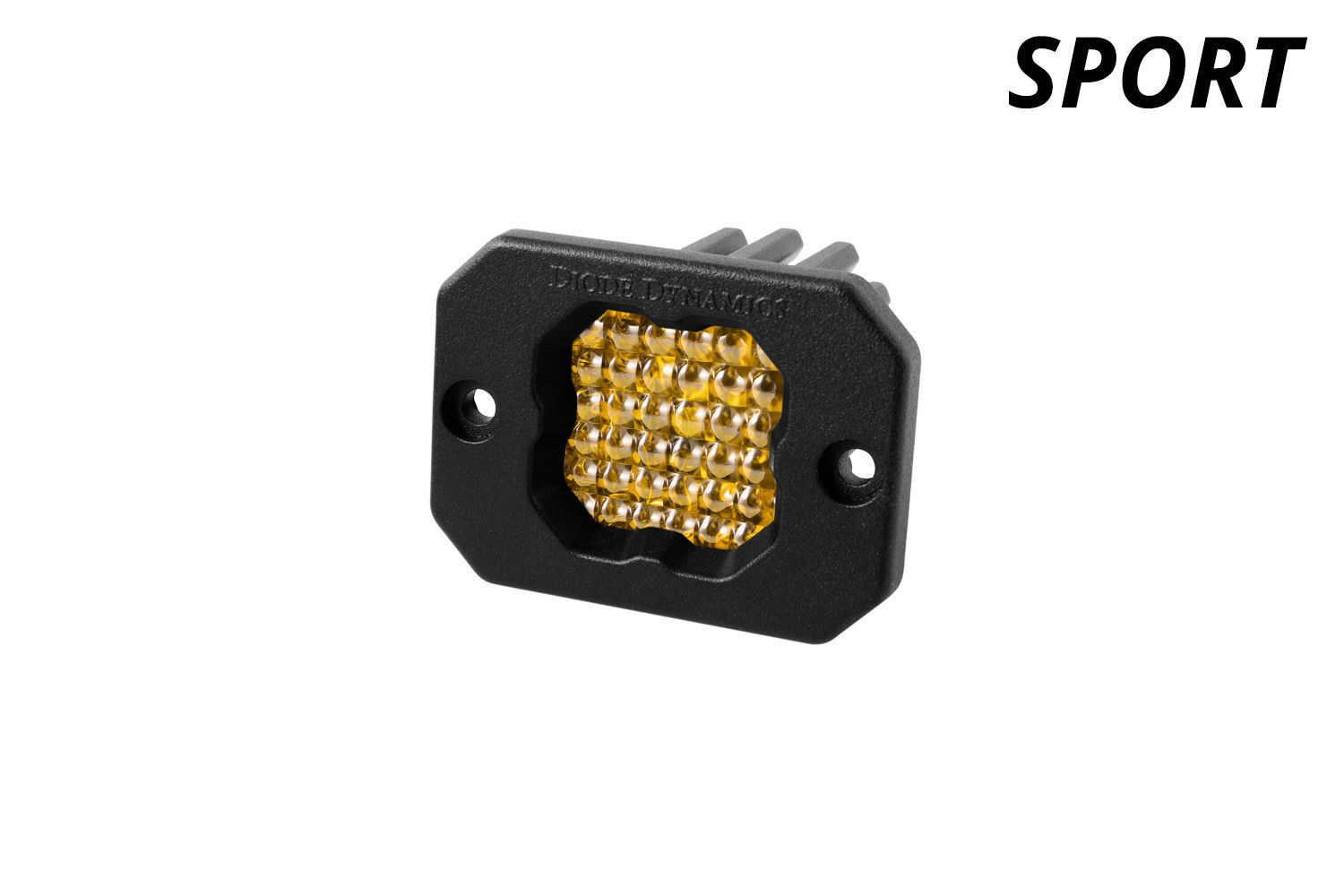

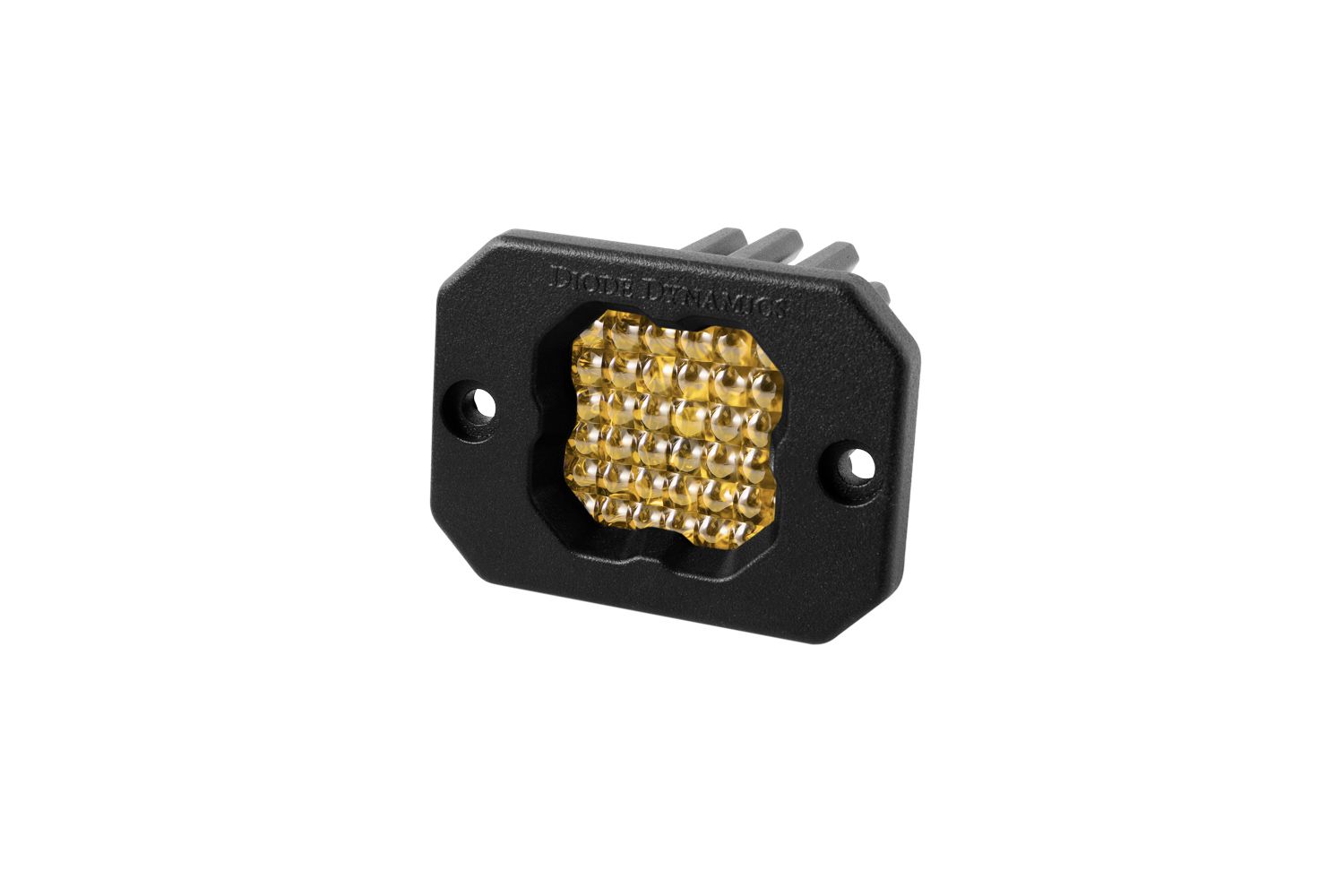

SSC1 Yellow Sport Flush Mount LED Pod (one)

Diode Dynamics  |  SKU: DD6473S  |  Barcode: 00691026129921
Regular price $ 139.00 CAD
Free shipping Orders $500+
Canadian orders No duties / brokerage
Authorized Diode Dynamics Dealer
Returns 30-day easy

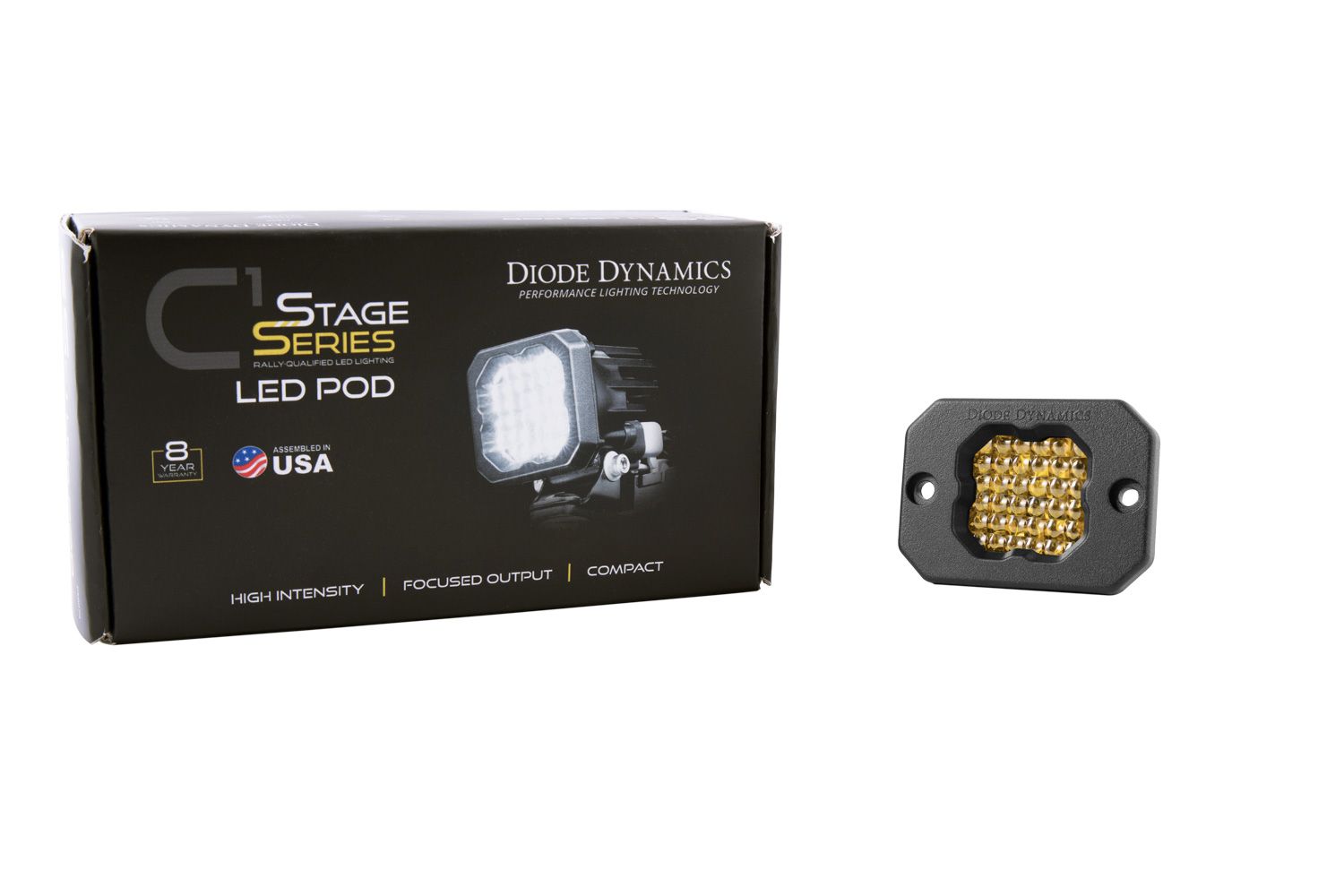

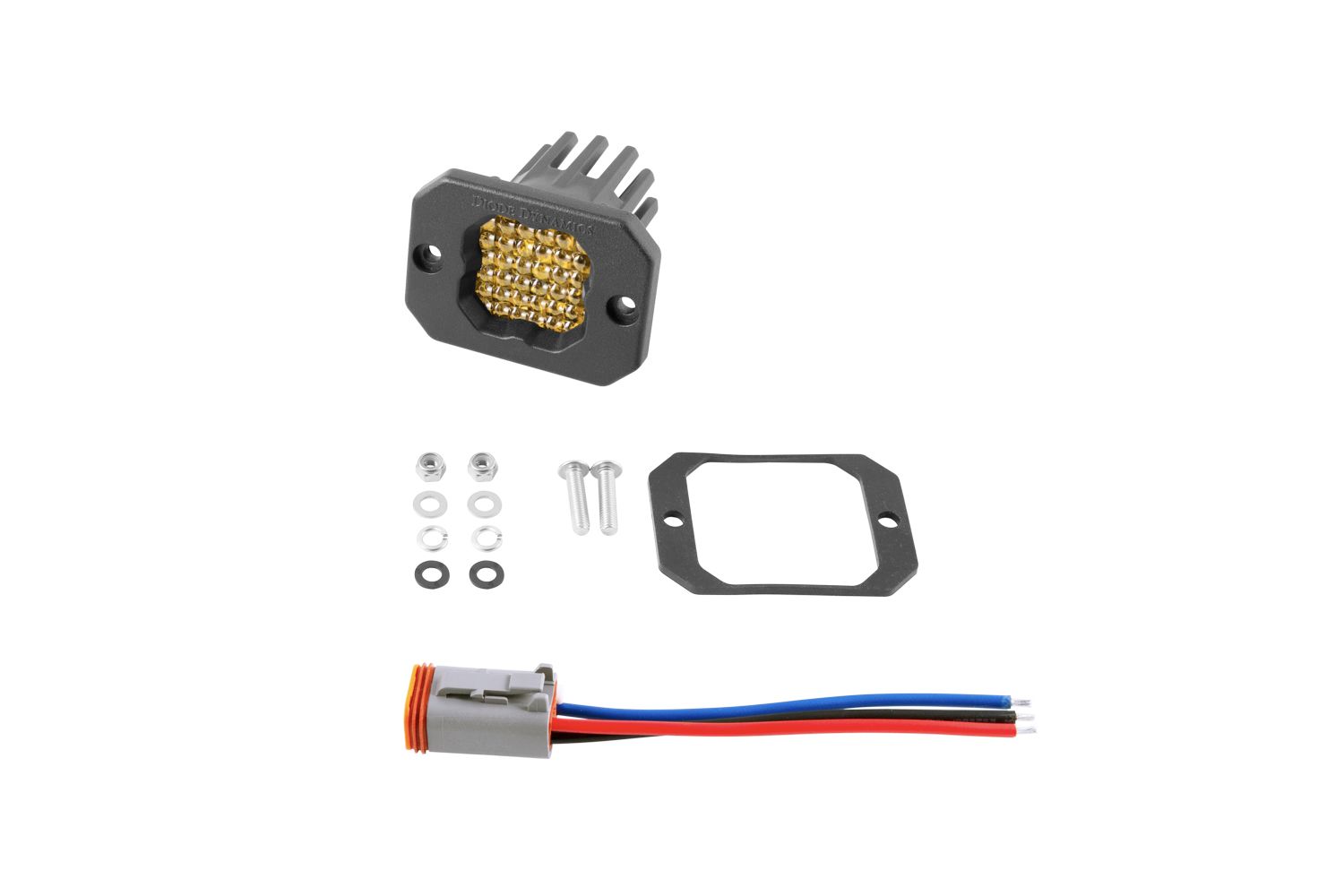

What's in the box 3 ITEMS
One (1) Stage Series C1 LED Pod
One (1) Deutsch-style wire pigtail
One (1) Mounting bracket and hardware
Optical
Lumens 1000
Color temperature 3000K

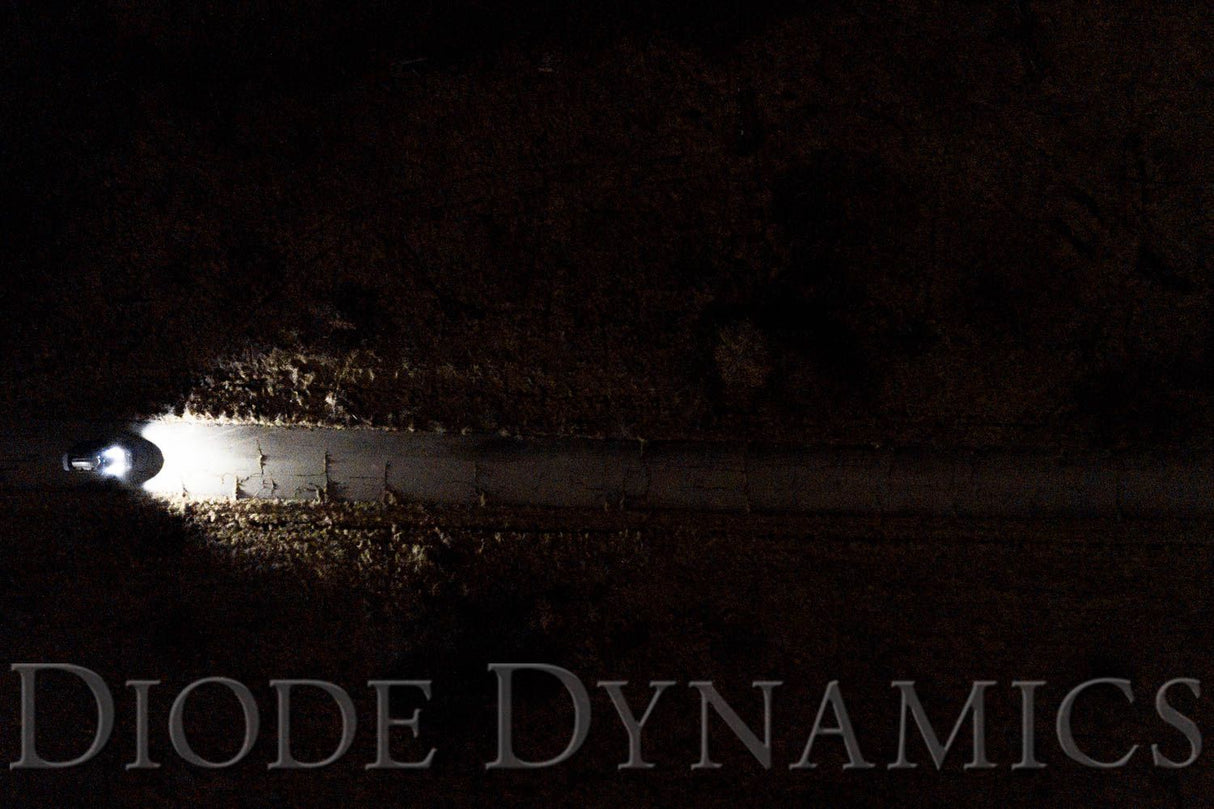

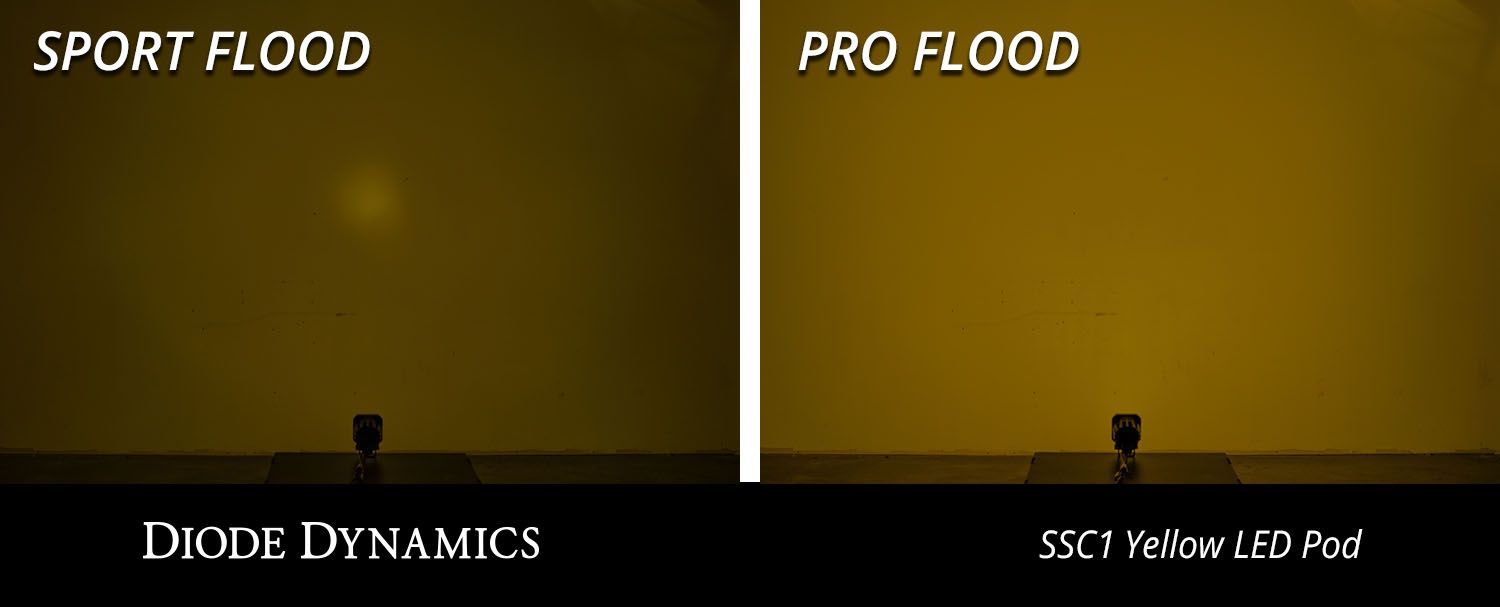

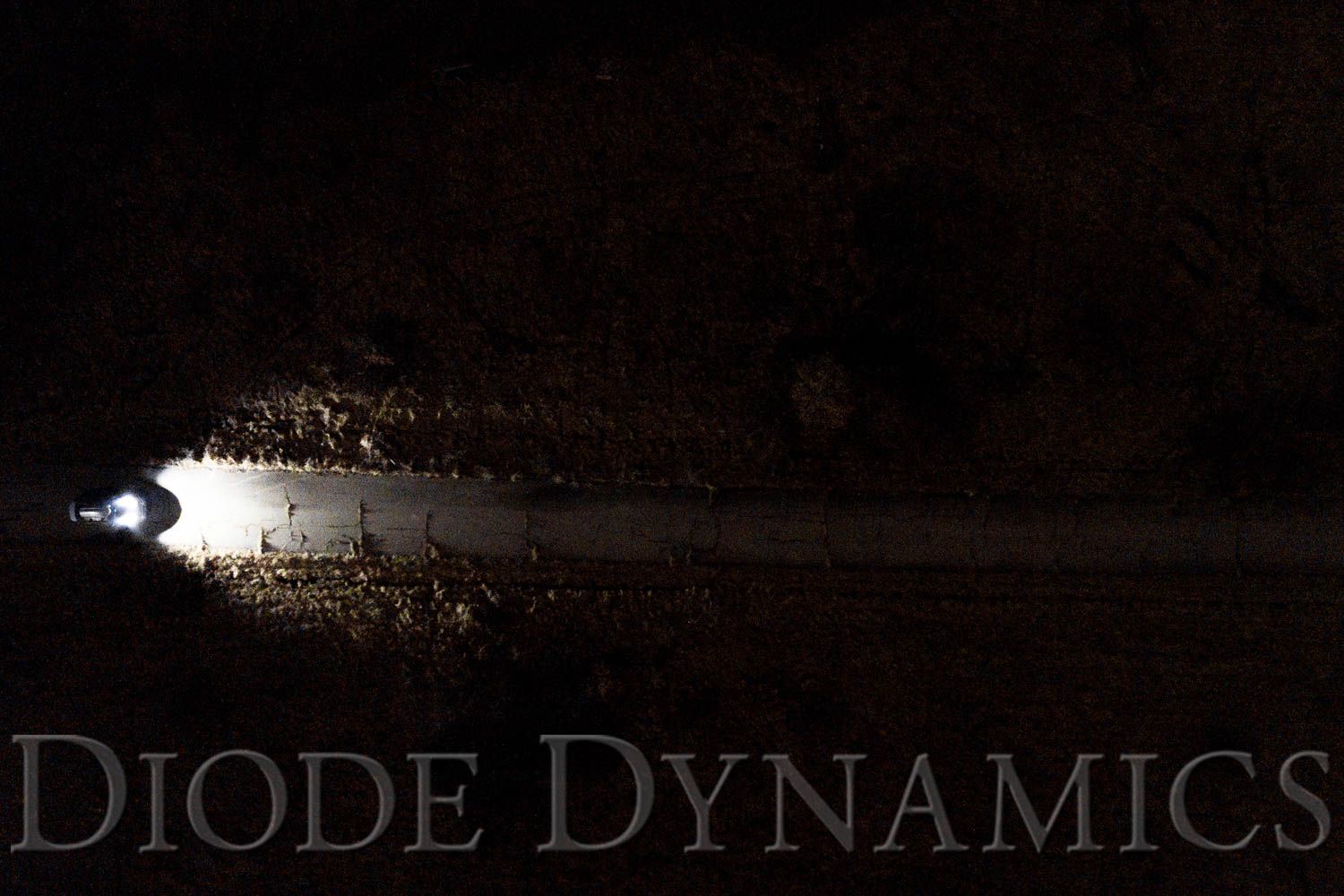

Beam spread Flood 80°x50°
Power 13W
Operating voltage 9-16V
Grade Performance
Intensity 380 cd
LED emitter Cree XP-L HI
Driver features Constant Current
Construction
Connector Deutsch DT Input
Cooling Passive, Pin-Fin heatsink
Polarity Polarity Specific
Base material Steel
Base color Black
Finish sheen Matte
Bolt thread Medium
Bolt grade High
Install
Drilling No drilling required
Mounting hardware Included
Compliance
IP rating IP69K Waterproof High Pressure
Operating temp -40C to 85C (-40F to 185F)
Country of origin USA
Features & benefits
Allows for flush installation on bumpers and truck beds
Ultra-compact, single-LED form factor
High-intensity 10-watt LED chip

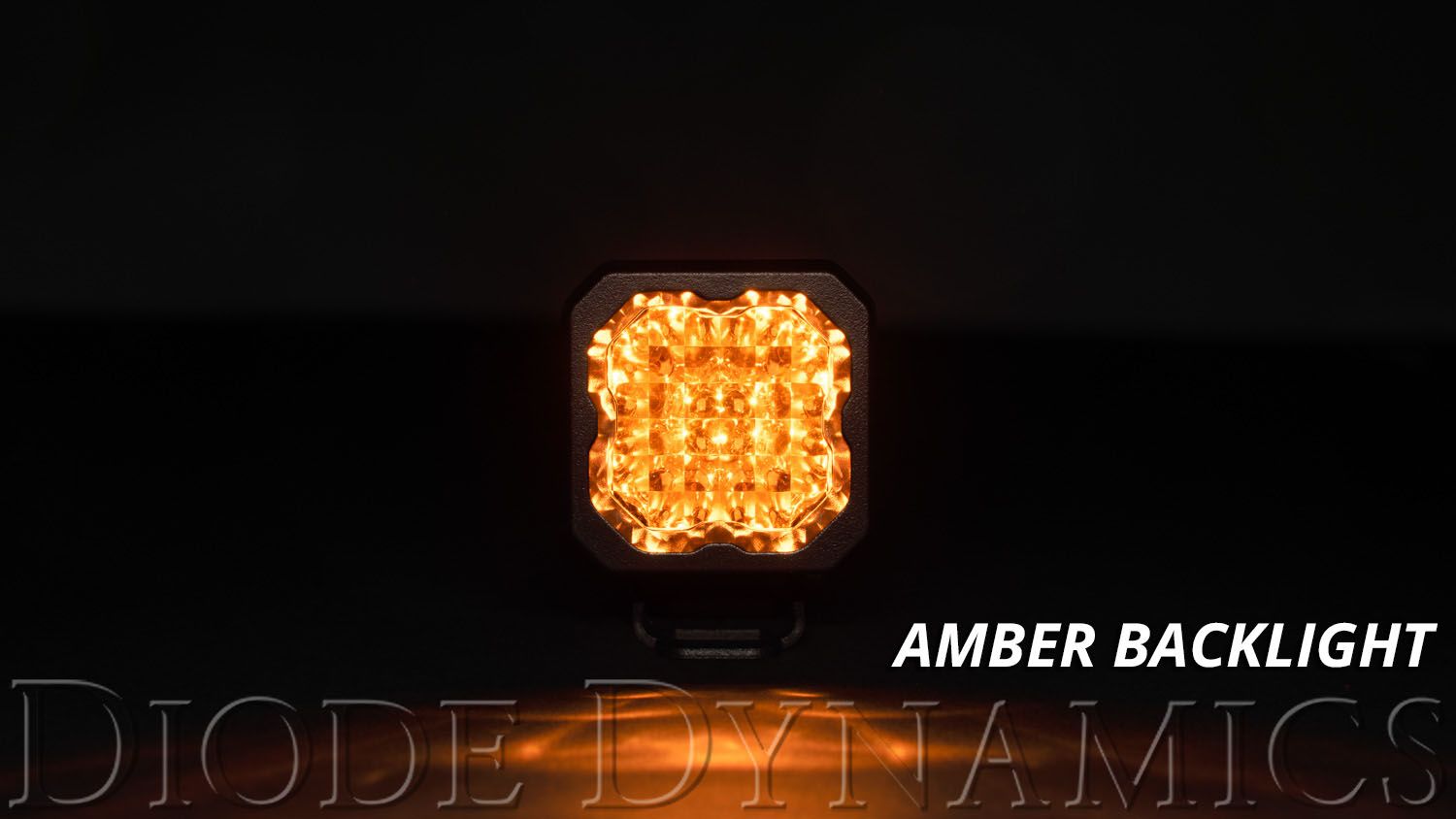

Backlighting available in amber
Pin-fin heatsink design, for superior thermal dissipation
Integrated Deutsch-style connector
Designed, torture-tested and assembled in USA
Description

The SSC1 Yellow Sport Flush Mount LED Pod is a compact, single-unit off-road light built for drivers who need targeted illumination in tight, versatile mounting locations — bumpers, grille bars, truck beds, roof lines, or anywhere else a purpose-built pod makes sense. The yellow output is purpose-made for cutting through fog, dust, rain, and snow, making it a strong choice for off-road running lights or adverse-weather work lighting where standard white LEDs fall short.

Diode Dynamics engineered the SSC1 around TIR optics that concentrate and shape output efficiently, paired with a pin-fin heatsink that keeps the LED cool during extended use. The flush mount bezel gives it a clean, low-profile look rather than the bolted-on appearance of traditional pods, so it integrates naturally into custom bumper builds or factory-style setups.

If you're building out a lighting setup piece by piece or filling a specific gap in your current configuration, this single-unit pod gives you the flexibility to place output exactly where you need it.

Documentation
