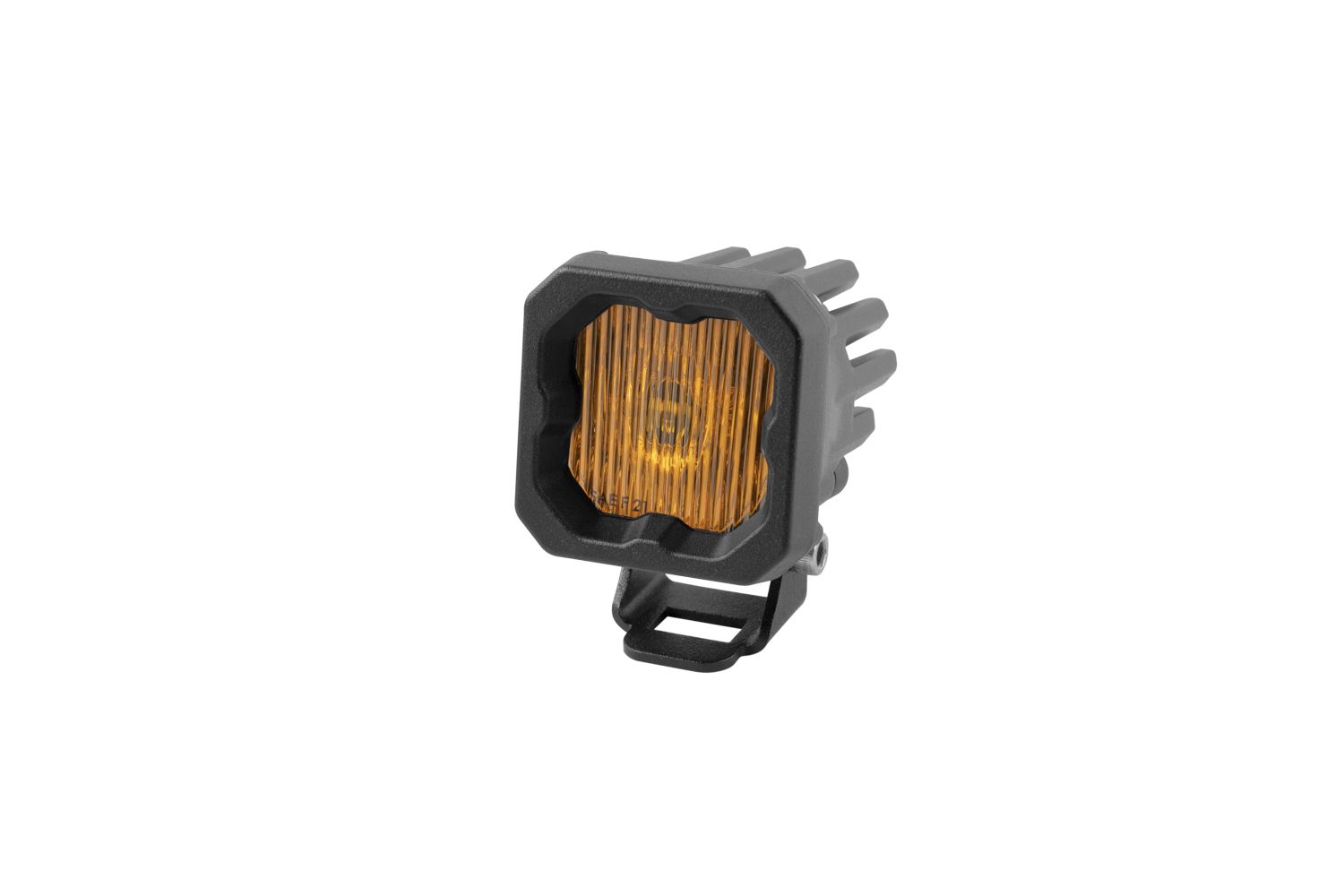

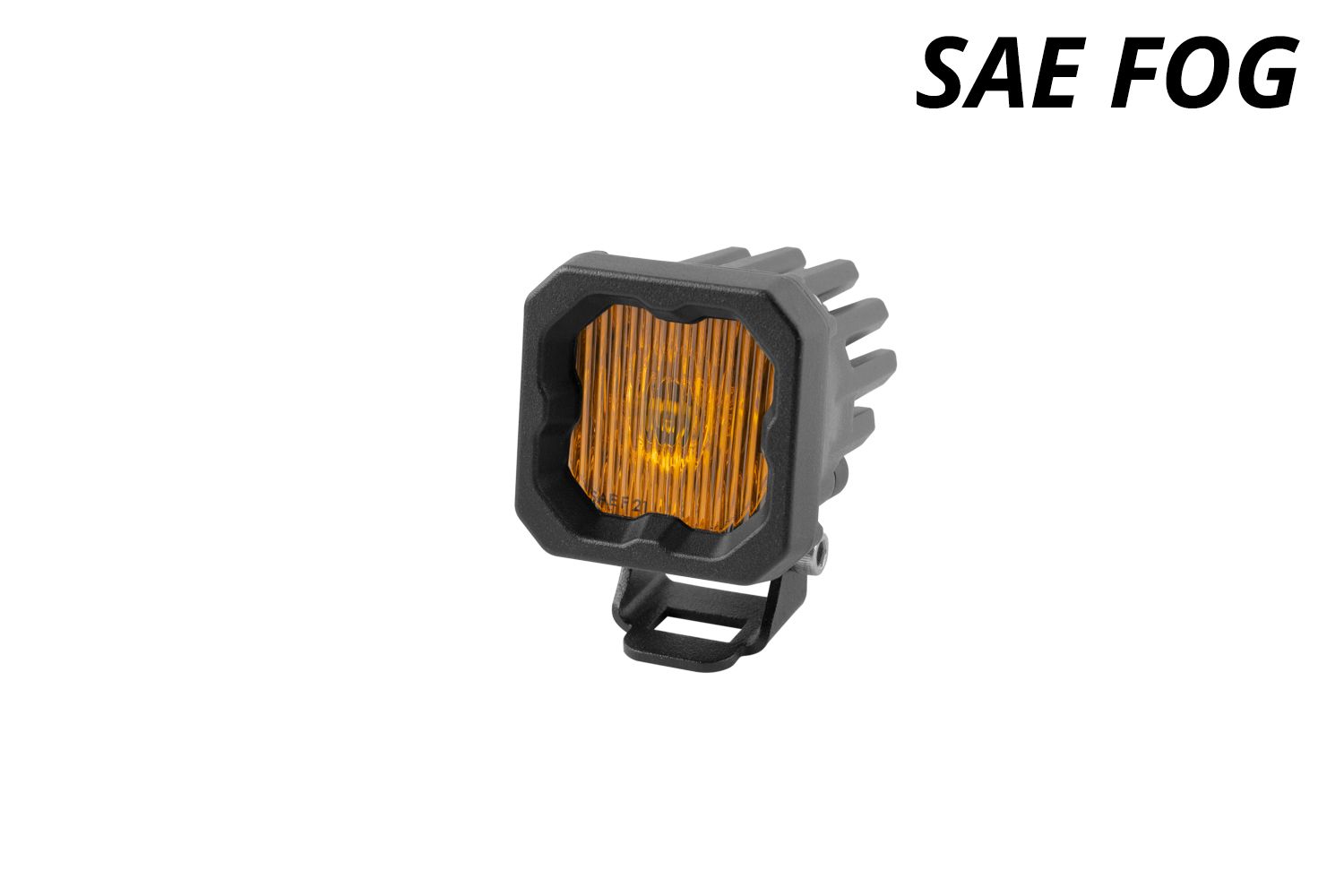

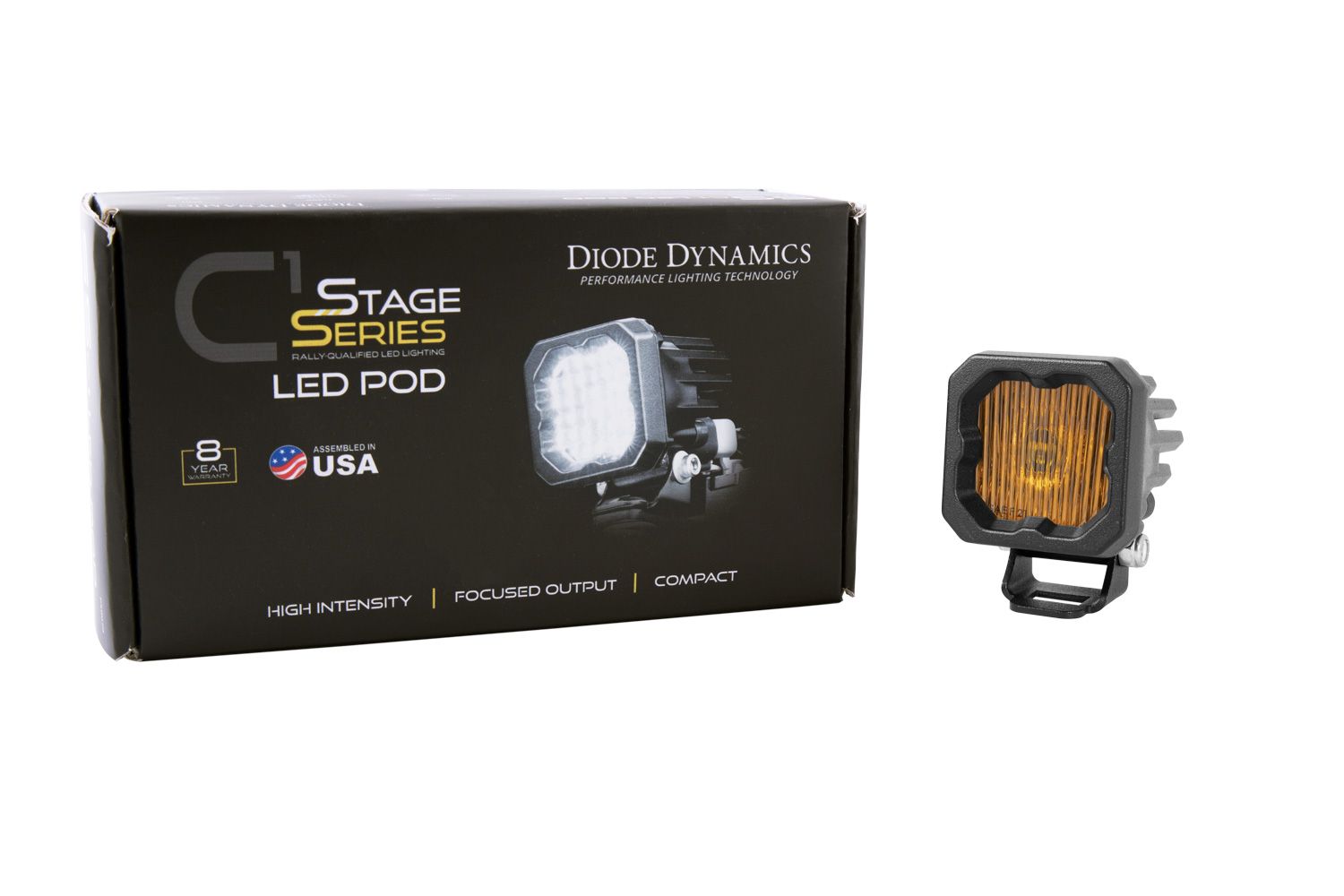

SSC1 Yellow SAE Fog Standard LED Pod (one)

Diode Dynamics  |  SKU: DD6848S  |  Barcode: 00691026130255
Regular price $ 195.00 CAD
Free shipping Orders $500+
Canadian orders No duties / brokerage
Authorized Diode Dynamics Dealer
Returns 30-day easy

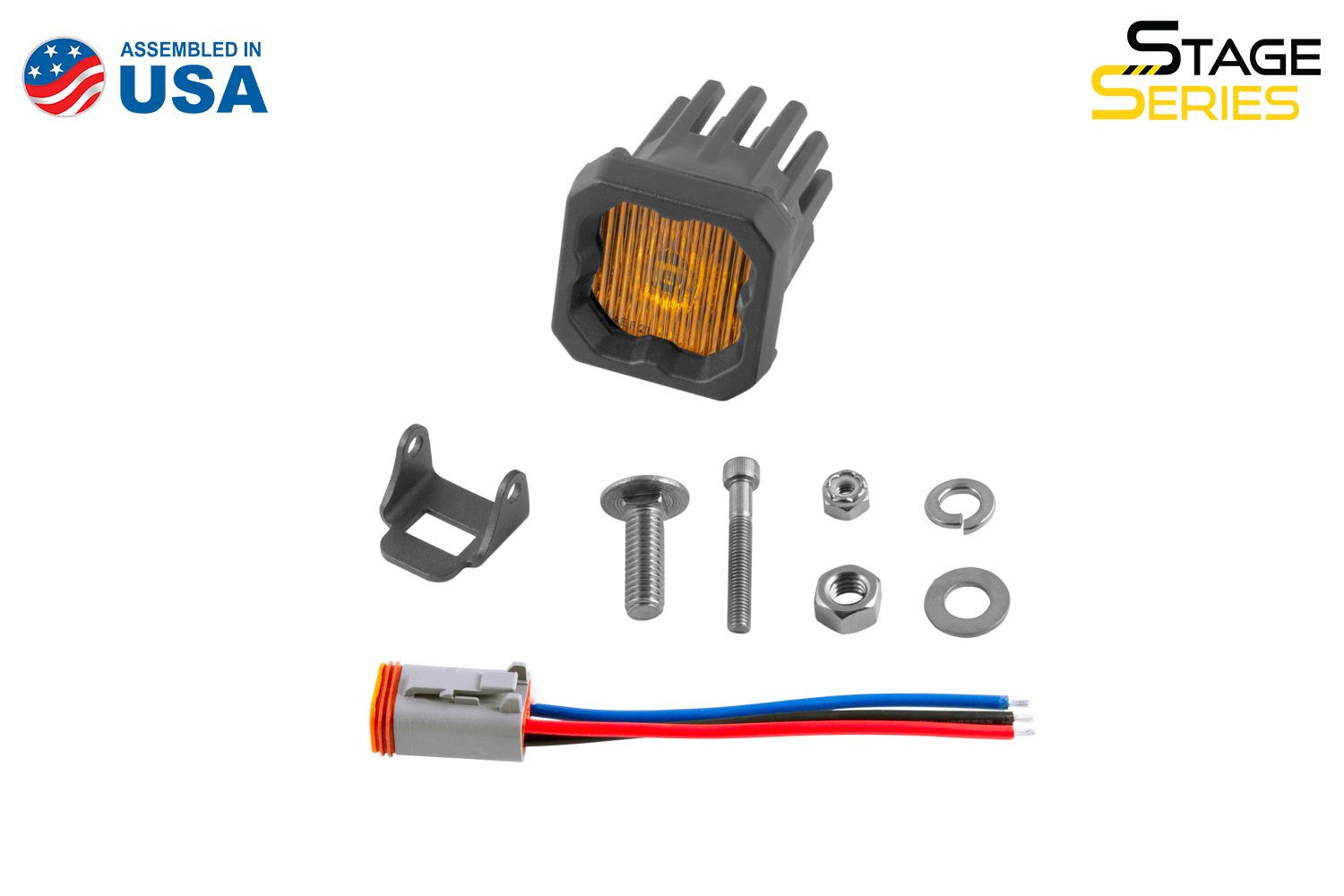

What's in the box 3 ITEMS
One (1) Stage Series C1 LED Pod
One (1) Deutsch-style wire pigtail
One (1) Mounting bracket and hardware
Optical
Color temperature 3000K

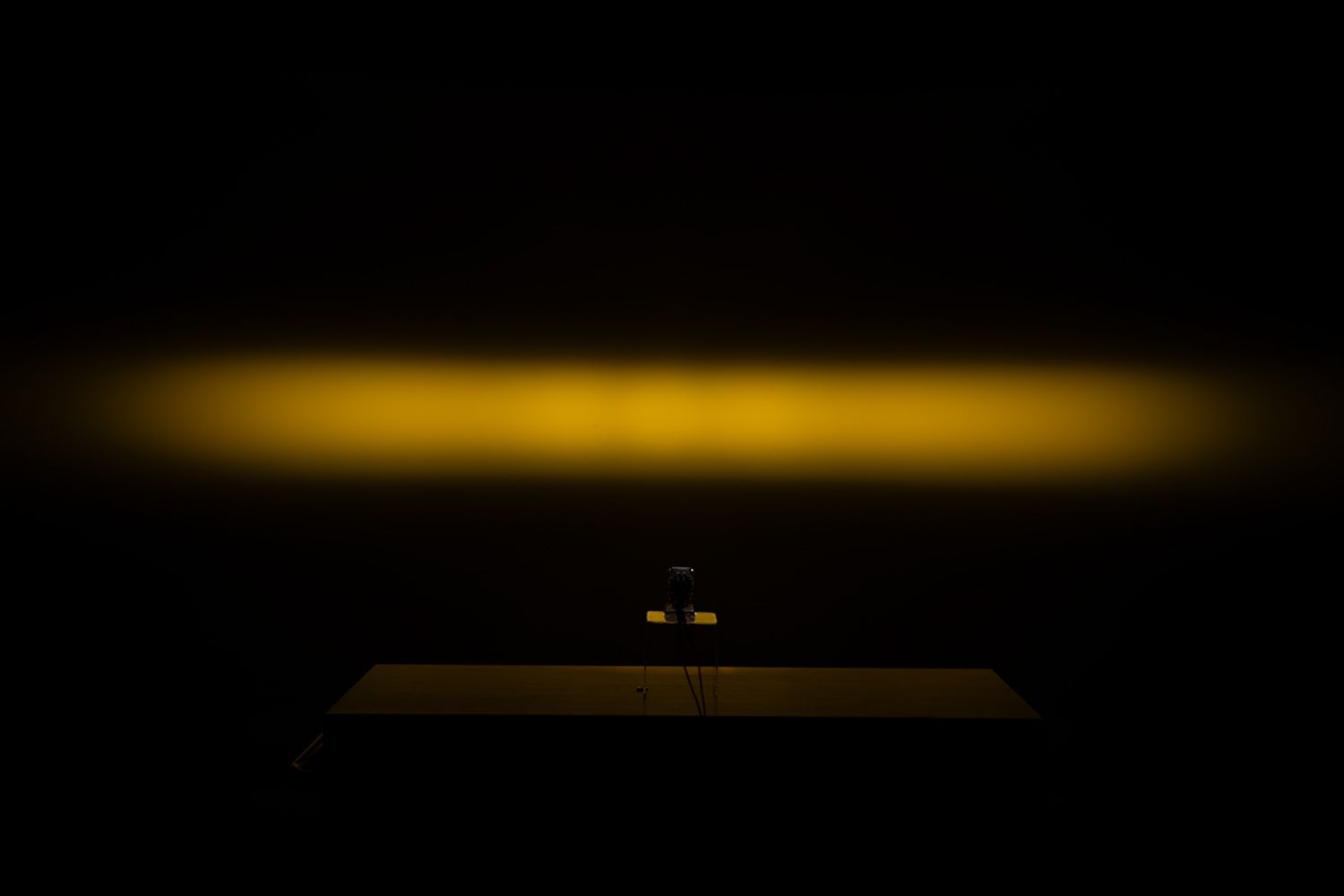

Beam spread Fog 98°x9°
Power 19W
Operating voltage 9-16V
Grade Performance
Intensity 4 200 cd
LED emitter Osram Boost HX
Driver features Constant Current
Construction
Connector Deutsch DT Input
Cooling Passive, Pin-Fin heatsink
Polarity Polarity Specific
Base material Steel
Base color Black
Finish sheen Matte
Bolt thread Medium
Bolt grade High
Install
Drilling No drilling required
Mounting hardware Included
Compliance
IP rating IP69K Waterproof High Pressure
Operating temp -40C to 85C (-40F to 185F)
SAE/DOT SAE J583 Foglamp Beam Pattern
Country of origin USA
Features & benefits
Ultra-compact, single-LED form factor
SAE-compliant, road-legal output
Single automotive-grade Osram HX Boost 20-watt LED
Backlighting in a brilliant amber color
Integrated Deutsch-style connector
Designed, torture-tested and assembled in USA
Description

The Diode Dynamics SSC1 Yellow SAE Fog Standard LED Pod is a compact single-pod fog light built to cut through rain, snow, and low-lying haze with a wide, low-mounted beam pattern that keeps glare off the road surface and improves contrast in poor conditions. The yellow output is a deliberate choice for drivers who want reduced eye strain and better visibility through precipitation — a proven advantage on forest service roads, job sites, and any run where weather turns against you.

The SSC1's TIR optic design concentrates output efficiently, making it a capable performer despite its small footprint — easy to tuck into tight mounting locations on trucks, Jeeps, or UTVs where larger pods simply won't fit. The pin-fin heatsink and powdercoated aluminum housing are built to handle prolonged use in rough environments without degrading output or finish.

If you're adding a dedicated fog light, supplementing an existing lighting setup, or building out a multi-pod configuration, the SSC1 Yellow Fog gives you a reliable, purpose-built option in a package that installs clean and runs hard.

Documentation
$ 195.00 CAD● In stock
