SSC1 Yellow SAE Fog Flush Mount LED Pod (one)

Diode Dynamics  |  SKU: DD6851S  |  Barcode: 00691026130316
Regular price $ 195.00 CAD
Free shipping Orders $500+
Canadian orders No duties / brokerage
Authorized Diode Dynamics Dealer
Returns 30-day easy

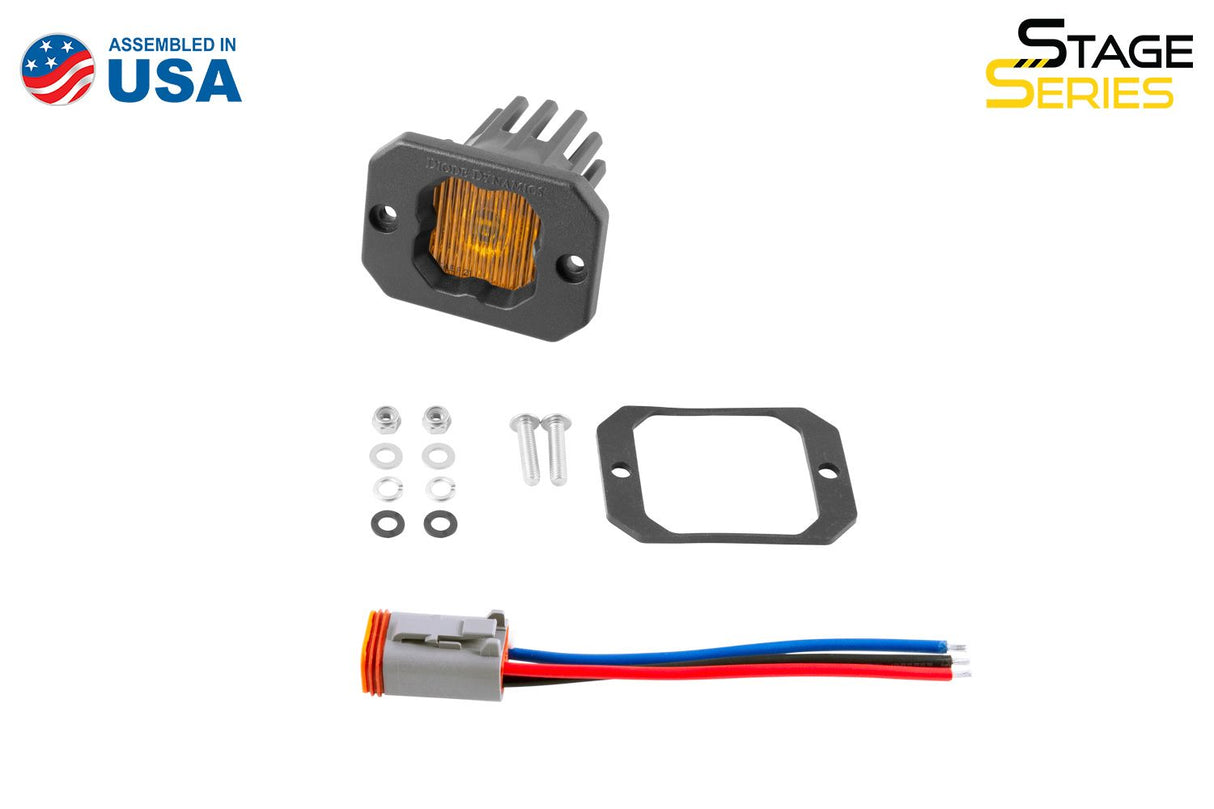

What's in the box 3 ITEMS
One (1) Stage Series C1 LED Pod
One (1) Deutsch-style wire pigtail
One (1) Mounting bracket and hardware
Optical
Color temperature 3000K
Beam spread Fog 98°x9°
Power 19W
Operating voltage 9-16V
Grade Performance
LED emitter Osram Boost HX
Driver features Constant Current
Construction
Connector Deutsch DT Input
Cooling Passive, Pin-Fin heatsink
Polarity Polarity Specific
Base material Steel
Base color Black
Finish sheen Matte
Bolt thread Medium
Bolt grade High
Install
Drilling No drilling required
Mounting hardware Included
Compliance
IP rating IP69K Waterproof High Pressure
Operating temp -40C to 85C (-40F to 185F)
SAE/DOT SAE J583 Foglamp Beam Pattern
Country of origin USA
Features & benefits
Ultra-compact, single-LED form factor
SAE-compliant, road-legal output
Single automotive-grade Osram HX Boost 20-watt LED
Backlighting in a brilliant amber color
Integrated Deutsch-style connector
Designed, torture-tested and assembled in USA
Description

The Diode Dynamics SSC1 Yellow SAE Fog Flush Mount LED Pod is a compact single-light fog solution built for drivers who need reliable, road-legal forward lighting in low-visibility conditions. The yellow output cuts through rain, snow, and fog more effectively than white light, reducing glare and improving contrast on the road ahead — making it a practical choice for anyone regularly driving in harsh weather.

Designed around a single high-power LED with precision TIR optics, this pod delivers a focused, SAE-compliant fog beam in a slim flush-mount package that installs cleanly into bumpers, pods, or custom mounting locations. The integrated Deutsch-style connector simplifies wiring, and the pin-fin heatsink keeps thermals in check during extended use.

Whether you're building out a work truck, adding supplemental fog lighting to a Jeep, or replacing a failed OEM fog light with something more capable, the SSC1 gives you a purpose-built, durable pod that does its job without unnecessary bulk.

Documentation
