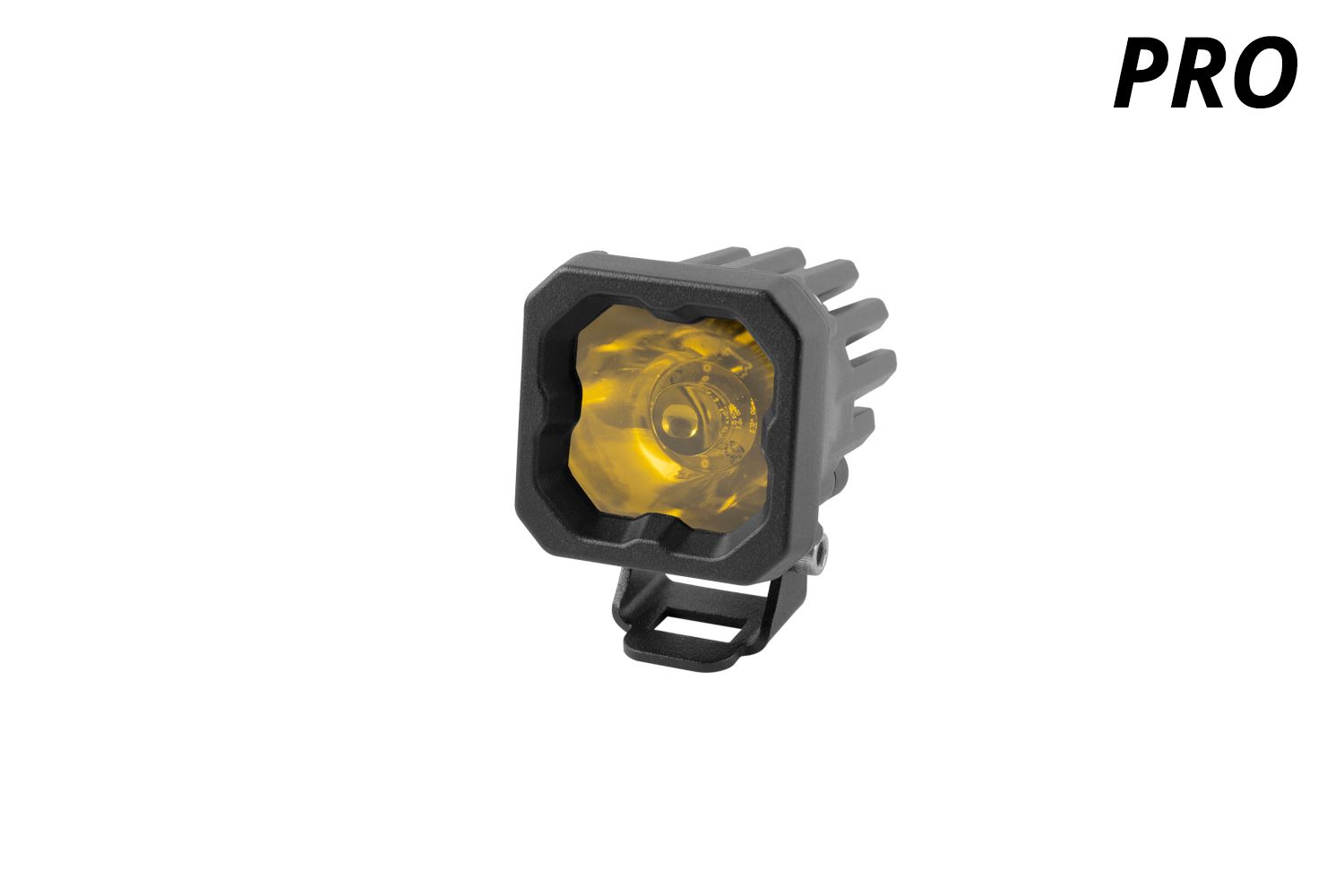

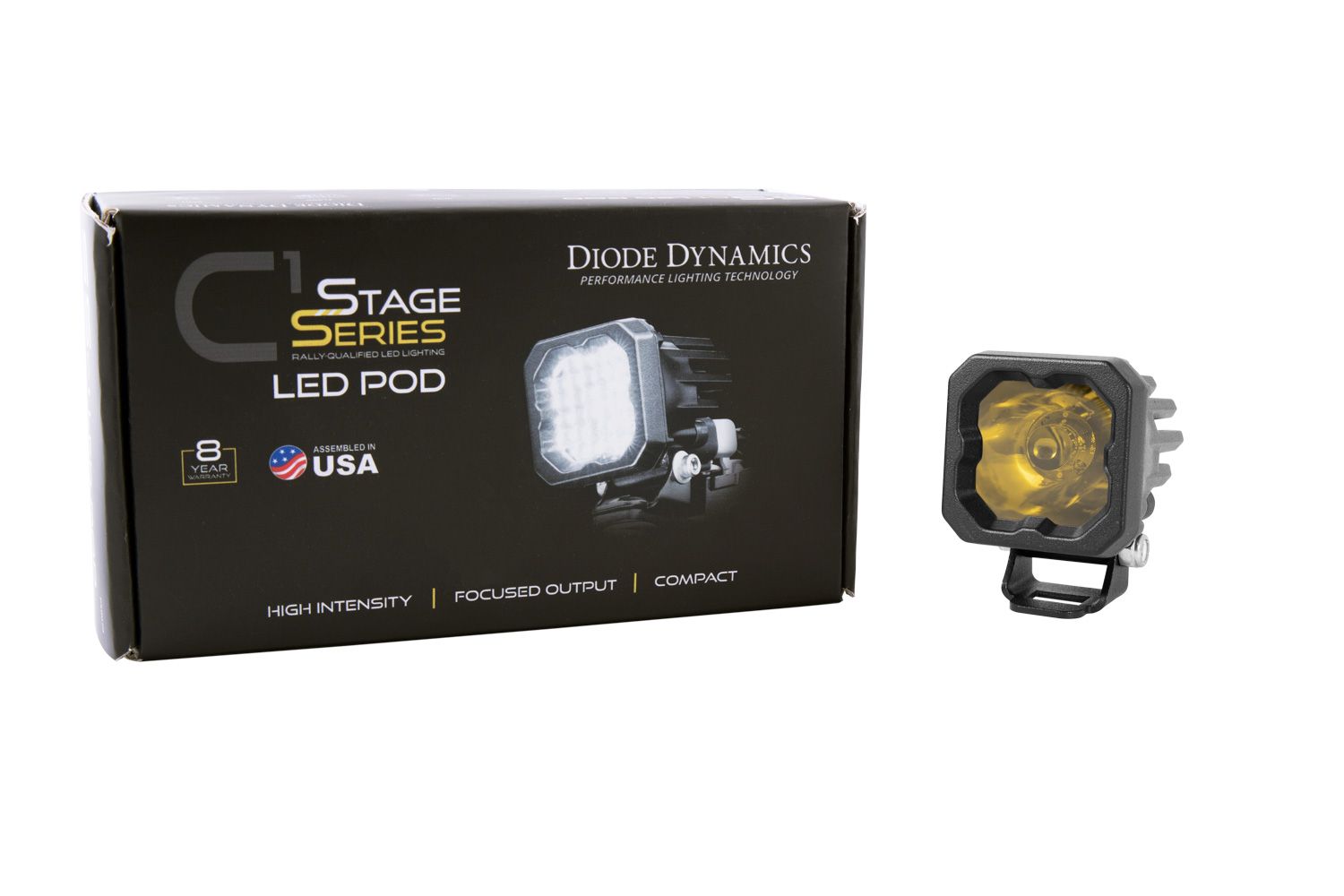

SSC1 Yellow Pro Standard LED Pod (one)

Diode Dynamics  |  SKU: DD6458S  |  Barcode: 00691026129624
Regular price $ 181.00 CAD
Choose Your Beam Pattern
Free shipping Orders $500+
Canadian orders No duties / brokerage
Authorized Diode Dynamics Dealer
Returns 30-day easy

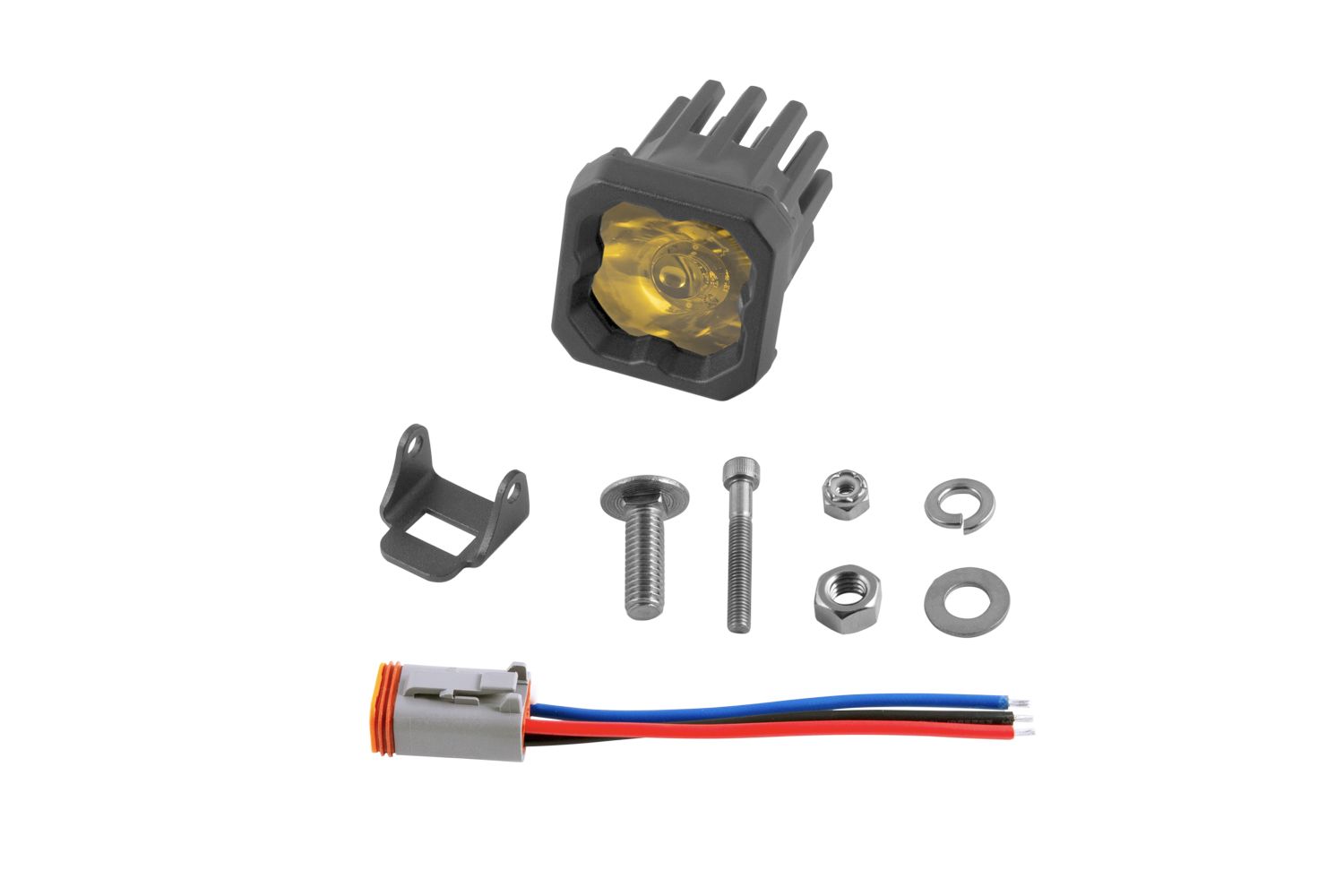

What's in the box 3 ITEMS
One (1) Stage Series C1 LED Pod
One (1) Deutsch-style wire pigtail
One (1) Mounting bracket and hardware
Optical
Lumens 2300
Color temperature 3000K
Beam spread Wide 100°x8°
Power 19W
Operating voltage 9-16V
Grade Performance
Intensity 4 600 cd
LED emitter Cree XHP50
Driver features Constant Current
Construction
Connector Deutsch DT Input
Cooling Passive, Pin-Fin heatsink
Polarity Polarity Specific
Base material Steel
Base color Black
Finish sheen Matte
Bolt thread Medium
Bolt grade High
Install
Drilling No drilling required
Mounting hardware Included
Compliance
IP rating IP69K Waterproof High Pressure
Operating temp -40C to 85C (-40F to 185F)
Country of origin USA
Features & benefits
Ultra-compact, single-LED form factor
High-intensity 20-watt LED chip

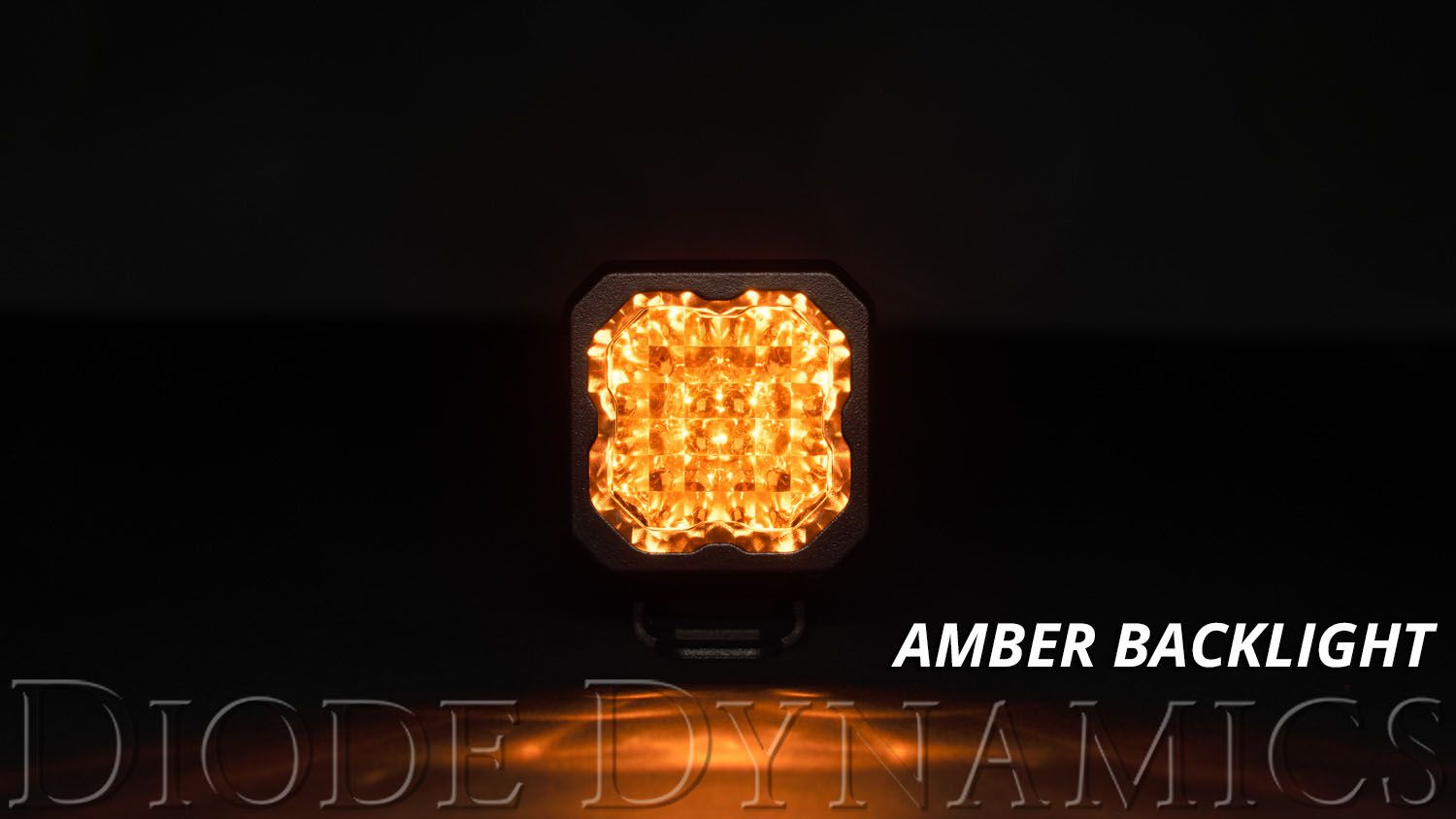

Backlighting in a brilliant amber color
Pin-fin heatsink design, for superior thermal dissipation
Integrated Deutsch-style connector
Designed, torture-tested and assembled in USA
Description

The Diode Dynamics SSC1 Yellow Pro LED Pod is a compact, single-pod off-road light built to cut through rain, dust, and fog where standard white lighting falls short. The selective yellow output reduces glare scatter in poor conditions, making it a practical choice for trail running, work sites, and overland travel in bad weather. You can order it as a single pod to fill a specific gap in your lighting setup or build out a larger array over time.

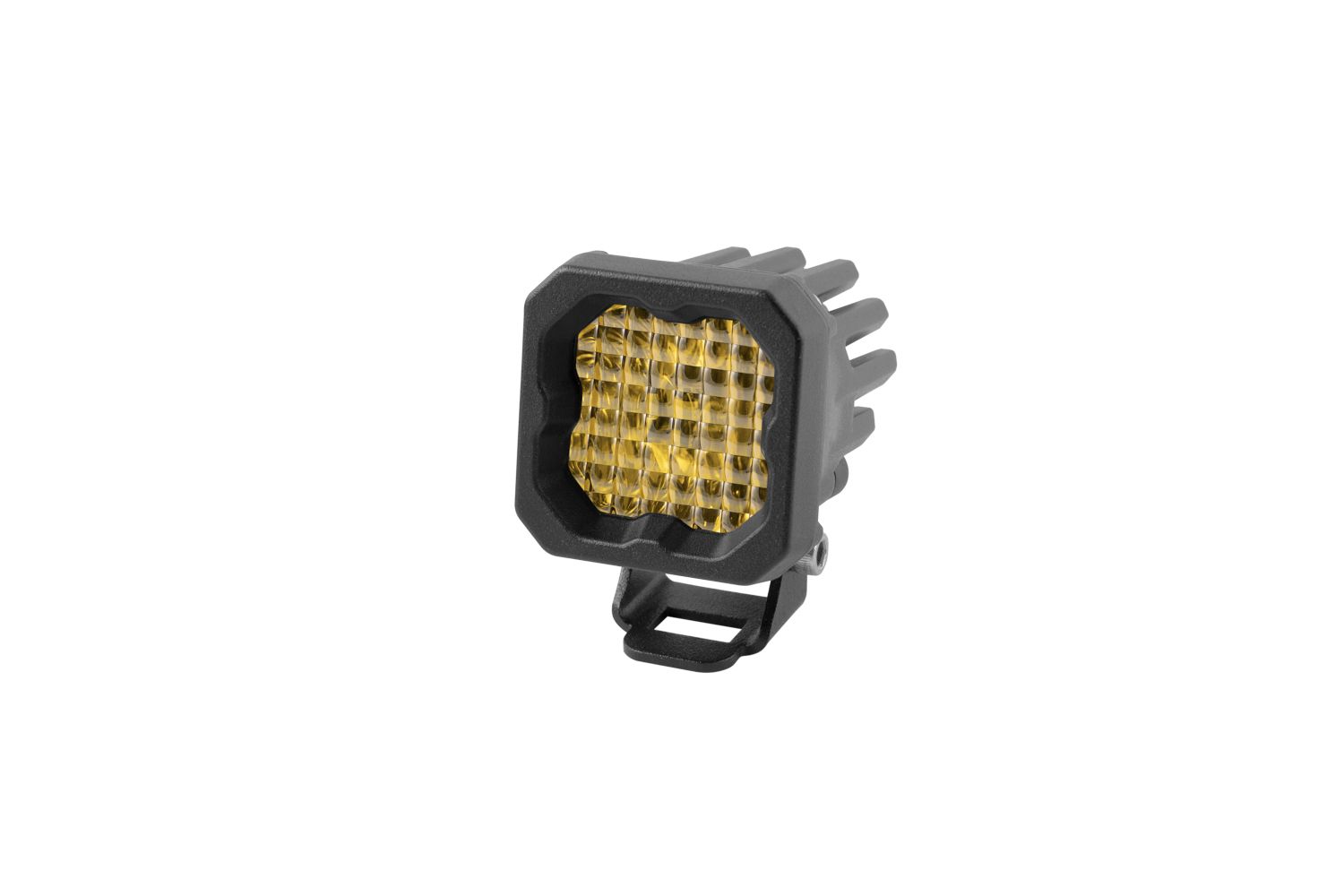

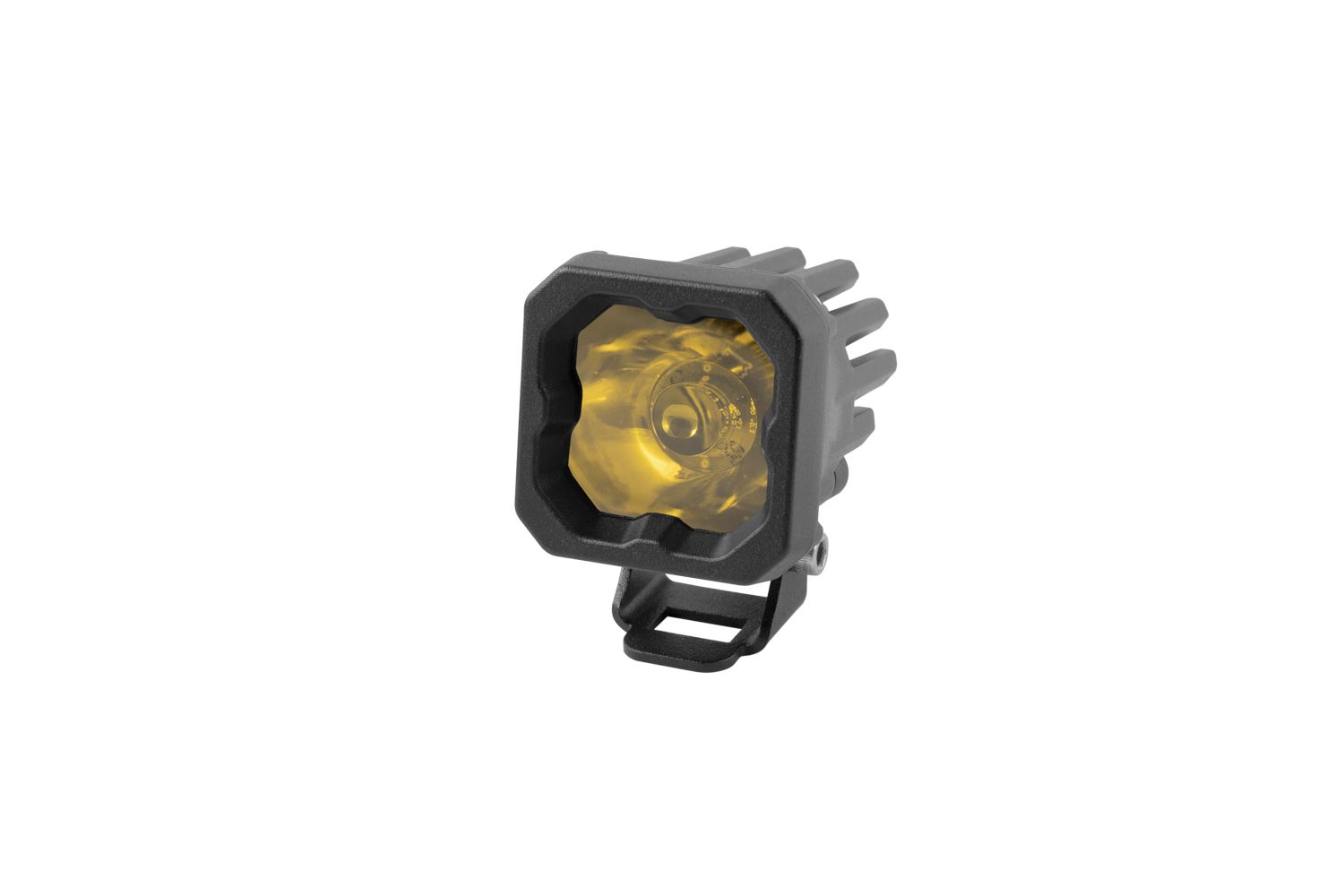

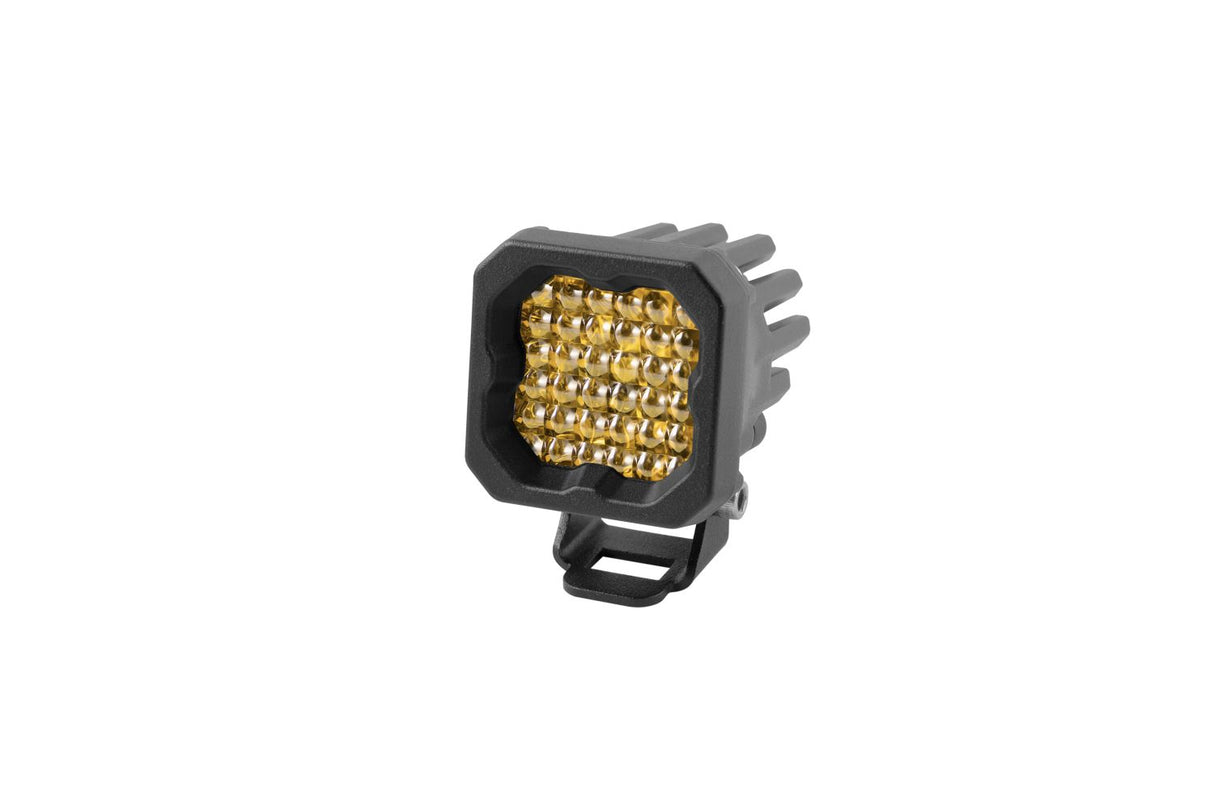

Choose from Spot, Flood, or Wide beam patterns to match exactly how you plan to use it — Spot reaches deep down the trail ahead, Flood spreads light broadly across a work area or camp, and Wide covers the ditch-to-ditch angles that a tight beam misses. Each pattern uses TIR optics tuned for that specific output shape, so you get focused, usable light rather than raw scatter.

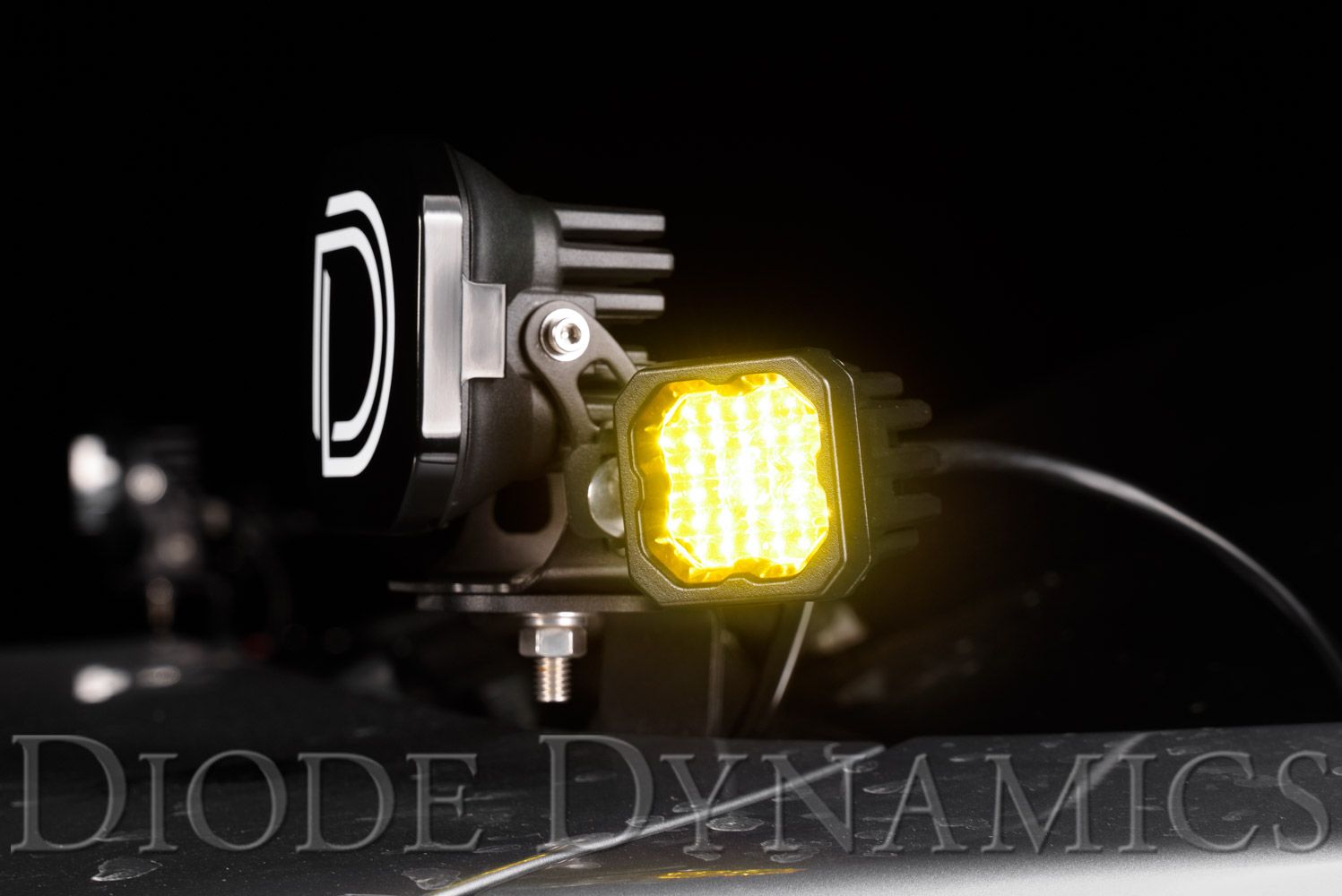

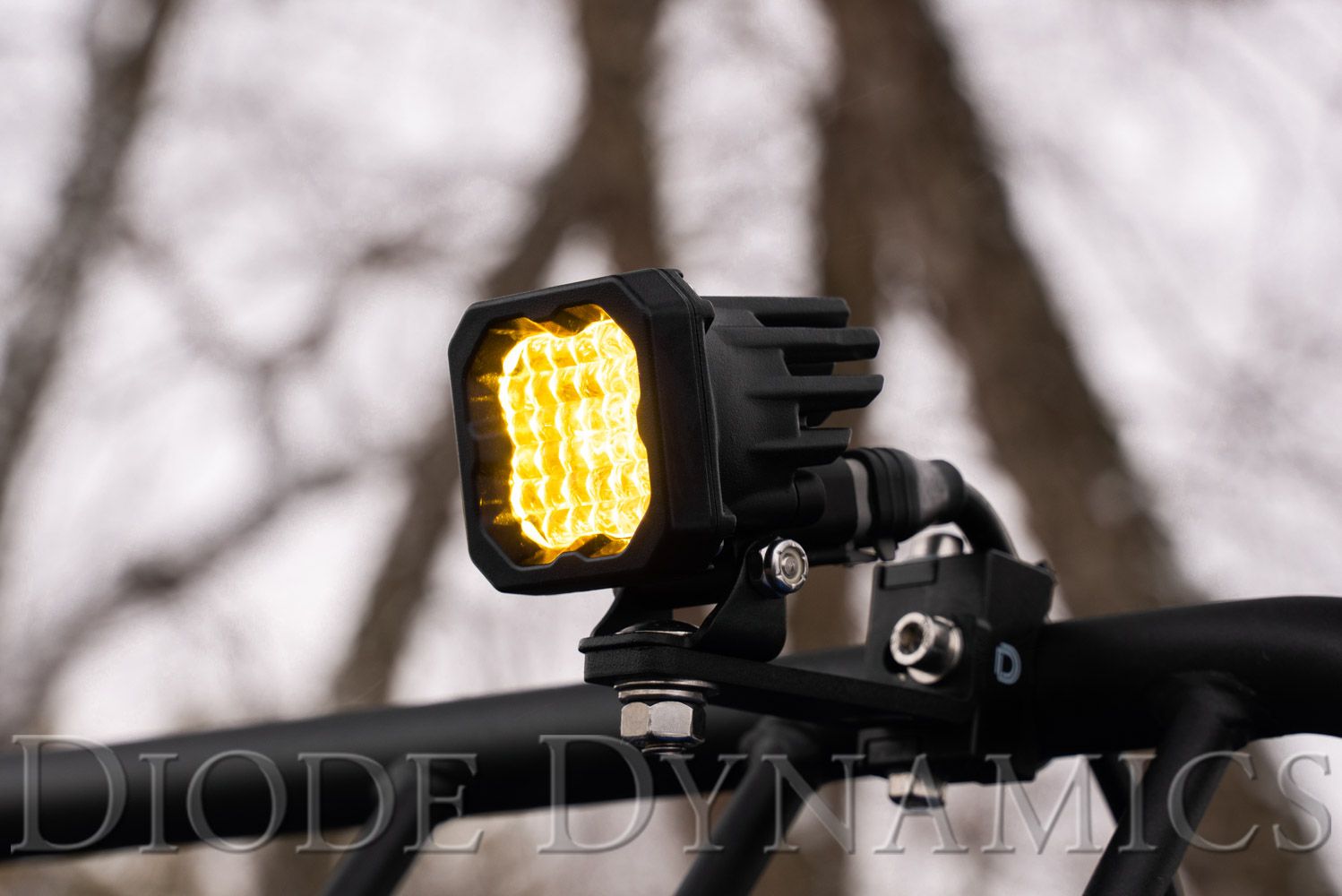

The SSC1 Pro is sized to mount almost anywhere — bumpers, roof racks, A-pillars, roll bars — and the integrated connector keeps the wiring clean and secure. If you need targeted yellow auxiliary lighting without the bulk of a larger pod, this is a straightforward, well-built option.

Documentation
$ 181.00 CAD● In stock
