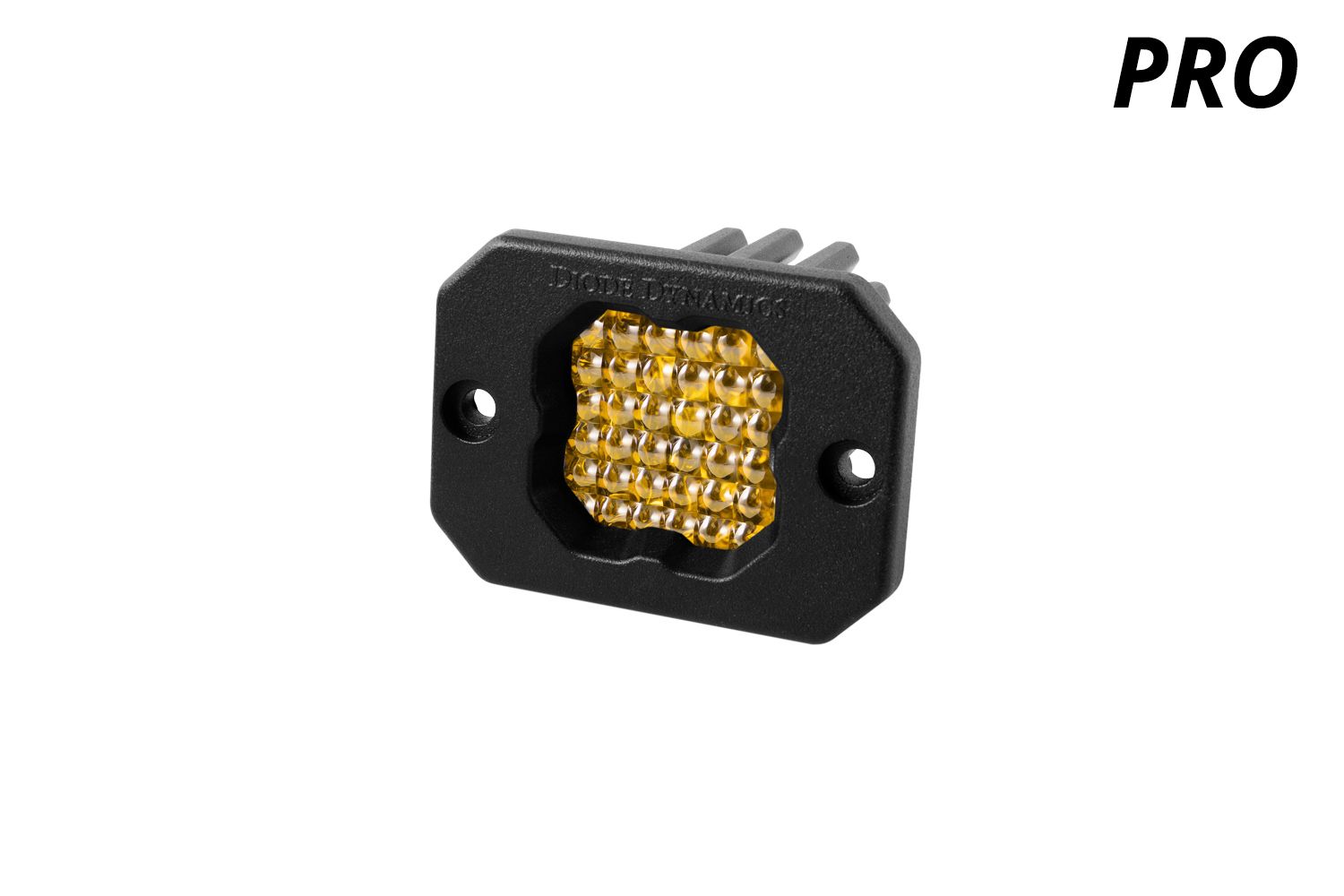

SSC1 Yellow Pro Flush Mount LED Pod (one)

Diode Dynamics  |  SKU: DD6478S  |  Barcode: 00691026130026
Regular price $ 181.00 CAD
Free shipping Orders $500+
Canadian orders No duties / brokerage
Authorized Diode Dynamics Dealer
Returns 30-day easy

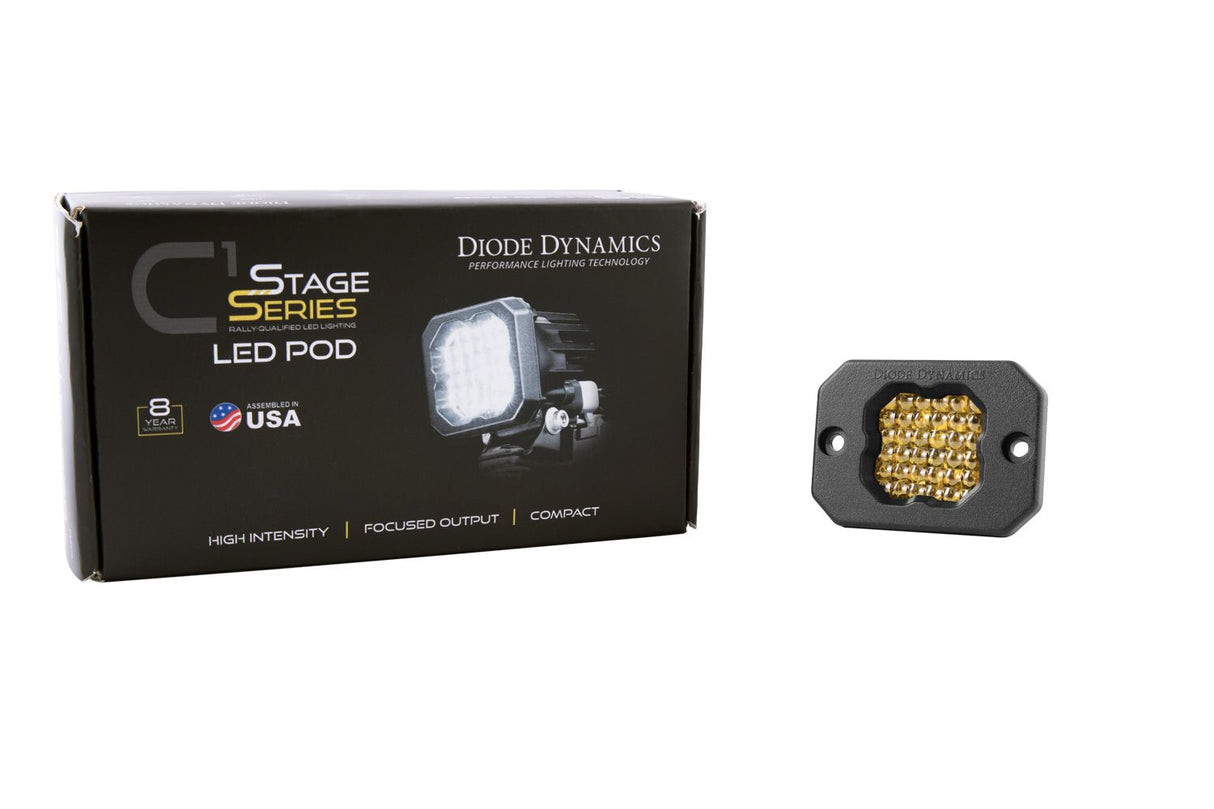

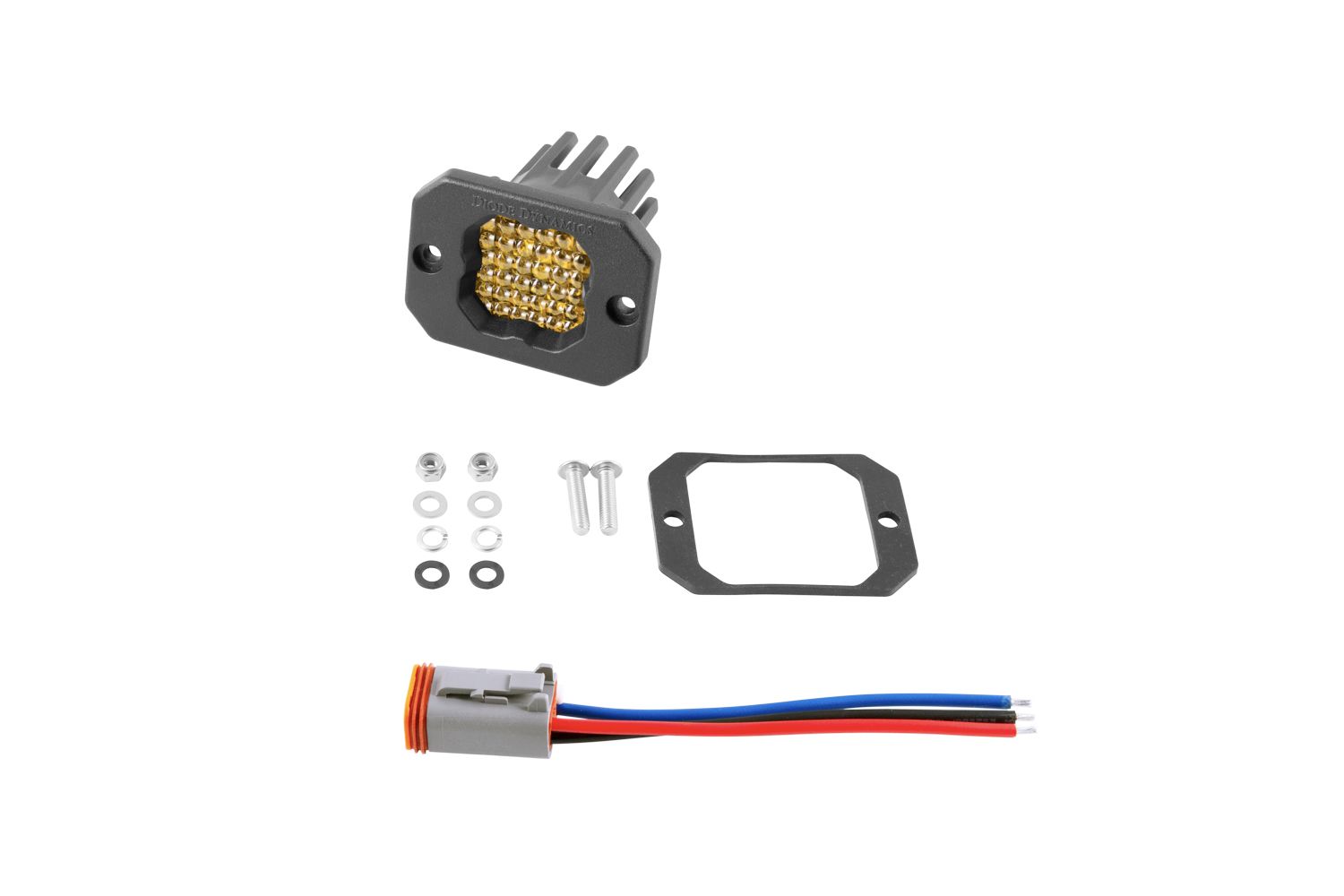

What's in the box 3 ITEMS
One (1) Stage Series C1 LED Pod
One (1) Deutsch-style wire pigtail
One (1) Mounting bracket and hardware
Optical
Lumens 2200
Color temperature 3000K

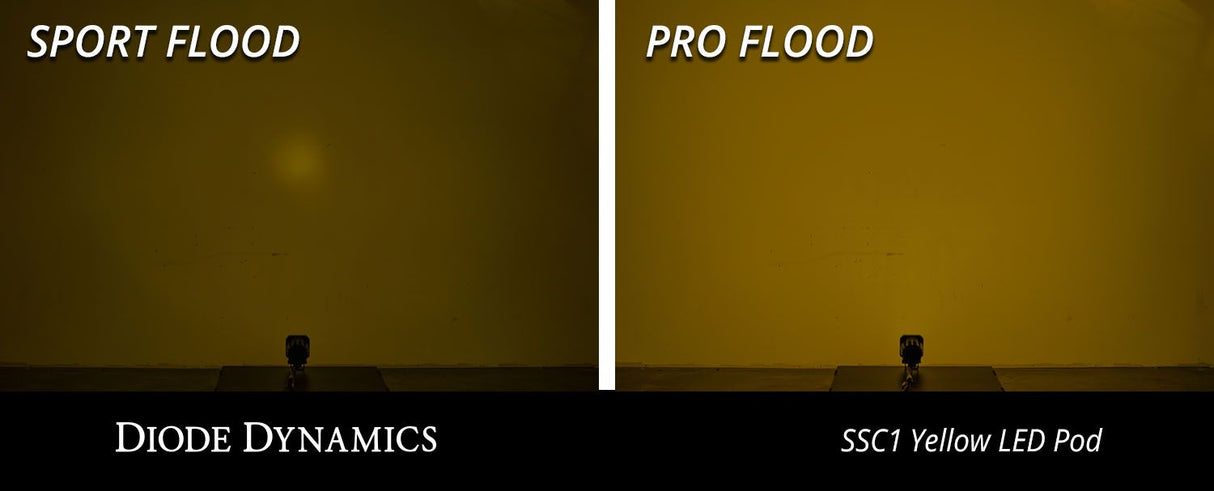

Beam spread Flood 80°x50°
Power 19W
Operating voltage 9-16V
Grade Performance
Intensity 780 cd
LED emitter Cree XHP50
Driver features Constant Current
Construction
Connector Deutsch DT Input
Cooling Passive, Pin-Fin heatsink
Polarity Polarity Specific
Base material Steel
Base color Black
Finish sheen Matte
Bolt thread Medium
Bolt grade High
Install
Drilling No drilling required
Mounting hardware Included
Compliance
IP rating IP69K Waterproof High Pressure
Operating temp -40C to 85C (-40F to 185F)
Country of origin USA
Features & benefits
Allows for flush installation on bumpers and truck beds
Ultra-compact, single-LED form factor
High-intensity 20-watt LED chip

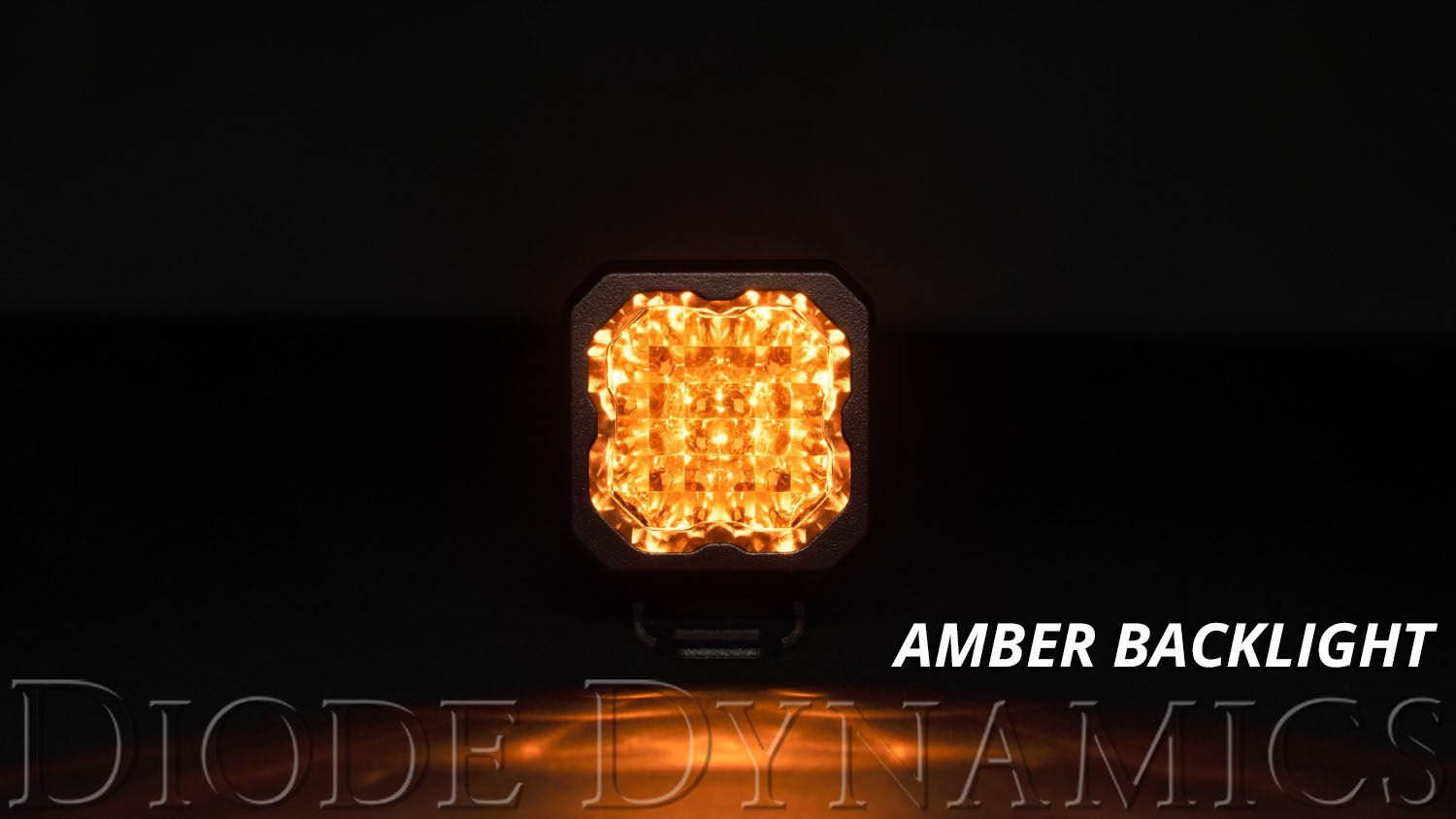

Backlighting available in amber
Pin-fin heatsink design, for superior thermal dissipation
Integrated Deutsch-style connector
Designed, torture-tested and assembled in USA
Description

The SSC1 Yellow Pro Flush Mount LED Pod is a compact, high-output auxiliary light built for off-road and work use wherever you need targeted illumination in demanding conditions. The yellow output cuts through fog, dust, rain, and snow more effectively than white light, making this pod a strong choice for trail running, inclement-weather driving, or any situation where contrast and visibility in poor weather matter.

Diode Dynamics engineered the SSC1 around TIR optics and a pin-fin heatsink that keeps the LED running efficiently over long haul use. The flush mount design gives your bumper, A-pillar, roof rack, or truck bed a clean, integrated look rather than the bulky profile of traditional off-road pods.

Whether you're building out a Jeep, truck, or UTV, this pod mounts practically anywhere you can route a wire and bolt a bracket. It's a straightforward, well-built addition for anyone who wants reliable auxiliary lighting without unnecessary complexity.

Documentation
