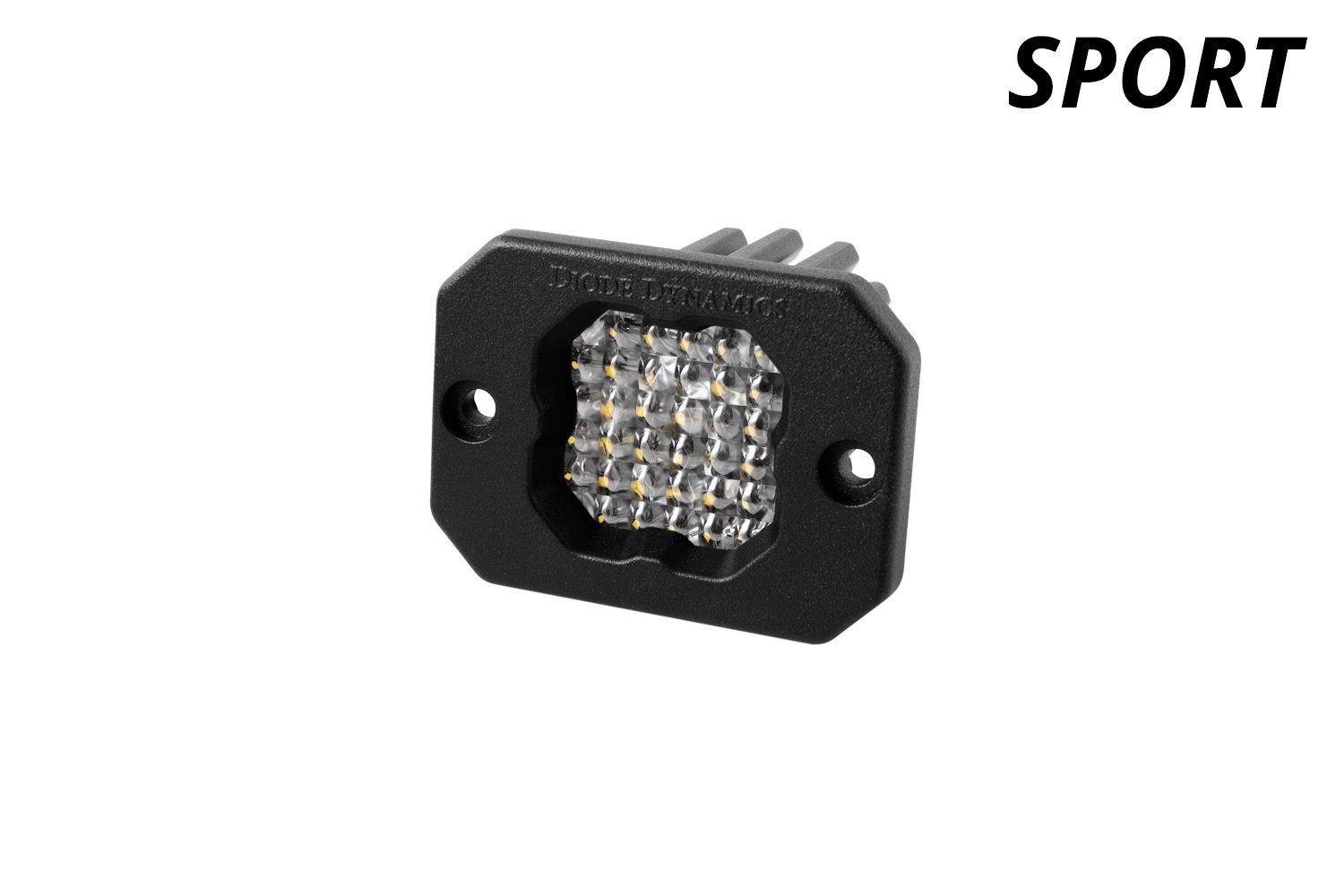

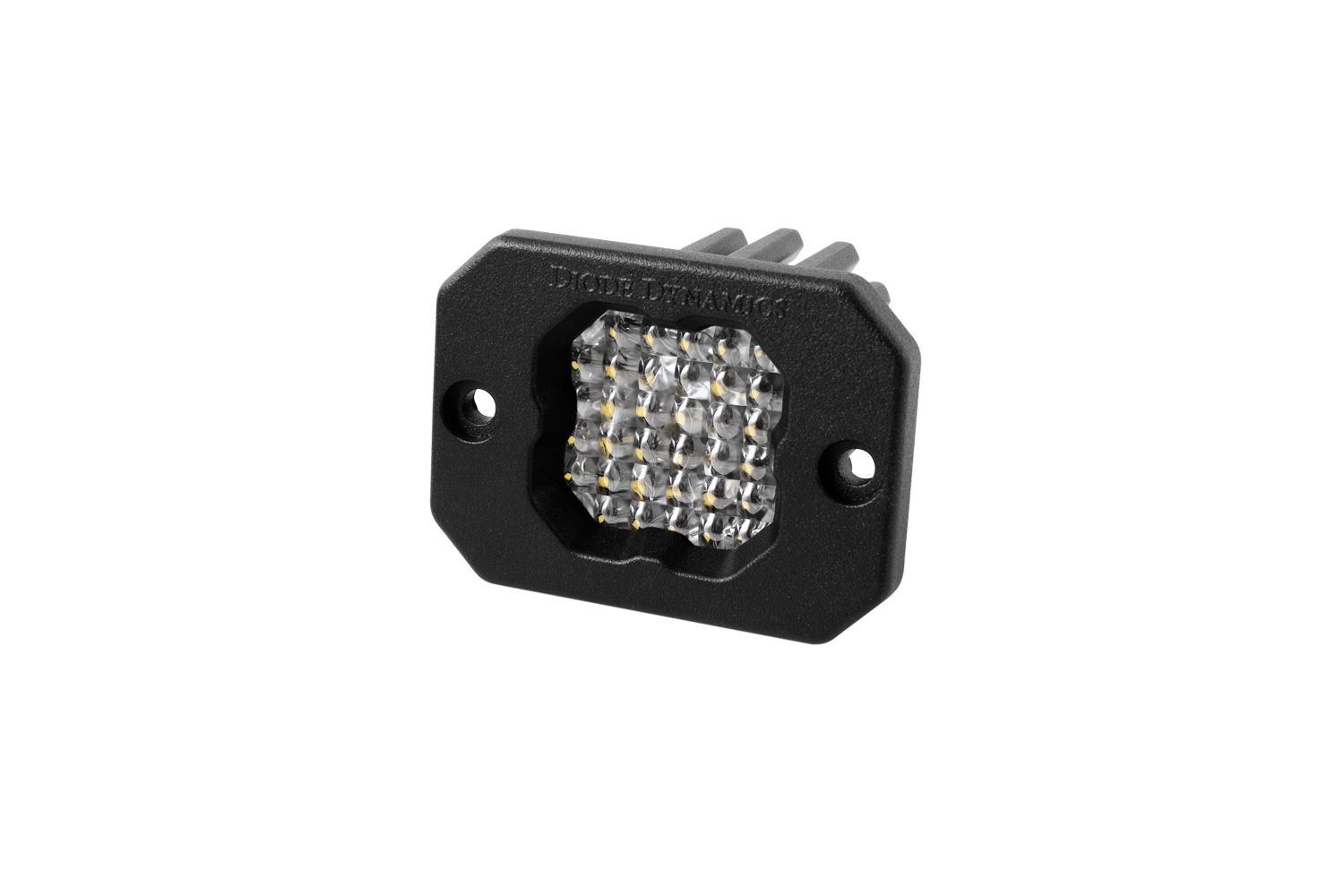

SSC1 White Sport Flush Mount LED Pod (one)

Diode Dynamics  |  SKU: DD6470S  |  Barcode: 00691026129860
Regular price $ 139.00 CAD
Choose Your Beam Pattern
Choose Your Backlight Color
Free shipping Orders $500+
Canadian orders No duties / brokerage
Authorized Diode Dynamics Dealer
Returns 30-day easy

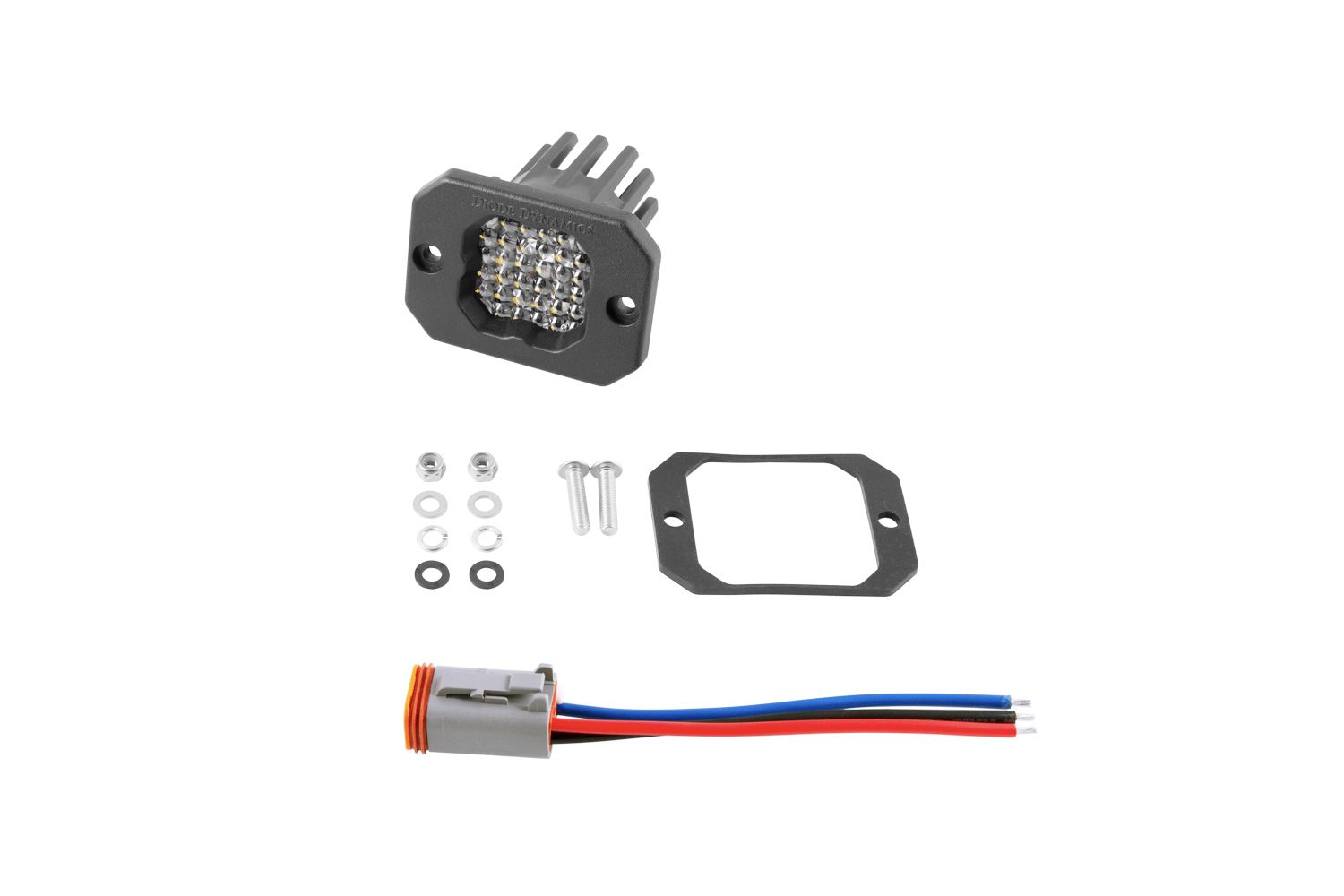

What's in the box 3 ITEMS
One (1) Stage Series C1 LED Pod
One (1) Deutsch-style wire pigtail
One (1) Mounting bracket and hardware
Optical
Lumens 1030
Color temperature 6000K

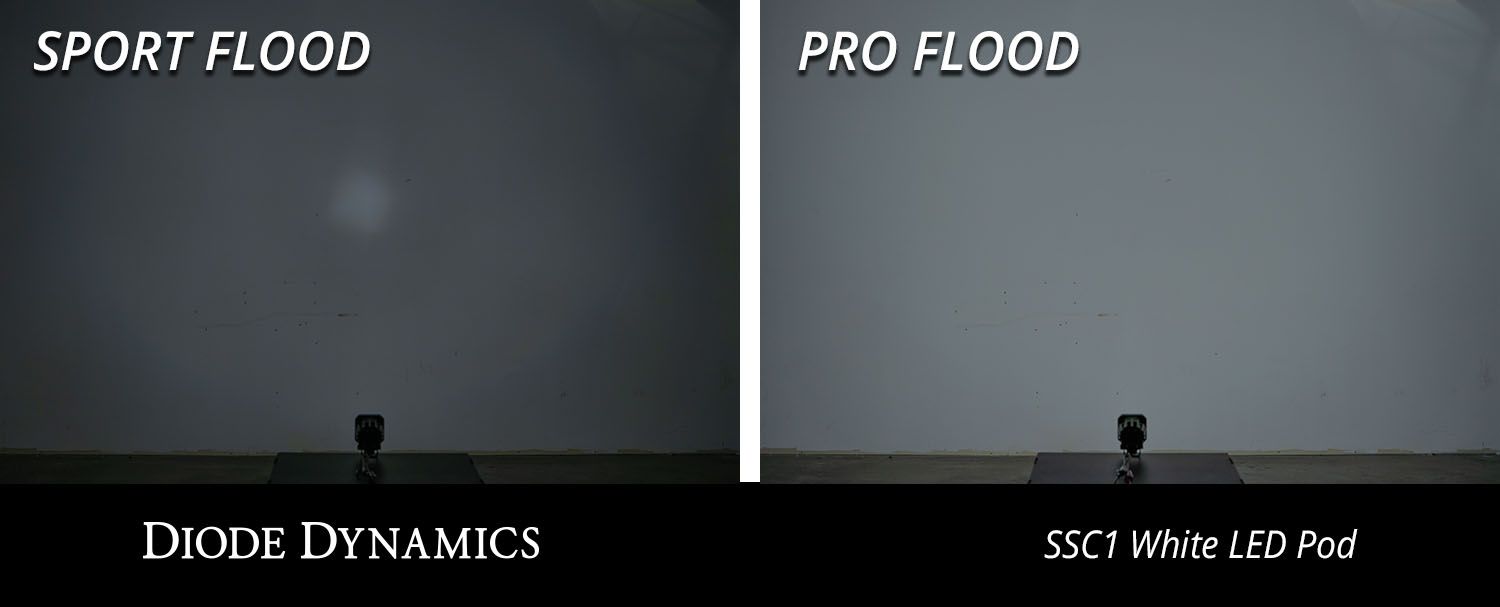

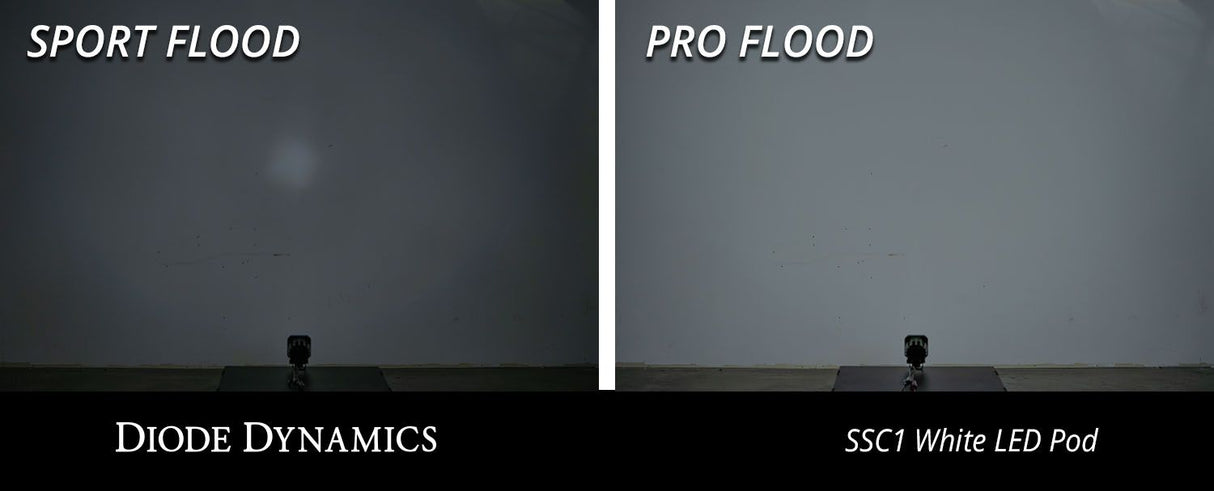

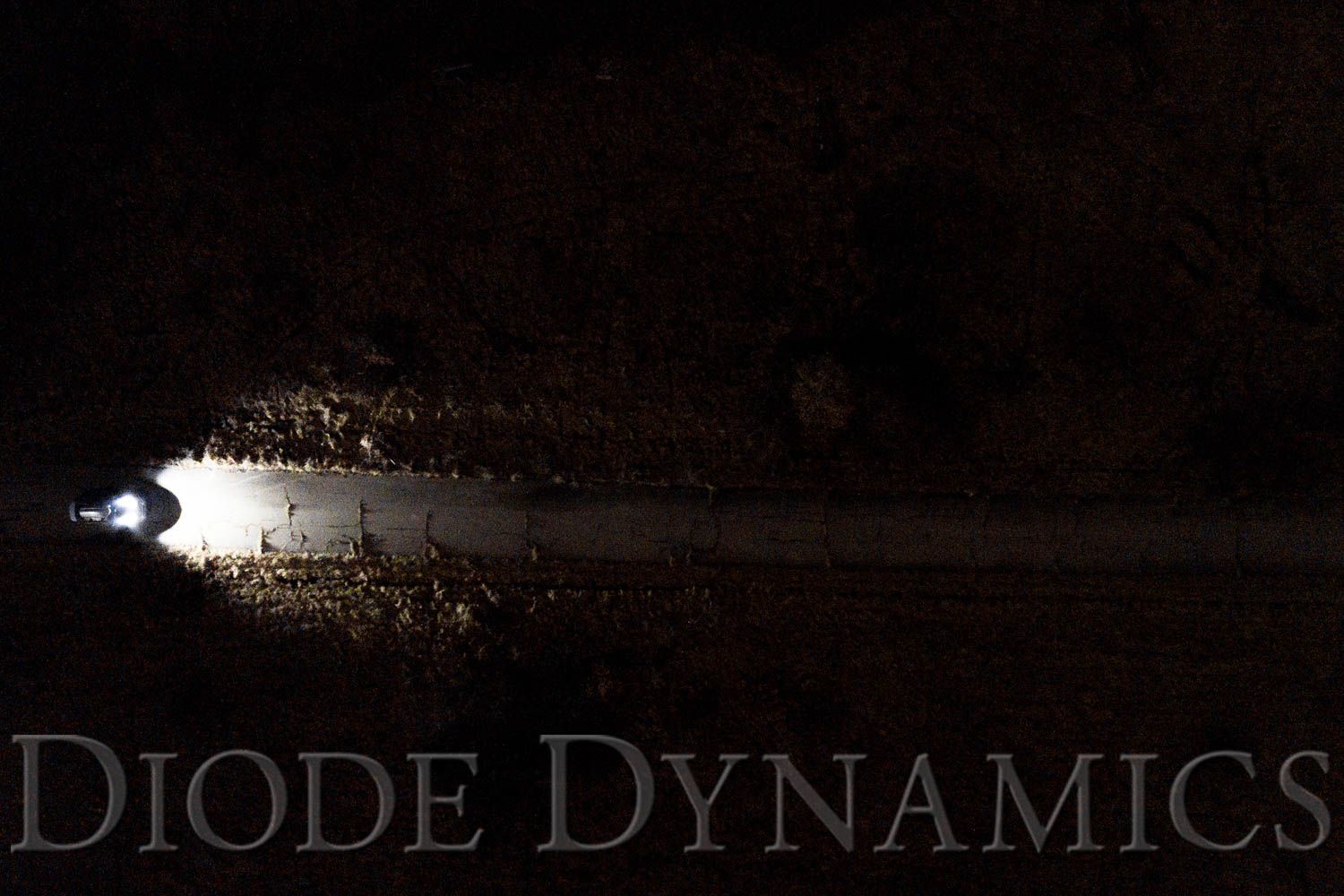

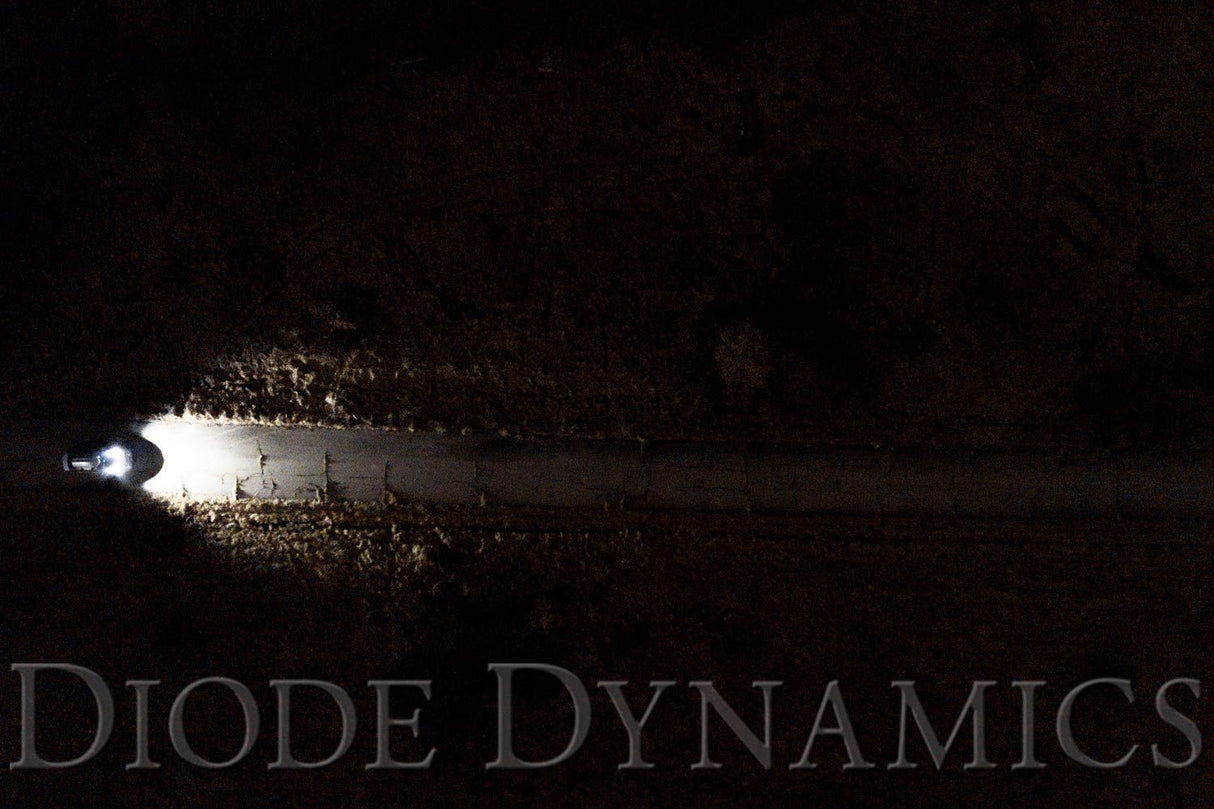

Beam spread Flood 80°x50°
Power 13W
Operating voltage 9-16V
Grade Performance
Intensity 400 cd
LED emitter Cree XP-L HI
Driver features Constant Current
Construction
Connector Deutsch DT Input
Cooling Passive, Pin-Fin heatsink
Polarity Polarity Specific
Base material Steel
Base color Black
Finish sheen Matte
Bolt thread Medium
Bolt grade High
Install
Drilling No drilling required
Mounting hardware Included
Compliance
IP rating IP69K Waterproof High Pressure
Operating temp -40C to 85C (-40F to 185F)
Country of origin USA
Features & benefits

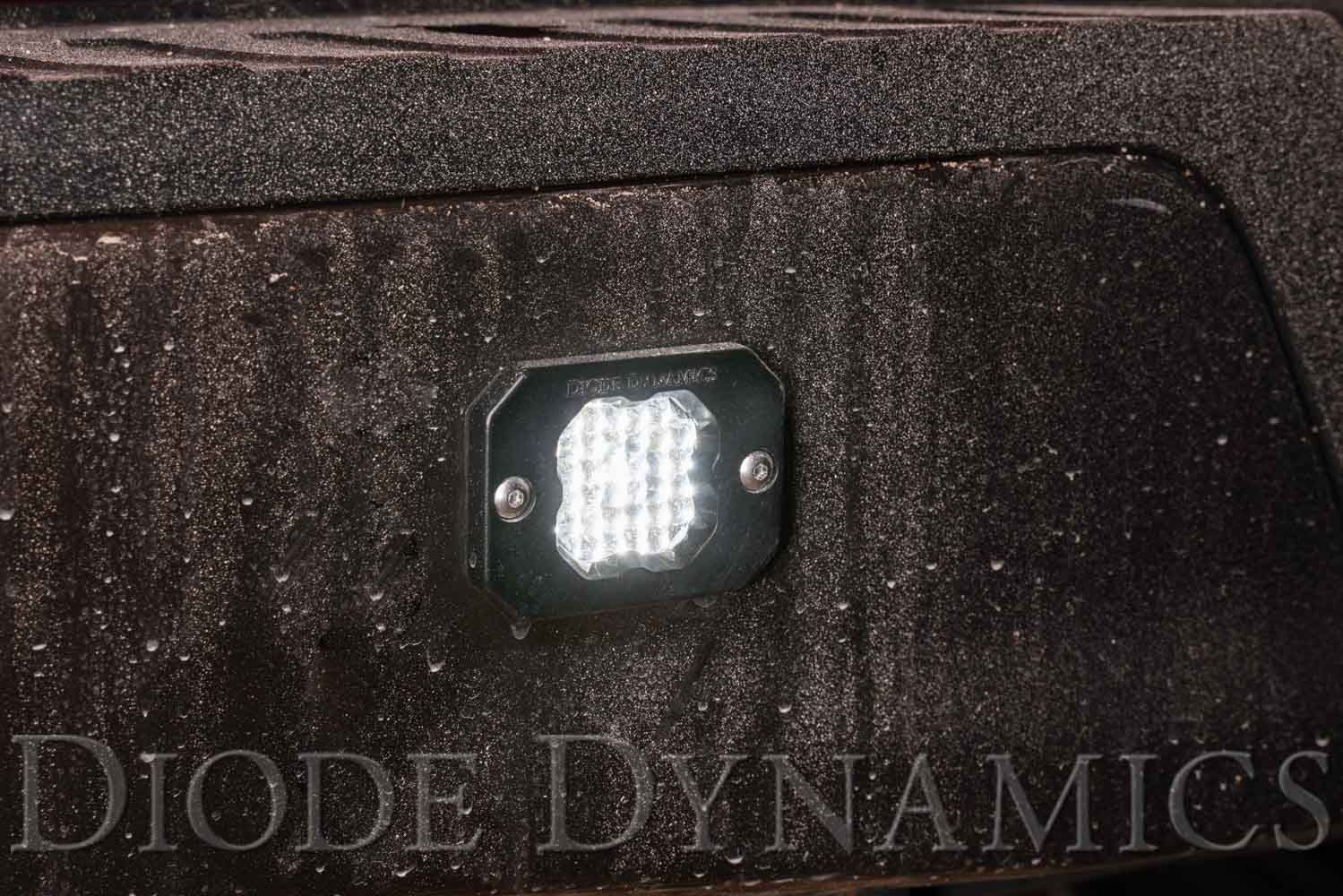

Allows for flush installation on bumpers and truck beds
Ultra-compact, single-LED form factor
High-intensity 10-watt LED chip

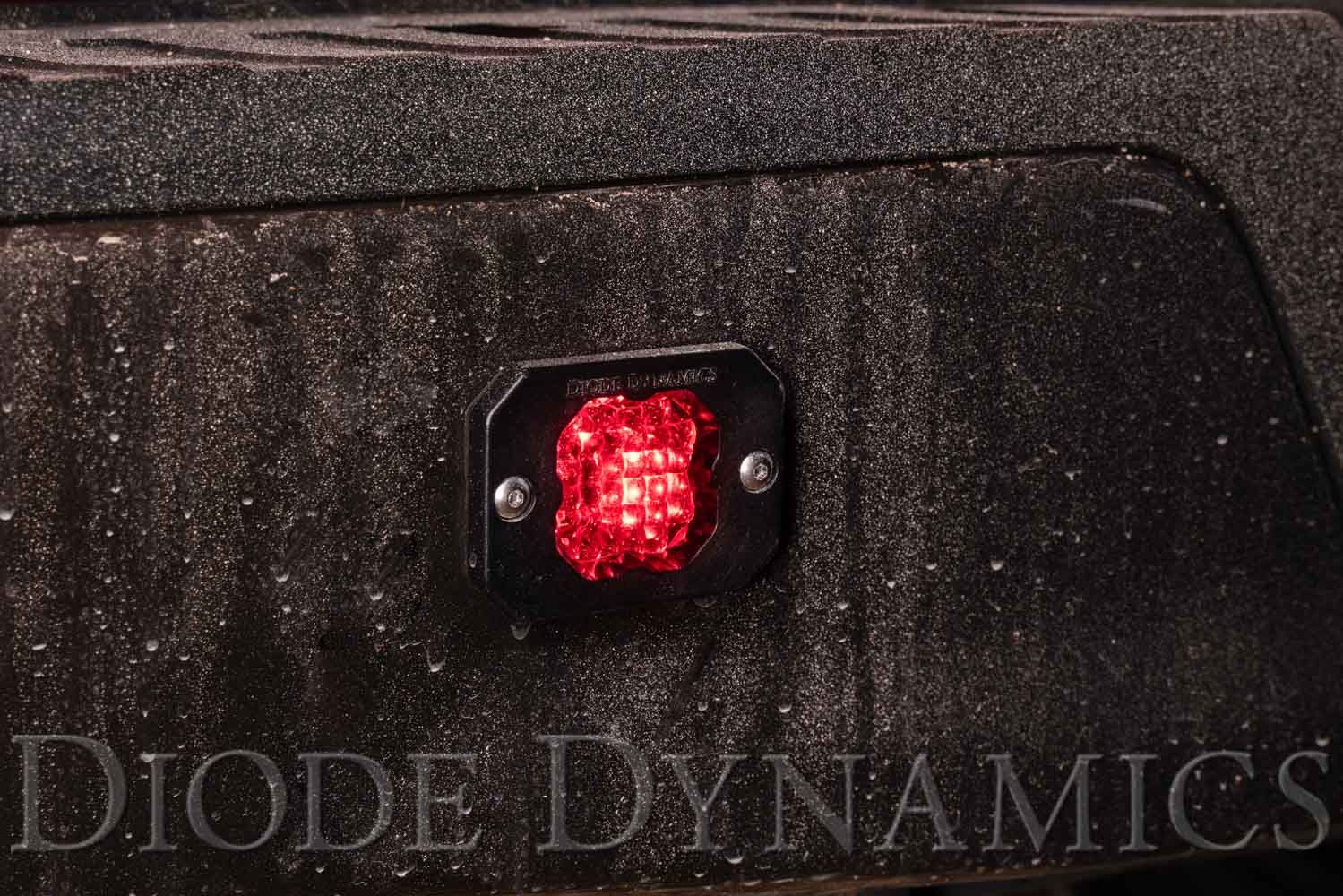

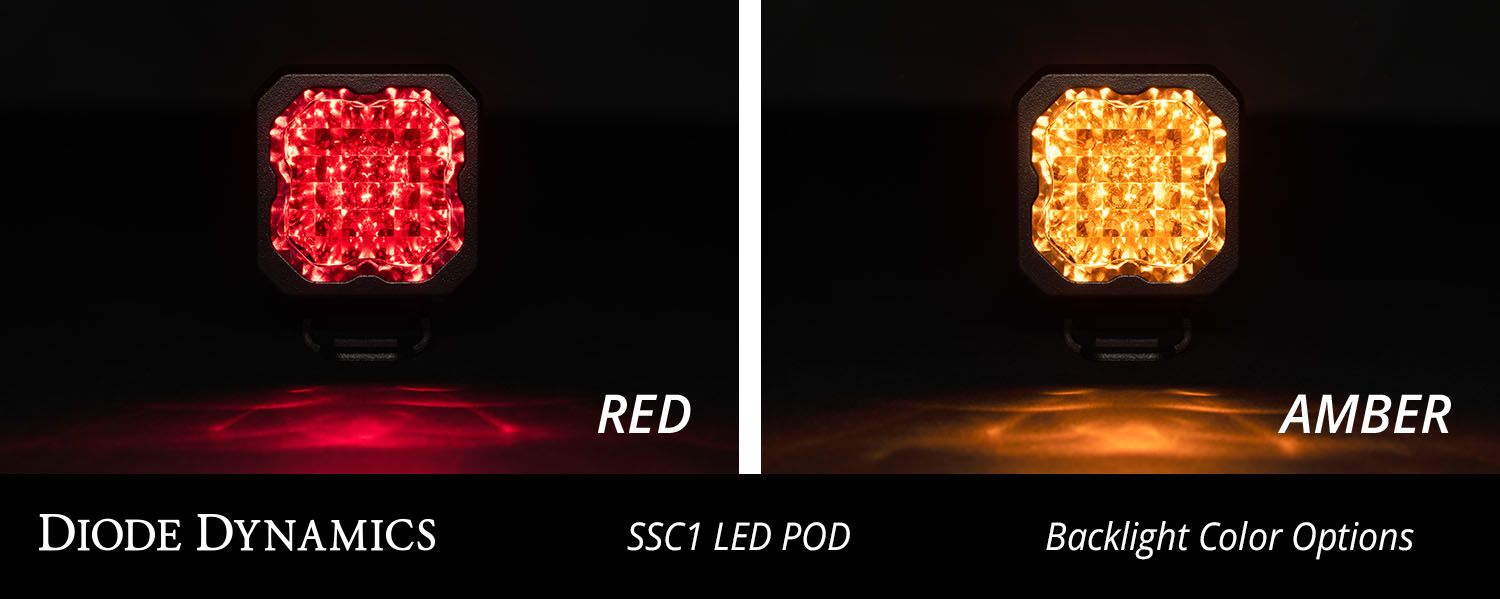

Backlighting available in amber or red
Pin-fin heatsink design, for superior thermal dissipation
Integrated Deutsch-style connector
Designed, torture-tested and assembled in USA
Description

The Diode Dynamics SSC1 LED Pod is a compact flush-mount auxiliary light built for trucks, Jeeps, and UTVs that need targeted lighting in tight, clean-looking placements — bumpers, grille bars, A-pillars, truck beds, or anywhere a low-profile pod makes sense. The flush-mount bezel gives it a factory-integrated appearance rather than the bolt-on look of traditional pods.

This single pod is available in Amber, Flood, and Red output options, so you can match it to your specific job. Flood suits wide area lighting for work sites or camp setups, Amber cuts through dust, rain, and fog with a warm tone that reduces glare and eye fatigue on trail, and Red is ideal for preserving night vision or marking a vehicle without broadcasting white light.

The SSC1 uses TIR optics and a pin-fin heatsink to keep output consistent over long run times, and the integrated Deutsch-style connector makes wiring clean and secure. If you're building out a lighting system or filling a gap in your existing setup, this pod is a practical, no-fuss choice.

Documentation
