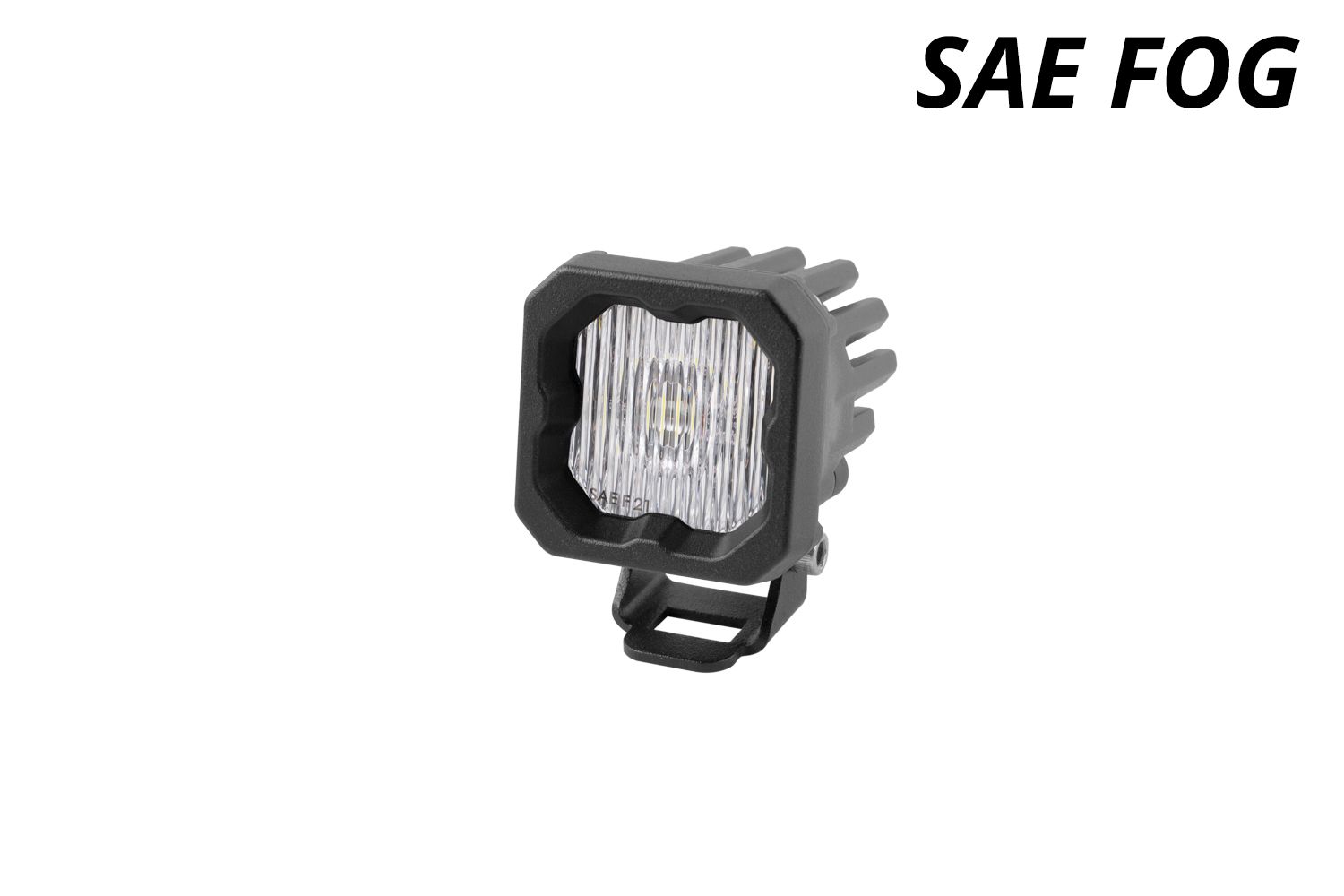

SSC1 White SAE Fog Standard LED Pod (one)

Diode Dynamics  |  SKU: DD6847S  |  Barcode: 00691026130231
Regular price $ 195.00 CAD
Free shipping Orders $500+
Canadian orders No duties / brokerage
Authorized Diode Dynamics Dealer
Returns 30-day easy

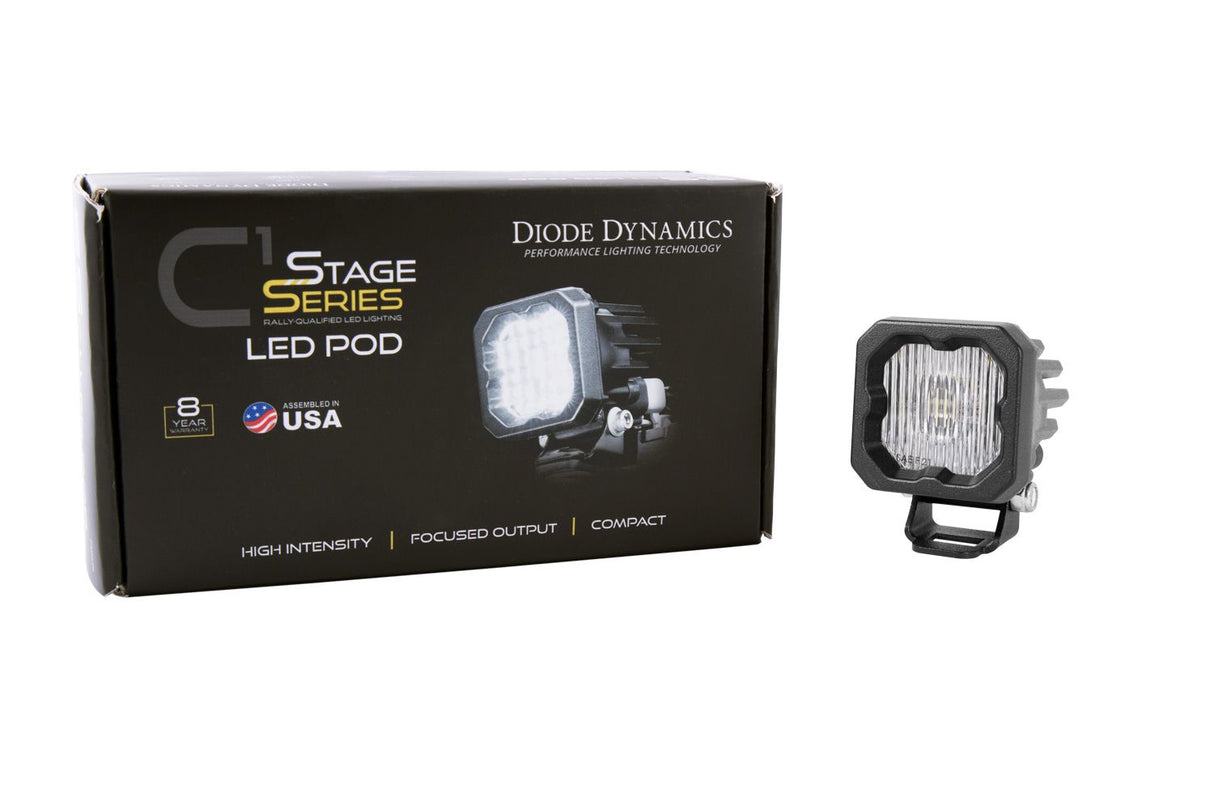

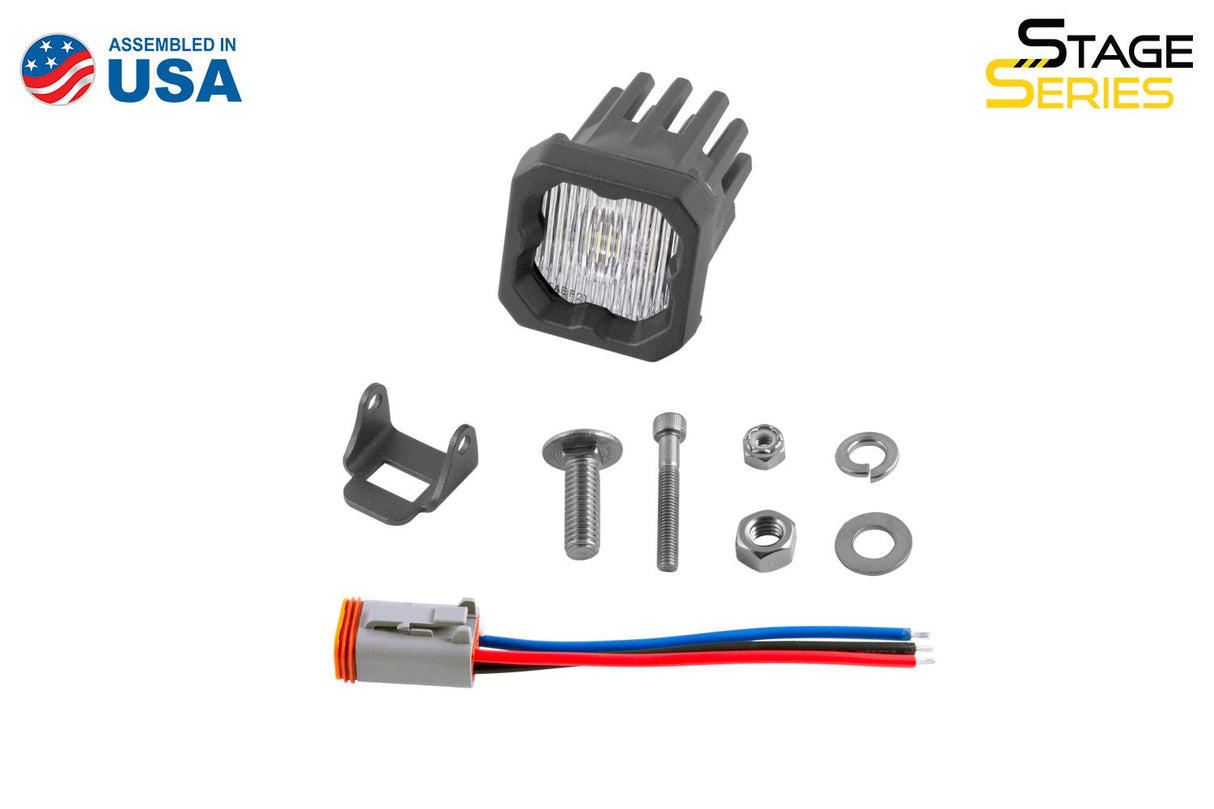

What's in the box 3 ITEMS
One (1) Stage Series C1 LED Pod
One (1) Deutsch-style wire pigtail
One (1) Mounting bracket and hardware
Optical
Color temperature 6000K
Beam spread Fog 98°x9°
Power 19W
Operating voltage 9-16V
Grade Performance
Intensity 6 000 cd
LED emitter Osram Boost HX
Driver features Constant Current
Construction
Connector Deutsch DT Input
Cooling Passive, Pin-Fin heatsink
Polarity Polarity Specific
Base material Steel
Base color Black
Finish sheen Matte
Bolt thread Medium
Bolt grade High
Install
Drilling No drilling required
Mounting hardware Included
Compliance
IP rating IP69K Waterproof High Pressure
Operating temp -40C to 85C (-40F to 185F)
SAE/DOT SAE J583 Foglamp Beam Pattern
Country of origin USA
Features & benefits
Ultra-compact, single-LED form factor
SAE-compliant, road-legal output
Single automotive-grade Osram HX Boost 20-watt LED
Backlighting available in white and amber
Integrated Deutsch-style connector
Designed, torture-tested and assembled in USA
Description

The Diode Dynamics SSC1 White SAE Fog LED Pod is a compact, single-pod fog light built to deliver a wide, controlled beam pattern that keeps the road surface lit in front of you without blinding oncoming traffic — making it a sharp choice for trucks, Jeeps, and UTVs running fog or auxiliary lighting setups.

Despite its small footprint, the SSC1 packs a high-intensity automotive-grade LED behind precision TIR optics, producing the kind of focused output you'd expect from a much larger pod. The SAE-compliant fog beam pattern means this light is shaped and aimed to work the way fog lighting should — cutting low and wide to improve visibility in rain, dust, and low-contrast conditions rather than throwing light high where it scatters back at you.

Solid construction and a pin-fin heatsink keep thermals in check on long runs, while the integrated Deutsch-style connector makes wiring clean and secure. If you're adding a single auxiliary fog light or replacing a damaged pod, the SSC1 is a no-fuss, high-quality option that fits the job.

Documentation
