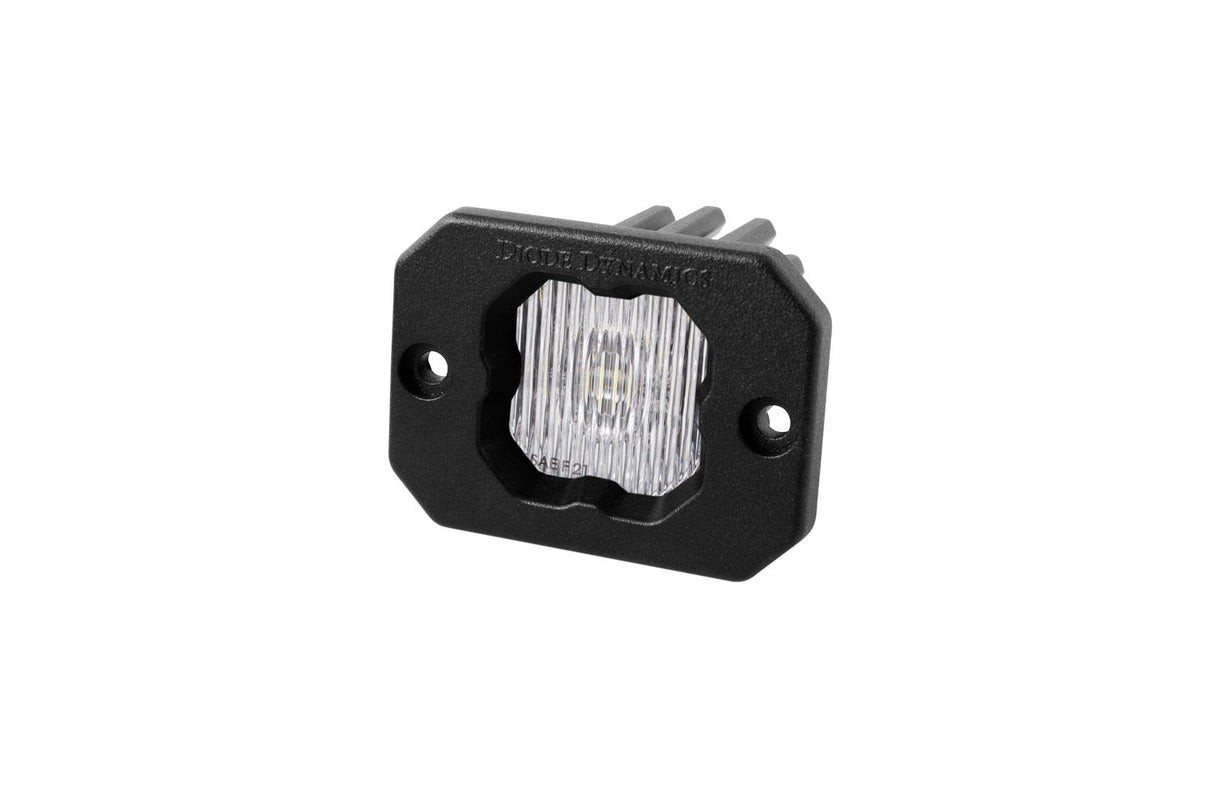

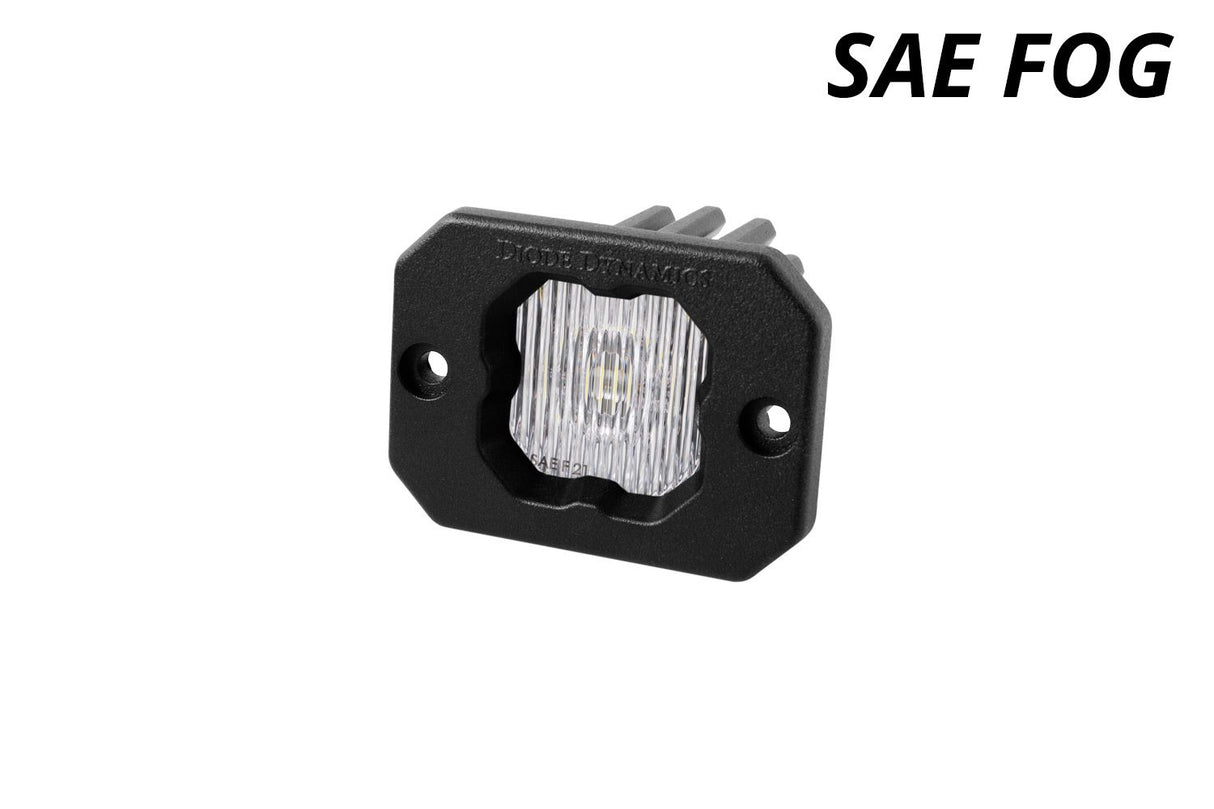

SSC1 White SAE Fog Flush Mount LED Pod (one)

Diode Dynamics  |  SKU: DD6850S  |  Barcode: 00691026130293
Regular price $ 195.00 CAD
Free shipping Orders $500+
Canadian orders No duties / brokerage
Authorized Diode Dynamics Dealer
Returns 30-day easy

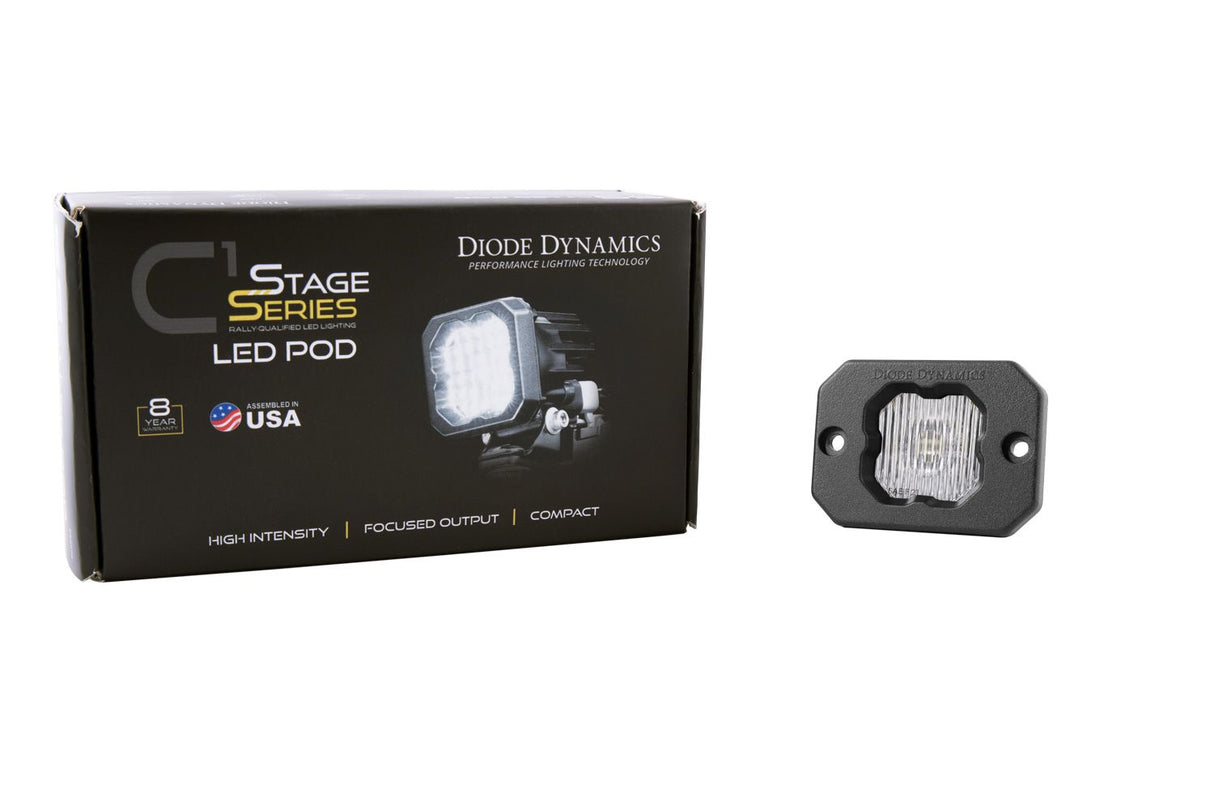

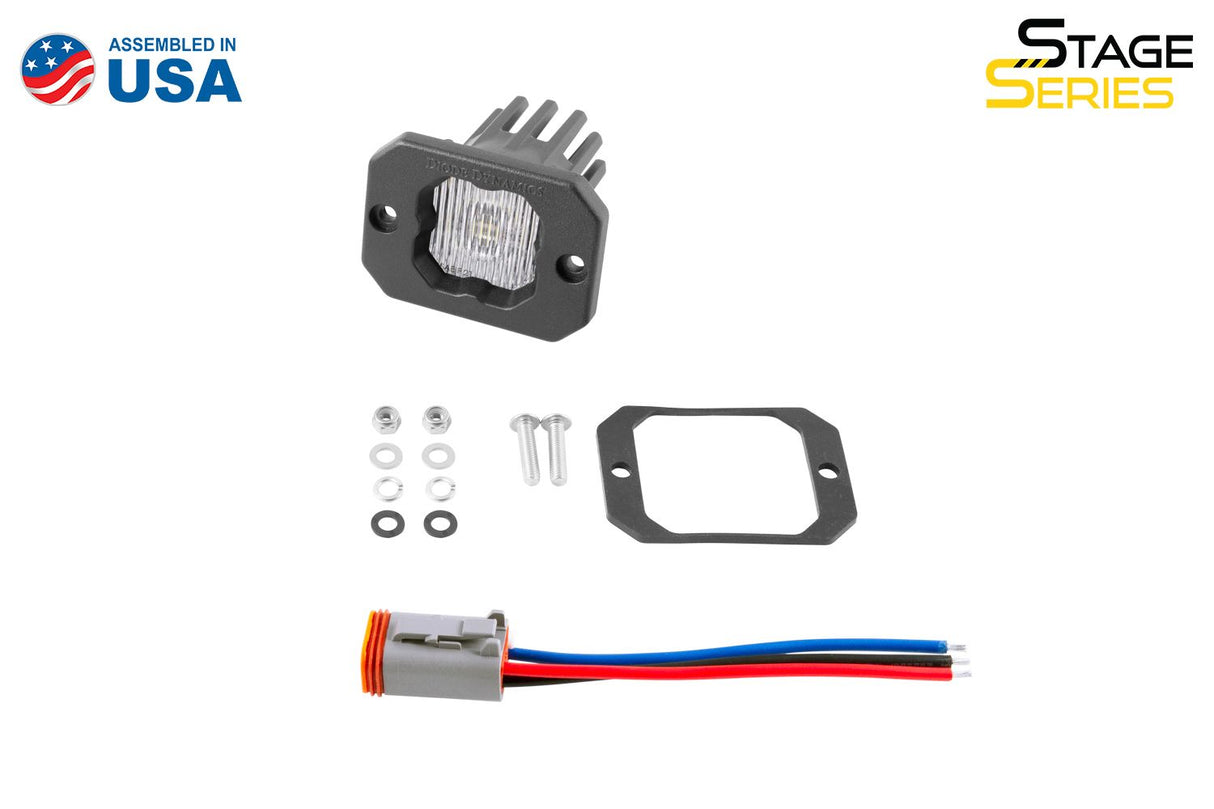

What's in the box 3 ITEMS
One (1) Stage Series C1 LED Pod
One (1) Deutsch-style wire pigtail
One (1) Mounting bracket and hardware
Optical
Color temperature 6000K
Beam spread Fog 98°x9°
Power 19W
Operating voltage 9-16V
Grade Performance
LED emitter Osram Boost HX
Driver features Constant Current
Construction
Connector Deutsch DT Input
Cooling Passive, Pin-Fin heatsink
Polarity Polarity Specific
Base material Steel
Base color Black
Finish sheen Matte
Bolt thread Medium
Bolt grade High
Install
Drilling No drilling required
Mounting hardware Included
Compliance
IP rating IP69K Waterproof High Pressure
Operating temp -40C to 85C (-40F to 185F)
SAE/DOT SAE J583 Foglamp Beam Pattern
Country of origin USA
Features & benefits
Ultra-compact, single-LED form factor
SAE-compliant, road-legal output
Single automotive-grade Osram HX Boost 20-watt LED
Backlighting available in white and amber
Integrated Deutsch-style connector
Designed, torture-tested and assembled in USA
Description

The Diode Dynamics SSC1 White SAE Fog Flush Mount LED Pod is a compact, high-output fog light built for drivers who need reliable forward visibility in low-visibility conditions — rain, snow, dust, and heavy fog. Its SAE fog-compliant beam pattern throws a wide, low-profile spread of light that cuts through atmospheric interference without blinding oncoming traffic, making it a practical upgrade for street-driven trucks, Jeeps, and UTVs alike.

Despite its small footprint, the SSC1 punches well above its size class thanks to precision TIR optics paired with a high-intensity LED chip — a combination that delivers focused, usable light rather than raw brightness that scatters in bad weather. The flush-mount design keeps installation clean and the profile low, integrating naturally into bumpers, pods, or custom mounts without sticking out.

If you're building a lighting setup that needs to perform in real weather conditions on and off the road, the SSC1 fog pod is a proven, purpose-built piece worth adding to your rig.

Documentation
