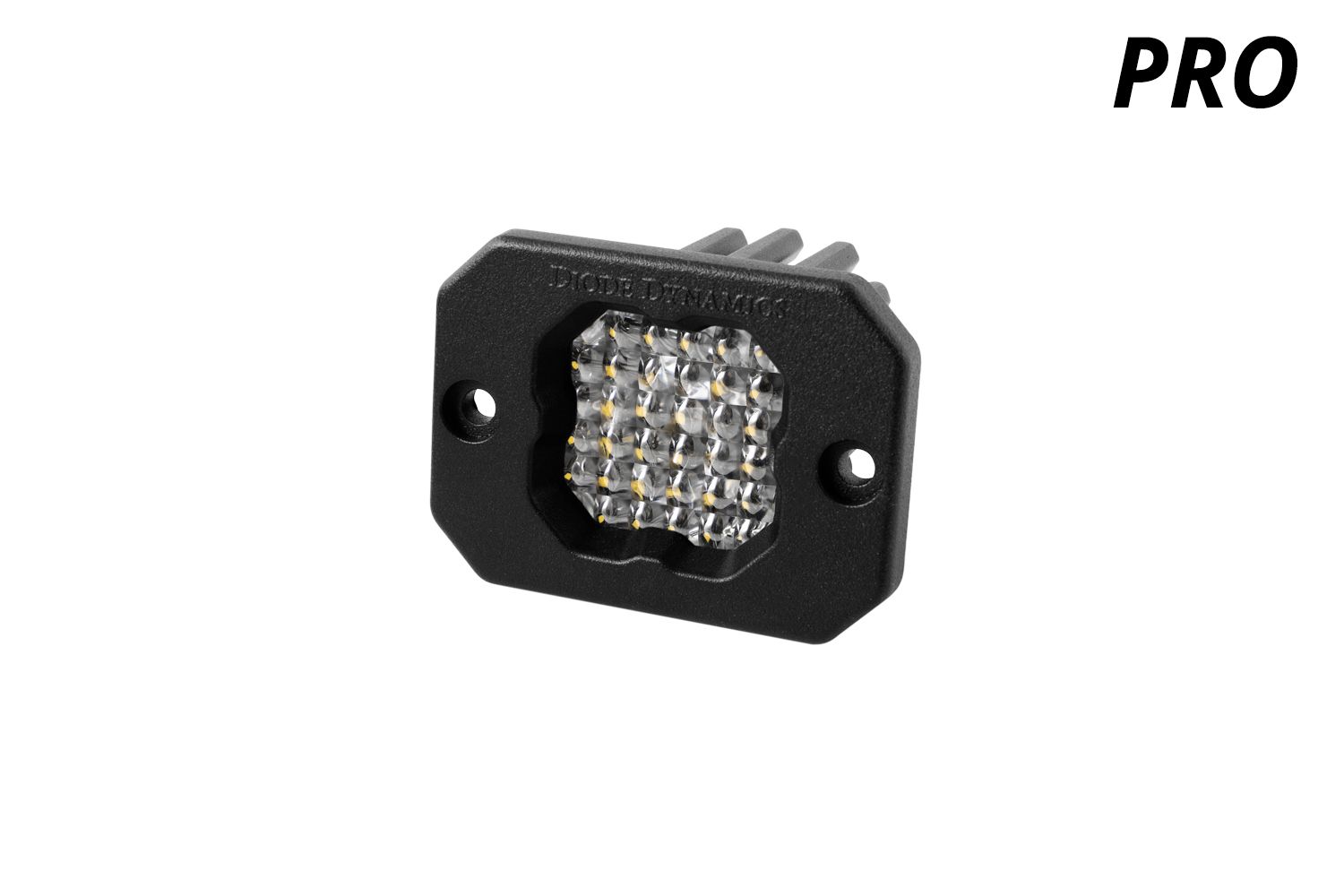

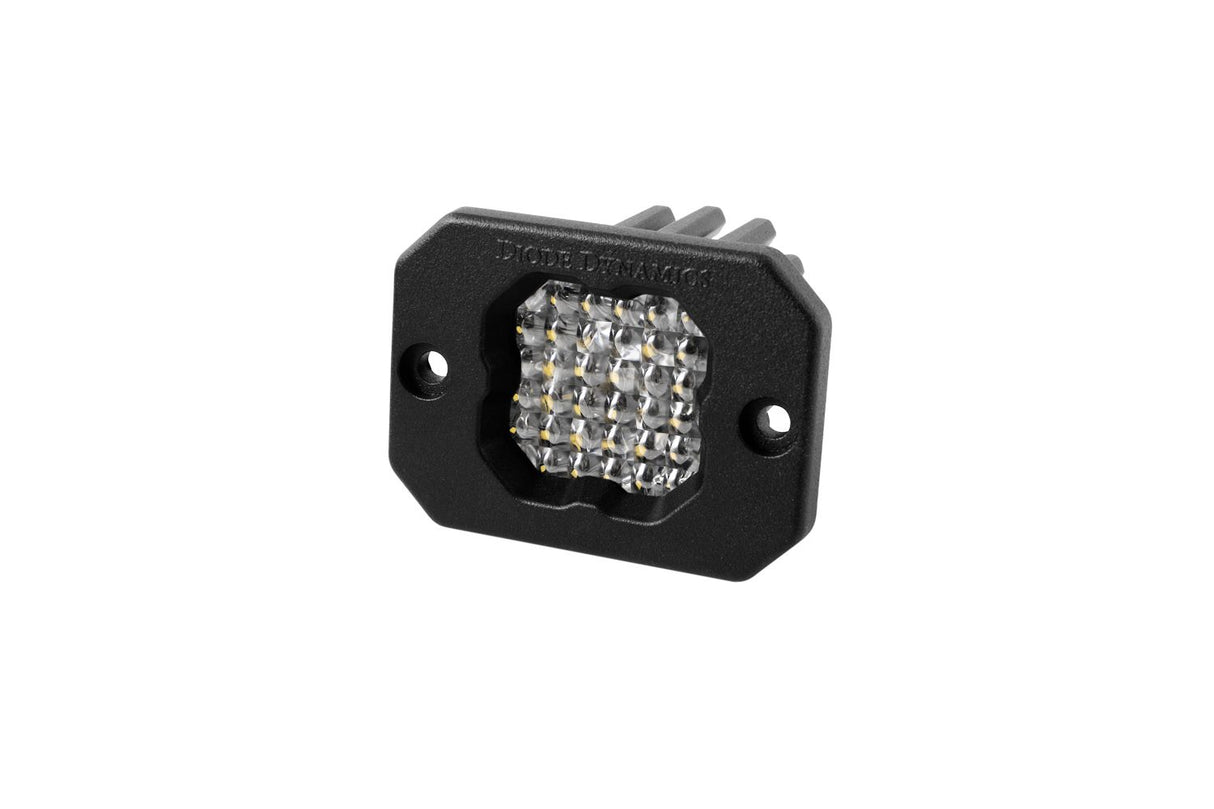

SSC1 White Pro Flush Mount LED Pod (one)

Diode Dynamics  |  SKU: DD6475S  |  Barcode: 00691026129969
Regular price $ 181.00 CAD
Choose Your Beam Pattern
Choose Your Backlight Color
Free shipping Orders $500+
Canadian orders No duties / brokerage
Authorized Diode Dynamics Dealer
Returns 30-day easy

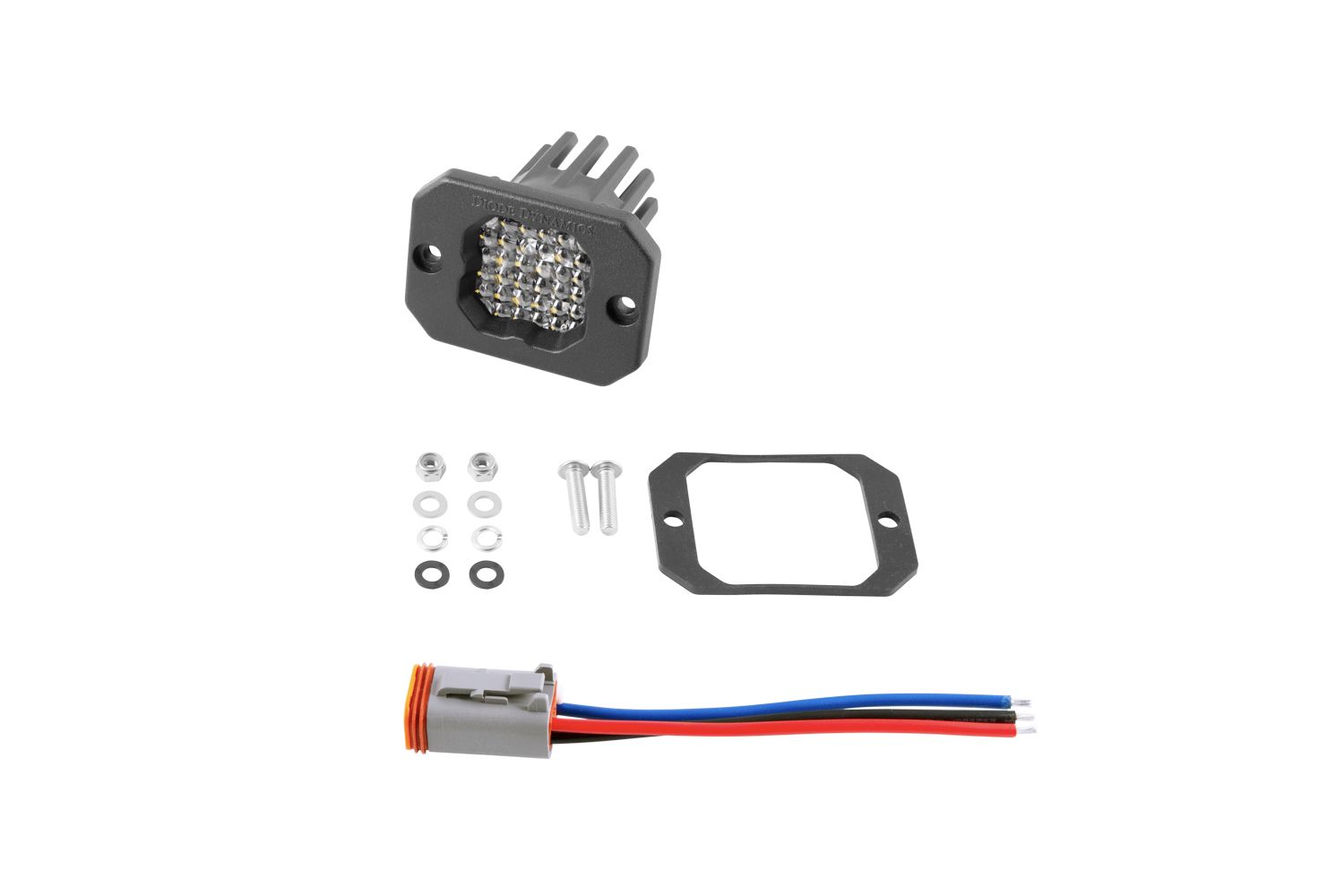

What's in the box 3 ITEMS
One (1) Stage Series C1 LED Pod
One (1) Deutsch-style wire pigtail
One (1) Mounting bracket and hardware
Optical
Lumens 2300
Color temperature 6000K

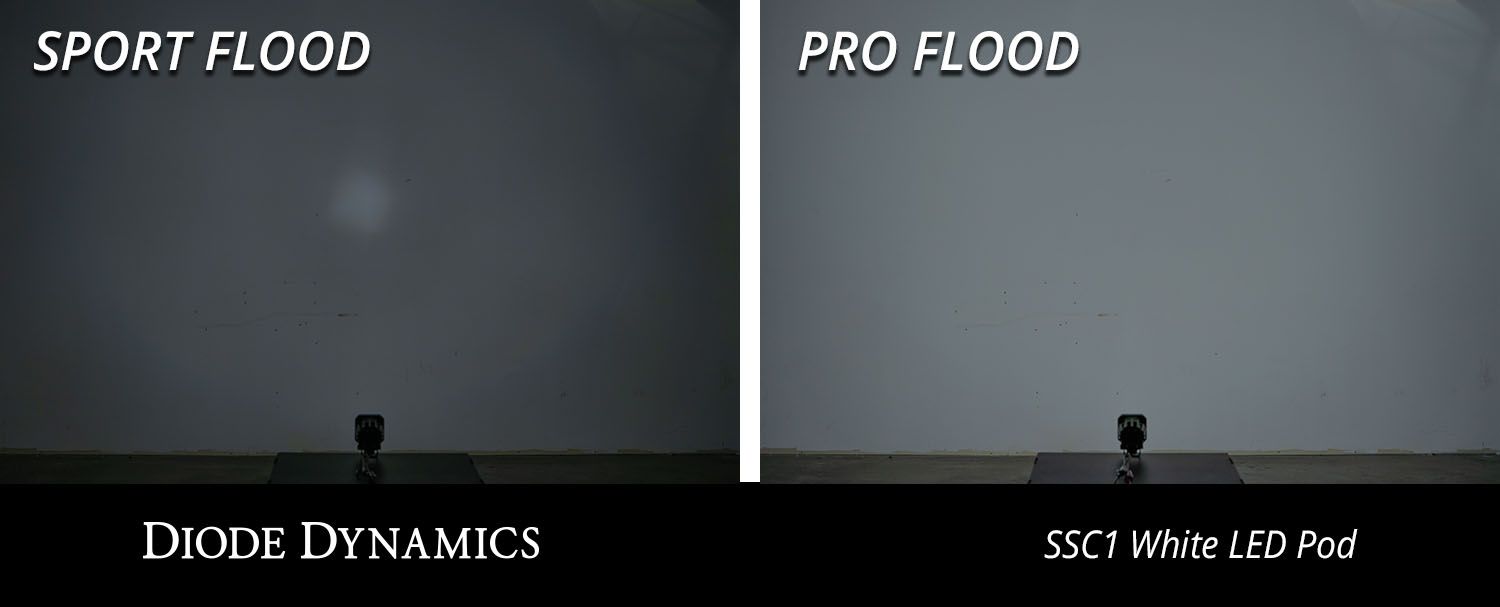

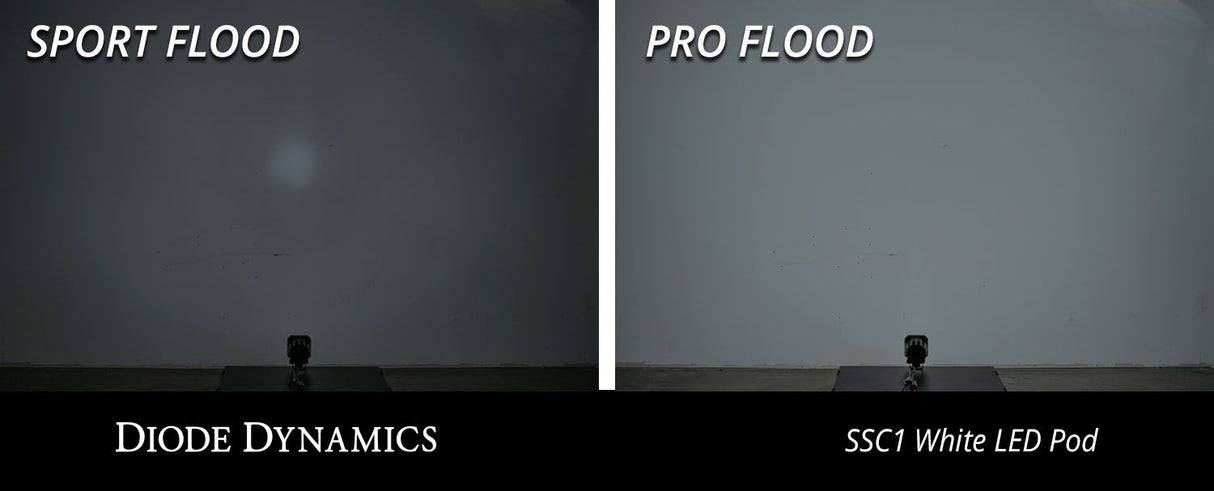

Beam spread Flood 80°x50°
Power 19W
Operating voltage 9-16V
Grade Performance
Intensity 925 cd
LED emitter Cree XHP50
Driver features Constant Current
Construction
Connector Deutsch DT Input
Cooling Passive, Pin-Fin heatsink
Polarity Polarity Specific
Base material Steel
Base color Black
Finish sheen Matte
Bolt thread Medium
Bolt grade High
Install
Drilling No drilling required
Mounting hardware Included
Compliance
IP rating IP69K Waterproof High Pressure
Operating temp -40C to 85C (-40F to 185F)
Country of origin USA
Features & benefits
Allows for flush installation on bumpers and truck beds
Ultra-compact, single-LED form factor
High-intensity 20-watt LED chip
Backlighting available in amber or red
Pin-fin heatsink design, for superior thermal dissipation
Integrated Deutsch-style connector
Designed, torture-tested and assembled in USA
Description

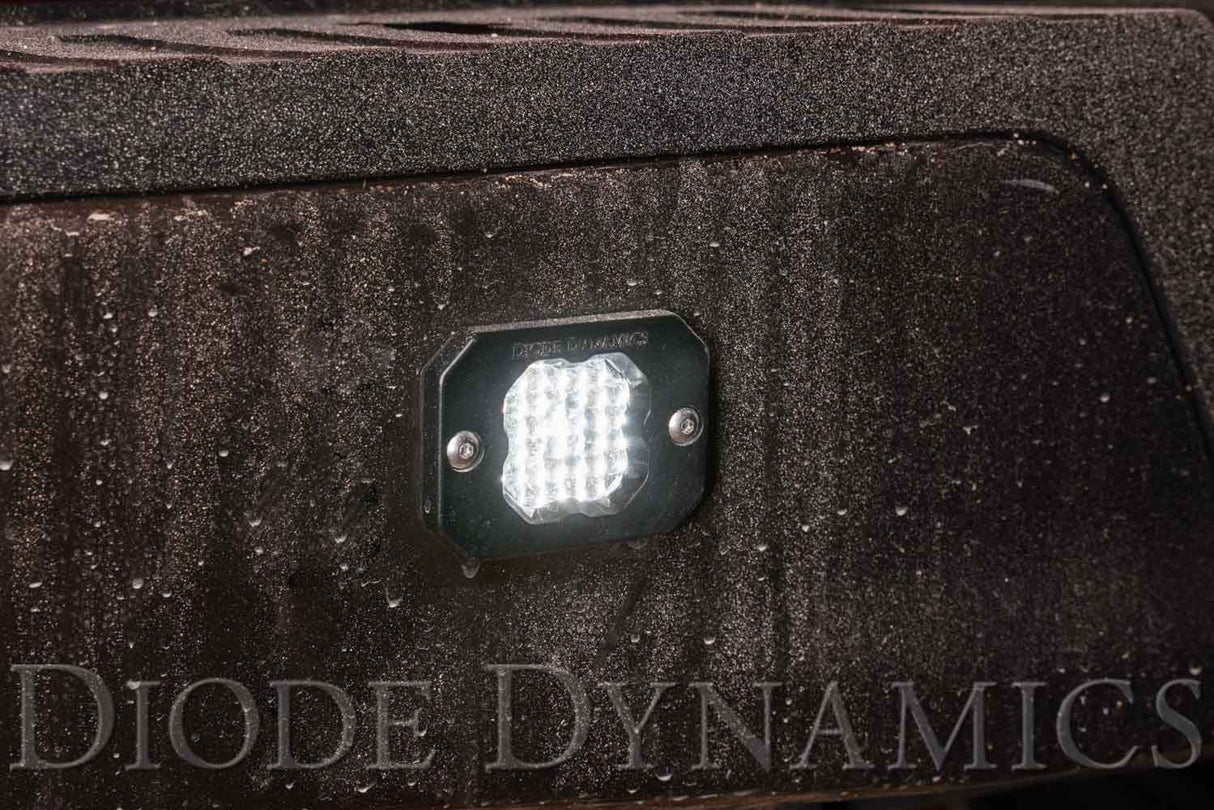

The Diode Dynamics SSC1 LED Pod is a compact, flush-mount light designed for trucks, Jeeps, and UTVs that need versatile auxiliary lighting in tight spaces. Whether you're mounting to a bumper, bed rail, roof rack, or custom bracket, the SSC1 delivers serious output from a low-profile form factor that integrates cleanly into your build without the bulk of larger pods.

This pod is available in Amber, Flood, and Red — giving you the flexibility to dial in exactly the right light for your application. Flood output works well for camp lighting, bed illumination, or close-range area coverage. Amber is ideal for dusty or foggy off-road conditions where a warmer hue cuts through better than white. Red preserves night vision and suits recovery or utility setups where you need light without drawing attention.

The SSC1 is built around Diode Dynamics' Stage Series engineering, featuring TIR optics, a pin-fin heatsink for thermal management, and a plug-and-play Deutsch-style connector for a clean, secure install. If you want a capable auxiliary light that mounts flush and looks factory, the SSC1 is a straightforward choice.

Documentation
