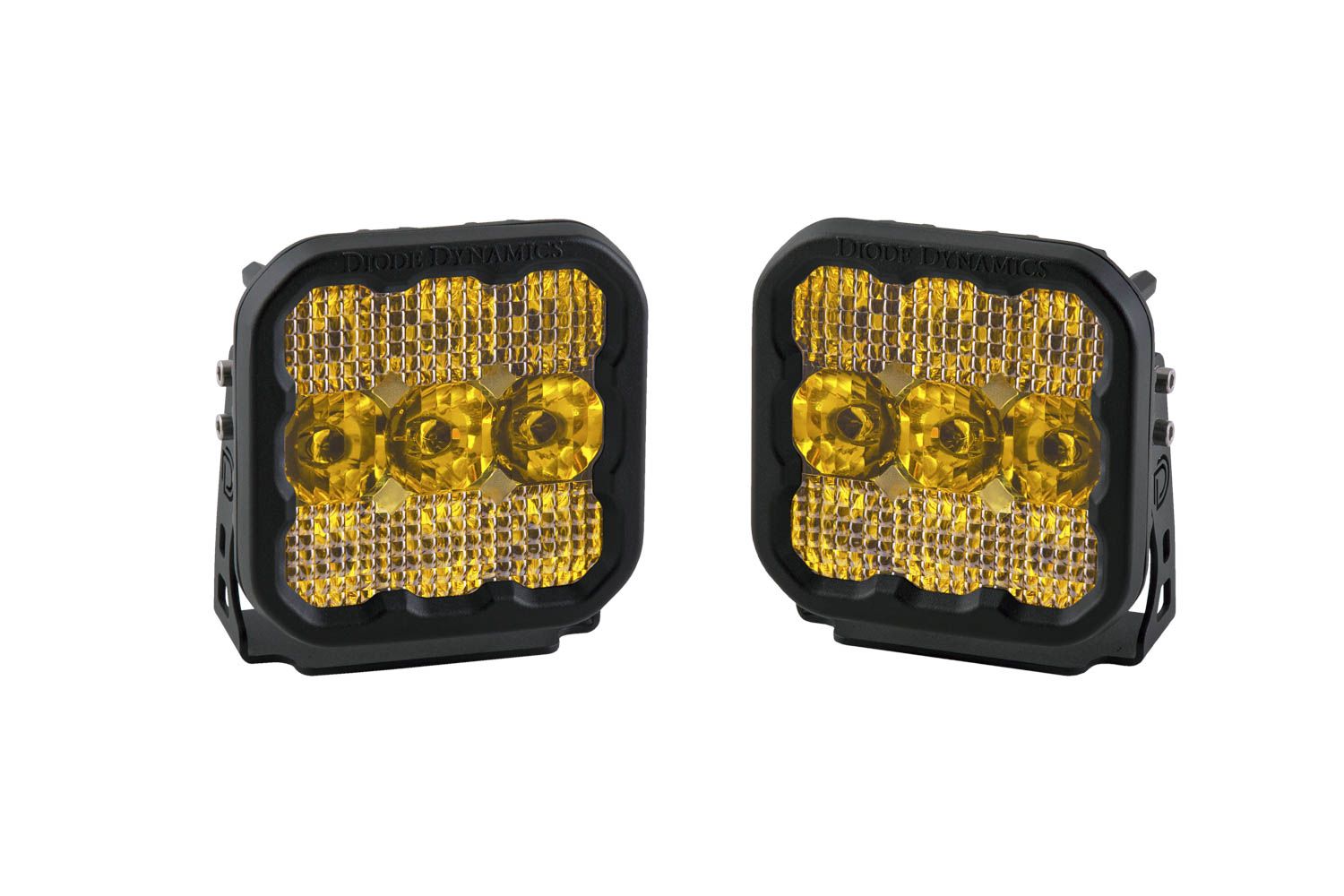

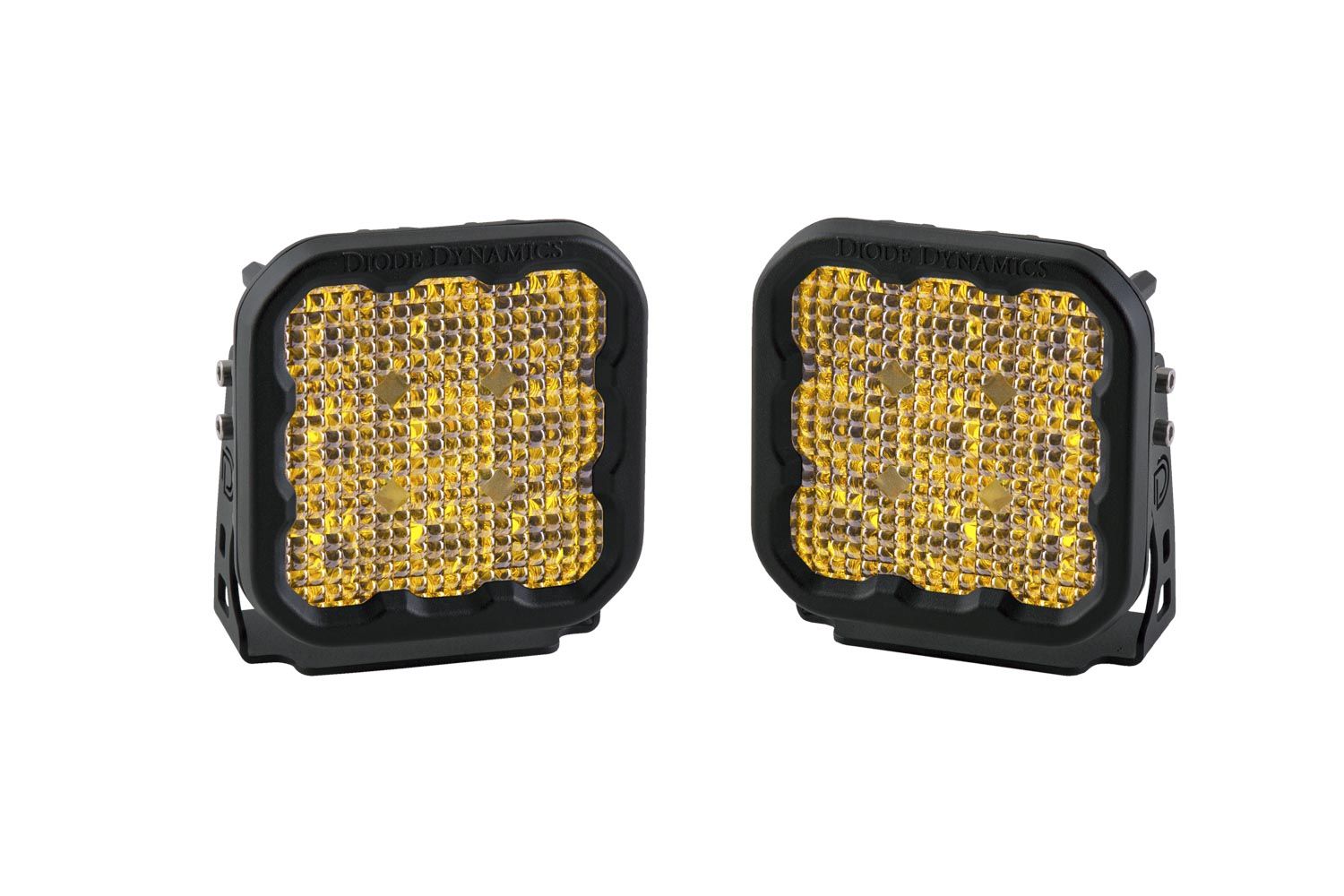

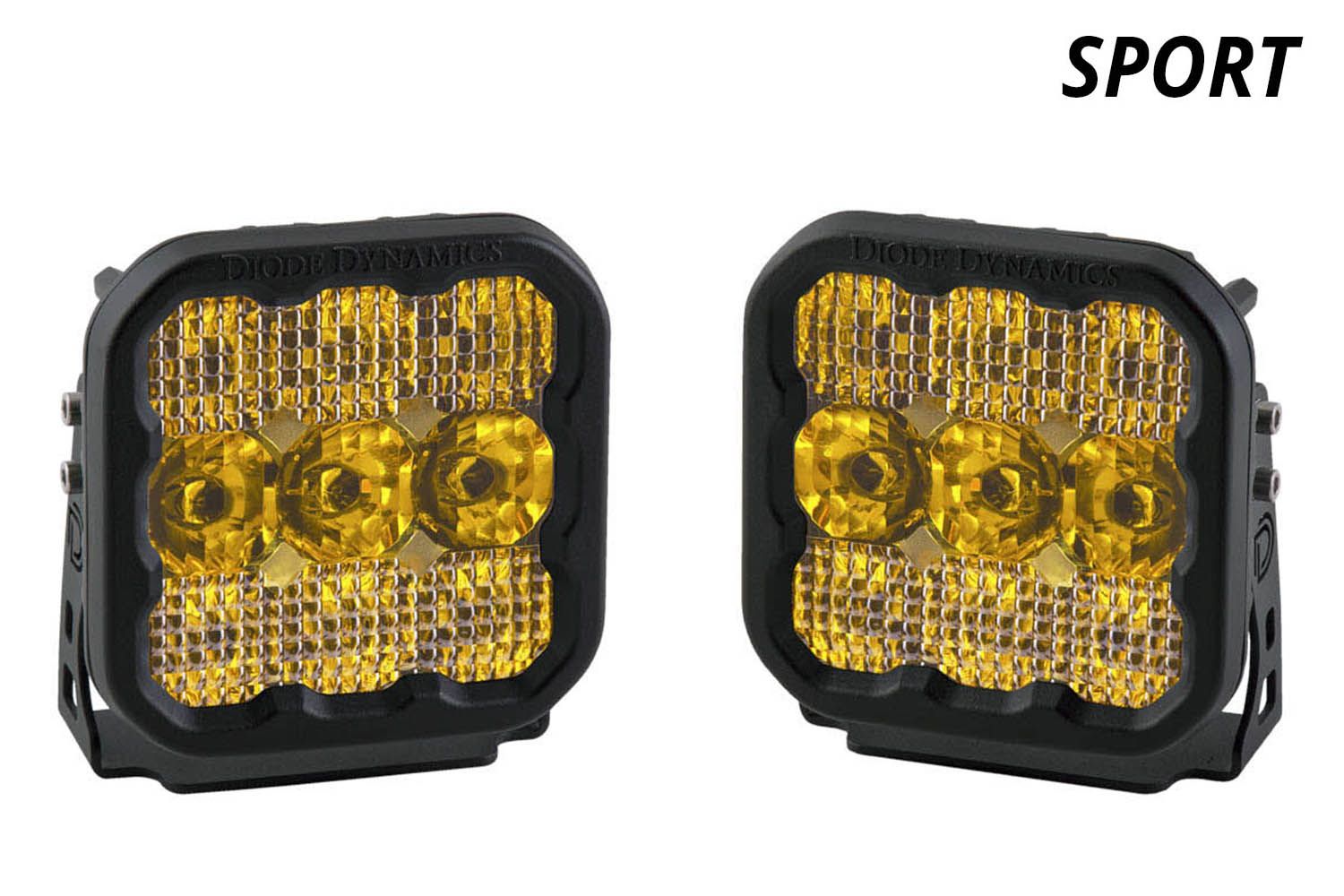

SS5 Yellow Sport LED Pod (pair)

Diode Dynamics  |  SKU: DD6781P  |  Barcode: 00691025934946
Regular price $ 695.00 CAD
Choose Your Beam Pattern
Free shipping Orders $500+
Canadian orders No duties / brokerage
Authorized Diode Dynamics Dealer
Returns 30-day easy

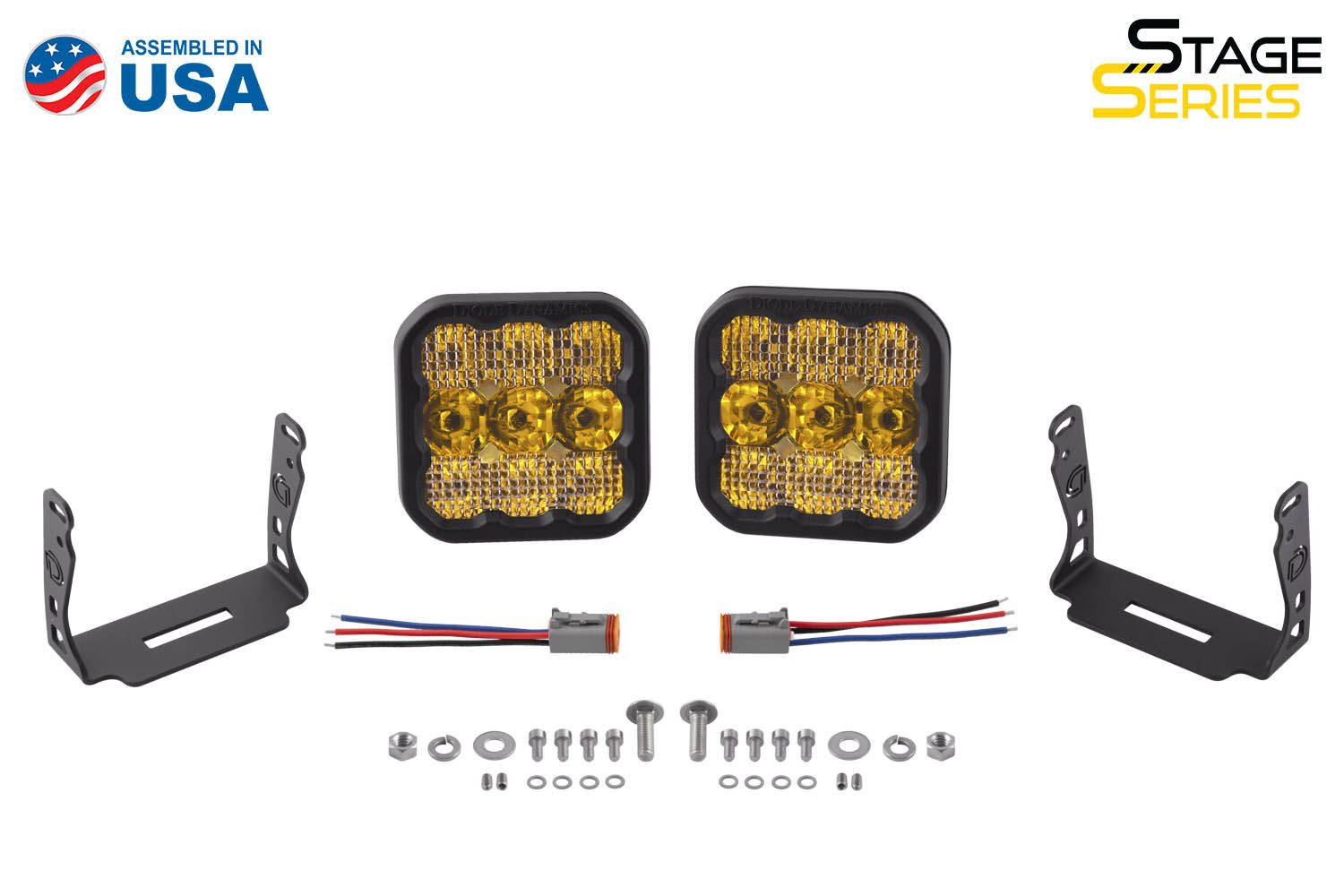

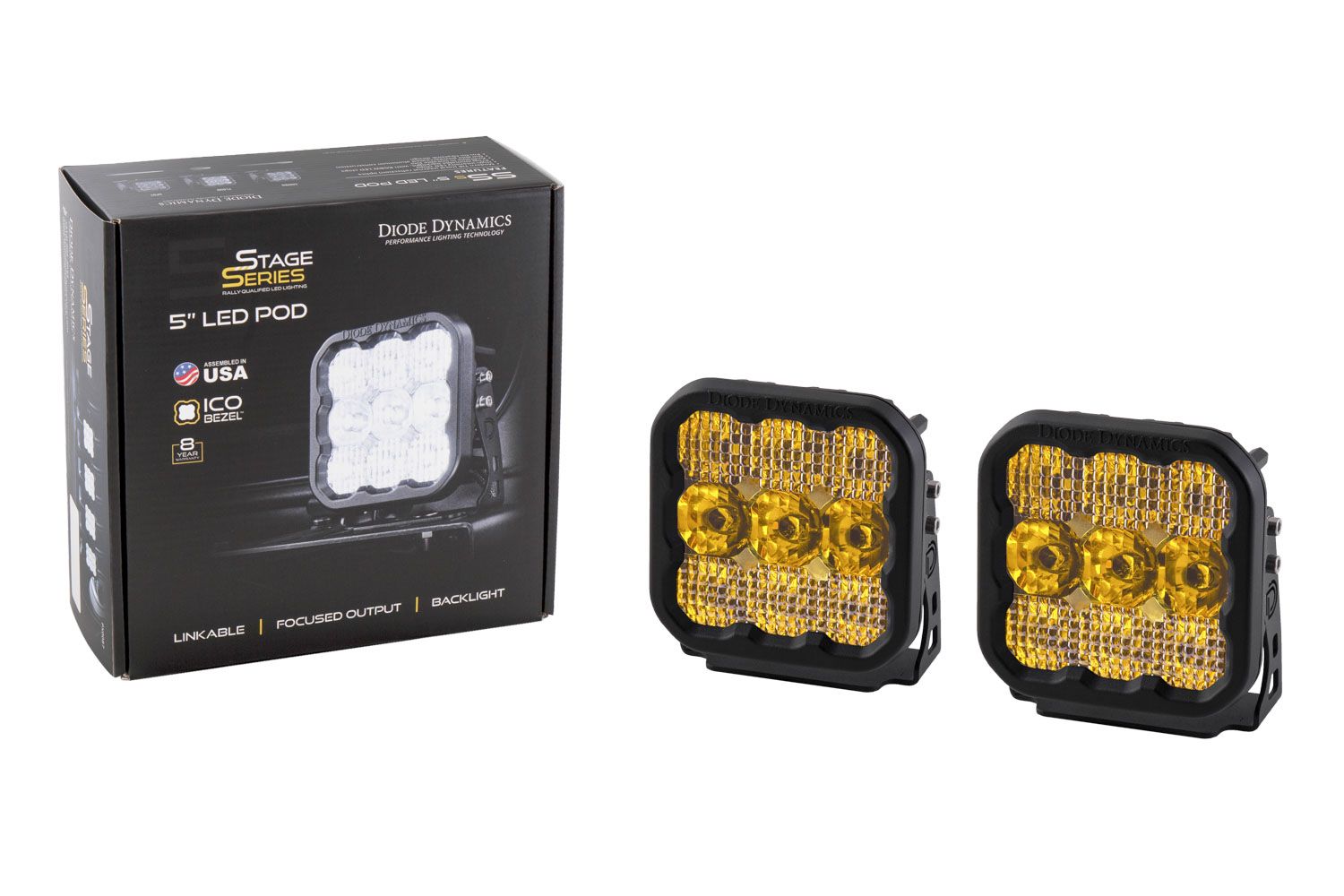

What's in the box 3 ITEMS

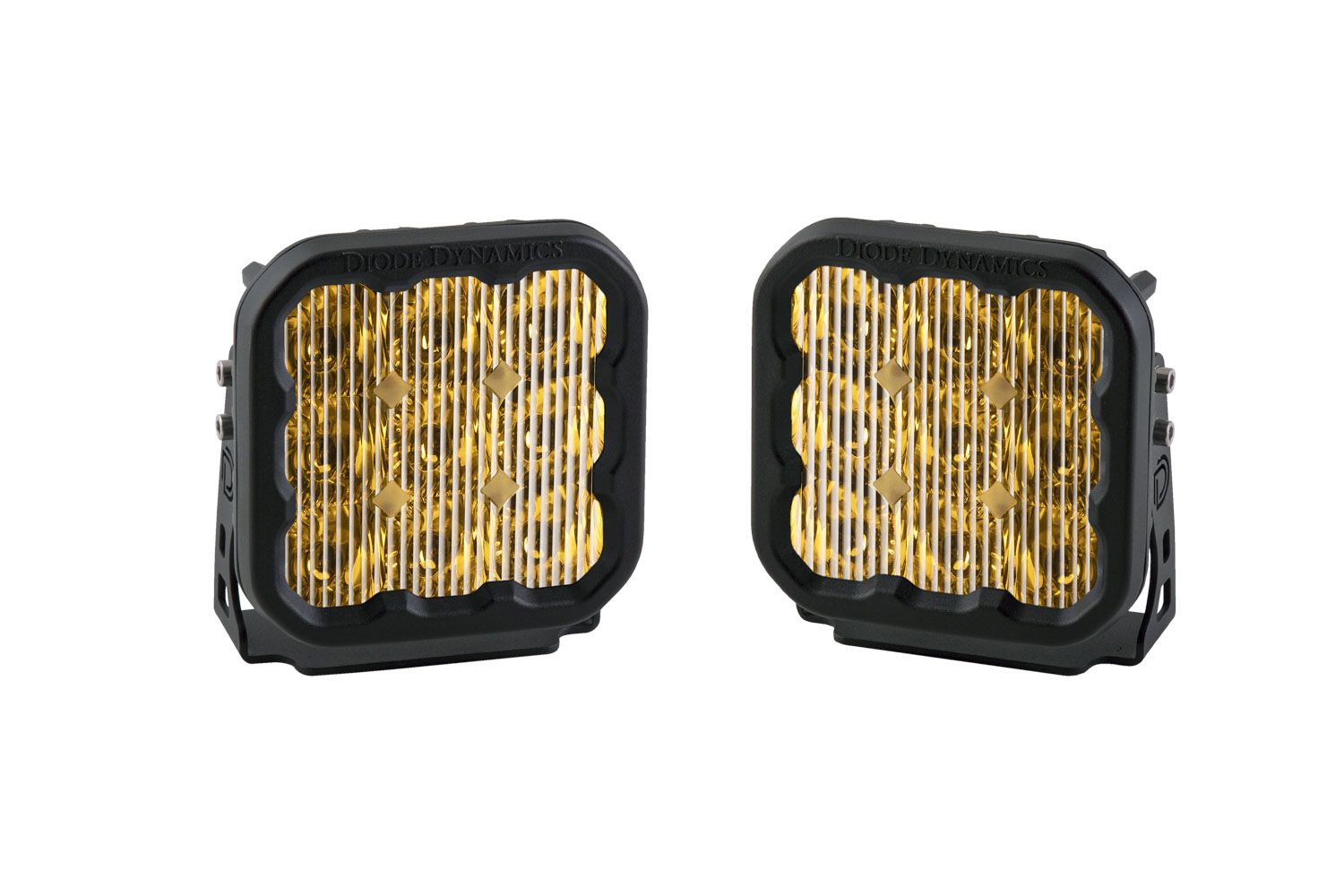

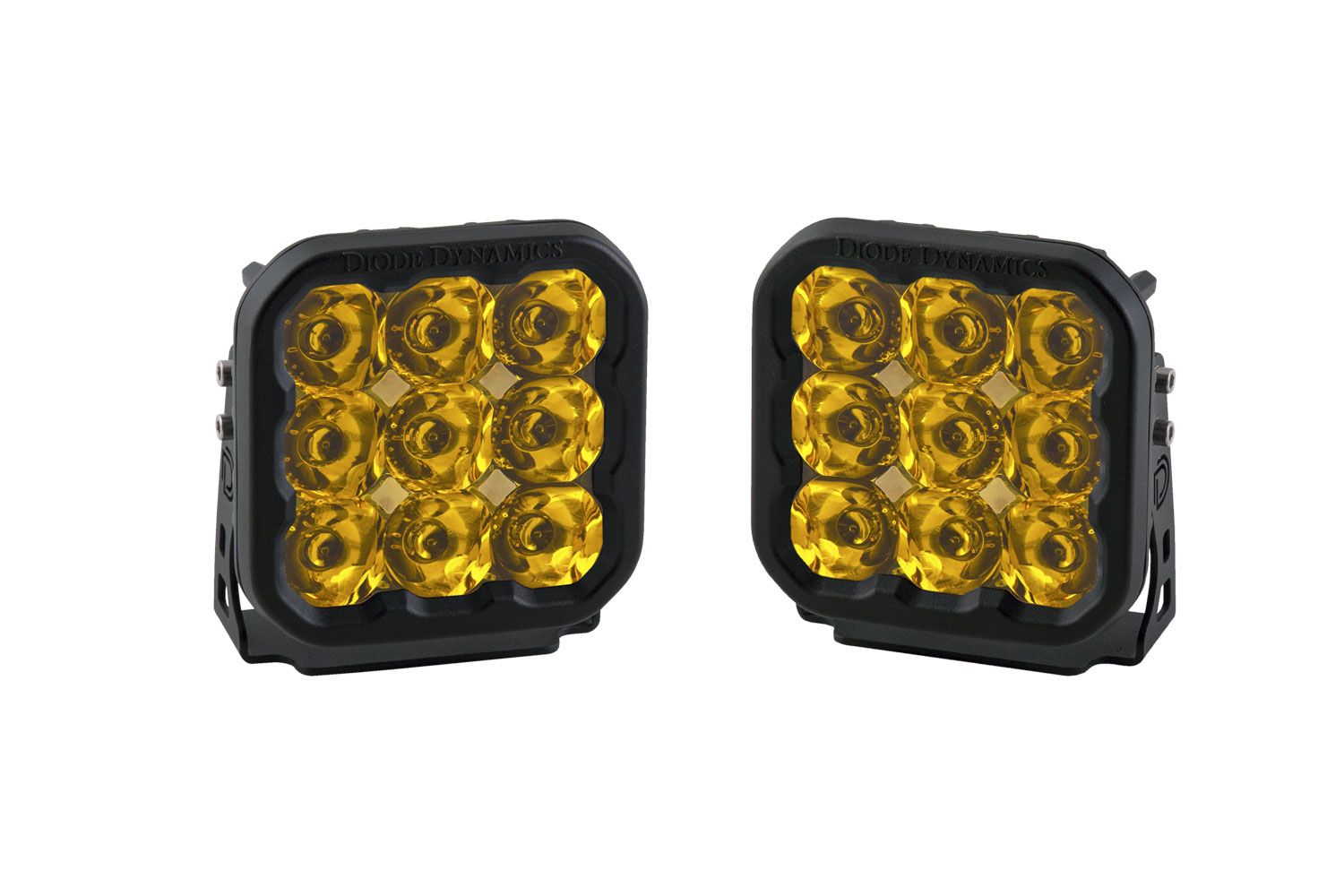

Two (2) Stage Series 5inch LED Pods
Two (2) Deutsch-style wire pigtails
Two (2) Mounting brackets and hardware
Optical
Lumens 3700
Color temperature 3000K
Beam spread Driving 20°x8°
Power 40W
Operating voltage 9-16V
Grade Performance
Intensity 103 000 cd
LED emitter Luxeon Z ES
Driver features Constant Current
Construction
Connector Deutsch DT Input
Cooling Passive, Pin-Fin heatsink
Polarity Polarity Specific
Base material Steel
Base color Black
Finish sheen Matte
Bolt thread Medium
Bolt grade High
Install
Drilling No drilling required
Mounting hardware Included
Compliance
IP rating IP69K Waterproof High Pressure
Operating temp -40C to 85C (-40F to 185F)
Country of origin USA
Features & benefits
Engineered TIR (total internal reflection) optics

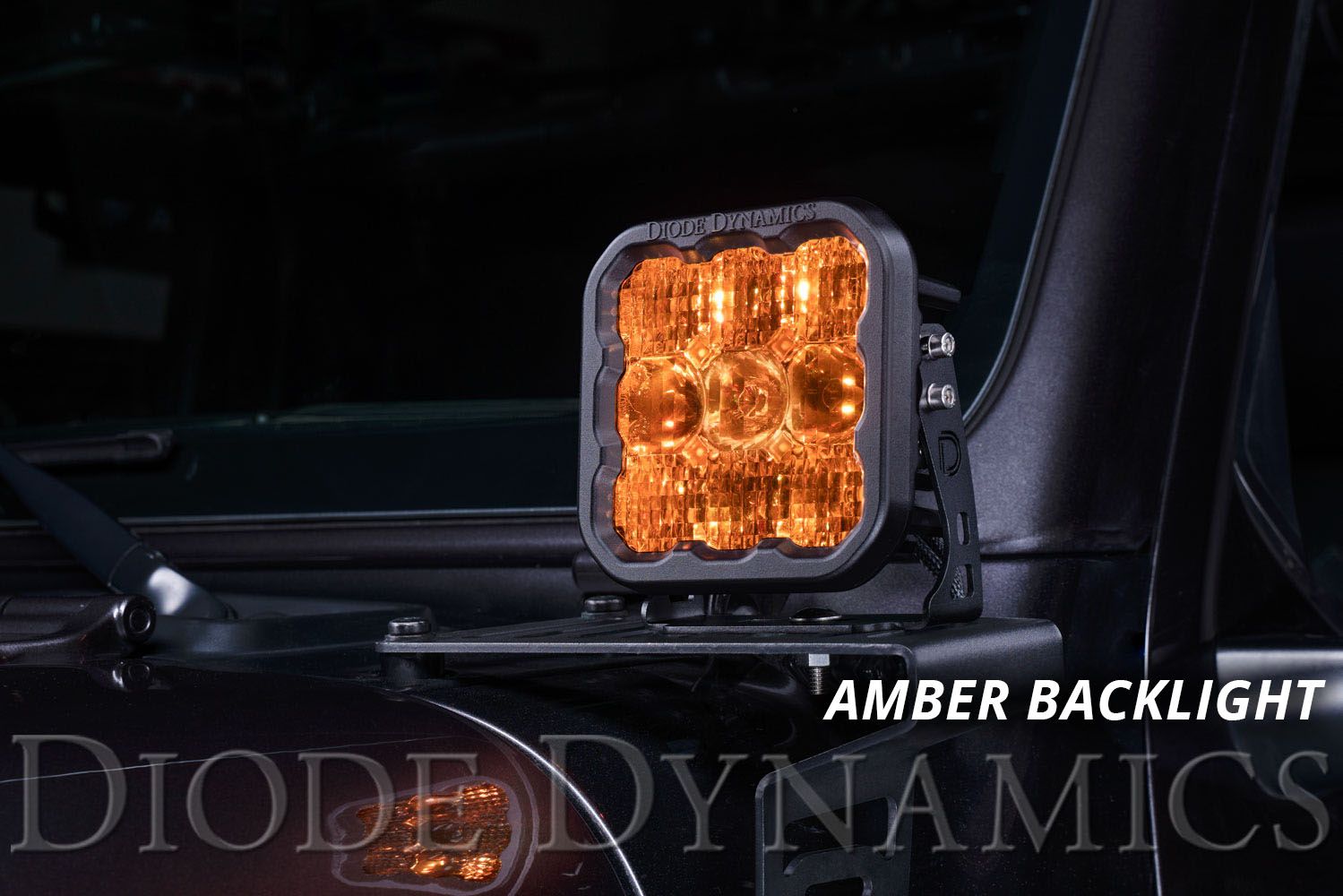

Brilliant amber backlight color, for additional accent
Built-in linking feature, build up to 50" bar
Torture-tested, heavy-duty construction
Ultra-high intensity
shines almost mile away
Assembled in USA
Description

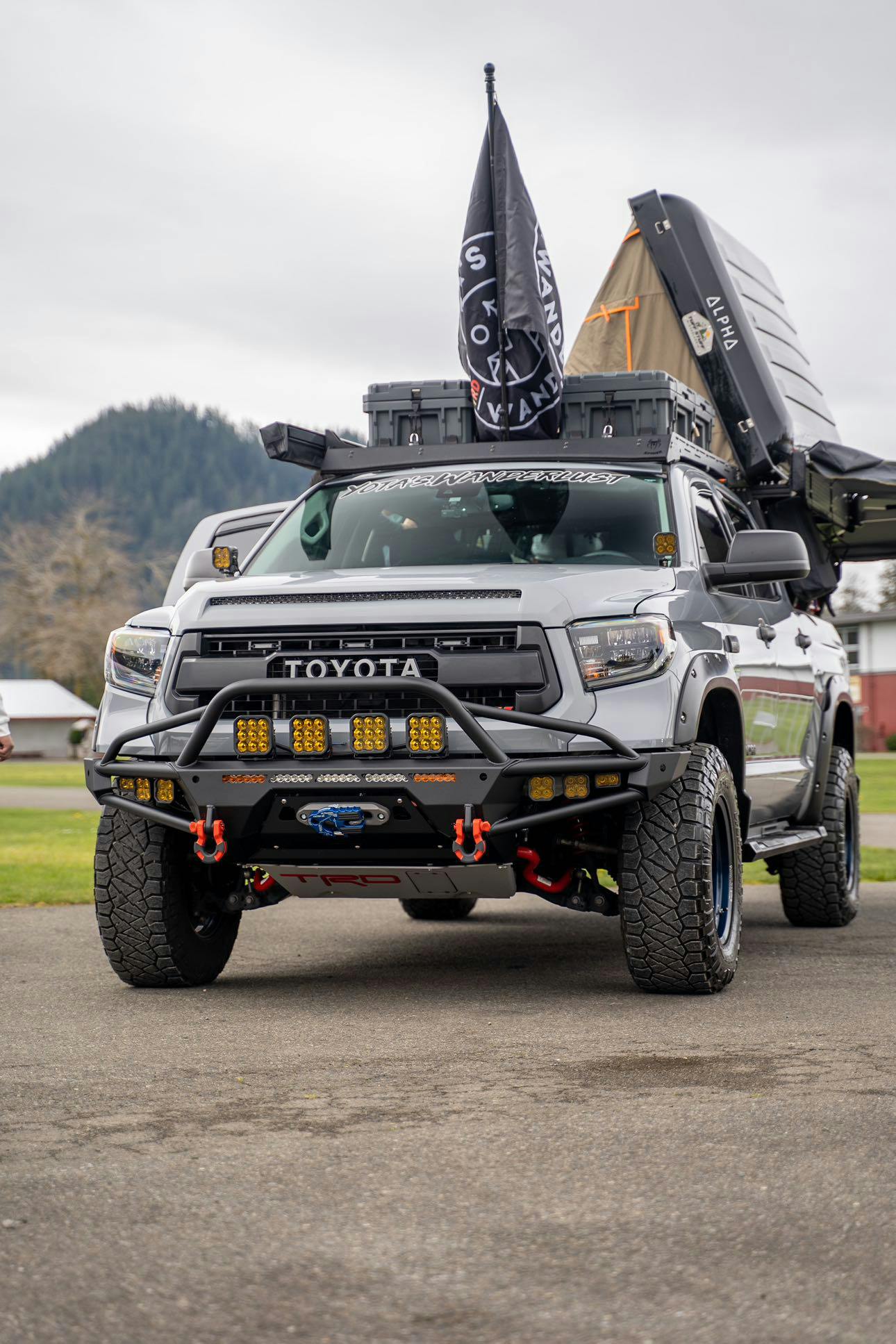

The Diode Dynamics SS5 Sport LED Pod is a compact 5-inch auxiliary light built to push visibility further on trails, job sites, and dark rural roads. Available in Spot, Driving, Combo, and Flood beam patterns, these yellow pods give you the flexibility to build a lighting setup matched to exactly how you use your truck, Jeep, or UTV — whether that's cutting deep into the distance, spreading wide across a work area, or layering coverage with your existing lights.

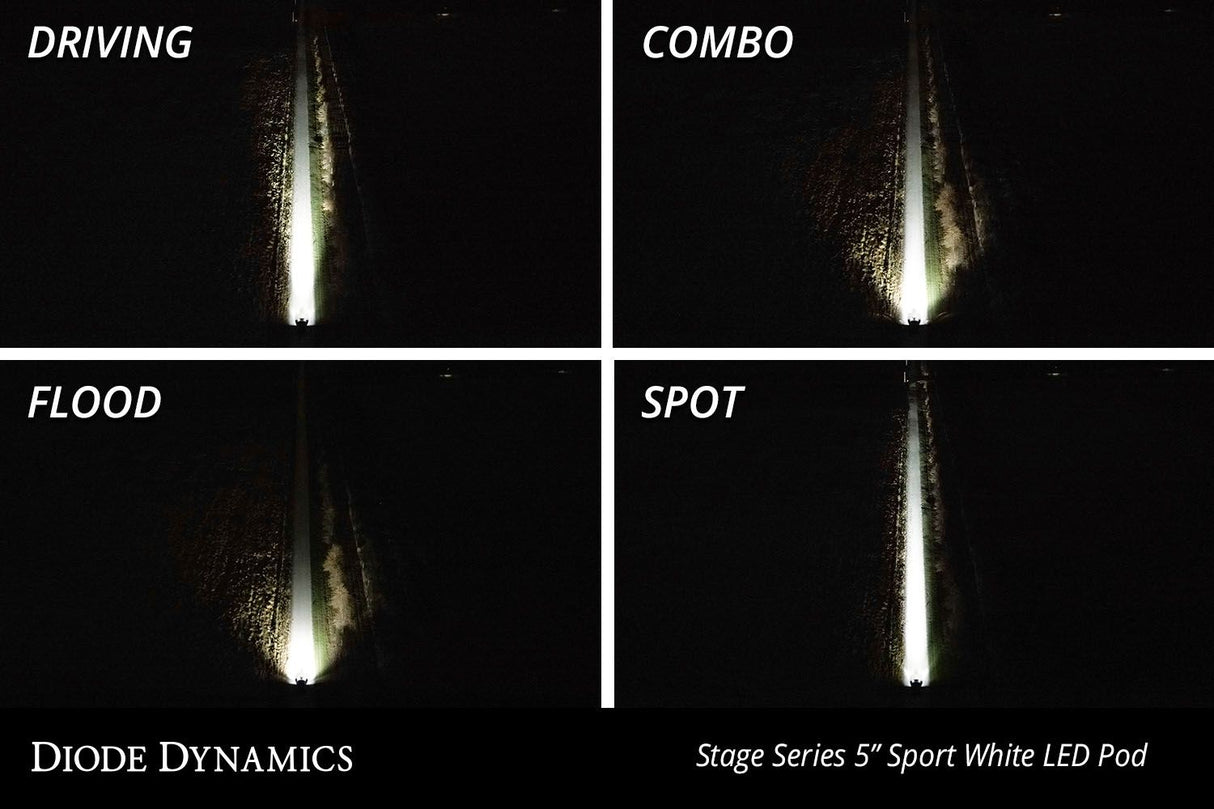

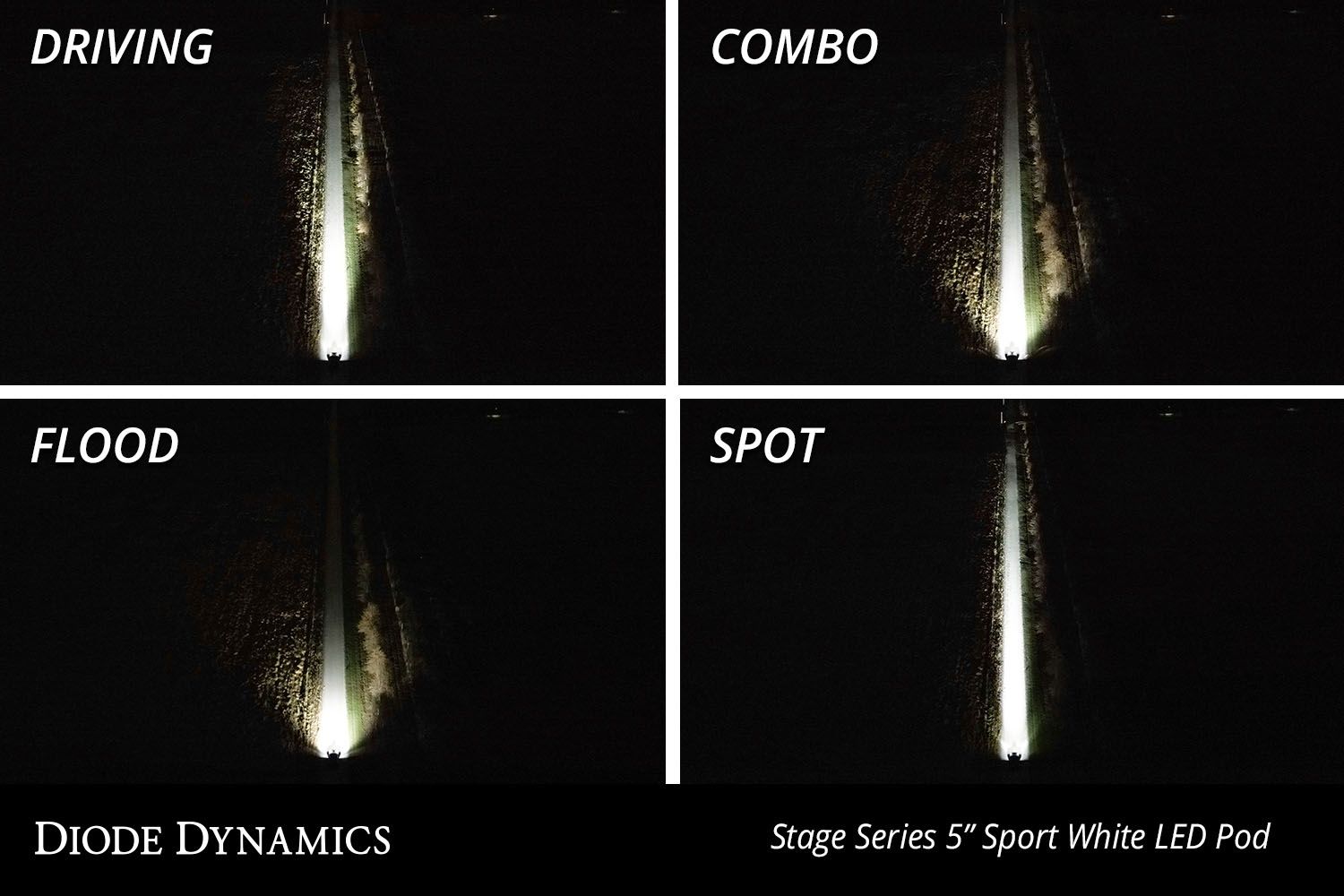

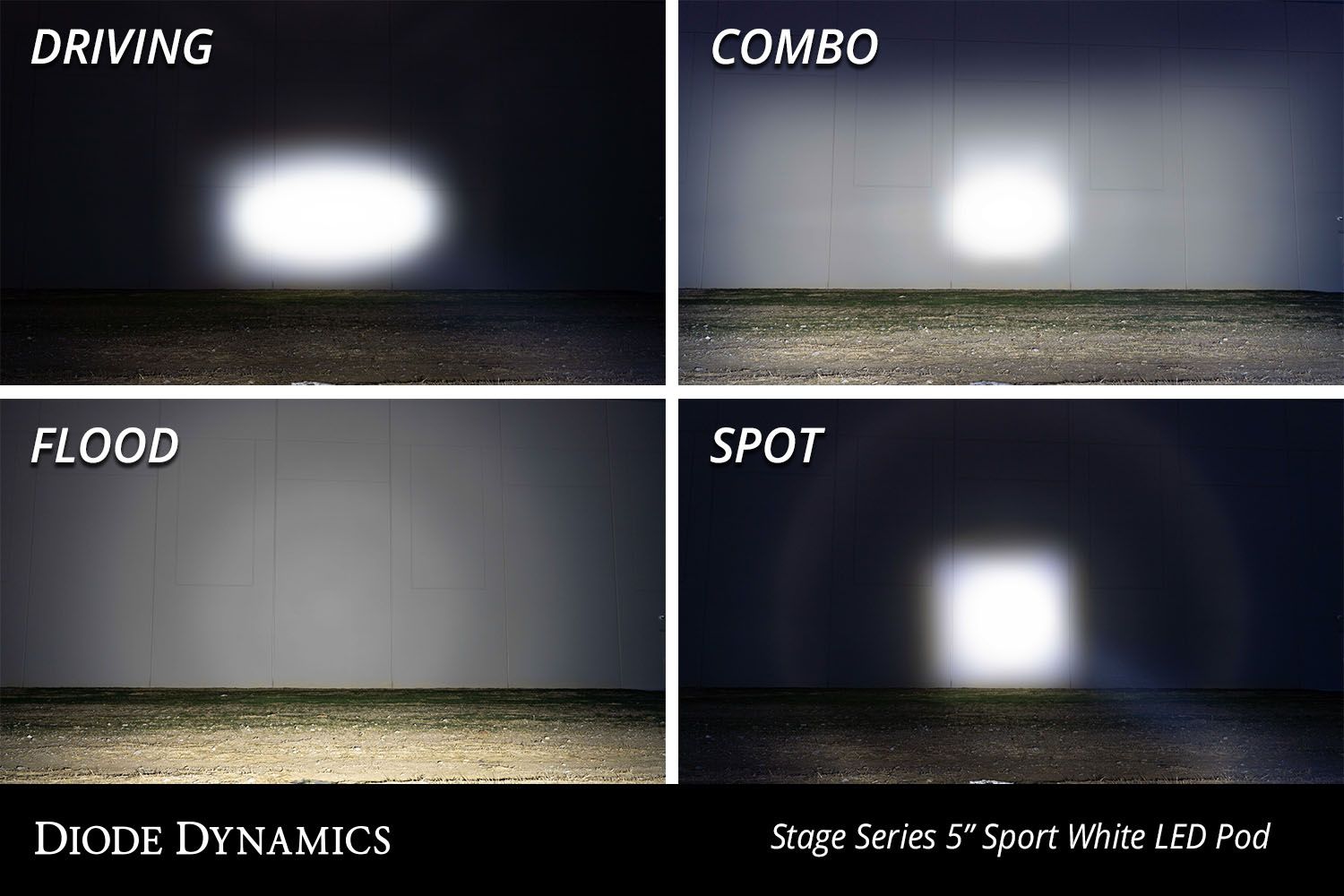

Yellow output is a deliberate choice for riders and drivers dealing with rain, dust, fog, or snow, where the reduced color temperature cuts through scatter better than white light. Each beam pattern serves a distinct purpose: Spot for long-range reach, Driving for a wider forward throw, Combo for a balance of both, and Flood for broad area coverage close in.

The SS5 Sport is built with the same precision optics and rugged construction Diode Dynamics is known for, making it a straightforward, no-compromise upgrade for anyone serious about off-road or working visibility.
