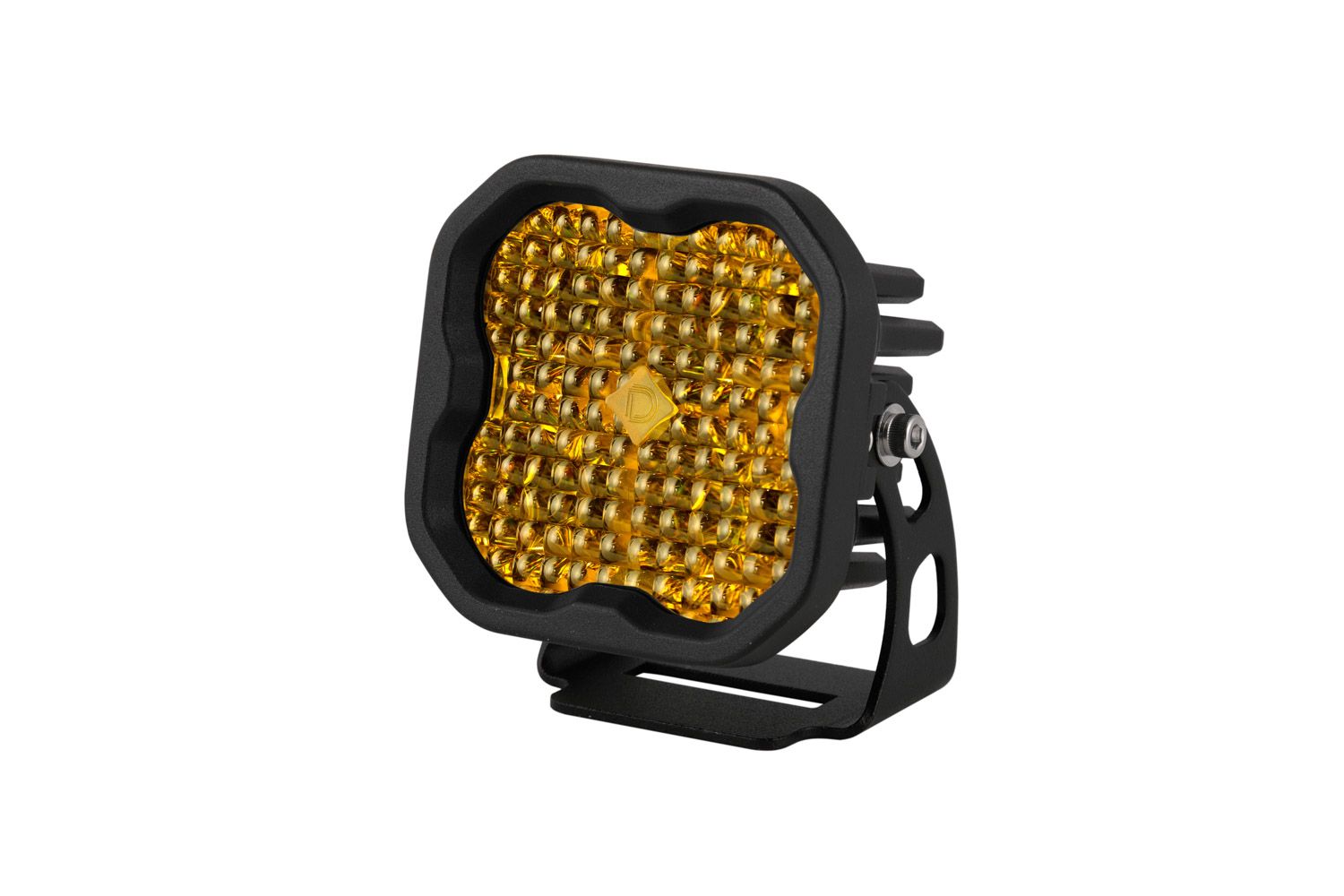

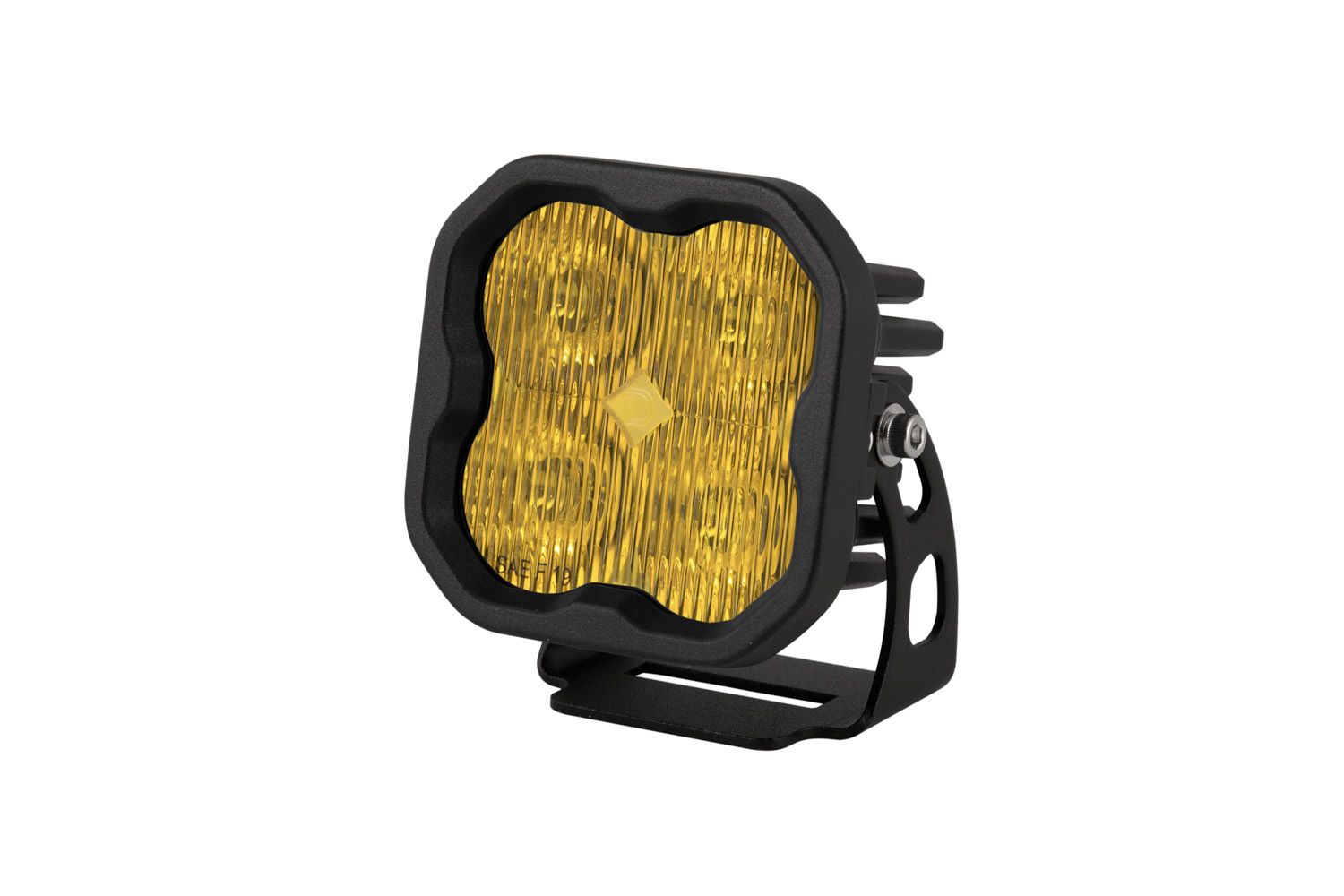

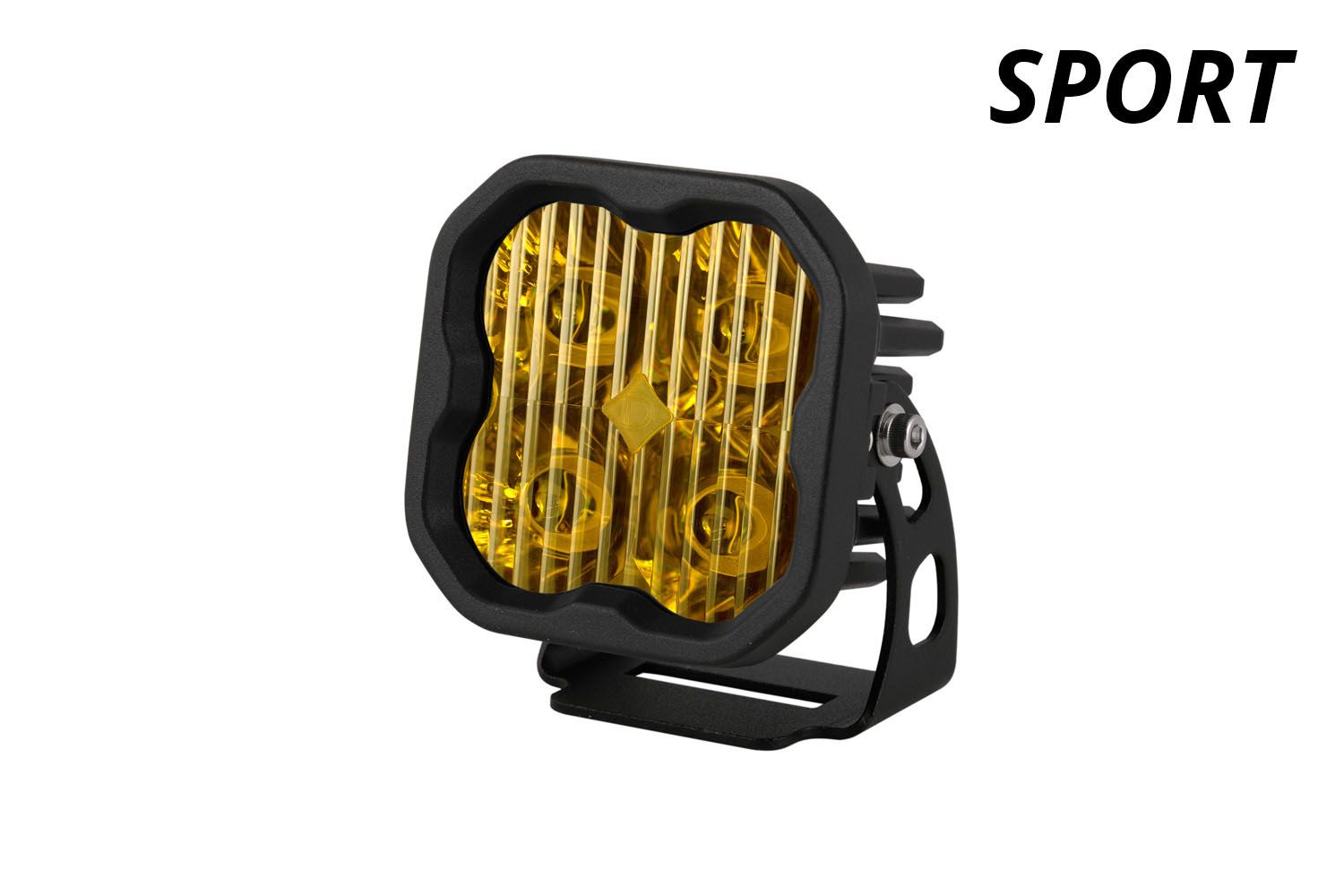

SS3 SAE Yellow Sport LED Pod (one)

Diode Dynamics  |  SKU: DD6868S  |  Barcode: 00691025931433
Regular price $ 208.00 CAD
Choose Your Beam Pattern
Backlight Colour
Free shipping Orders $500+
Canadian orders No duties / brokerage
Authorized Diode Dynamics Dealer
Returns 30-day easy

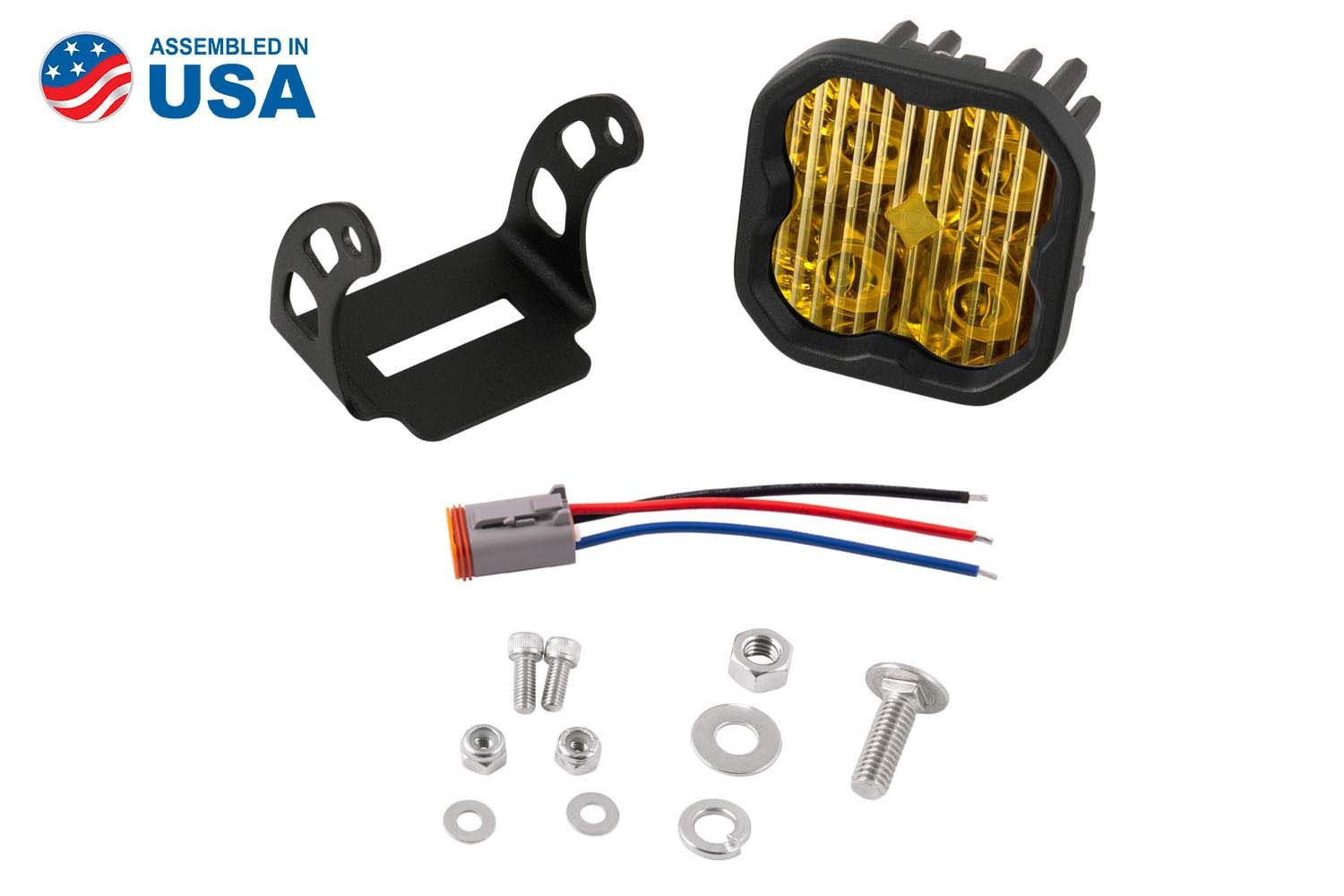

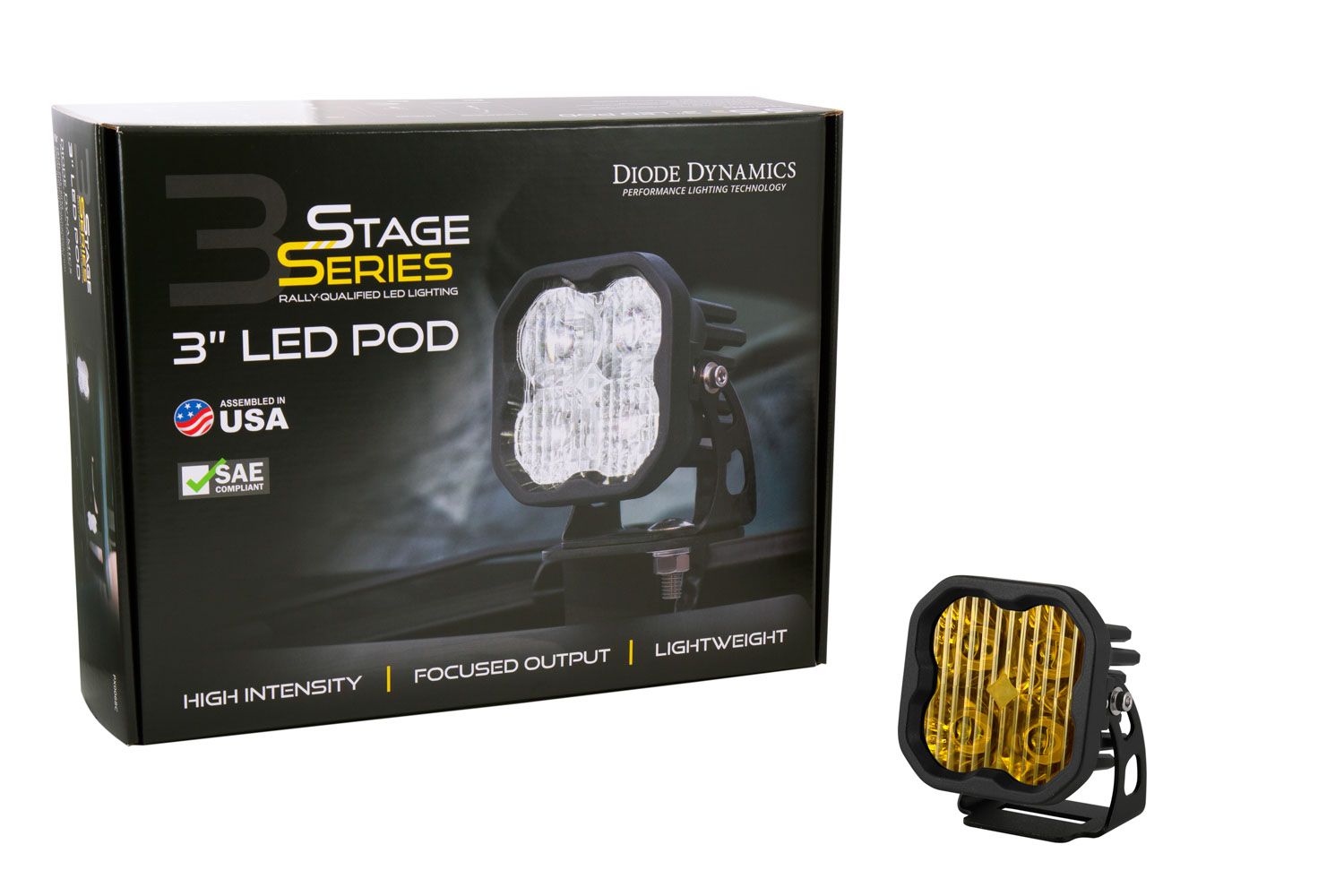

What's in the box 4 ITEMS
One (1) SS3 3” LED Pod
One (1) Deutsch-style wire pigtail
One (1) Mounting bracket
and hardware
Optical
Lumens 1300
Color temperature 3000K
Beam spread Driving 20°x8°
Power 14W
Operating voltage 9-30V
Grade Performance
Intensity 53 500 cd
LED emitter Luxeon Z ES
Driver features Constant Current
Construction
Connector Deutsch DT Input
Cooling Passive, Pin-Fin heatsink
Polarity Polarity Specific
Base material Steel
Base color Black
Finish sheen Matte
Bolt thread Medium
Bolt grade High
Install
Drilling No drilling required
Mounting hardware Included
Compliance
IP rating IP69K Waterproof High Pressure
Operating temp -40C to 85C (-40F to 185F)
Country of origin USA
Features & benefits

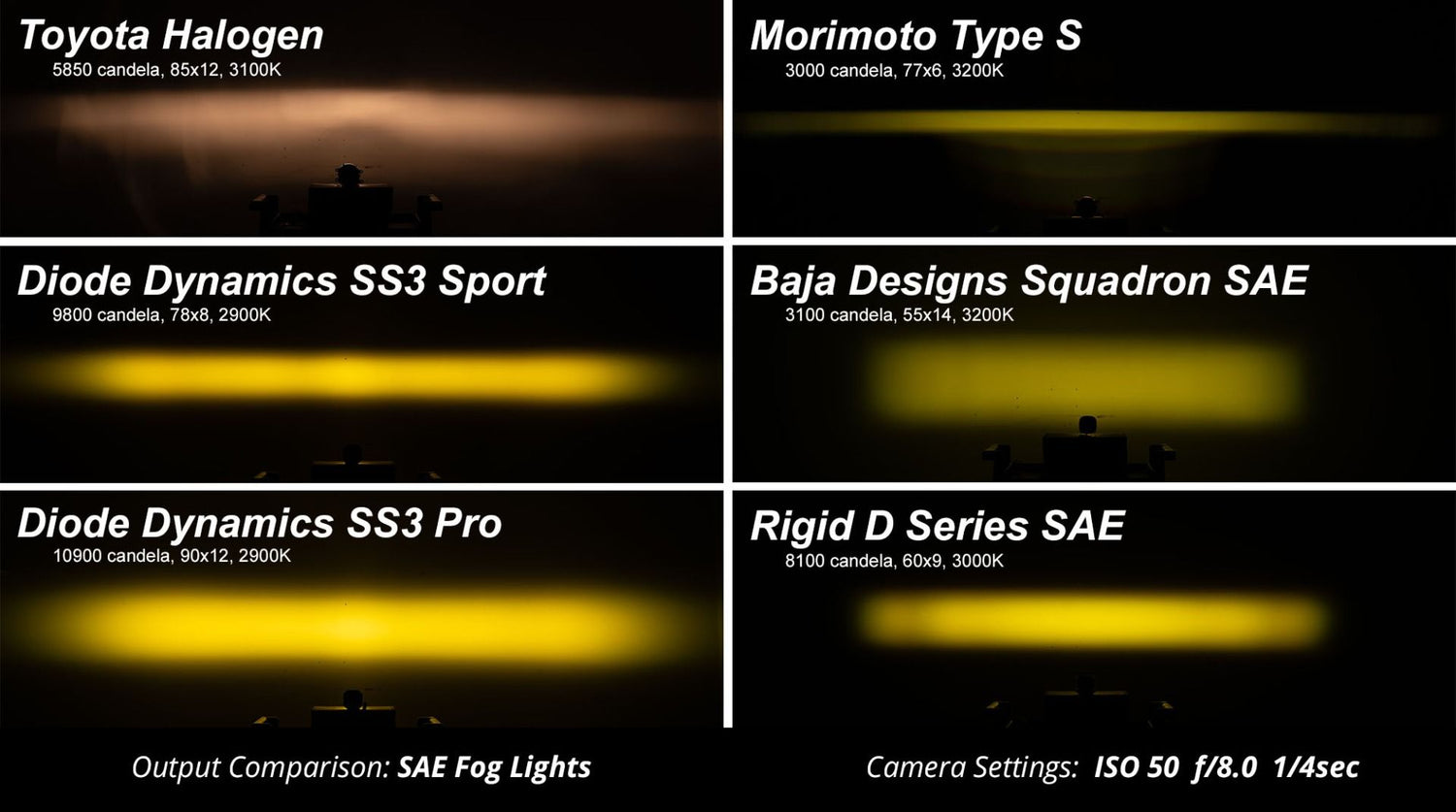

Modern TIR optics provide highest intensity on the market

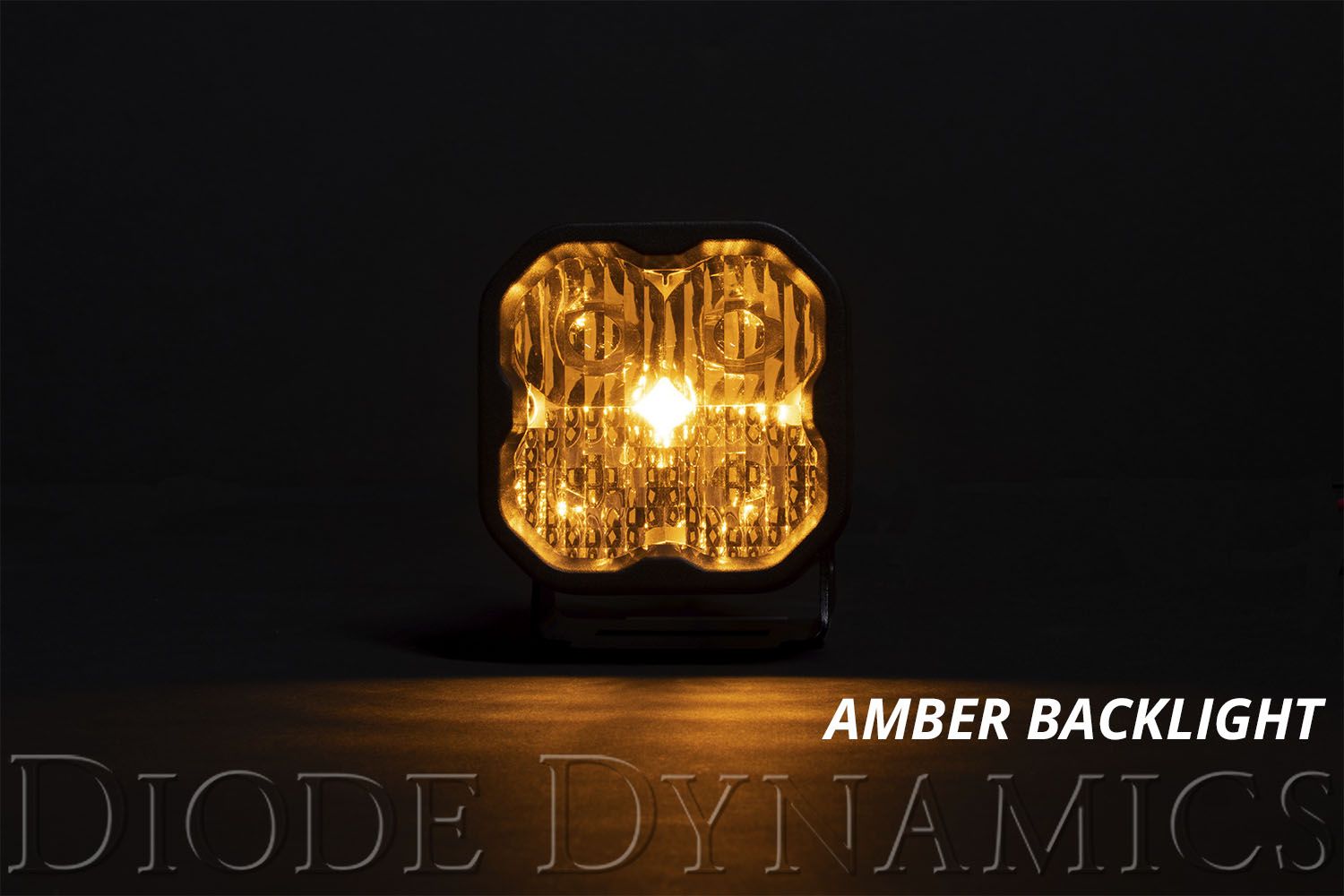

Backlight accent feature, available in a brilliant amber color

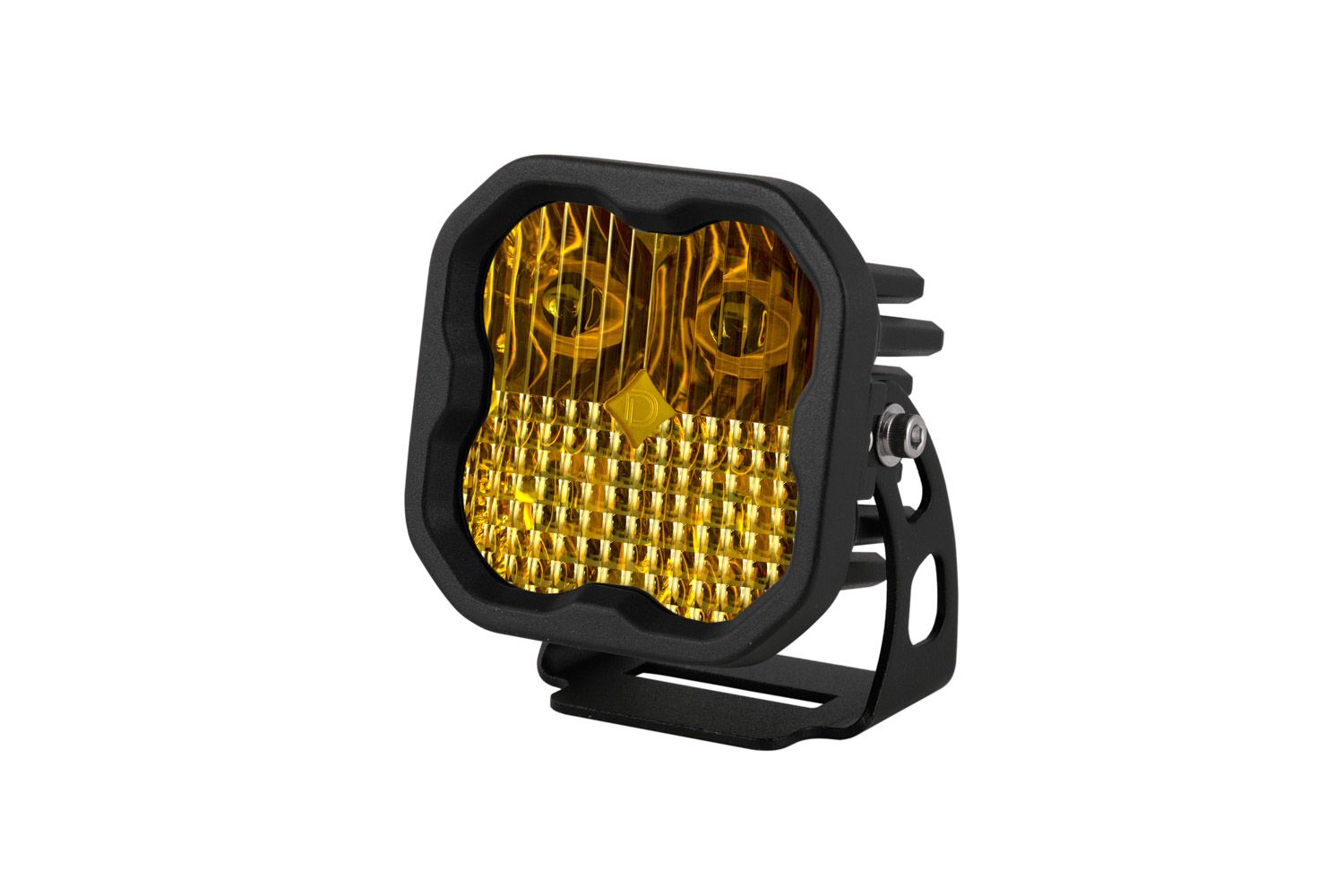

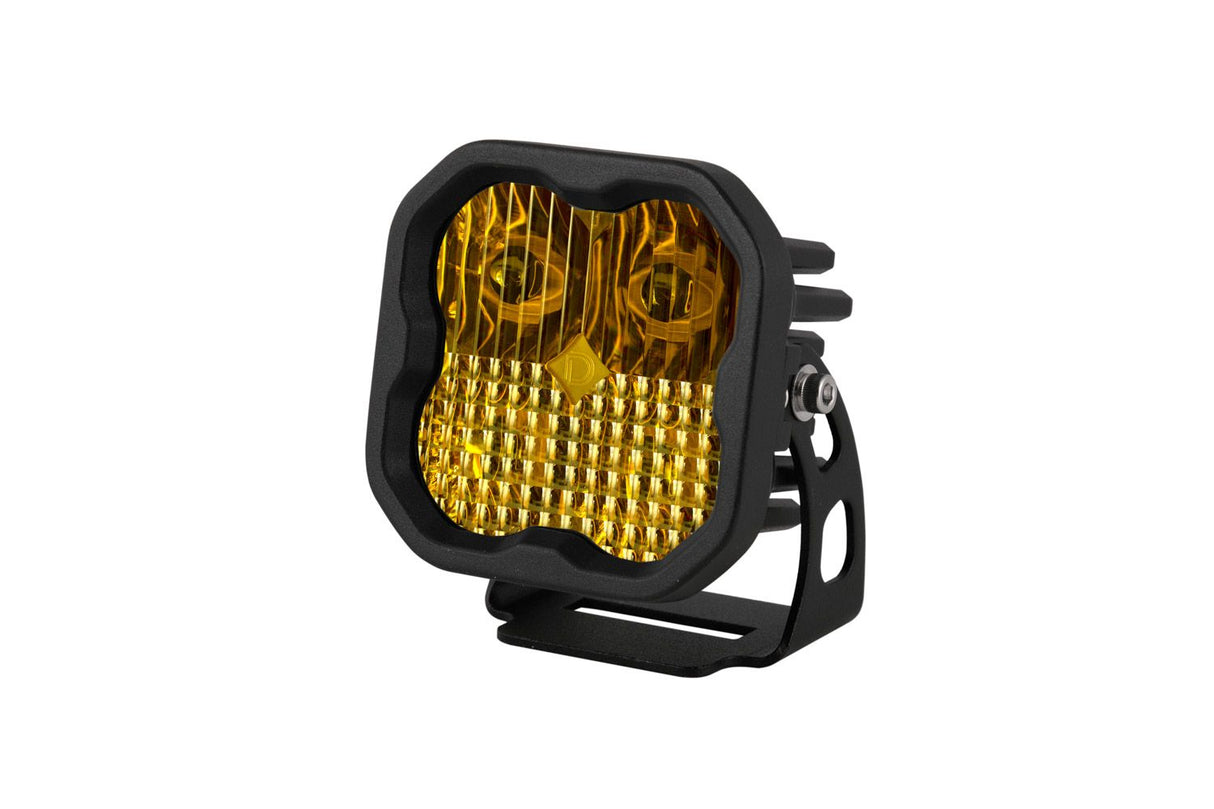

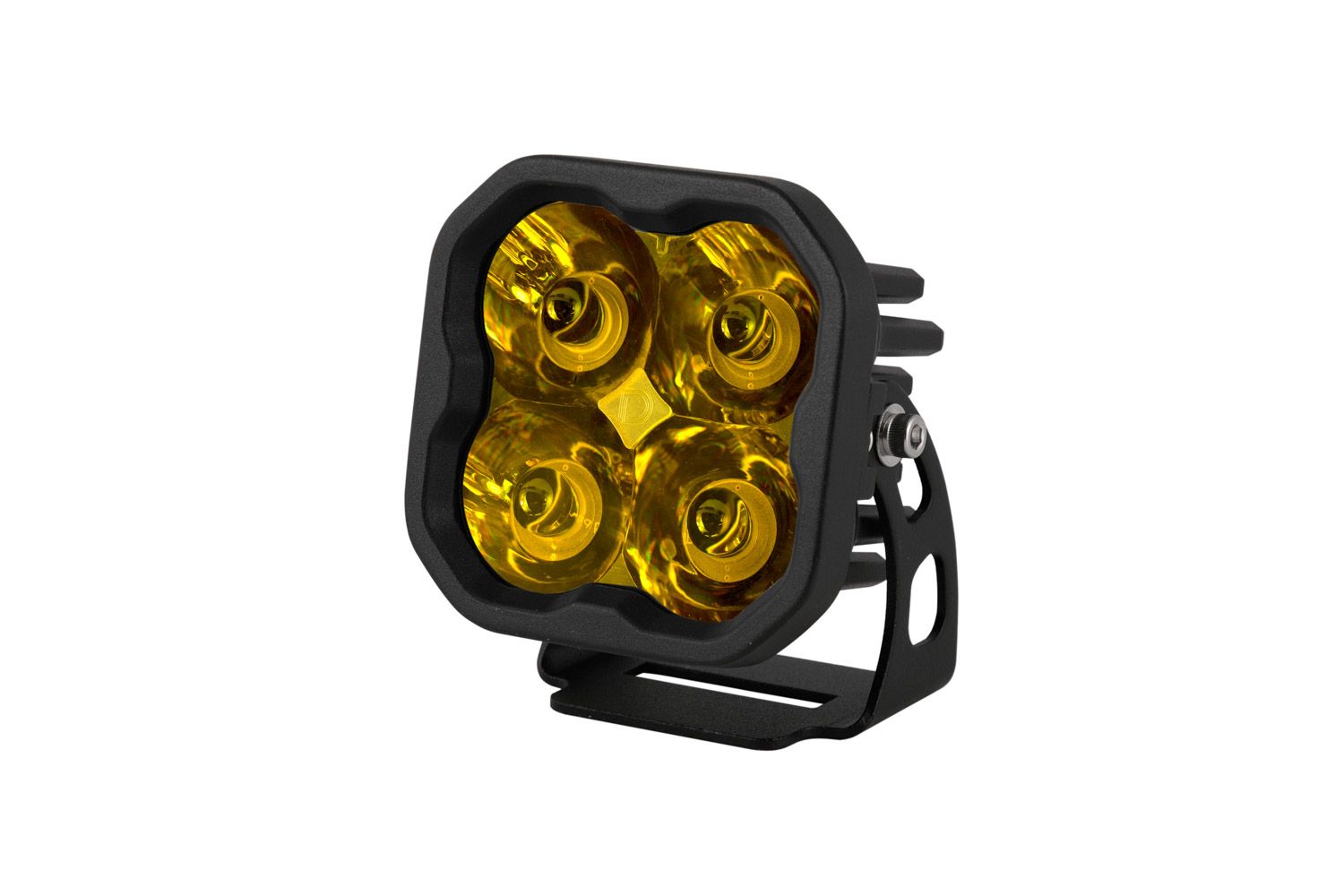

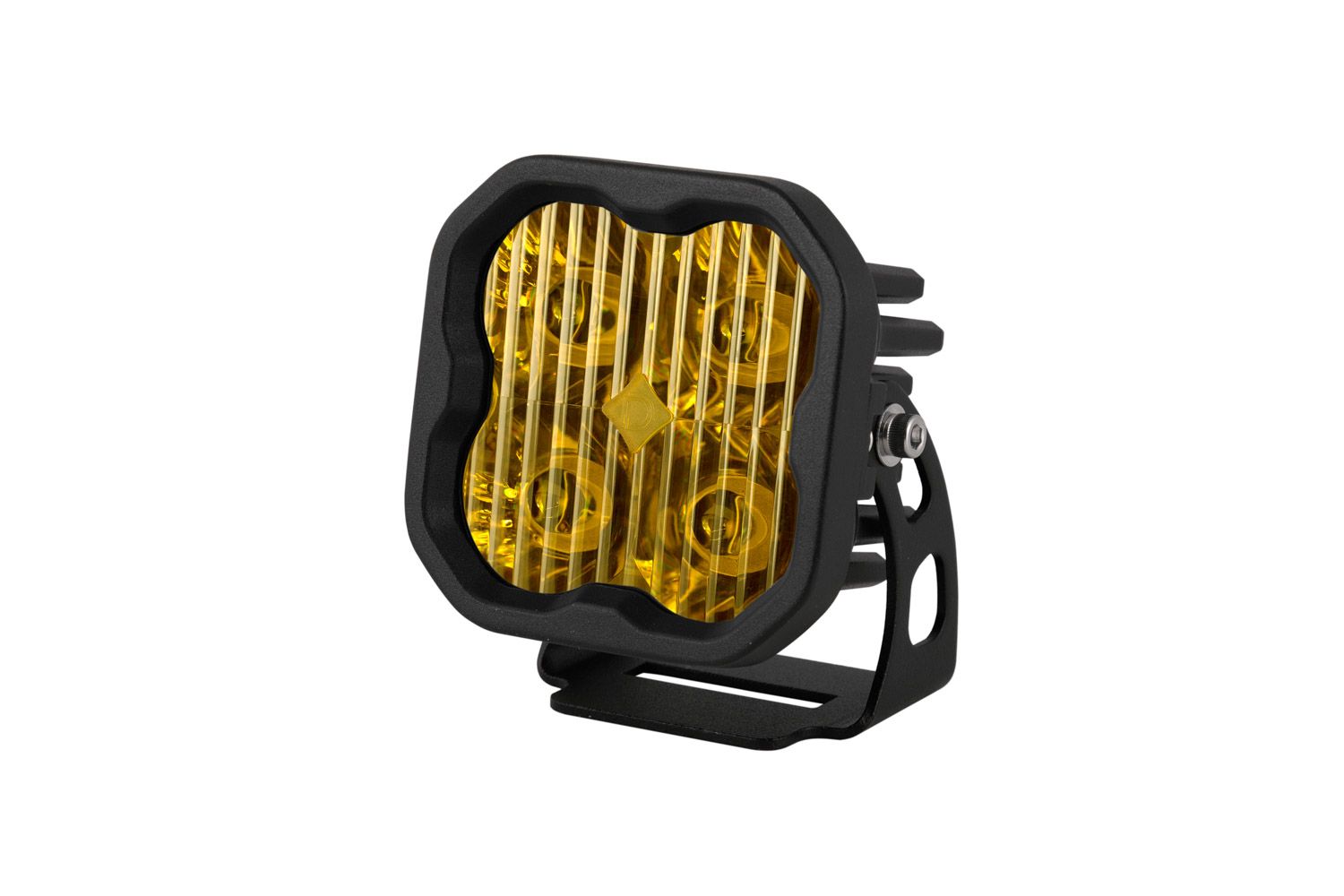

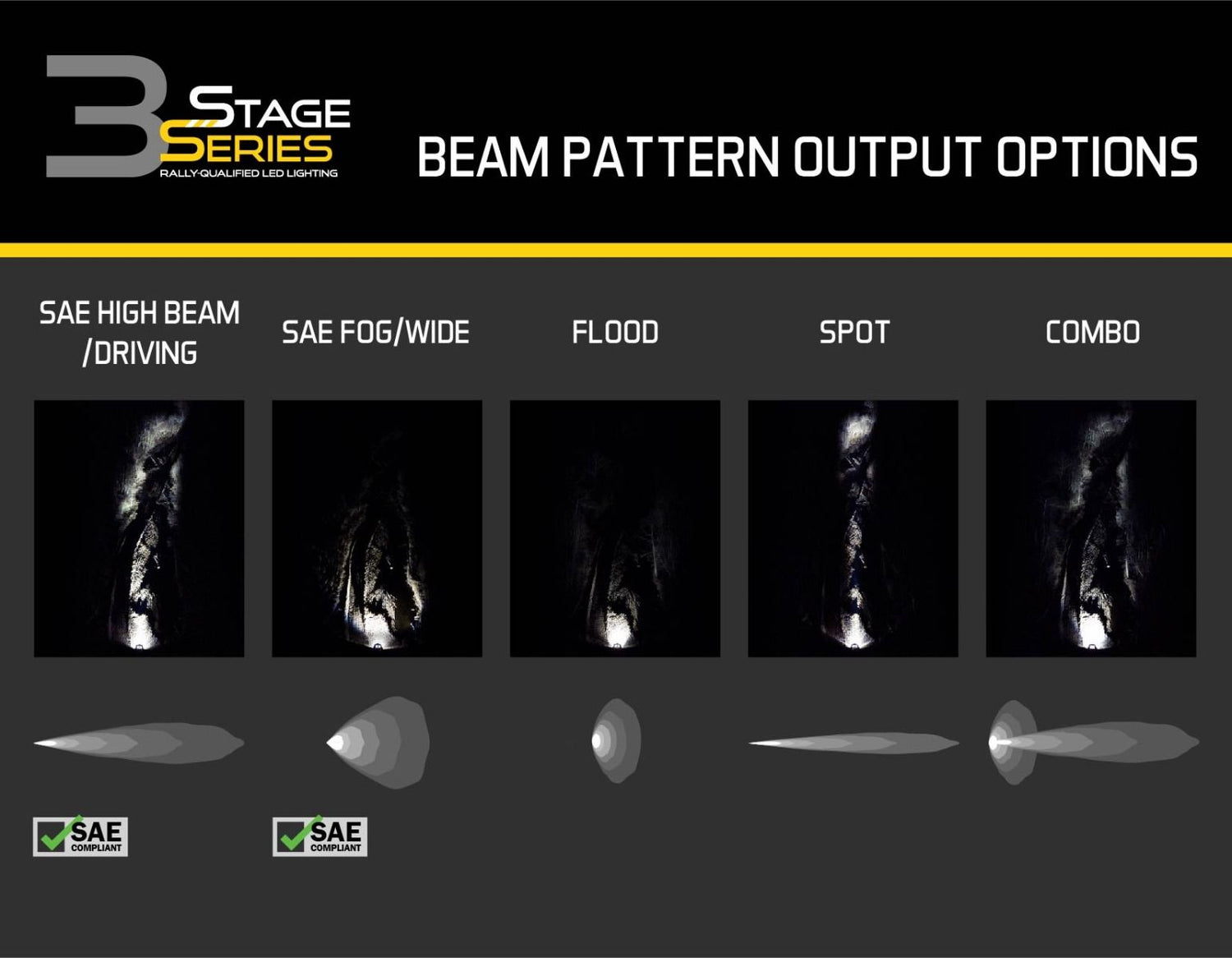

Available in SAE Driving, SAE Fog, Flood, Combo/Driving, or Spot beam patterns
Durable powdercoated aluminum construction
Integrated Deutsch-style connector
Made in USA with global materials.
Description

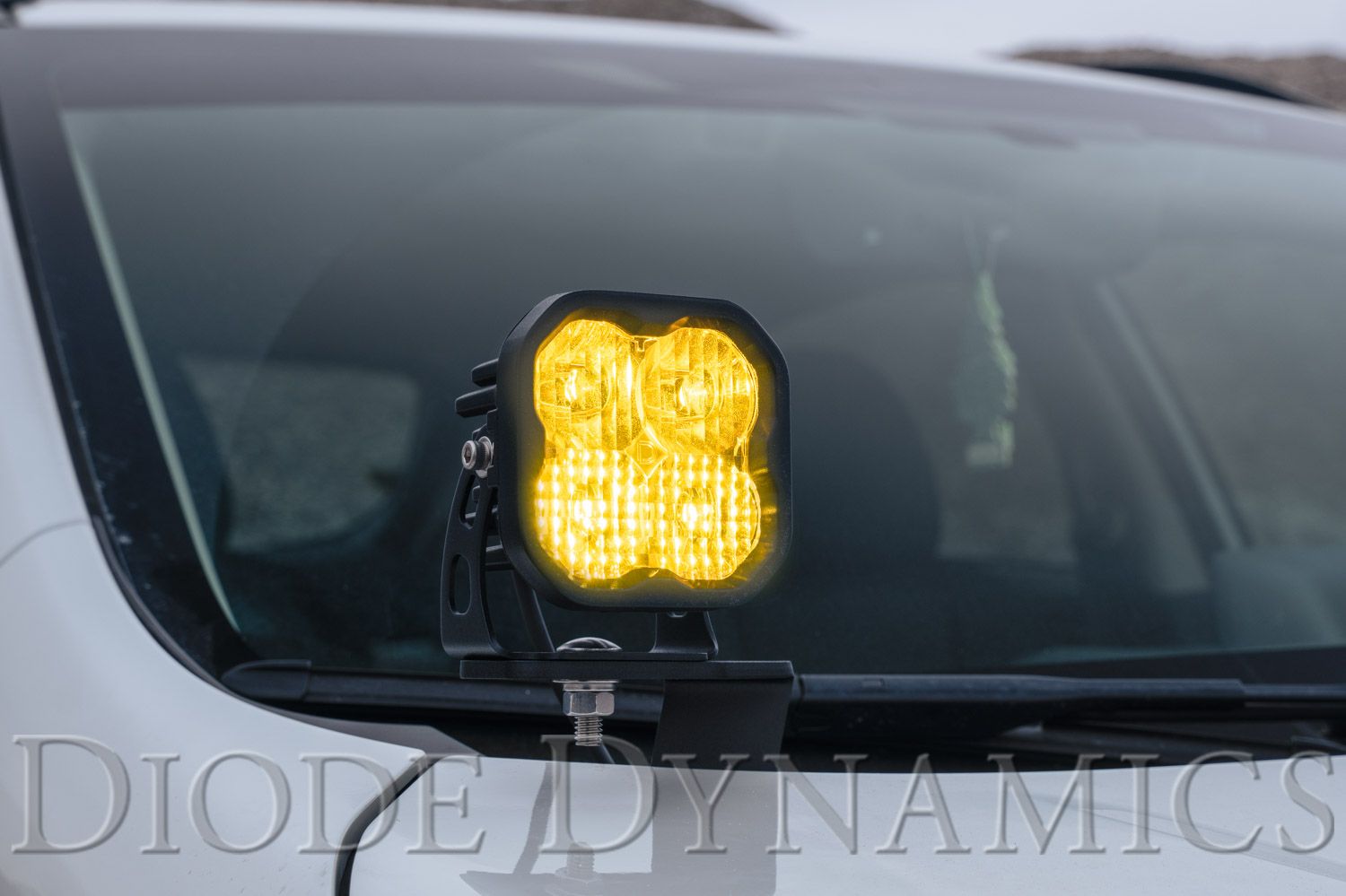

The Diode Dynamics SS3 Sport LED Pod is a compact, high-output lighting solution built for trucks, Jeeps, and UTVs that need serious illumination in a tough, versatile package. Whether you're mounting a pair up front, on the roof, or along the A-pillars, these pods punch well above their size class thanks to precision TIR optics that concentrate light exactly where you need it.

Beam pattern options cover the full range of off-road and work lighting needs — choose from Spot, Driving, Combo, Flood, SAE Fog, or Amber to dial in the right light for your application. Spot and Driving patterns throw light far down the trail or road ahead, Combo balances reach with width, Flood spreads light broadly for camp and work use, SAE Fog cuts through low-visibility conditions close to the ground, and Amber delivers a warm-toned output that reduces glare in dust, rain, or snow.

The SS3 Sport is built with a powder-coated aluminum housing and an integrated connector for clean, reliable wiring. If you want a step up in raw output, Diode Dynamics also offers this pod in Pro and Max tiers — but Sport delivers a capable, efficient light for everyday off-road and auxiliary use.

Documentation
